Lg GMBD040 40 mm Flexible Mesh Direct View LED
Lg GMBD040 40 mm Flexible Mesh Direct View LED
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Direct View LED Display with 40 mm pixel pitch
- Contrast Ratio 15,000:1 (@ 10 lux)
- IP66 Front / IP66 Back
- Brightness Peak 3,000 nits
- Lifetime up to 100,000 hours

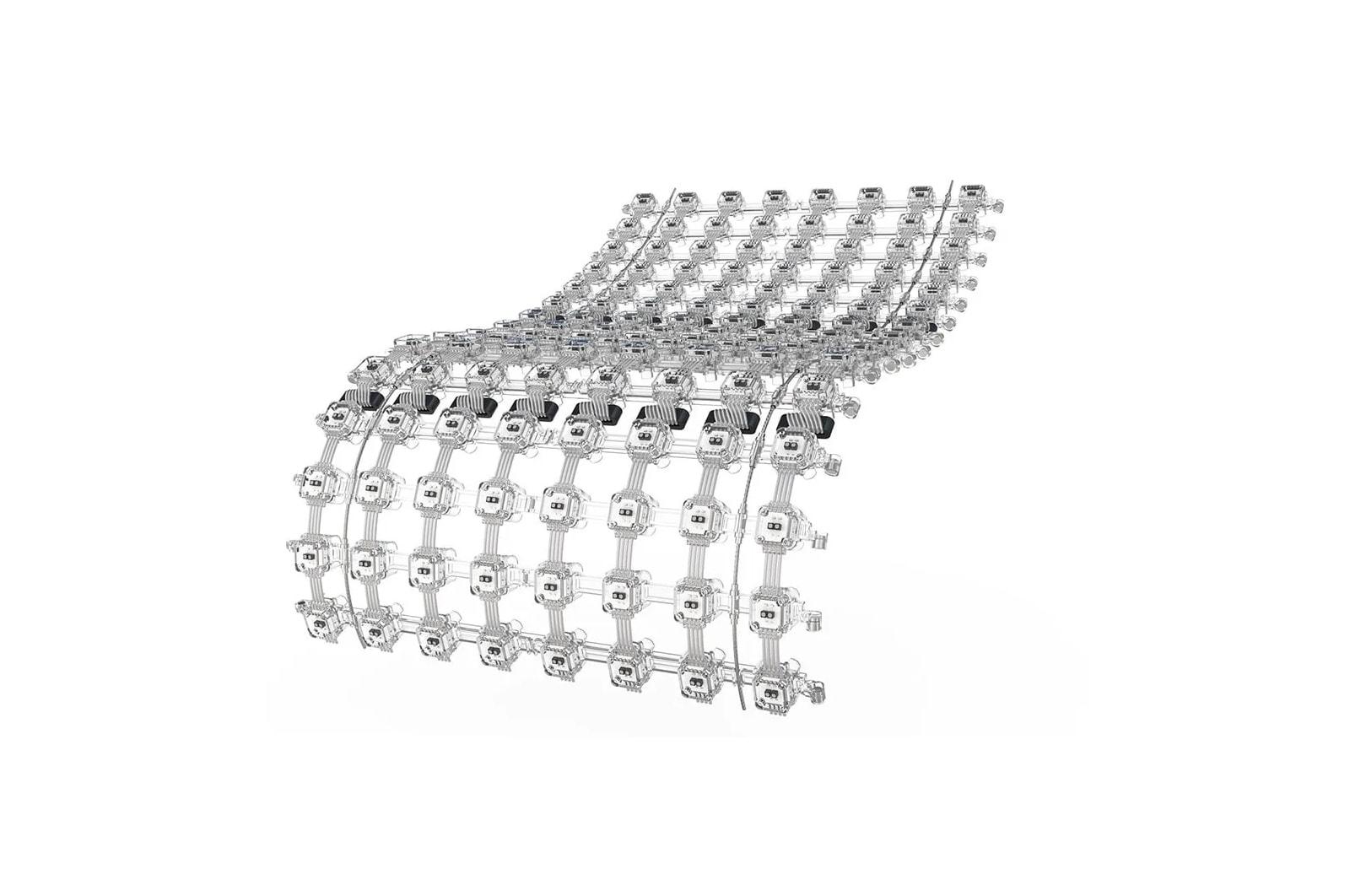

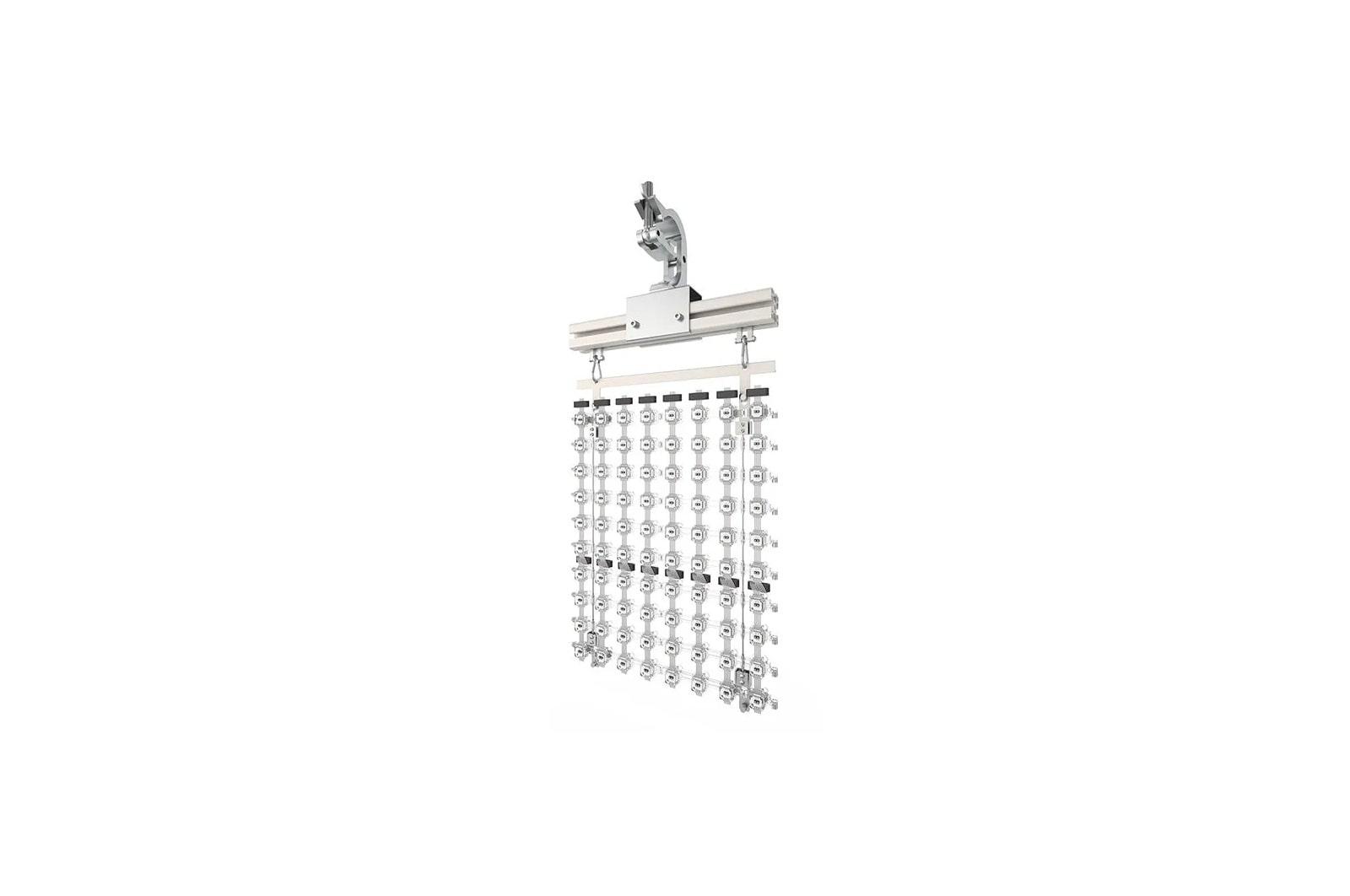

40 mm Flexible Mesh Direct View LED
| Physical Parameters | |

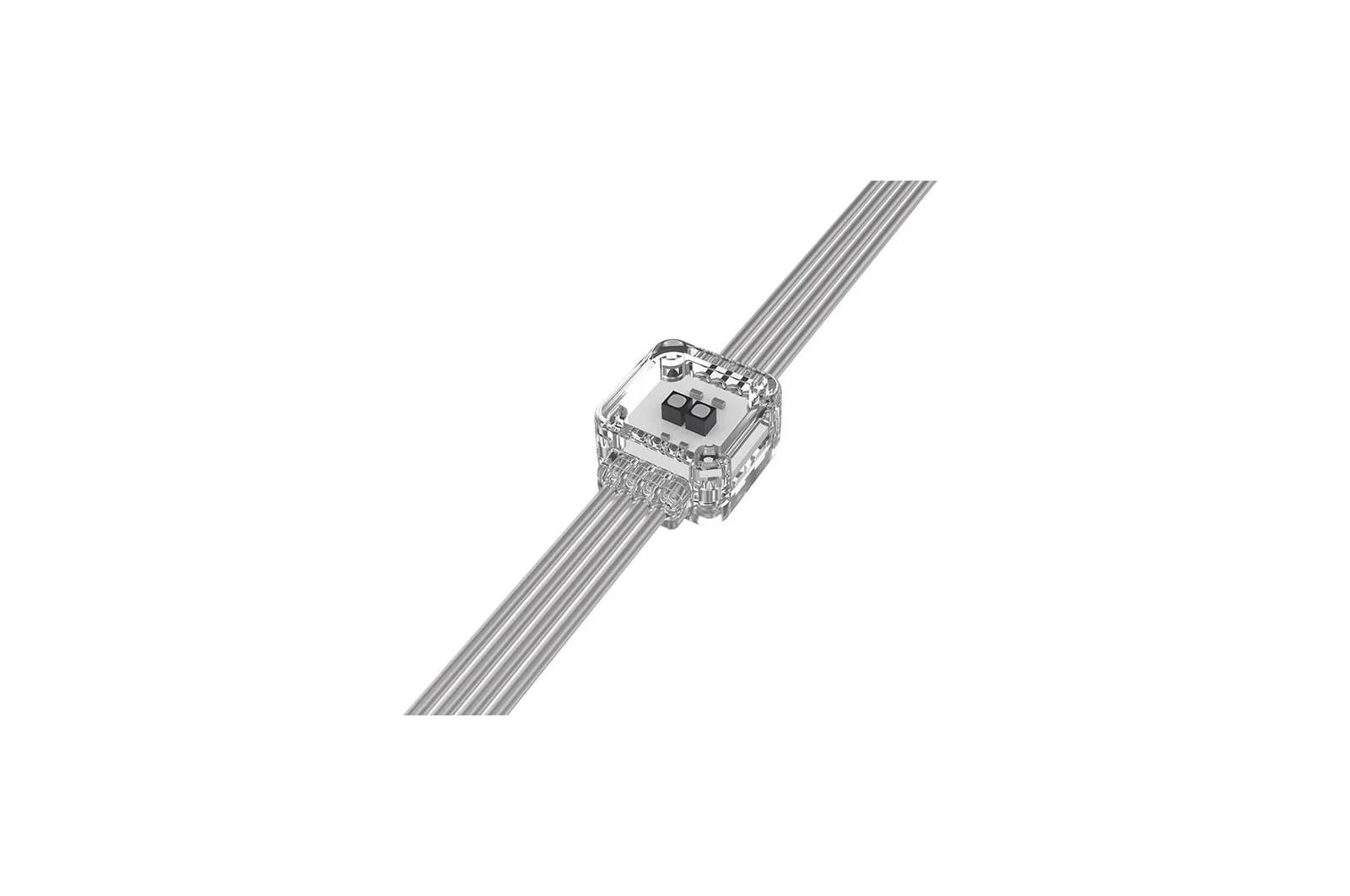

| LED Type | SMD 2727 x 2pcs |
| Pixel Pitch | 40 mm |
| Module Resolution (W x H) | 8 x 80 |
| Module Dimensions (W x H) | .71 x 126 in / 18 x 3,200 mm |
| Weight per Module | 1.2 lbs / 0.53 kg |
| Total Modules (per cabinet) | 8 |
| No. of Modules per Cabinet (W x H) | 1 x 8 |
| Cabinet Resolution (W x H) | 8 x 640 |
| Cabinet Dimensions (W x H x D) | 12.6 x 126 x .96 in / 320 x 3,200 x 24.5 mm |
| Cabinet Surface Area | 11.0 ft / 1.024 m |
| Weight per Cabinet | 14.7 lbs / 6.7 kg |
| Weight per Unit Area | 6.5 kg/ |
| Physical Pixel Density | 625 pixels/m |
| Flatness of Cabinet | N/A |
| Cabinet Material | Plastic body and silicon cable |
| Service Access | Front and Rear |
| 90 Degree Corner Cut | No |
| Curveable | Yes |
| Minimum Radius | N/A |
| Controller | CVBA |
| min viewing distance (5-7 mm per foot) | 200-280 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 2,000 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Max.) | 384W |
| Heat Dissipation per Cabinet (Avg.) | 437 BTU/hr |
| Power Consumption per Unit Area (Max.) | 375 W/m |
| Heat Dissipation per Unit Area (Max.) | 1,280 BTU/hr/m |
| Power Consumption per Cabinet (Avg.) | 128W |
| Heat Dissipation per Cabinet (Max.) | 1,310 BTU/hr |
| Optical | |
| Max. Brightness (After Calibration) | Up to 3,000 nits |
| Color Temperature | 18,000-25,000K |
| Brightness Uniformity | 90% |
| Color Uniformity | N/A |
| Contrast Ratio | 15,000:1 |
| Processing Depth | 12 bit |
| Visual Viewing Angle (H x V) | 120° x 120° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | No |
| KC | No |
| CB | Yes |
| REACH (Environmental) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| CCC | No |
| RoHS (Environmental) | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP66 |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| cTUVus | Yes |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP66 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -40° F to 140° F / -40° C to 60° C |
