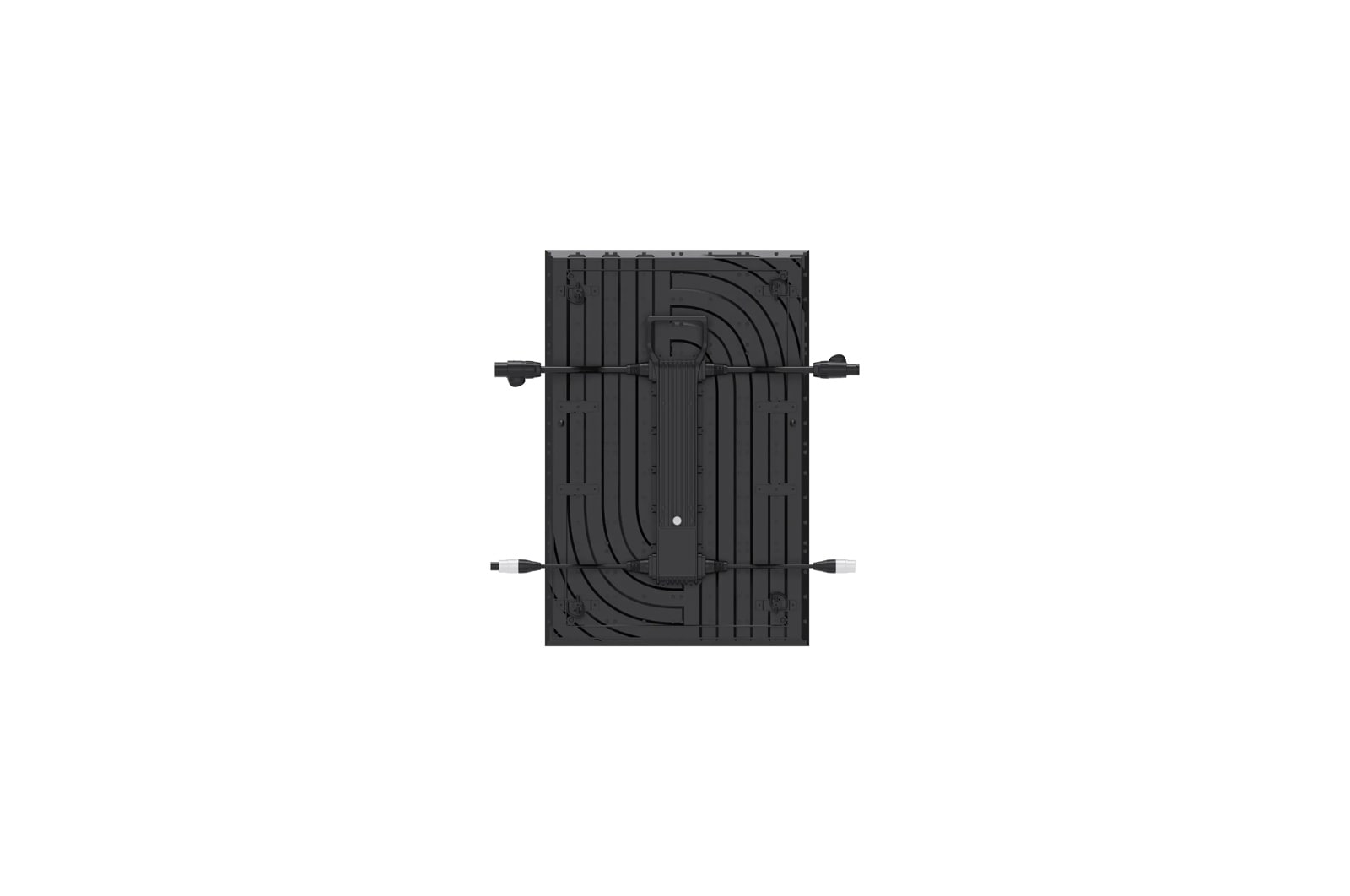

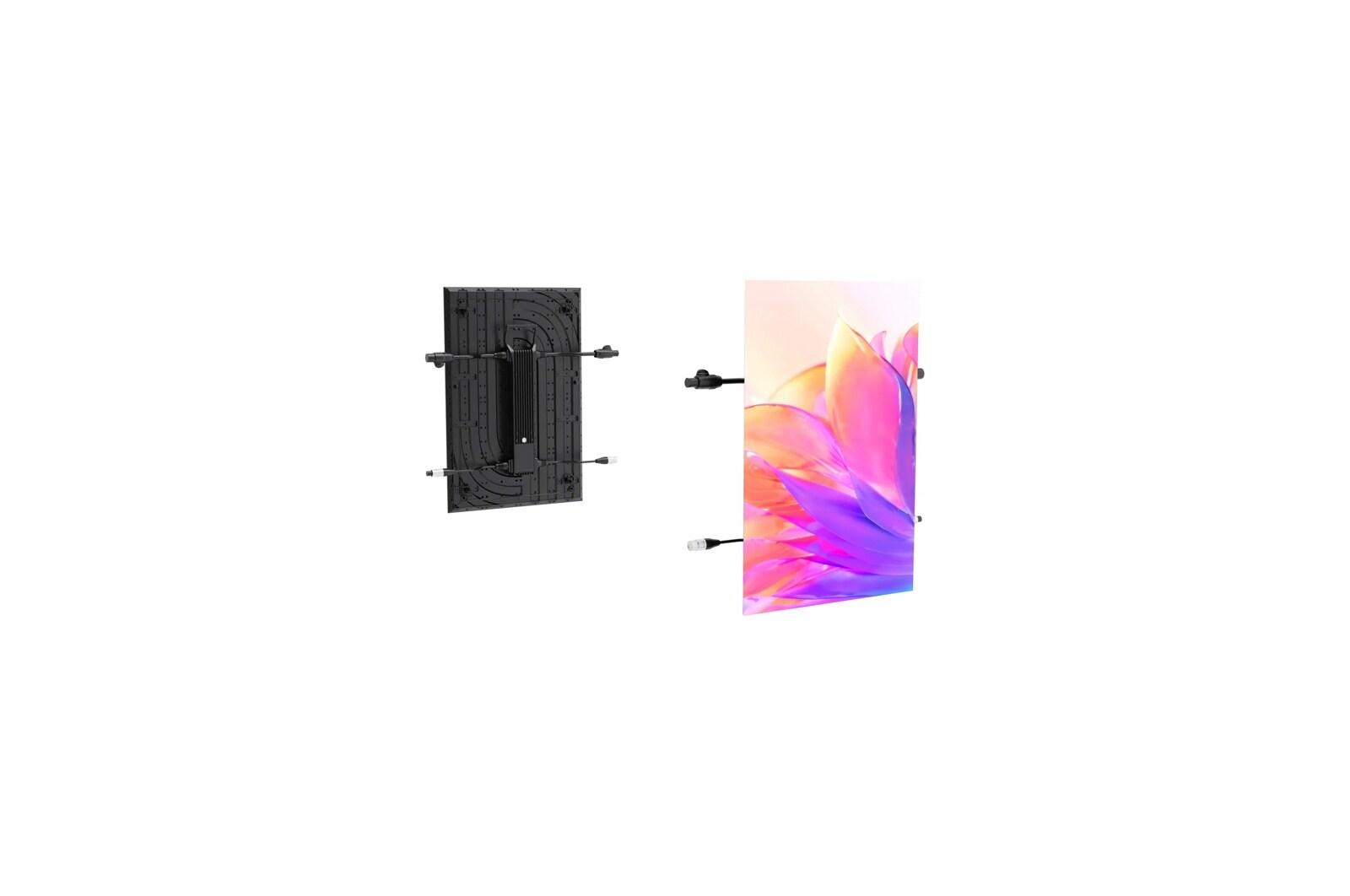

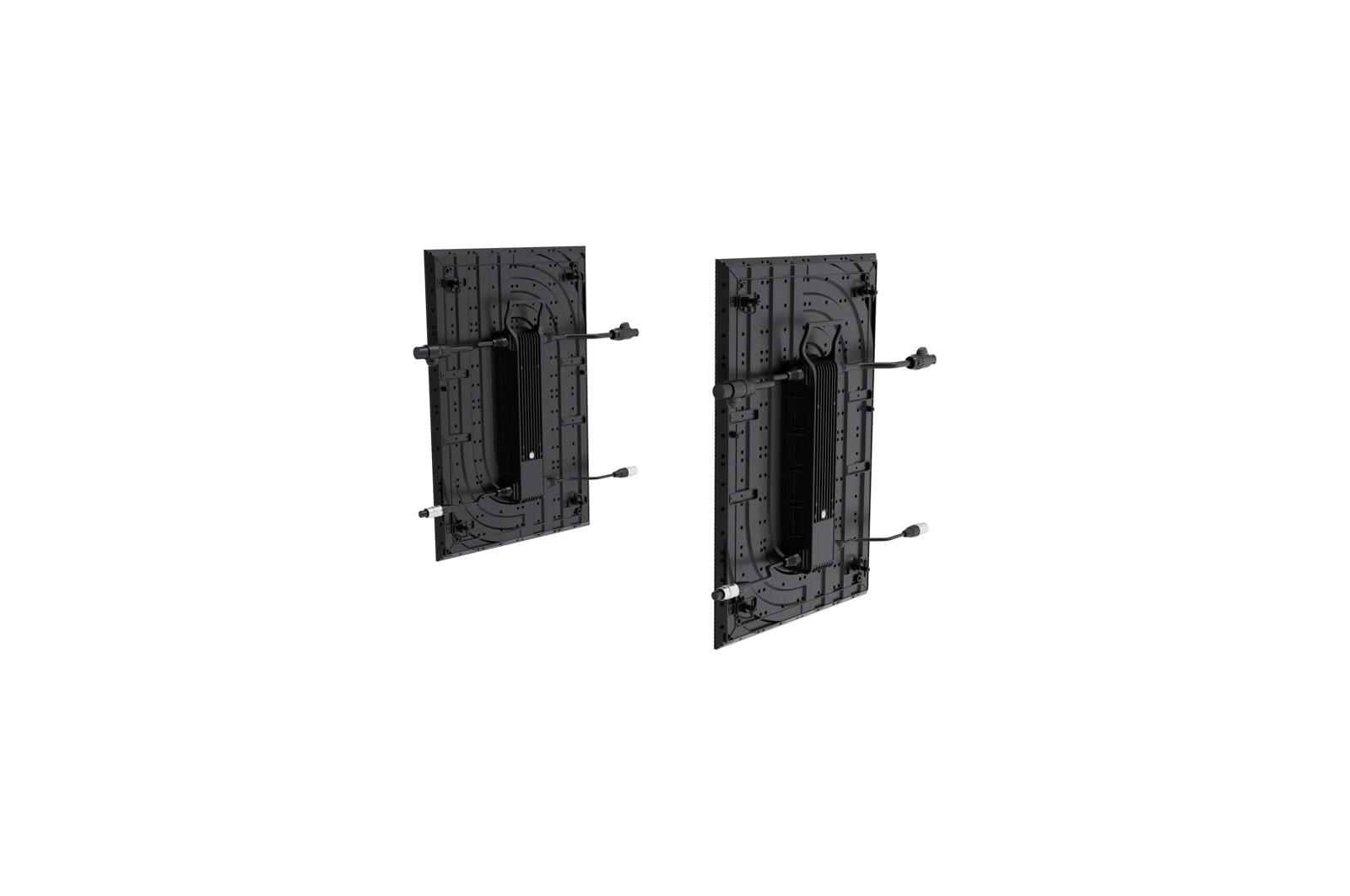

Lg GNPA062 6.25 mm GNPA Marine Grade Series Outdoor LED
Lg GNPA062 6.25 mm GNPA Marine Grade Series Outdoor LED
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 6.25 mm pixel pitch
- 6,000 nit brightness for stunning outdoor visuals

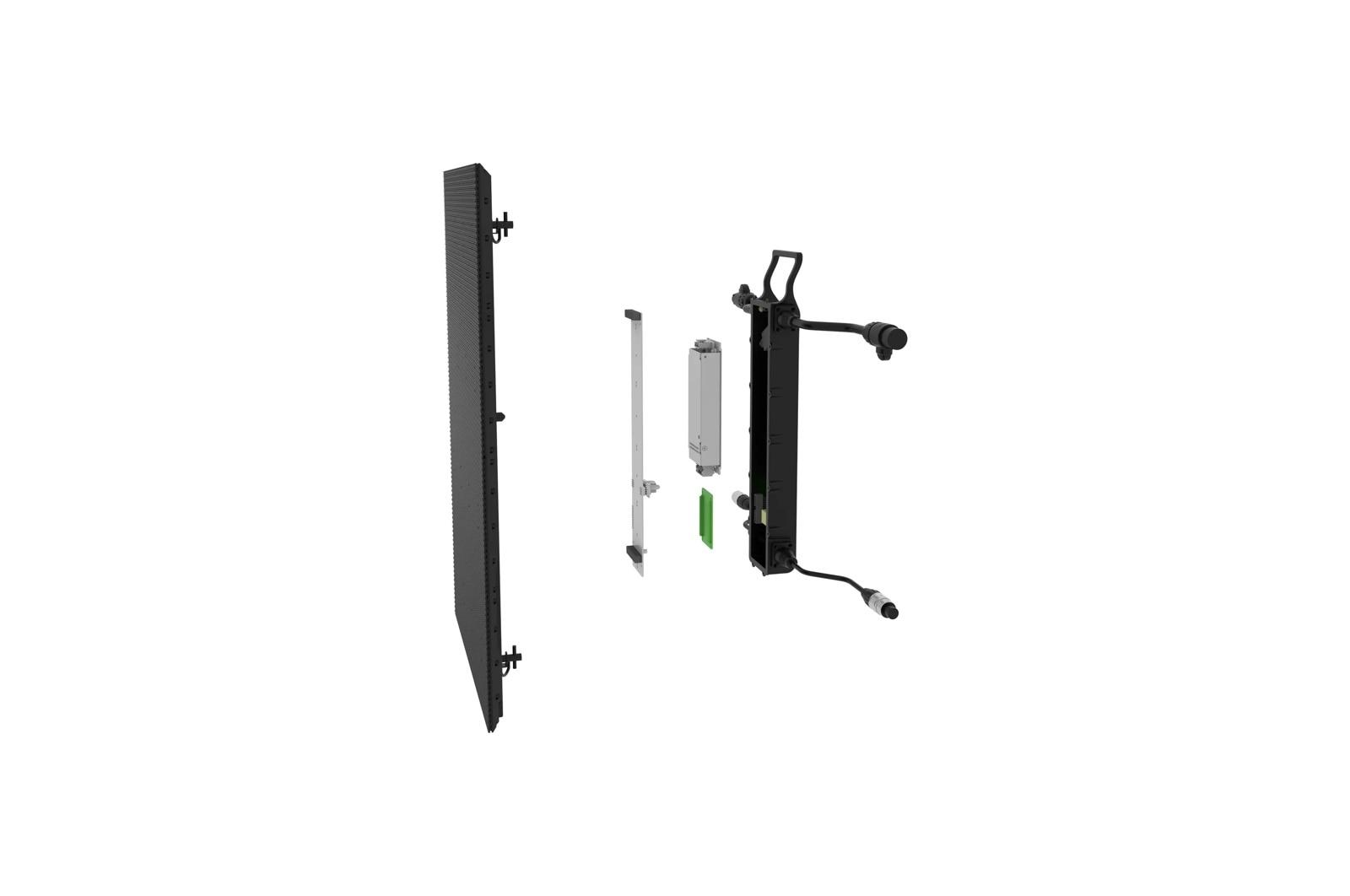

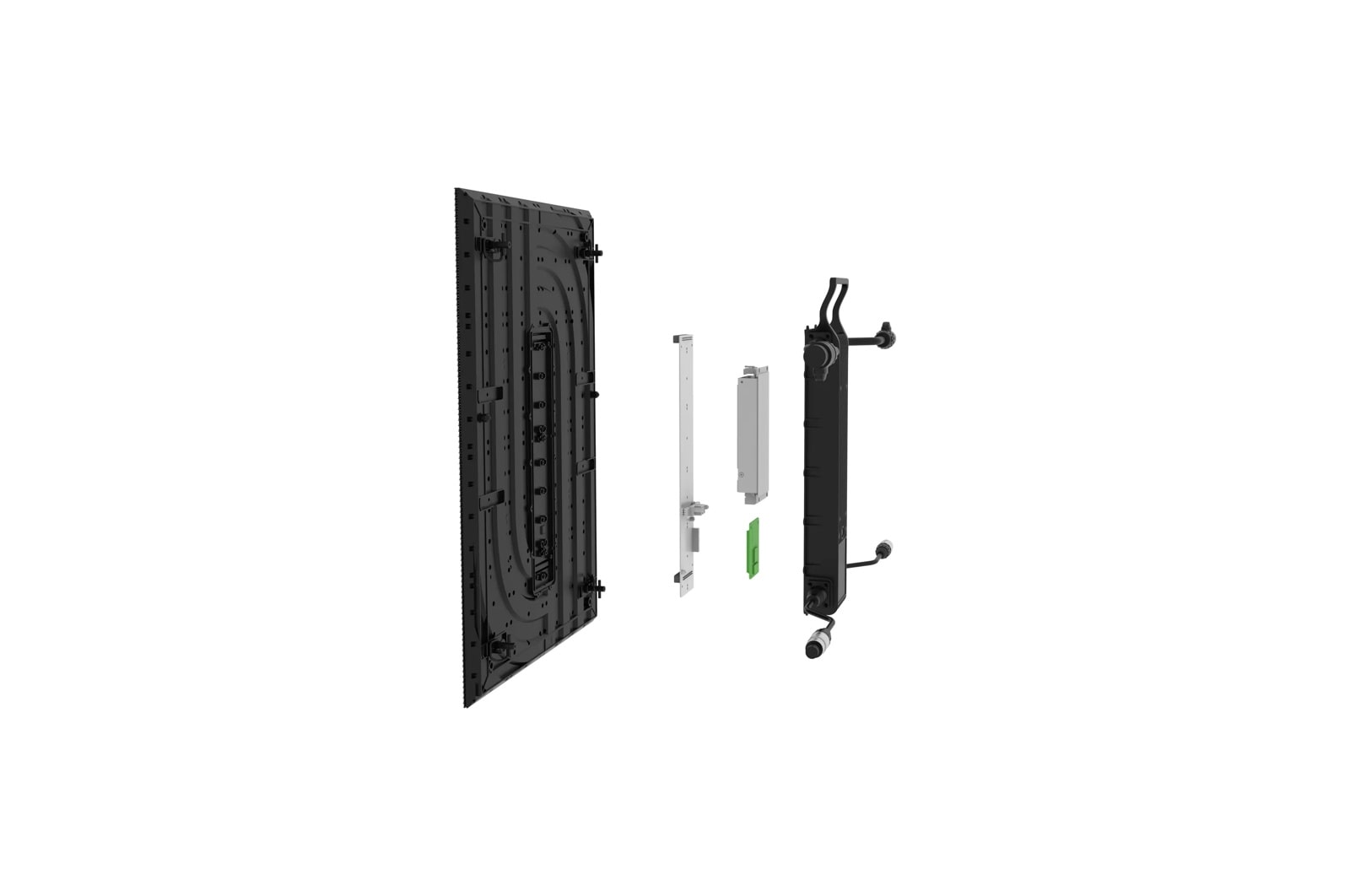

- Service smoothly with front and rear access
- IP67 rated, providing protection for marine environments
6.25 mm GNPA Marine Grade Series Outdoor LED
| Physical Parameters | |
| Pixel Pitch | 6.25 mm |
| Module Resolution (W x H) | 64 x 96 |
| Module Dimensions (W x H) | 15.74 x 23.62 in / 400 x 600 mm |
| Weight per Module | 10.14 lbs / 4.6 kg |
| No. of Modules per Cabinet (W x H) | 1 x 1 |
| Cabinet Resolution (W x H) | 64 x 96 |
| Cabinet Dimensions (W x H x D) | 15.74 x 23.62 2.28 in / 400 x 600 x 58mm |
| Cabinet Surface Area | 0.24 |
| Weight per Cabinet | 4.6kg/unit |
| Weight per Unit Area | 19kg/ |
| Flatness of Cabinet | 0.1 mm |
| Cabinet Material | Aluminum |
| Service Access | Front or Rear |
| Controller | CVCA |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 7,680 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 48 W/Cabinet, Avg. |
| Power Consumption per Cabinet (Max.) | 145 W/Cabinet, Max. |
| Heat Dissipation per Cabinet (Avg.) | 164BTU/h/Cabinet, Avg. |
| Power Consumption per Unit Area (Max.) | 605 (W/ , Max.) |
| Heat Dissipation per Cabinet (Max.) | 495 BTU/h/Cabinet, Max. |
| Heat Dissipation per Unit Area (Max.) | 2,064 BTU/h/ , Max. |
| Optical | |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 10,000:1 |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 120° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| CE (Regulatory) | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Temperature | -22° F to 122° F / -30° C to 50° C |
