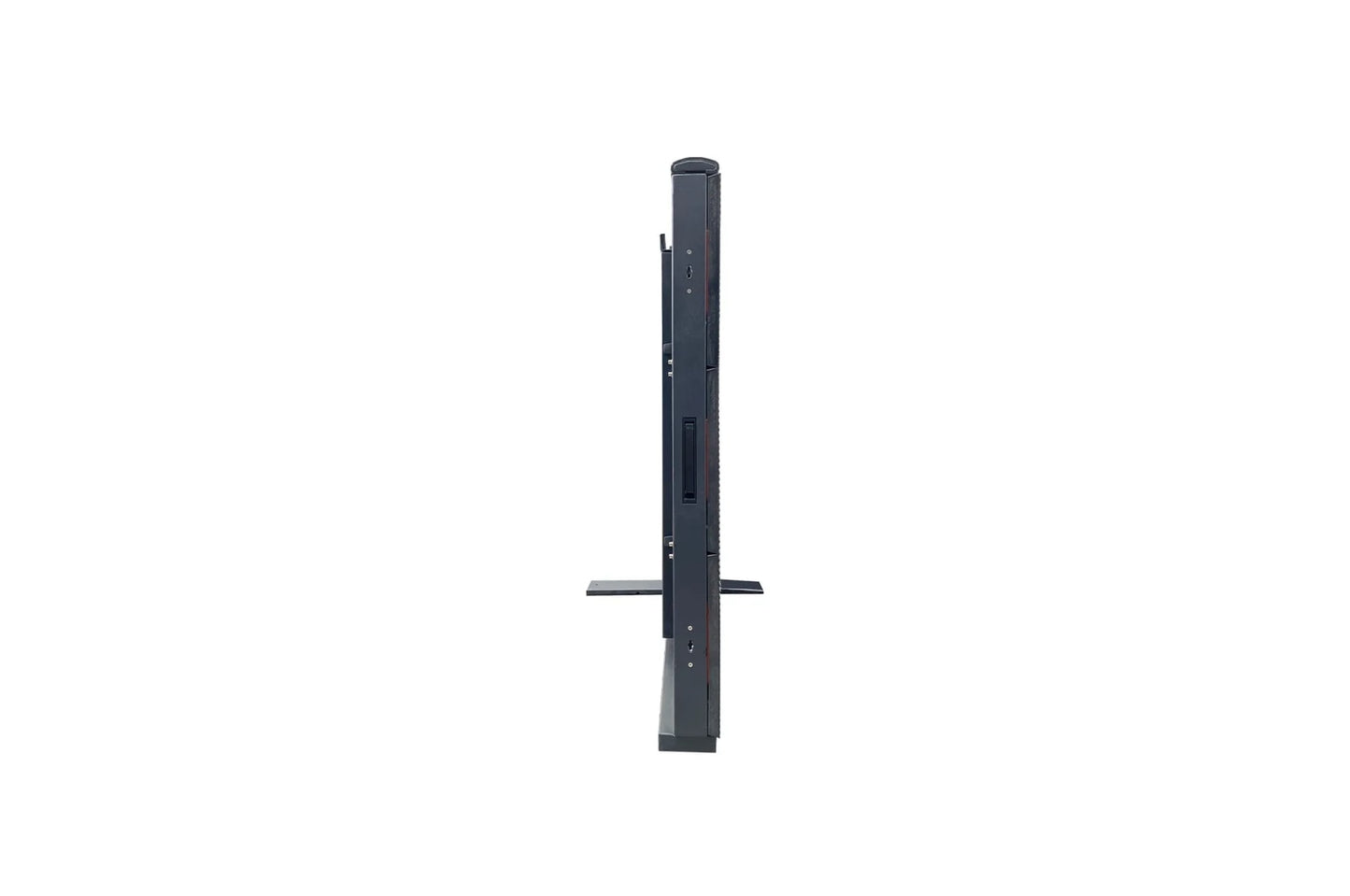

Lg GPPA062 6.25 mm GPPA Stadium Series Direct View LED with 6,000 nits Brightness,, and IP65 Rating
Lg GPPA062 6.25 mm GPPA Stadium Series Direct View LED with 6,000 nits Brightness,, and IP65 Rating
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 6.25 mm pixel pitch
- Brightness: 6,000 nits for outstanding visibility, rain or shine
- Front and rear access for streamlined service
- IP65 rated front and rear
6.25 mm GPPA Stadium Series Direct View LED with 6,000 nits Brightness,, and IP65 Rating
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 0.24 in / 6.25 mm |
| Module Resolution (W x H) | 64 x 48 |
| Module Dimensions (W x H) | 15.7 x 11.81 in / 400 x 300 mm |
| Weight per Module | 3.21 lbs / 1.46 kg |
| No. of Modules per Cabinet (W x H) | 4 x 3 |
| Cabinet Resolution (W x H) | 256 x 144 |
| Cabinet Dimensions (W x H x D) | 62.99 x 37.79 x 4.72 in / 1600 x 960 x 120 mm (Screen 1,600 x 900) |
| Cabinet Surface Area | 1.44 |
| Weight per Cabinet | 46 |
| Weight per Unit Area | 29.95 kg/ |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Aluminum |

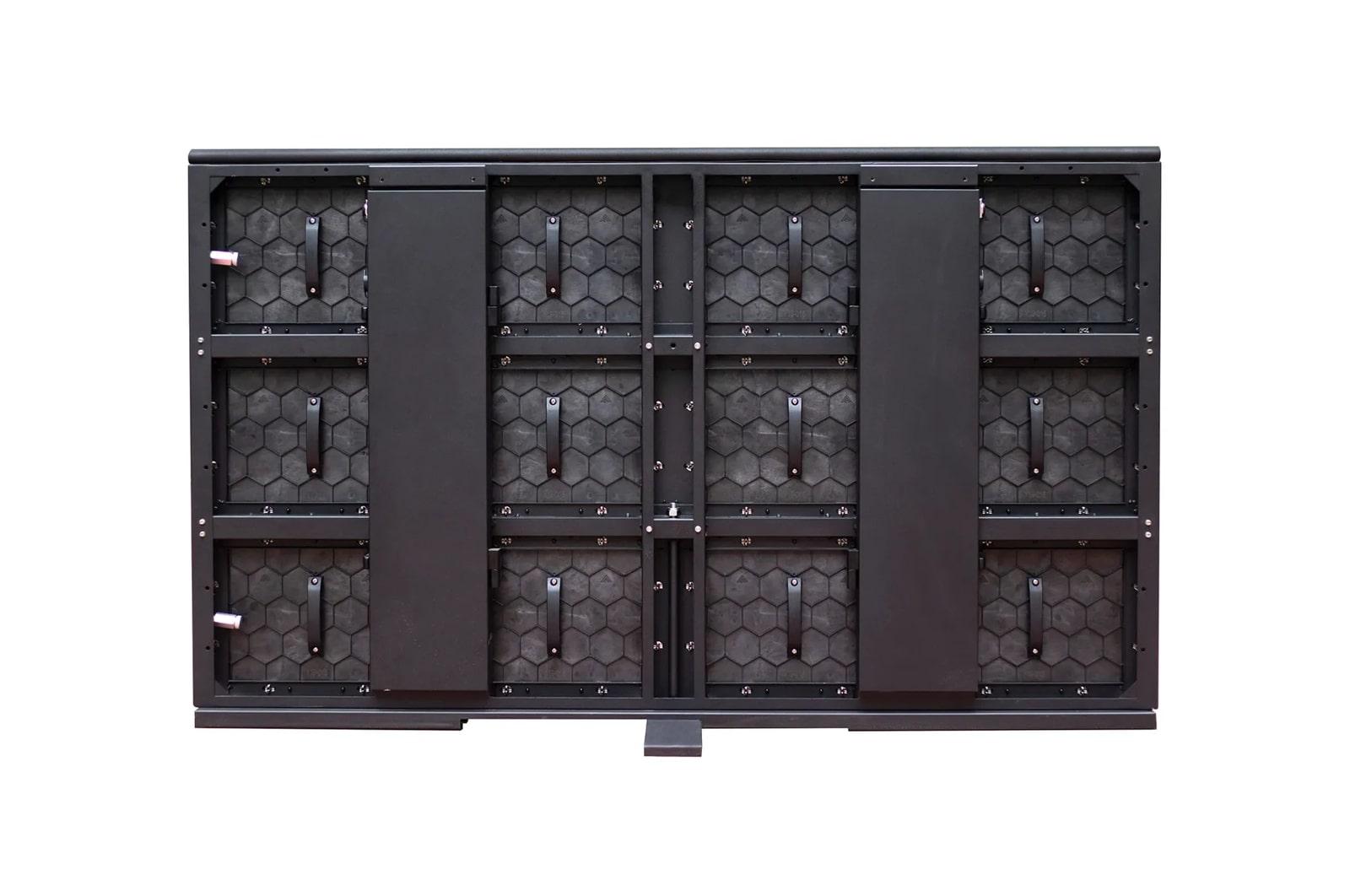

| Service Access | Front and Rear |
| 90 Degree Corner Cut | No |
| Controller | CVGA |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 7,680 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 360W |
| Power Consumption per Cabinet (Max.) | 1,080W |
| Heat Dissipation per Cabinet (Avg.) | 983 BTU/h/Cabinet |
| Power Consumption per Unit Area (Max.) | 750 W/ |
| Heat Dissipation per Cabinet (Max.) | 2,948 BTU/h/Cabinet |
| Heat Dissipation per Unit Area (Max.) | 2,048 BTU/h/ |
| Optical | |
| Max. Brightness (After Calibration) | 6,000 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 6,000:1 |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 120° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| CB | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP65 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| EN13501-1 | Yes |
| BS476 Part7 (UK Fire Rating) | Class 1 |
| CE (Regulatory) | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -4° F to 104° F / -20° C to 40° C |
