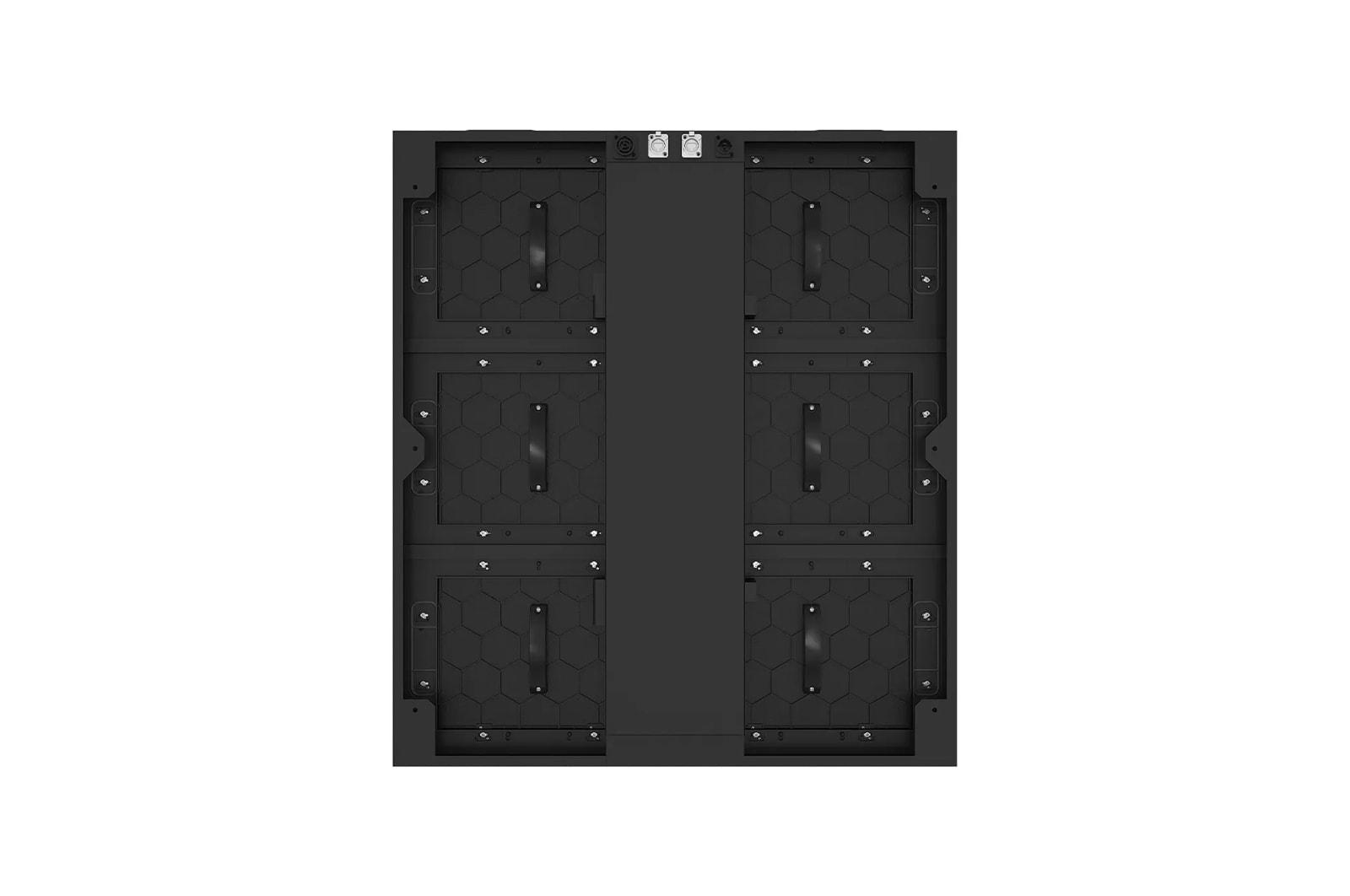

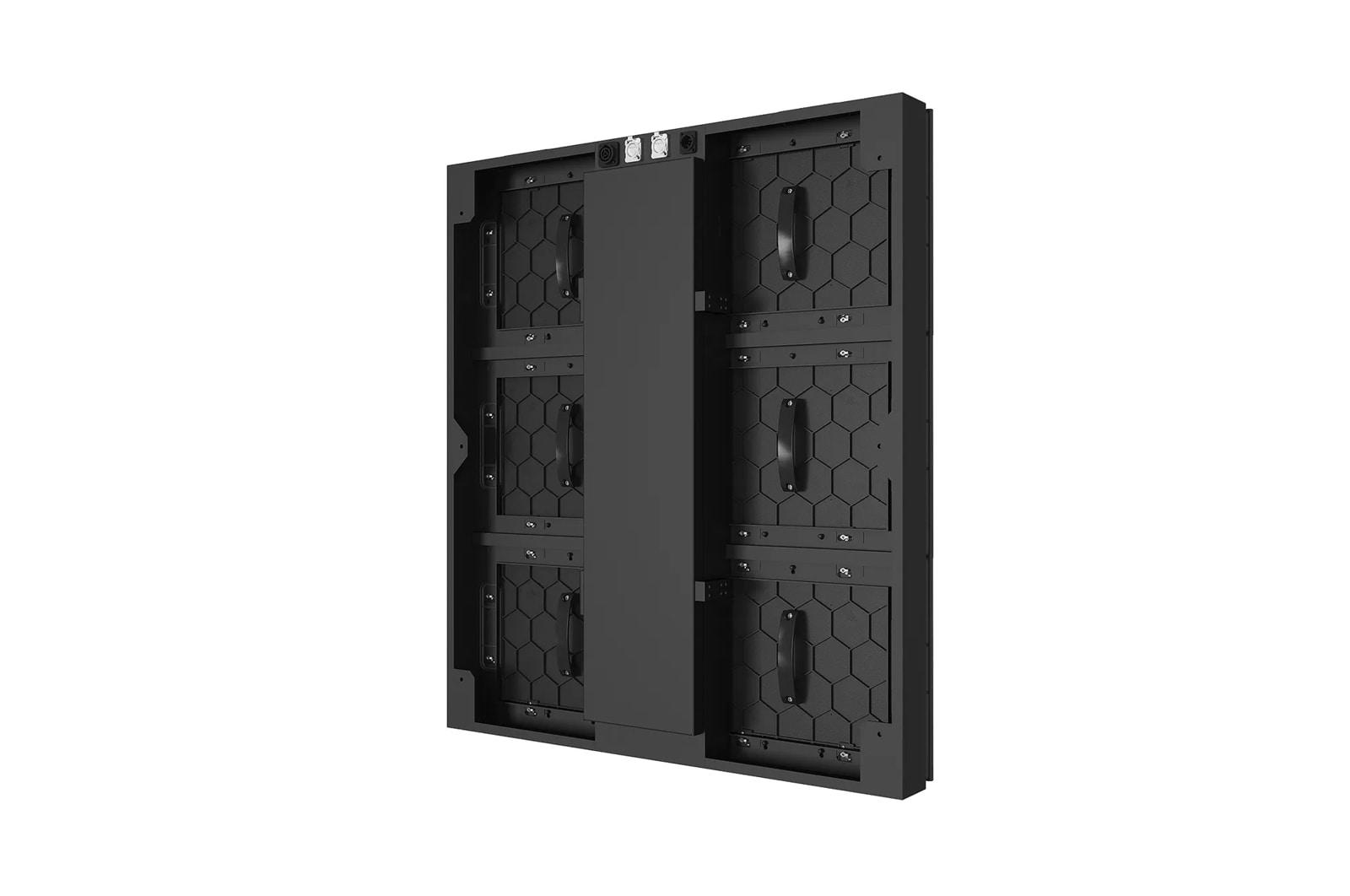

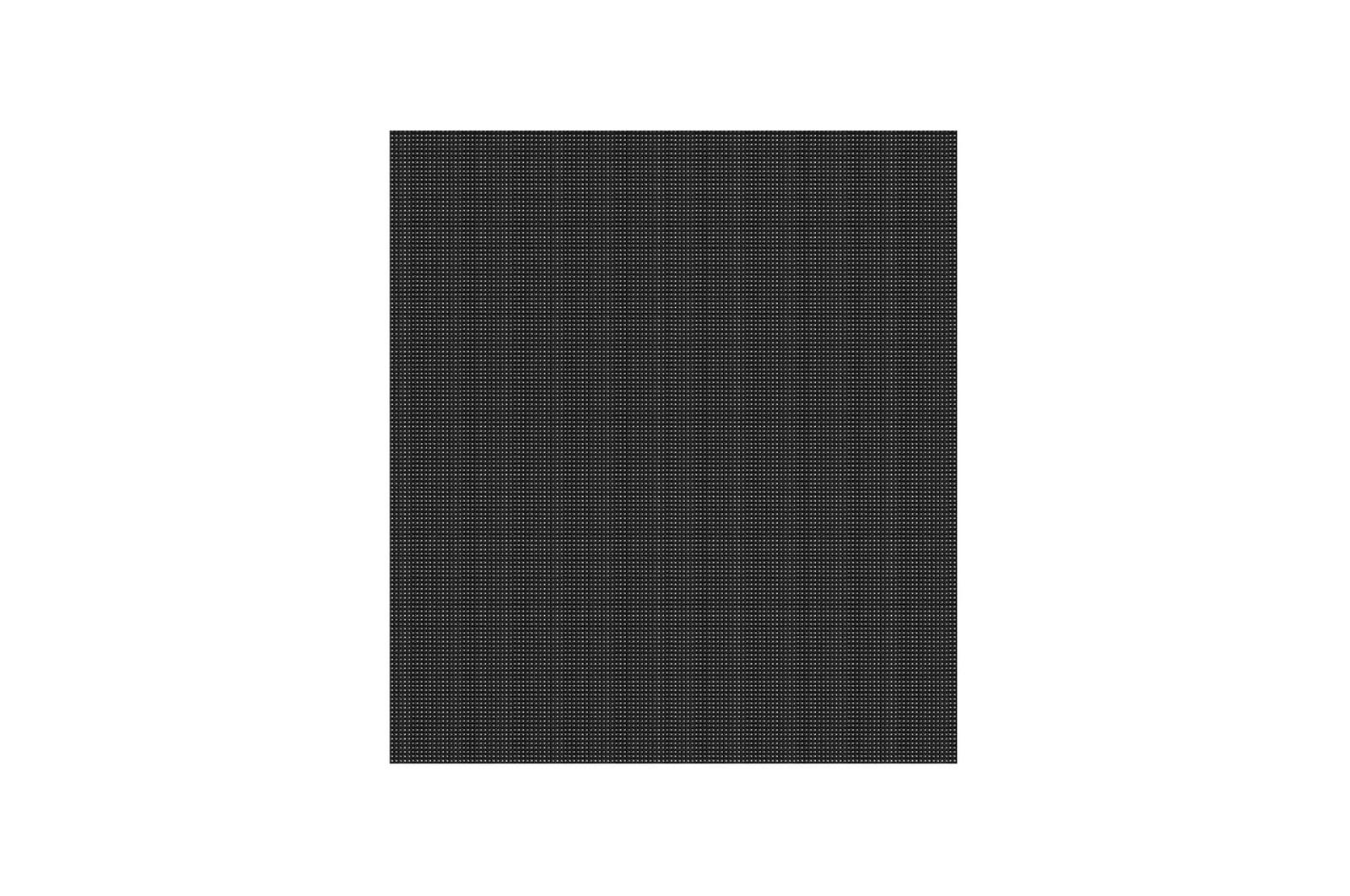

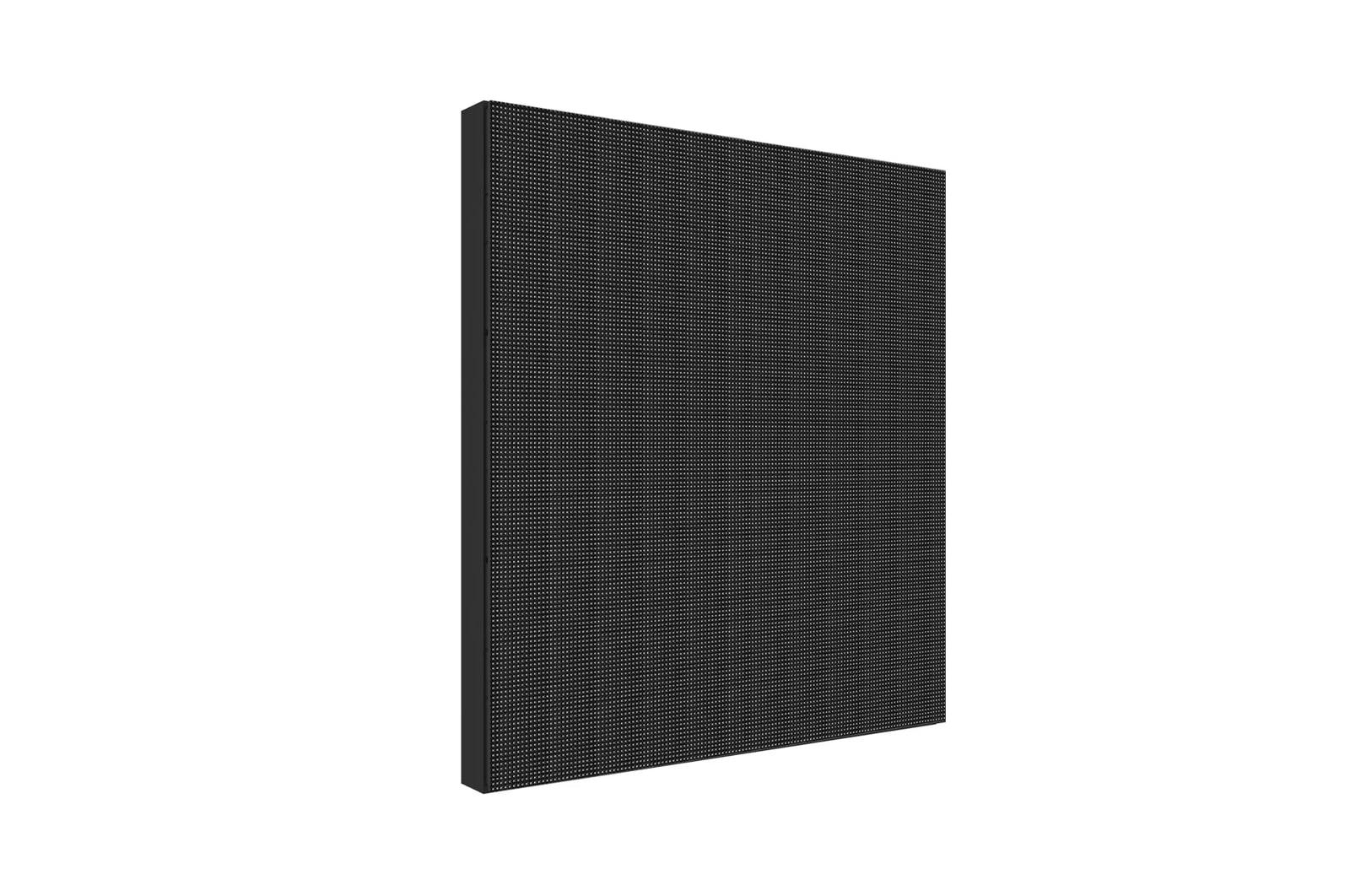

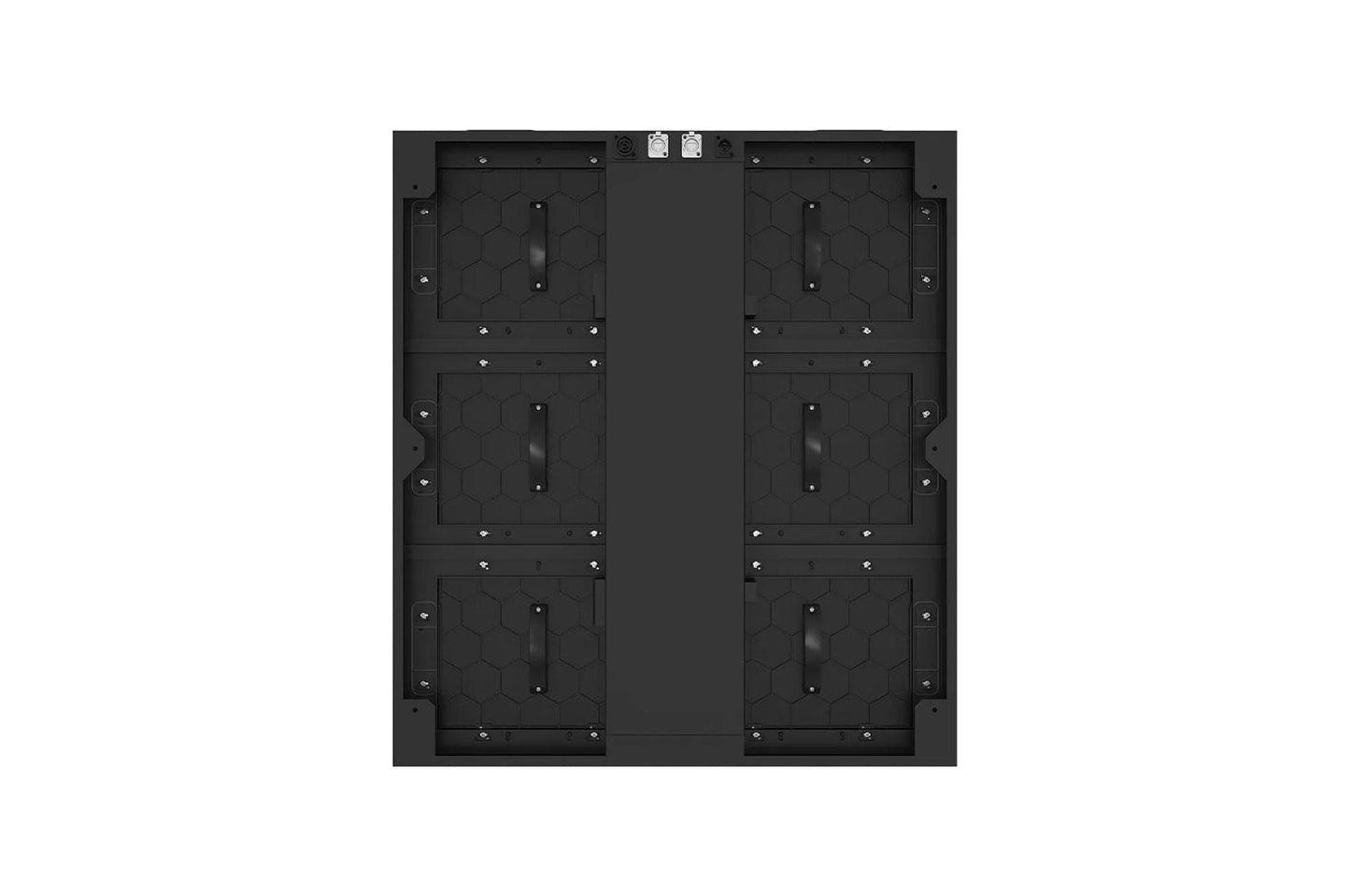

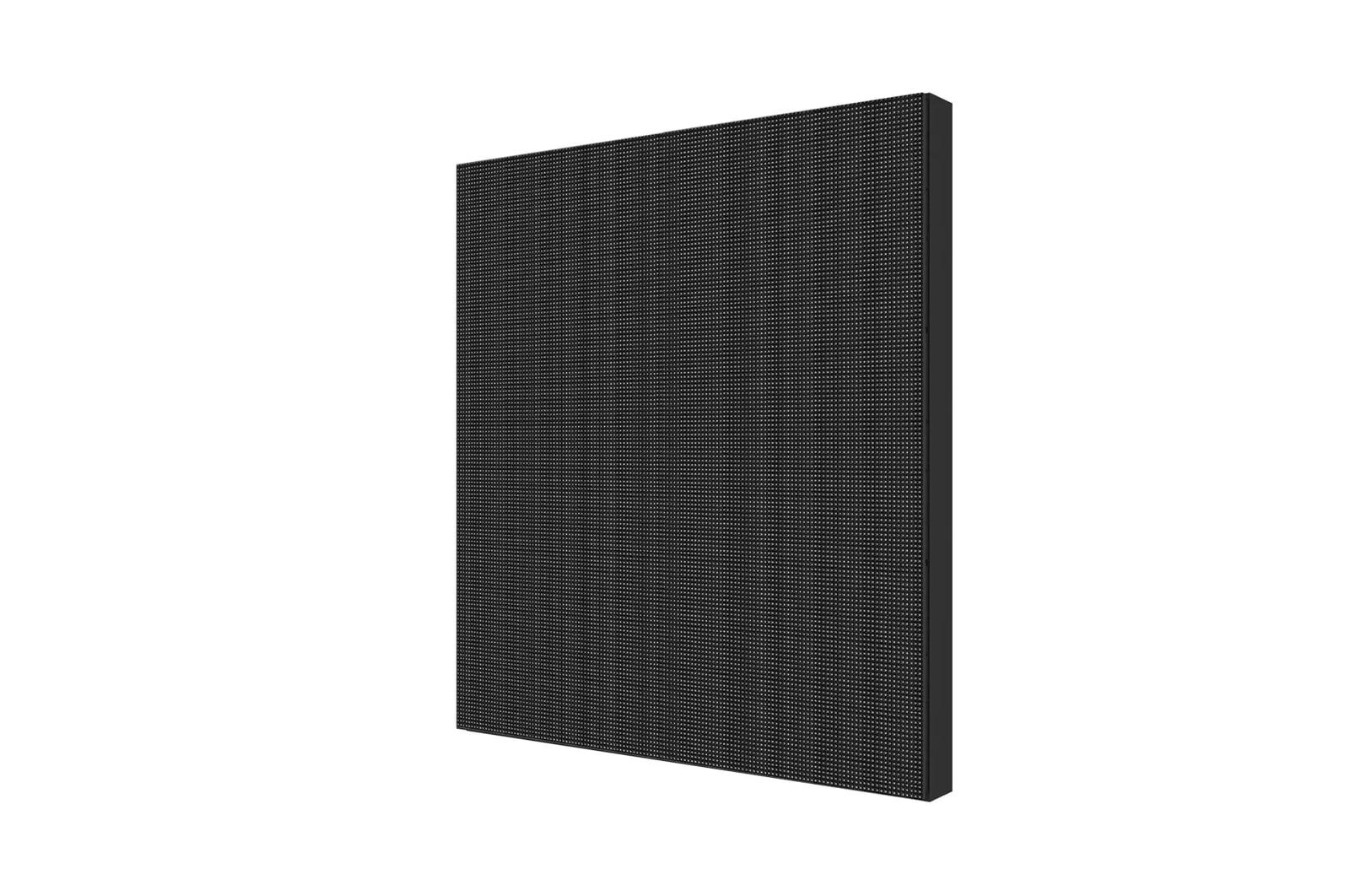

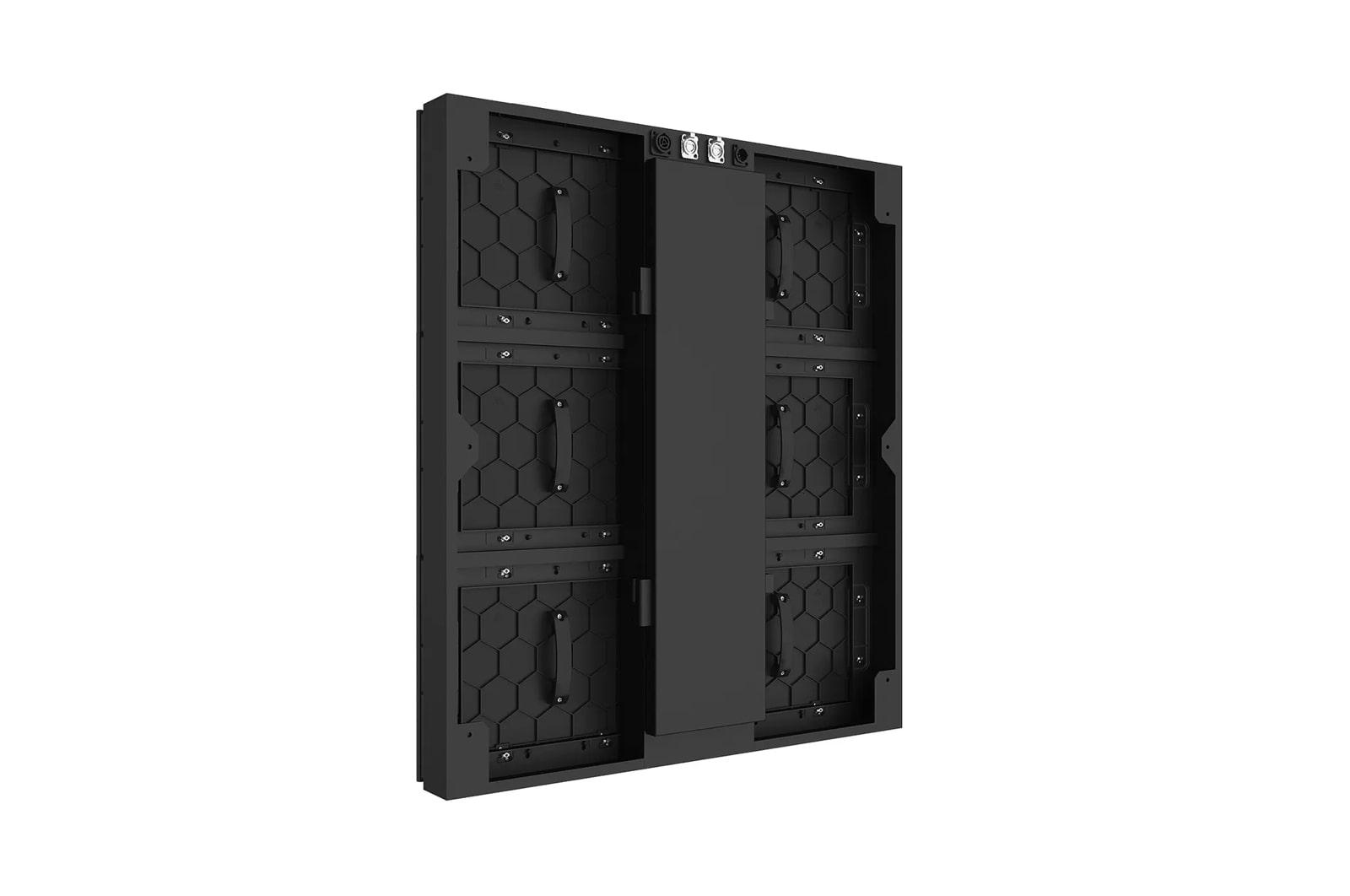

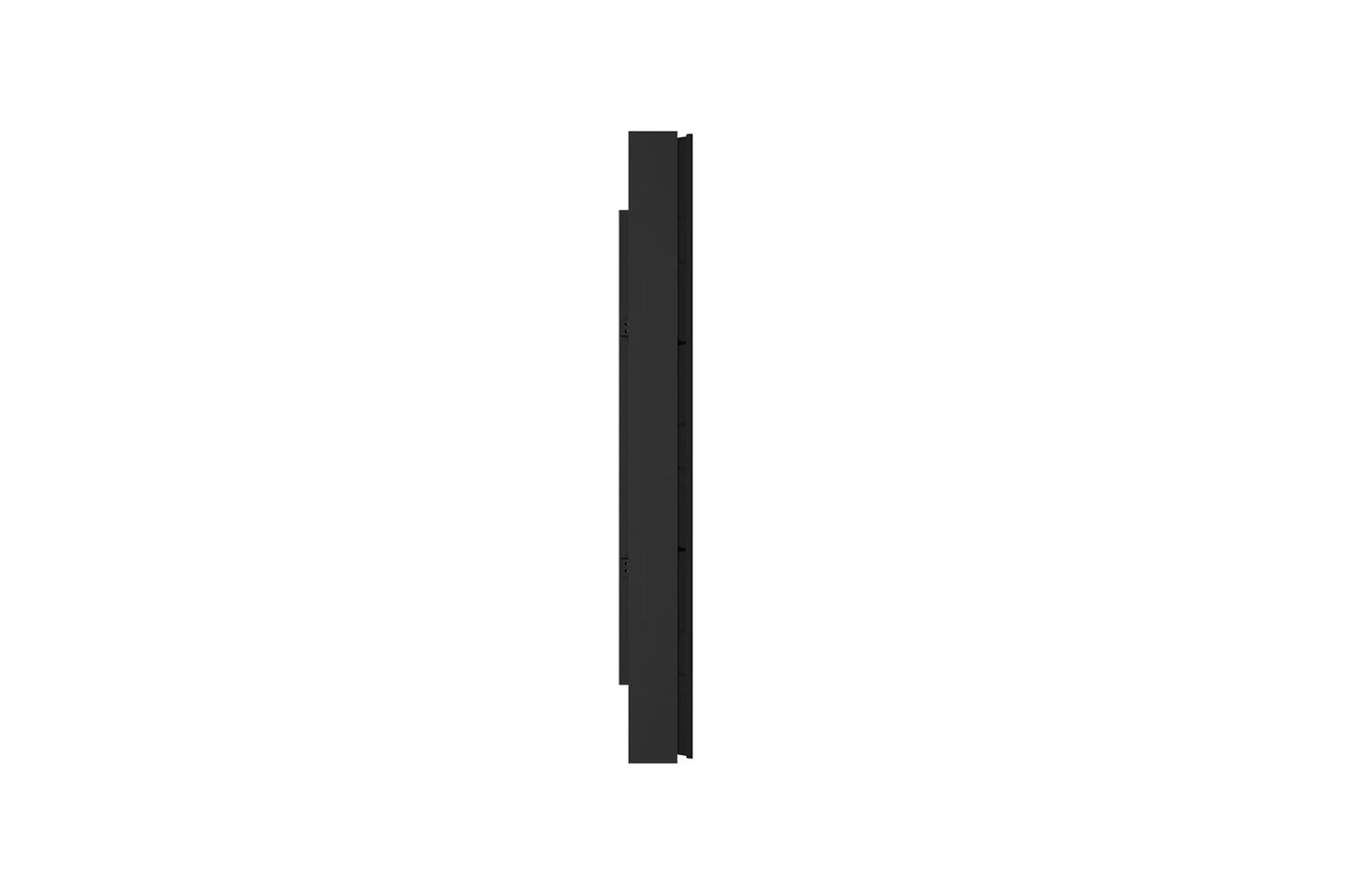

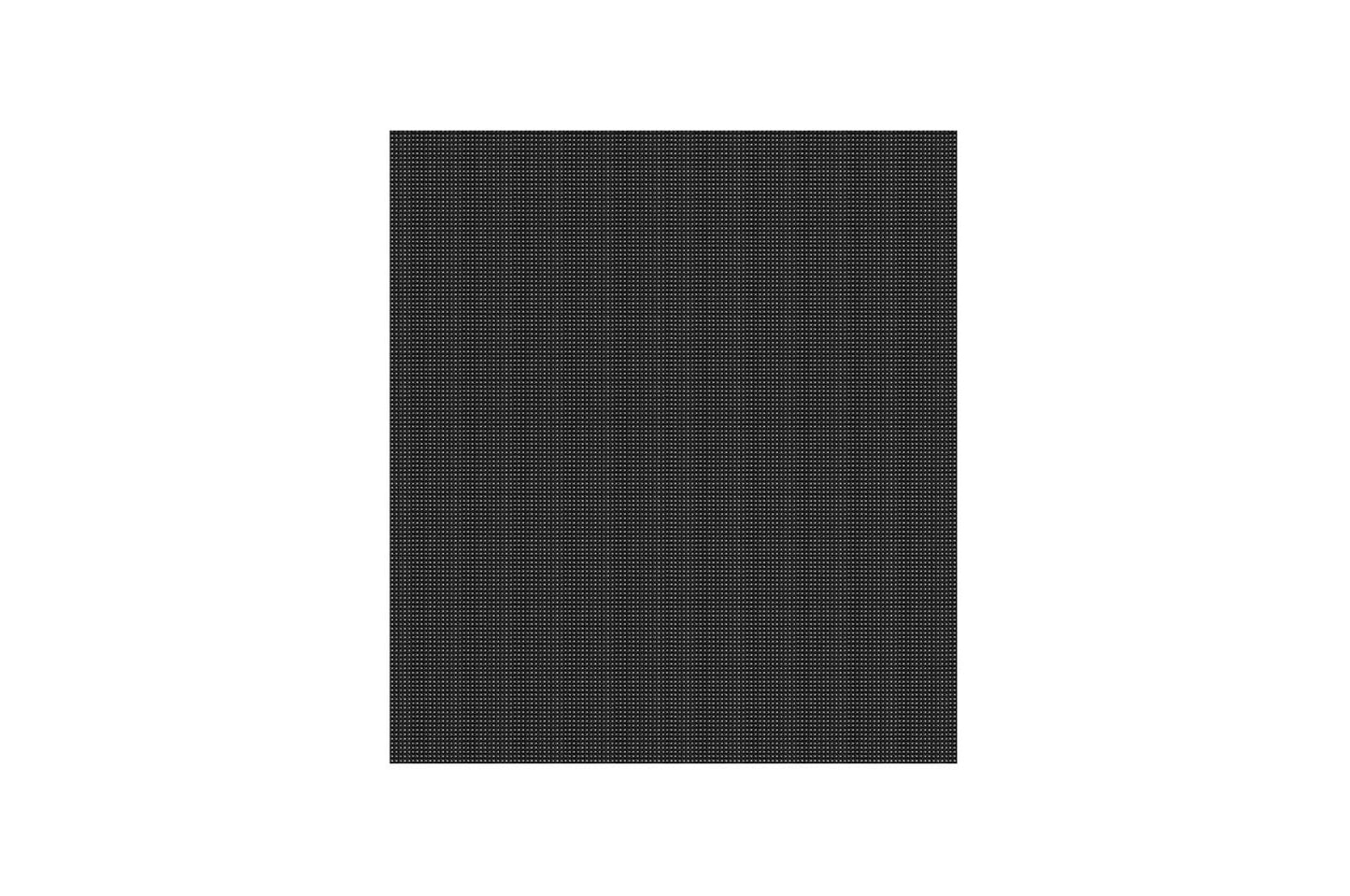

Lg GRPA062 6.25 mm GRPA Stadium Series Ribbon Outdoor LED with 6,000 nits Brightness, and IP65 Rating
Lg GRPA062 6.25 mm GRPA Stadium Series Ribbon Outdoor LED with 6,000 nits Brightness, and IP65 Rating
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 6.25 mm pixel pitch
- Excel in outdoor stadiums with 6,000 nits brightness
- Reduce maintenance with streamlined top-service access
- No rain delays for your displays with IP65 rating
6.25 mm GRPA Stadium Series Ribbon Outdoor LED with 6,000 nits Brightness, and IP65 Rating
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 0.24 in / 6.25 mm |
| Module Resolution (W x H) | 64 x 48 |
| Module Dimensions (W x H) | 15.74 X 11.81 in / 400 x 300 mm |
| Weight per Module | 3.21 lbs / 1.46 kg |
| No. of Modules per Cabinet (W x H) | 2 x 3 |
| Cabinet Resolution (W x H) | 128 x 144 |
| Cabinet Dimensions (W x H x D) | 31.49 x 37.79 x 4.72 in / 800 x 960 x 120 mm |
| Cabinet Surface Area | 0.72 |
| Weight per Cabinet | 20 |
| Weight per Unit Area | 22.5 |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Aluminum |
| Service Access | Top |
| Controller | CVGA |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 7,680 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 280 |
| Power Consumption per Cabinet (Max.) | 720 |
| Heat Dissipation per Cabinet (Avg.) | 765 |
| Power Consumption per Unit Area (Max.) | 750 |
| Heat Dissipation per Cabinet (Max.) | 1,966 |
| Heat Dissipation per Unit Area (Max.) | 2,048 |
| Optical | |
| Max. Brightness (After Calibration) | Up to 6,000 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 6,000:1 |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 120° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| CB | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP65 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| EN13501-1 | Yes |
| BS476 Part7 (UK Fire Rating) | Class 1 |
| CE (Regulatory) | Yes |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -4° F to 104° F / -20° C to 40° C |
