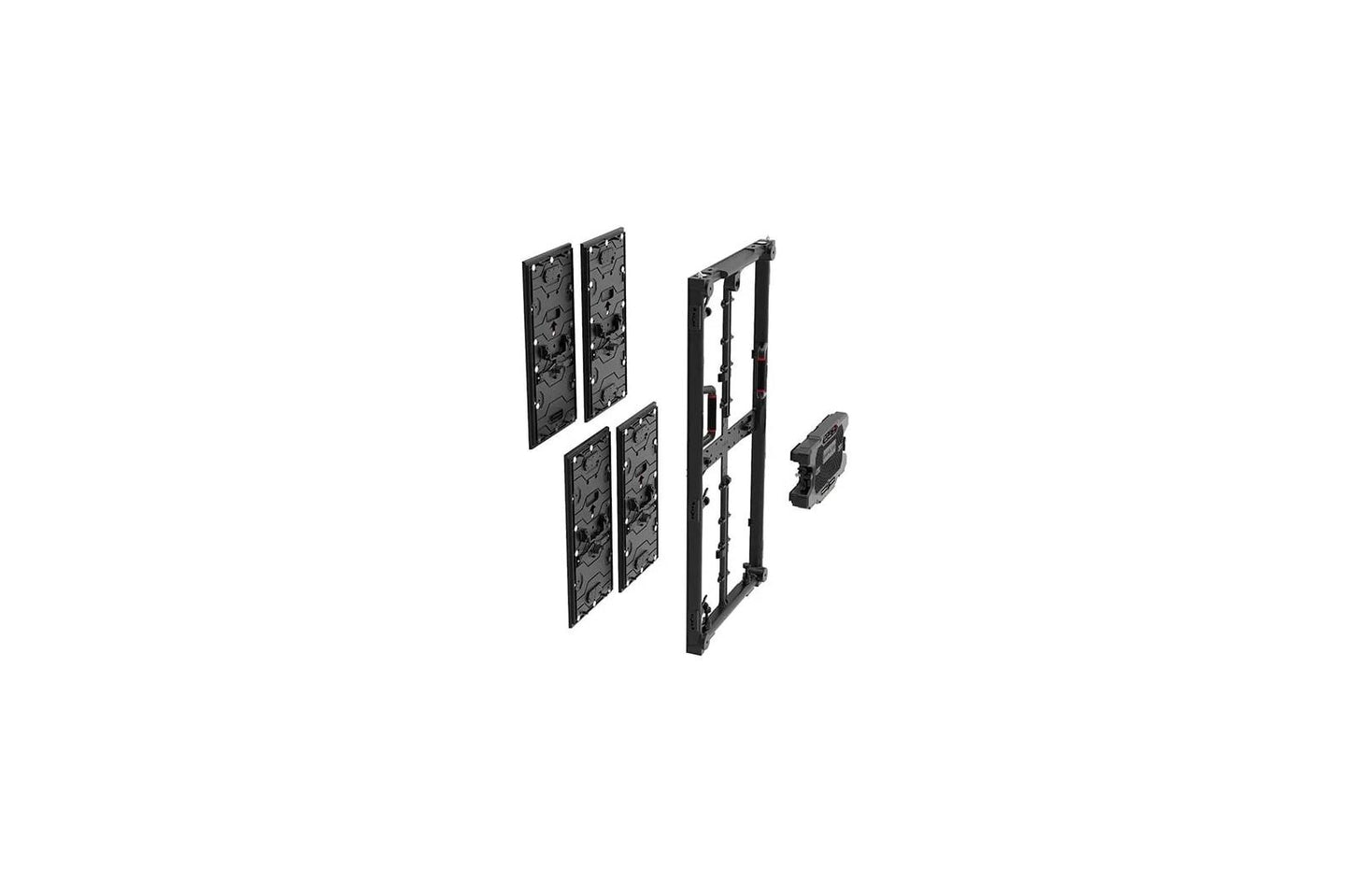

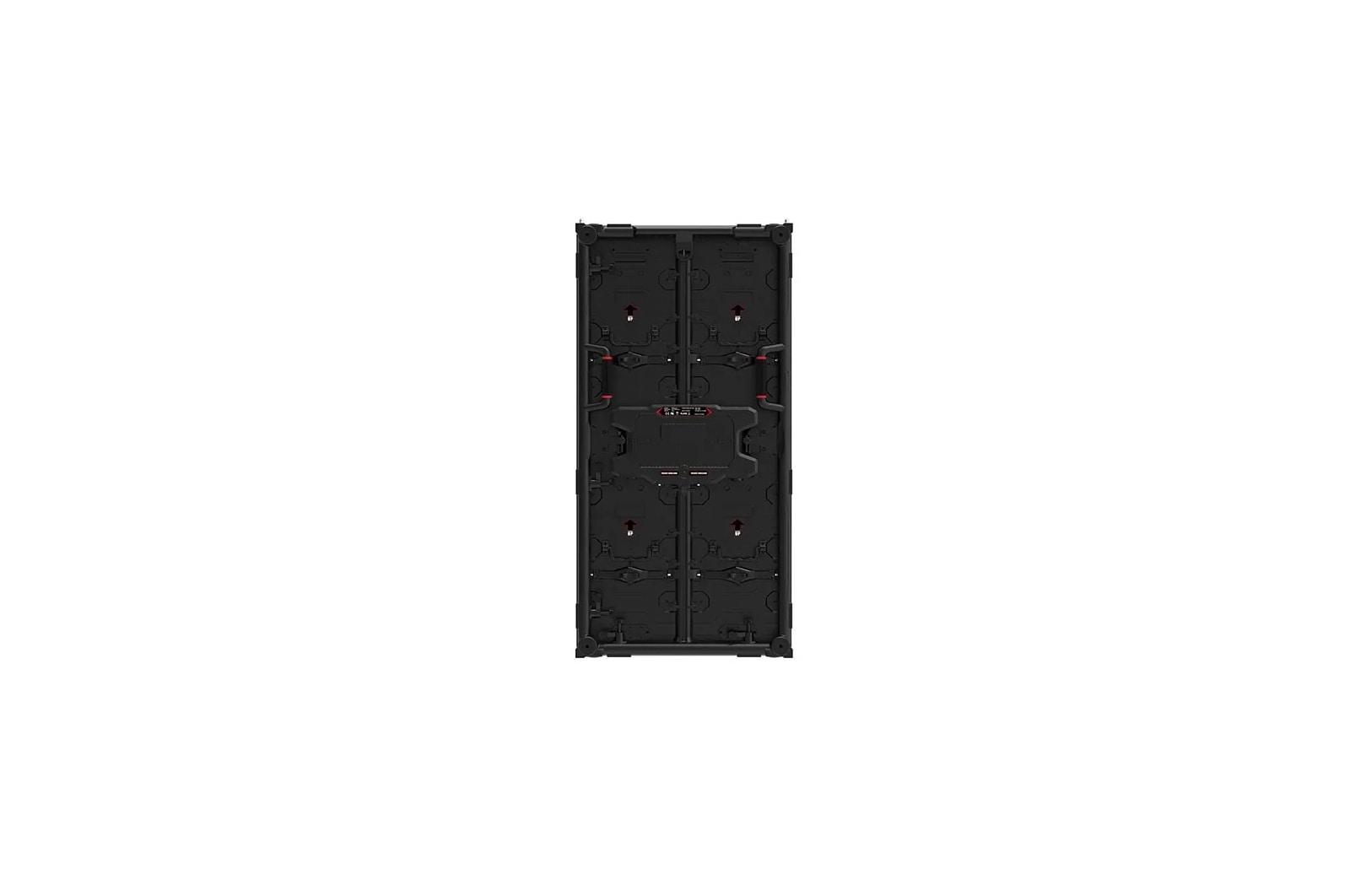

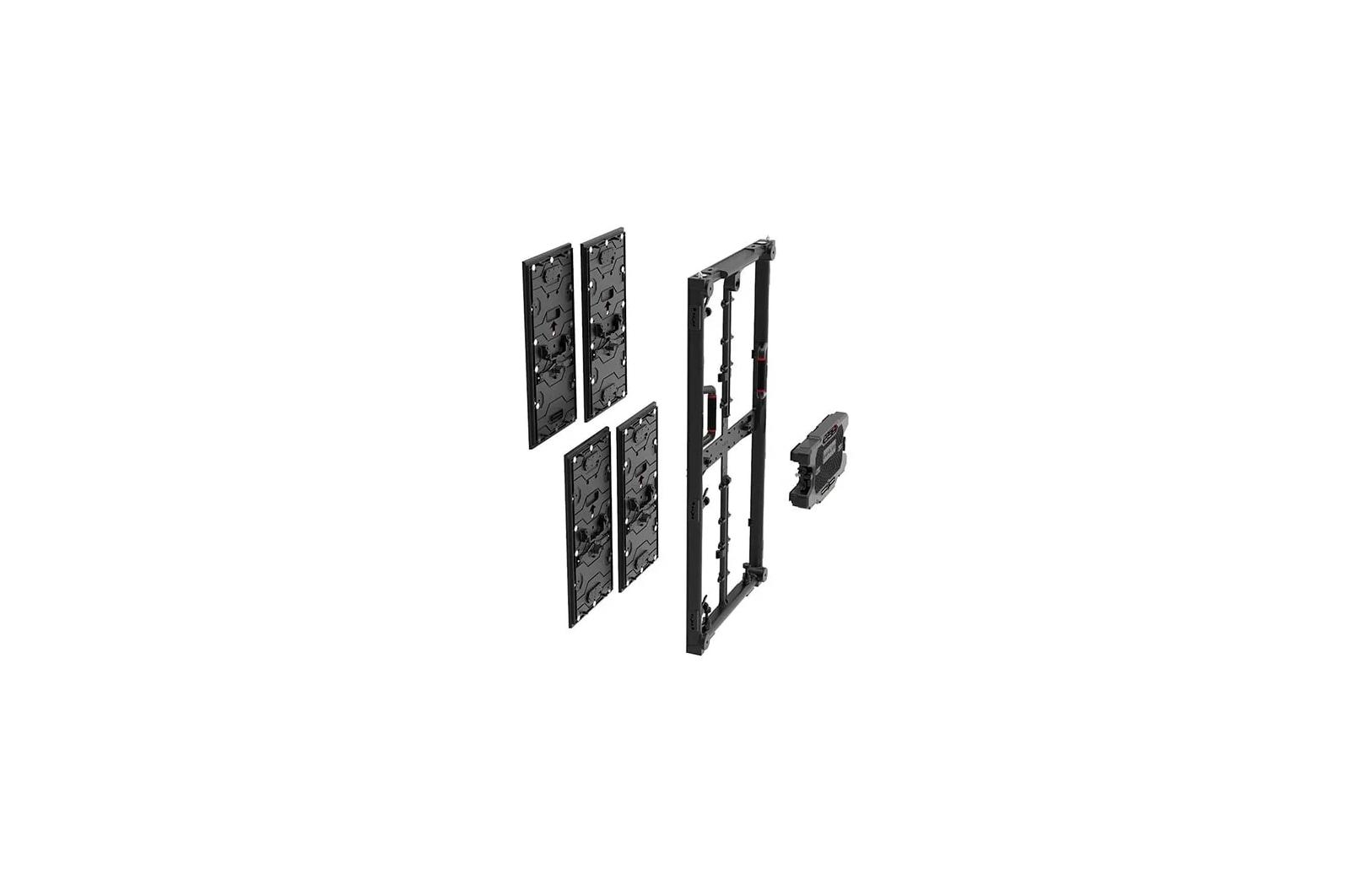

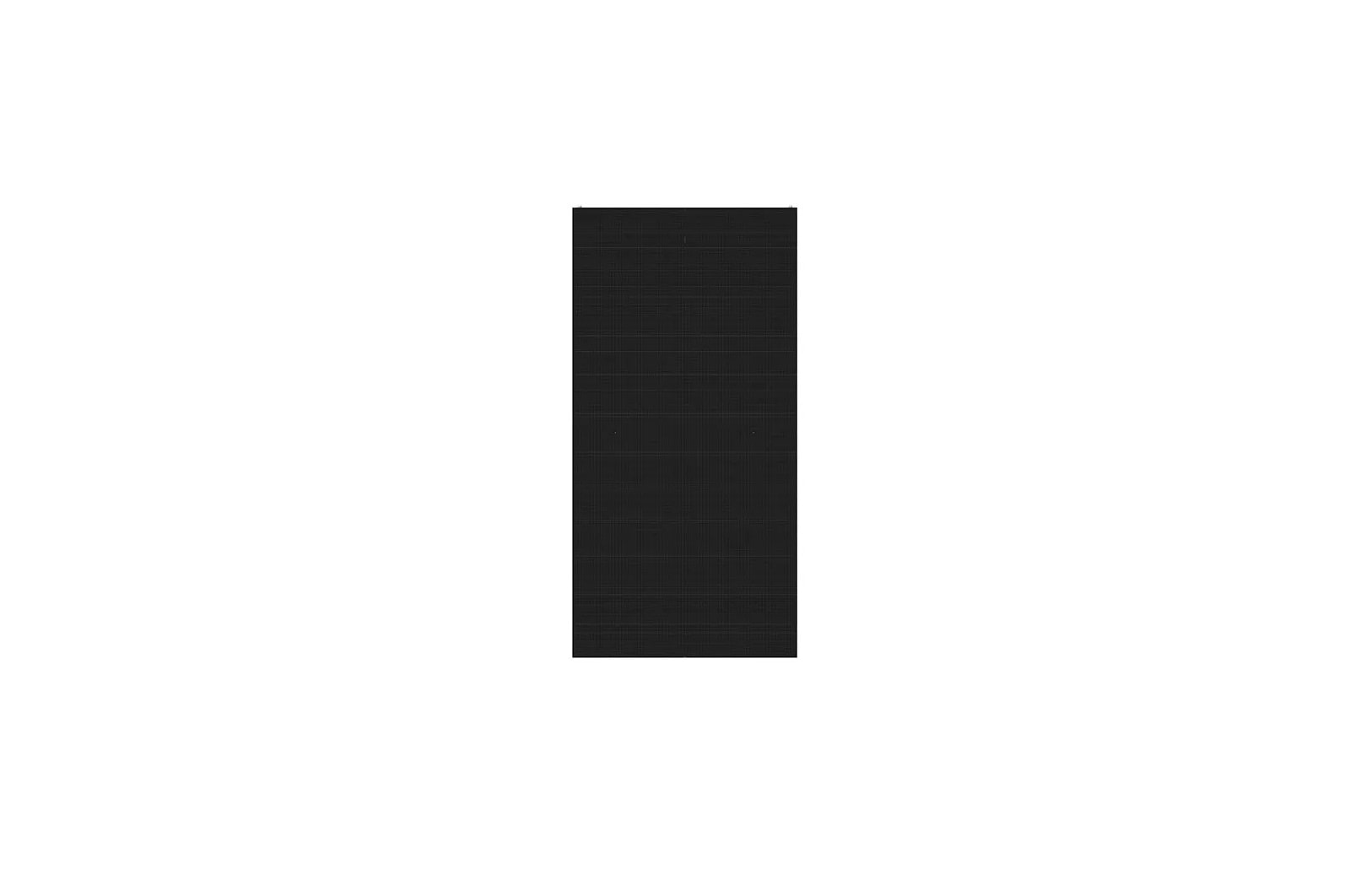

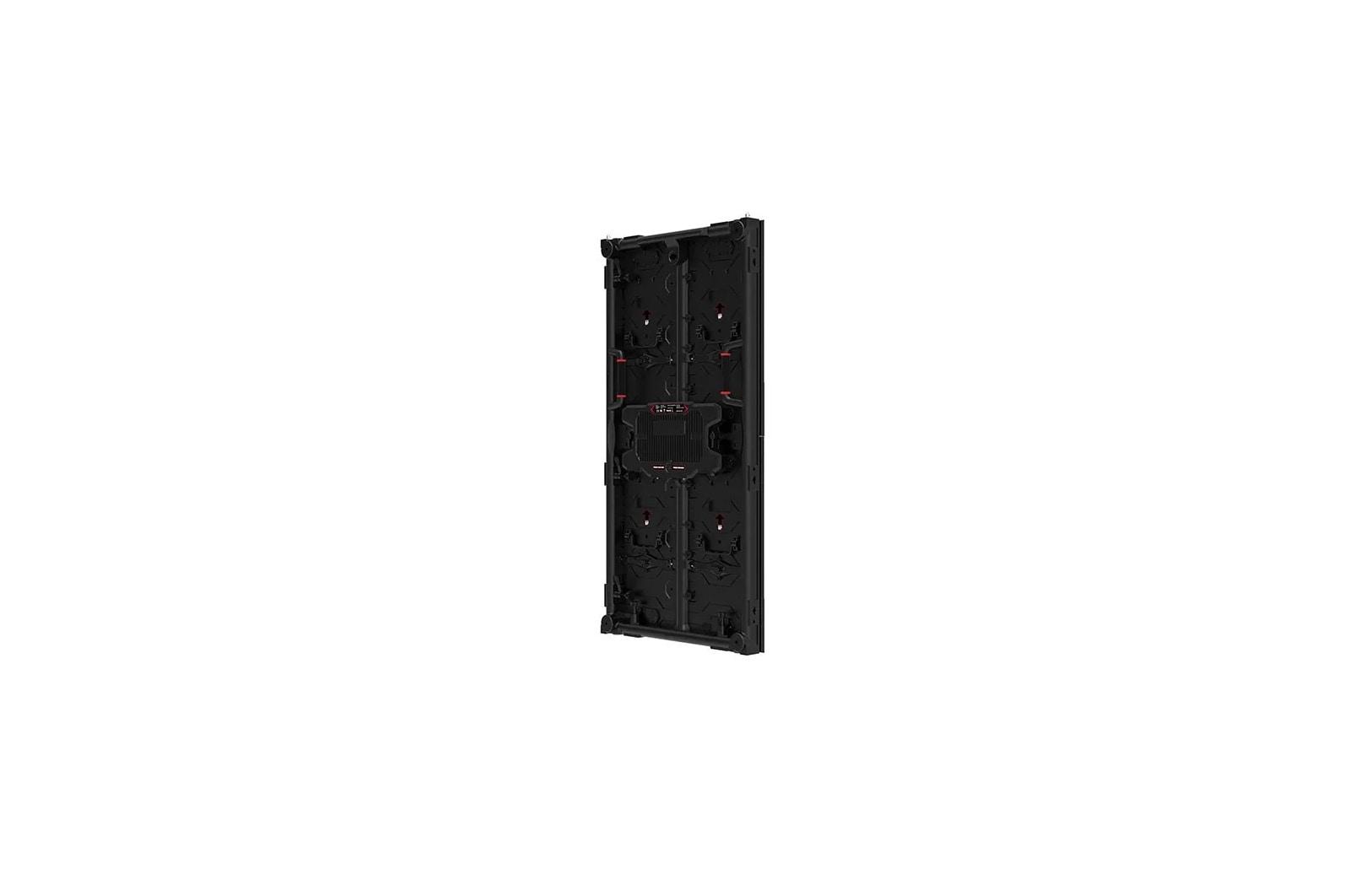

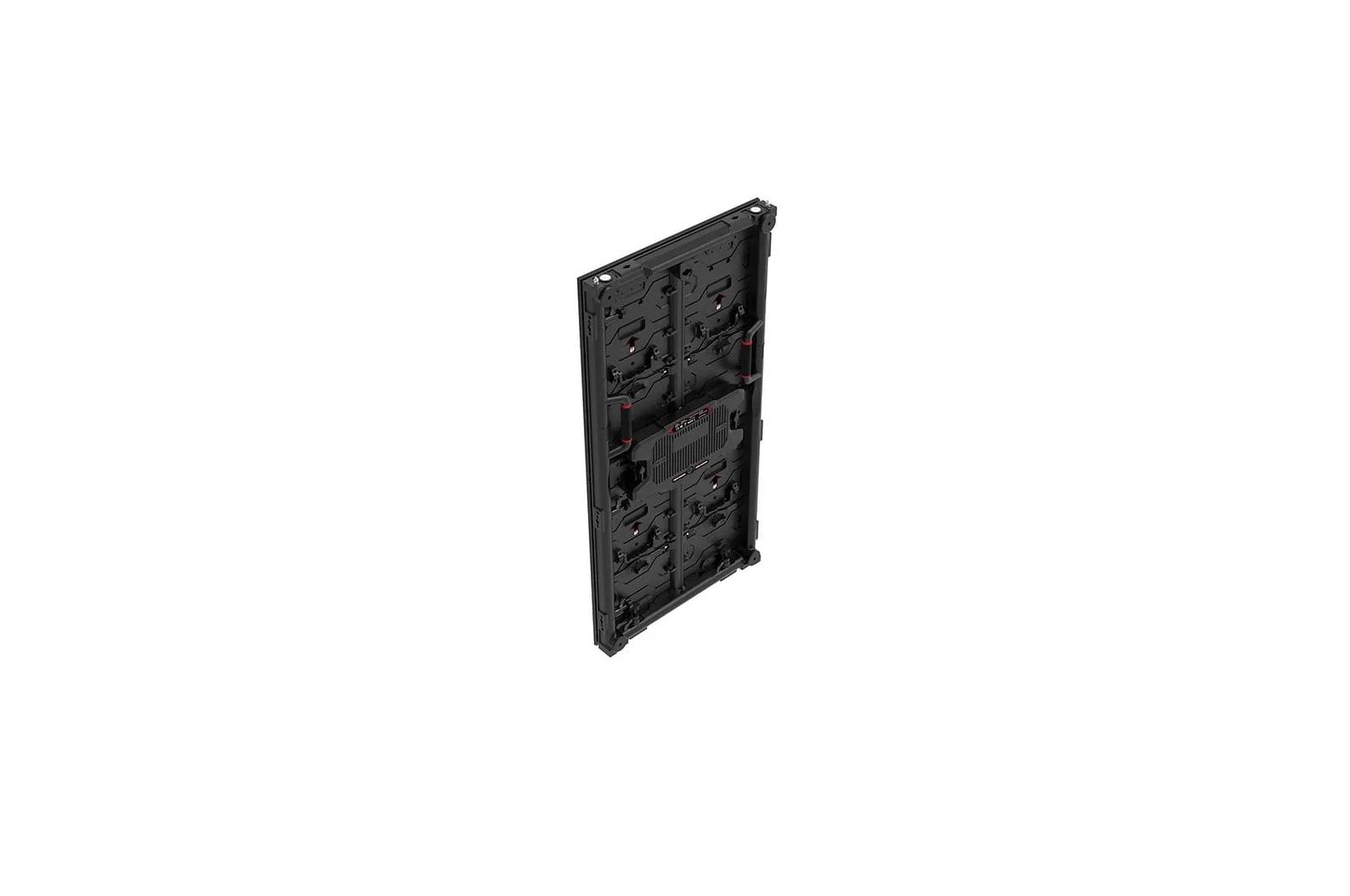

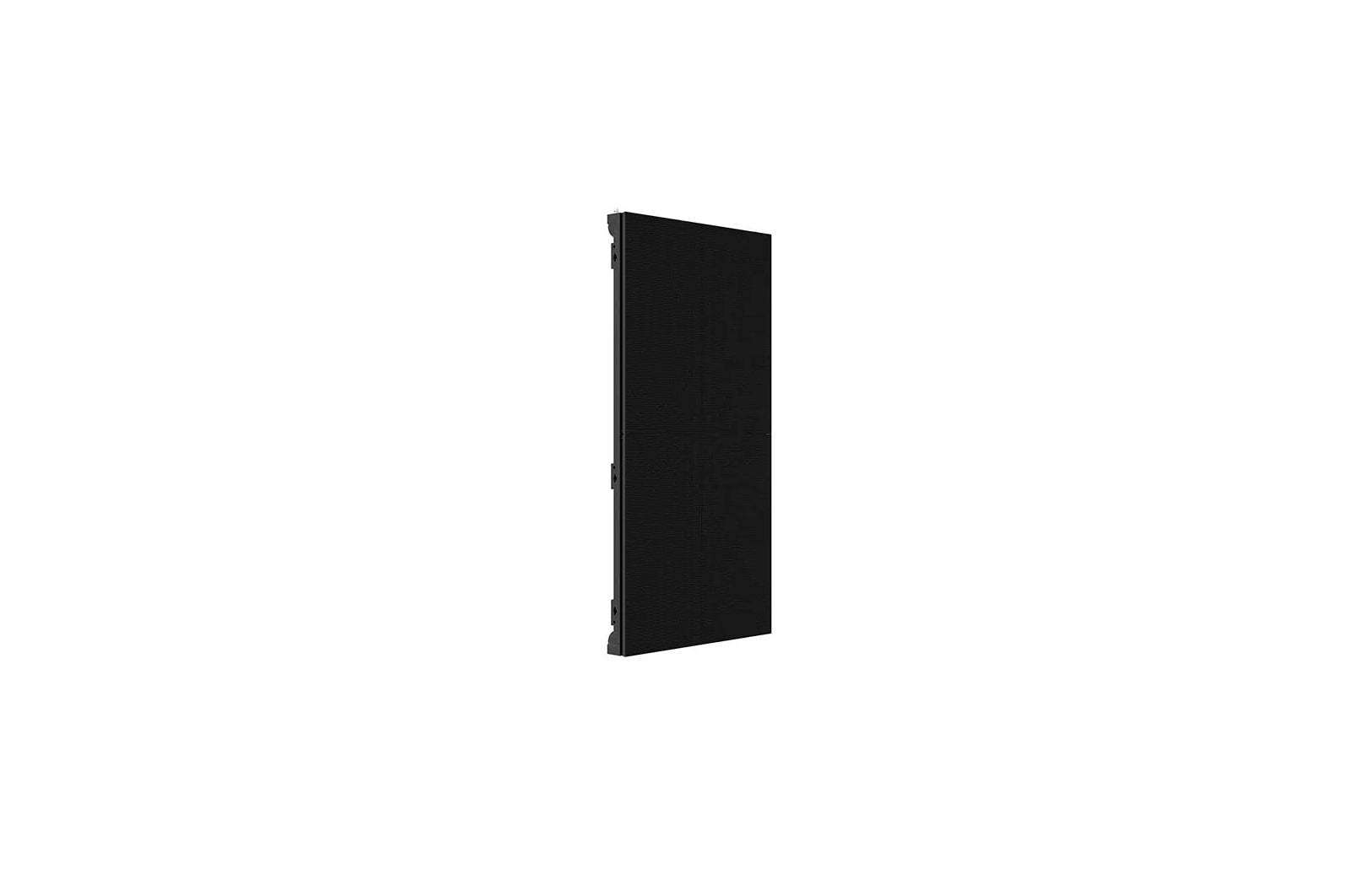

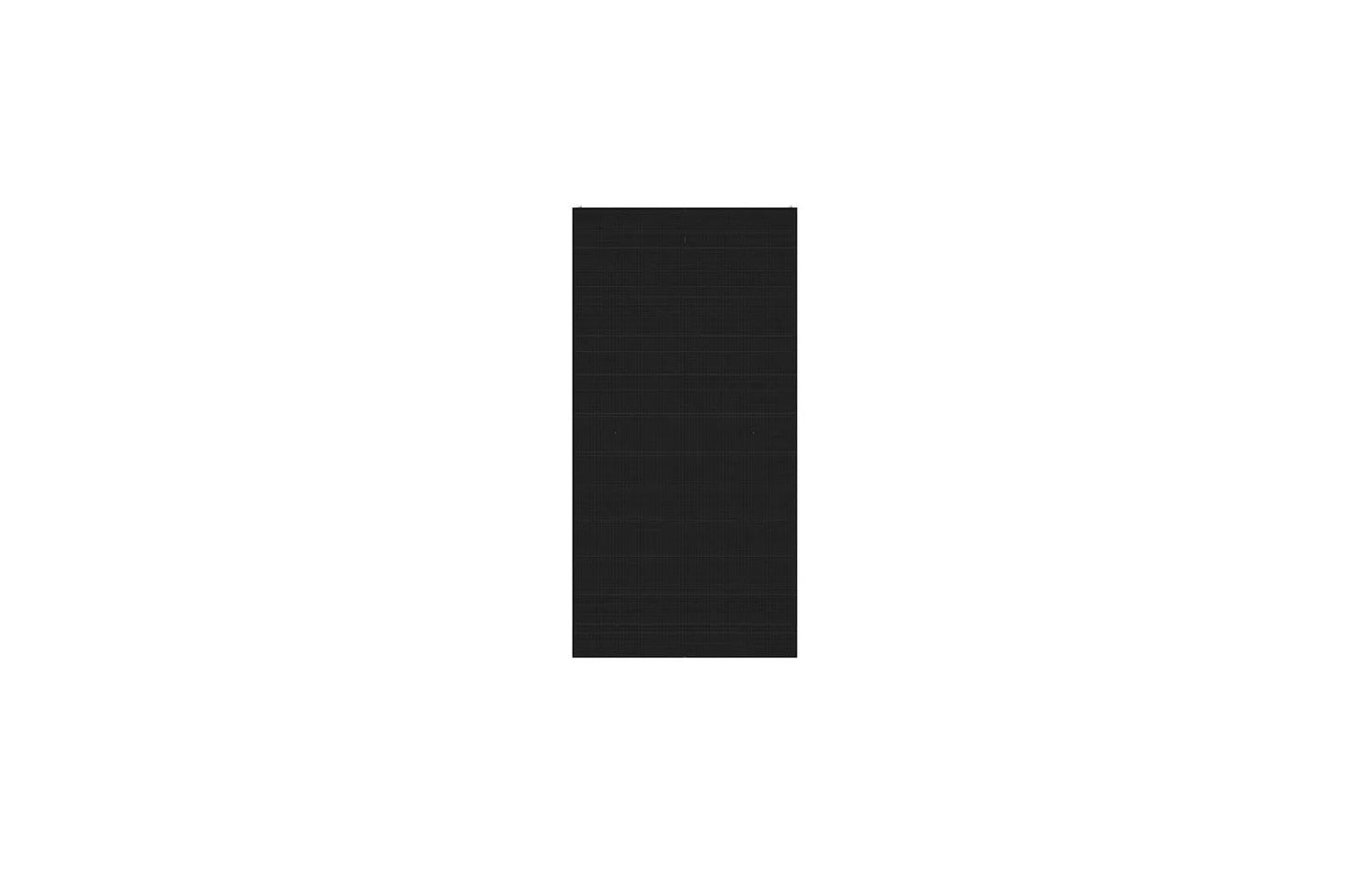

Lg GSCE039 GSCE Ceiling Direct View LED compatible with Megapixel VR Helios Controller
Lg GSCE039 GSCE Ceiling Direct View LED compatible with Megapixel VR Helios Controller
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 3.91 mm Pixel Pitch Single SMD
- IP30 Rated front & back
- Up to 5,000 nits brightness with 160(degree) x 155(degree) viewing angle
- Megapixel VR Helios Controller (Sold separately)

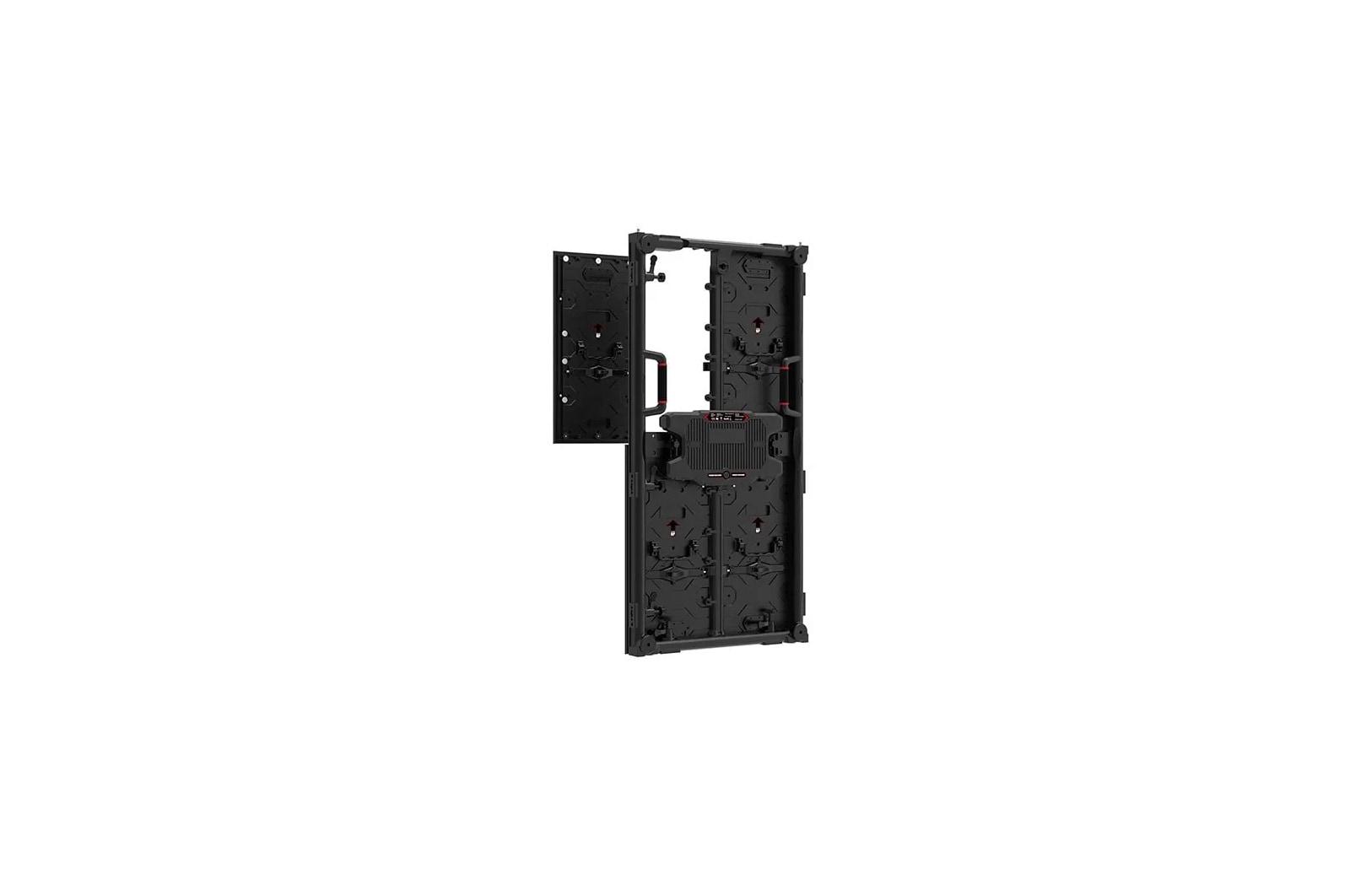

- Front or Rear Accessible
GSCE Ceiling Direct View LED compatible with Megapixel VR Helios Controller
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 3.91 mm |
| Module Resolution (W x H) | 64 x 128 |
| Module Dimensions (W x H) | 9.8 x 19.6 in / 250 x 500 mm |
| Weight per Module | Not Available |
| Total Modules (per cabinet) | Not Available |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 128 x 256 |
| Cabinet Dimensions (W x H x D) | 19.6 x 39.4 x 2.6 in / 500 x 1,000 x 66.05 mm |
| Cabinet Surface Area | 5.4 ft / 0.5 m |
| Weight per Cabinet | 27.3 lbs / 12.4 kg |
| Weight per Unit Area | 24.9 kg/m |
| Physical Pixel Density | 65,536 pixels/m |
| Flatness of Cabinet | 0.3 mm |
| Cabinet Material | Die-casting Magnesium |
| Service Access | Front or Rear |
| 90 Degree Corner Cut | No |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | Megapixel VR HELIOS |
| min viewing distance (5-7 mm per foot) | Not Available |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Max.) | 300W |
| Heat Dissipation per Cabinet (Avg.) | 341 BTU/hr |
| Power Consumption per Unit Area (Max.) | 600 W/m |
| Heat Dissipation per Unit Area (Max.) | 2,047 BTU/hr/m |
| Power Consumption per Cabinet (Avg.) | 100W |
| Heat Dissipation per Cabinet (Max.) | 1,024 BTU/hr |
| Optical | |
| Max. Brightness (After Calibration) | Up to 5,000 nits |
| Color Temperature | 2,000-11,000K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 6,000:1 |
| Processing Depth | 16 bit (PQ, HGL) |
| Visual Viewing Angle (H x V) | 160° x 155° |
| Lifetime (Half brightness) | Not Available |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| KC | No |
| CB | No |
| REACH (Environmental) | No |
| EN13501-1 | No |
| Fire Protection | No |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| CCC | No |
| RoHS (Environmental) | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP30 |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| cTUVus | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP30 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 99% RH |
| Operating Temperature | -22° F to 113° F / -30° C to 45° C |
