LG GSCF026
Authorized Reseller

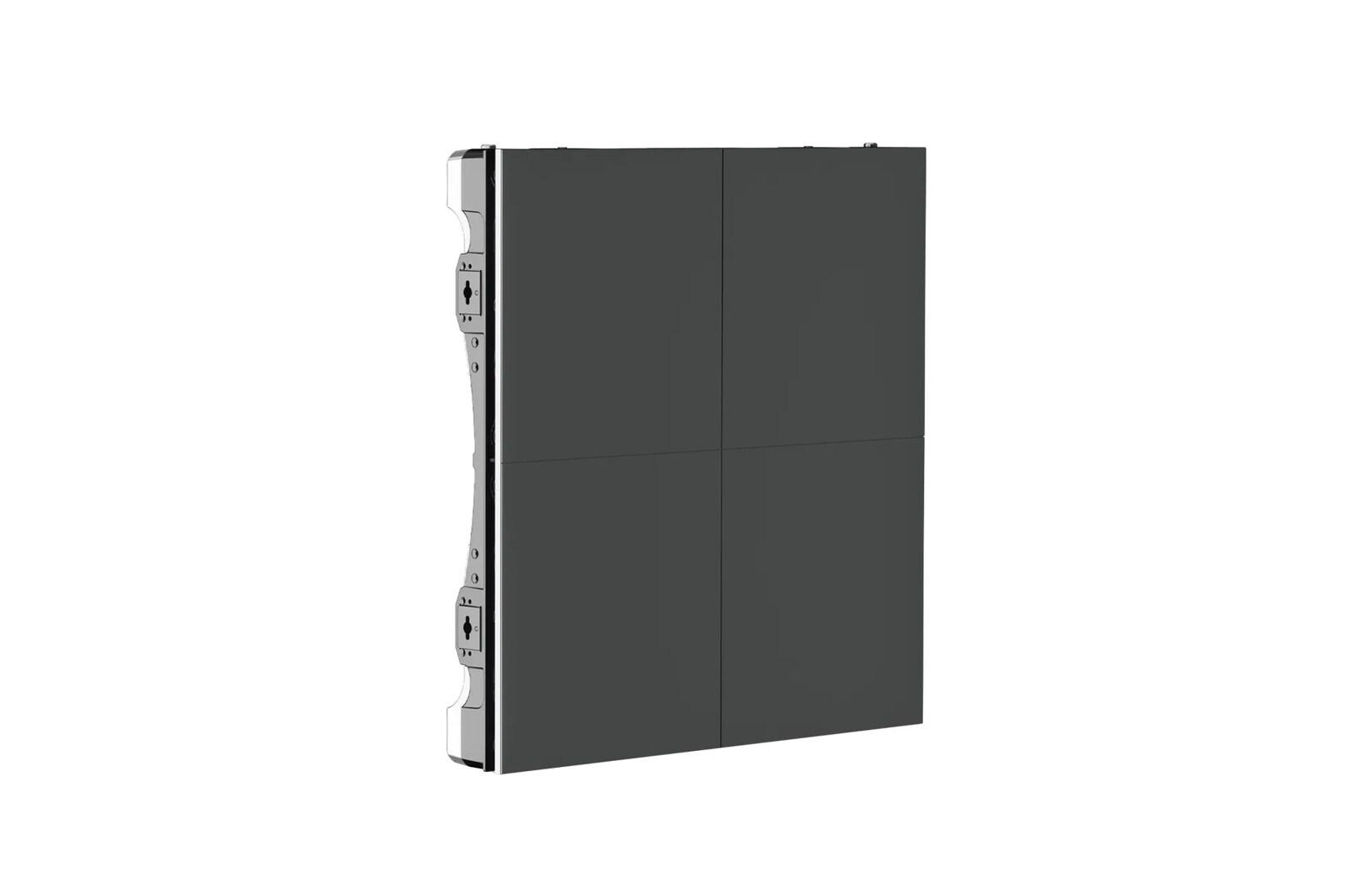

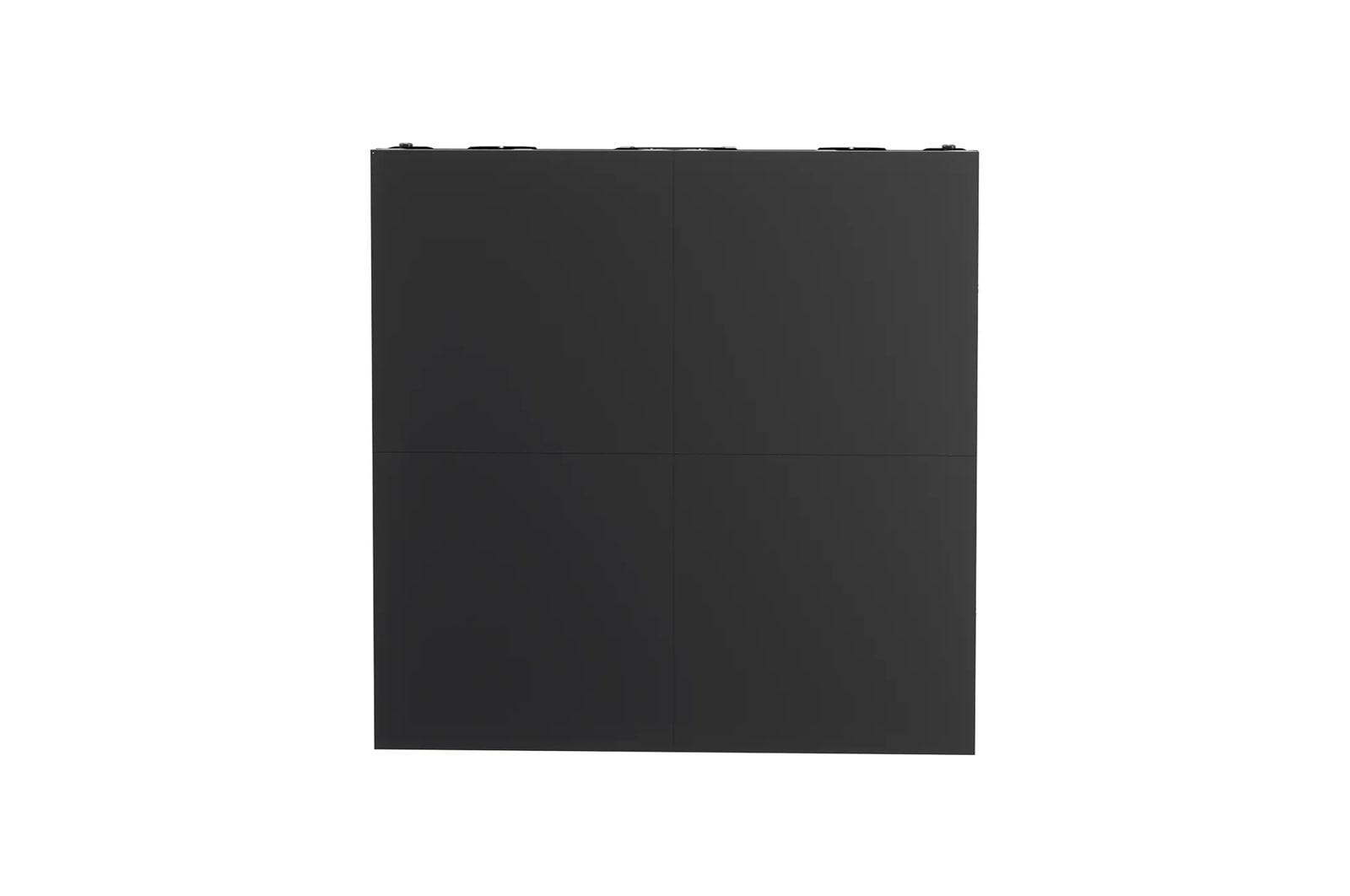

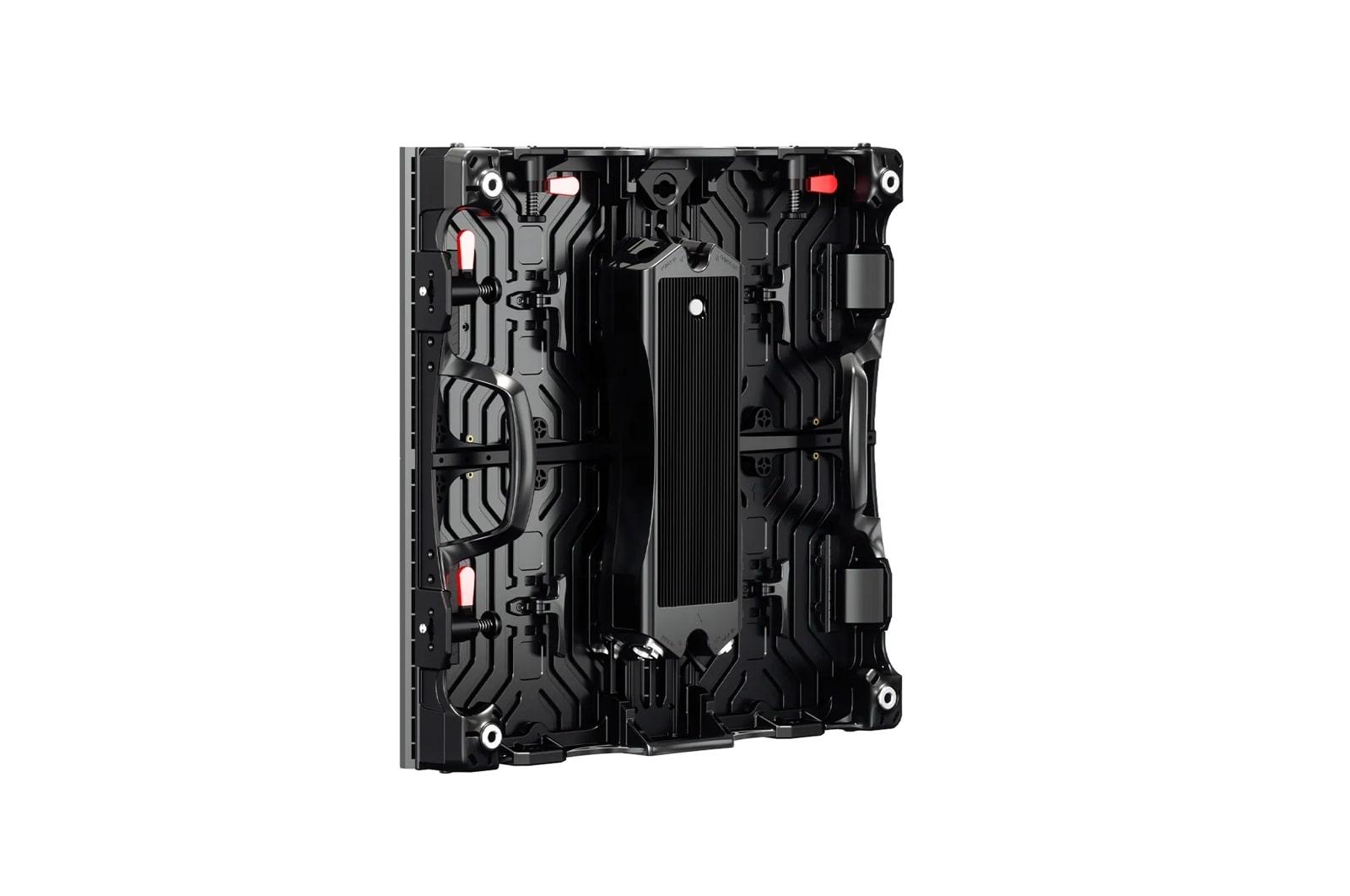

Lg GSCF026 2.6 mm GSCF Series High Brightness Outdoor LED Display
Lg GSCF026 2.6 mm GSCF Series High Brightness Outdoor LED Display
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Pixel Pitch: 2.6 mm
- Brightness: 5,500 nit (-GP) / 5,000 nit (-KK)
- Product Reliability
- Easy Maintenance
- Front or Rear Serviceability
- IP Rating : IP65 / IP65 (Front / Rear)
2.6 mm GSCF Series High Brightness Outdoor LED Display
| Physical Parameters | |
| Pixel Pitch | 2.6 mm |
| Module Resolution (W x H) | 96 x 96 |
| Module Dimensions (W x H) | 9.8 x 9.8 in / 250 x 250 mm |
| Weight per Module | 1.8 lbs / 0.81 kg |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 192 x 192 |
| Cabinet Dimensions (W x H x D) | 19.7 x 19.7 x 3.2 in / 500 x 500 x 82 mm |
| Cabinet Surface Area | .25 |
| Weight per Cabinet | 16.8 lbs / 7.6 kg |
| Physical Pixel Density | 147,456 pixels/m |
| Flatness of Cabinet | 0.3 mm |
| Cabinet Material | Die-Cast Magnesium |
| Service Access | Front or Rear |
| Controller | CVCA |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 60W |
| Power Consumption per Cabinet (Max.) | 180W |
| Heat Dissipation per Cabinet (Avg.) | 205 BTU/hr |
| Power Consumption per Unit Area (Max.) | 720W |
| Heat Dissipation per Cabinet (Max.) | 614 BTU/hr |
| Heat Dissipation per Unit Area (Max.) | 2,456 BTU/hr |
| Optical | |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 10,000:1 |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP65 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | EMC Class A |
| Fire Protection | Yes |
| BS476 Part7 (UK Fire Rating) | Class 1 |
| CE (Regulatory) | Yes |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP65 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 99% RH |
| Operating Temperature | -22° F to 122° F / -30° C to 50° C |
