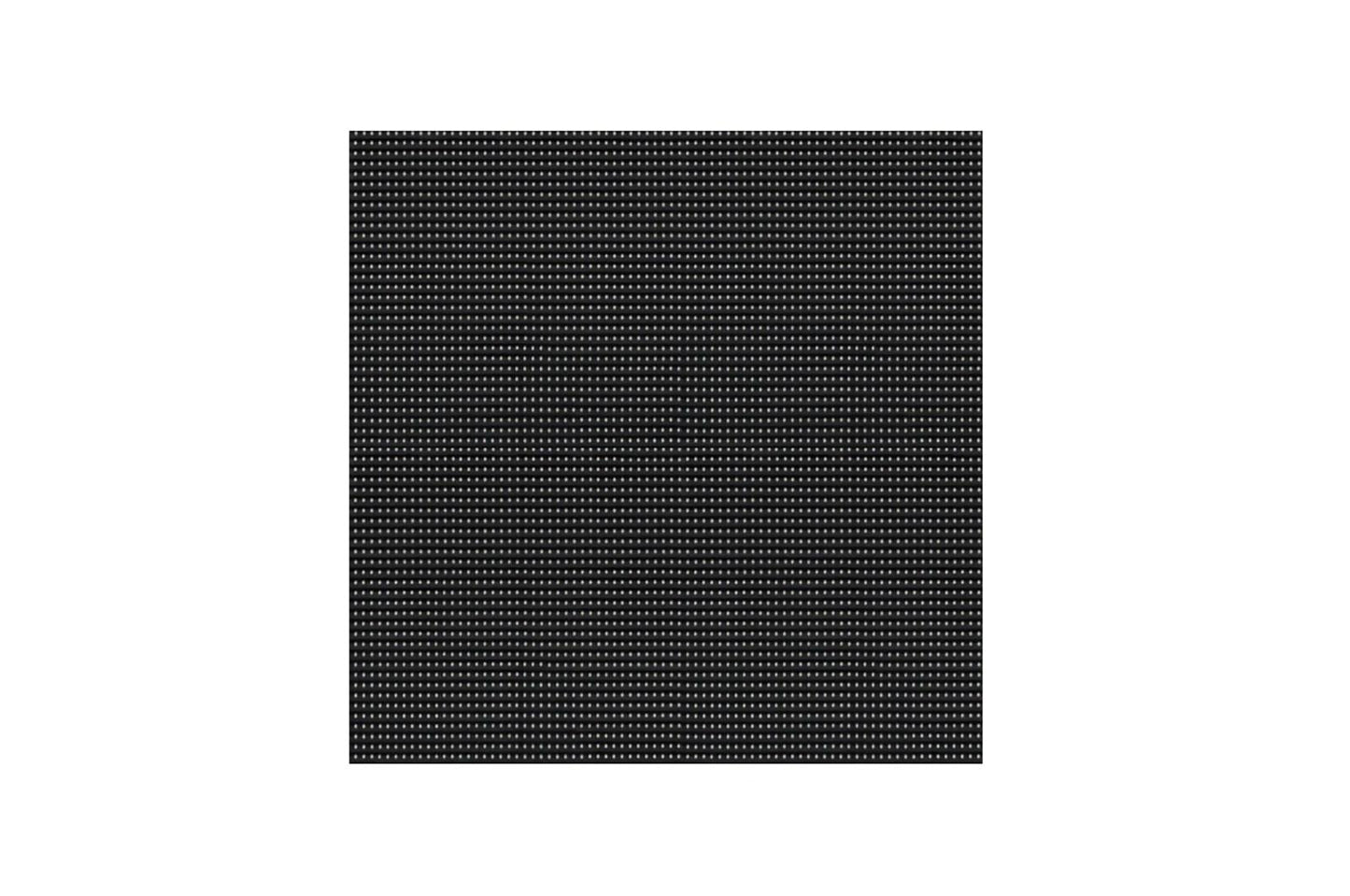

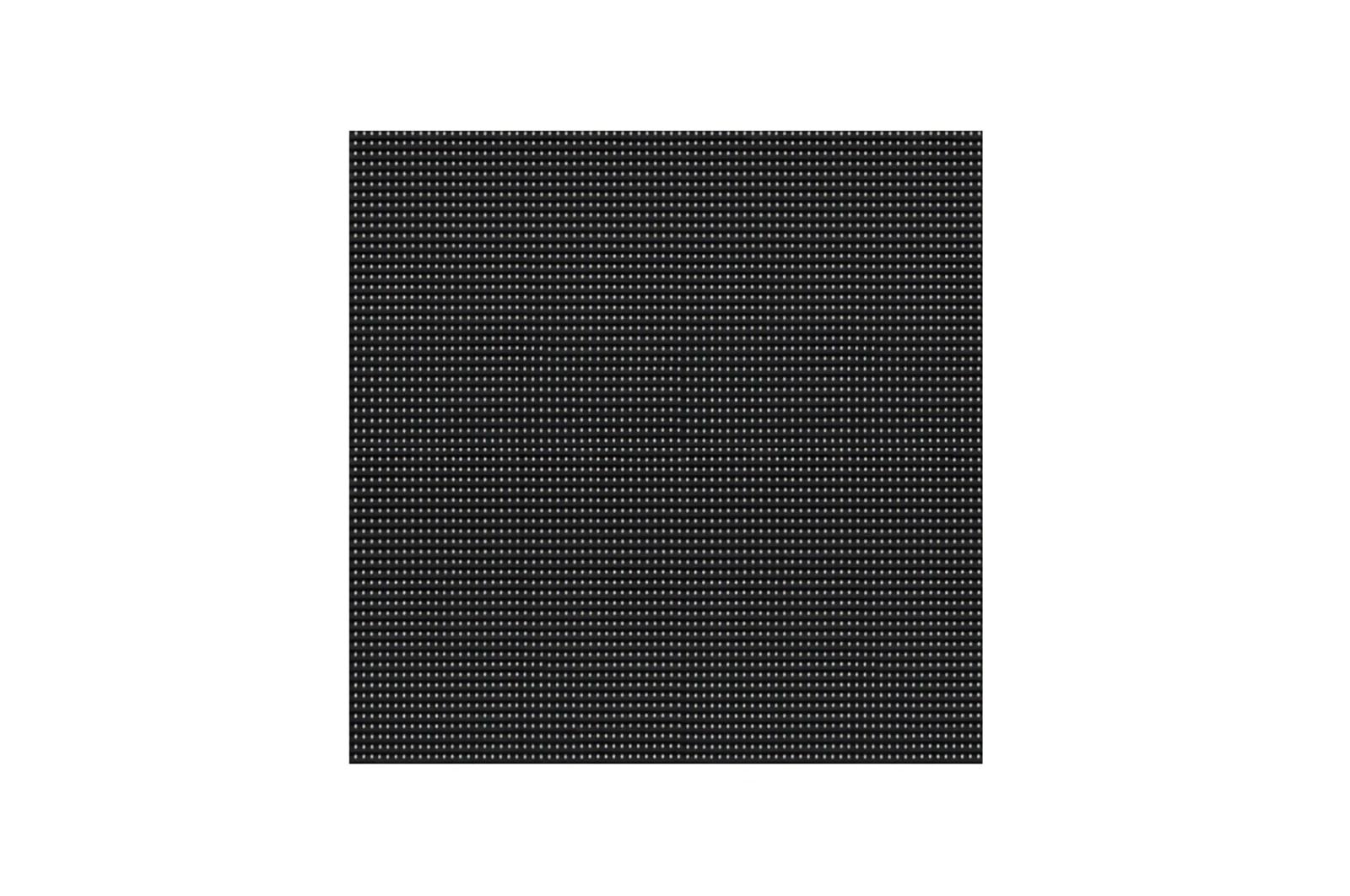

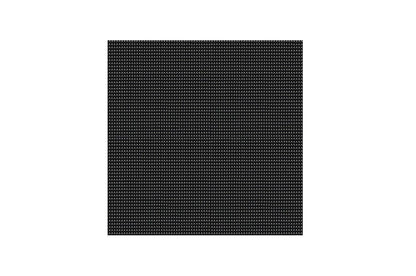

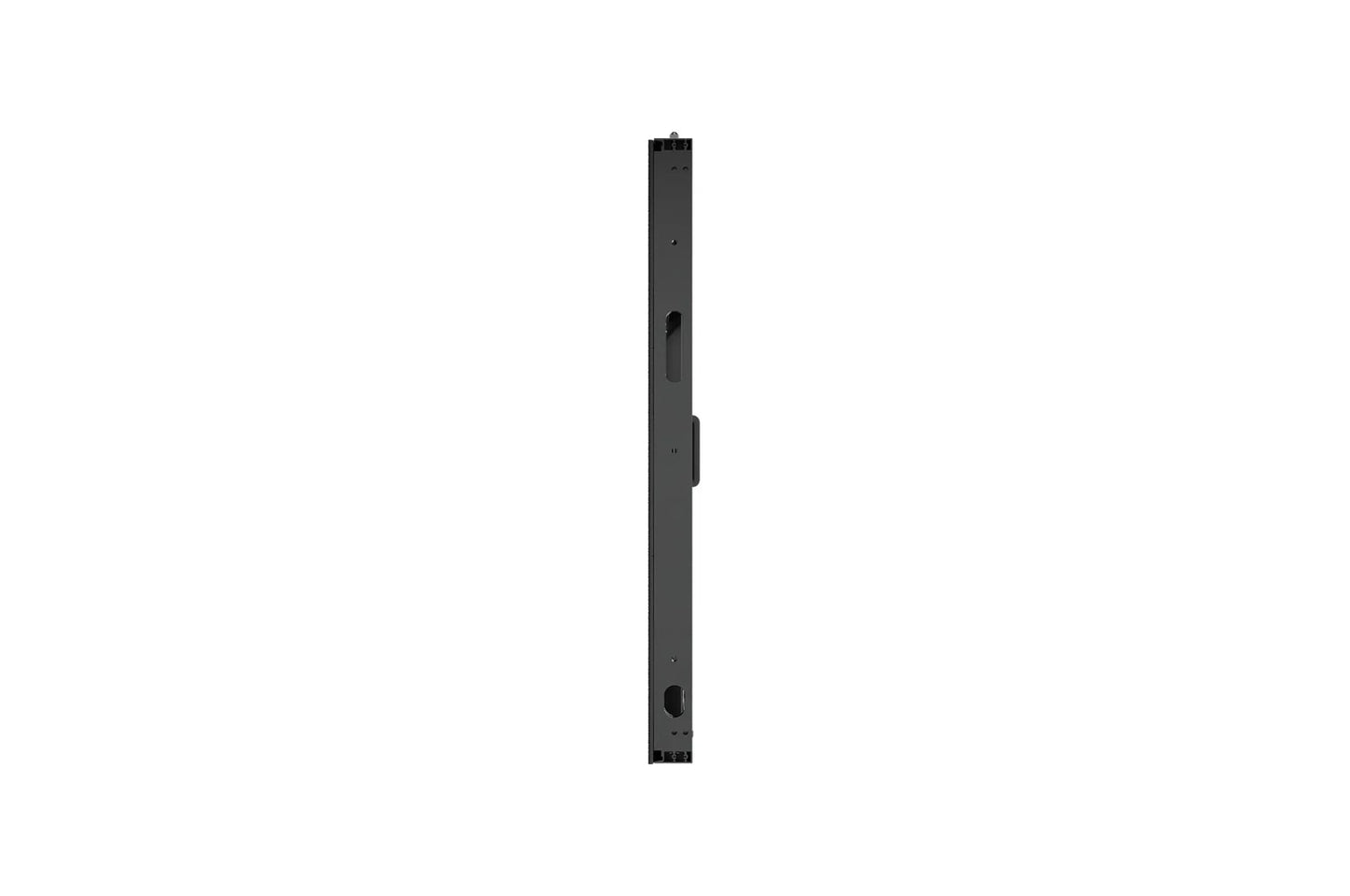

Lg GSPA066GB 6.6 mm GSPA Series Direct View LED Half-width, Half-height with 8,000 nits brightness
Lg GSPA066GB 6.6 mm GSPA Series Direct View LED Half-width, Half-height with 8,000 nits brightness
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Pixel Pitch : 6.67 mm
- Brightness : up to 8,000 nits
- Half-width, Half-height
- 90 degree corner cut GSPA066-GBC
- IP Rating : IP66 (Front / Rear)
- Long-Range Visibility

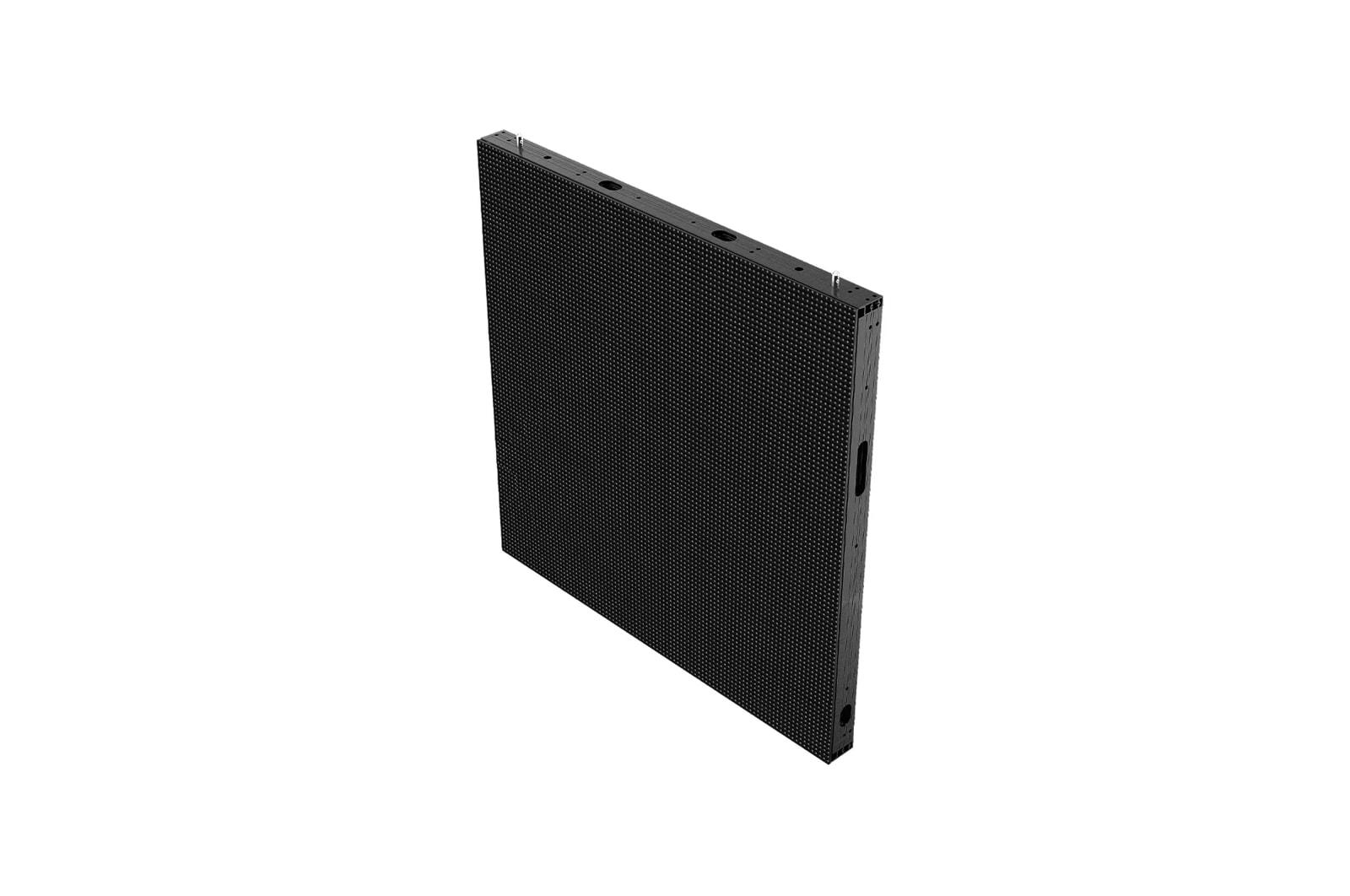

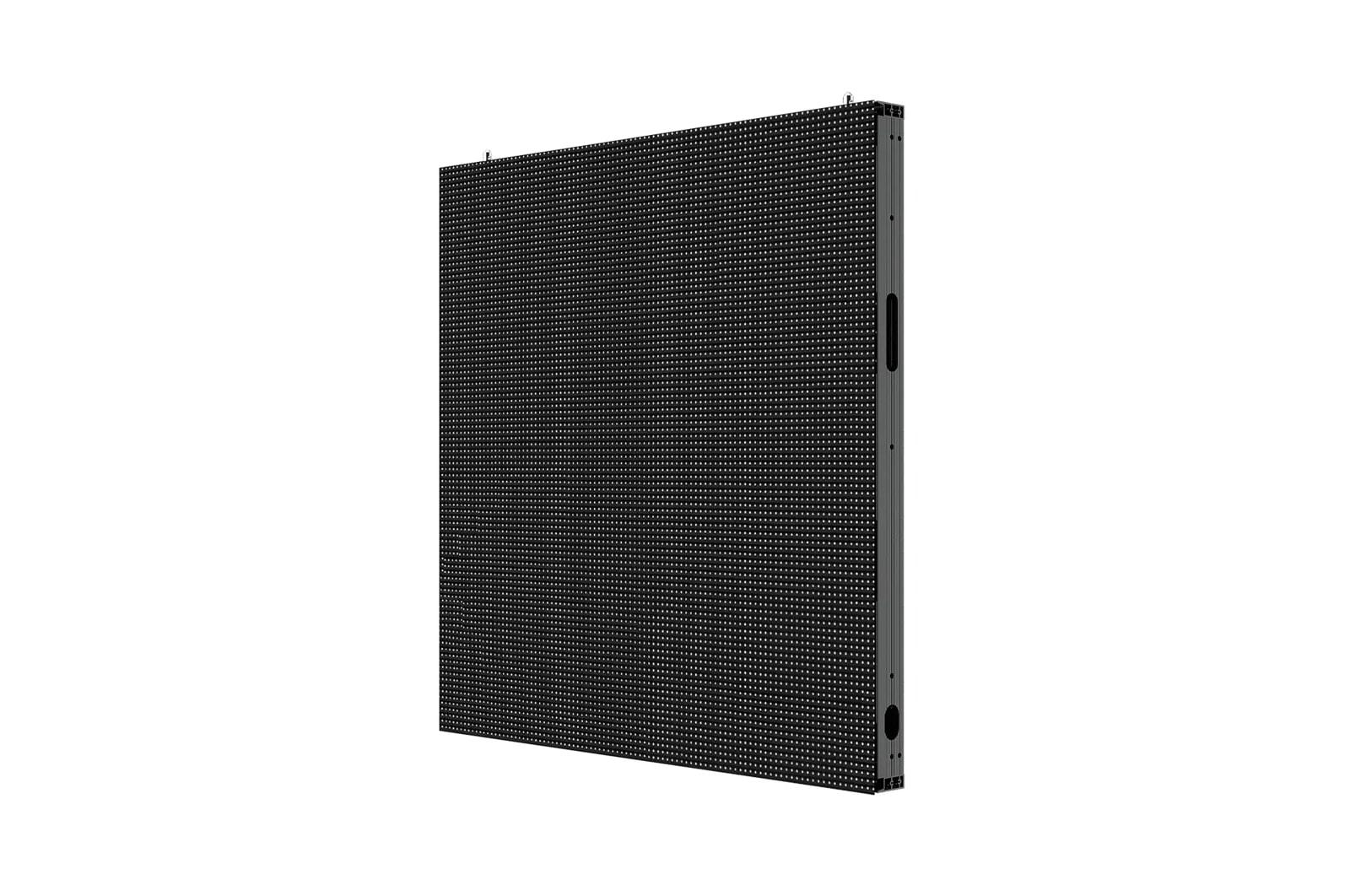

6.6 mm GSPA Series Direct View LED Half-width, Half-height with 8,000 nits brightness
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 6.67 mm |
| Module Resolution (W x H) | 72 x 48 |
| Module Dimensions (W x H) | 18.9 x 12.6 in / 480 x 320 mm |
| Weight per Module | 3.6 lbs. / 1.65 kg |
| No. of Modules per Cabinet (W x H) | 1 x 1 |
| Cabinet Resolution (W x H) | 72 x 48 |

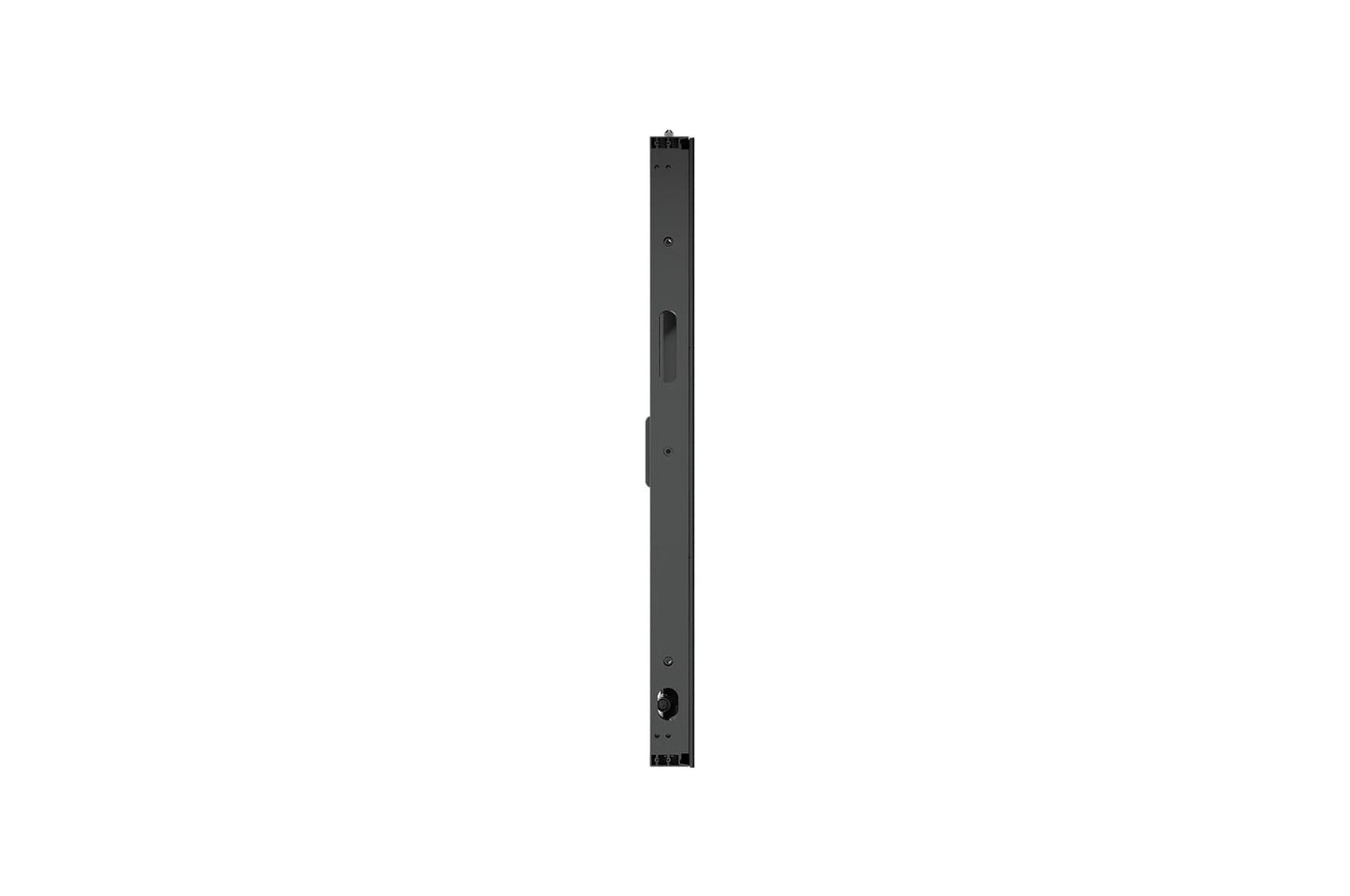

| Cabinet Dimensions (W x H x D) | 18.9 x 12.6 x 2.7 in / 480 x 320 x 68 mm |
| Cabinet Surface Area | 1.6 ft / 0.15 m |
| Weight per Cabinet | 11 lbs / 5 kg |
| Weight per Unit Area | 6.6 lbs/ft / 32 kg/m |
| Physical Pixel Density | 22,500 pixels/m |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Aluminum |

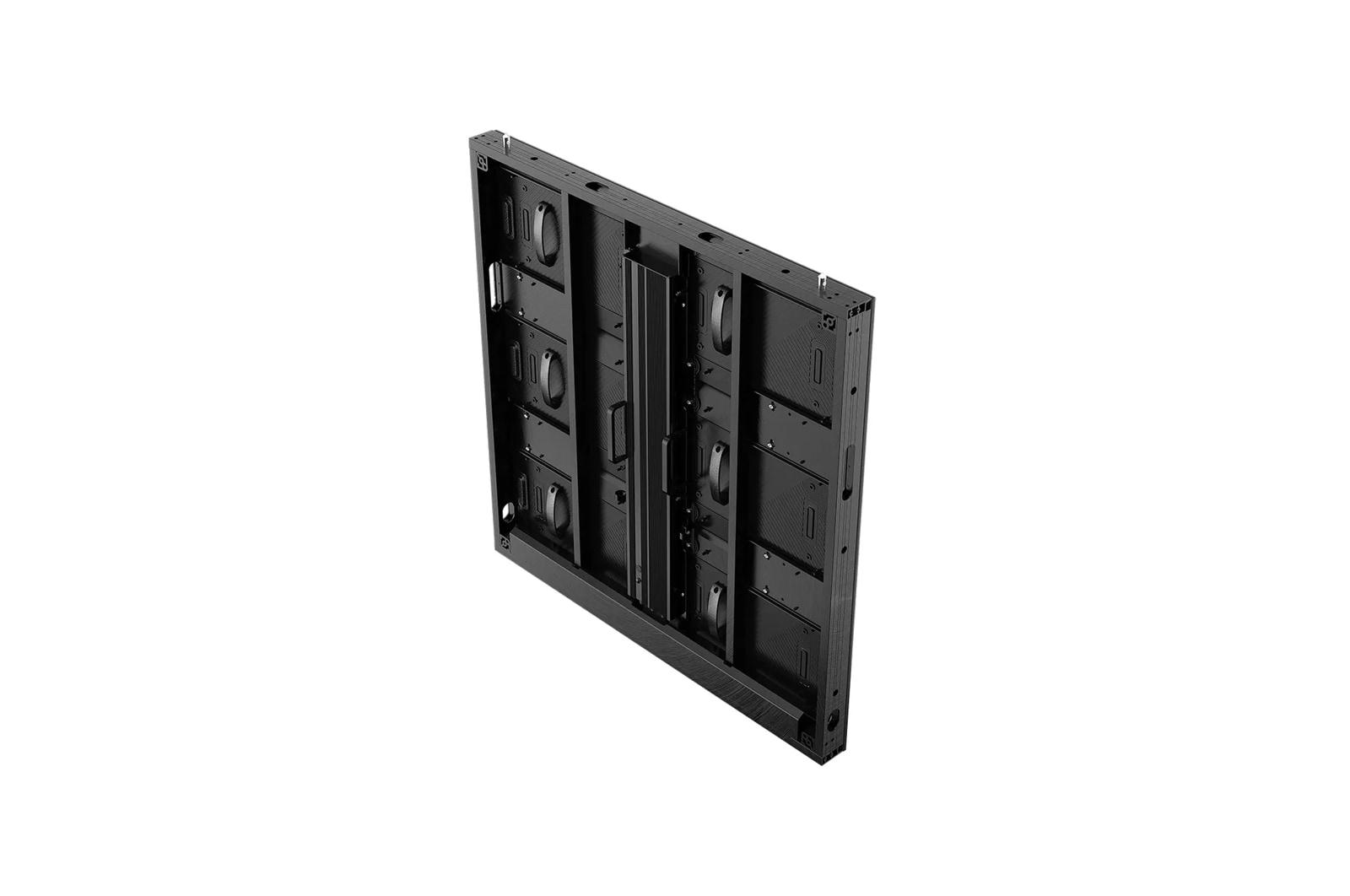

| Service Access | Front and Rear |
| 90 Degree Corner Cut | Yes (GSPA066-GBC) |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | CVGA |
| min viewing distance (5-7 mm per foot) | Not Available |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 33W |
| Power Consumption per Cabinet (Max.) | 100W |
| Heat Dissipation per Cabinet (Avg.) | 90 BTU/hr |
| Heat Dissipation per Cabinet (Max.) | 273 BTU/hr |
| Optical | |
| Max. Brightness (After Calibration) | Up to 8,000 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 15,000:1 |
| Processing Depth | 14 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 140° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | No |
| KC | No |
| CB | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP66 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| BS476 Part7 (UK Fire Rating) | Yes |
| Eye Comfort | No |
| Safety 60950-1 | No |
| cTUVus | No |
| CE (Regulatory) | Yes |
| CCC | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP66 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -22° F to 122° F / -30° C to 50° C |
