Lg GSPA100 10 mm GSPA Direct View LED Standard with up to 10,000 nits brightness
Lg GSPA100 10 mm GSPA Direct View LED Standard with up to 10,000 nits brightness
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Pixel Pitch : 10 mm
- Brightness : 10,000 / 8,000 nit
- IP Rating : IP66 (Front / Rear)
- Long-Range Visibility
10 mm GSPA Direct View LED Standard with up to 10,000 nits brightness
| Physical Parameters | |

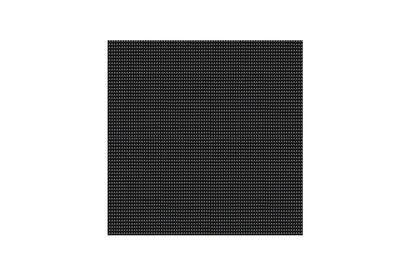

| LED Type | Single SMD |

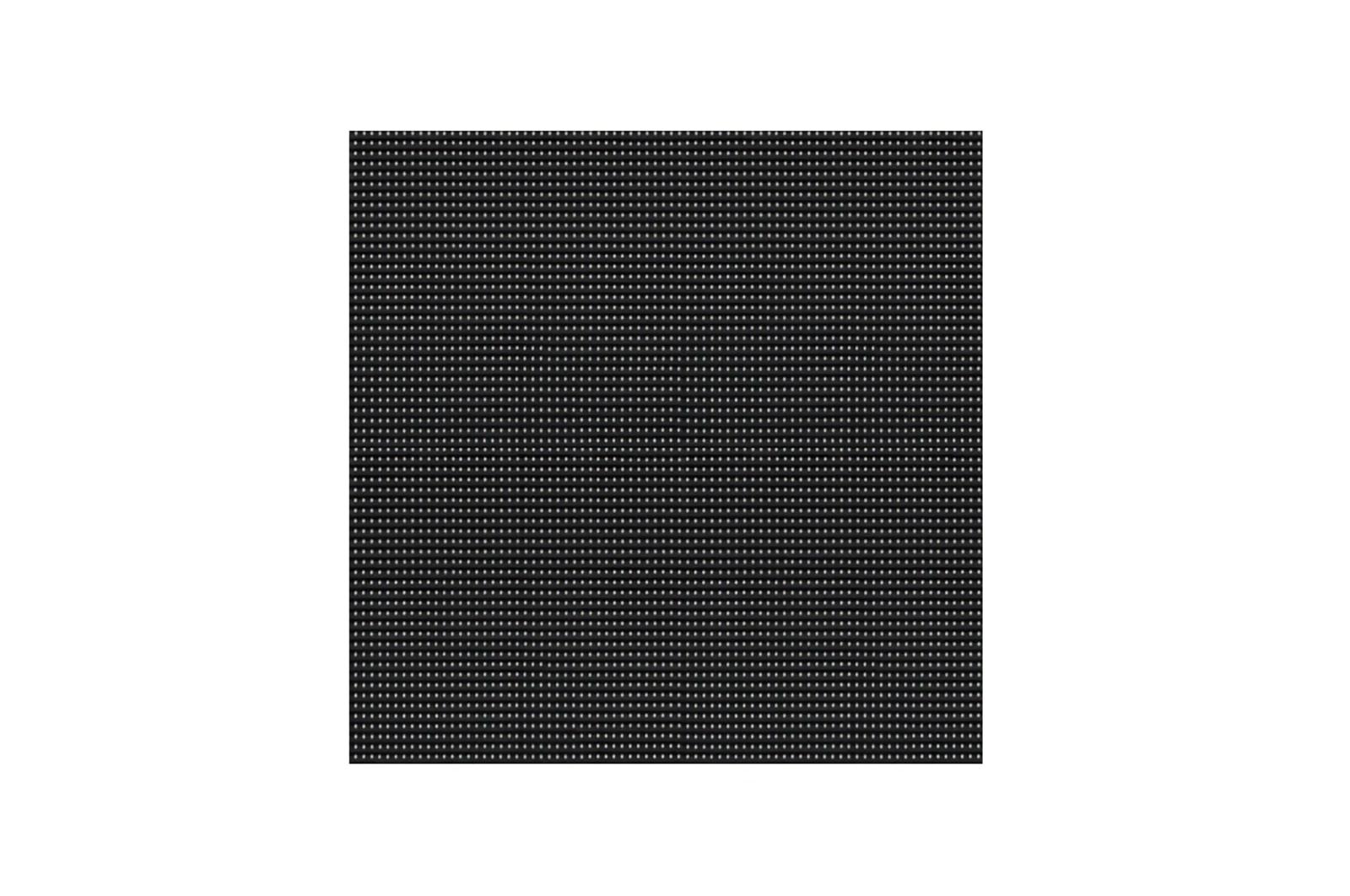

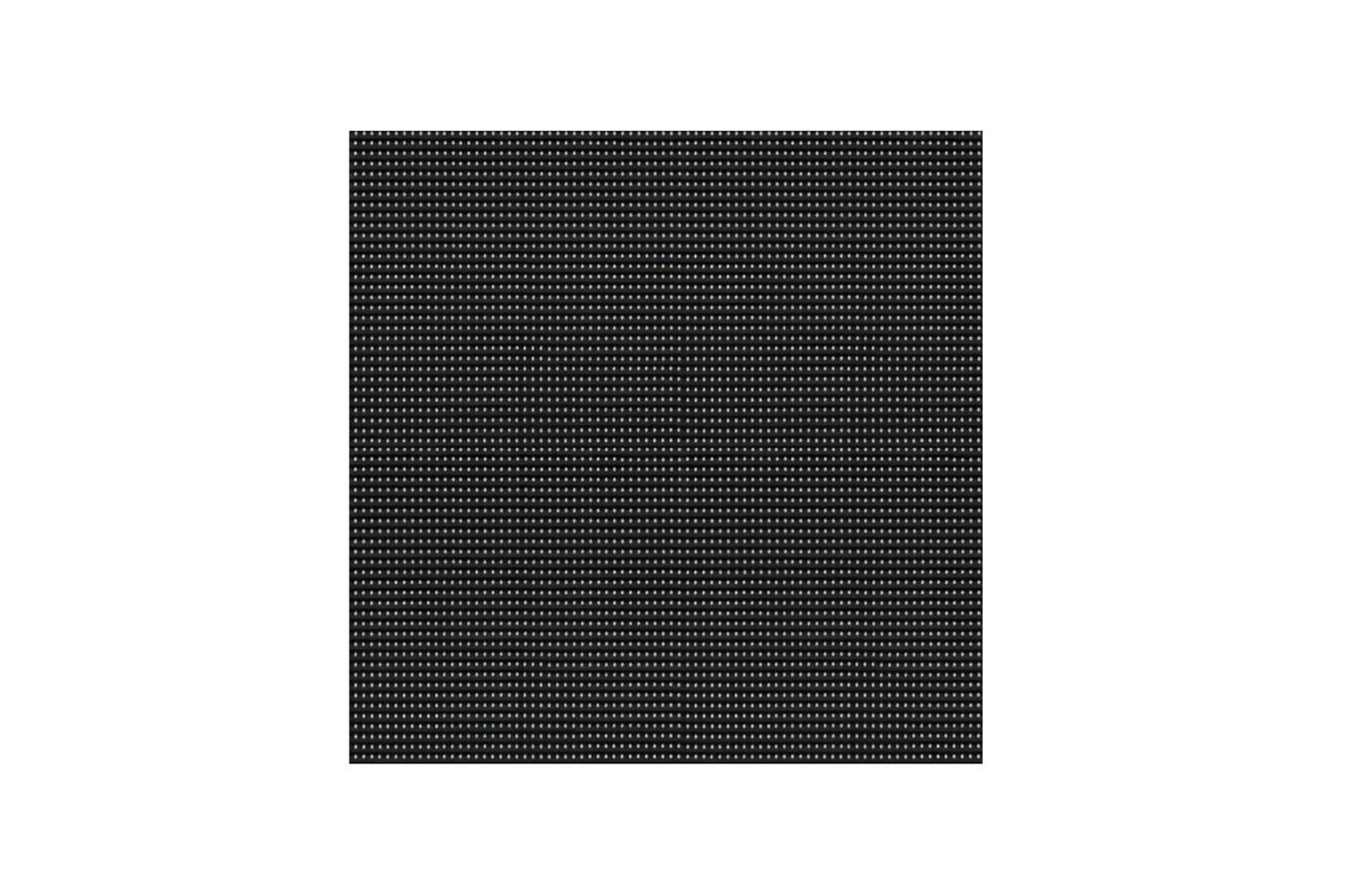

| Pixel Pitch | 10 mm |
| Module Resolution (W x H) | 48 x 32 |
| Module Dimensions (W x H) | 18.9 x 12.6 in / 480 x 320 mm |
| Weight per Module | 3.6 lbs / 1.65 kg |
| No. of Modules per Cabinet (W x H) | 2 x 3 |
| Cabinet Resolution (W x H) | 96 x 96 mm |

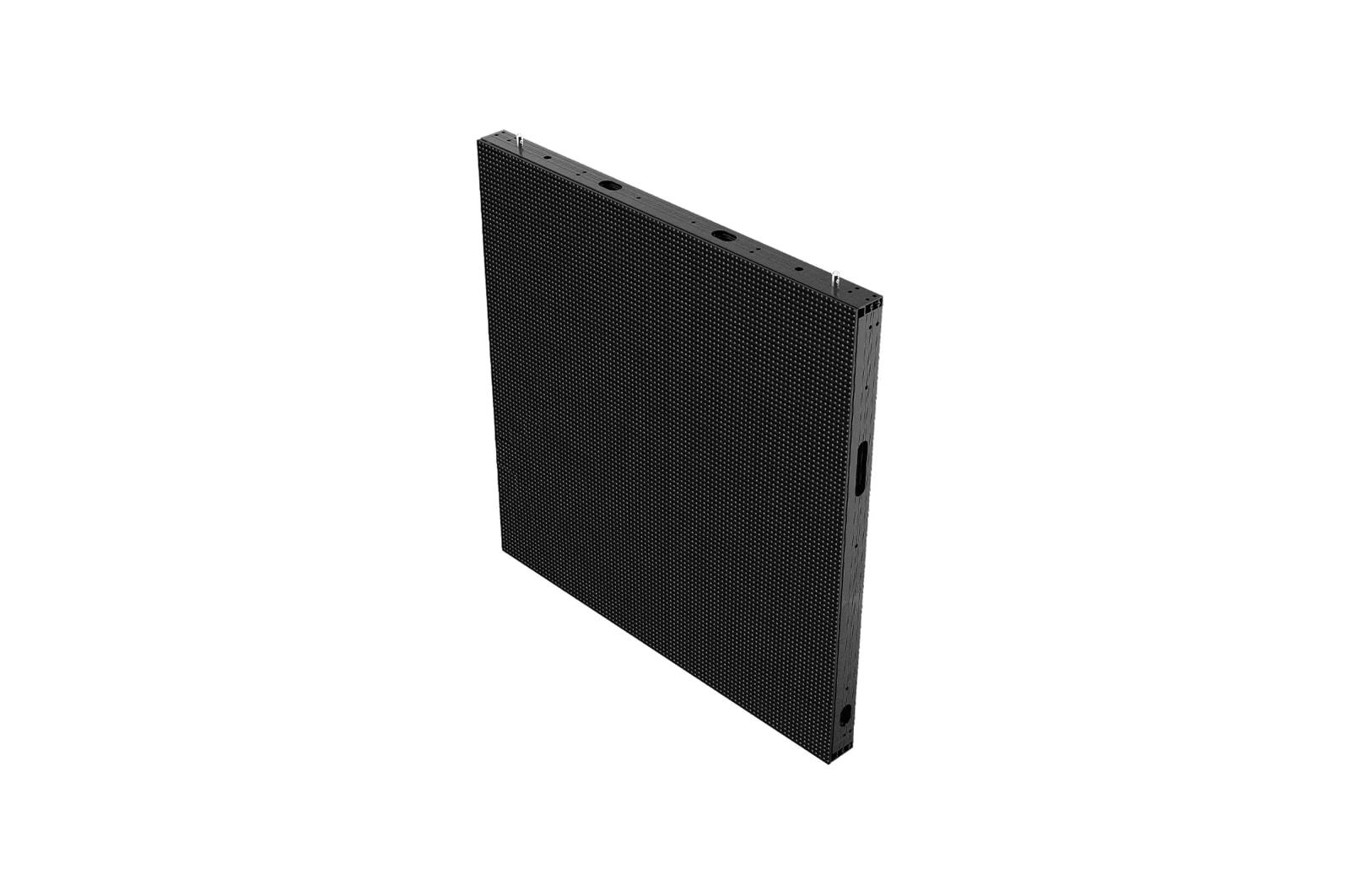

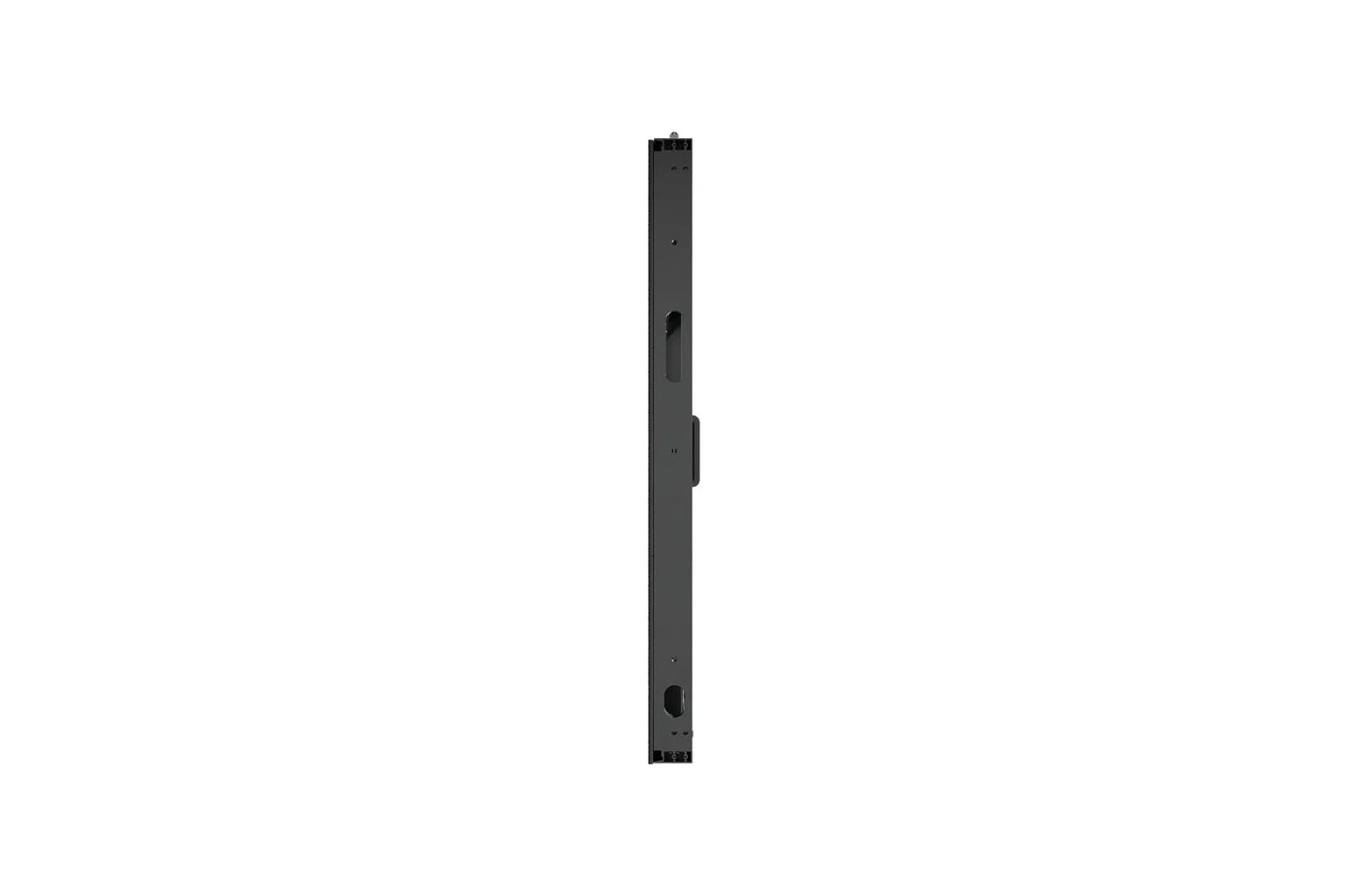

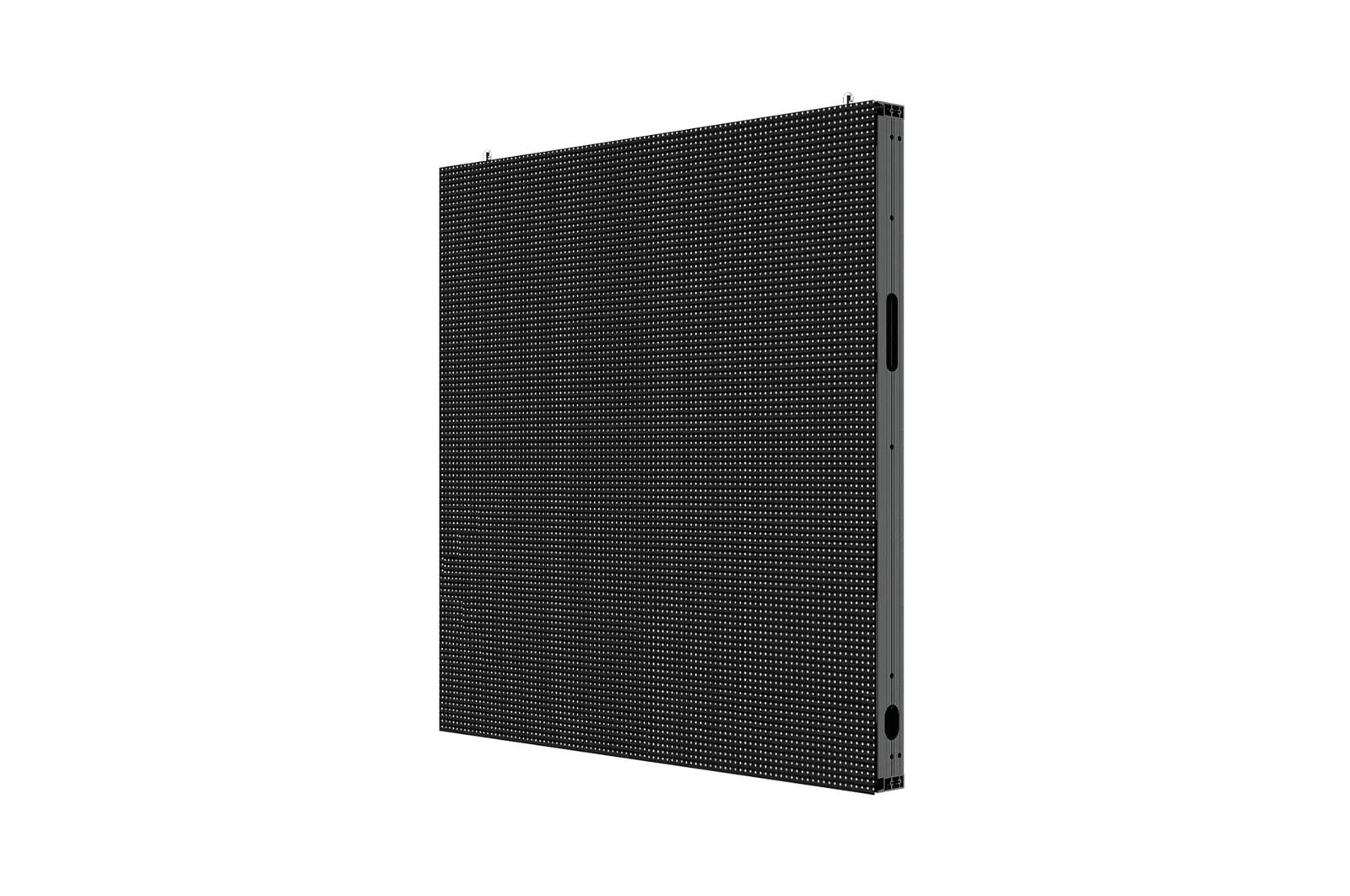

| Cabinet Dimensions (W x H x D) | 37.8 x 37.8 x 2.7 in / 960 x 960 x 68 mm |
| Cabinet Surface Area | 9.9 ft / 0.92 m |
| Weight per Cabinet | 45.2 lbs / 20.5 kg |
| Weight per Unit Area | 4.6 lbs/ft / 22.5 kg/m |
| Physical Pixel Density | 10,000 pixels / m |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Aluminum |

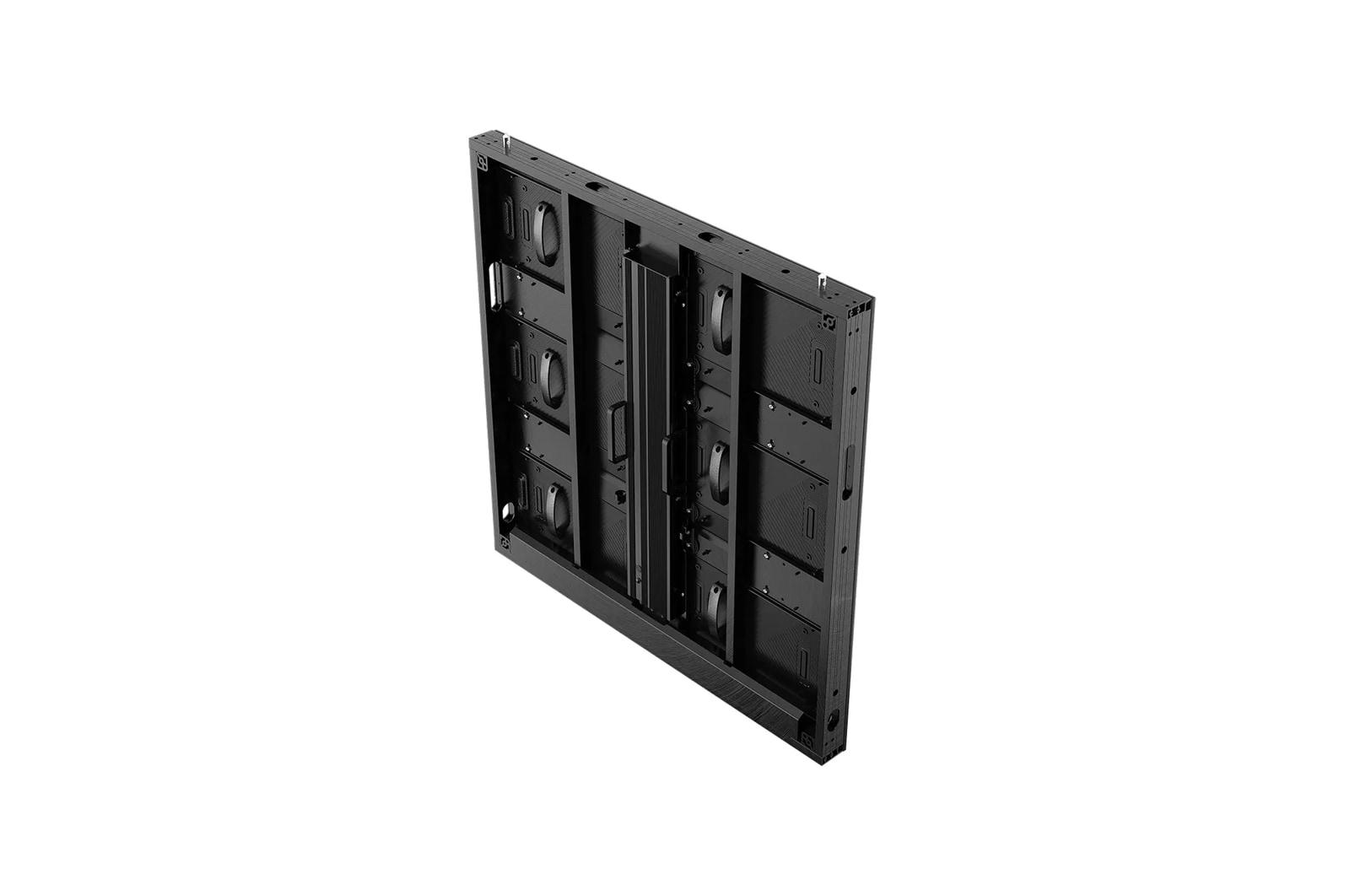

| Service Access | Front and Rear |
| 90 Degree Corner Cut | Yes (GSPA100-GAC) |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | CVGA |
| min viewing distance (5-7 mm per foot) | Not Available |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 193W |
| Power Consumption per Cabinet (Max.) | 580W |
| Heat Dissipation per Cabinet (Avg.) | 526 BTU/hr |
| Heat Dissipation per Cabinet (Max.) | 1,583 BTU/hr |
| Optical | |
| Max. Brightness (After Calibration) | 10,000 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 15,000:1 |
| Processing Depth | 14 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 140° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| KC | No |
| CB | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP66 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| BS476 Part7 (UK Fire Rating) | Yes |
| Eye Comfort | No |
| Safety 60950-1 | No |
| cTUVus | No |
| CE (Regulatory) | Yes |
| CCC | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP66 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -22° F to 140° F / -30° C to 60° C |
