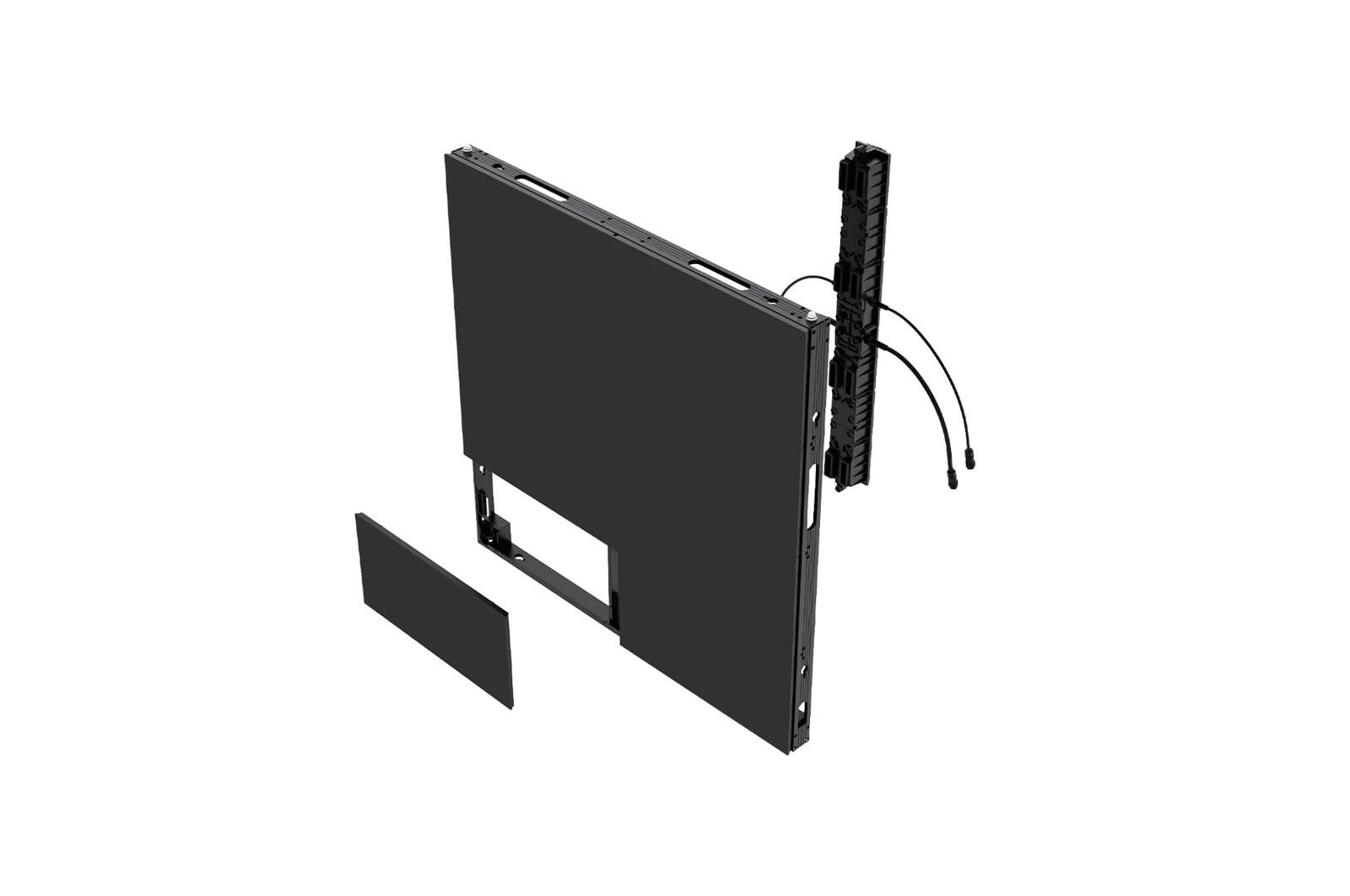

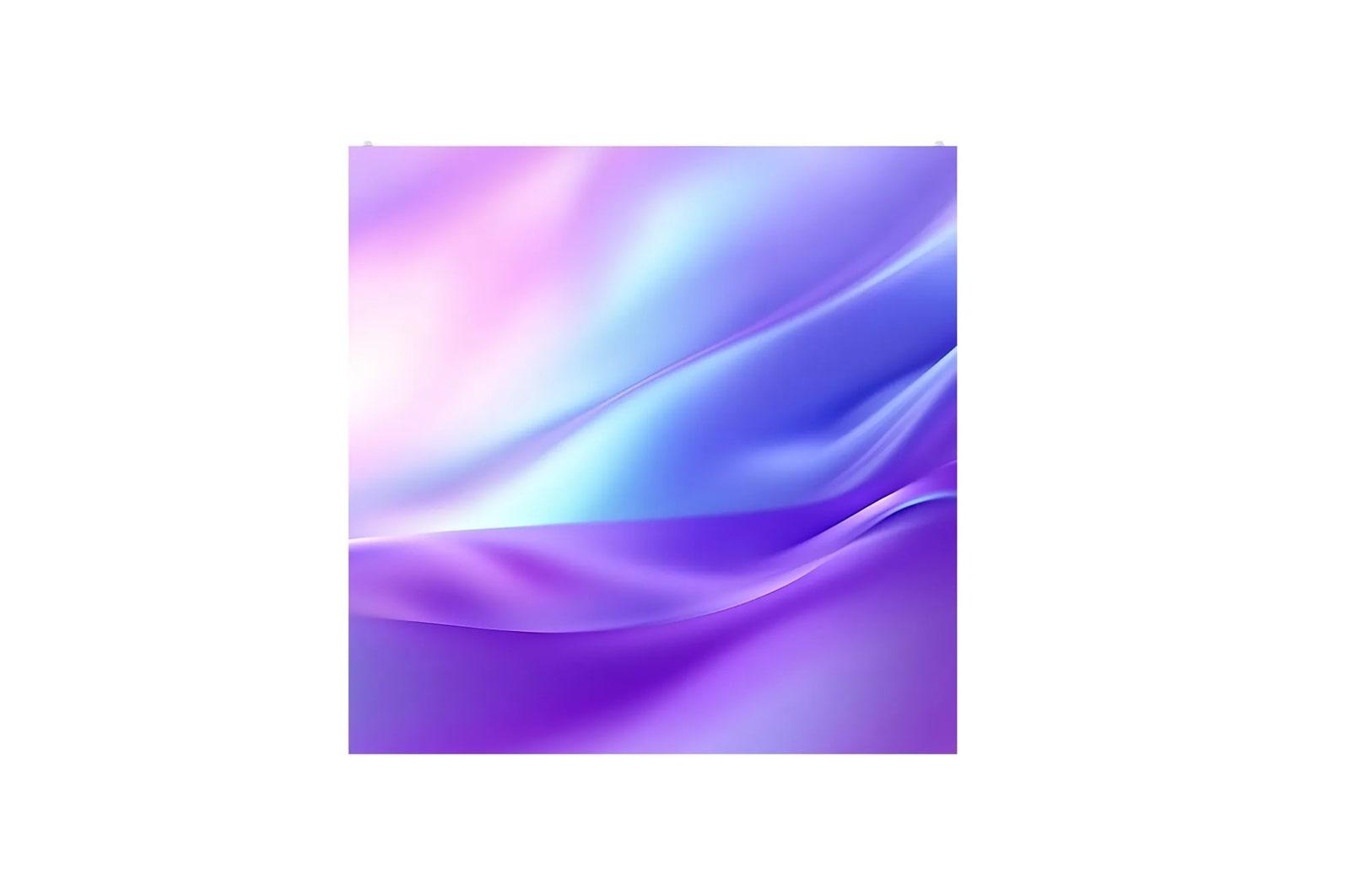

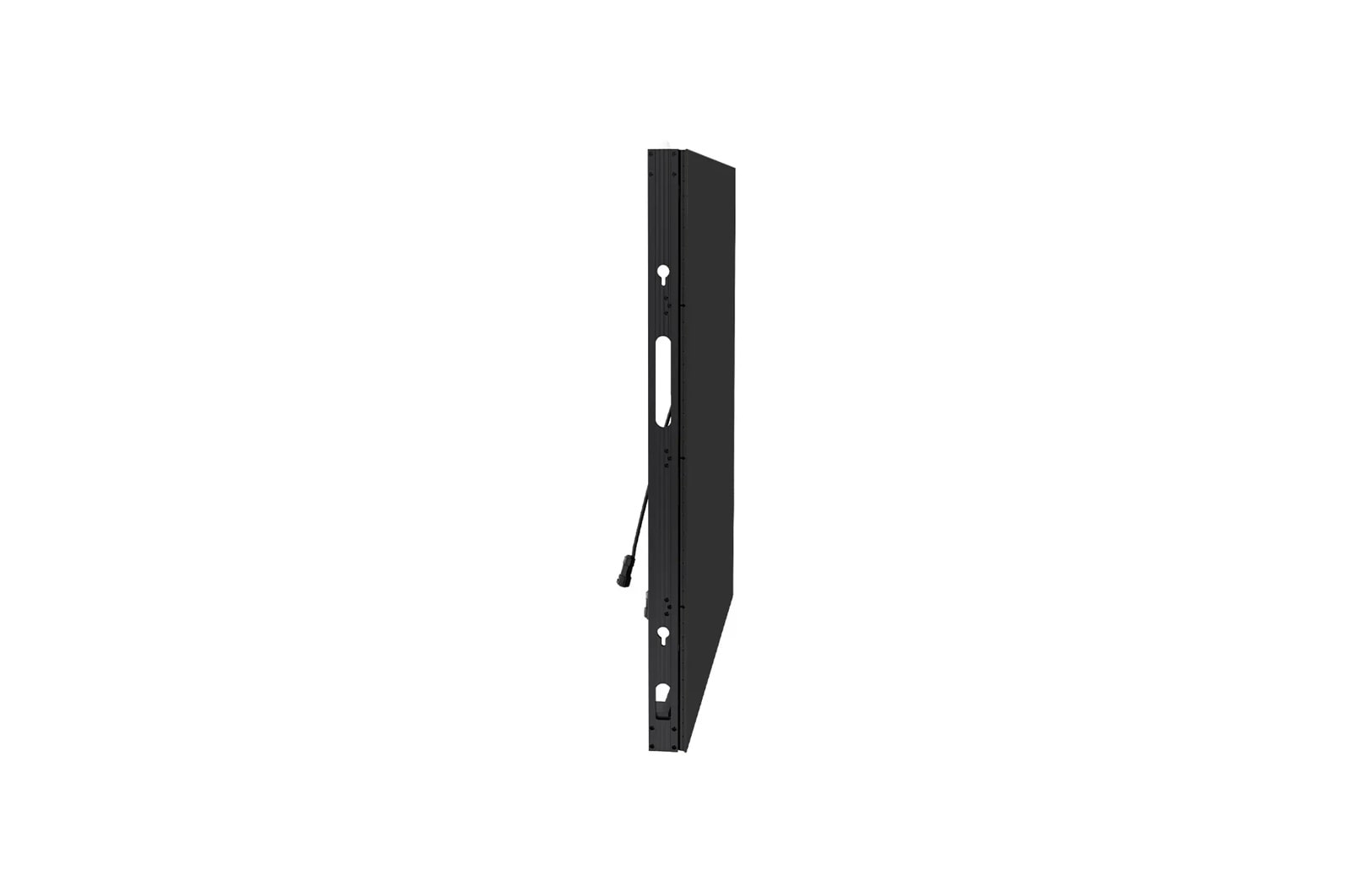

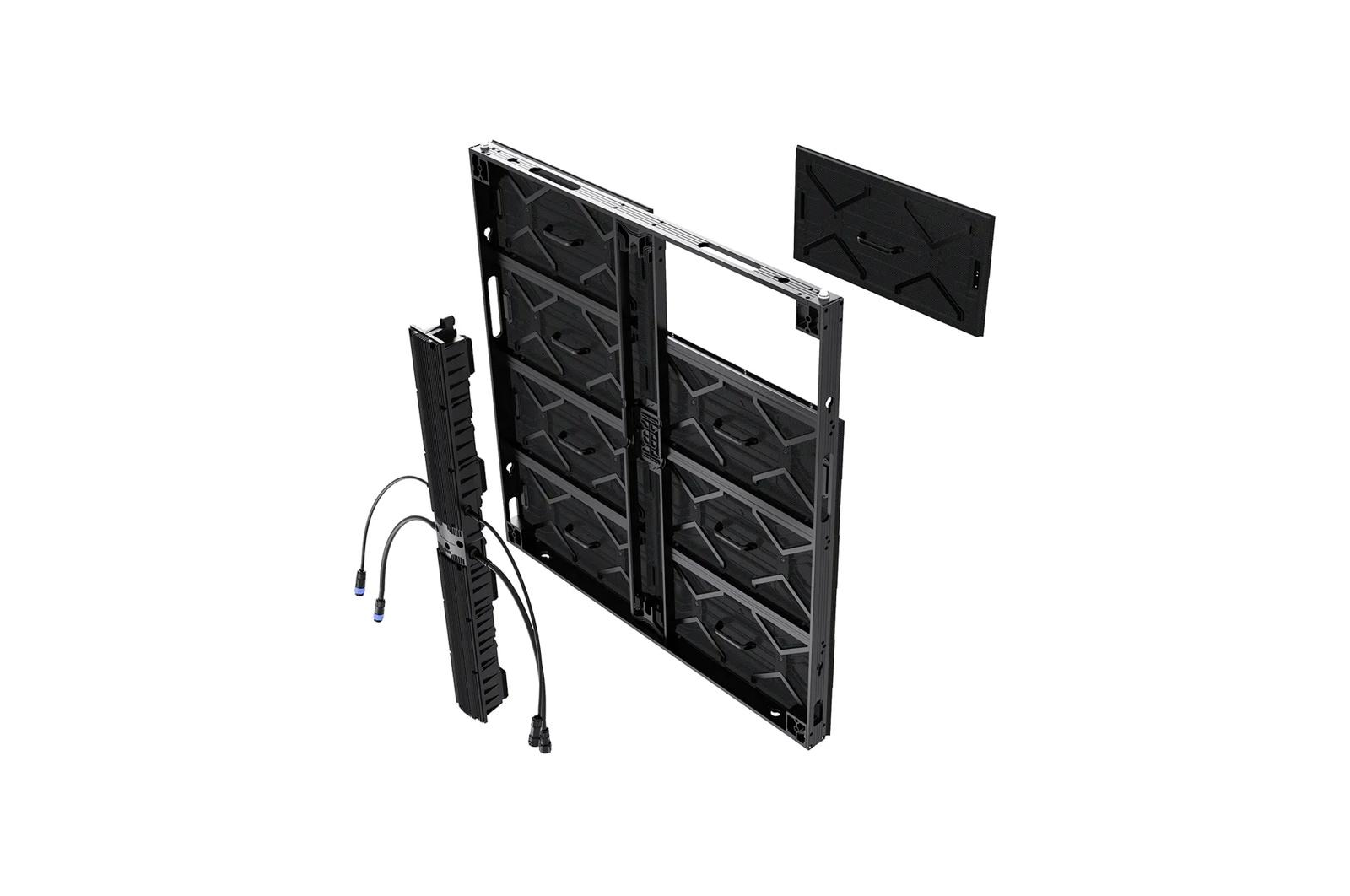

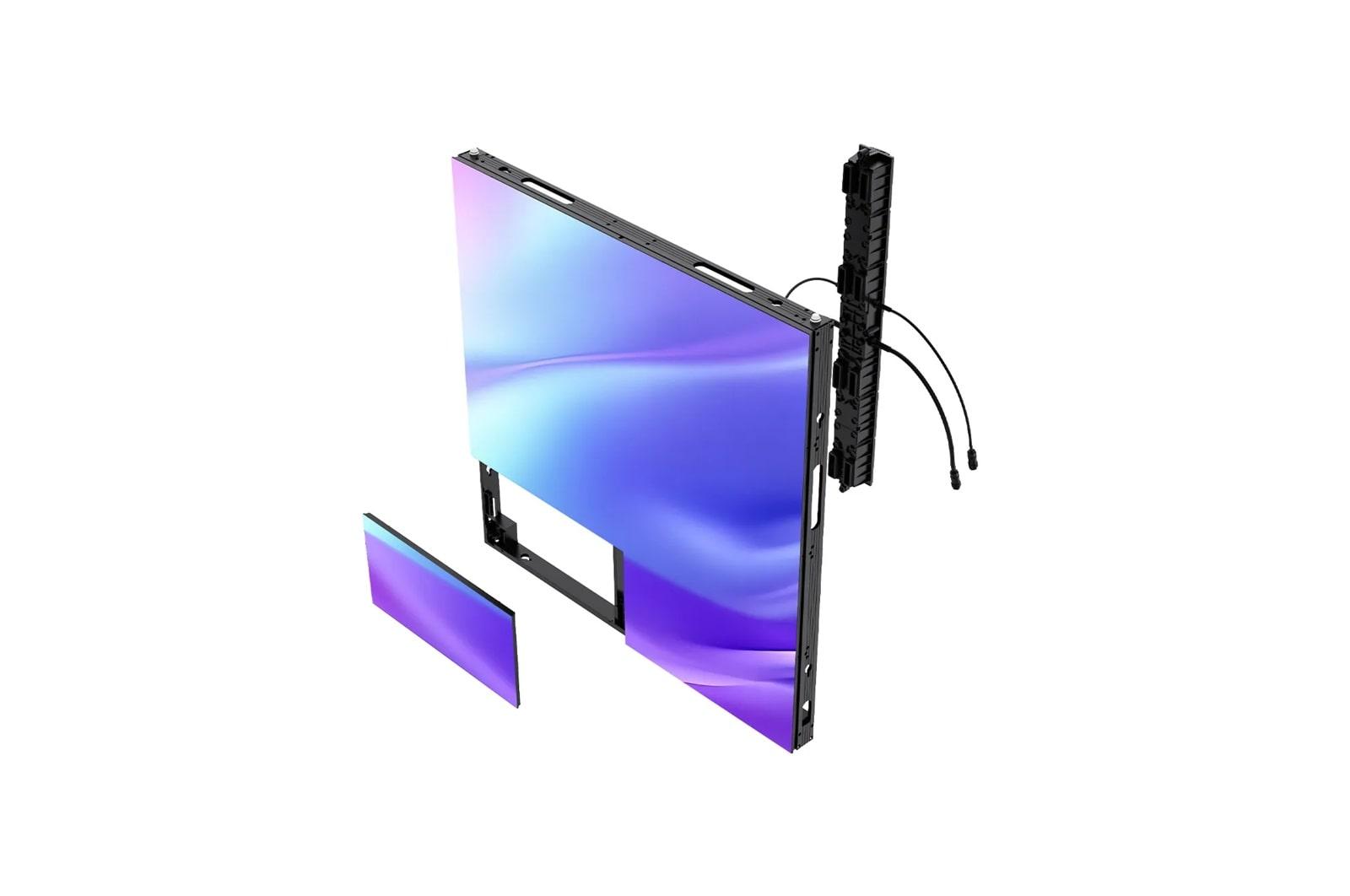

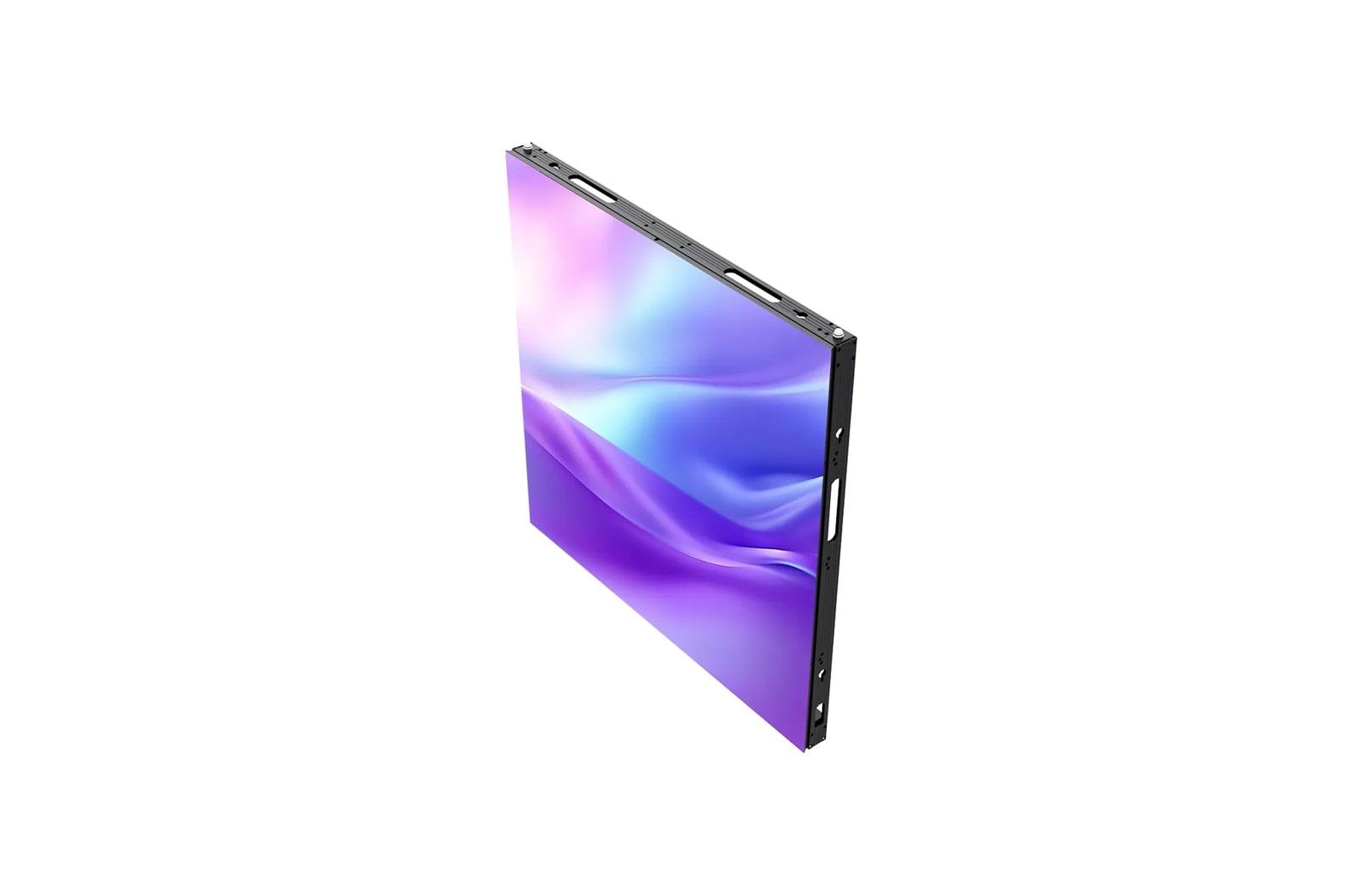

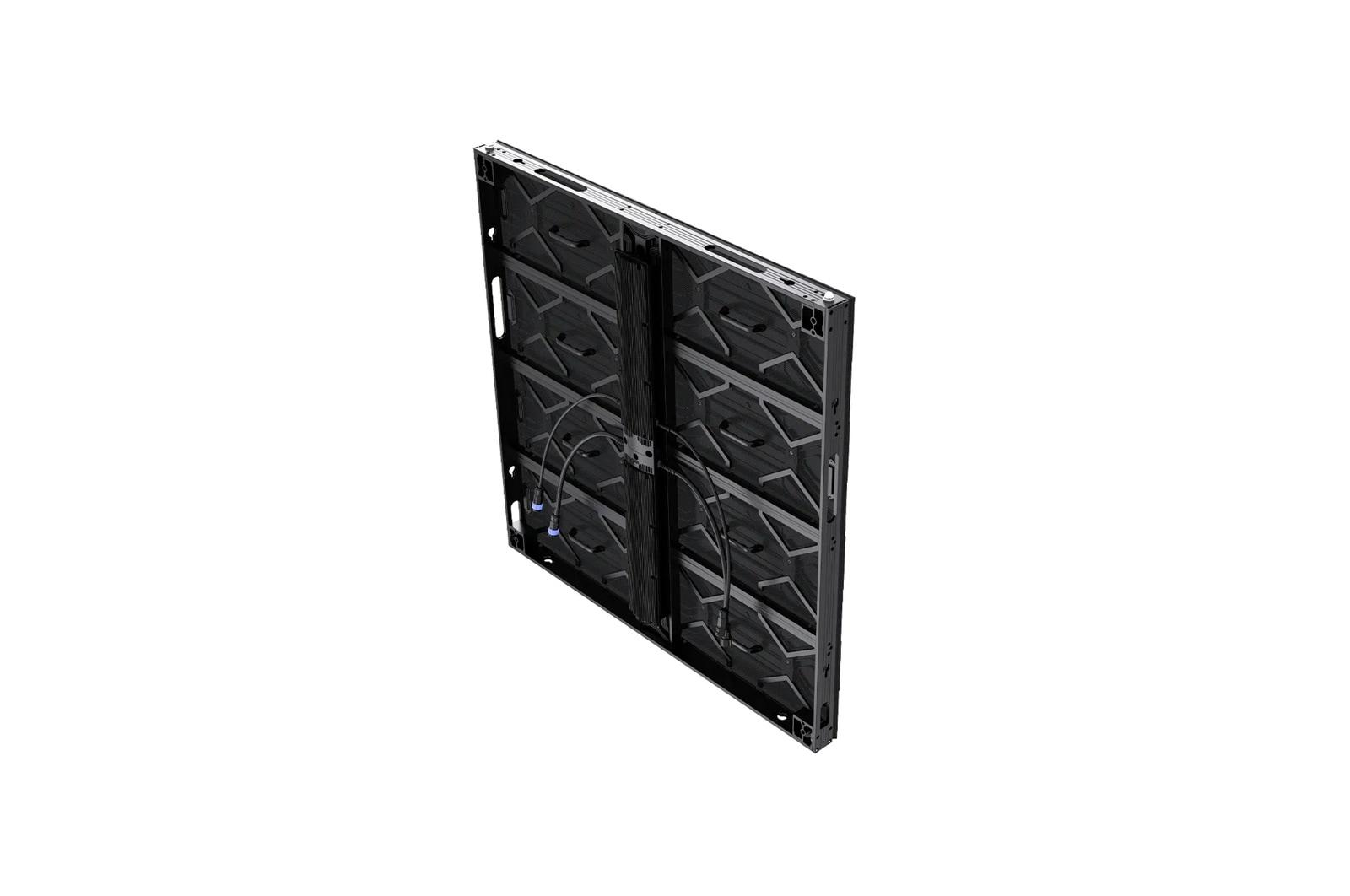

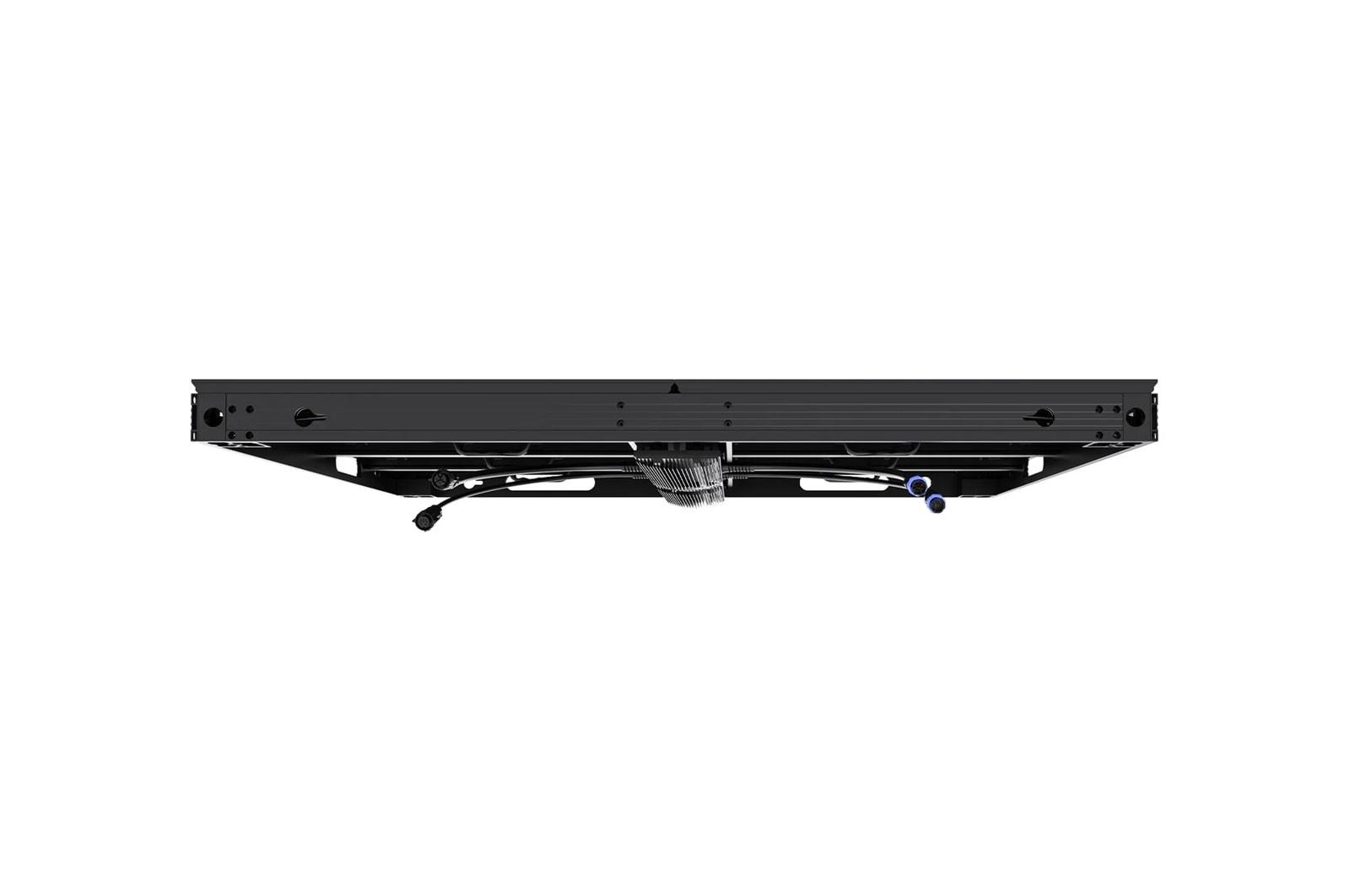

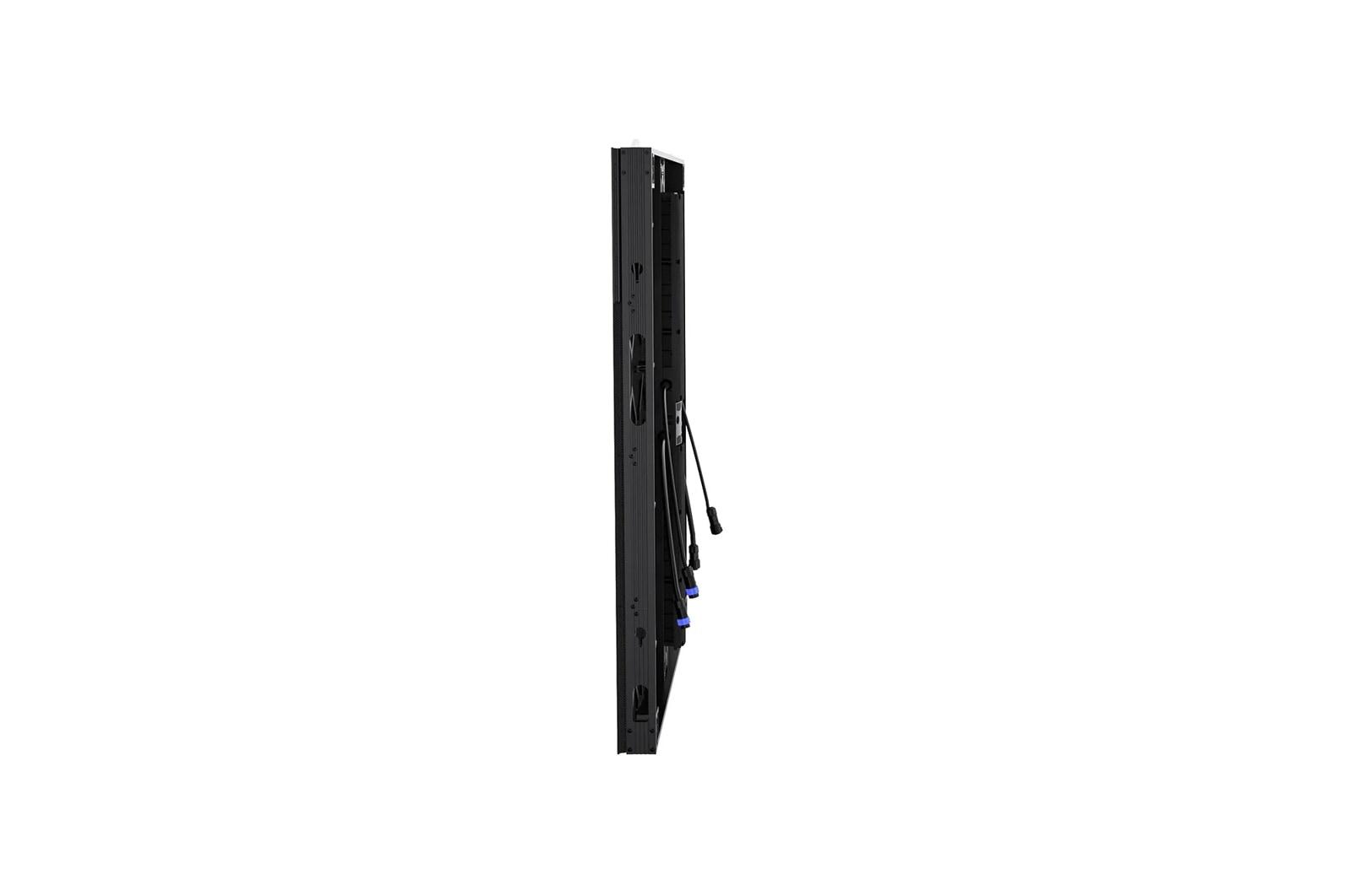

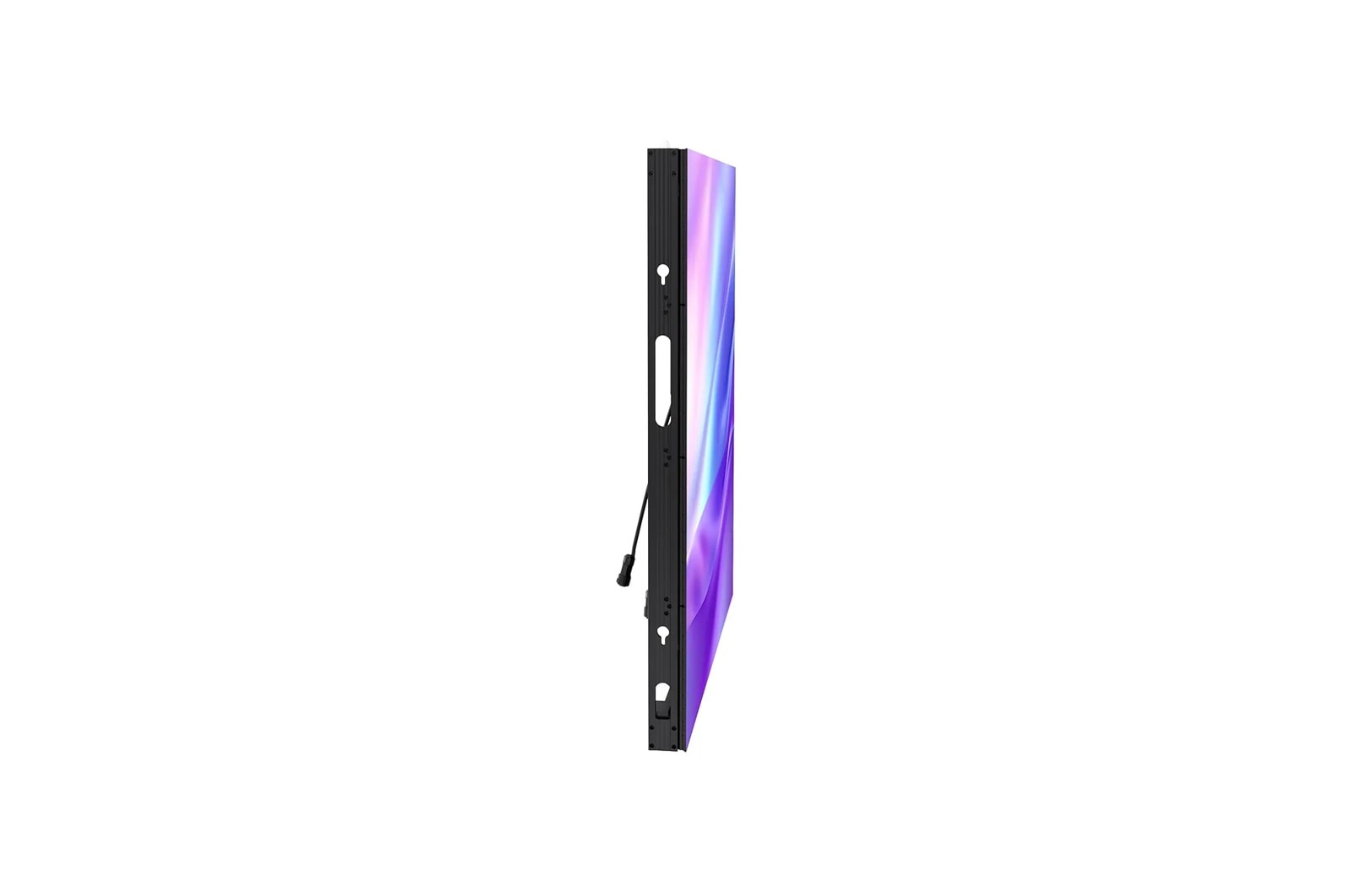

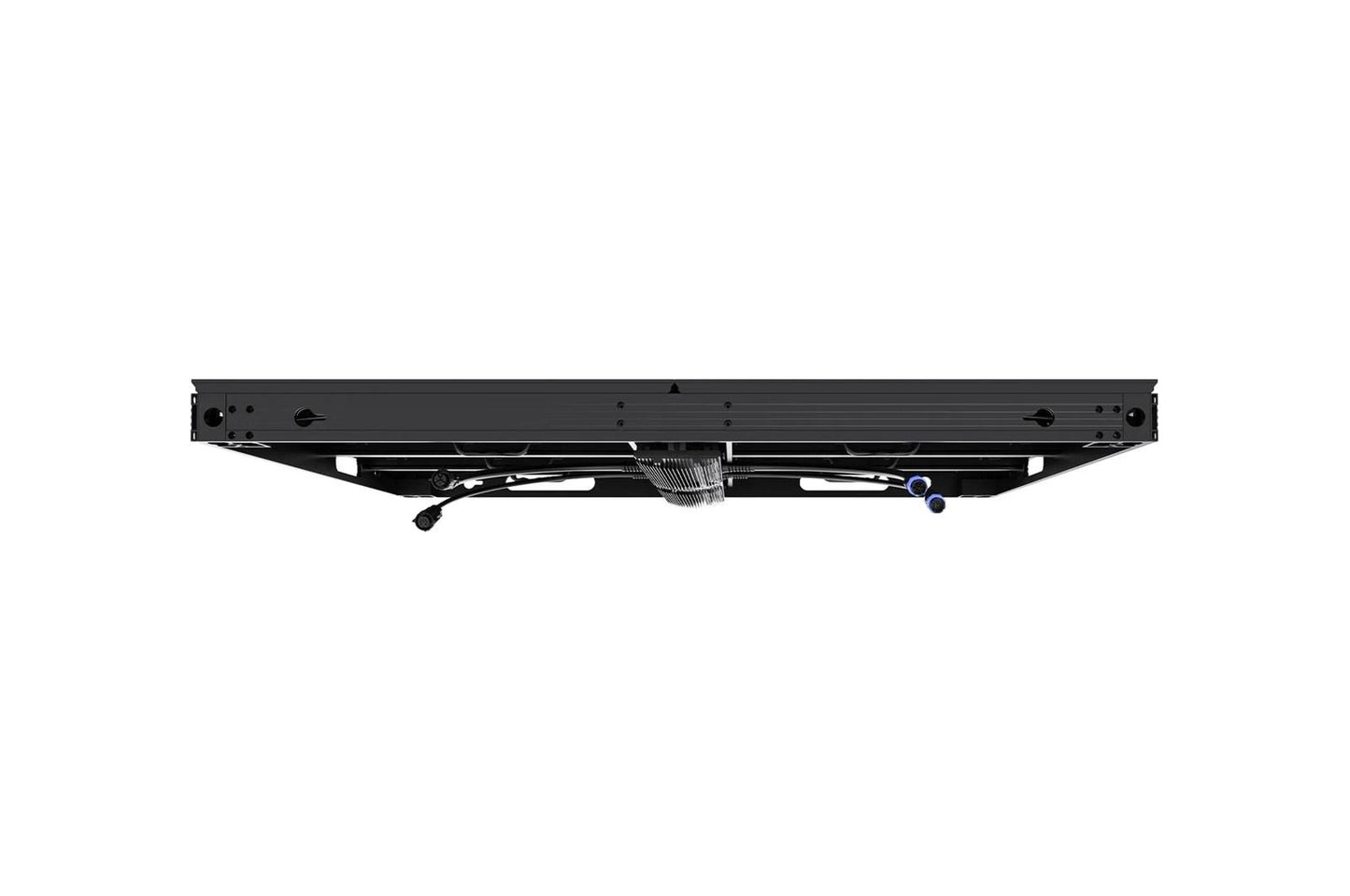

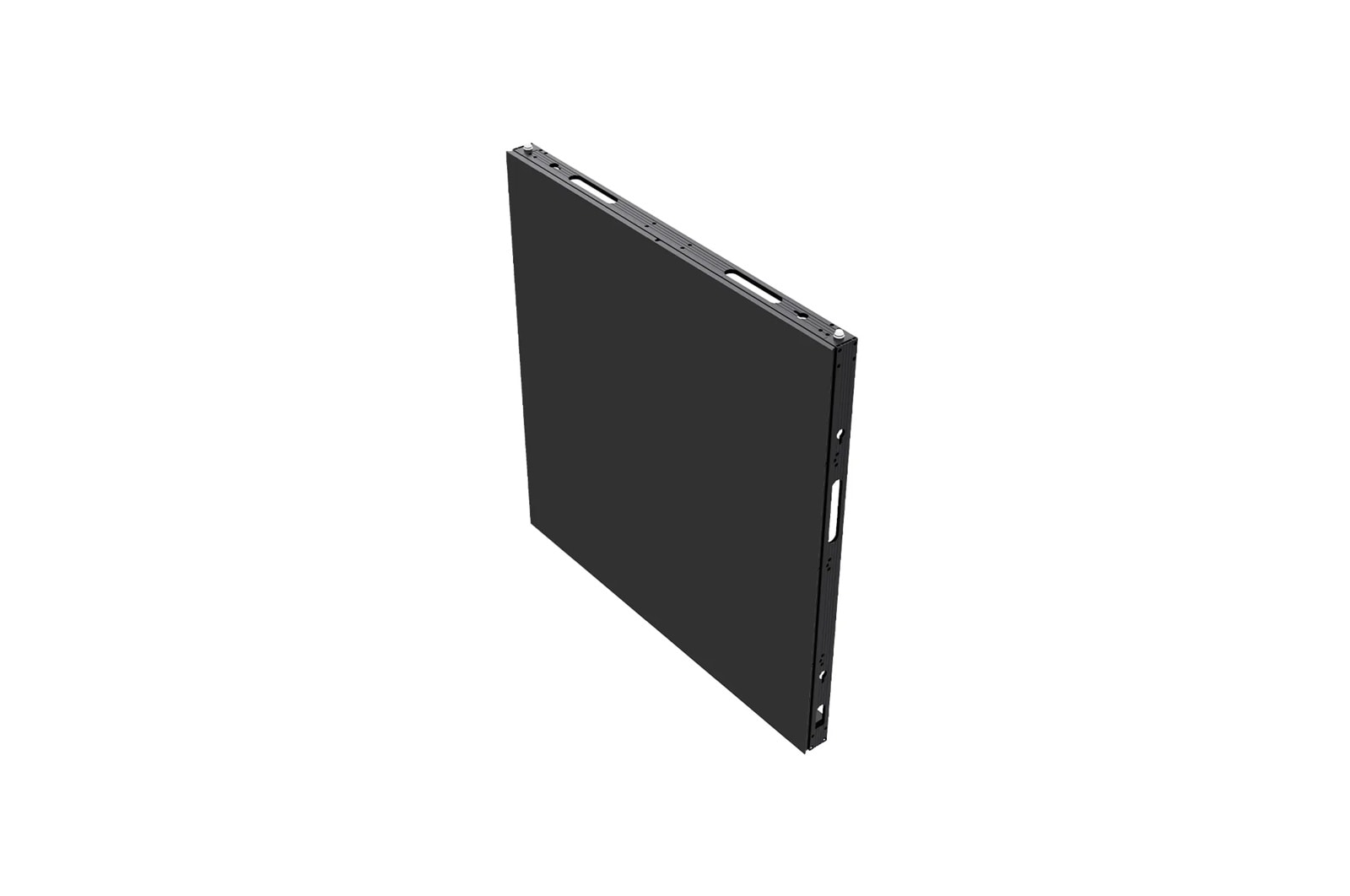

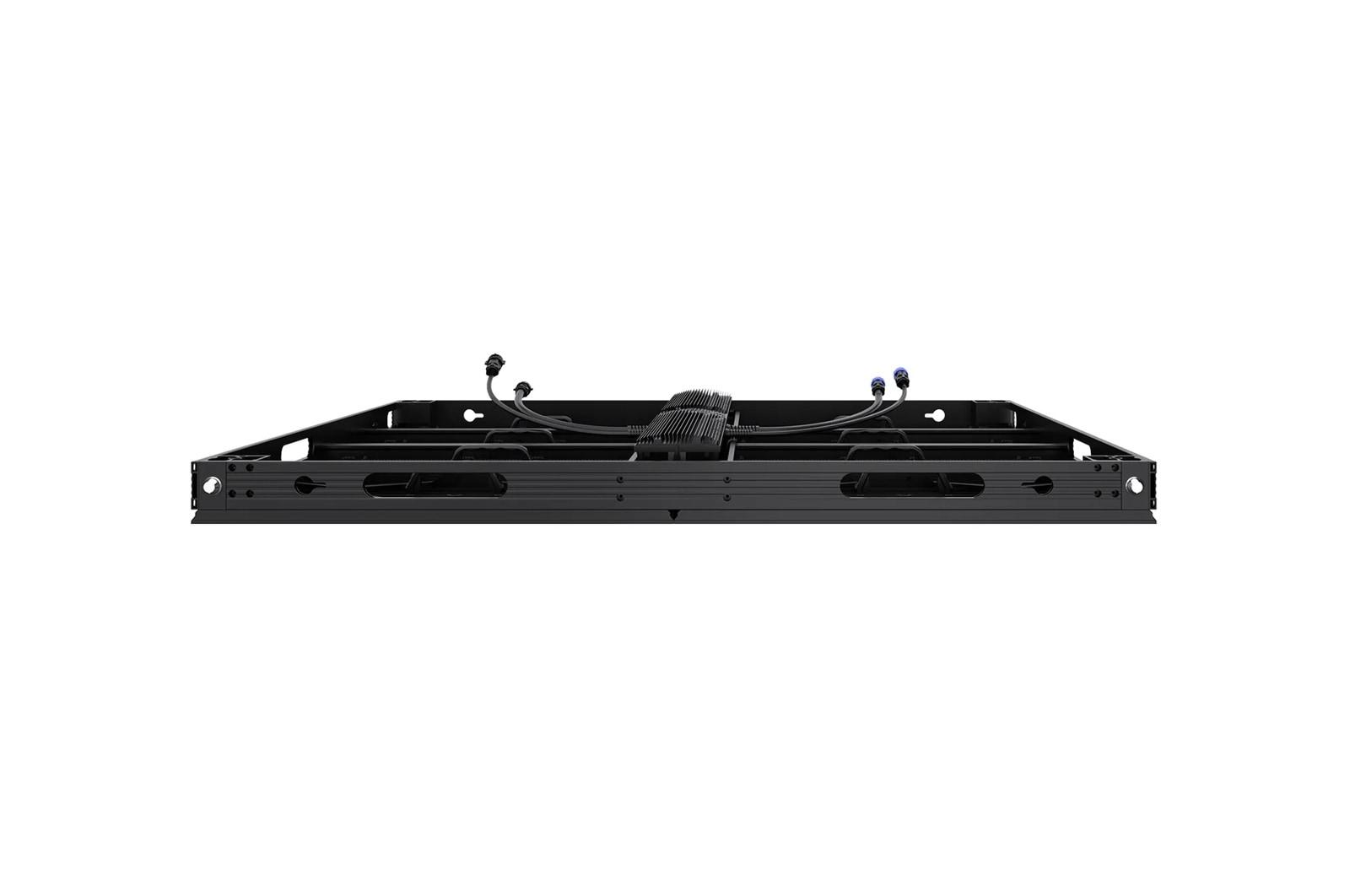

Lg GSPB039 3.91 mm High Brightness GSPB Series DVLED
Lg GSPB039 3.91 mm High Brightness GSPB Series DVLED
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Pixel Pitch : 3.91 mm
- Brightness : 8,000 nit
- Service Access : Front and Rear
- IP Rating : IP65 (Front / Rear)
3.91 mm High Brightness GSPB Series DVLED
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 0.15 in / 3.9 mm |
| Module Resolution (W x H) | 128 x 64 |
| Module Dimensions (W x H) | 9.84 x 9.84 in / 250 x 250 mm |
| Weight per Module | 3.08 lbs / 1.4 kg |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Dimensions (W x H x D) | 39.37 x 39.37 x 39.37 in / 1000 x 1000 x 68 mm |
| Cabinet Surface Area | 0.1 |
| Weight per Unit Area | 21 kg/ |
| Physical Pixel Density | 10,000 pixels / m |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Aluminum |
| Service Access | Front and Rear |
| 90 Degree Corner Cut | No |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | CVGA |
| min viewing distance (5-7 mm per foot) | 20-27 feet |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 7,680 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 220W |
| Power Consumption per Cabinet (Max.) | 660W |
| Heat Dissipation per Cabinet (Avg.) | 751 BTU/h/Cabinet |
| Power Consumption per Unit Area (Max.) | 660 W/ |
| Heat Dissipation per Cabinet (Max.) | 2252 BTU/h/Cabinet |
| Heat Dissipation per Unit Area (Max.) | 2252 BTU/h/ |
| Optical | |
| Max. Brightness (After Calibration) | Up to 8,000 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 20,000:1 |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 155° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| KC | Yes |
| CB | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP65 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| EN13501-1 | Yes |
| BS476 Part7 (UK Fire Rating) | Yes |
| CE (Regulatory) | Yes |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP65 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 99% RH |
| Operating Temperature | -22° F to 122° F / -30° C to 50° C |
