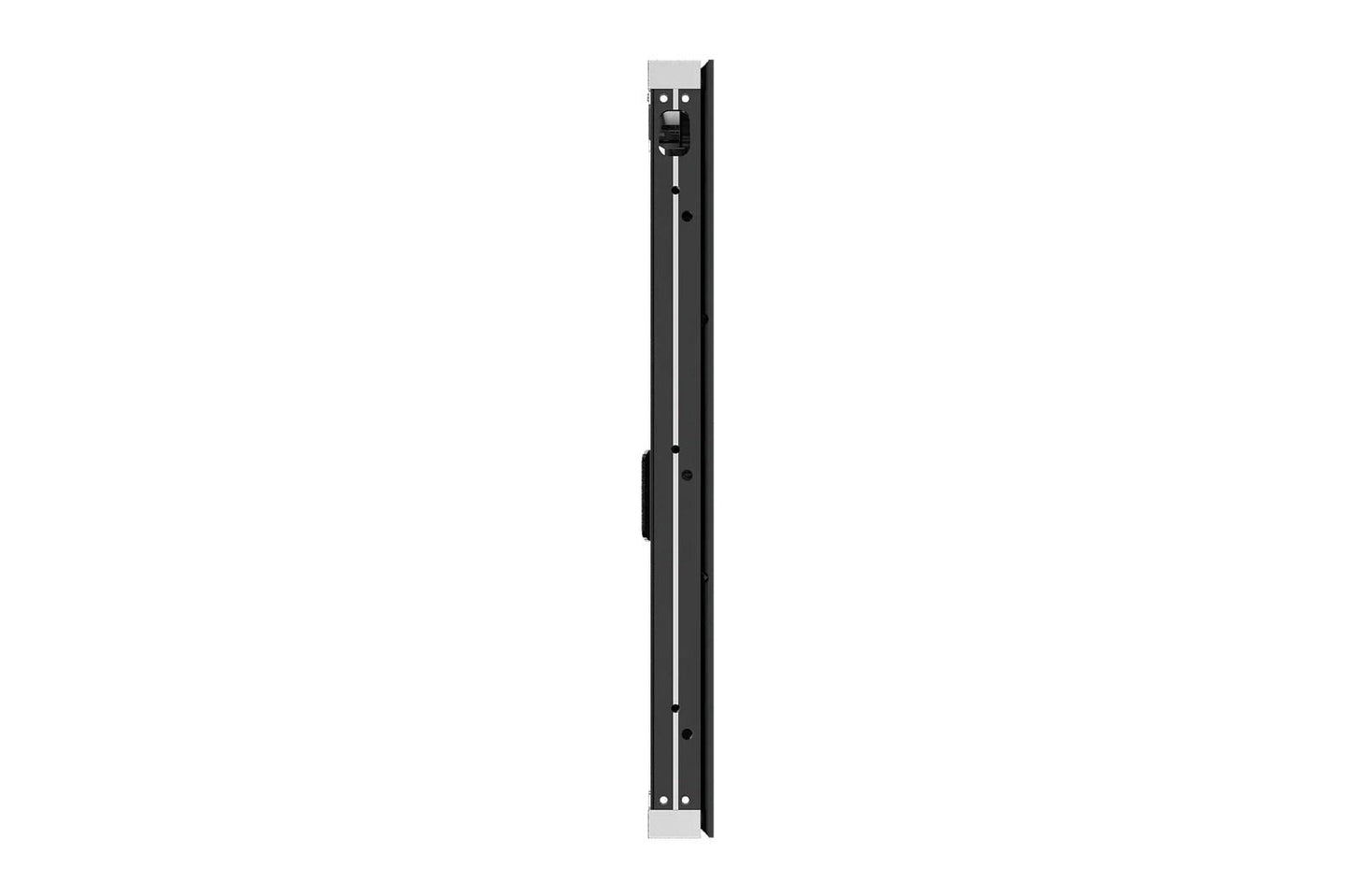

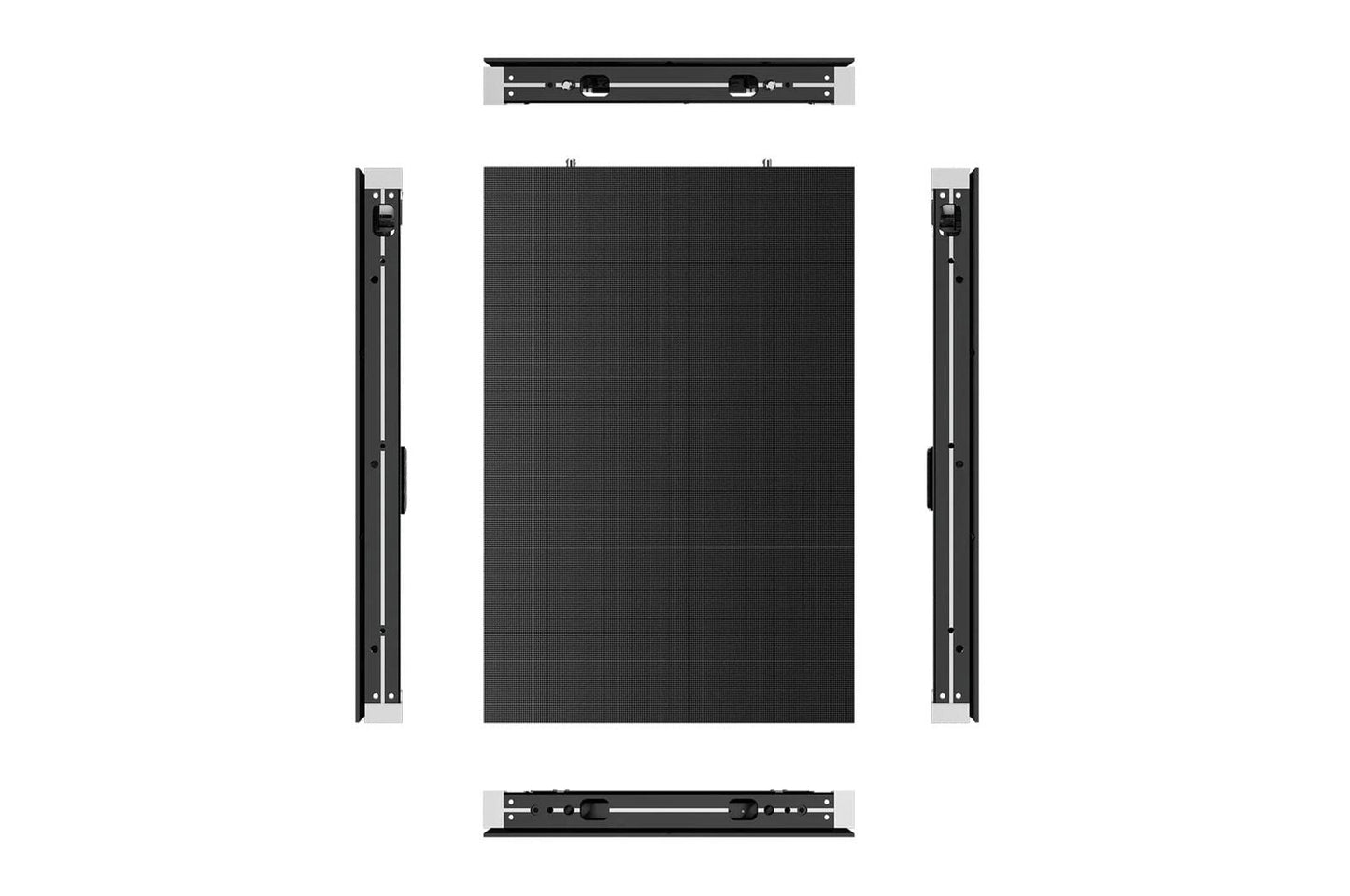

Lg GSPC029 2.98 mm GSPC Series Short-Range Outdoor Direct View LED
Lg GSPC029 2.98 mm GSPC Series Short-Range Outdoor Direct View LED
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 2.98 mm pixel pitch for short-range viewing
- Brightness of 5,500 nits

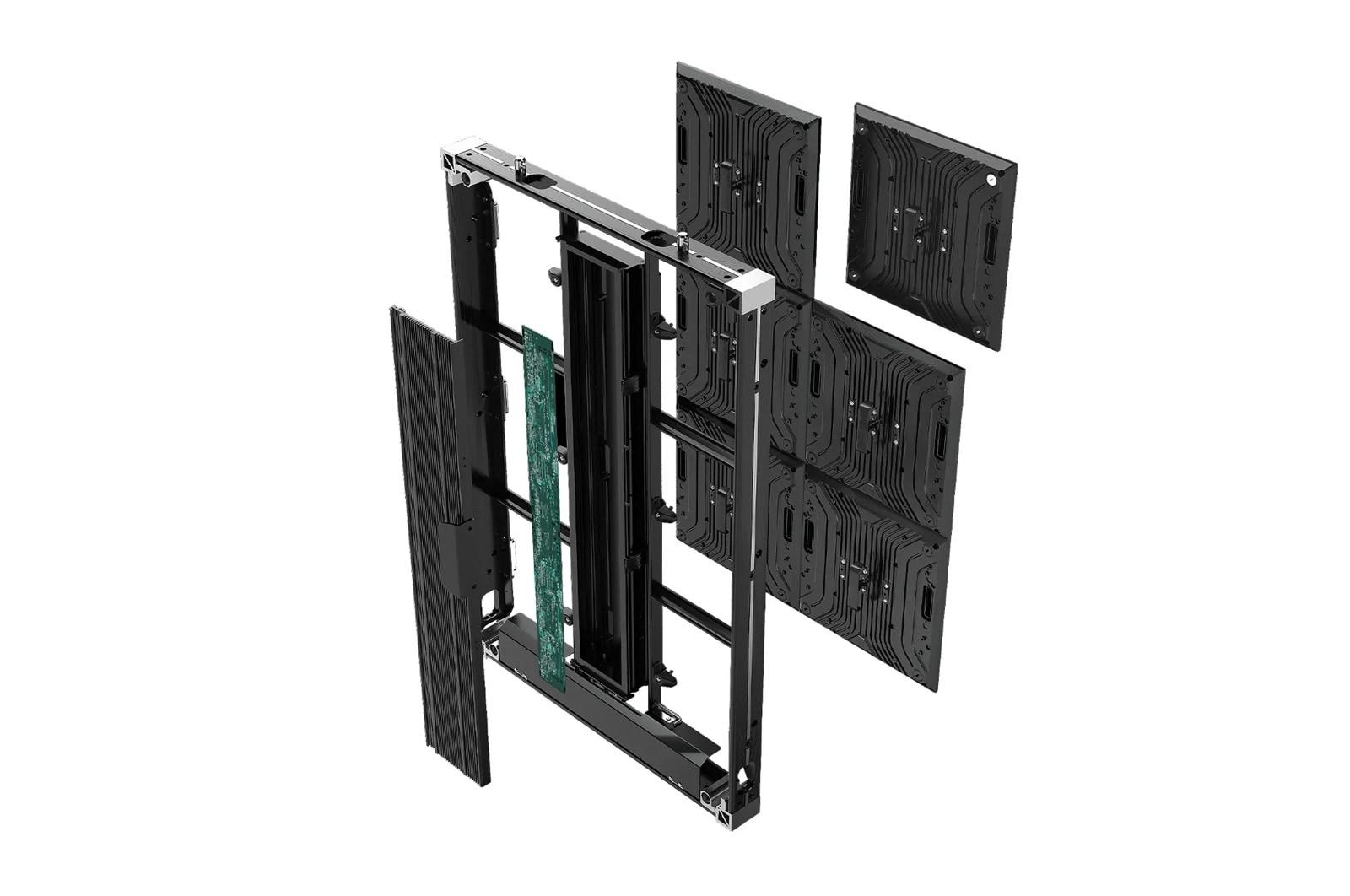

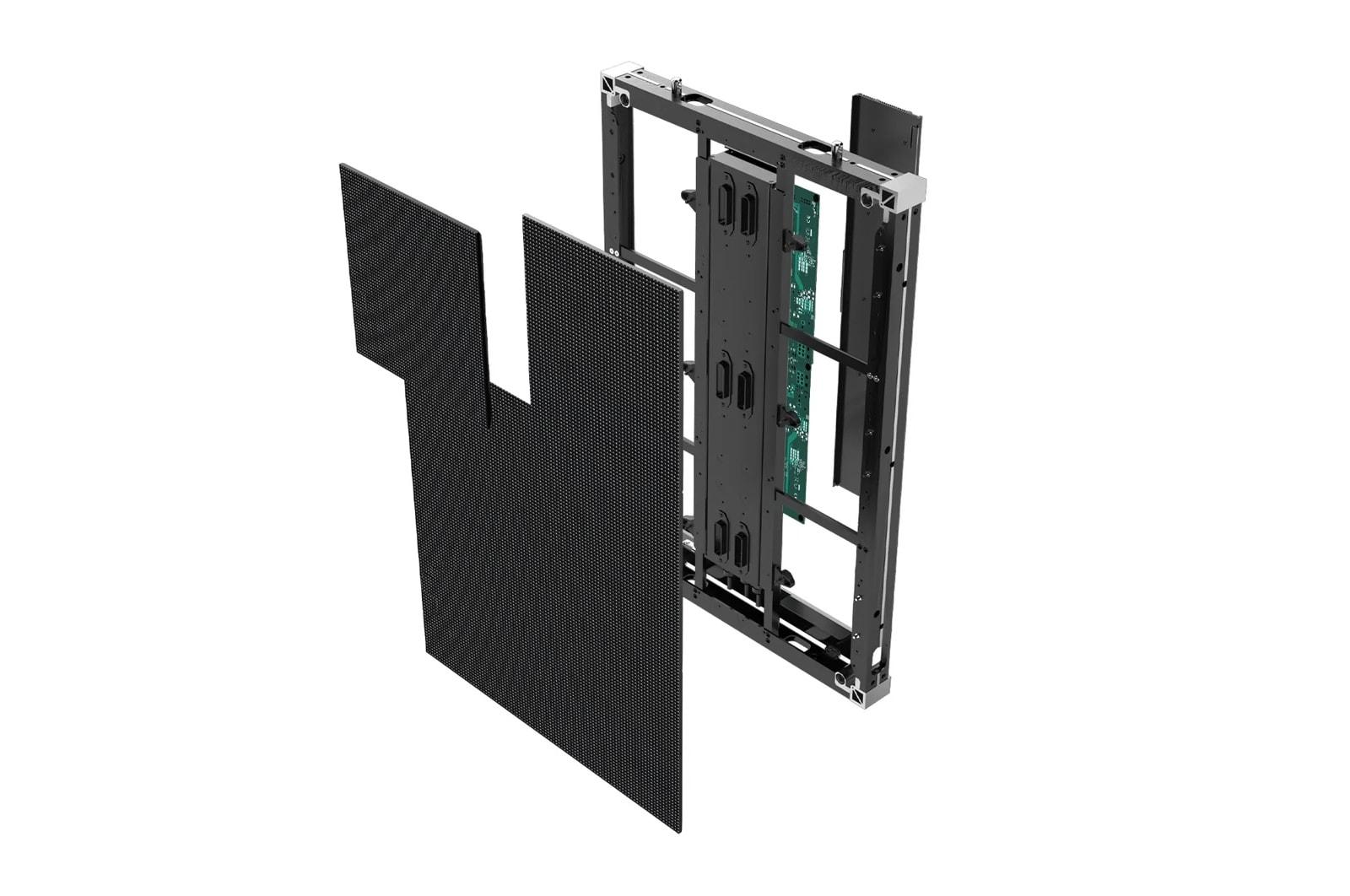

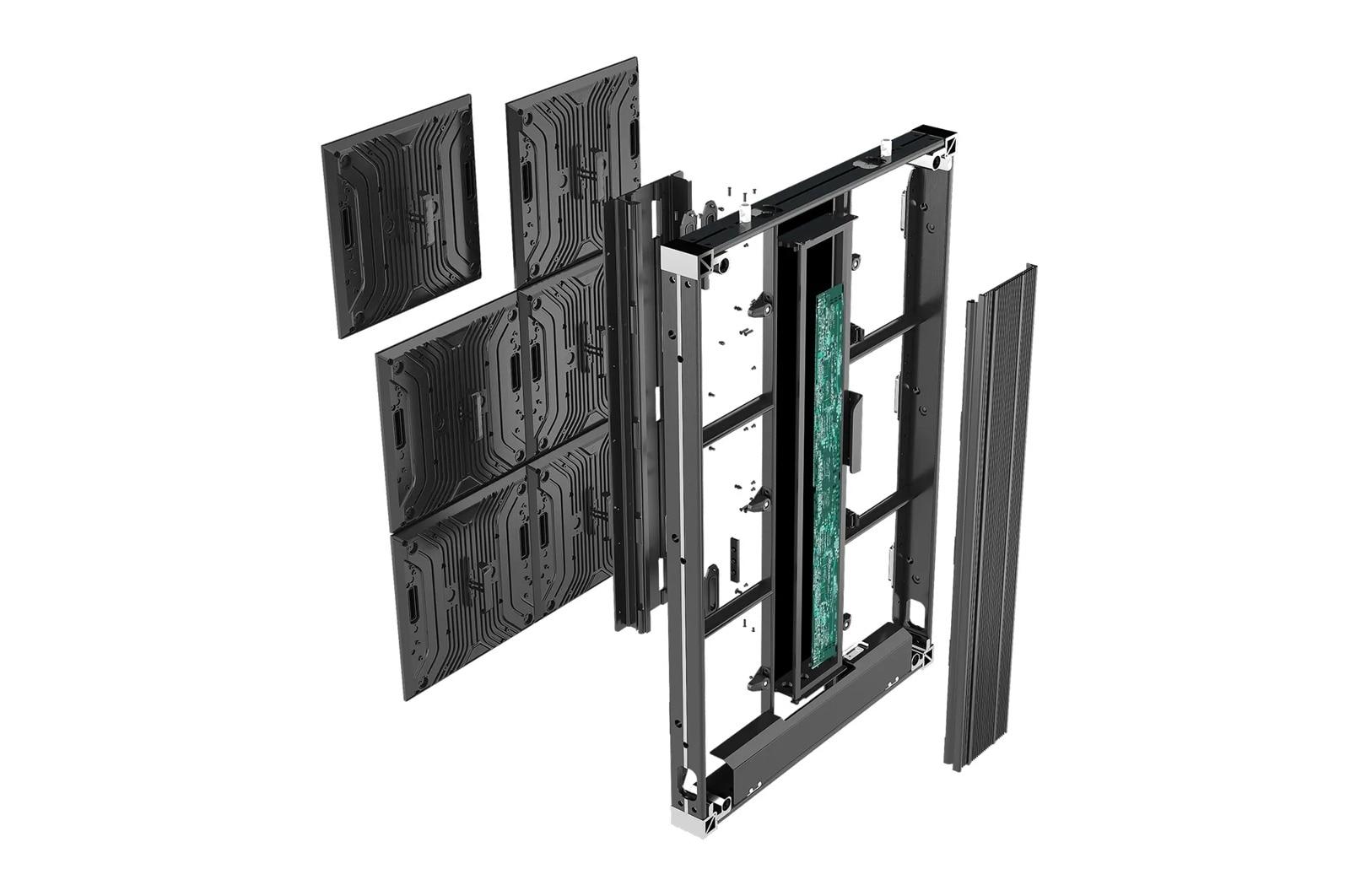

- Front and rear service access for streamlined maintenance
- IP66 rating ensures beautiful displays through dust and rain

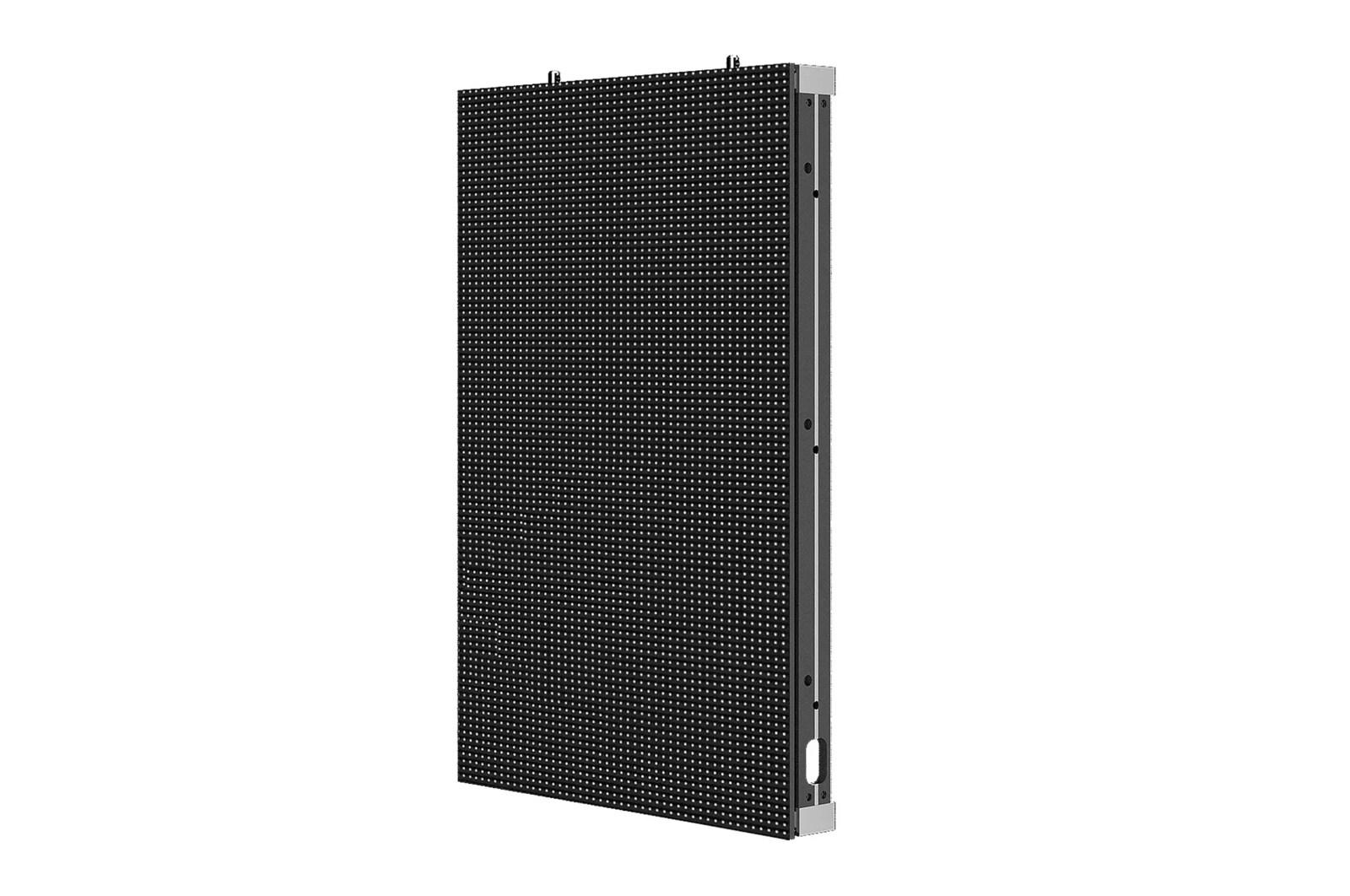

2.98 mm GSPC Series Short-Range Outdoor Direct View LED
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 2.98 mm |
| Module Resolution (W x H) | 84 x 84 |
| Module Dimensions (W x H) | 250 x 250 |
| Weight per Module | 1 Kg |
| No. of Modules per Cabinet (W x H) | 2 x 4 |
| Cabinet Resolution (W x H) | 168 x 336 |
| Cabinet Dimensions (W x H x D) | 500 x 1,000 x 68mm |
| Cabinet Surface Area | 0.5 |
| Weight per Cabinet | 16 kg/unit |
| Weight per Unit Area | 32 kg/ |
| Physical Pixel Density | 112,896 pixels/m |
| Flatness of Cabinet | 0.2 mm |
| Cabinet Material | Aluminum |
| Service Access | Front or Rear |
| 90 Degree Corner Cut | Left and Right Cut |
| Controller | CVGA |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 87 W/Cabinet, Avg |
| Power Consumption per Cabinet (Max.) | 260 W/Cabinet, Max. |
| Heat Dissipation per Cabinet (Avg.) | 297 BTU/h/Cabinet, Avg. |
| Power Consumption per Unit Area (Max.) | 520 W/ , Max. |
| Heat Dissipation per Cabinet (Max.) | 887 BTU/h/Cabinet, Max. |
| Heat Dissipation per Unit Area (Max.) | 1,774 BTU/h/ , Max. |
| Optical | |
| Color Temperature | 3,200-9,300K |
| Contrast Ratio | 10,000:1 |
| Processing Depth | 14 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 140° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| KC | Yes |
| CB | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP66 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| EN13501-1 | Yes |
| Fire Protection | Yes |
| BS476 Part7 (UK Fire Rating) | Class 1 |
| CE (Regulatory) | Yes |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP66 |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -22° F to 122° F / -30° C to 50° C |
