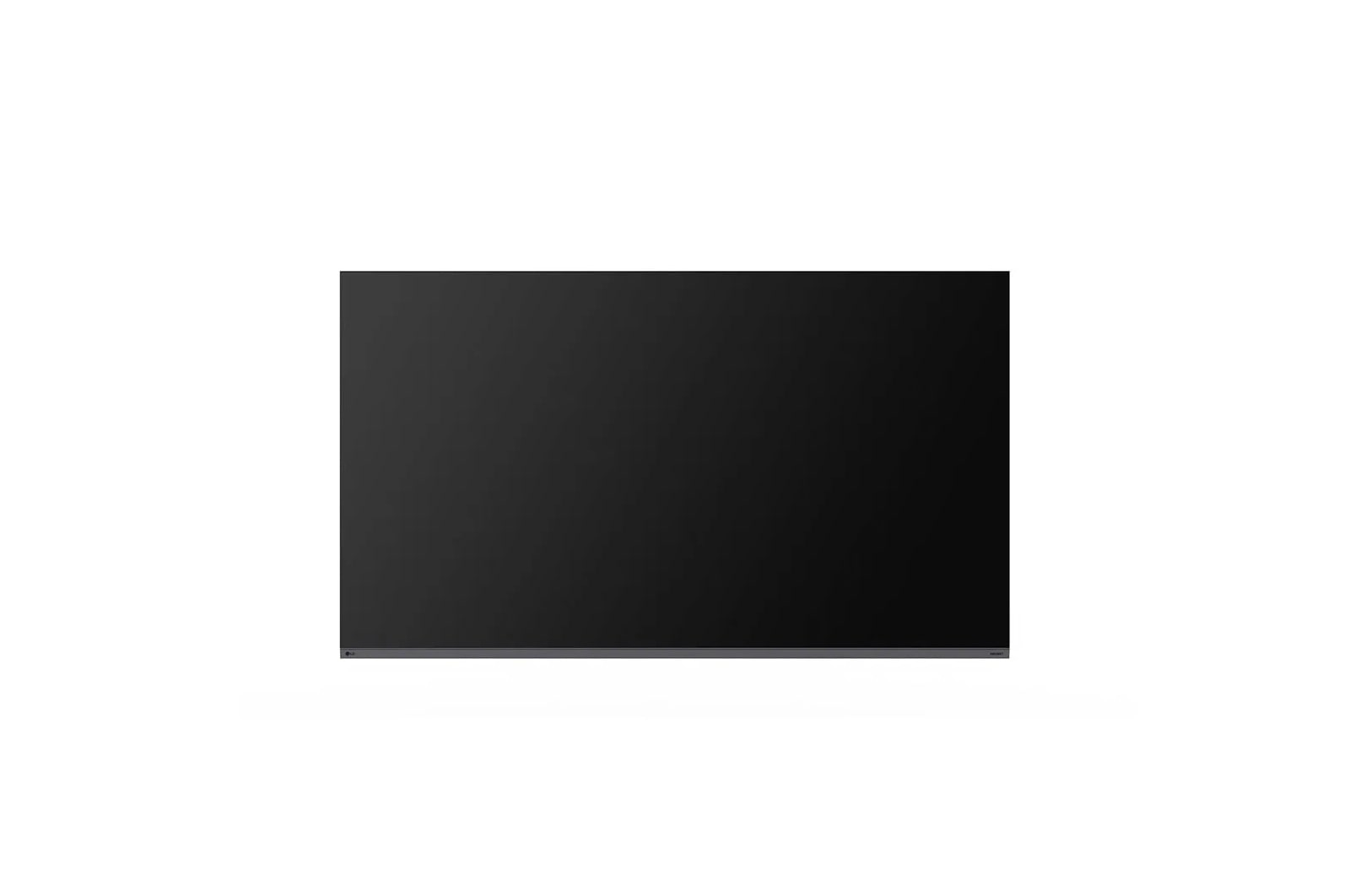

Lg LAAA007 136" MAGNIT MicroLED Display with webOS™, Alpha 7 Intelligent Processor, True Black, & AV Control Systems Compatible
Lg LAAA007 136" MAGNIT MicroLED Display with webOS™, Alpha 7 Intelligent Processor, True Black, & AV Control Systems Compatible
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 0.78 Pixel Pitch
- Achieve True Black with Black Coating Technology
- LG webOS™, Embedded Controller & Built-in Speaker
- Front IP50 Rated and and Back IP20 Ratedt
- Easy installation with Five-module Assembly
- Last up to 100,000 hourst
136" MAGNIT MicroLED Display with webOS™, Alpha 7 Intelligent Processor, True Black, & AV Control Systems Compatible
| Physical Parameters | |
| LED Type | COB |
| Pixel Configuration | MicroLED |
| Pixel Pitch | 0.78 |
| Screen Size (Inches) | 136" |
| Screen Resolution (W x H) | 1,920 x 1,080 (FHD) |
| Module Resolution (W x H) | 384 x 144 |
| Module Dimensions (W x H) | 11.81 x 4.42 in / 300 x 112.5mm |
| No. of Modules per Screen (W x H) | 10 x 15 (Total 150) |
| Screen Dimensions (W x H x D) | 118.3 x 68.6 x 2.3 in / 3,004 x 1,742 x 57.4 mm |
| Screen Surface Area | 54.5 ft2 / 5.06 m2 |
| Weight | 418.9 lbs / 190 kg |
| Physical Pixel Density | 1,638,400 pixels/m |
| Flatness of Cabinet | 0.2 mm |
| Cabinet Material | Steel |
| Service Access | Front |
| Electrical | |
| Power Consumption (Max.) | 1,450W |
| Heat Dissipation (Max.) | 4,950 BTU |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Heat Dissipation (Avg.) | 2,900 BTU |
| Power Consumption (Avg.) | 850 W |
| Power Consumption per Unit Area (Max.) | 277 W |
| Heat Dissipation per Unit Area (Max.) | 950 BTU |
| Connectivity | |
| HDMI In | Yes (x3) |
| IR In (3.5 mm) | Yes |
| DisplayPort In | Yes (x1) |
| RS-232C In (3.5 mm 4-pin) | Yes |
| AC In | Yes |
| Built-in Wi-Fi | Yes |
| Controller | |
| Controller | Embedded webOS |
| Optical | |
| Max. Brightness (After Calibration) | Up to 1,000 nits |
| Color Temperature | 3,200-9,300K |
| Viewing Angle (H x V) | 160° x 160° |
| Brightness Uniformity | 95% |
| Color Uniformity | 0.015 Cx, Cy |
| Contrast Ratio | 25000:1 |
| Processing Depth | 20 bit (HDR10, HDR10 Pro) |
| Lifetime | Up to 100,000 Hrs |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 10W |
| Features | |
| Magic Remote Compatibility | Yes |
| Crestron Certified Compatibility | Yes |
| LG Software Compatible | |
| ConnectedCare™ | Yes |
| LG One:Quick Share | Yes |
| Regulatory & Certifications | |
| ETL (Regulatory) | No |
| IP Rating (Rear) | IP20 |
| RoHS (Environmental) | Yes |
| IP Rating (Front) | IP50 |
| CB | No |
| REACH (Environmental) | No |
| FCC (Regulatory) | EMC Class A |
| BS476 Part7 (UK Fire Rating) | Yes |
| Safety 60950-1 | Yes |
| cTUVus | No |
| CE (Regulatory) | No |
| TAA Compliance | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | Korea |
| UPC | 1 95174 08933 0 |
| Environmental Conditions | |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| Operation Humidity | 10-80% RH |
