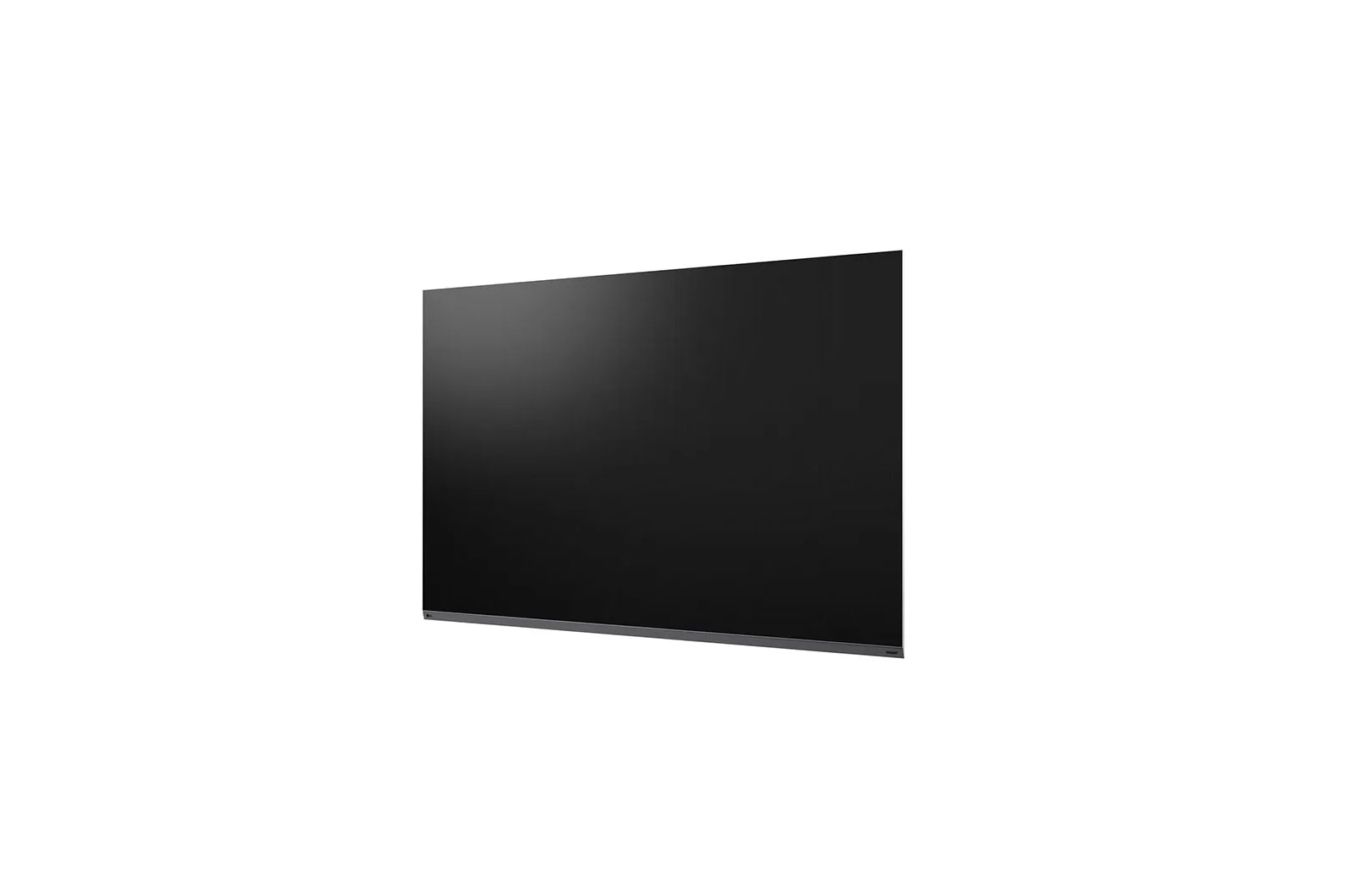

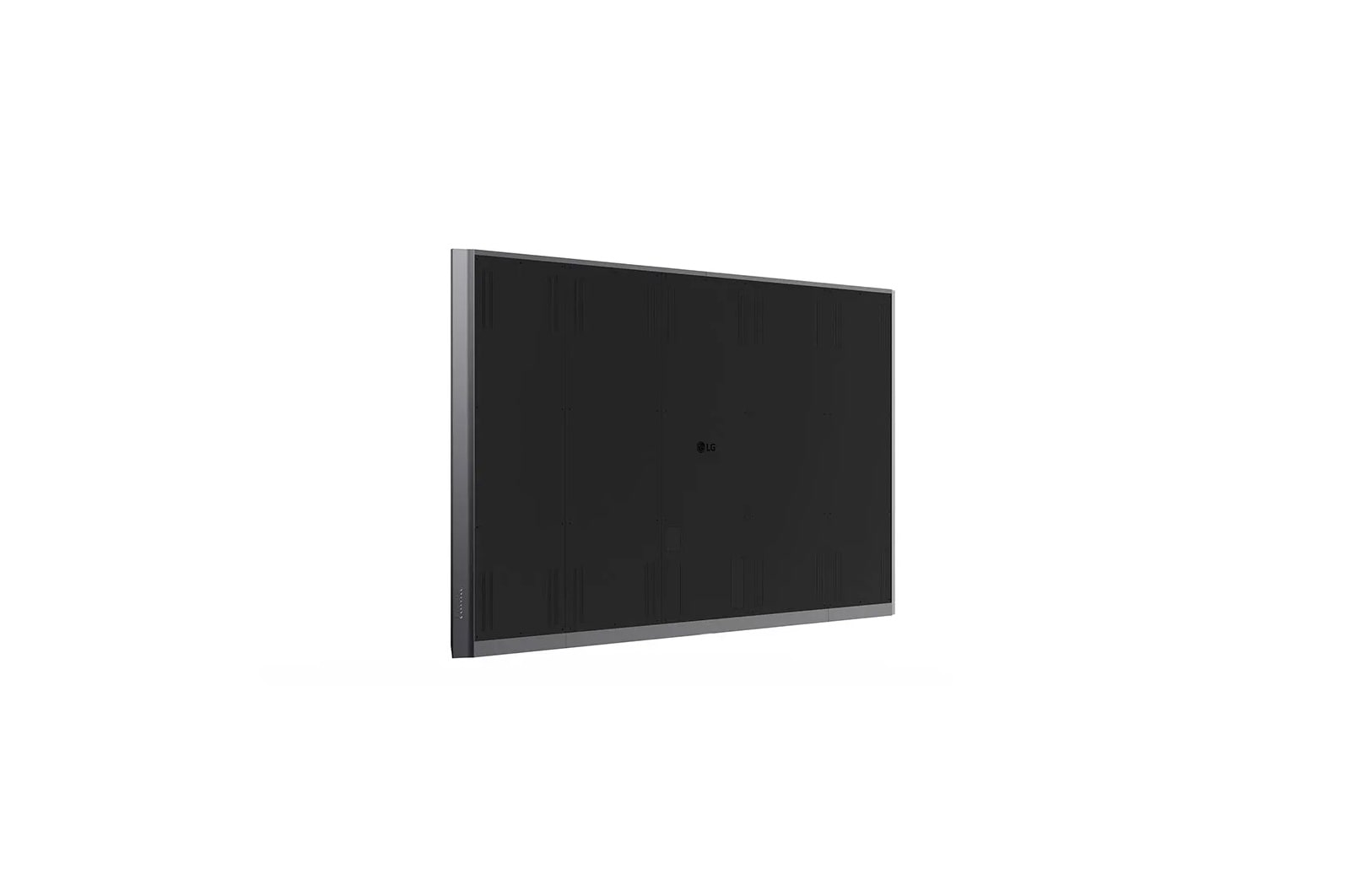

Lg LAAA009 163" MAGNIT MicroLED Display with webOS™, Alpha 7 Intelligent Processor, True Black, & AV Control Systems Compatible
Lg LAAA009 163" MAGNIT MicroLED Display with webOS™, Alpha 7 Intelligent Processor, True Black, & AV Control Systems Compatible
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 0.94 Pixel Pitch
- Achieve True Black with Black Coating Technology
- LG webOS™, Embedded Controller & Built-in Speaker
- Front IP50 Rated and Back IP20 Ratedt
- Easy installation with Five-module Assembly
- Last up to 100,000 hourst
163" MAGNIT MicroLED Display with webOS™, Alpha 7 Intelligent Processor, True Black, & AV Control Systems Compatible
| Physical Parameters | |
| Pixel Configuration | MicroLED |
| Pixel Pitch | .94 mm |
| Module Resolution (W x H) | 320 x 120 |
| Module Dimensions (W x H) | 11.81 x 4.42 in / 300 x 112.5 mm |
| No. of Modules per Screen (W x H) | 12x18 (Total 216) |
| Screen Dimensions (W x H x D) | 141.9 x 81.8 x 2.3 in / 3,604 x 2,078.8 x 57.4 mm |
| Screen Surface Area | 78.5 ft2 / 7.29 m2 |
| Weight | 569.7 lbs. / 258.4 kg |
| Physical Pixel Density | 1,137,778 pixels/m |
| Flatness of Cabinet | 0.2 mm |
| Cabinet Material | Steel |
| Service Access | Front |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption (Avg.) | 900 W |
| Power Consumption per Unit Area (Max.) | 240 W |
| Heat Dissipation per Unit Area (Max.) | 819 BTU |
| Connectivity | |
| HDMI In | Yes (x3) |
| IR In (3.5 mm) | Yes (x1) |
| DisplayPort In | Yes (x1) |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| Built-in Wi-Fi | Yes |
| Controller | |
| Controller | Embedded webOS |
| Optical | |
| Max. Brightness (After Calibration) | Up to 1,500 nits |
| Color Temperature | 3,200-9,300K |
| Viewing Angle (H x V) | 160° x 160° |
| Brightness Uniformity | 95% |
| Color Uniformity | 0.015 Cx, Cy |
| Contrast Ratio | 40,000:1 |
| Processing Depth | 20 bit (HDR10, HDR10 Pro) |
| Lifetime | 100,00 Hrs |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 10W |
| Features | |
| Magic Remote Compatibility | Yes |
| Crestron Certified Compatibility | Yes |
| LG Software Compatible | |
| LG One:Quick Share | Yes |
| Regulatory & Certifications | |
| IP Rating (Rear) | IP20 |
| RoHS (Environmental) | Yes |
| IP Rating (Front) | IP50 |
| FCC (Regulatory) | EMC Class A |
| BS476 Part7 (UK Fire Rating) | Yes |
| Safety 60950-1 | Yes |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | Korea |
| UPC | 195174113998 |
| Environmental Conditions | |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| Operation Humidity | 10-80% RH |
