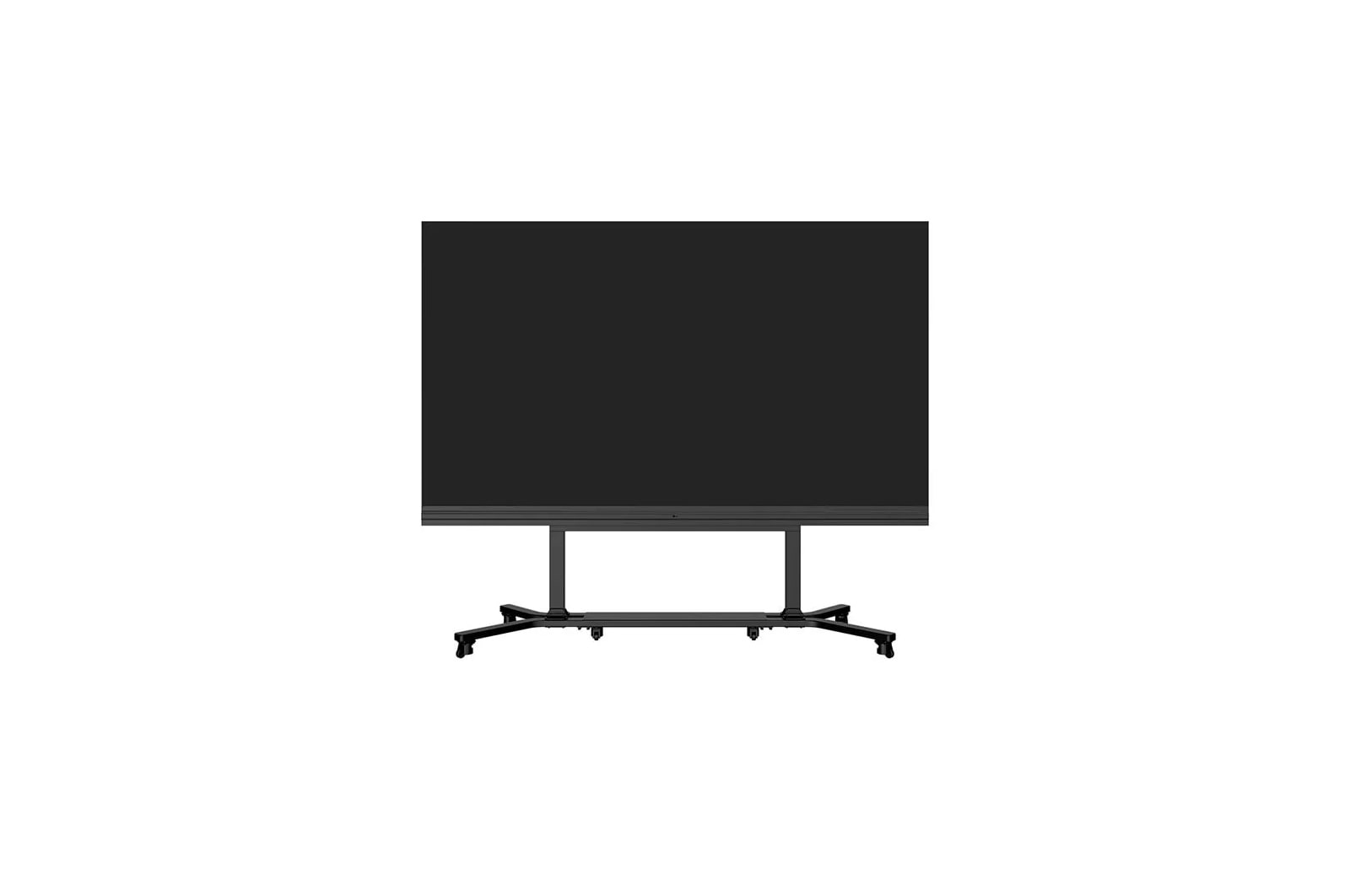

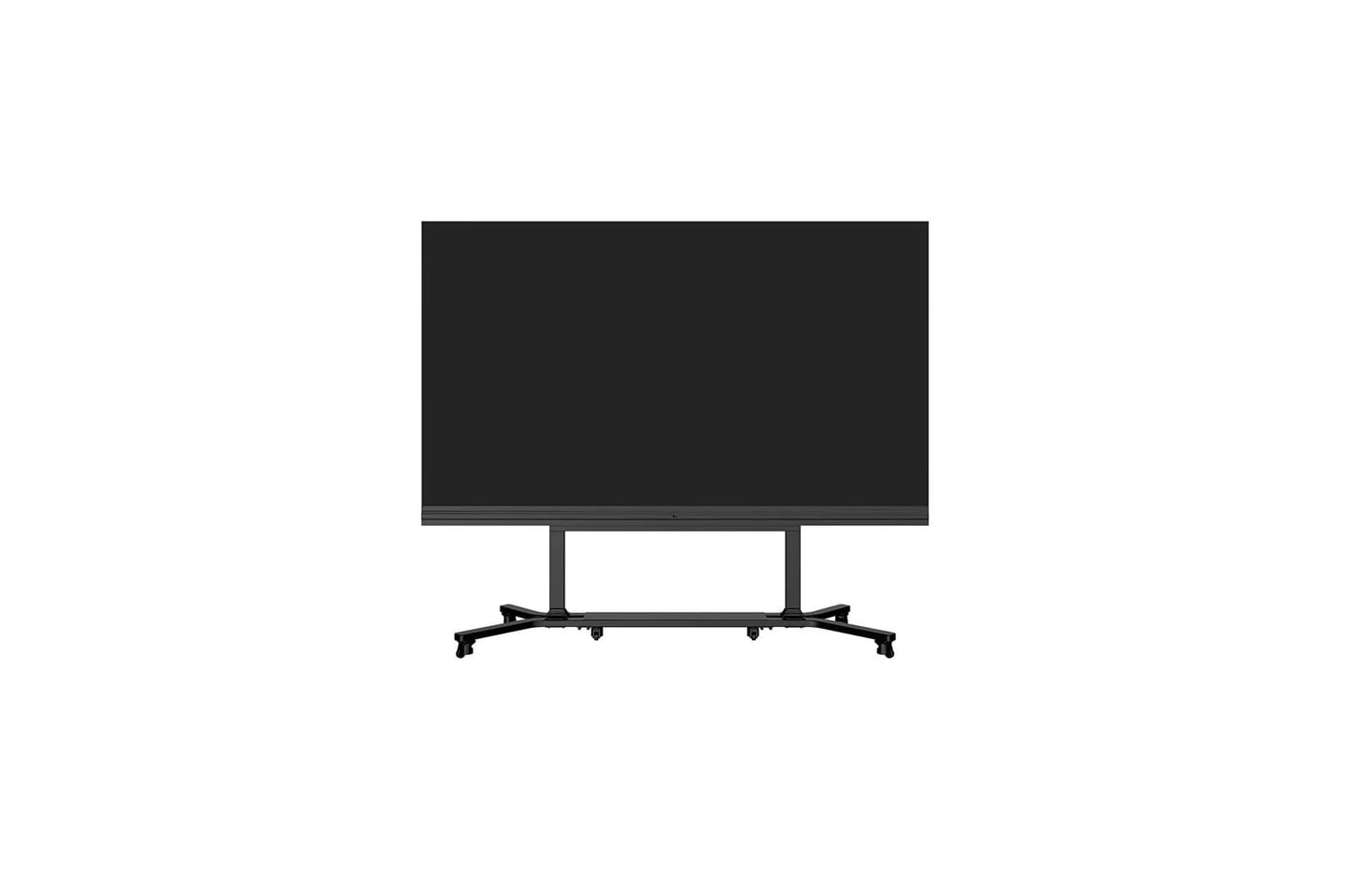

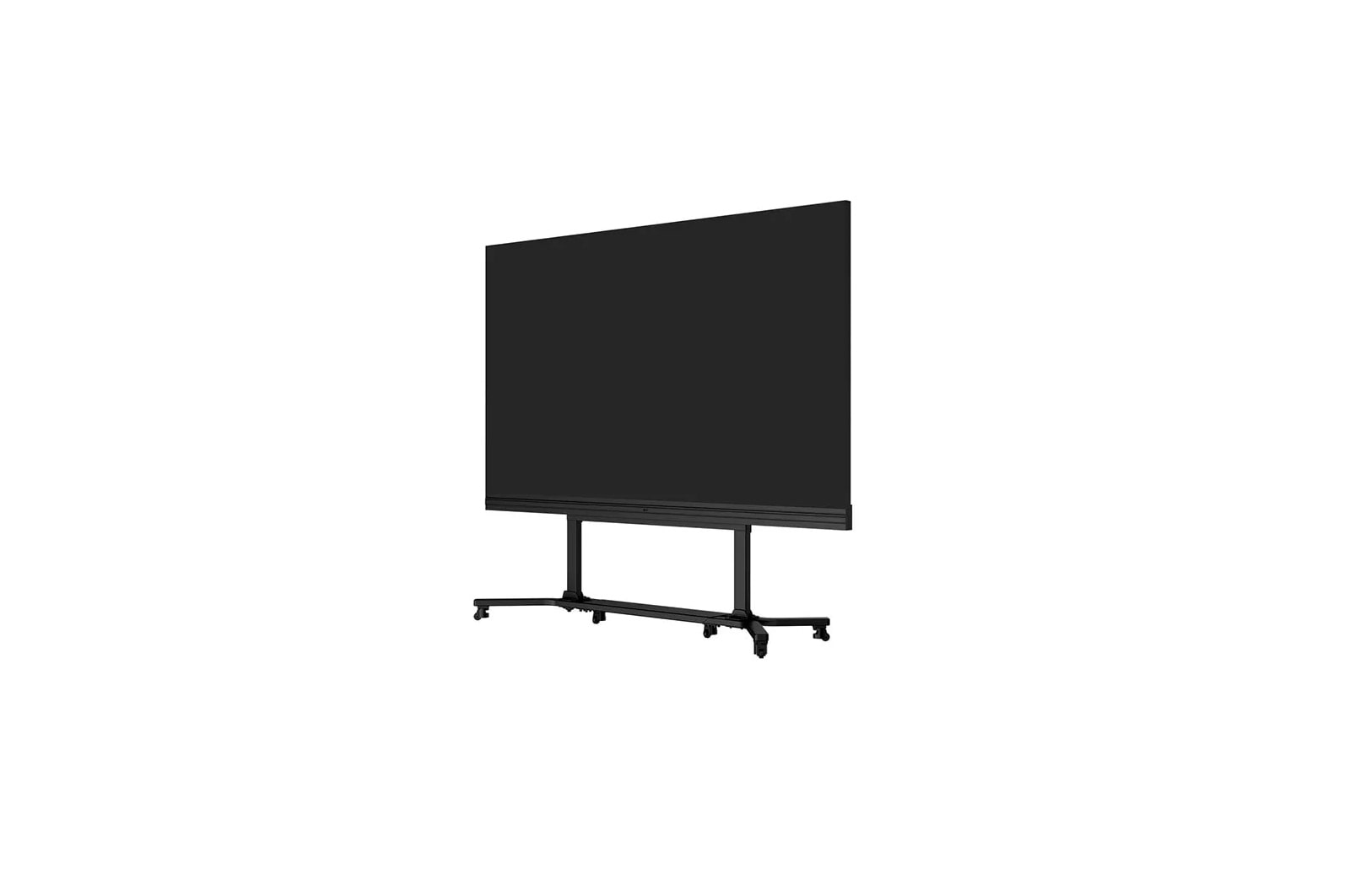

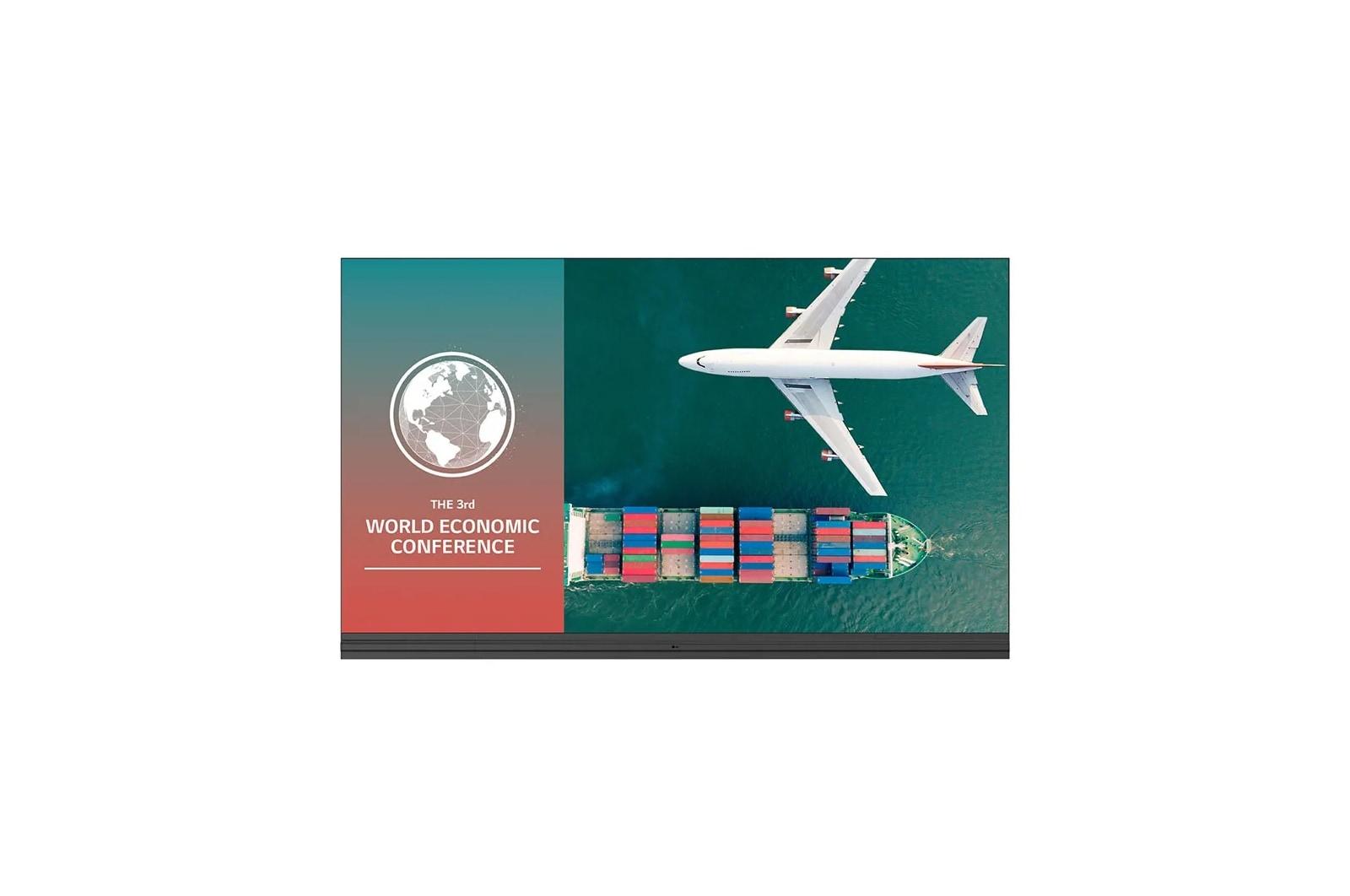

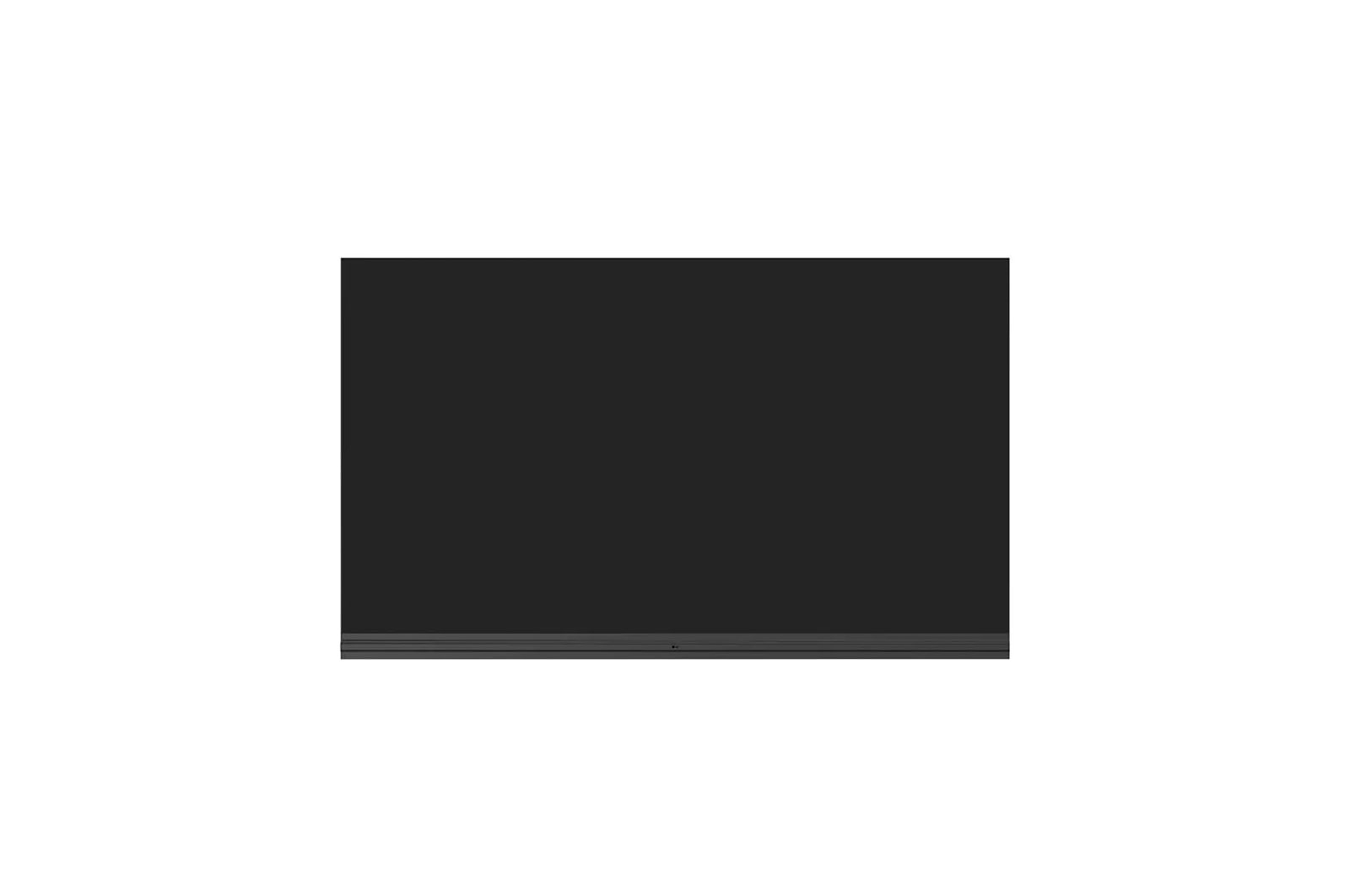

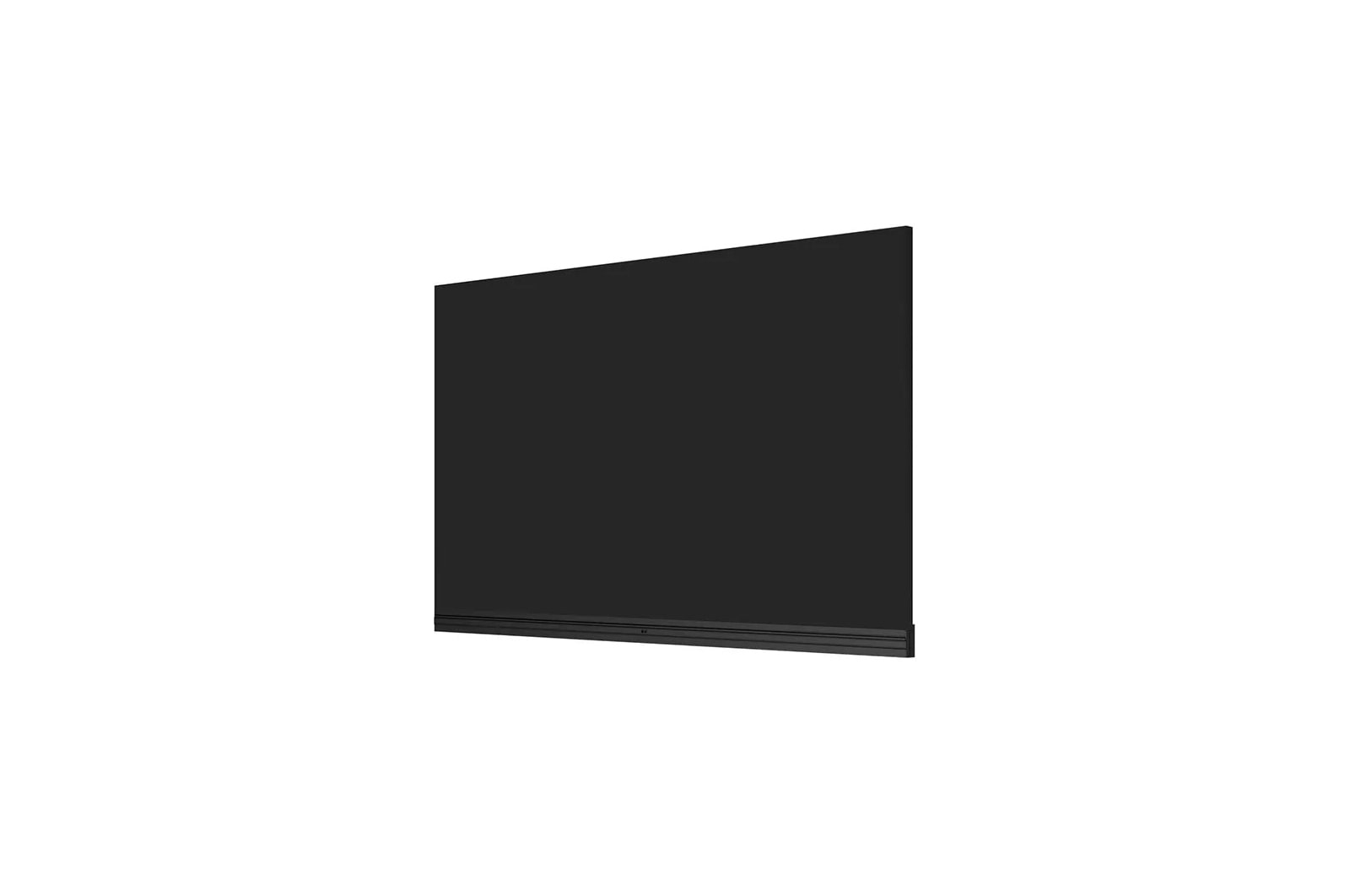

Lg LABA015 136'' LABA TAA Direct View LED Display with Embedded Controller, Built-in Speakers, & Certified Crestron Connected®
Lg LABA015 136'' LABA TAA Direct View LED Display with Embedded Controller, Built-in Speakers, & Certified Crestron Connected®
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 1.58 Pixel Pitch
- 16:9 Aspect Ratio (1,920 x 1,080) Screen Resolution
- LG webOS™, Embedded Controller & Built-in Speaker
- Front IP30 Rated and Back IP20 Rated
- Easy installation and Front Serviceable
- Last up to 100,000 hours
136'' LABA TAA Direct View LED Display with Embedded Controller, Built-in Speakers, & Certified Crestron Connected®
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 1.58 mm |
| Screen Size (Inches) | 136" |
| Screen Resolution (W x H) | 1,920 x 1,080 (FHD) |
| Module Resolution (W x H) | Not Available |

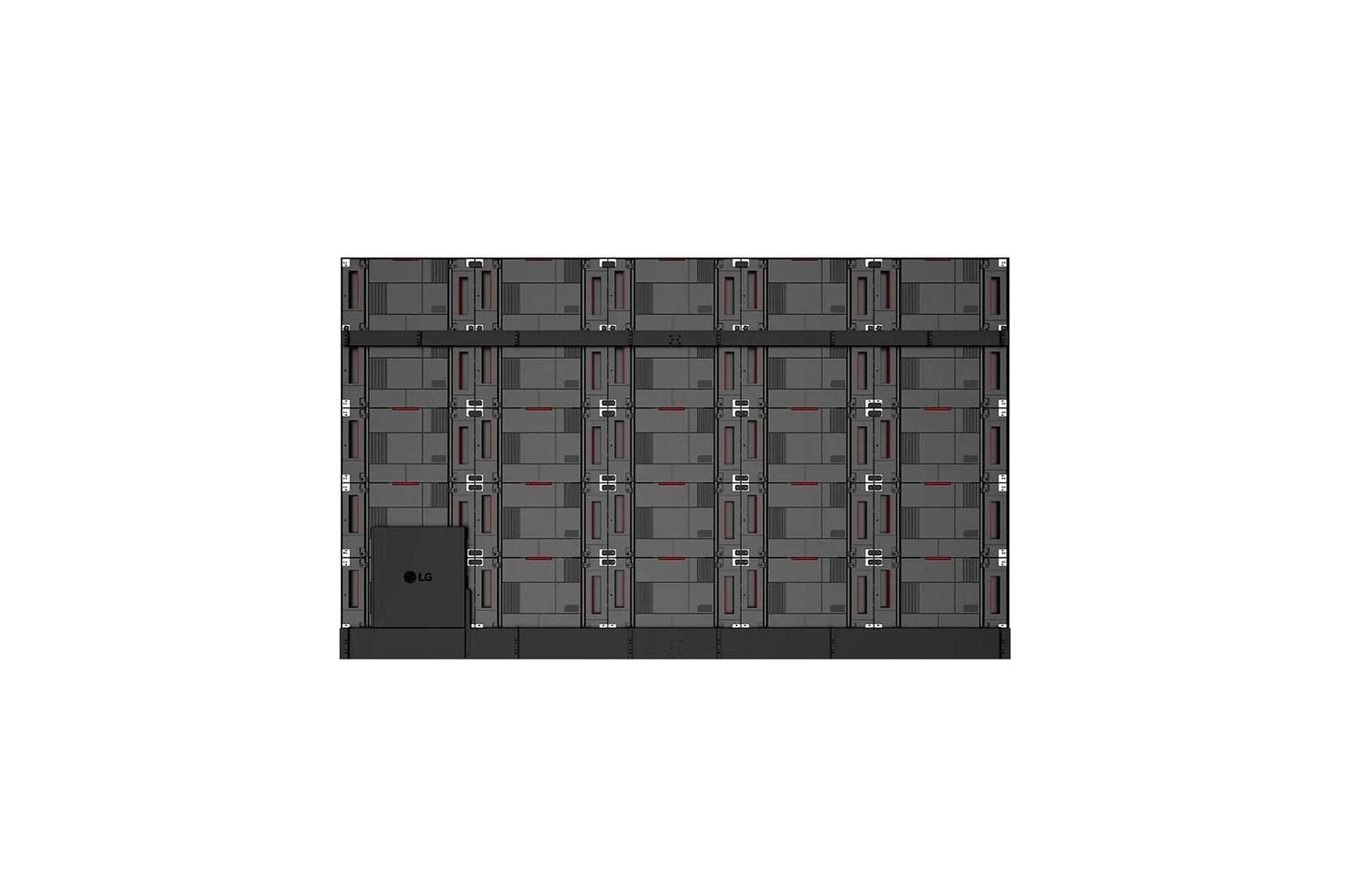

| Module Dimensions (W x H) | 5.94 x 13.93 in / 151.2 x 340.2 mm |
| No. of Modules per Screen (W x H) | 100 (20 x 5) |
| Screen Dimensions (W x H x D) | 119.5 x 71.7 x 1.8 in / 3,035 x 1,821.5 x 45.5 mm |
| Screen Surface Area | 55.3 ft / 5.14 m |
| Weight | 339.5 lbs / 154 kg |
| Physical Pixel Density | 403,124 pixels/m |
| Flatness of Cabinet | 0.15 mm |
| Cabinet Material | Die-cast Aluminum |
| Service Access | Front or Rear (select one only) |
| Electrical | |
| Heat Dissipation (Max.) | 6,833 BTU |
| Power Supply | 100-240V |
| Heat Dissipation (Avg.) | 3,588 BTU |
| Power Consumption (Max.) | 2000W |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption (Avg.) | 1,050W |
| Power Consumption per Unit Area (Max.) | 520 W/m |
| Heat Dissipation per Unit Area (Max.) | 1,777 BTU/m |
| Connectivity | |
| HDMI In | Yes (x3) |
| IR In (3.5 mm) | Yes (x1) |
| DisplayPort In | Yes (x1) |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RJ45 (LAN) | Yes (x1) |
| USB Type-A In | Yes (x1) USB 2.0 |
| AC In | Not Available |
| Optical Digital Audio Out | Yes (x1) |

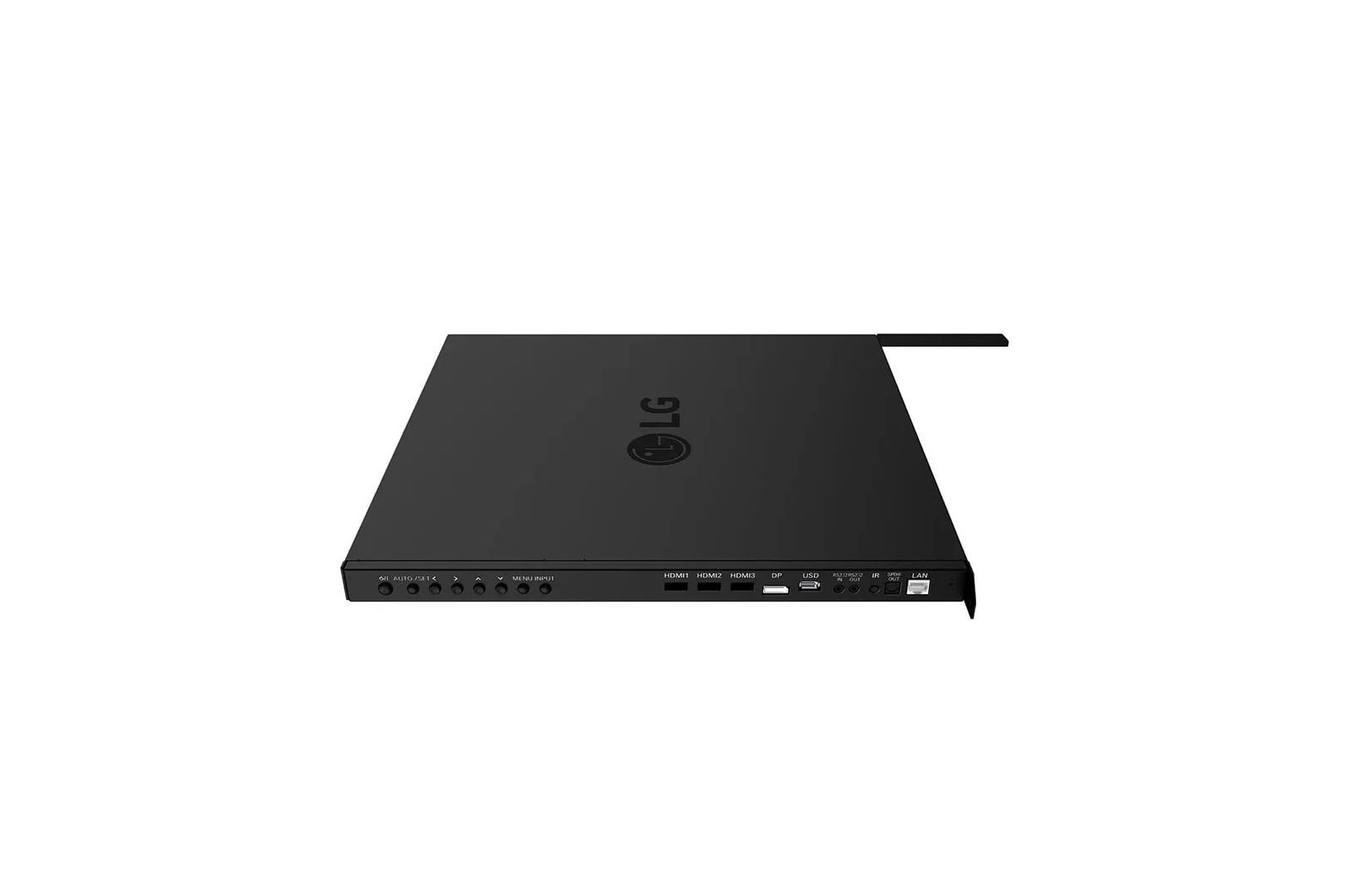

| Controller | |
| Controller | Embedded |
| Optical | |
| Max. Brightness (After Calibration) | Up to 500 nits |
| Color Temperature | 3,200-9,300K |
| Viewing Angle (H x V) | 160° x 160° |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.015 Cx, Cy |
| Contrast Ratio | 8000:1 |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Lifetime | up to 100,000 hrs (Half Brightness) |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 9W |
| Features | |
| Magic Remote Compatibility | Yes |
| Crestron Certified Compatibility | Yes |
| LG Software Compatible | |
| ConnectedCare™ | Yes |
| LG One:Quick Share | Yes |
| Regulatory & Certifications | |
| ETL (Regulatory) | No |
| IP Rating (Rear) | IP50 |
| IP Rating (Front) | IP50 |
| CB | Yes |
| REACH (Environmental) | Yes |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| cTUVus | Yes |
| TAA Compliance | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | Korea |
| Onscreen Display Languages | Not Available |

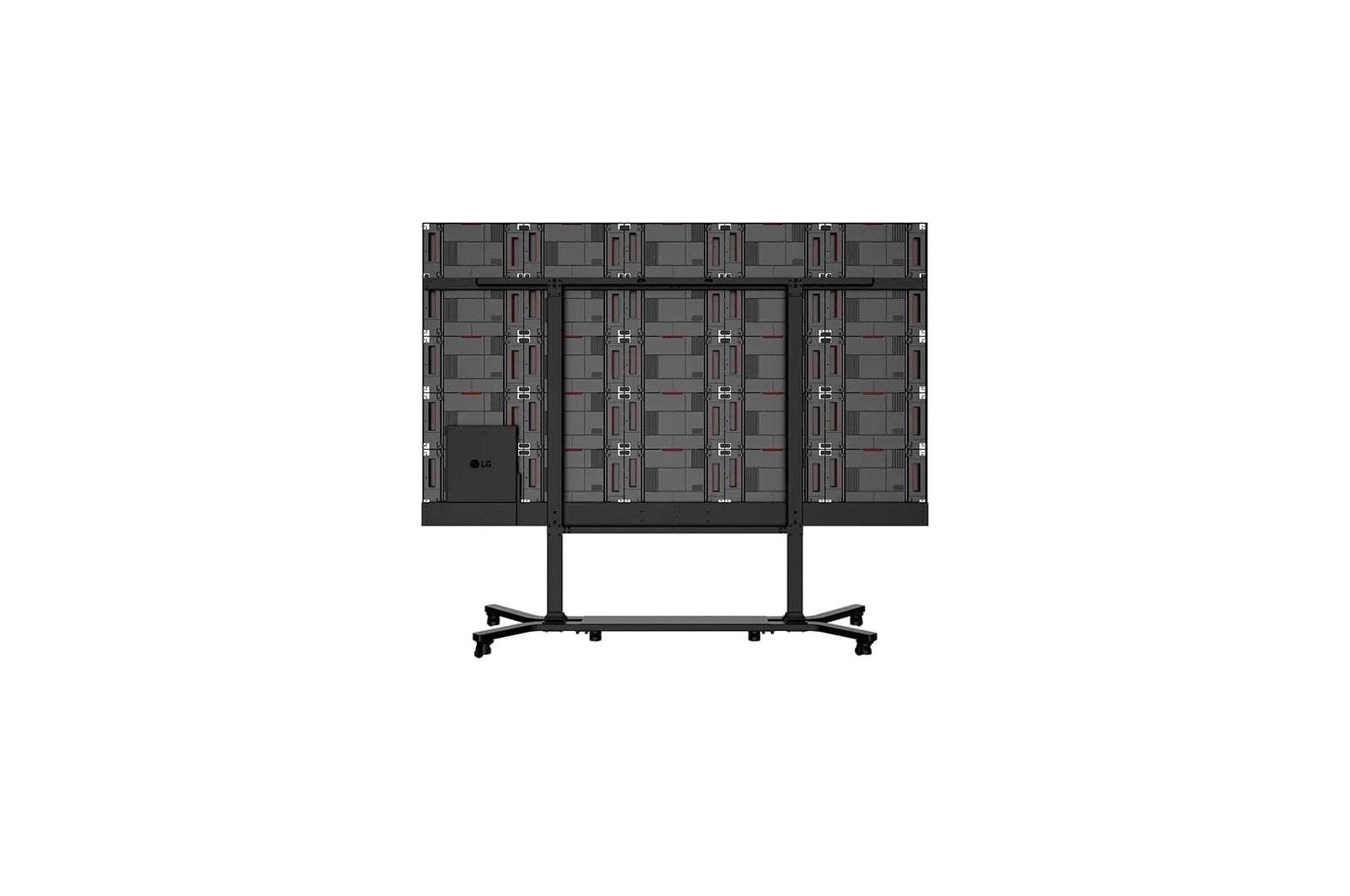

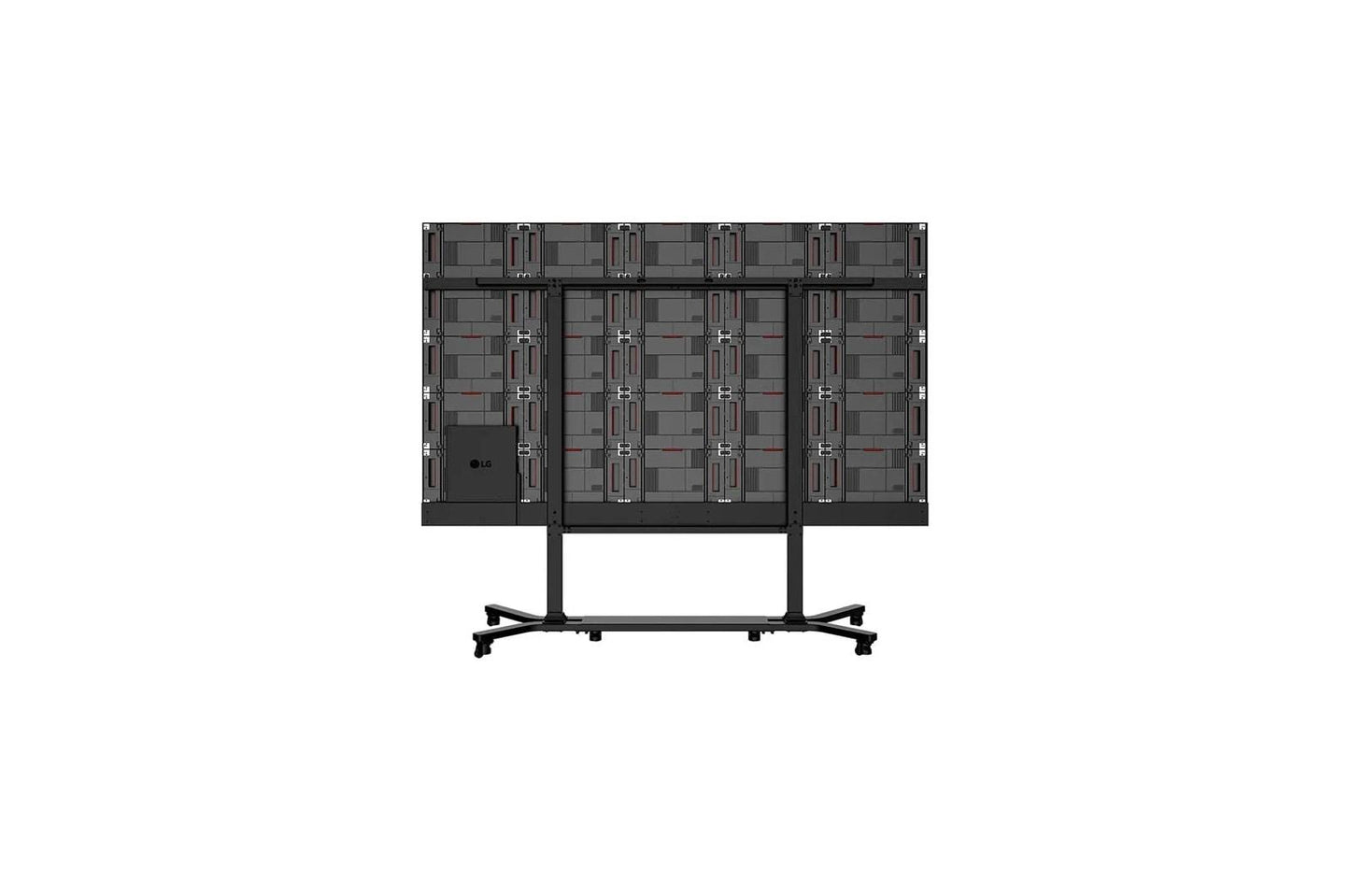

| Optional Accessories | Floor Stand |
| Basic Accessories (included) | Wall Mount |
| Environmental Conditions | |
| Operation Humidity | 10-80% RH |
| Operation Temperature | -4°F to 104°F / -20°C to 40°C |
