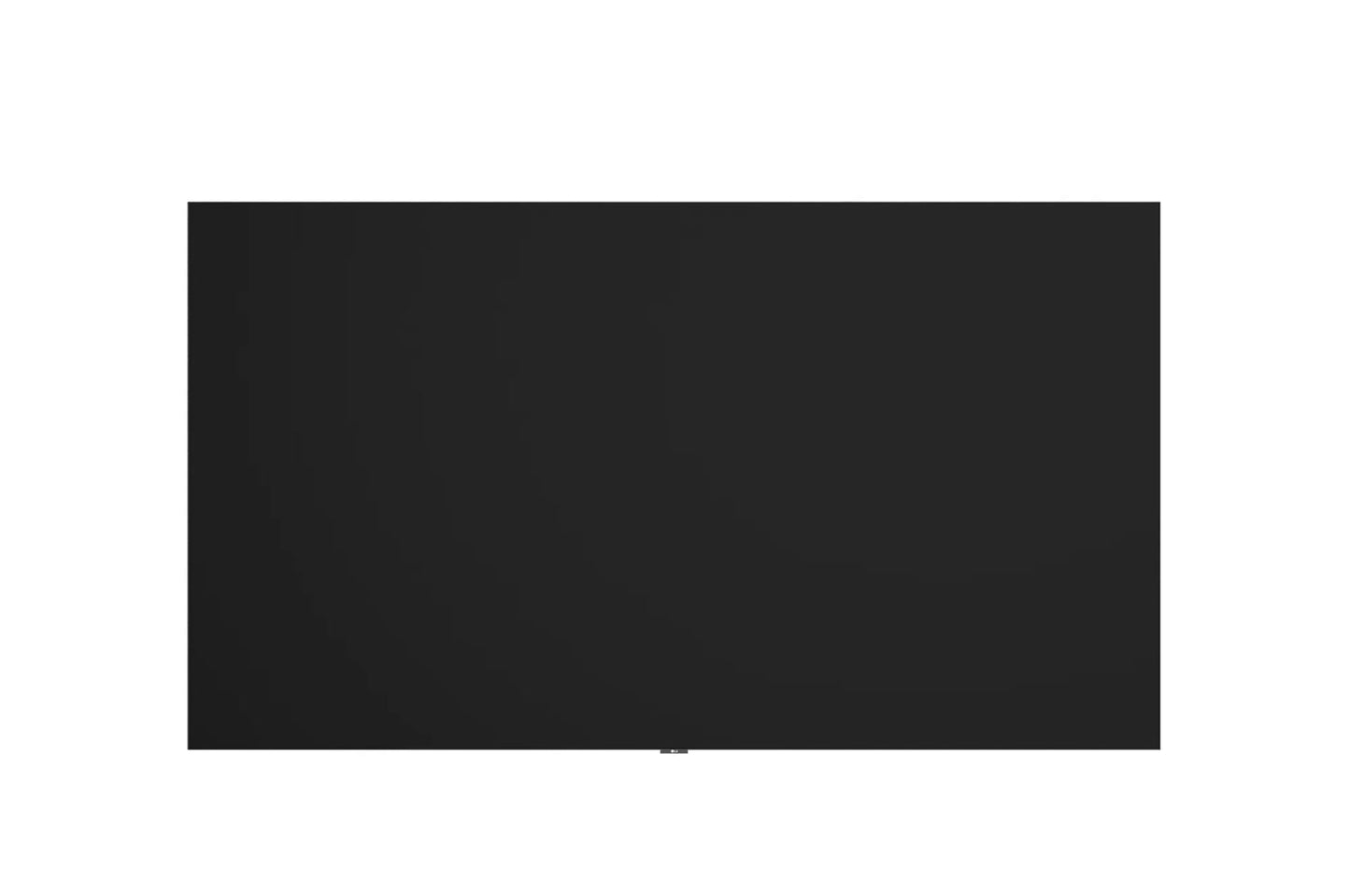

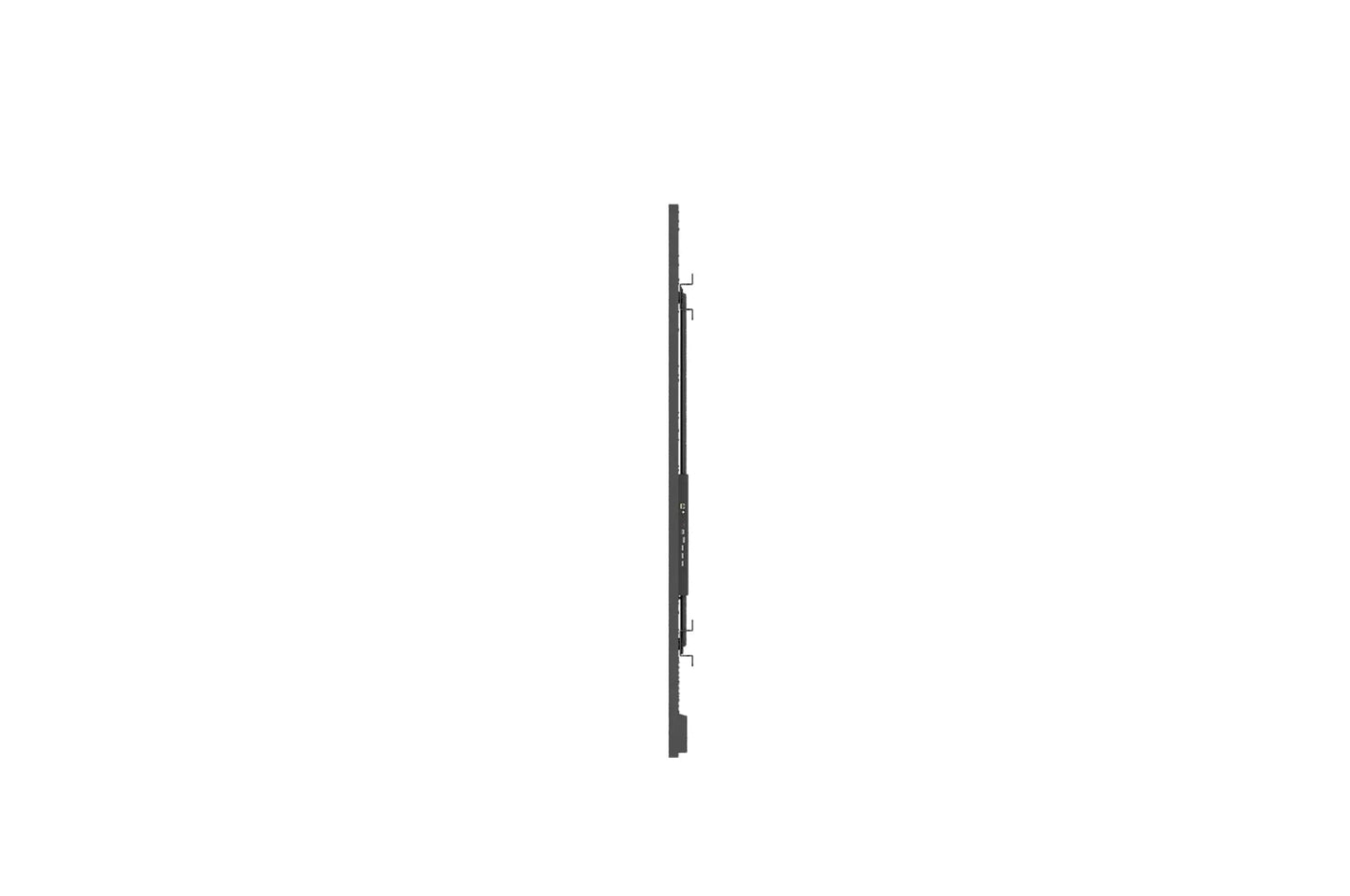

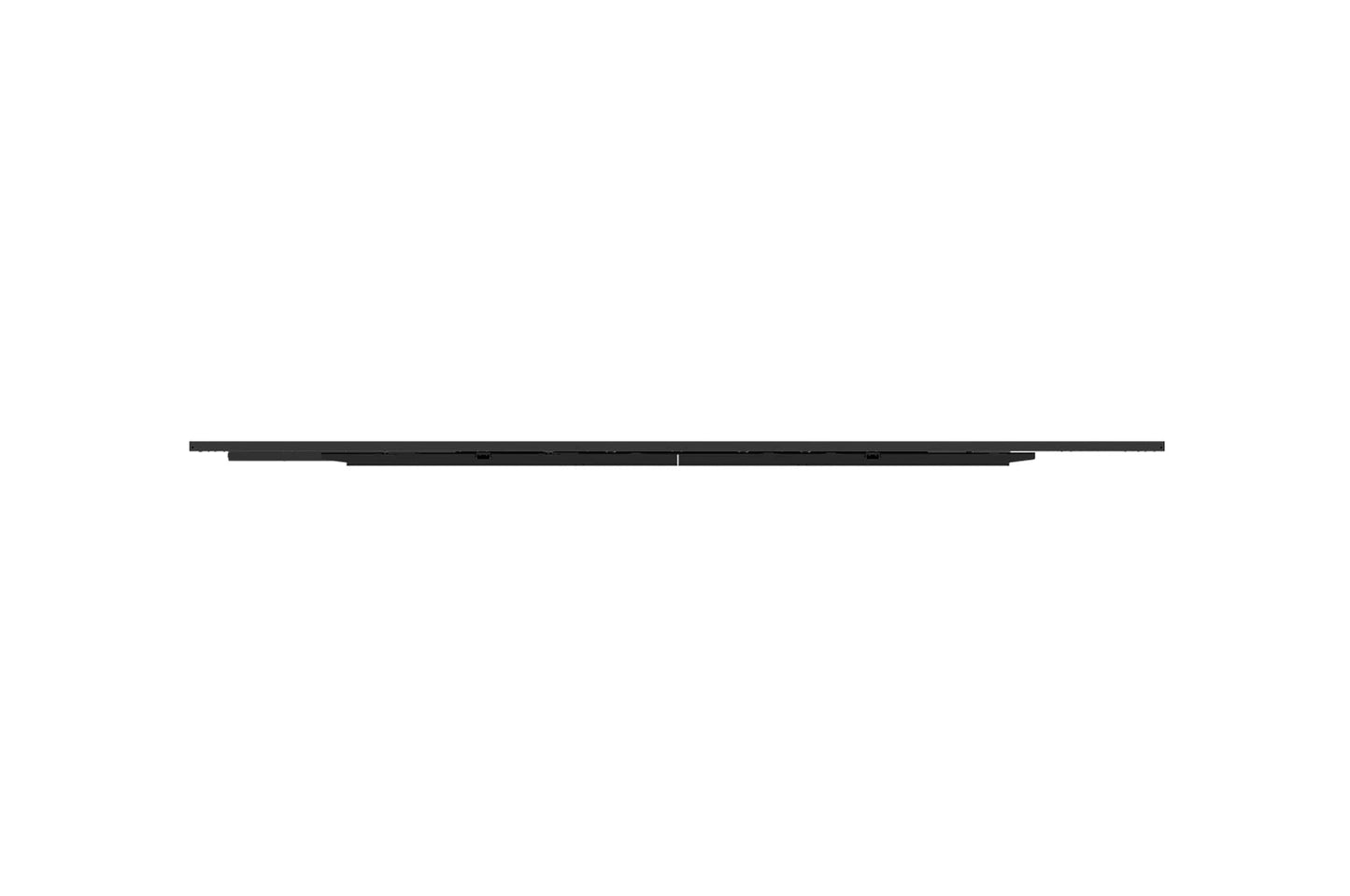

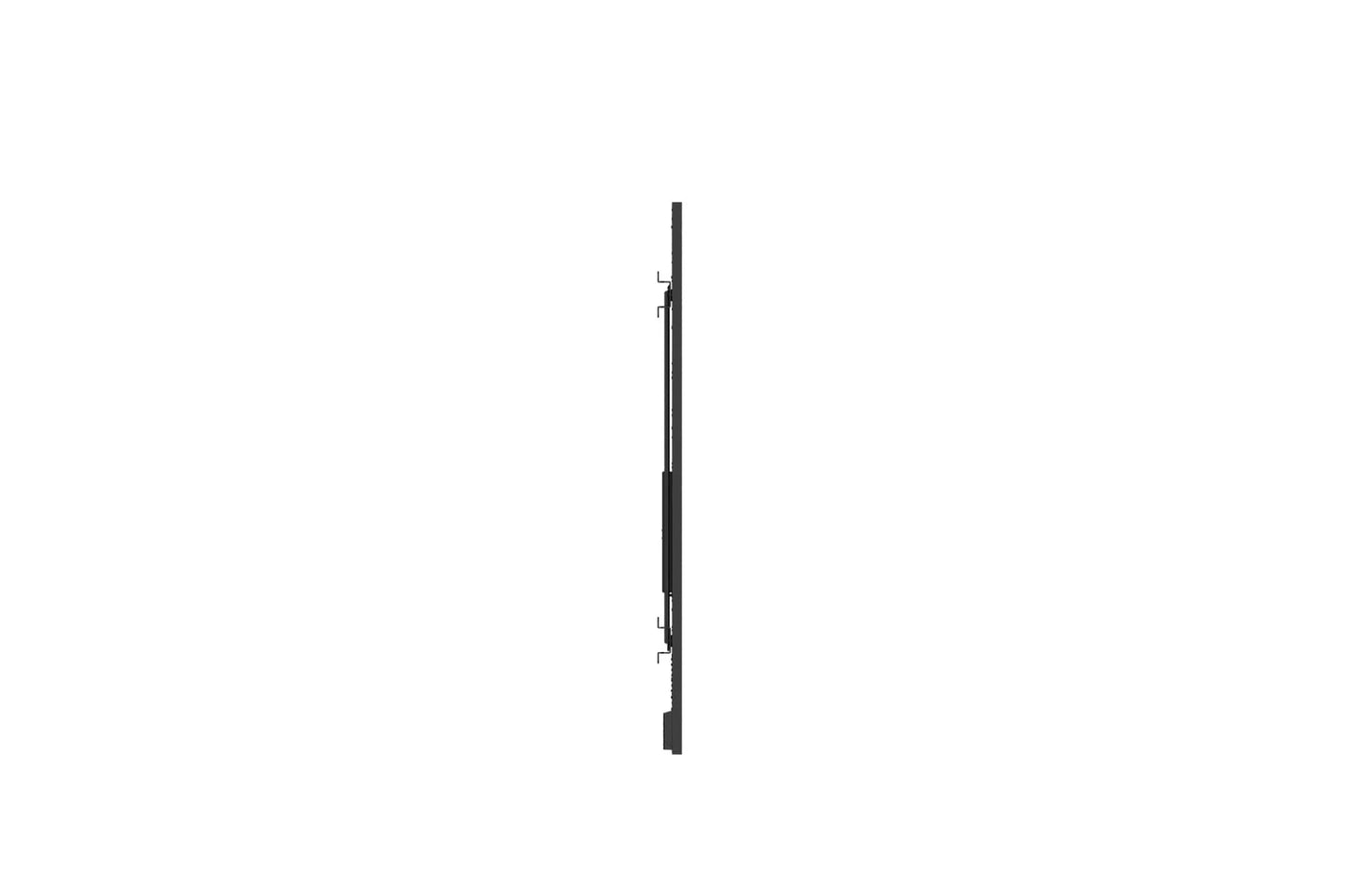

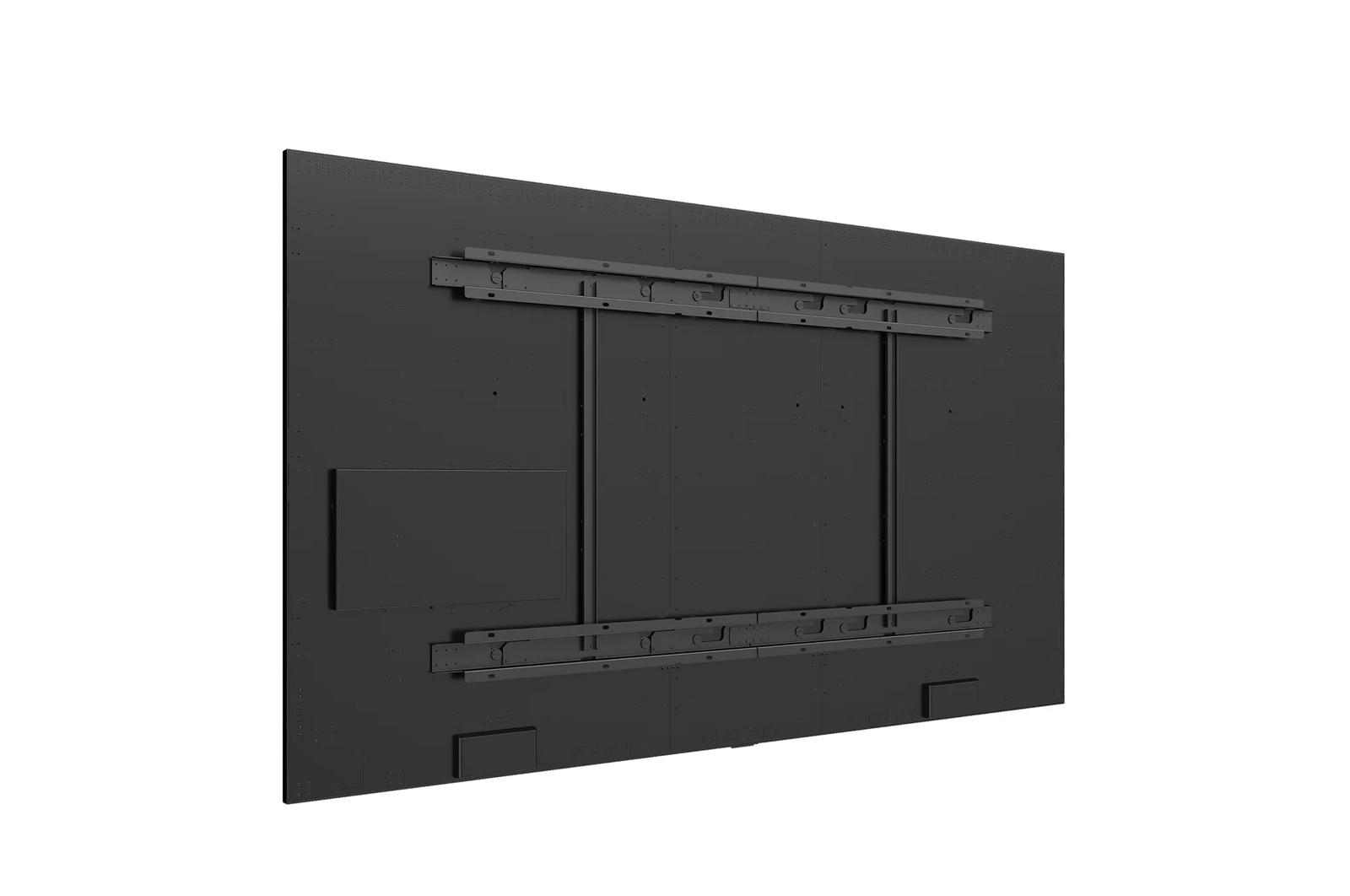

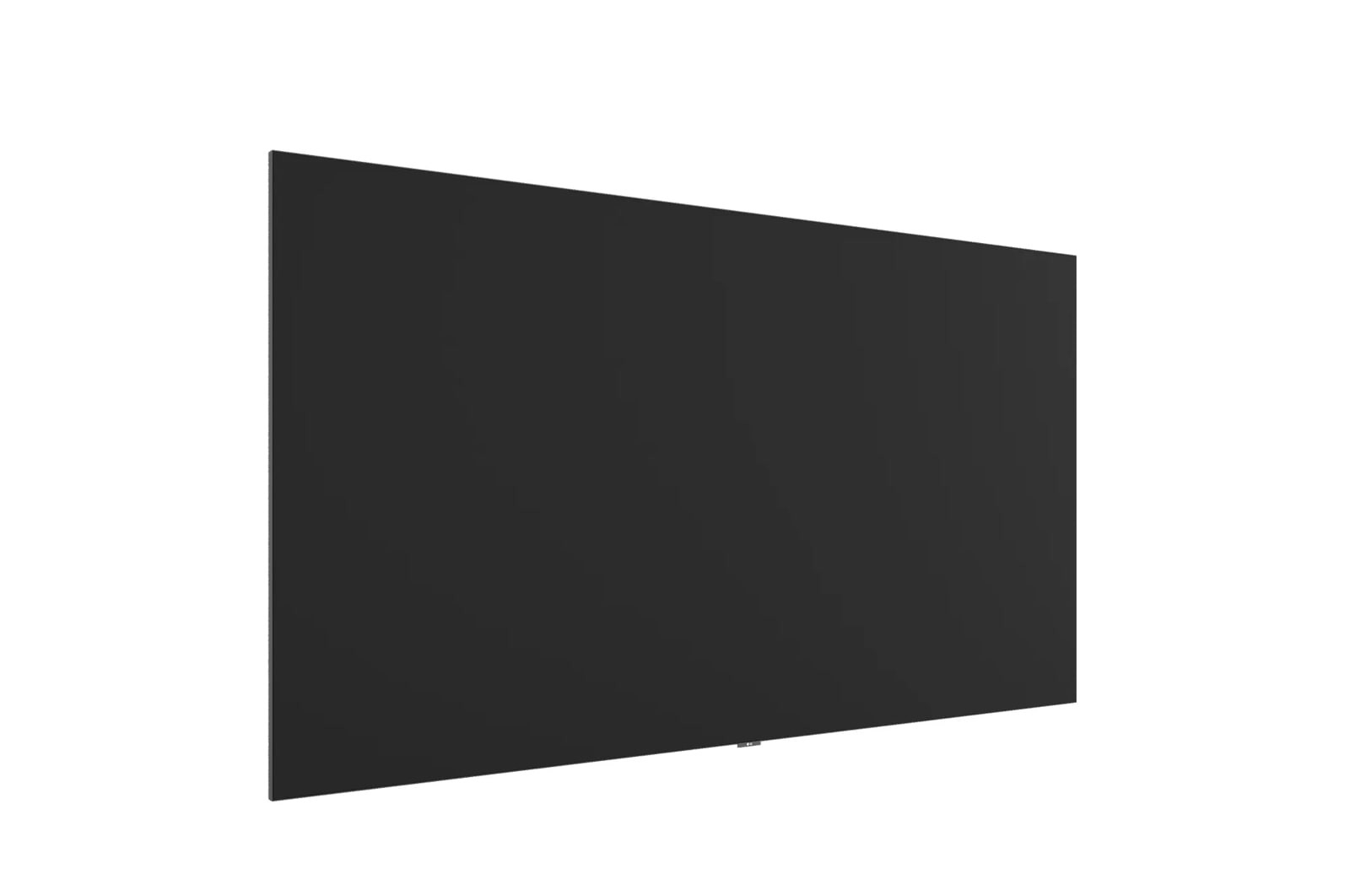

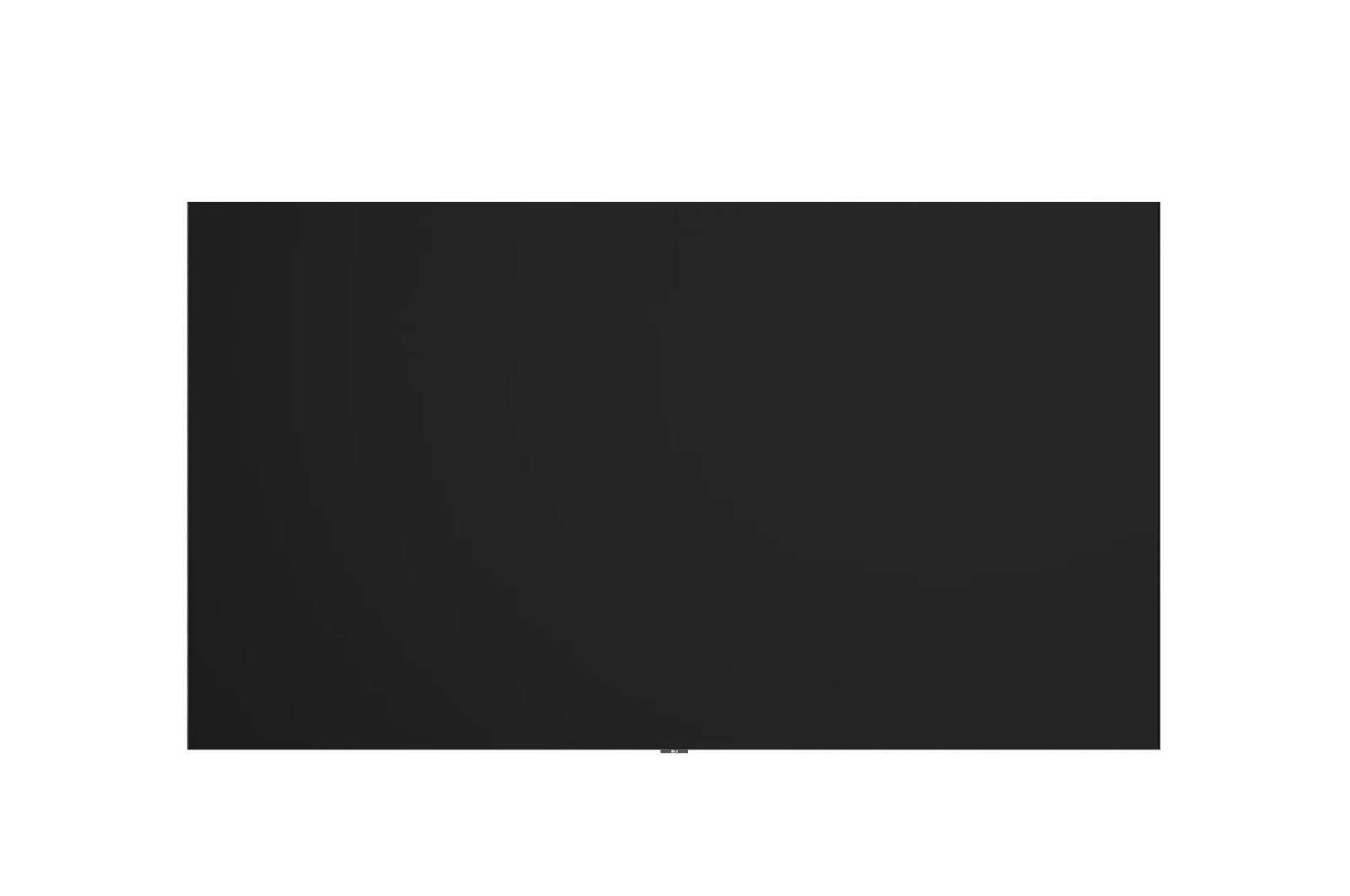

Lg LAPA163GF 163" All-in-One Direct View LED with Built-in Speakers
Lg LAPA163GF 163" All-in-One Direct View LED with Built-in Speakers
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 163" FHD 1.88 Pixel Pitch All-in-One
- Manage with embedded controller and LG webOS
- Easy installation and maintenance
- Connect with Office Meeting Mode, Wireless Screen Sharing & Crestron Connect
- Durable design with IP30 rating and Flame Spread Protection
- Long lasting with lifetime up to 100,000 hours
163" All-in-One Direct View LED with Built-in Speakers
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.88 mm |
| Screen Size (Inches) | 163" |
| Screen Resolution (W x H) | 1,920 x 1,080 (FHD) |
| Module Resolution (W x H) | 160 x 90 |
| Module Dimensions (W x H) | 11.8 x 6.6 in / 300 x 168.75 mm |
| No. of Modules per Screen (W x H) | 12 x 12 (Total 144) |
| Screen Dimensions (W x H x D) | 141.9 x 79.9 x 1.2 in. / 3,605 x 2,030 x 29.95 mm |
| Screen Surface Area | 78.5 ft / 7.29 m |
| Weight | 341.7 lbs / 155 kg |
| Physical Pixel Density | 284,444 pixels/m |
| Flatness of Cabinet | 0.15 mm |
| Cabinet Material | Aluminum |
| Service Access | Front |
| Electrical | |
| Power Consumption (Max.) | 2000W |
| Heat Dissipation (Max.) | 6,825 BTU |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Heat Dissipation (Avg.) | 2,560 BTU |
| Power Consumption (Avg.) | 750W |
| Power Consumption per Unit Area (Max.) | Not Available |
| Heat Dissipation per Unit Area (Max.) | Not Available |
| Connectivity | |
| HDMI In | Yes (x3) HDCP2.2 |
| IR In (3.5 mm) | Yes (x1) |
| DisplayPort In | Yes (x1) HDCP 2.2 |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RJ45 (LAN) | Yes (x1) |
| USB Type-A In | Yes (x1) |
| AC In | No |
| Optical Digital Audio Out | Yes (x1) |
| Controller | |
| Controller | Embedded webOS |
| Optical | |
| Max. Brightness (After Calibration) | Up to 500 nits |
| Color Temperature | 3,200-9,300K |
| Viewing Angle (H x V) | 150° x 150° |
| Brightness Uniformity | 98% |
| Color Uniformity | 0.015 Cx, Cy |
| Contrast Ratio | 3000:1 |
| Processing Depth | 16 bit |
| Lifetime | Up to 100,000 hrs. |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 9W |
| Features | |
| Magic Remote Compatibility | Not Available |
| Crestron Certified Compatibility | Yes |
| LG Software Compatible | |
| ConnectedCare™ | Yes |
| LG One:Quick Share | Yes |
| Regulatory & Certifications | |
| ETL (Regulatory) | No |
| IP Rating (Rear) | IP30 |
| RoHS (Environmental) | Yes |
| IP Rating (Front) | IP30 |
| CB | No |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | EMC Class A |
| BS476 Part7 (UK Fire Rating) | Yes |
| Safety 60950-1 | No |
| cTUVus | No |
| CE (Regulatory) | Yes |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Assembled In | China |
| Onscreen Display Languages | Not Available |
| Basic Accessories (included) | IR Remote (In-box) |
| Environmental Conditions | |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
| Operation Humidity | 10-90% RH |
