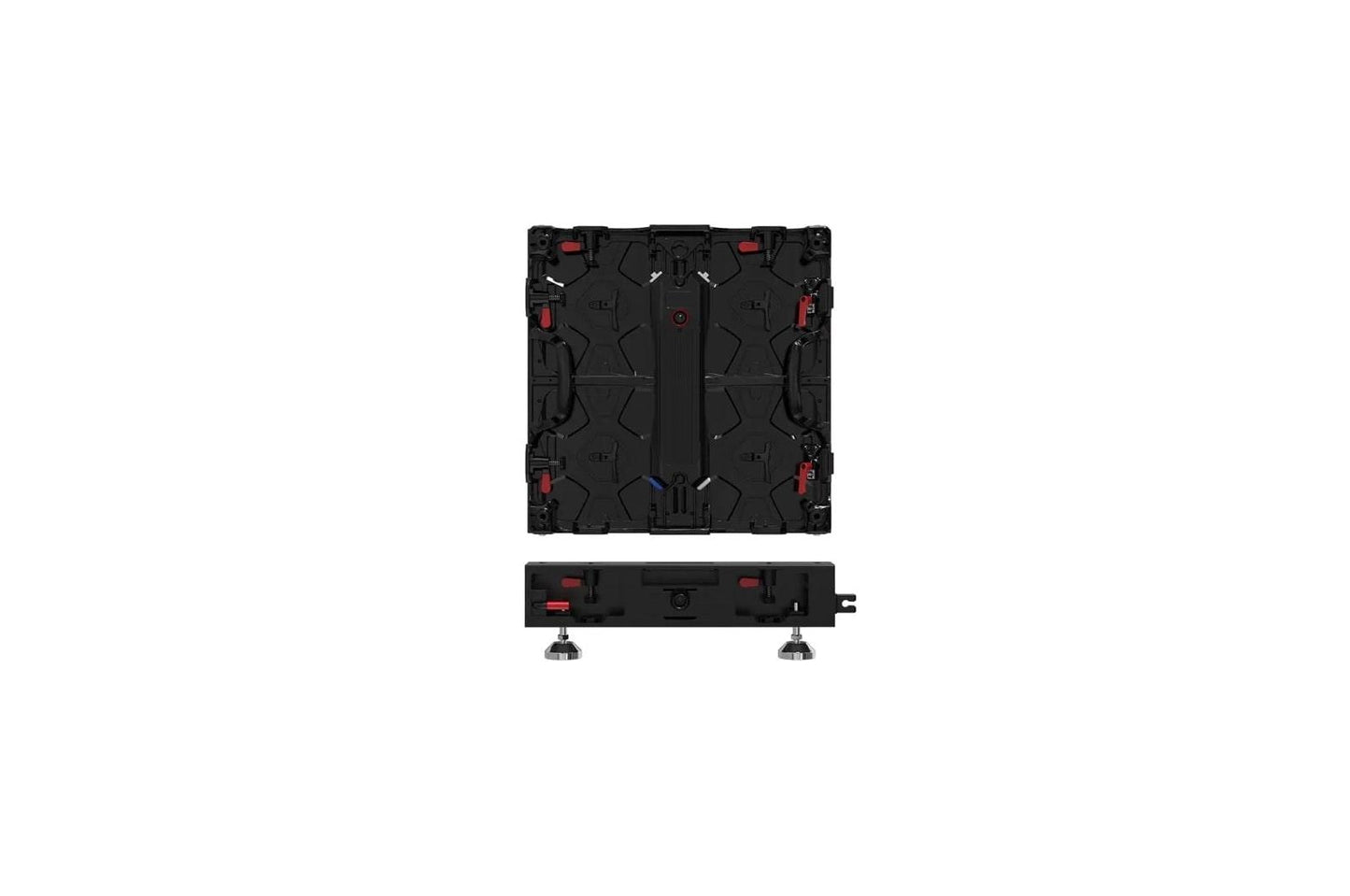

Lg LBAE026 LBAE Studio Series Wall Direct View LED with webOS™
Lg LBAE026 LBAE Studio Series Wall Direct View LED with webOS™
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 1,500 nit Brightness
- Easy Installation and Maintenance

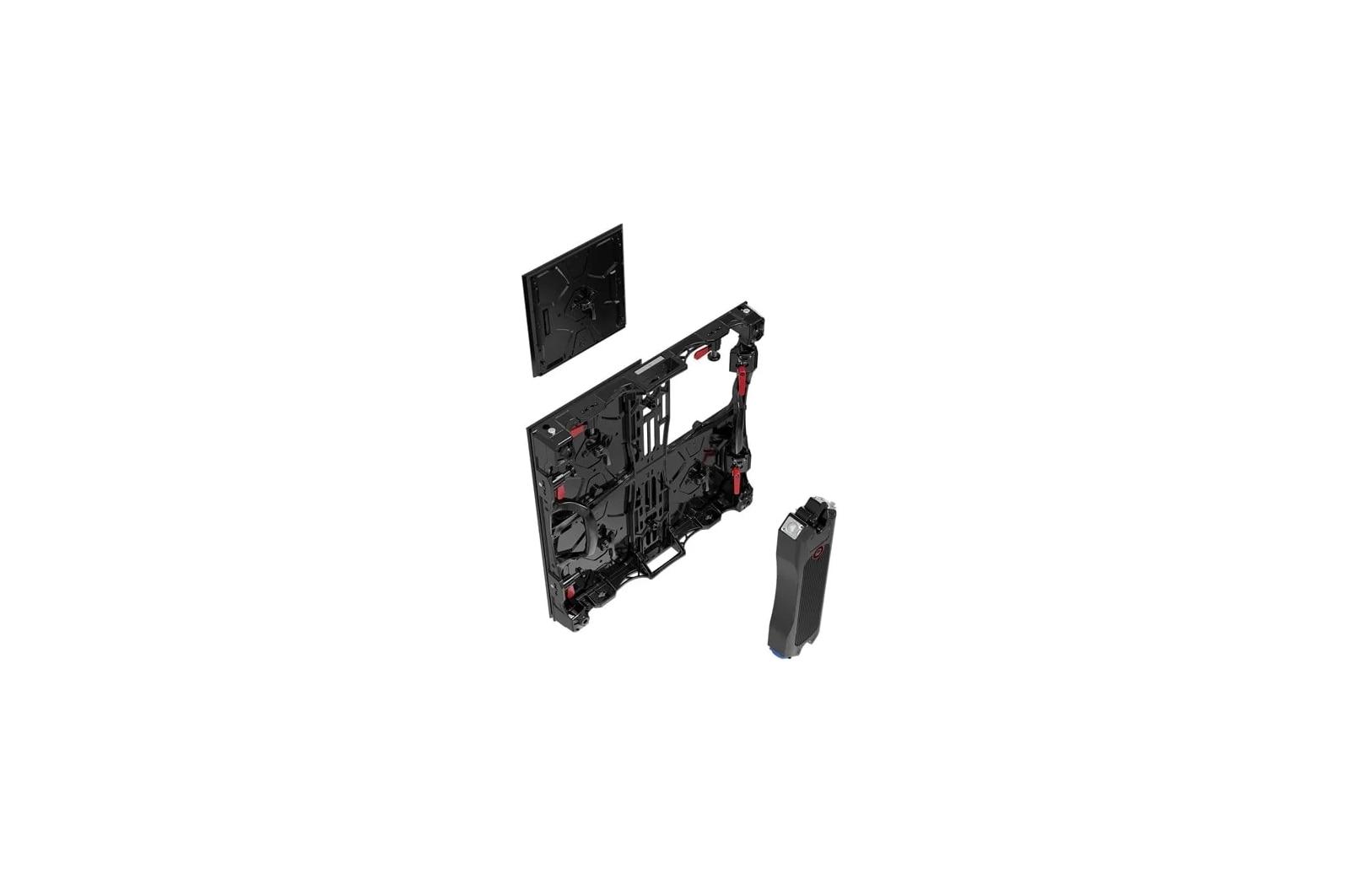

- Front or Rear Serviceability

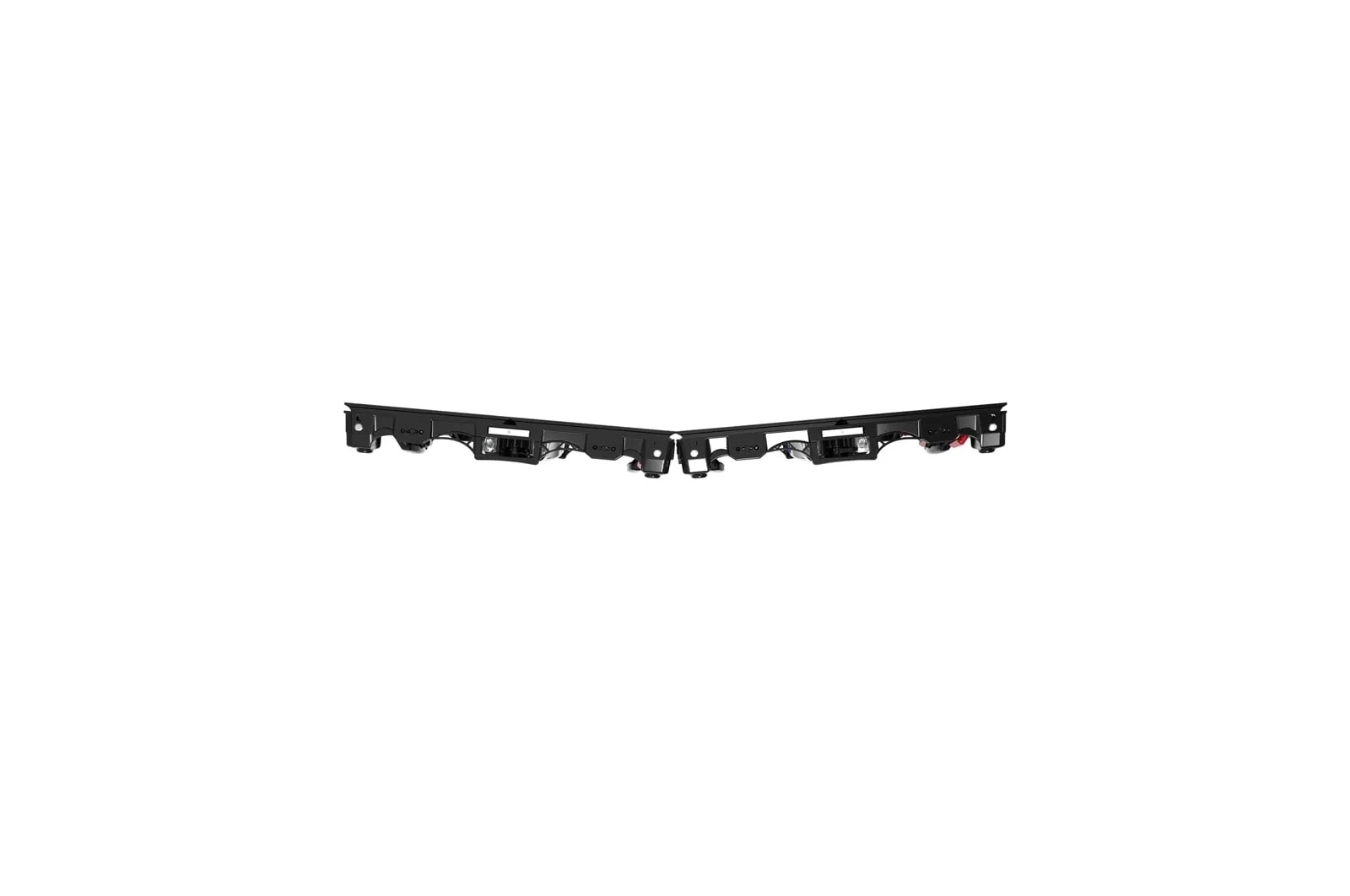

- Curve Effect Available

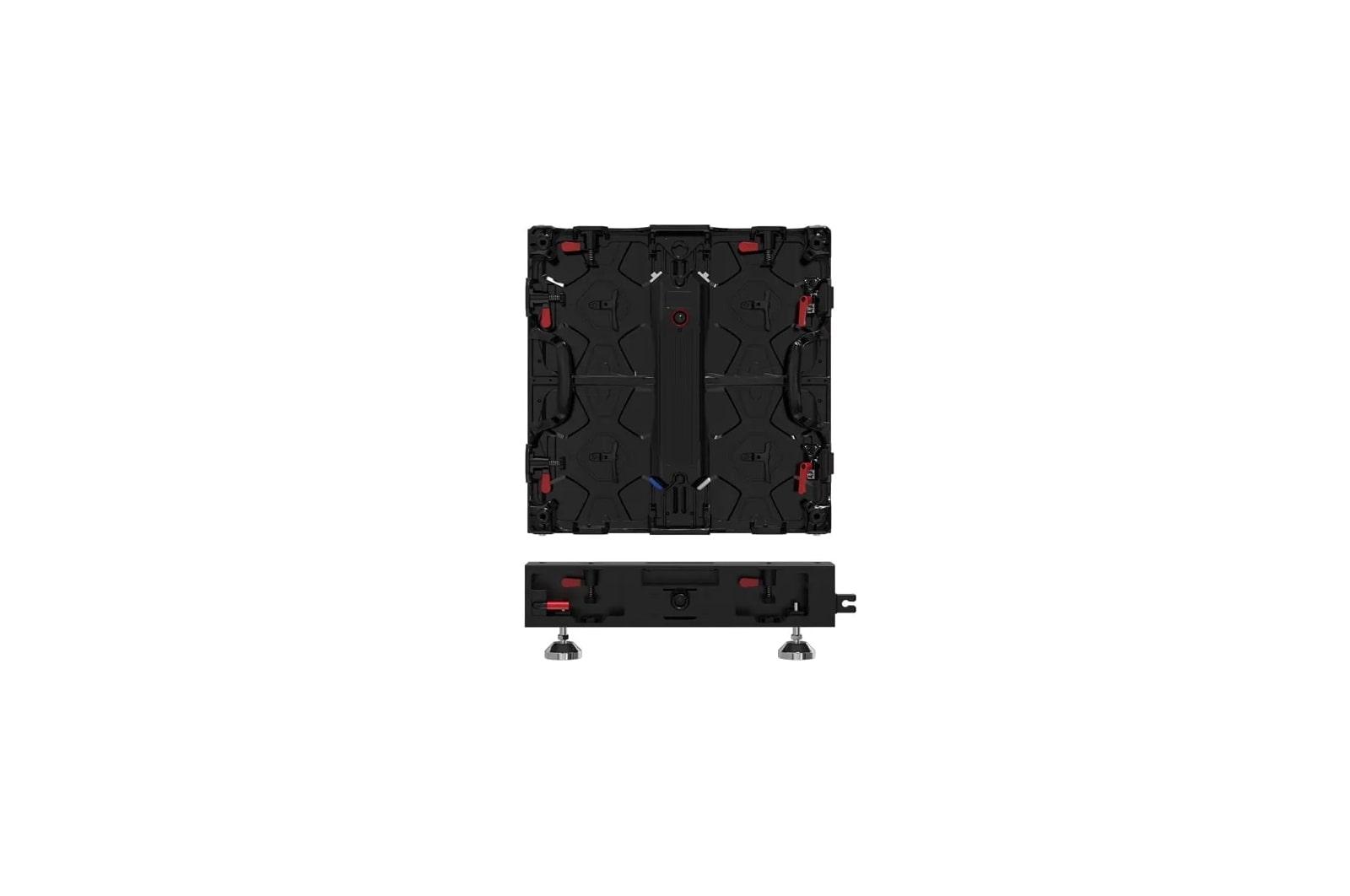

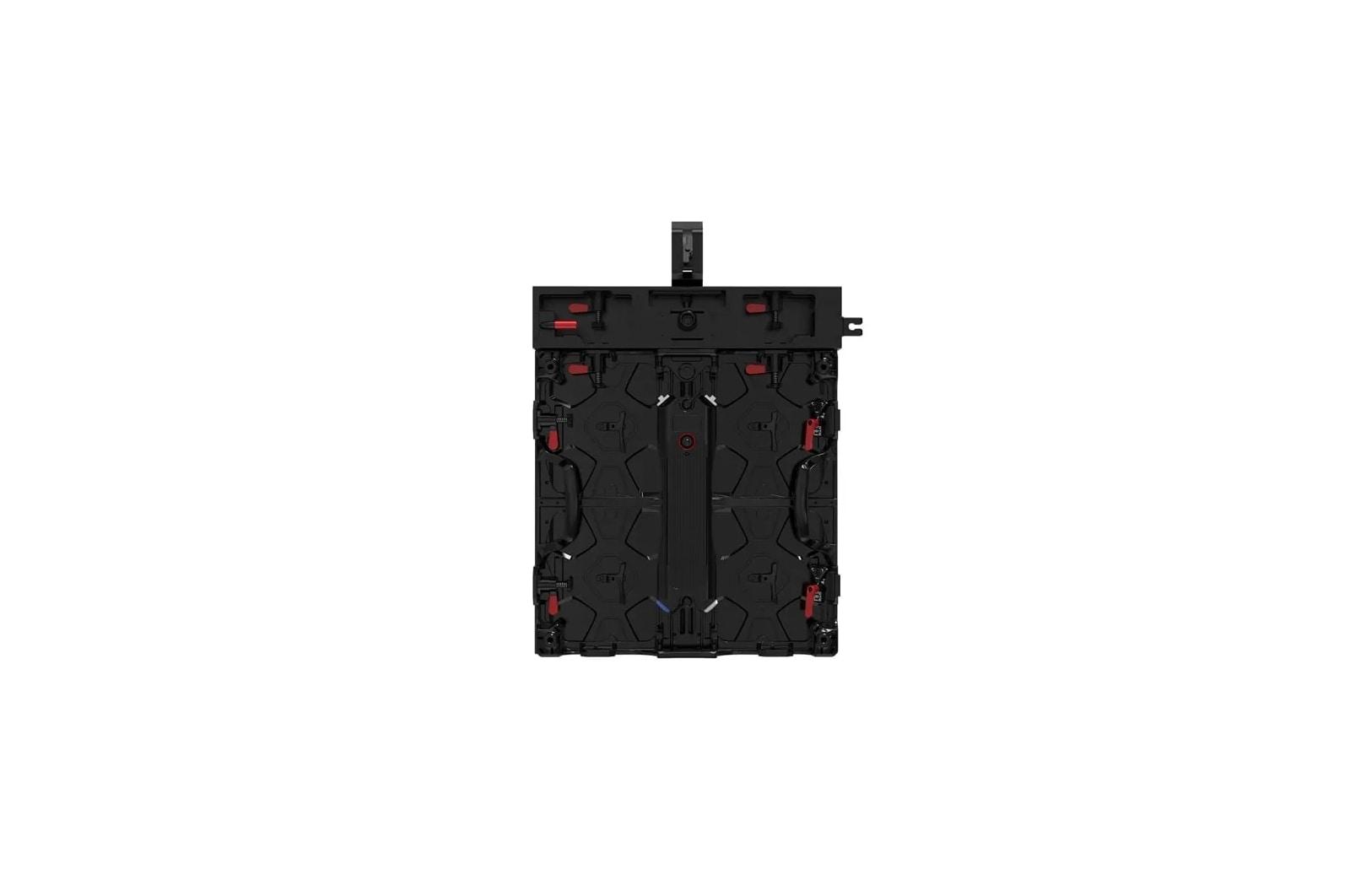

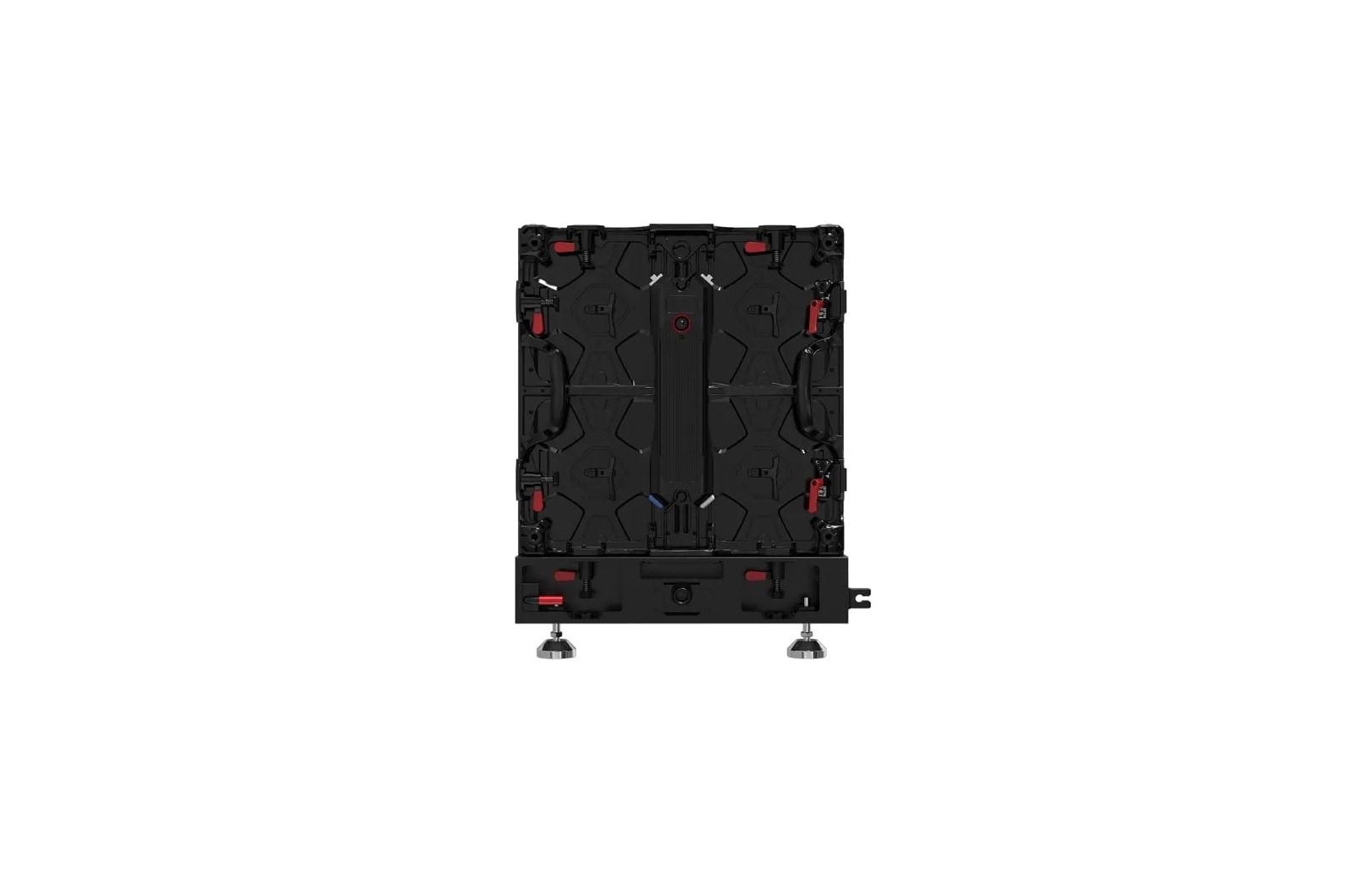

- Stacking & Hanging System Available
LBAE Studio Series Wall Direct View LED with webOS™
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 2.6 mm |
| Module Resolution (W x H) | 96 x 96 |
| Module Dimensions (W x H) | 9.8 x 9.8 in / 250 x 250 mm |
| Weight per Module | 1.3 lbs / 0.59 kg |
| Total Modules (per cabinet) | 4 |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 192 x 192 |
| Cabinet Dimensions (W x H x D) | 19.7 x 19.7 x 3.0 in / 500 x 500 x 75.5 mm |
| Cabinet Surface Area | 2.7 ft / 0.25 m |
| Weight per Cabinet | 13.0 lbs / 5.9 kg |
| Weight per Unit Area | 24 kg/m |
| Physical Pixel Density | 147,456 pixels/m |
| Flatness of Cabinet | 0.15 mm |
| Cabinet Material | Die-casting Magnesium |
| Service Access | Front or Rear |
| 90 Degree Corner Cut | No |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | CBAE |
| min viewing distance (5-7 mm per foot) | 13-18 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 7,680 Hz |
| Frame Rate | 48 / 50 / 60 Hz |
| Power Consumption per Cabinet (Max.) | 180W |
| Heat Dissipation per Cabinet (Avg.) | 204.8 BTU/hr |
| Power Consumption per Unit Area (Max.) | 720 |
| Heat Dissipation per Unit Area (Max.) | 2,457.1 BTU/hr/m |
| Power Consumption per Cabinet (Avg.) | 60W |
| Heat Dissipation per Cabinet (Max.) | 614.3 W/m |
| Optical | |
| Max. Brightness (After Calibration) | Up to 1,500 nits |
| Color Temperature | 2,000-10,000K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 20 bit (HDR10, PQ, HLG) |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| KC | No |
| CB | No |
| REACH (Environmental) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| CCC | No |
| RoHS (Environmental) | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP30 |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| cTUVus | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP30 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 0% to 80% RH |
| Operating Temperature | 14° F to 114° F / -10° C to 45° C |
