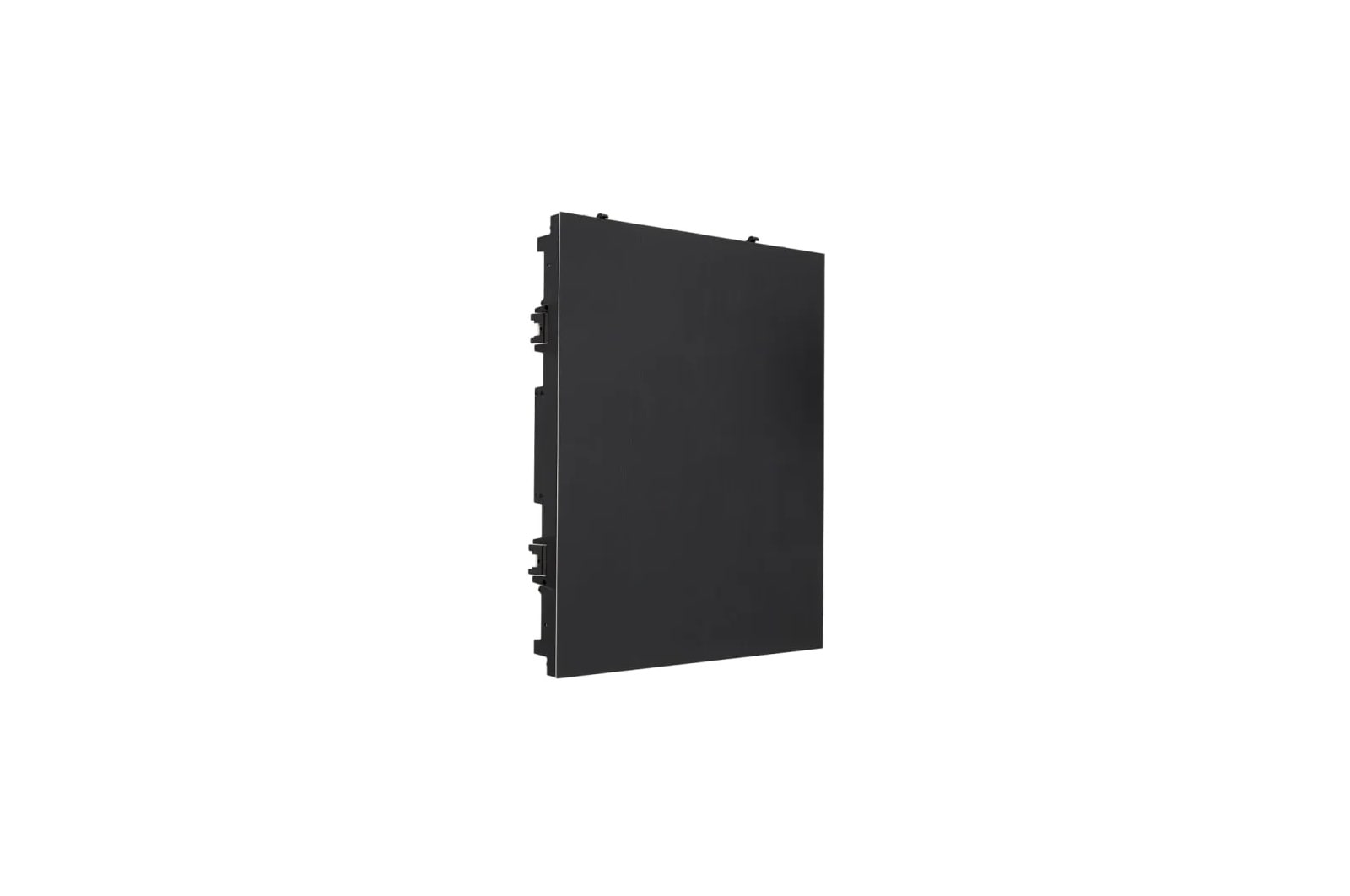

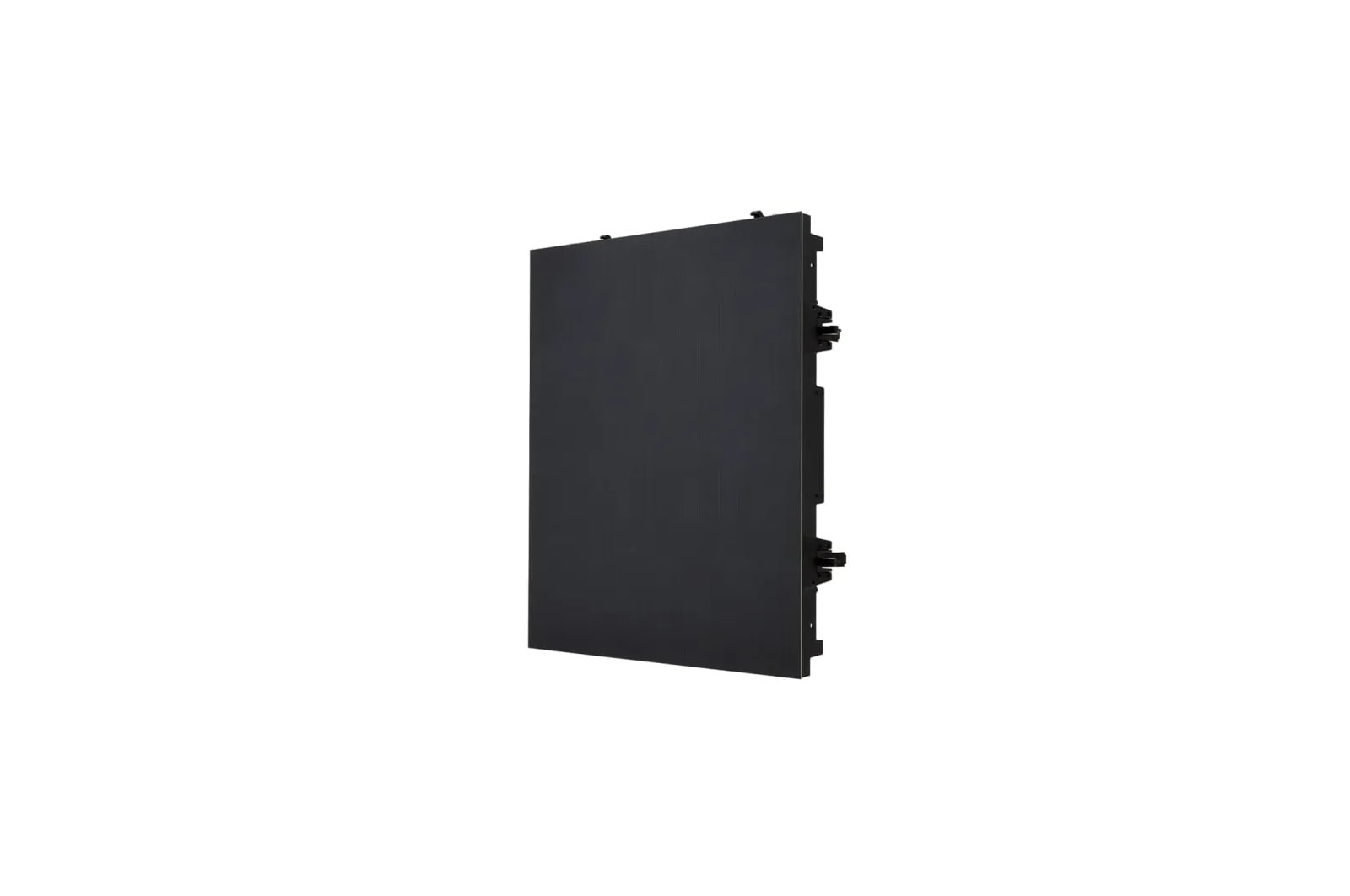

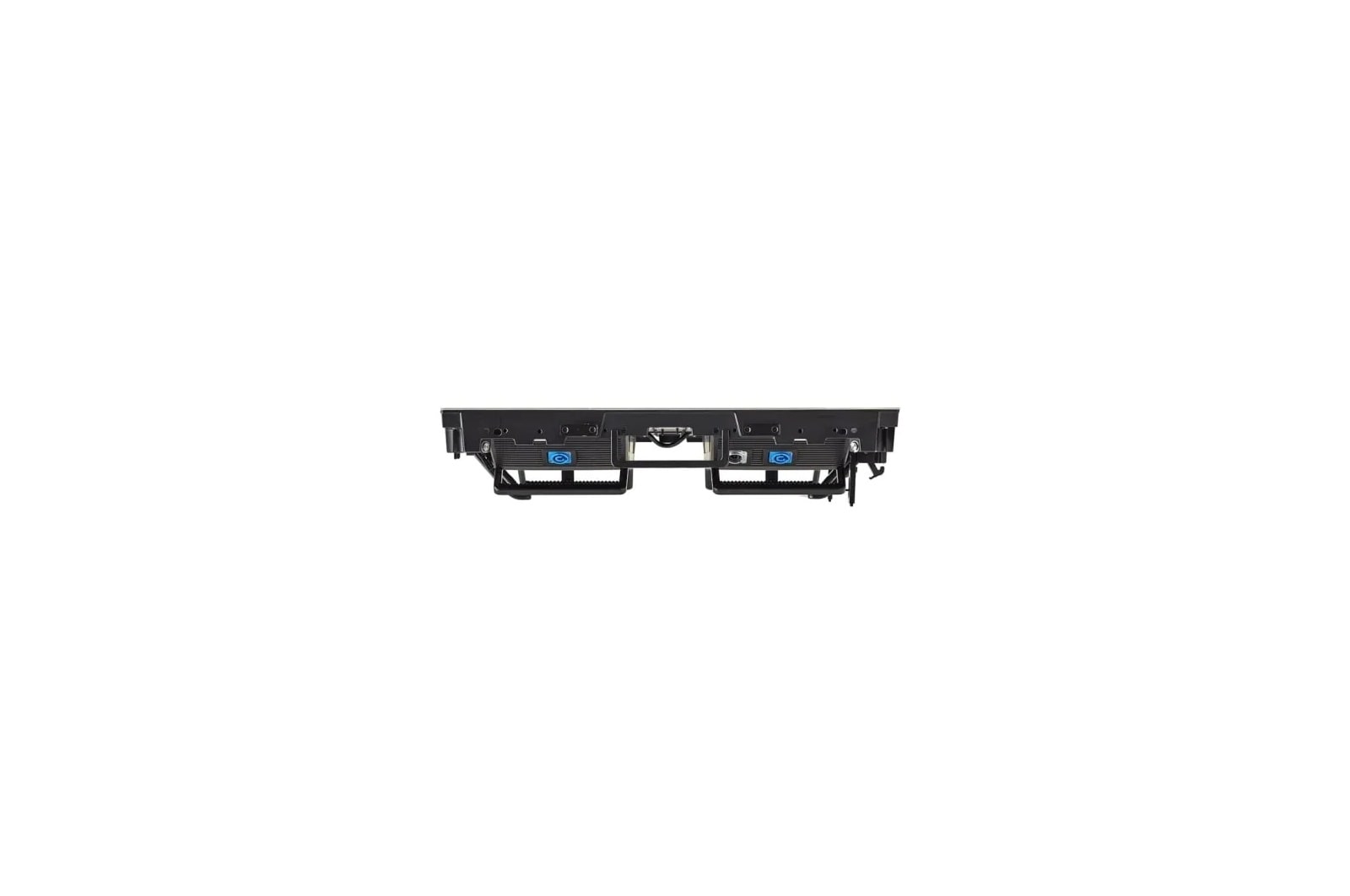

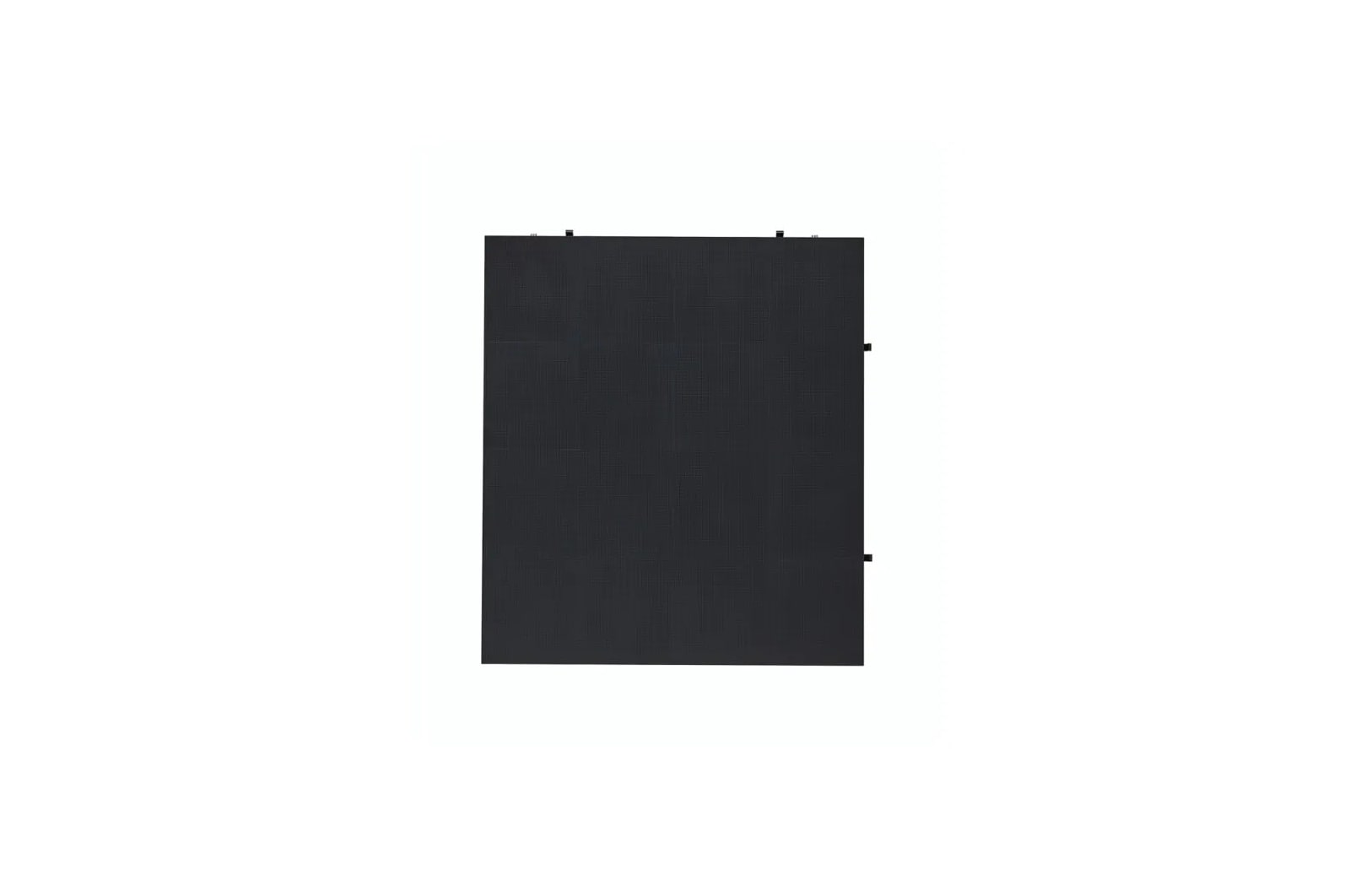

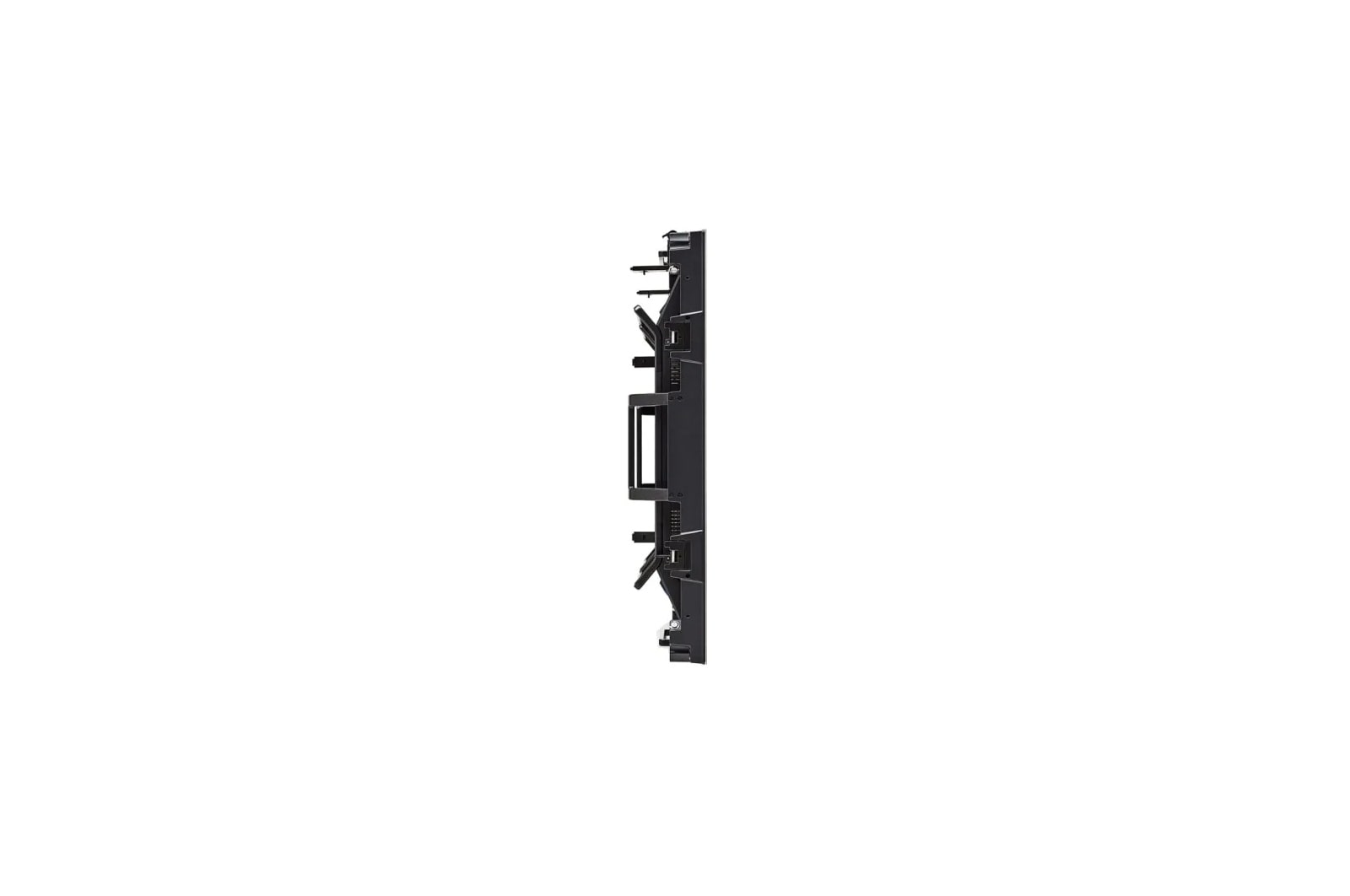

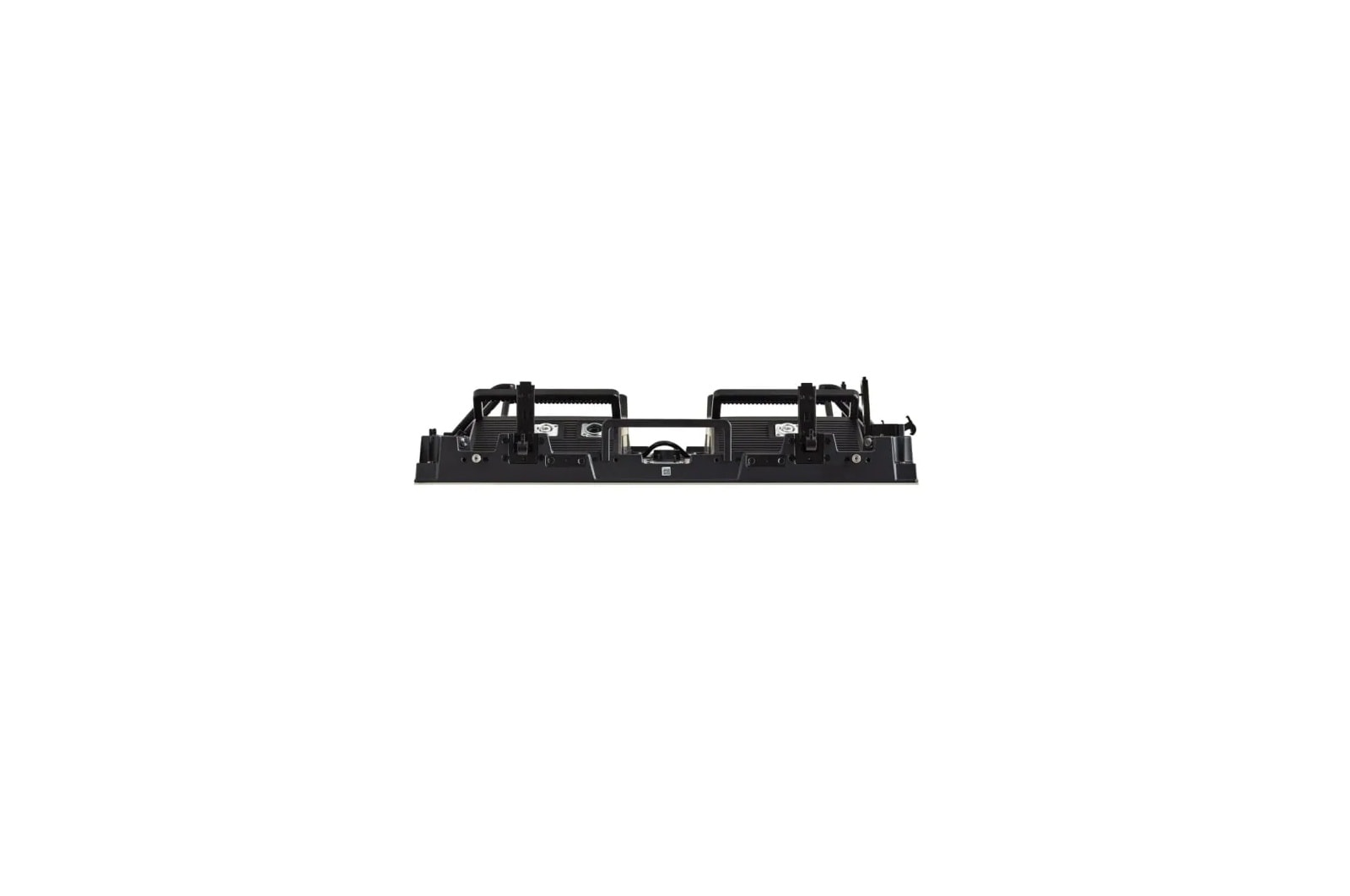

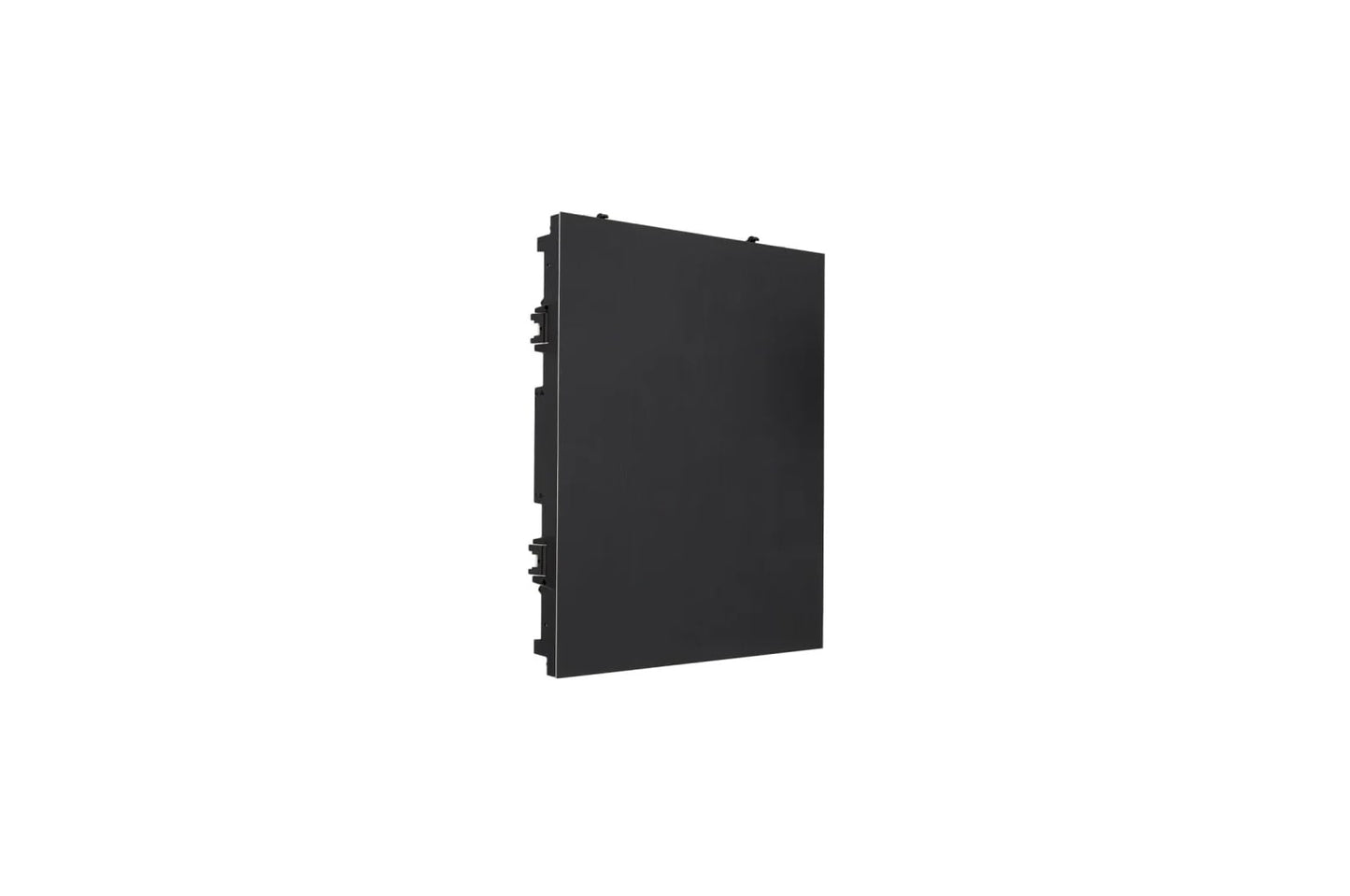

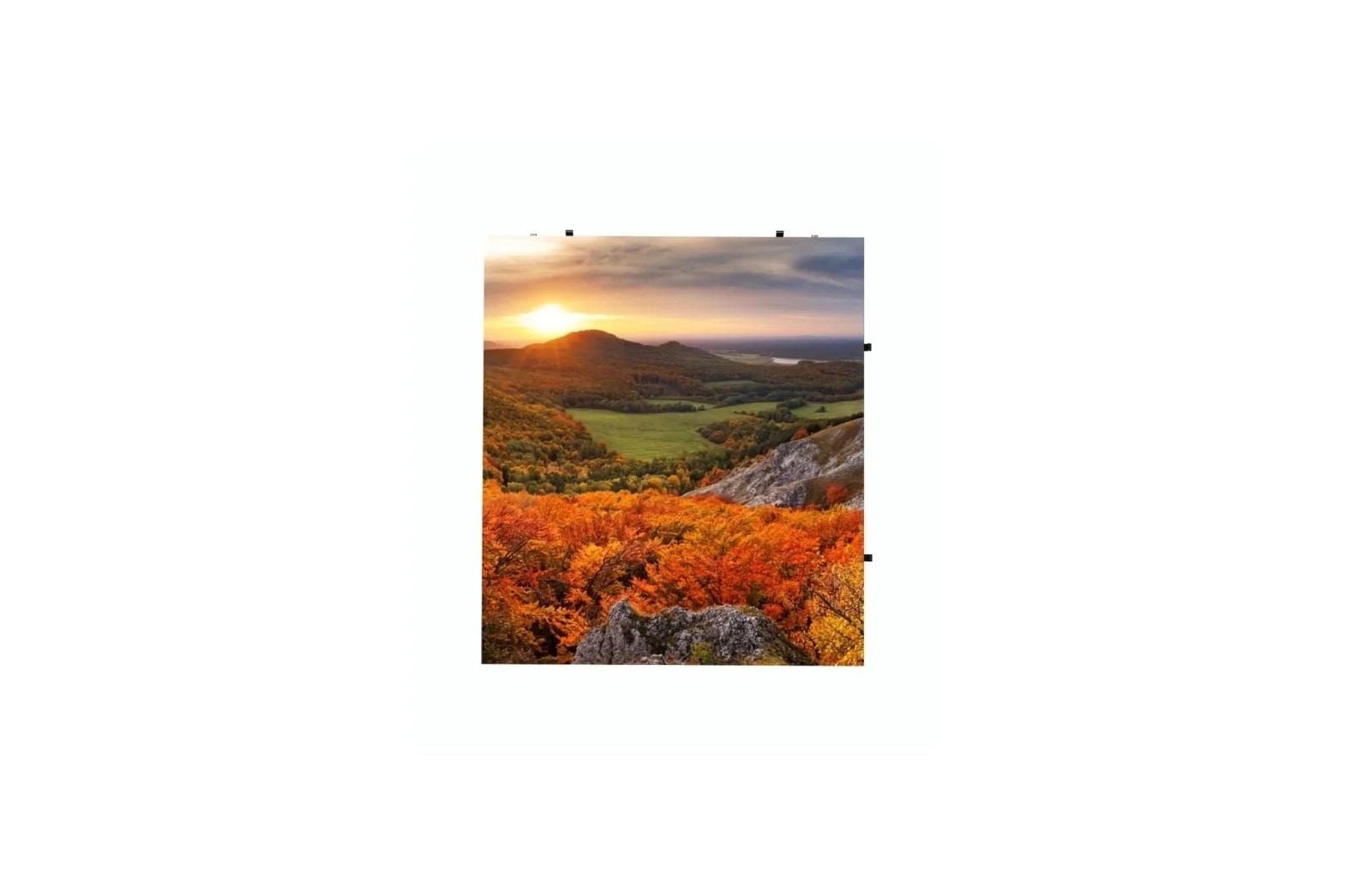

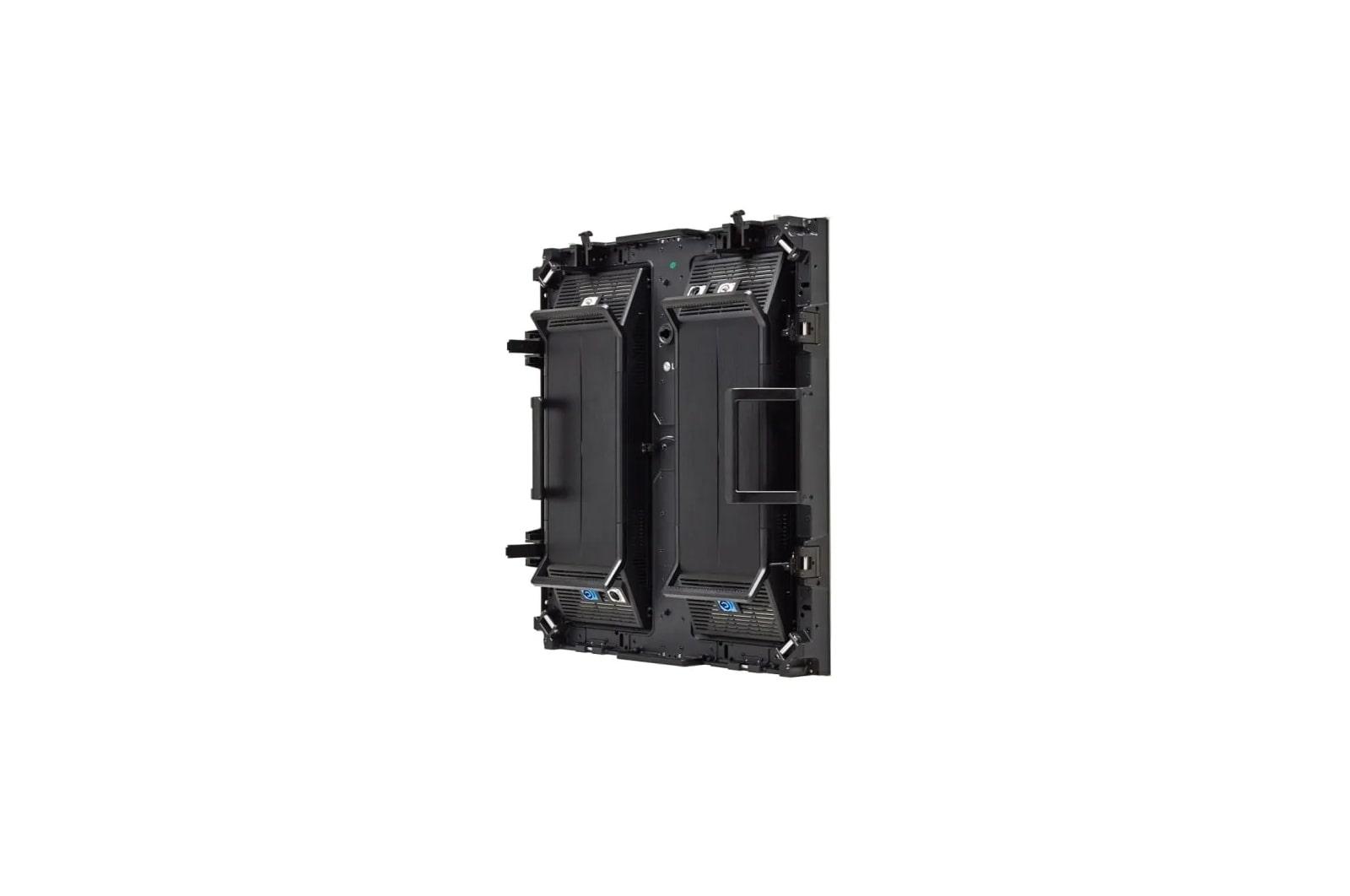

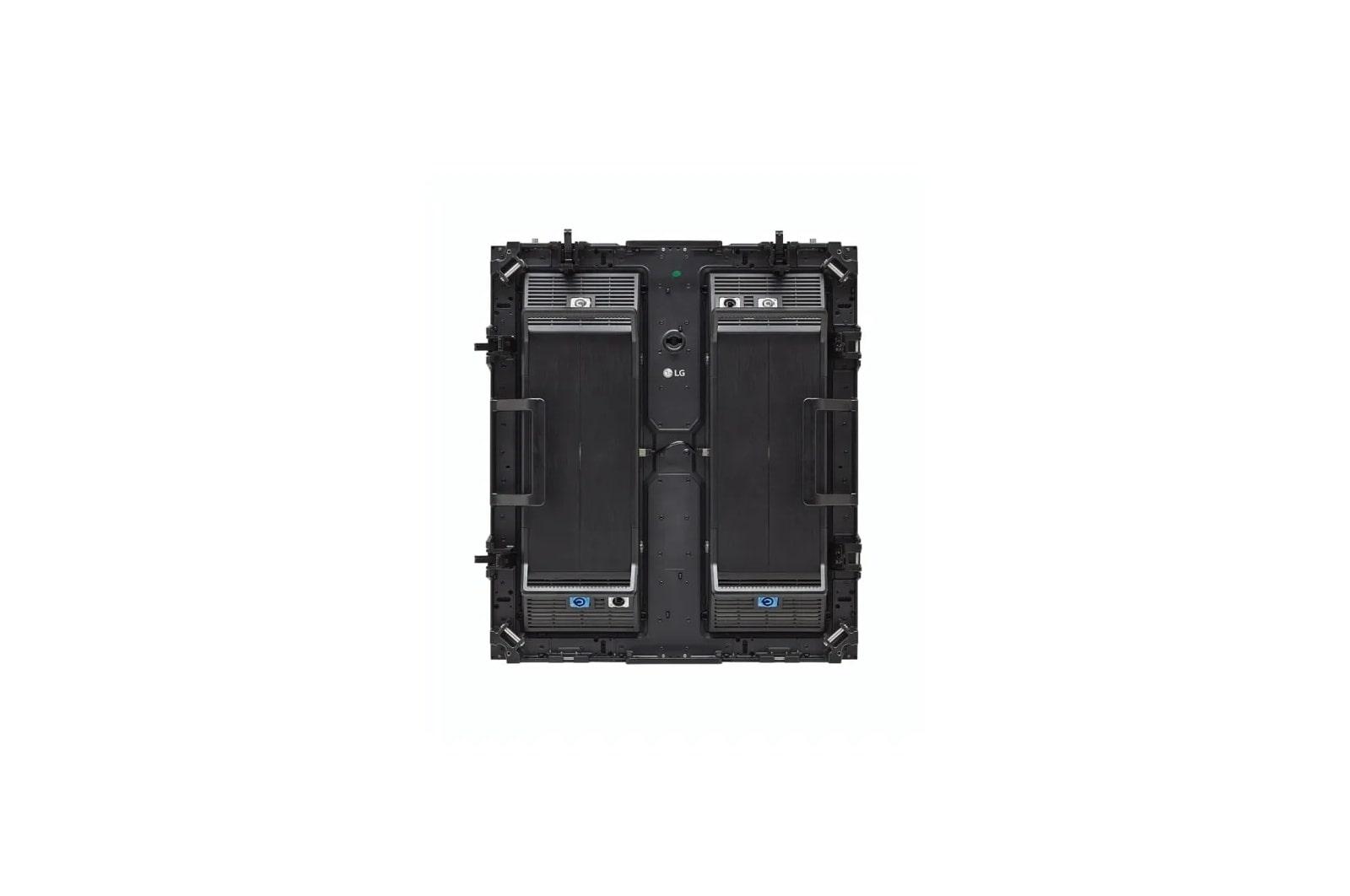

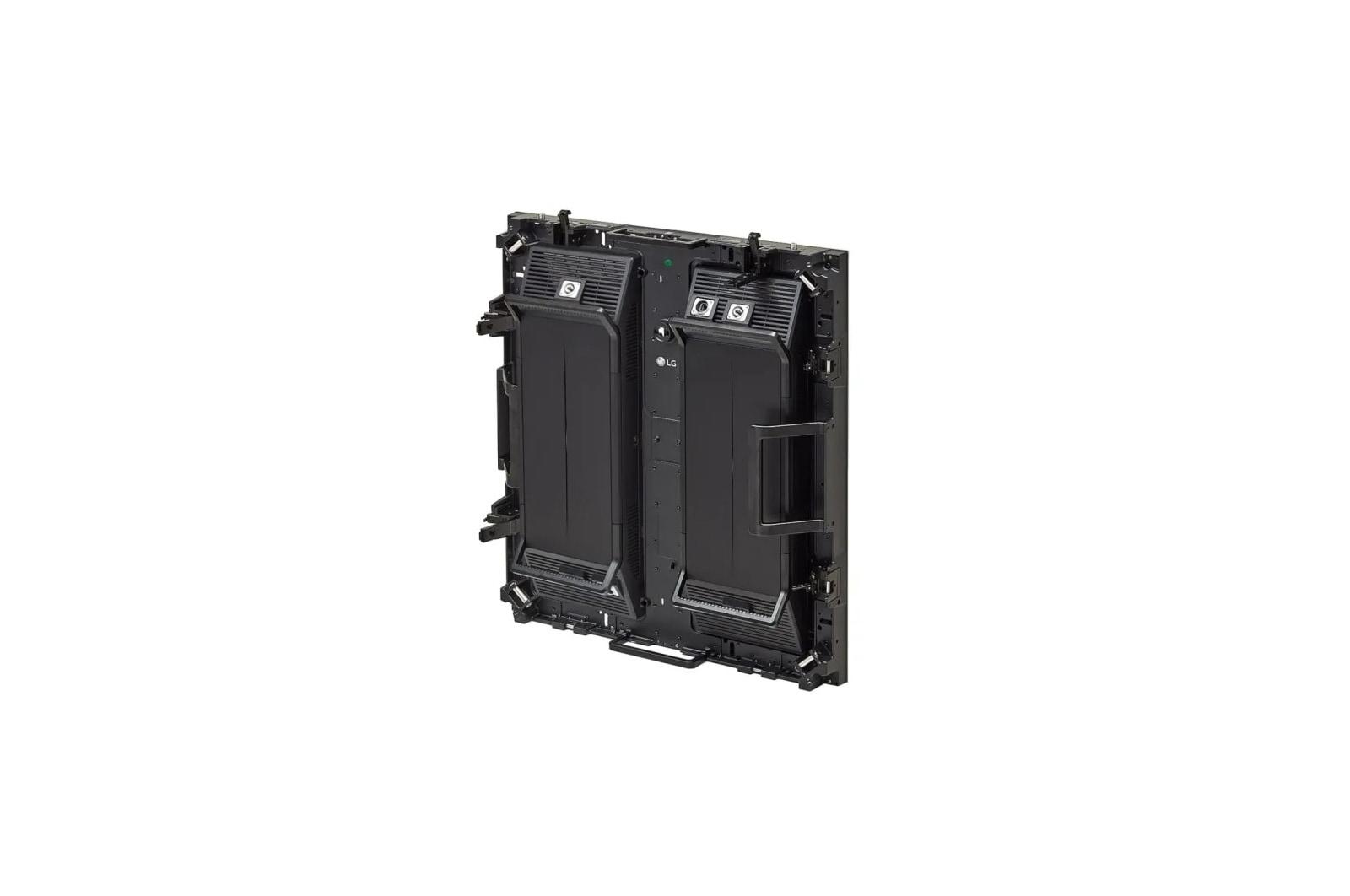

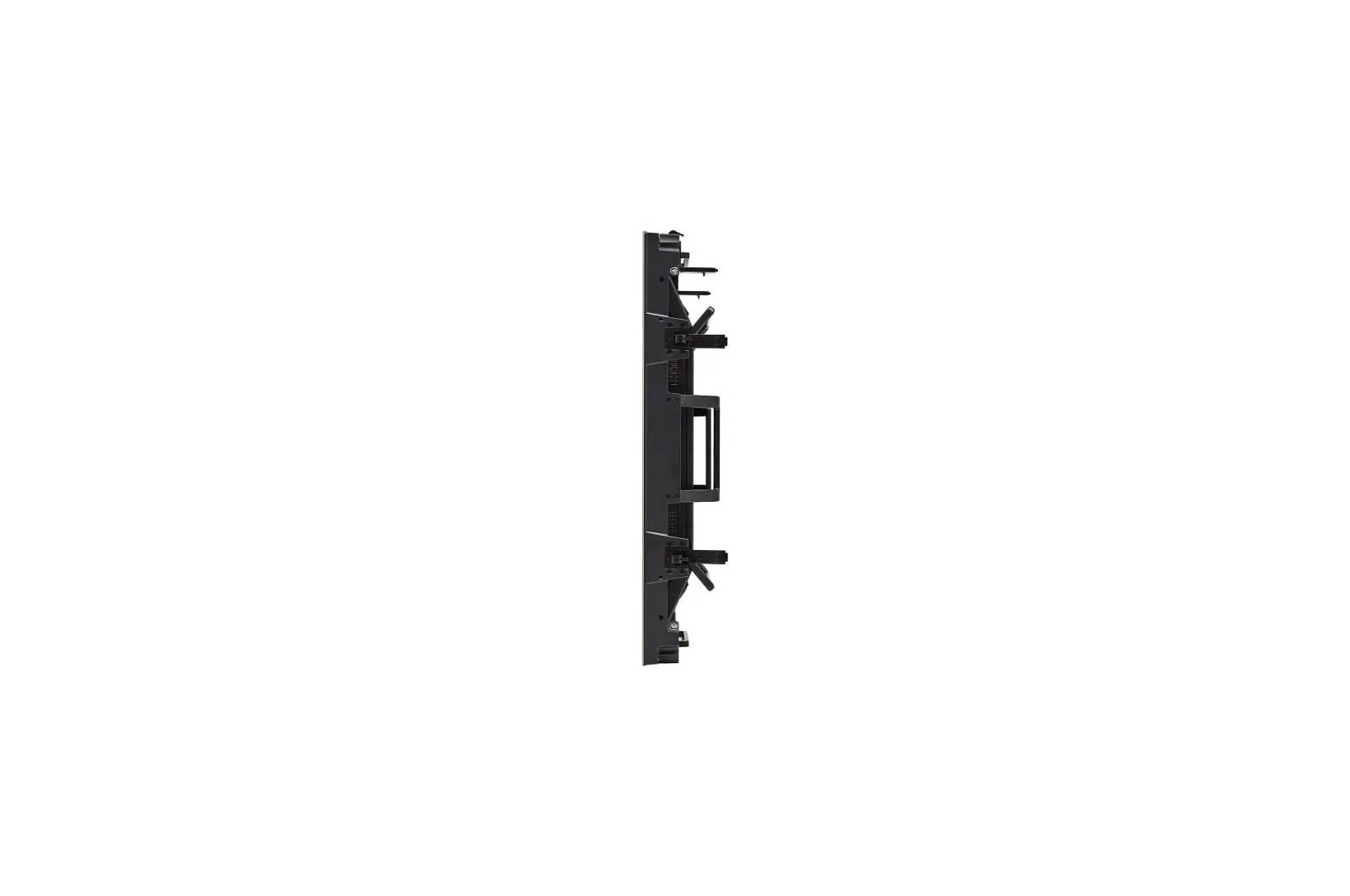

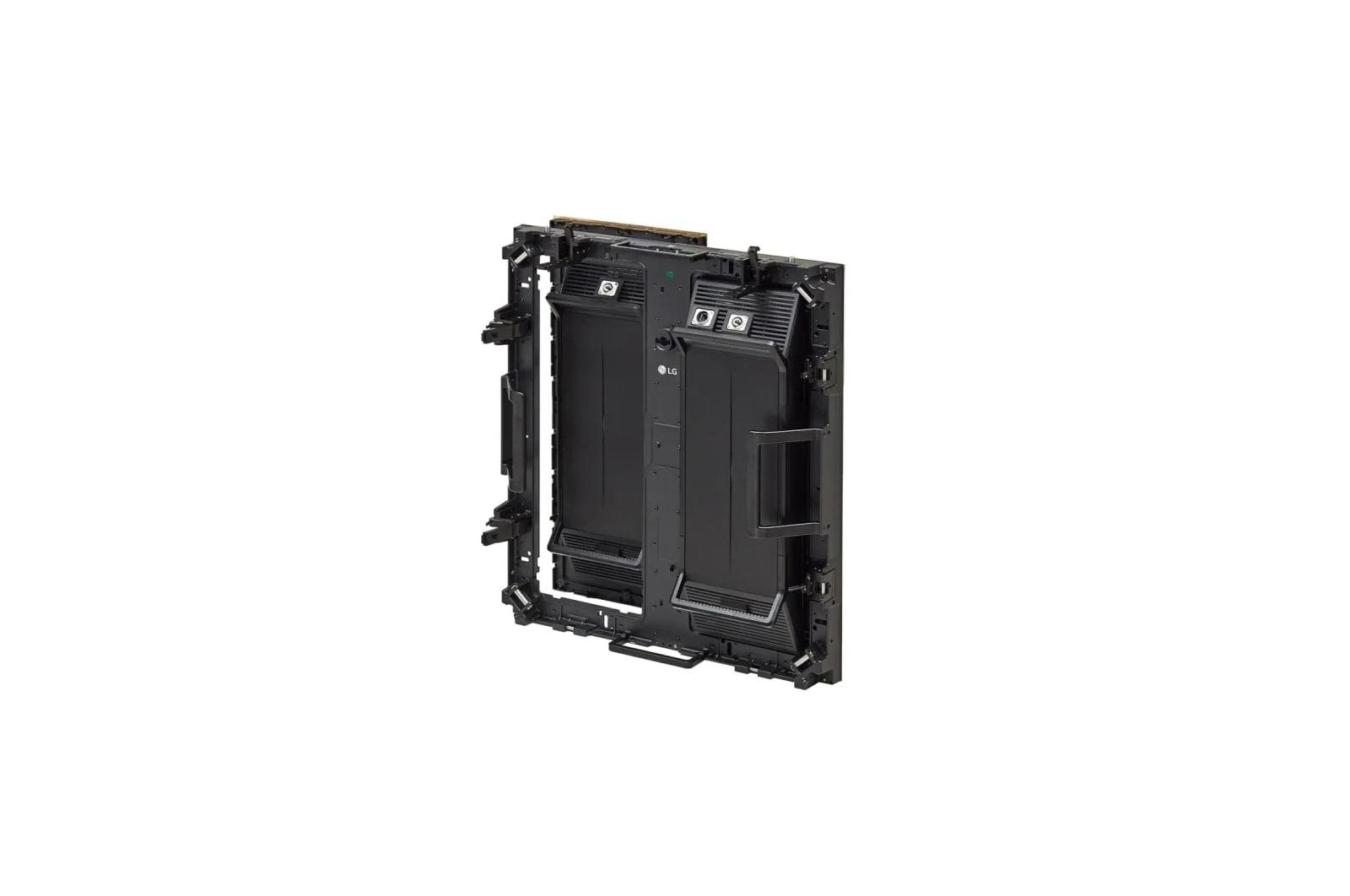

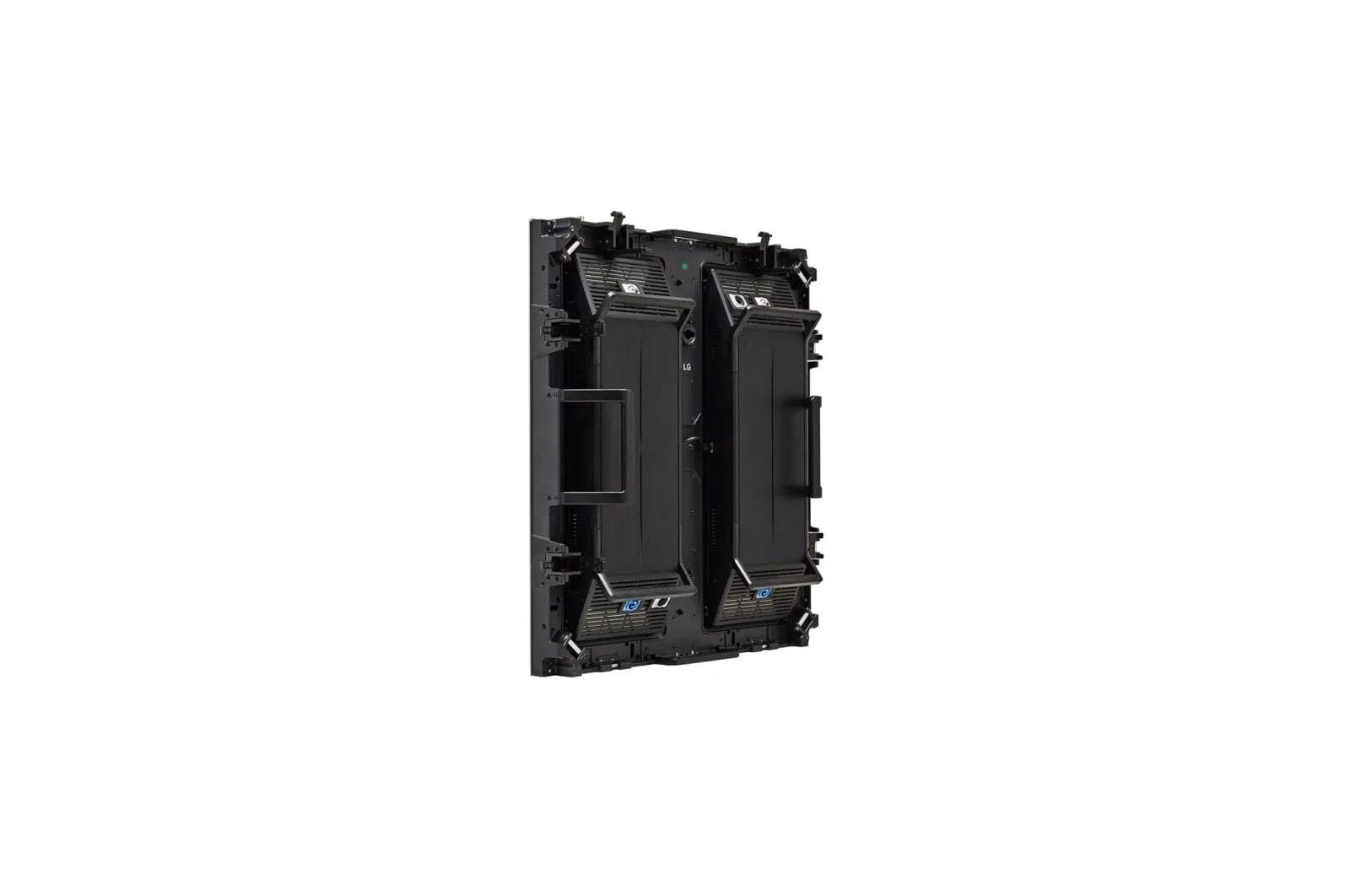

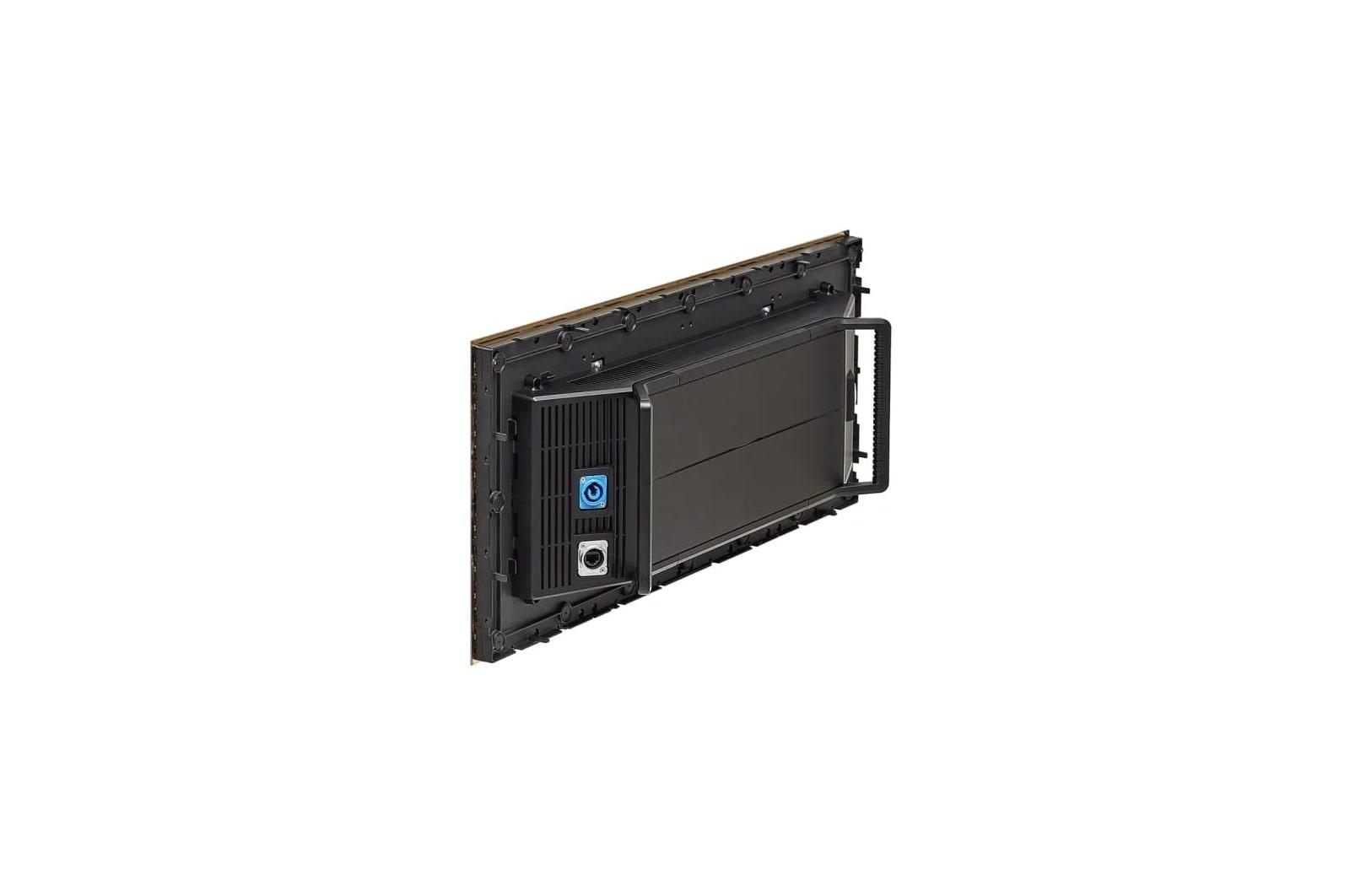

Lg LBAF015 1.56 mm LBAF MAGNIT Studio Series MicroLED Wall Standard with webOS™
Lg LBAF015 1.56 mm LBAF MAGNIT Studio Series MicroLED Wall Standard with webOS™
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 1.56 Pixel Pitch COB
- 1,500 nits Brightness with 160(degree) x 160(degree) Viewing Angle
- 600x675x75.5 with Curve Effect Available

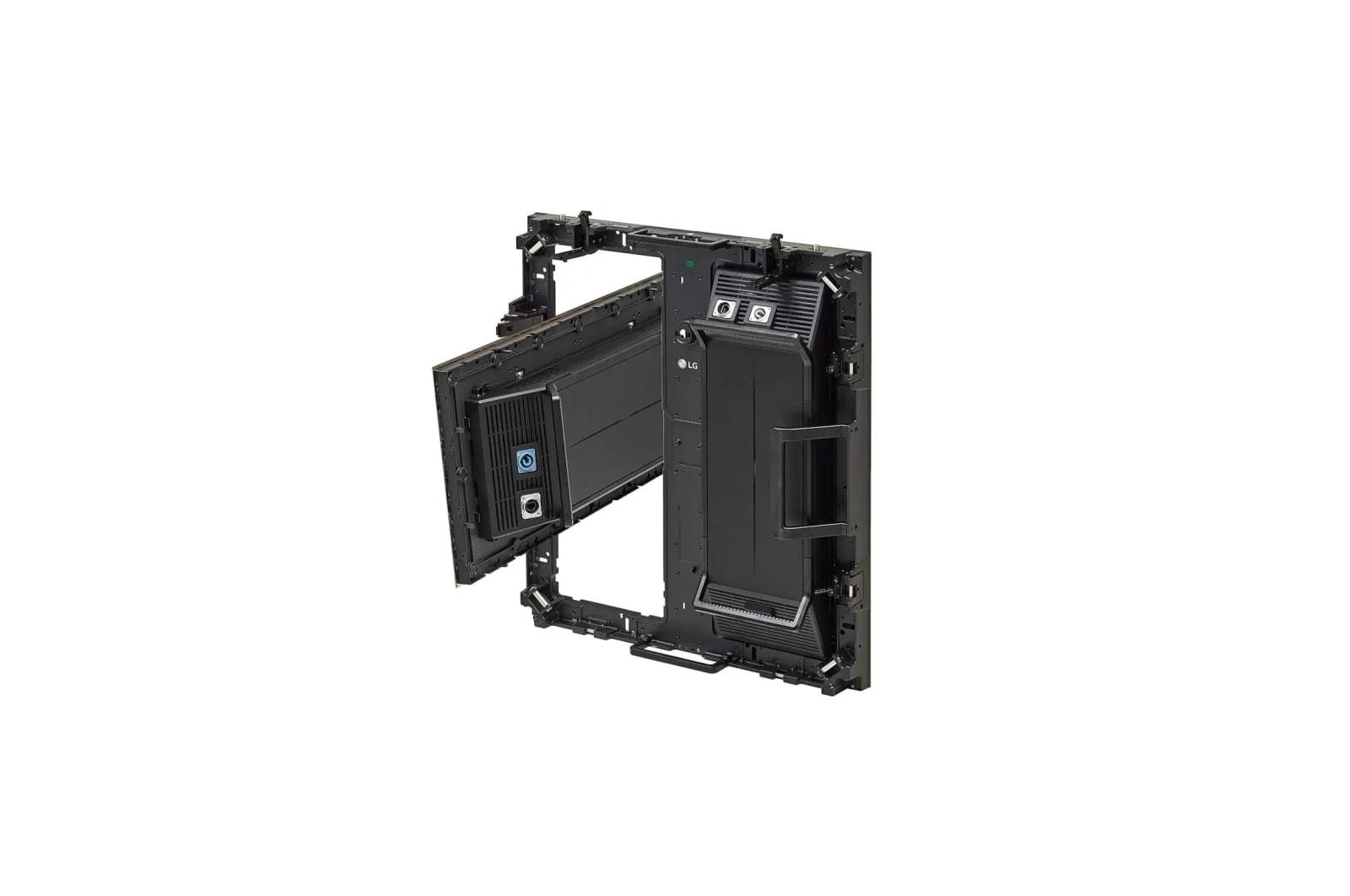

- Easy Installation and Maintenance
- LG webOS™ Controller
- Last up to 100,000 hours
1.56 mm LBAF MAGNIT Studio Series MicroLED Wall Standard with webOS™
| Physical Parameters | |
| Pixel Pitch | 1.56 mm |
| Module Resolution (W x H) | 96 x 108 |
| Module Dimensions (W x H) | 5.9 x 6.6 in / 150 x 168.75 mm |
| Weight per Module | 0.33 lbs / 0.15 kg |
| No. of Modules per Cabinet (W x H) | 4 x 4 |
| Cabinet Resolution (W x H) | 384 x 432 |
| Cabinet Dimensions (W x H x D) | 23.6 x 26.6 x 3.1 in / 600 x 675 x 79.8 mm |
| Cabinet Surface Area | 4.4 ft / 0.405 m |
| Weight per Cabinet | 34.2 lbs / 15.5 kg |
| Weight per Unit Area | 7.8 lbs/ft / 38.3 kg/m |
| Physical Pixel Density | 409,600 pixels/m |
| Flatness of Cabinet | 0.15 mm |
| Cabinet Material | Die-Cast Magnesium Alloy |
| Service Access | Rear |
| 90 Degree Corner Cut | No |
| Controller | CBAF |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 7,680 Hz |
| Frame Rate | 96 / 100 / 120 Hz |
| Power Consumption per Cabinet (Avg.) | 175 W |
| Power Consumption per Cabinet (Max.) | 210 W |
| Heat Dissipation per Cabinet (Avg.) | 599 BTU/hr |
| Power Consumption per Unit Area (Max.) | 519 W/m |
| Heat Dissipation per Cabinet (Max.) | 729 BTU/hr |
| Heat Dissipation per Unit Area (Max.) | 1,775 BTU/hr/m |
| Optical | |
| Max. Brightness (After Calibration) | Up to 1,500 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 95% |
| Color Uniformity | 0.015 Cx, Cy |
| Contrast Ratio | 100,000:1 |
| Processing Depth | 16 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 32° F to 104° F / 0° C to 40° C |
