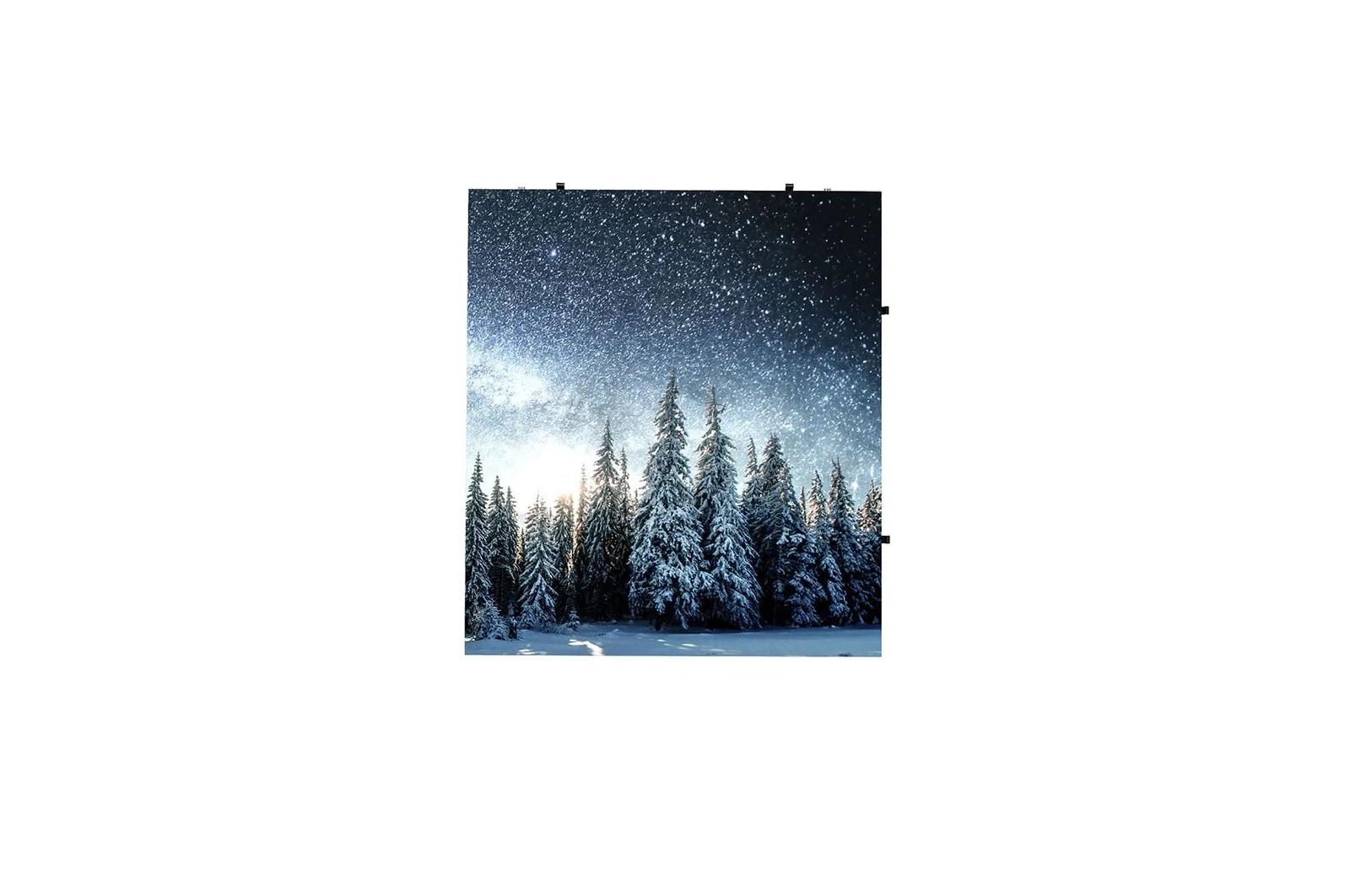

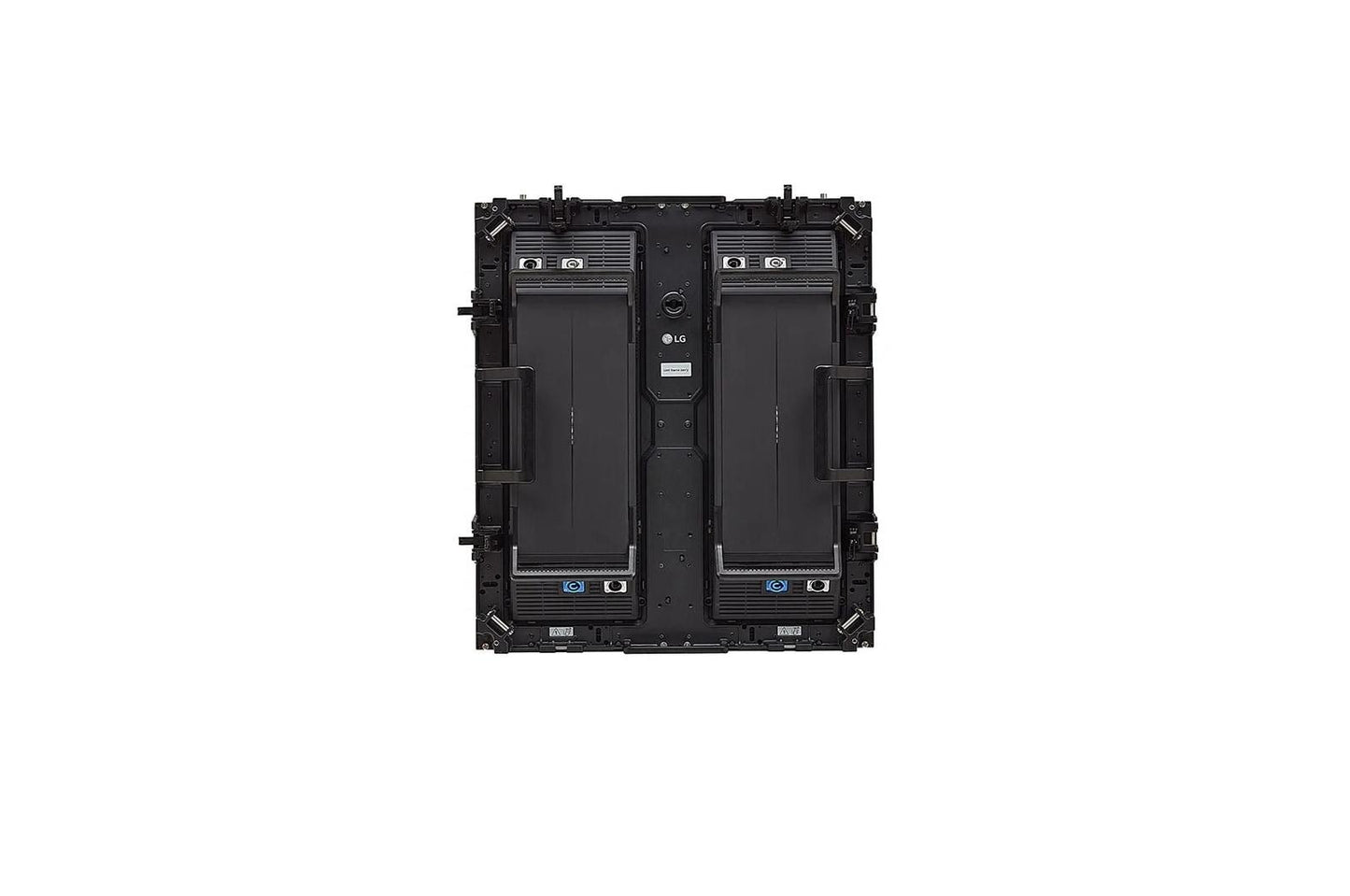

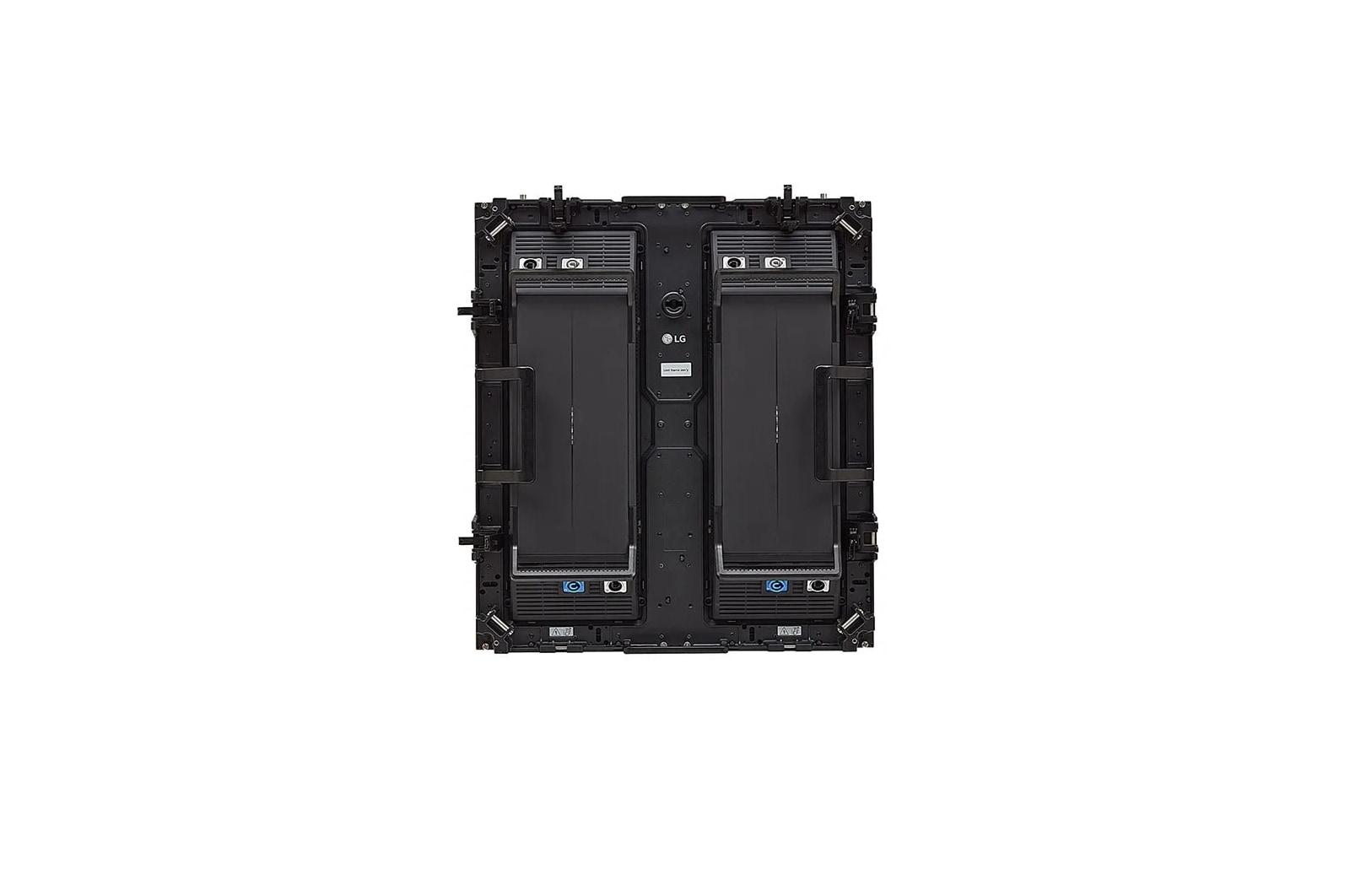

Lg LBAG015G3 LBAG MAGNIT Studio Series MicroLED Wall with Megapixel VR Helios Controller
Lg LBAG015G3 LBAG MAGNIT Studio Series MicroLED Wall with Megapixel VR Helios Controller
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 1.56 Pixel Pitch COB
- 1,500 nits Brightness with 160(degree) x 160(degree) Viewing Angle
- Curve Effect Available
- Easy Installation and Maintenance
- Megapixel VR Helios Controller
- Last up to 100,000 hours

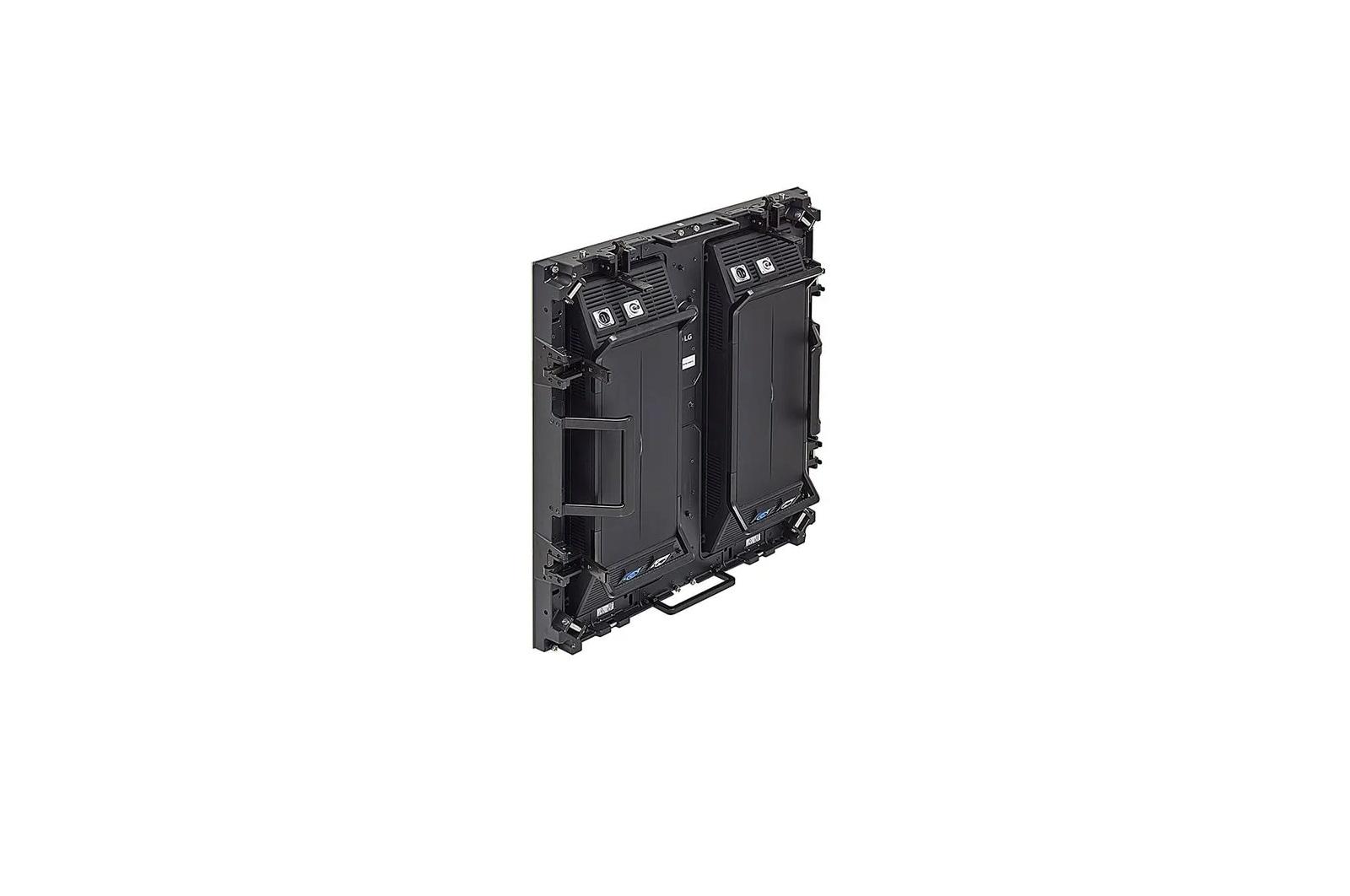

LBAG MAGNIT Studio Series MicroLED Wall with Megapixel VR Helios Controller
| Physical Parameters | |
| LED Type | COB |
| Pixel Pitch | 1.56 mm |
| Module Resolution (W x H) | 96 x 108 |
| Module Dimensions (W x H) | 5.9 x 6.6 in / 150 x 168.75 mm |
| Weight per Module | 1.3 lbs / 0.6 kg |
| Total Modules (per cabinet) | 16 |
| No. of Modules per Cabinet (W x H) | 4 x 4 |
| Cabinet Resolution (W x H) | 384 x 432 |

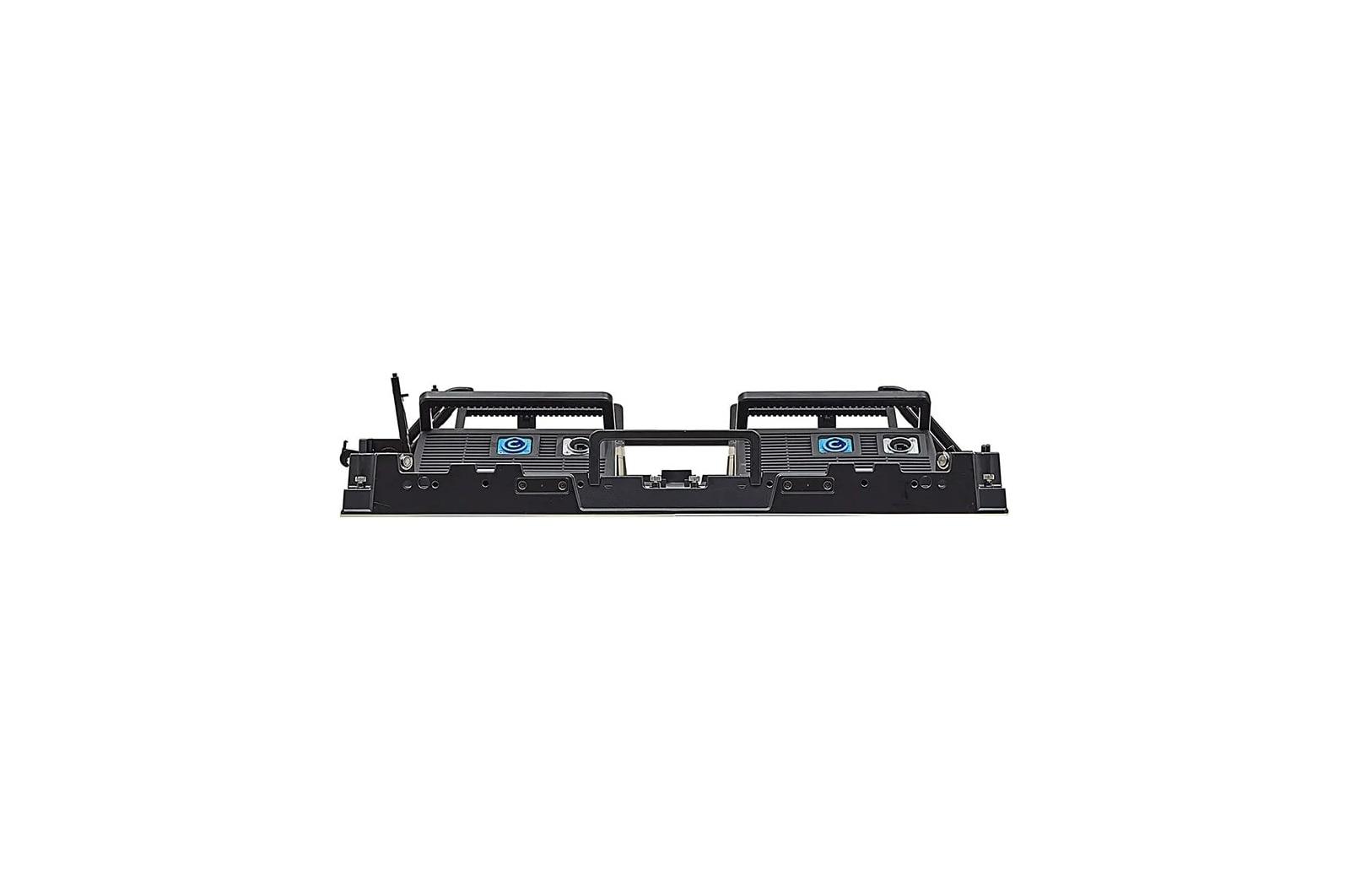

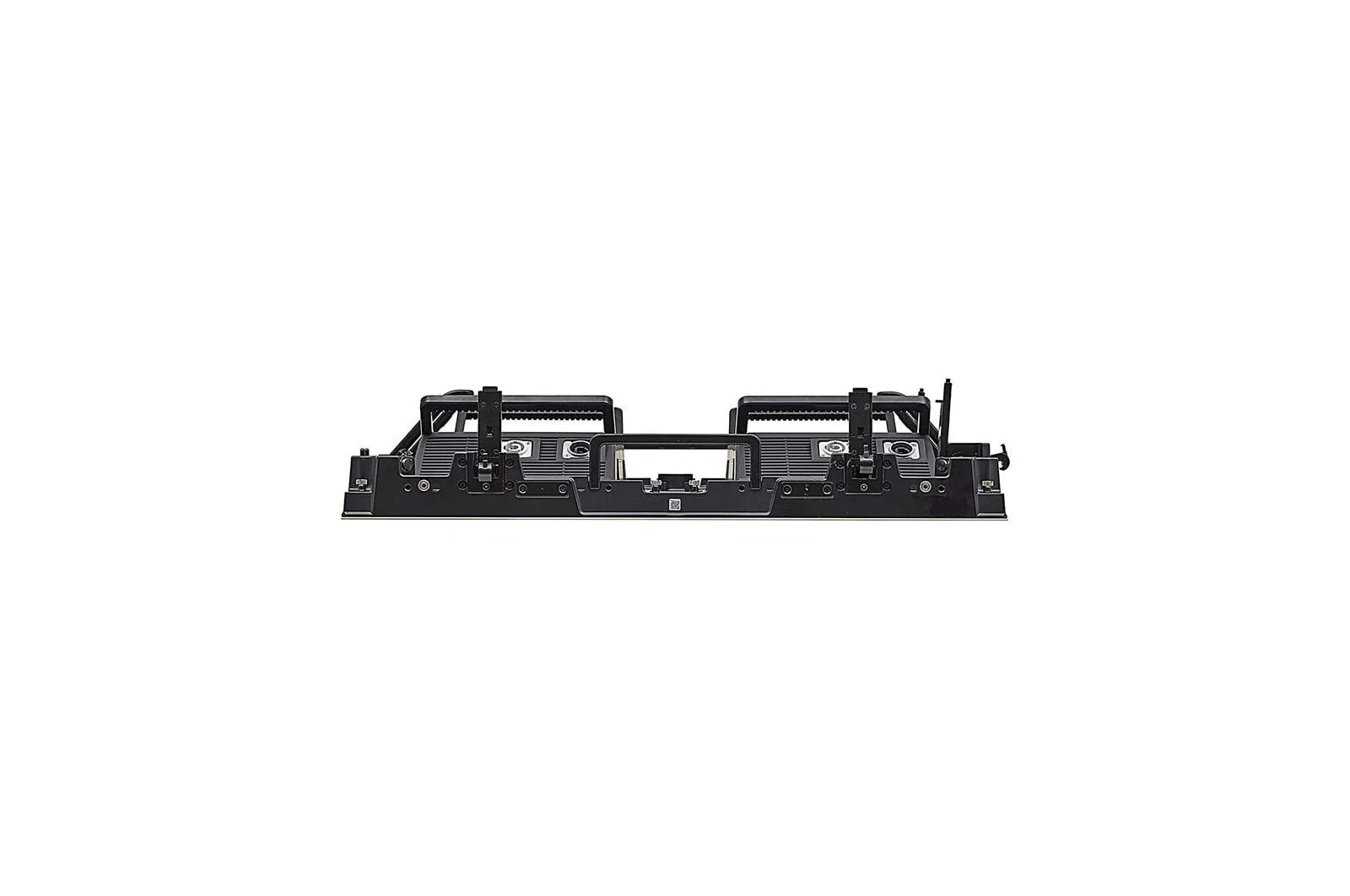

| Cabinet Dimensions (W x H x D) | 23.6 x 26.6 x 3.0 in / 600 x 675 x 75.5 mm |
| Cabinet Surface Area | 4.4 ft / 0.405 m |
| Weight per Cabinet | 15.4 lbs / 7 kg |
| Weight per Unit Area | 17.2 kg/m |
| Physical Pixel Density | 406,600 pixels/m |
| Flatness of Cabinet | 0.15 mm |
| Cabinet Material | Die-casting Magnesium |

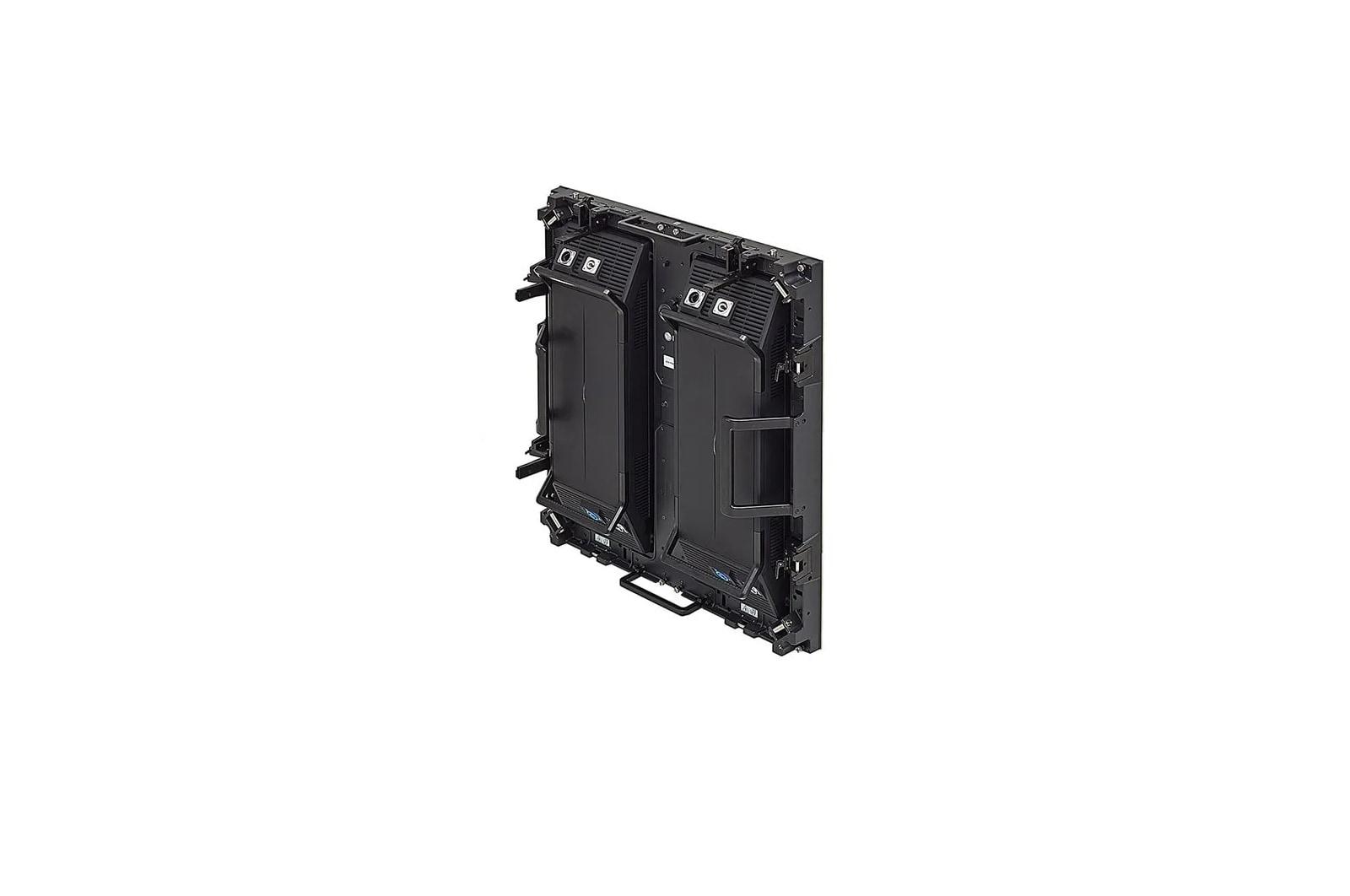

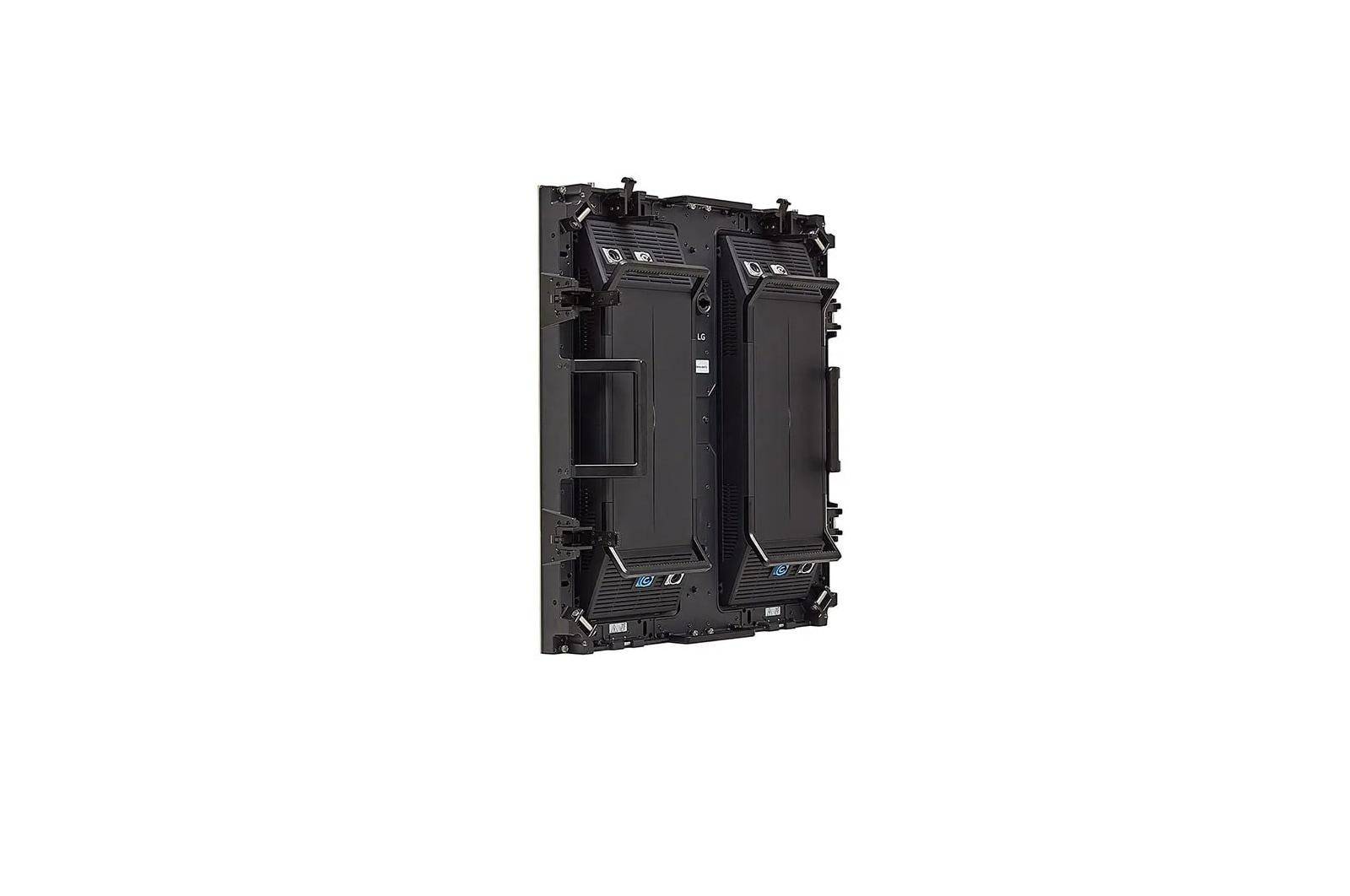

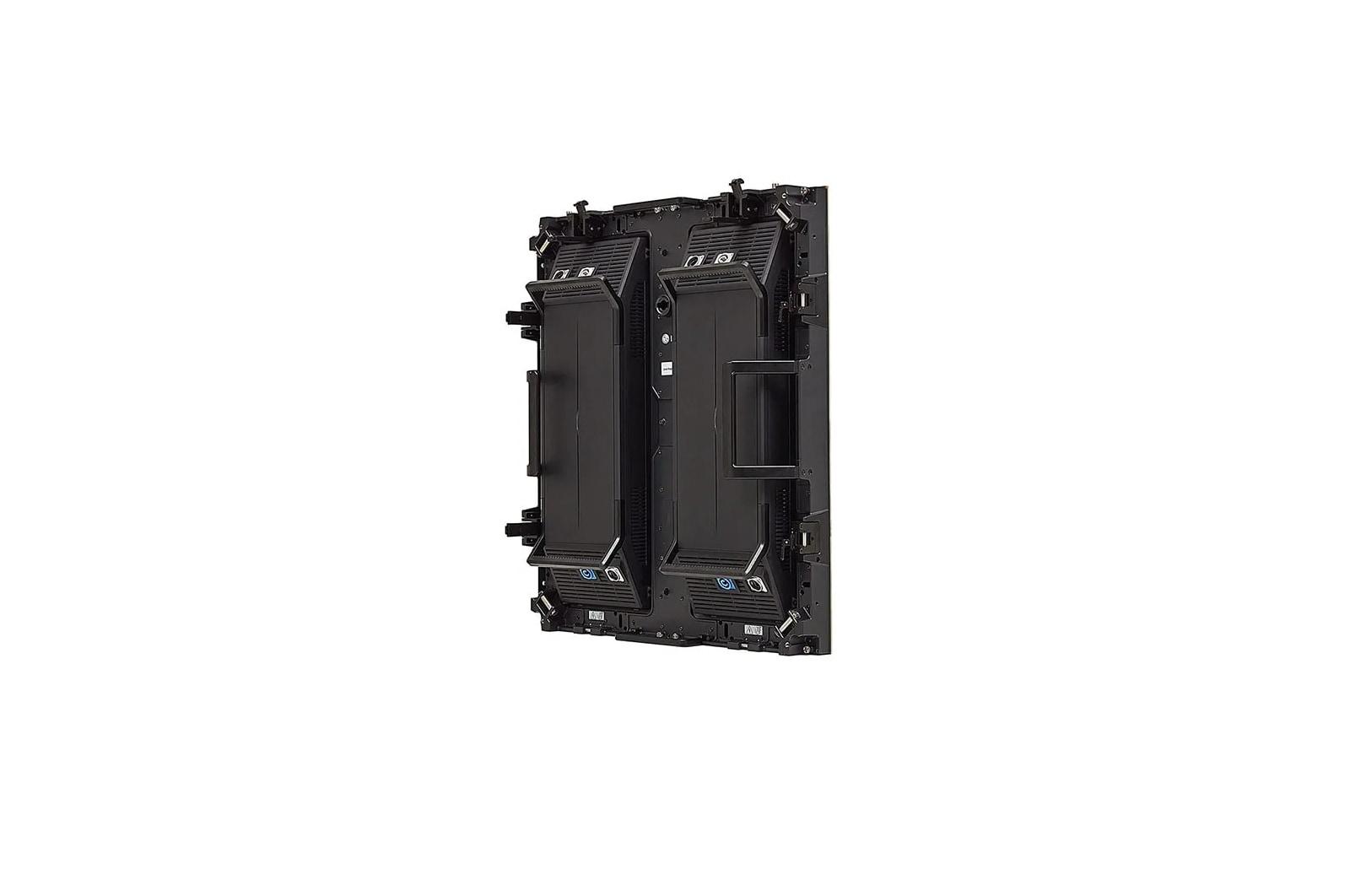

| Service Access | Rear |
| 90 Degree Corner Cut | No |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | Megapixel VR Helios TKPLE-M101 |
| min viewing distance (5-7 mm per foot) | 8-11 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 7,680 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 60W |
| Power Consumption per Cabinet (Max.) | 180W |
| Heat Dissipation per Cabinet (Avg.) | 204.8 BTU/hr |
| Power Consumption per Unit Area (Max.) | 720 |
| Heat Dissipation per Cabinet (Max.) | 614.3 W/m |
| Heat Dissipation per Unit Area (Max.) | 2,457.1 BTU/hr/m |
| Optical | |
| Max. Brightness (After Calibration) | Up to 1,500 nits |
| Color Temperature | 2,000-10,000K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 90,000:1 |
| Processing Depth | 22 bit (HDR10, PQ, HLG) |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| KC | No |
| CB | No |
| IP Rating (Solid / Liquid Ingress) (Front) | IP50 |
| REACH (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| BS476 Part7 (UK Fire Rating) | Class 1 |
| Eye Comfort | No |
| Safety 60950-1 | No |
| cTUVus | No |
| CE (Regulatory) | Yes |
| CCC | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP20 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 0% to 80% RH |
| Operating Temperature | 14° F to 114° F / -10° C to 45° C |
