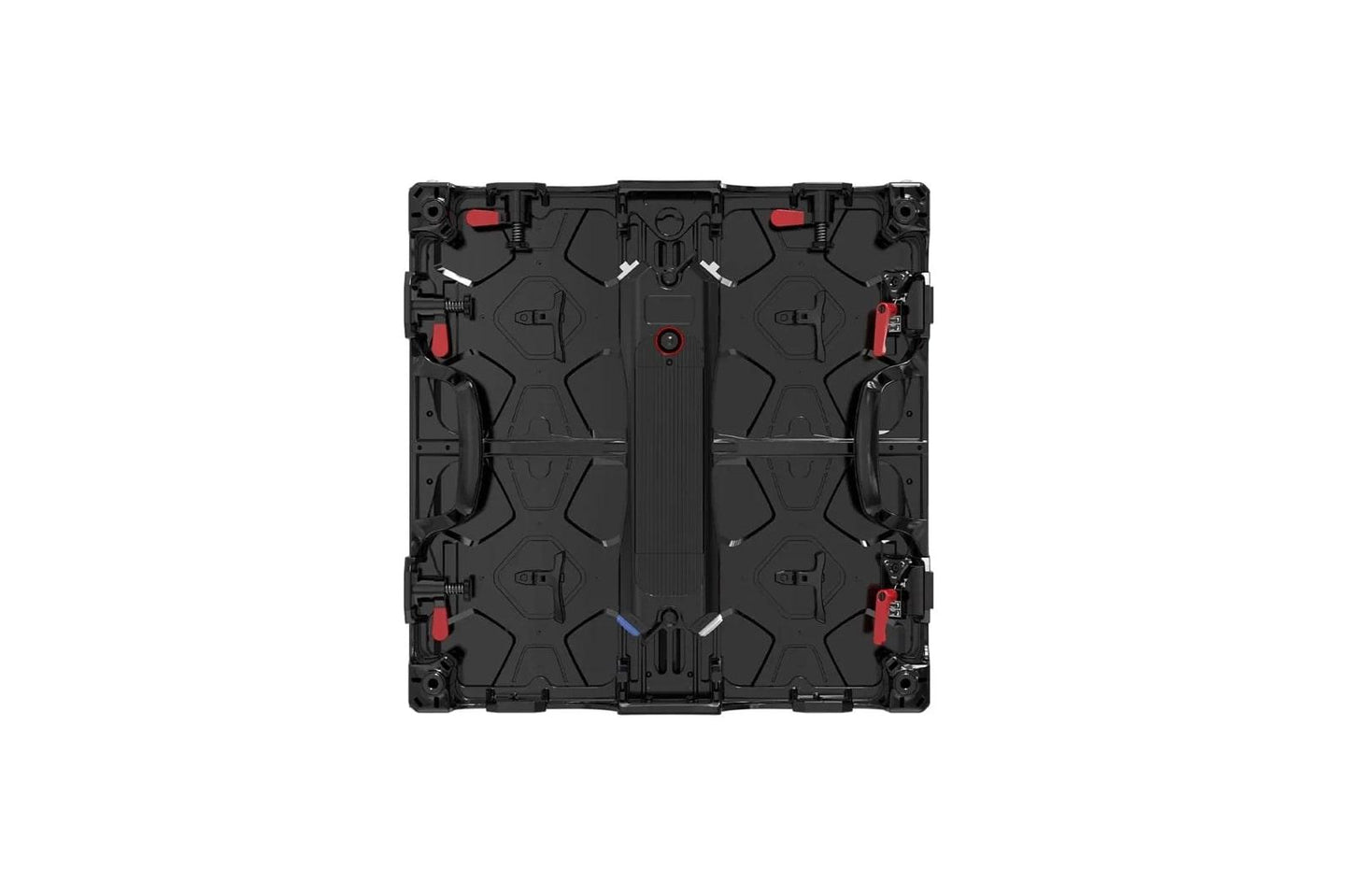

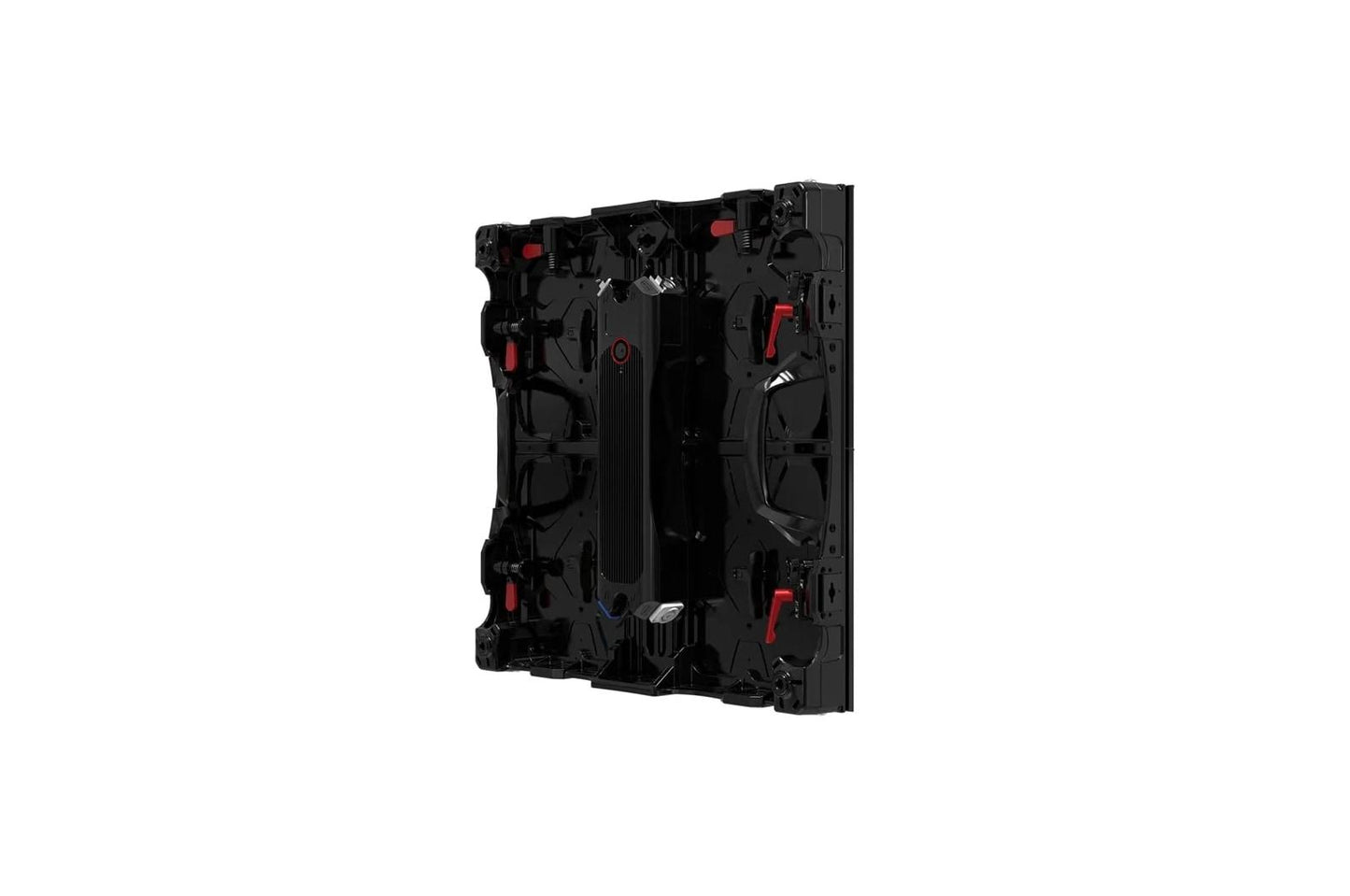

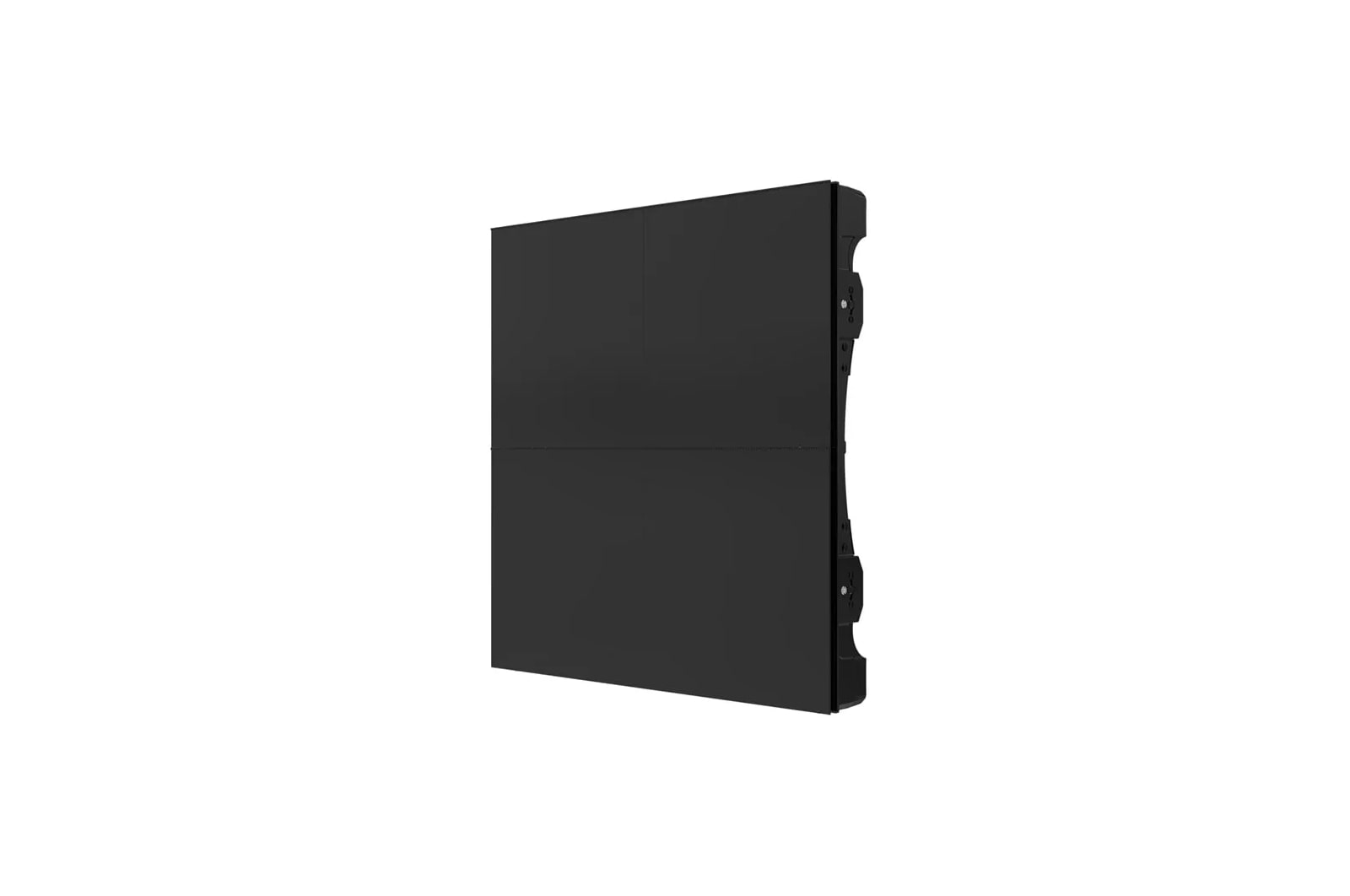

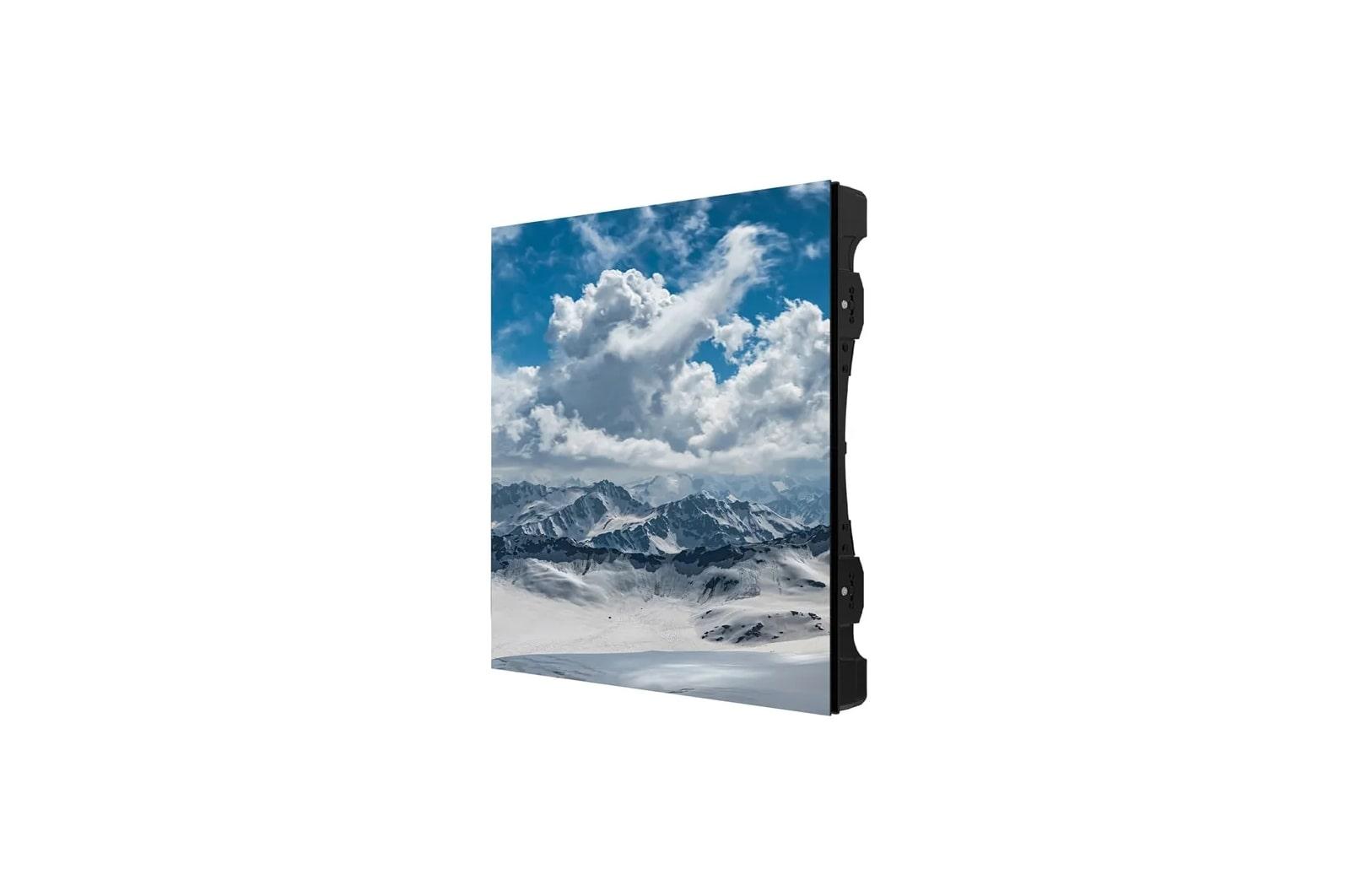

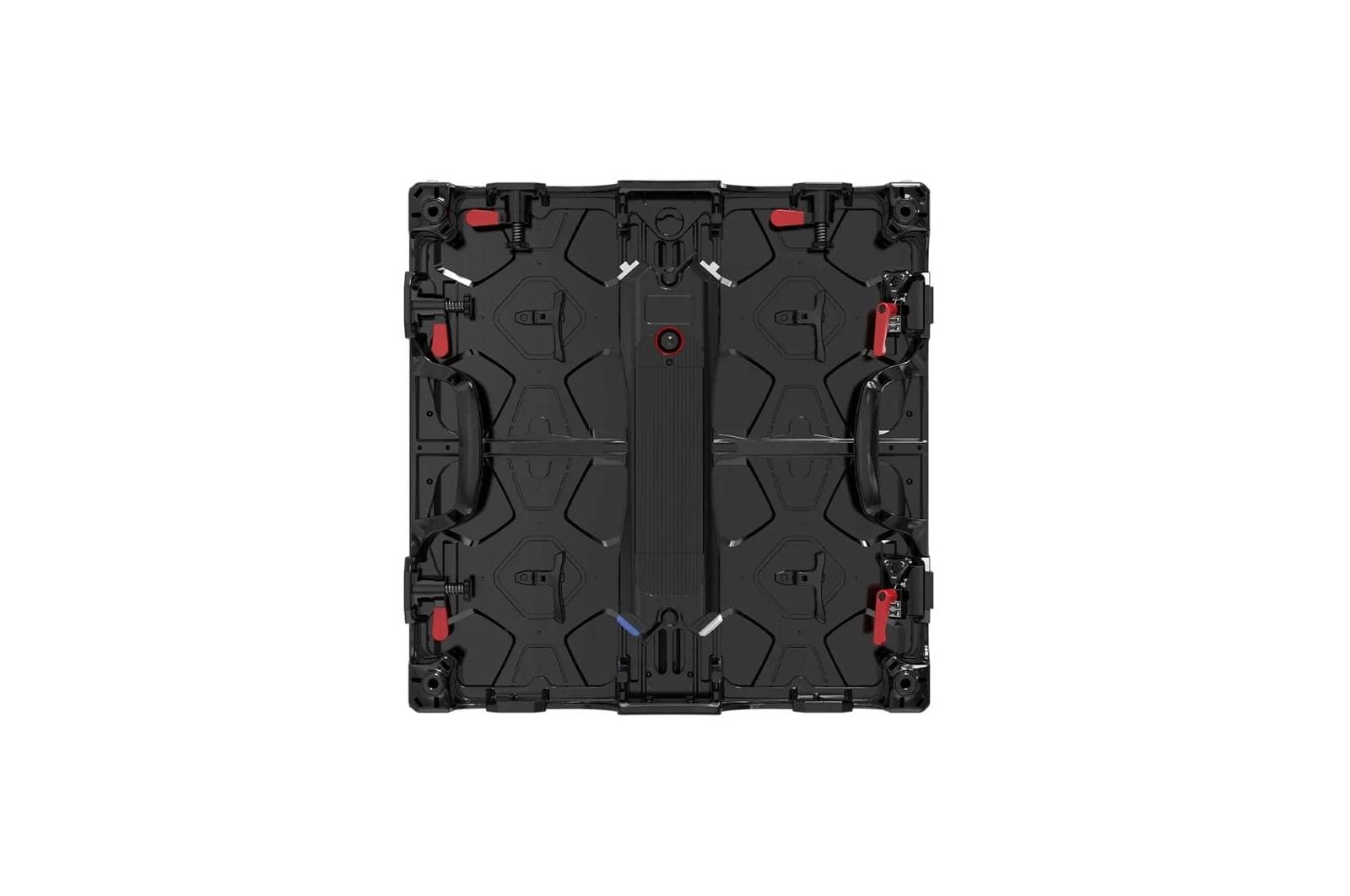

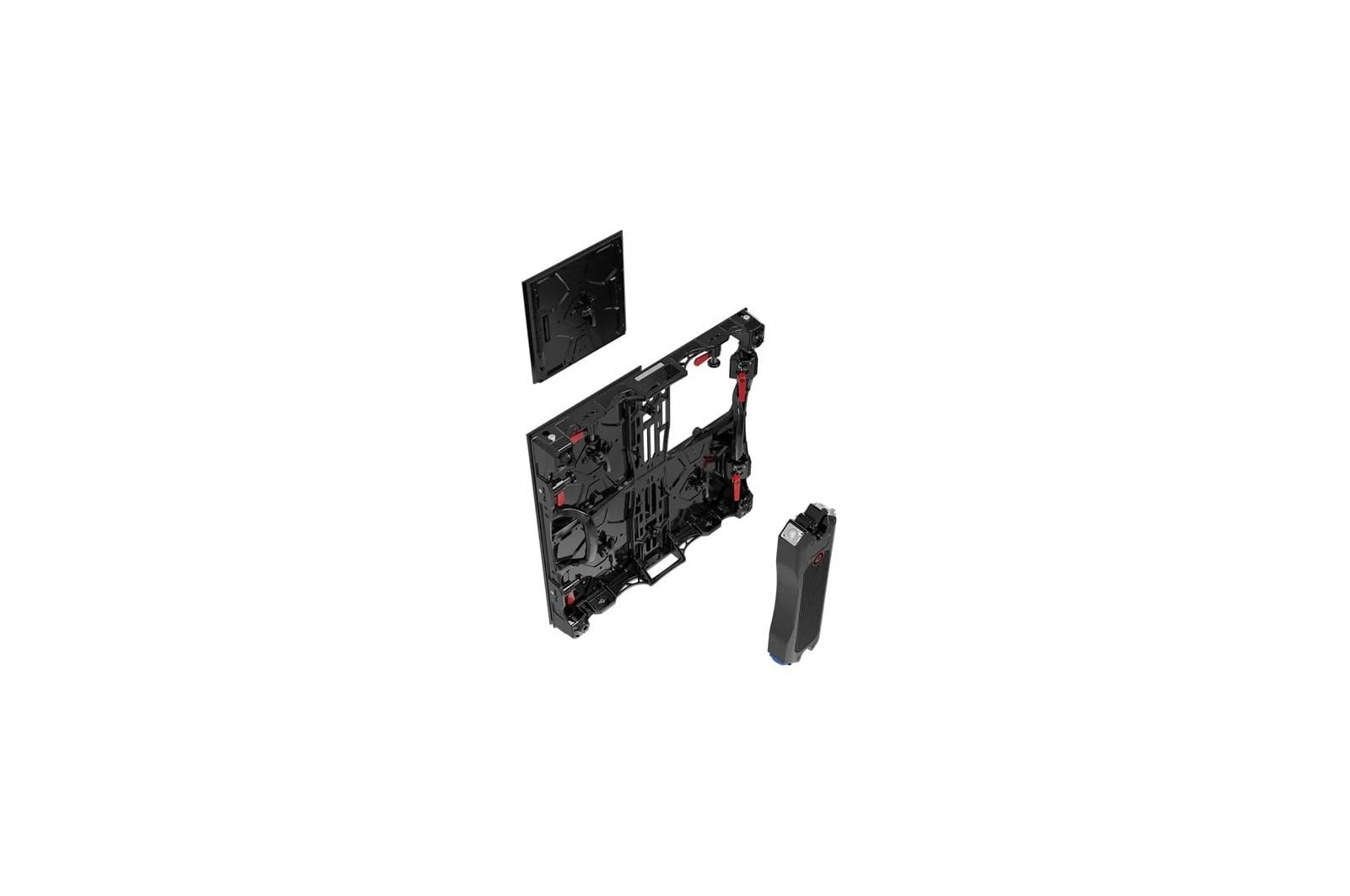

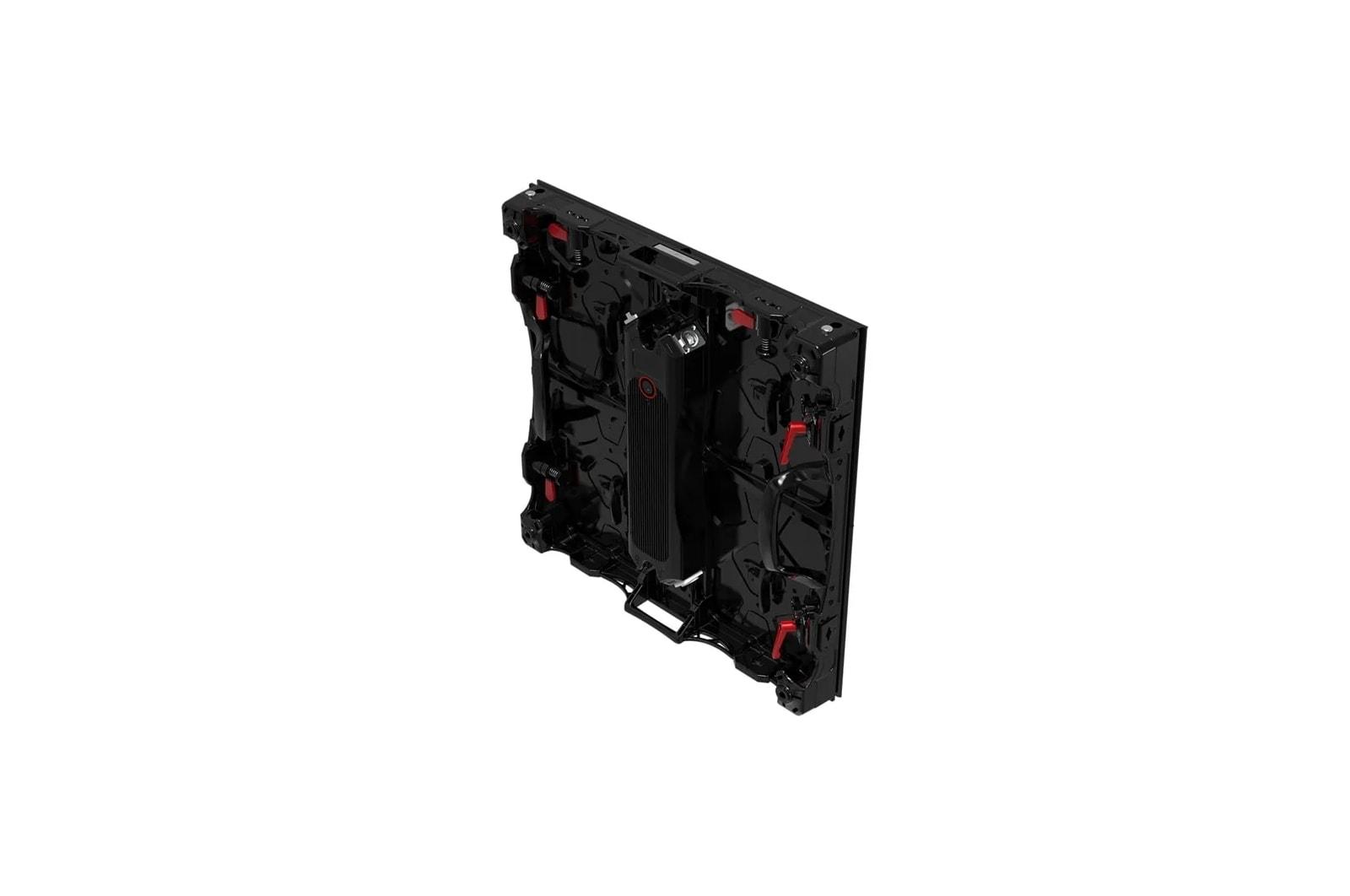

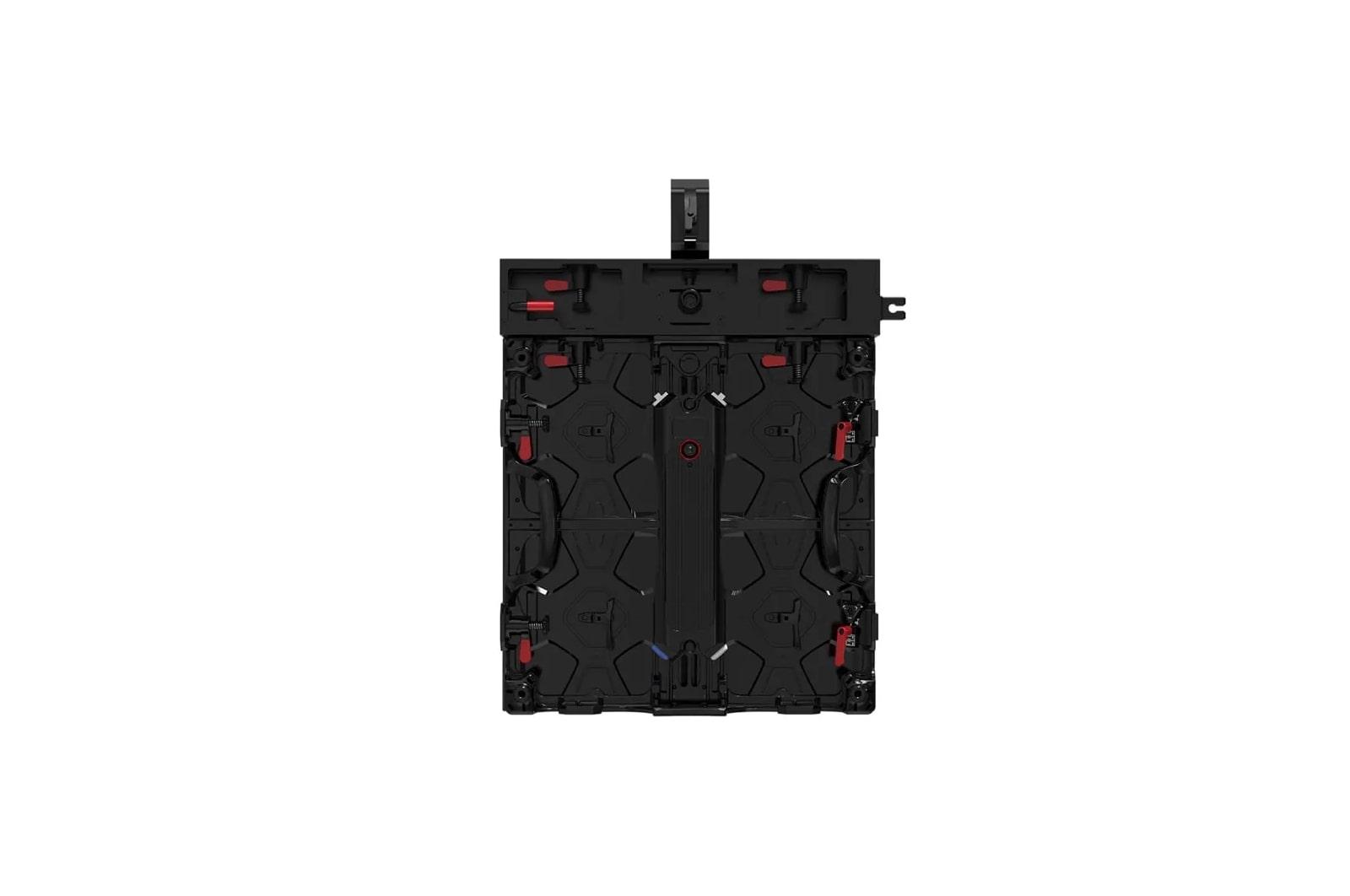

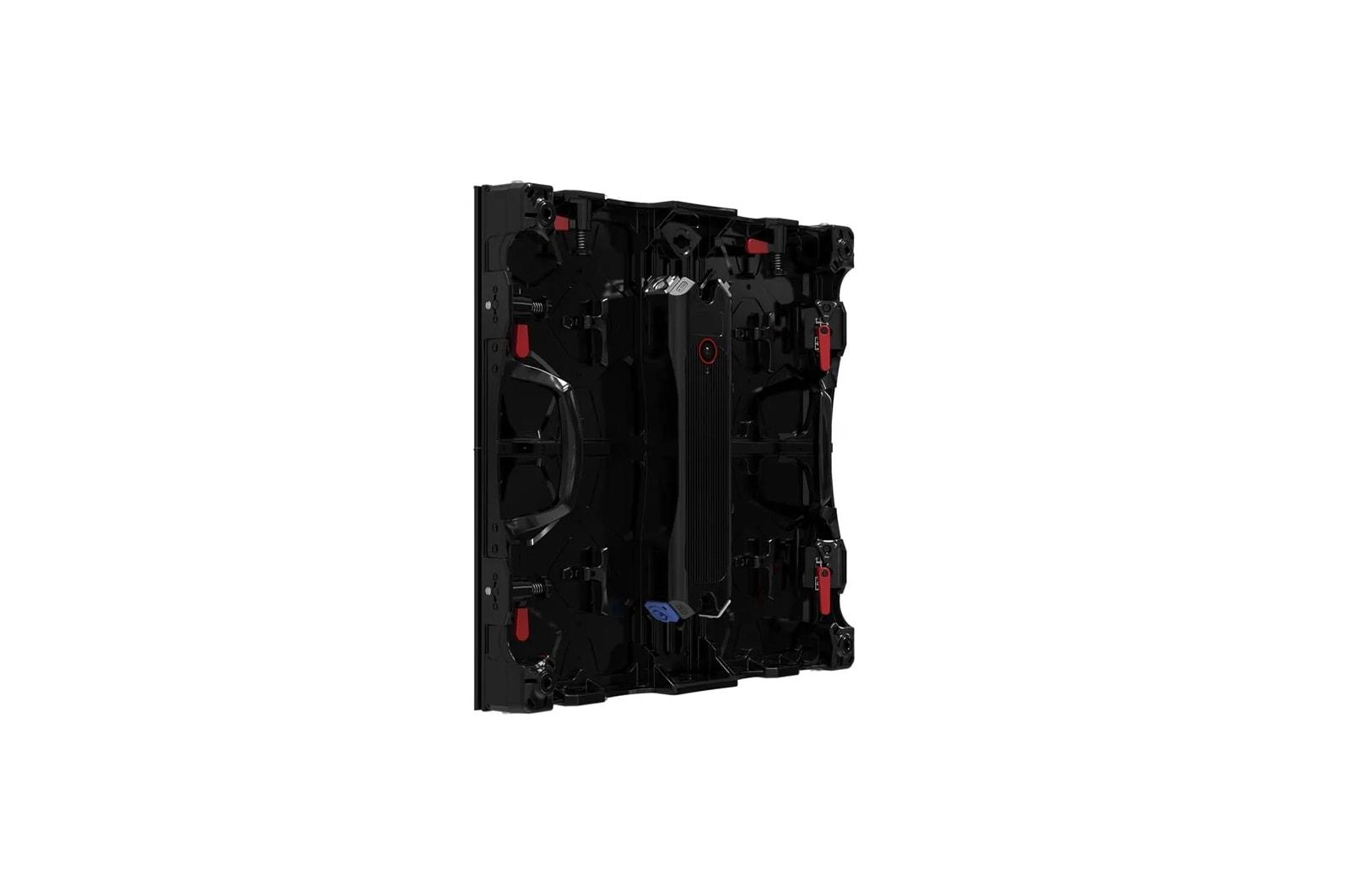

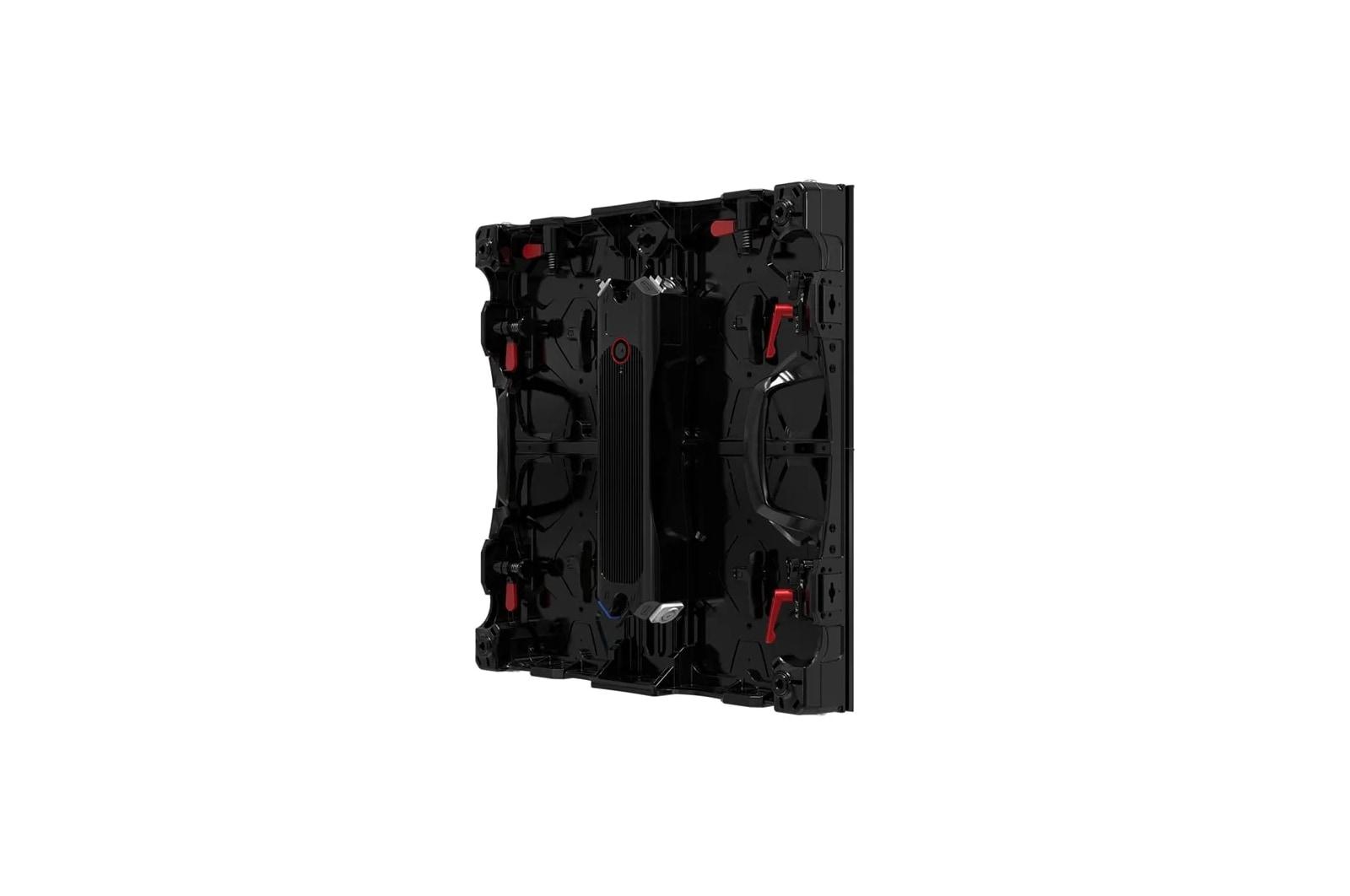

Lg LBCJ026 LBCJ Wall Direct View LED for Virtual Production
Lg LBCJ026 LBCJ Wall Direct View LED for Virtual Production
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Brompton LED Processor & Data Distributiont
- Front or Rear Serviceabilityt
- 1,500 nit Brightnesst
- Easy Installation and Maintenancet

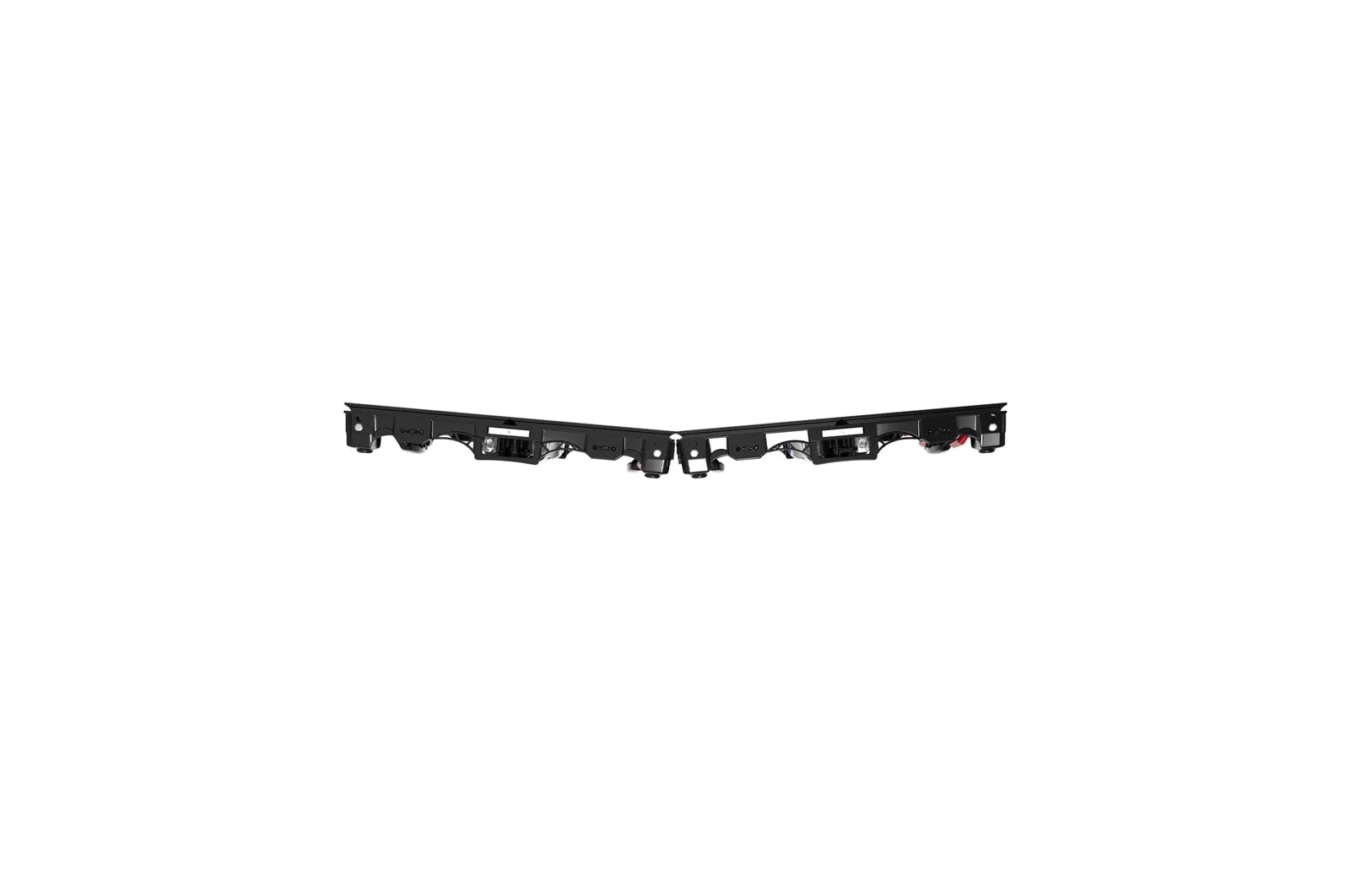

- Curve Effect Availablet

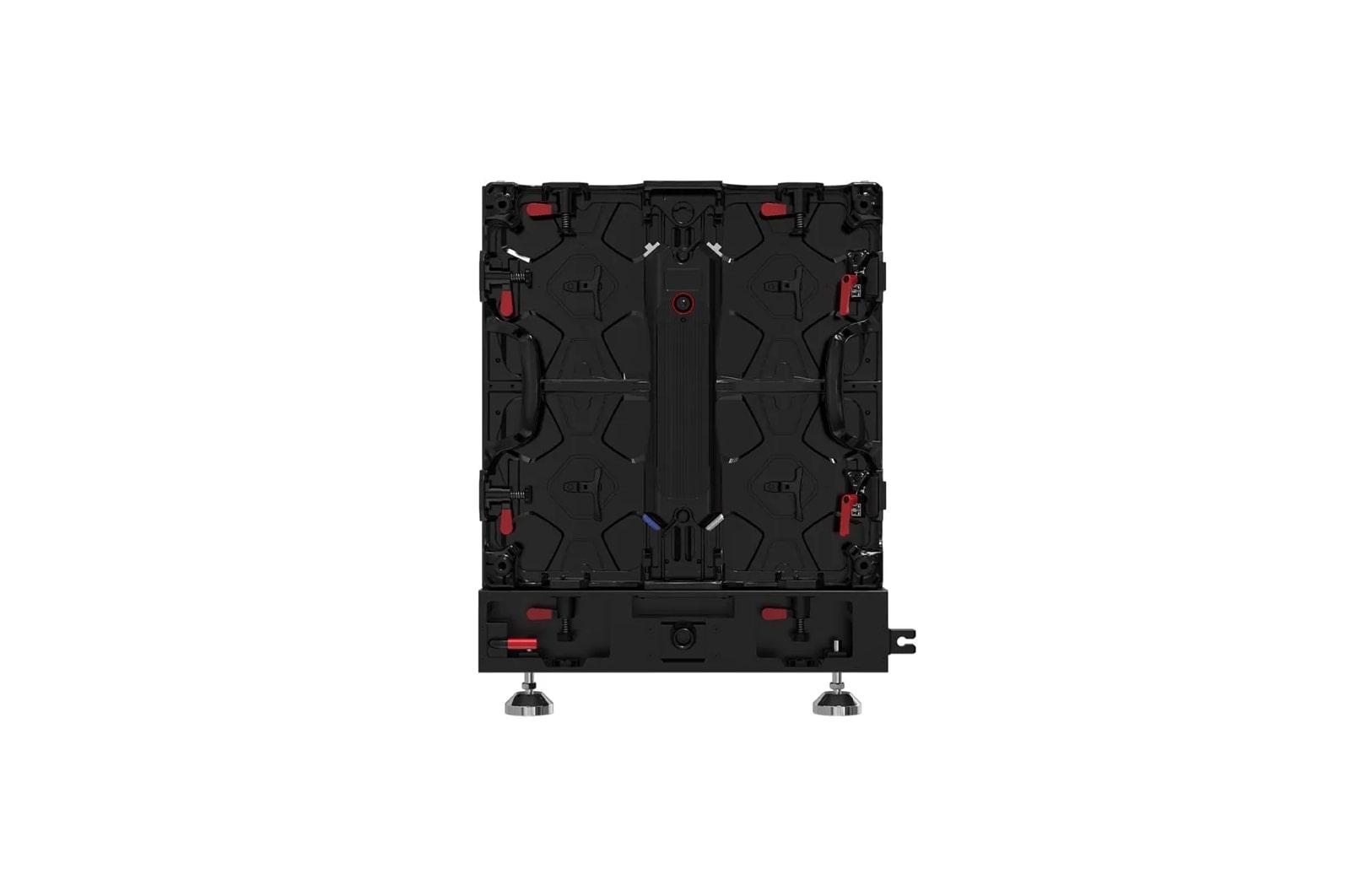

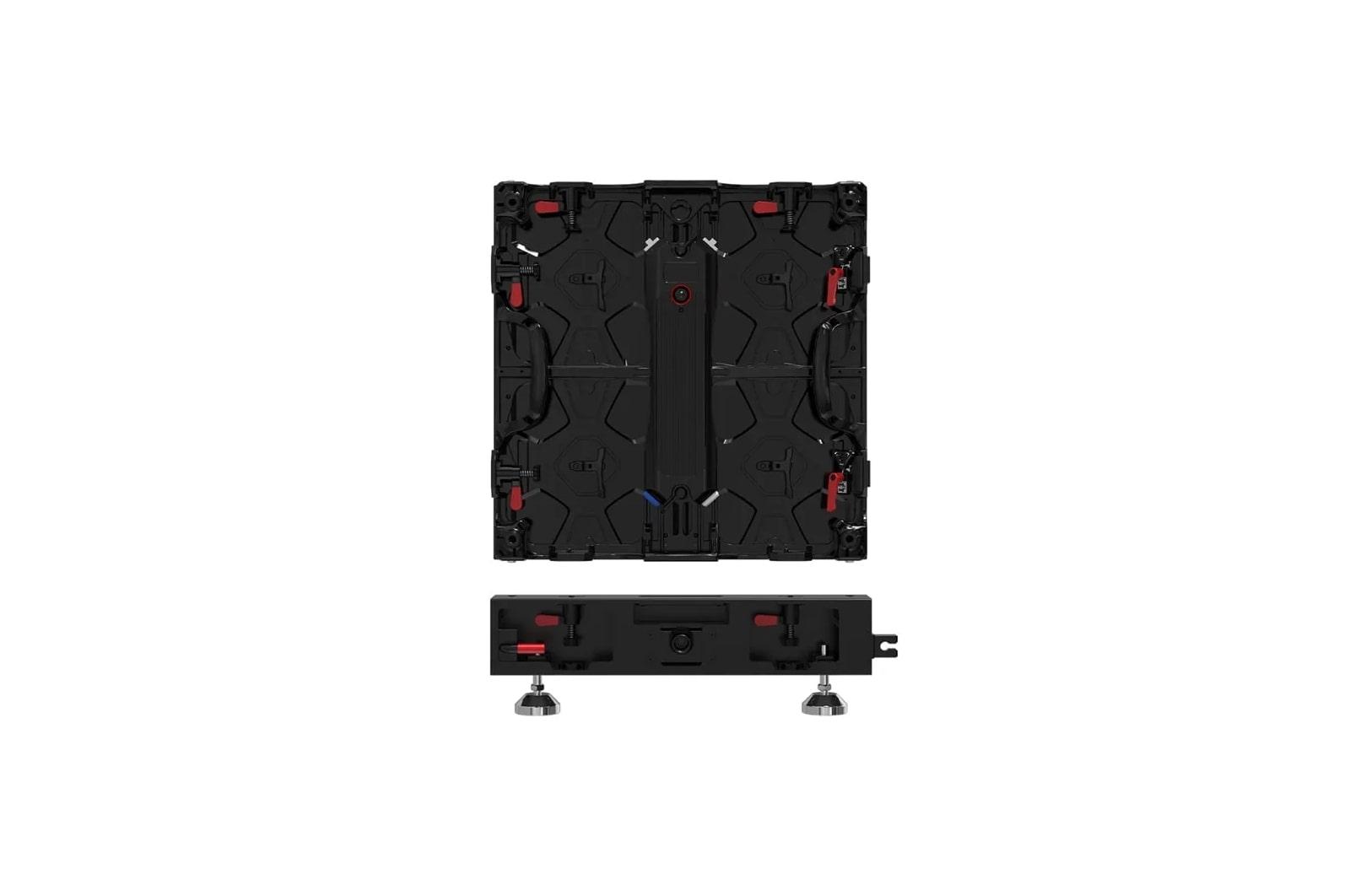

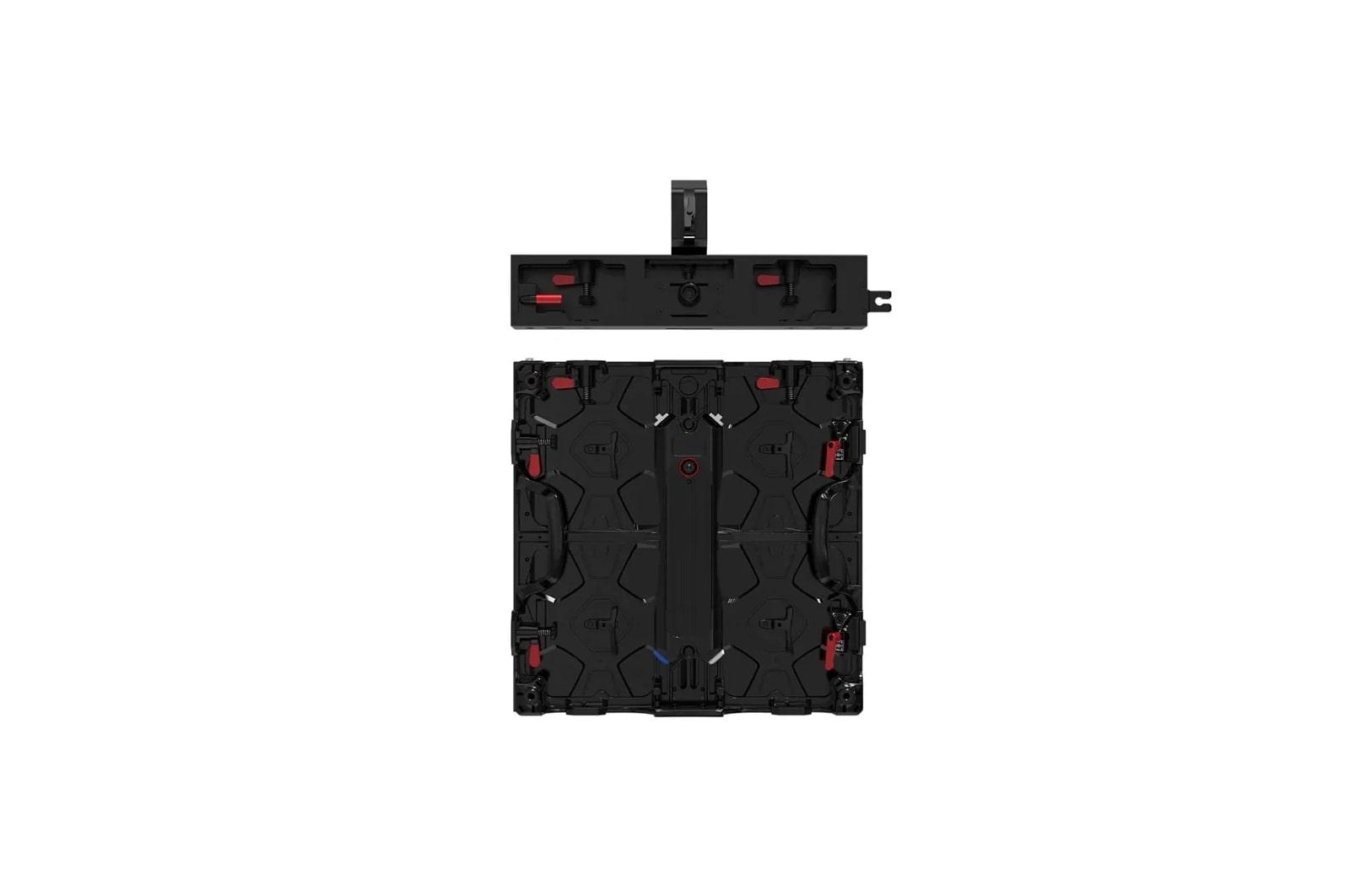

- Stacking & Hanging System Availablet
LBCJ Wall Direct View LED for Virtual Production
| PHYSICAL PARAMETERS | |
| Pixel Configuration | 3 in 1 |
| Pixel Pitch (mm) | 2.60 |
| Module Resolution (W x H) | 96 x 96 |
| Module Dimensions (W x H, mm) | 250 x 250 |
| Weight per Module (kg) | 0.59 |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 192 x 192 |
| Cabinet Dimensions (W x H x D, mm) | 500 x 500 x 75.5 |
| Cabinet Surface Area (m ) | 0.250 |
| Weight per Cabinet (kg/Cabinet) | 5.9 |
| Weight per Square Meter (kg/m ) | 24.0 |
| Physical Pixel Density (pixels/m ) | 147,456 |
| Flatness of Cabinet (mm) | 0.15 |
| Cabinet Material | Die Casting Magnesium Alloy |
| Service Access | Front or Rear (select one only) |
| OPTICAL SPECIFICATIONS | |
| Max. Brightness (After Calibration, nit) | 1,500 |
| Color Temperature (K) | 2,000-11,000 |
| Visual Viewing Angle (H x V) | 160 x 160 |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx,Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth (bit) | 16 (PQ, HLG) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption (W/Cabinet, Max.) | 180 |
| Power Consumption (W/Cabinet, Avg.) | 60 |
| Power Consumption (W/m , Max.) | 720 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 614 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 205 |
| Heat Dissipation (BTU/h/m , Max.) | 2,457 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 7,680 |
| OPERATION SPECIFICATIONS | |
| LED Lifetime (Half brightness) | 100,000 |
| Operating Temperature (°C) | -10 to +45 |
| Operating Humidity | 0-80% RH |
| IP Rating Front / Rear | IP30 / IP30 |
| CERTIFICATION | |
| Certification | CE / FCC / ETL |
| ENVIRONMENT | |
| Environment | RoHS, REACH |
| CONTROLLER | |
| Controller | Brompton SX40 |
| 90 DEGREE CORNER CUT | |
| 90 Degree corner cut | No |
