LG LBCK039
Authorized Reseller
Lg LBCK039 LBCK Ceiling Direct View LED for Virtual Productiont
Lg LBCK039 LBCK Ceiling Direct View LED for Virtual Productiont
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Brompton LED Processor & Data Distributiont

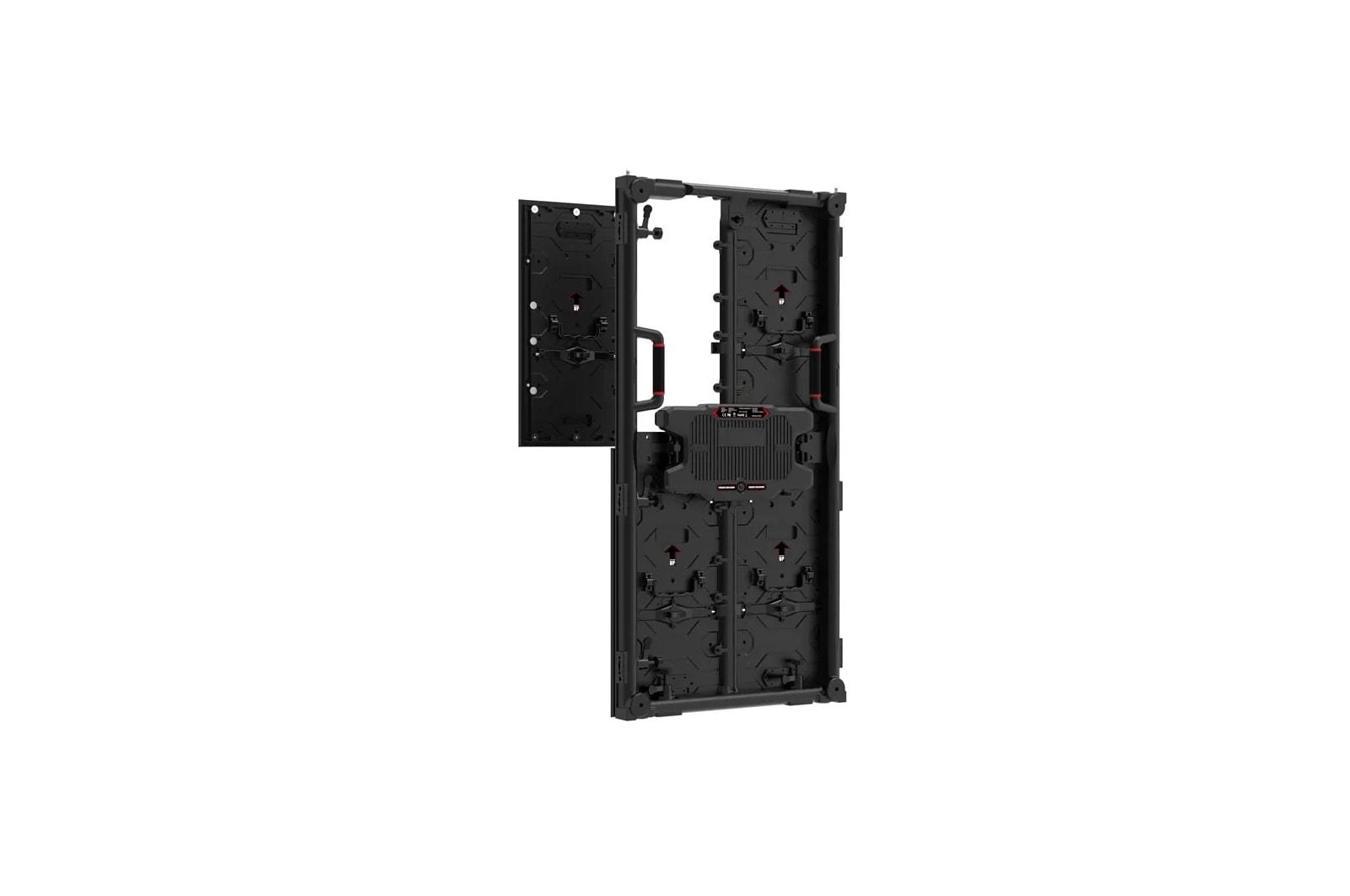

- Front or Rear Serviceabilityt
- 5,000 nit Brightnesst
- Easy Installation and Maintenancet
LBCK Ceiling Direct View LED for Virtual Productiont
| Physical Parameters | |
| Pixel Pitch | 3.91 mm |
| Module Resolution (W x H) | 64 x 128 |
| Module Dimensions (W x H) | 9.84 x 19.68 in / 250 x 500 mm |
| Weight per Module | 3.08 lbs / 1.40 kg |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 128 x 256 |
| Cabinet Dimensions (W x H x D) | 19.68 x 39.37 x 2.60 in / 500 x 1,000 x 66.05 mm |
| Cabinet Surface Area | 0.500 m |
| Weight per Cabinet | 12.5 kg |
| Weight per Unit Area | 24.9 kg/m |
| Physical Pixel Density | 65,536 pixels/m |
| Flatness of Cabinet | 0.3 mm |
| Cabinet Material | Die-Cast Magnesium |
| Service Access | Front or Rear (select one only) |
| 90 Degree Corner Cut | No |
| Controller | Brompton SX40 |
| Electrical | |
| Power Supply | 100-240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Avg.) | 100 W |
| Power Consumption per Cabinet (Max.) | 600 W |
| Heat Dissipation per Cabinet (Avg.) | 341 BTU/h |
| Power Consumption per Unit Area (Max.) | 1,024 W |
| Heat Dissipation per Cabinet (Max.) | 1,024 BTU/h |
| Heat Dissipation per Unit Area (Max.) | 2,047 BTU/h |
| Optical | |
| Color Temperature | 2,000-11,000K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 6,000:1 |
| Processing Depth | 14 bit (PQ, HLG) |
| Visual Viewing Angle (H x V) | 160° x 155° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| RoHS (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| CE (Regulatory) | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 99% RH |
| Operating Temperature | -22° F to 45° F / -30° C to 45° C |
