LG LCCM019
Authorized Reseller
Lg LCCM019 1.90 mm LCCM Series Flexible Direct View LEDt
Lg LCCM019 1.90 mm LCCM Series Flexible Direct View LEDt
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 1.90 mm Pixel Pitch & 800 nits Brightnesst
- Supports True Concave and Convex Curvature from 611R

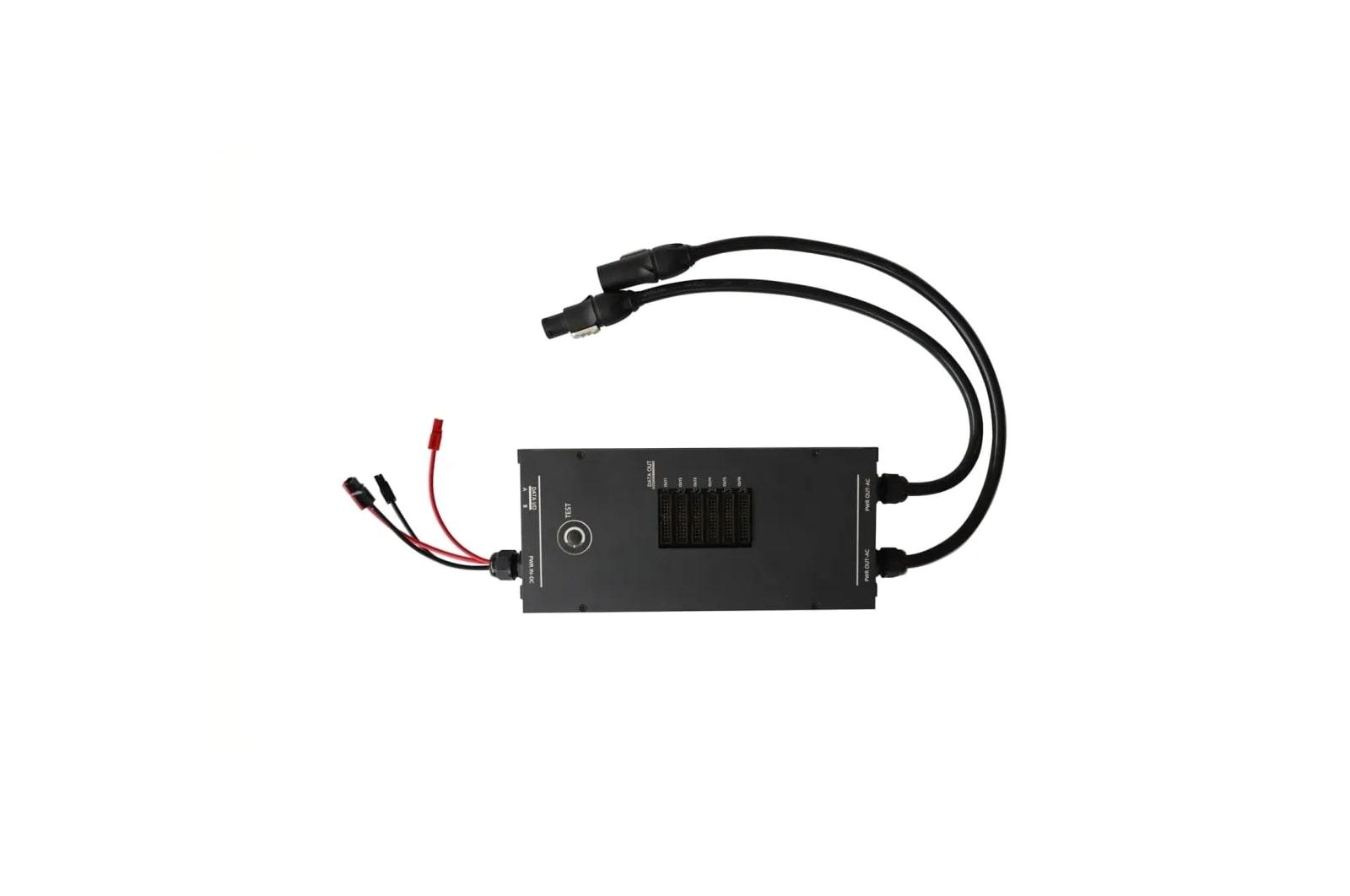

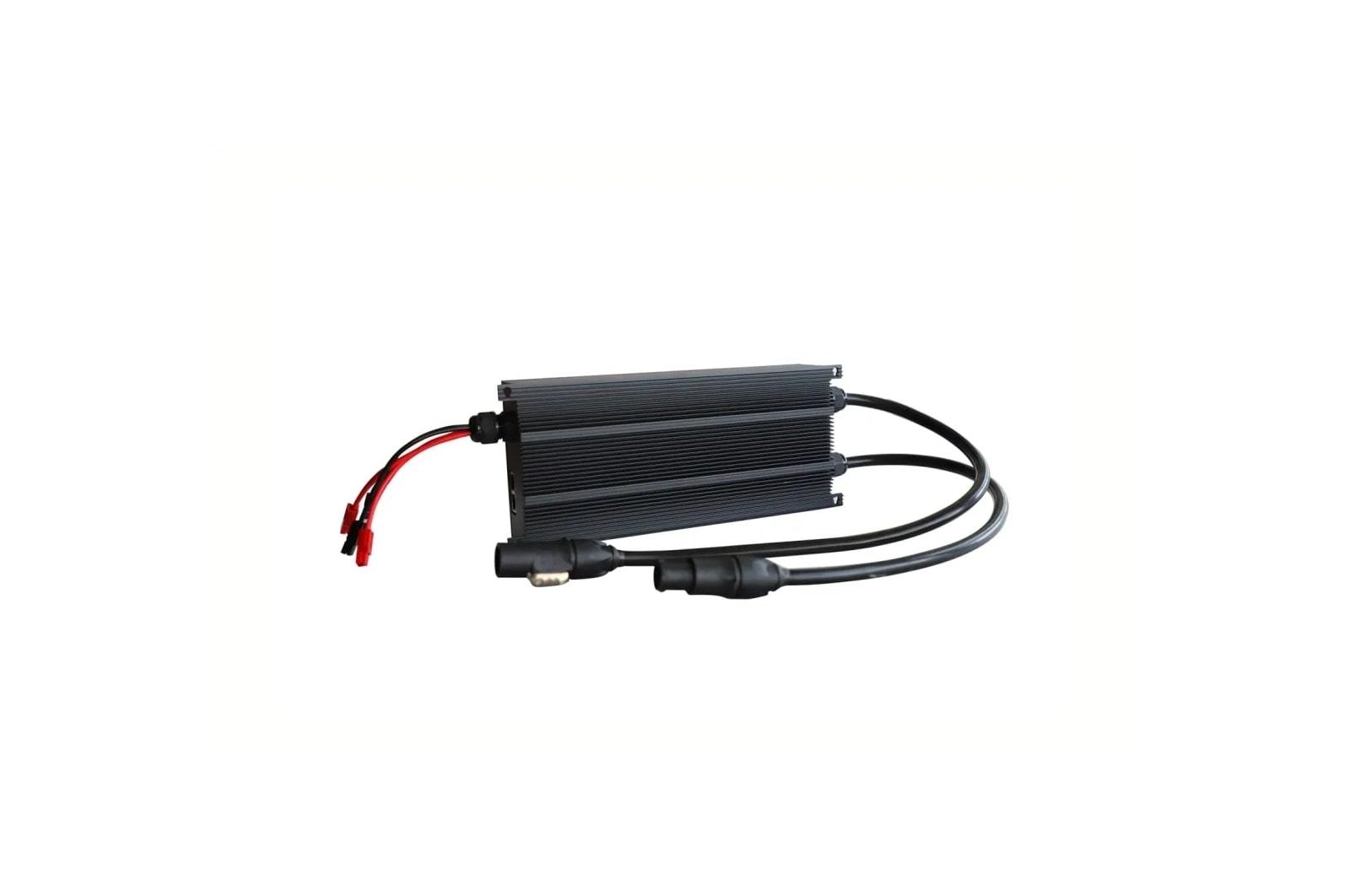

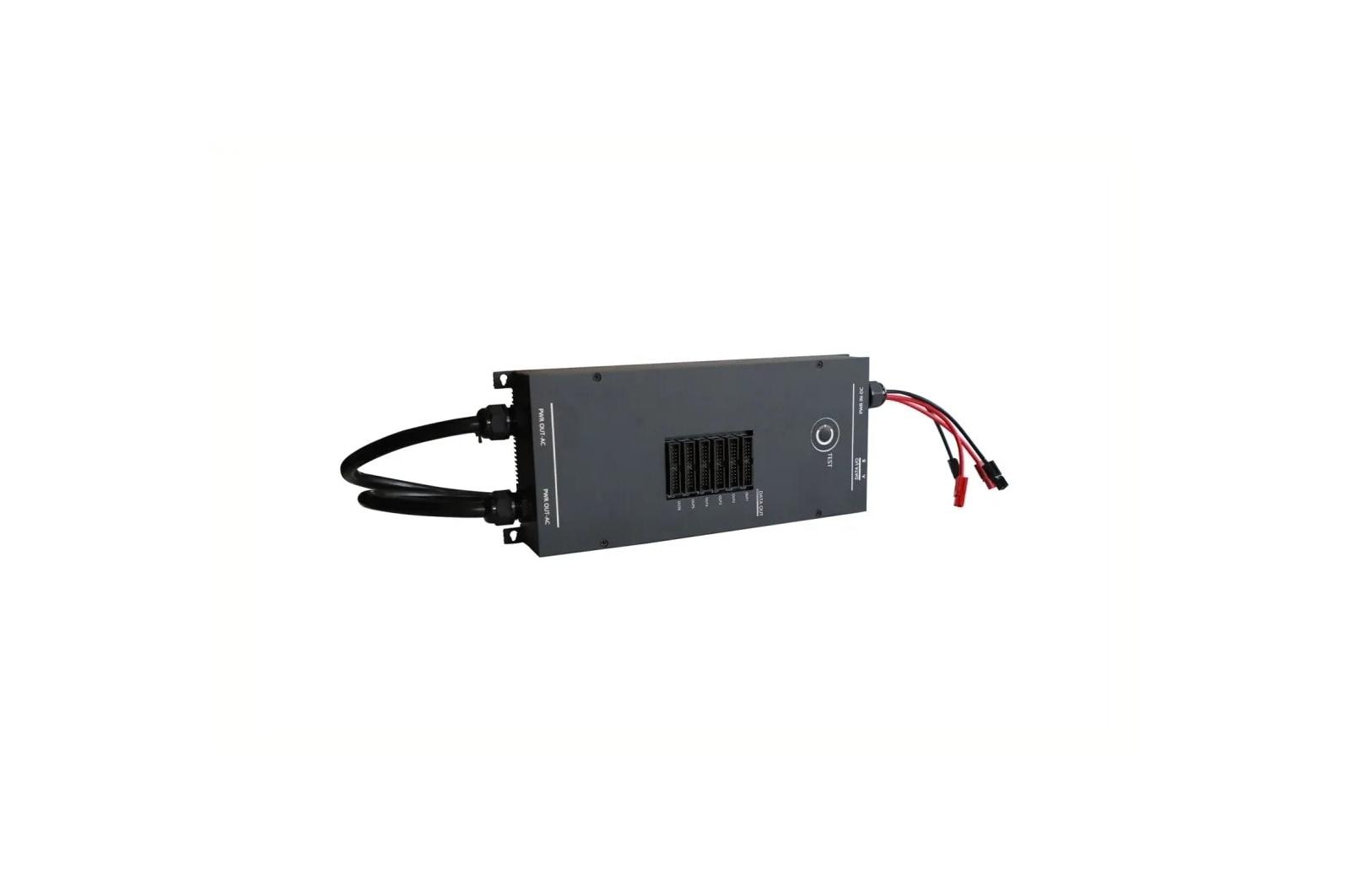

- Separate Power & Data Unitt
- Easy Installation & Maintenancet

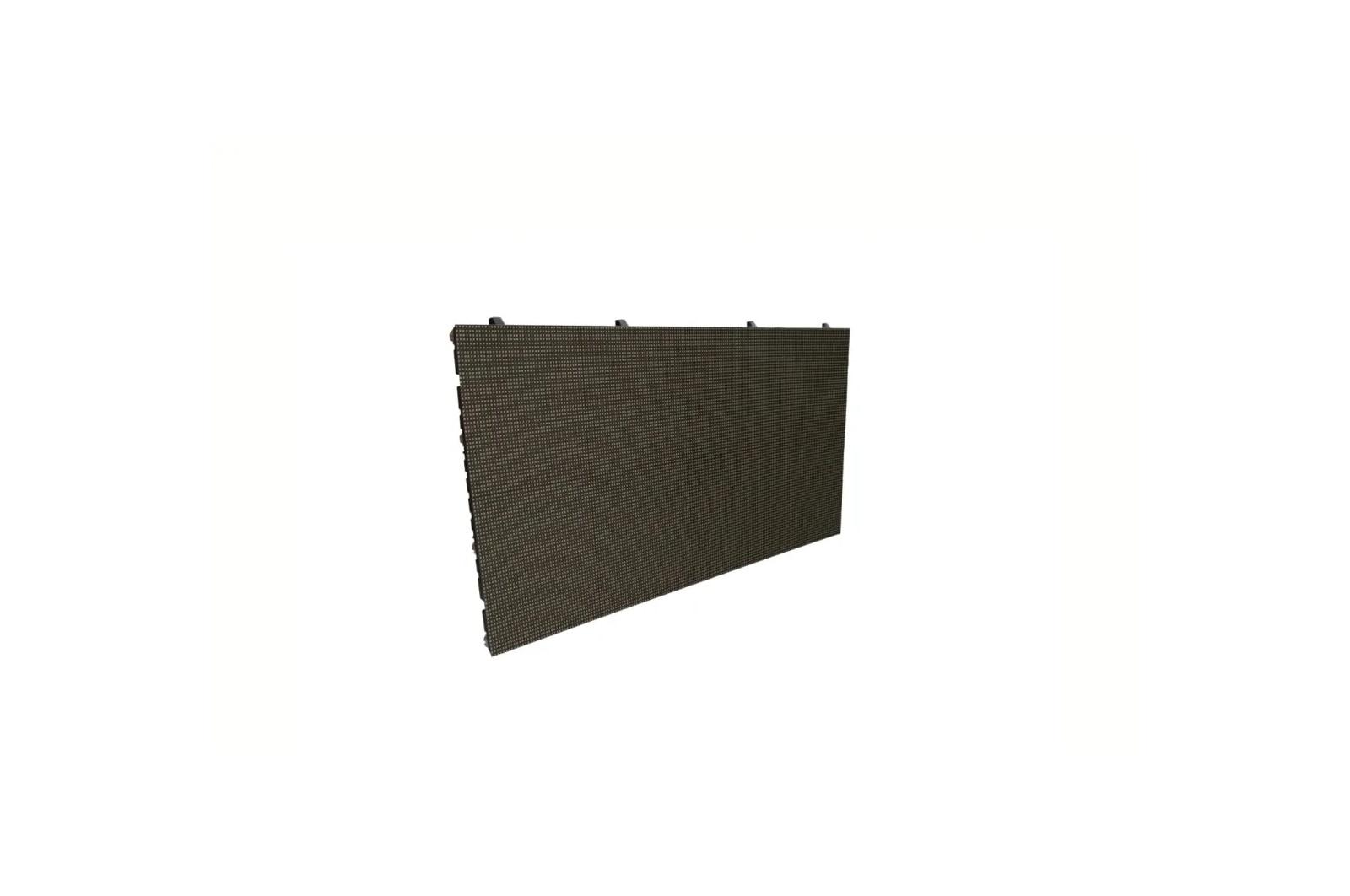

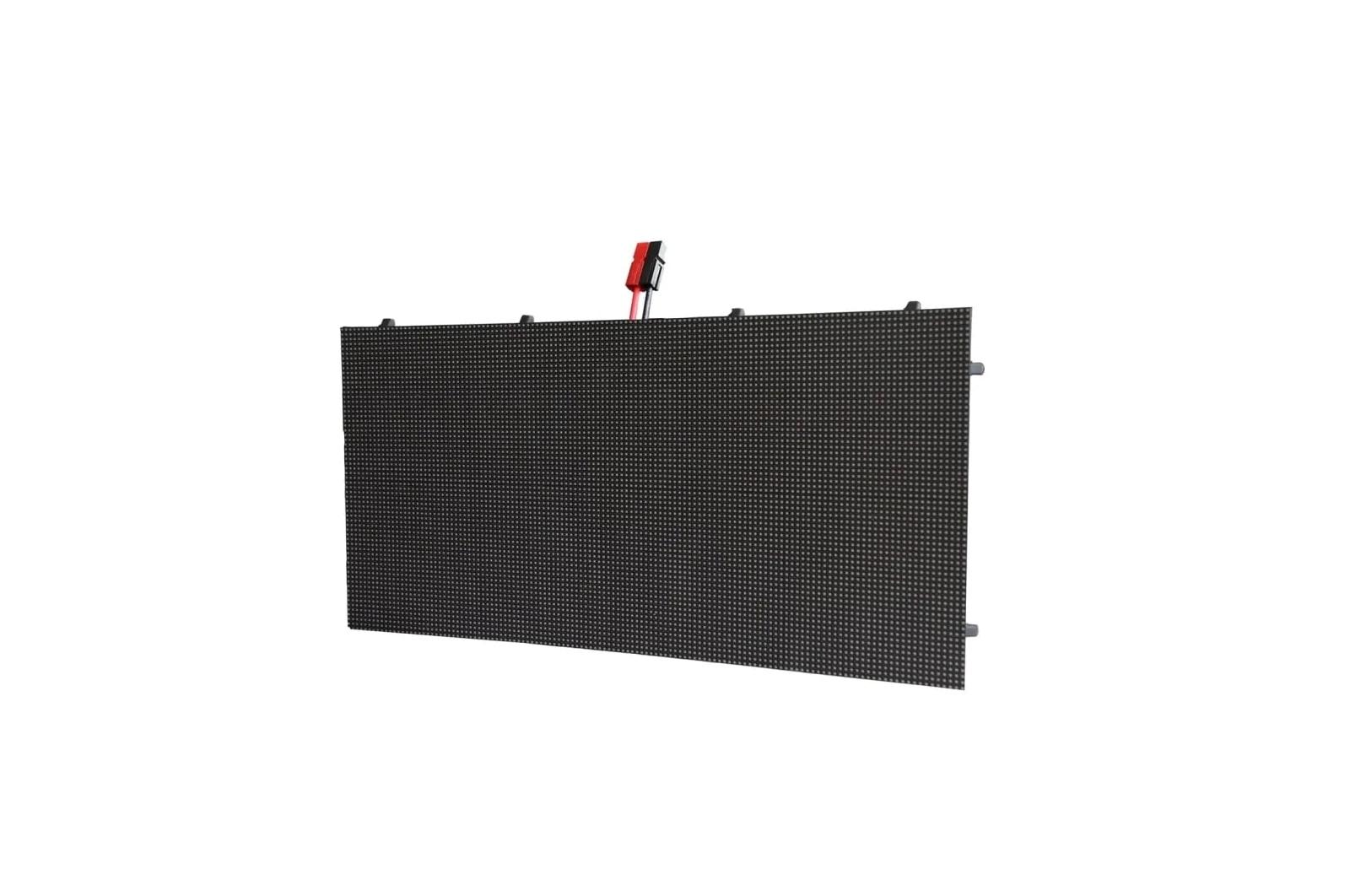

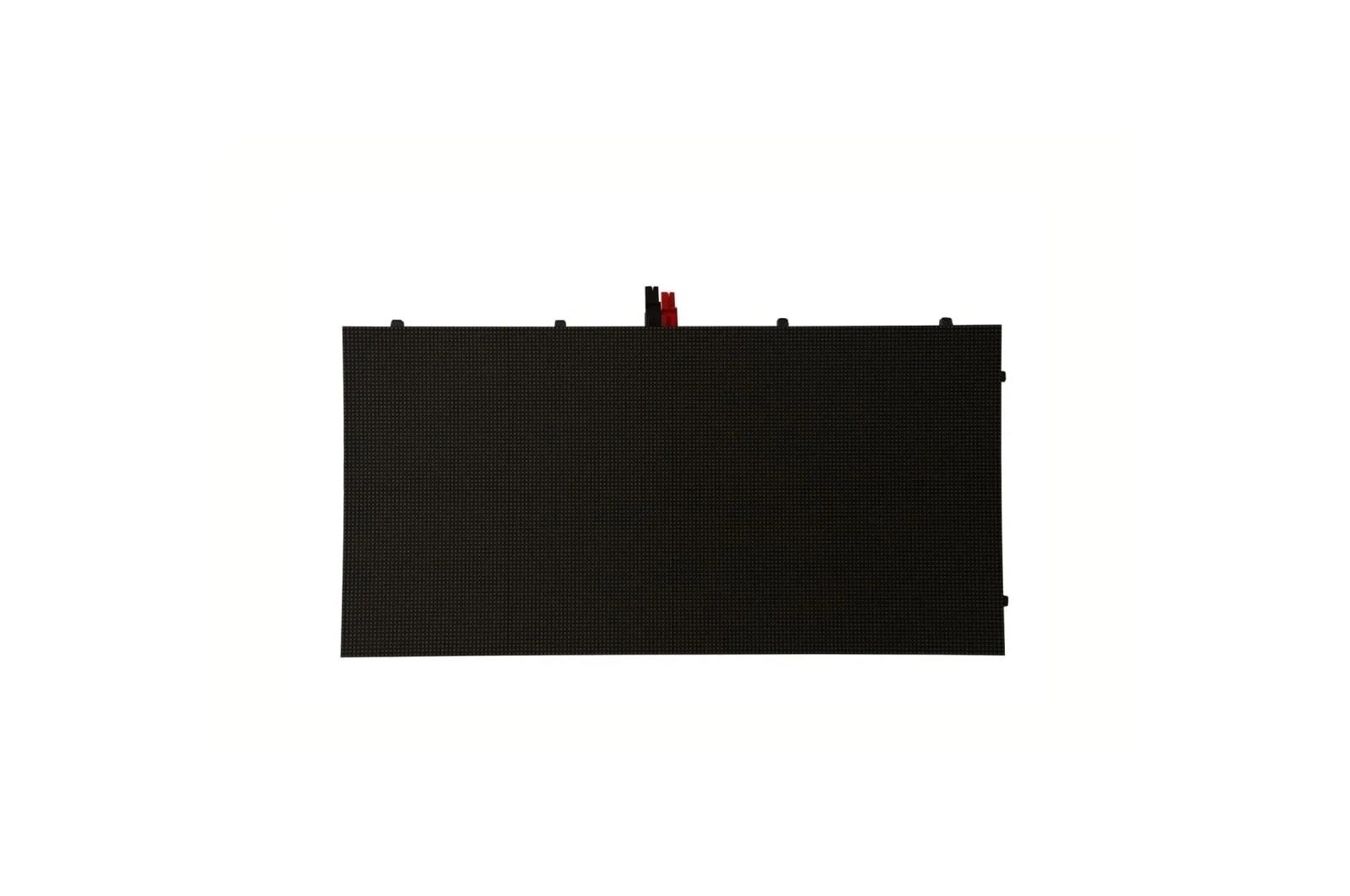

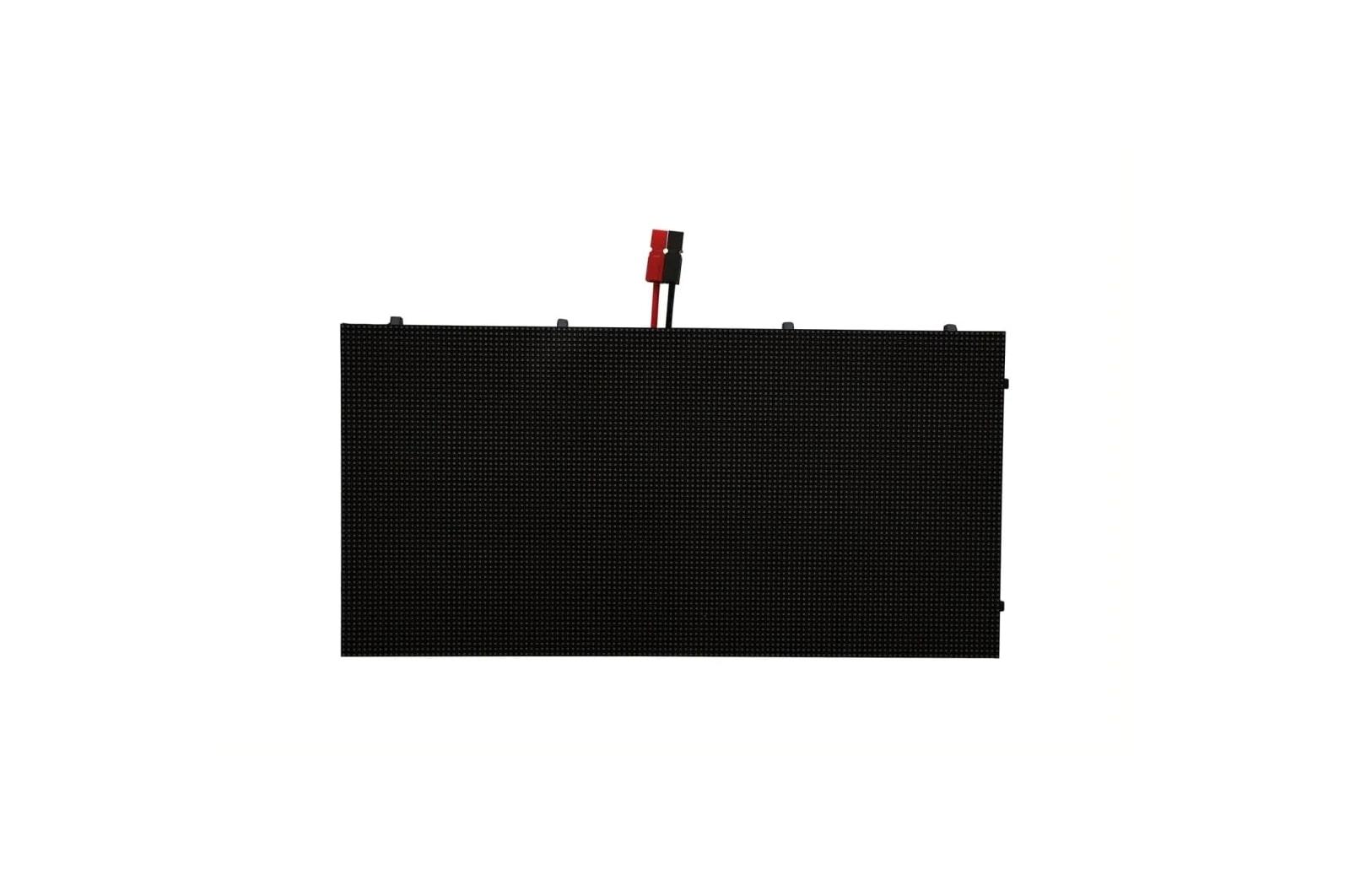

1.90 mm LCCM Series Flexible Direct View LEDt
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 1.9 mm |
| Module Resolution (W x H) | 168 x 84 |
| Module Dimensions (W x H) | 12.6 x 6.3 in / 320 x 160 mm |
| Weight per Module | 1.2 lbs / 0.55 kg |
| Total Modules (per cabinet) | 1 |
| No. of Modules per Cabinet (W x H) | 1 x 1 |
| Cabinet Resolution (W x H) | 168 x 84 |
| Cabinet Dimensions (W x H x D) | 12.6 x 6.3 x .35 in / 320 x 160 x 9 mm |
| Cabinet Surface Area | Not Available |
| Weight per Cabinet | Not Available |
| Weight per Unit Area | Not Available |
| Physical Pixel Density | 275,625 pixels/m |
| Flatness of Cabinet | Not Available |
| Service Access | Front |
| 90 Degree Corner Cut | No |
| Curveable | Yes |
| Minimum Radius | 611 mm |
| Controller | CVCA |
| min viewing distance (5-7 mm per foot) | 10-13 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 1,920 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Max.) | 36W |
| Heat Dissipation per Cabinet (Avg.) | 41 BTU/hr |
| Power Consumption per Unit Area (Max.) | 720 W/m |
| Heat Dissipation per Unit Area (Max.) | 2,457 BTU/hr/m |
| Power Consumption per Cabinet (Avg.) | 12W |
| Heat Dissipation per Cabinet (Max.) | 123 BTU/hr |
| Optical | |
| Max. Brightness (After Calibration) | Up to 800 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 14 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| KC | No |
| CB | No |
| REACH (Environmental) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| CCC | No |
| RoHS (Environmental) | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP30 |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| cTUVus | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP30 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 14° F to 114° F / -10° C to 45° C |
