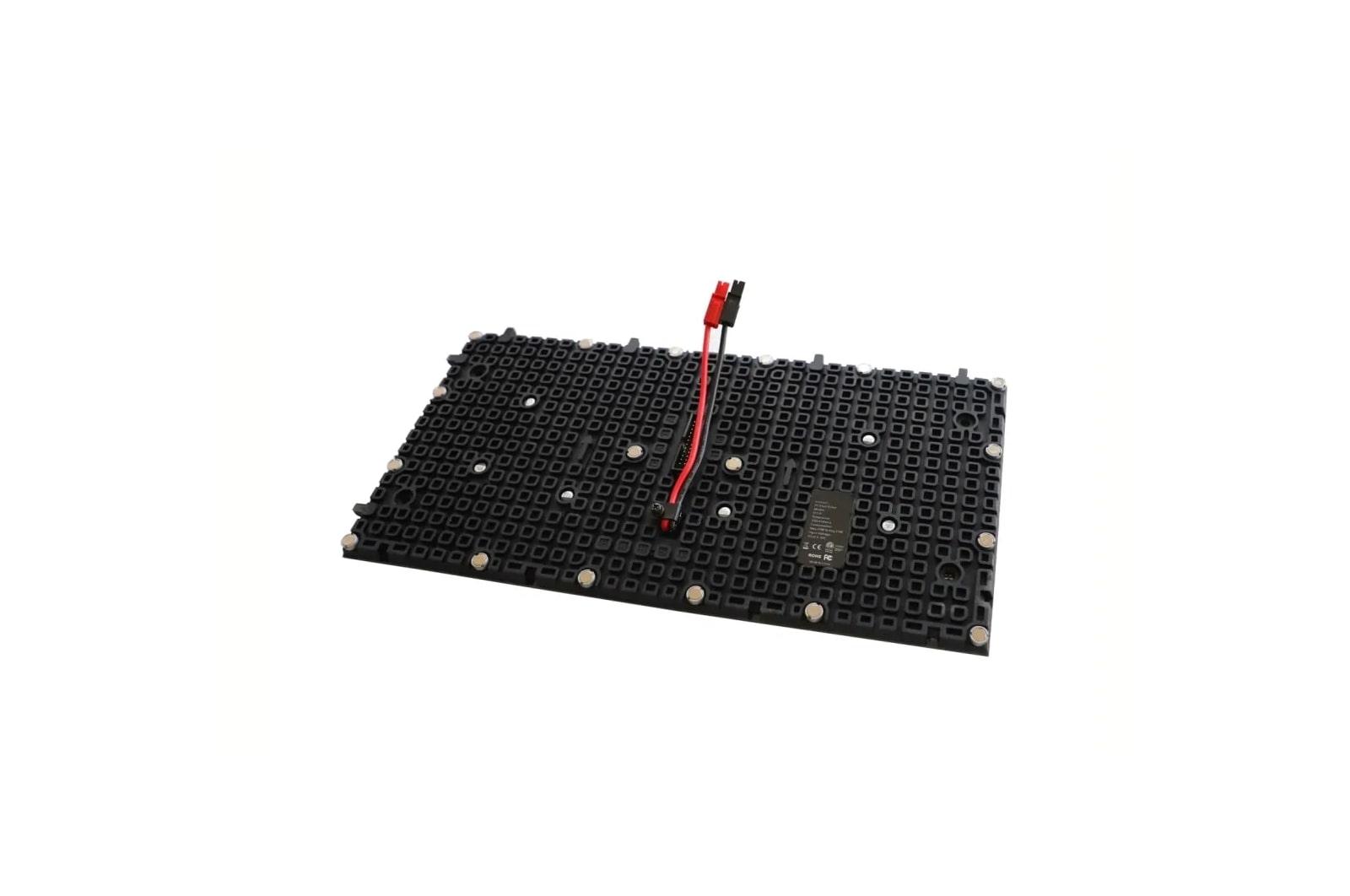

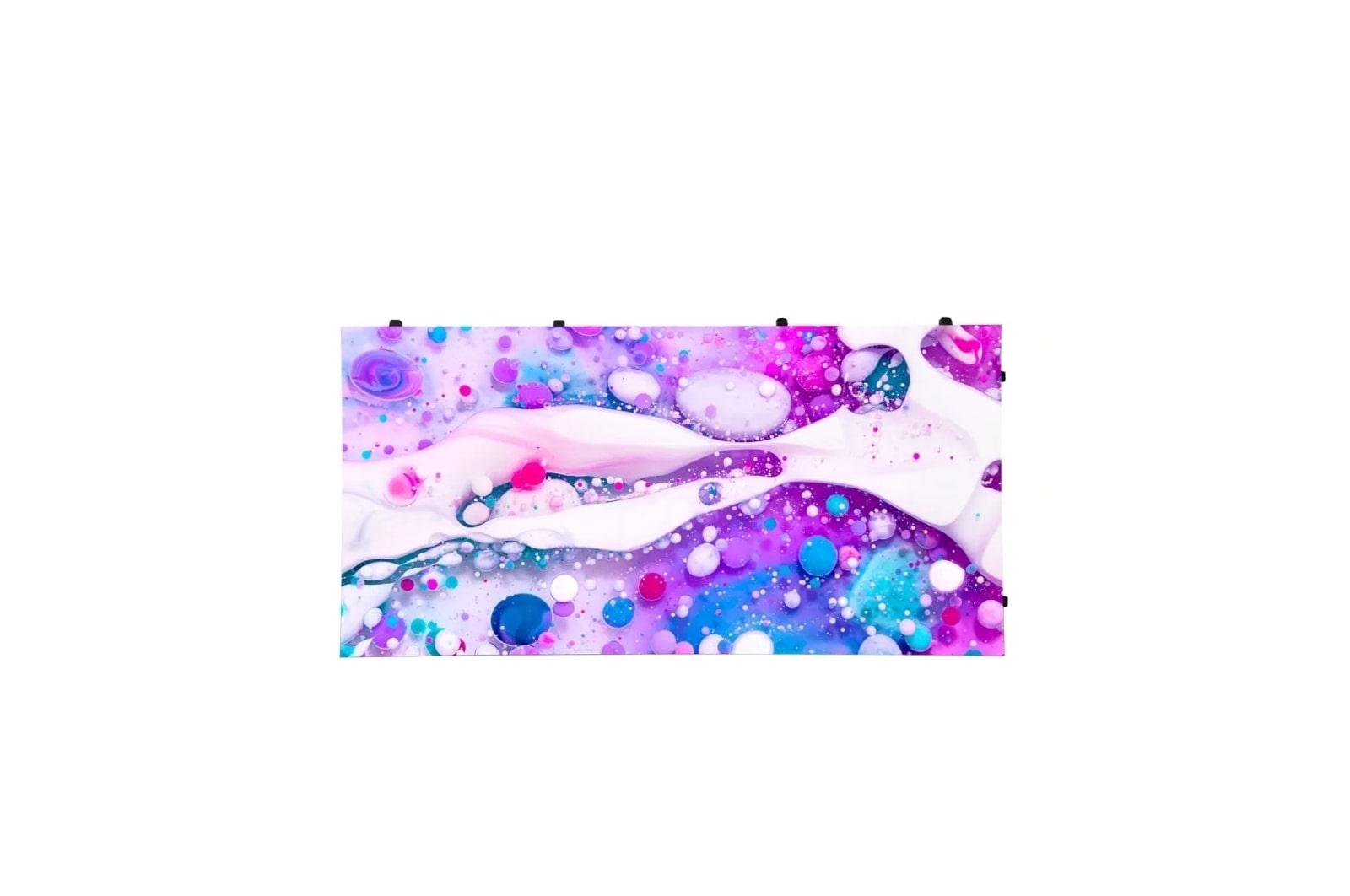

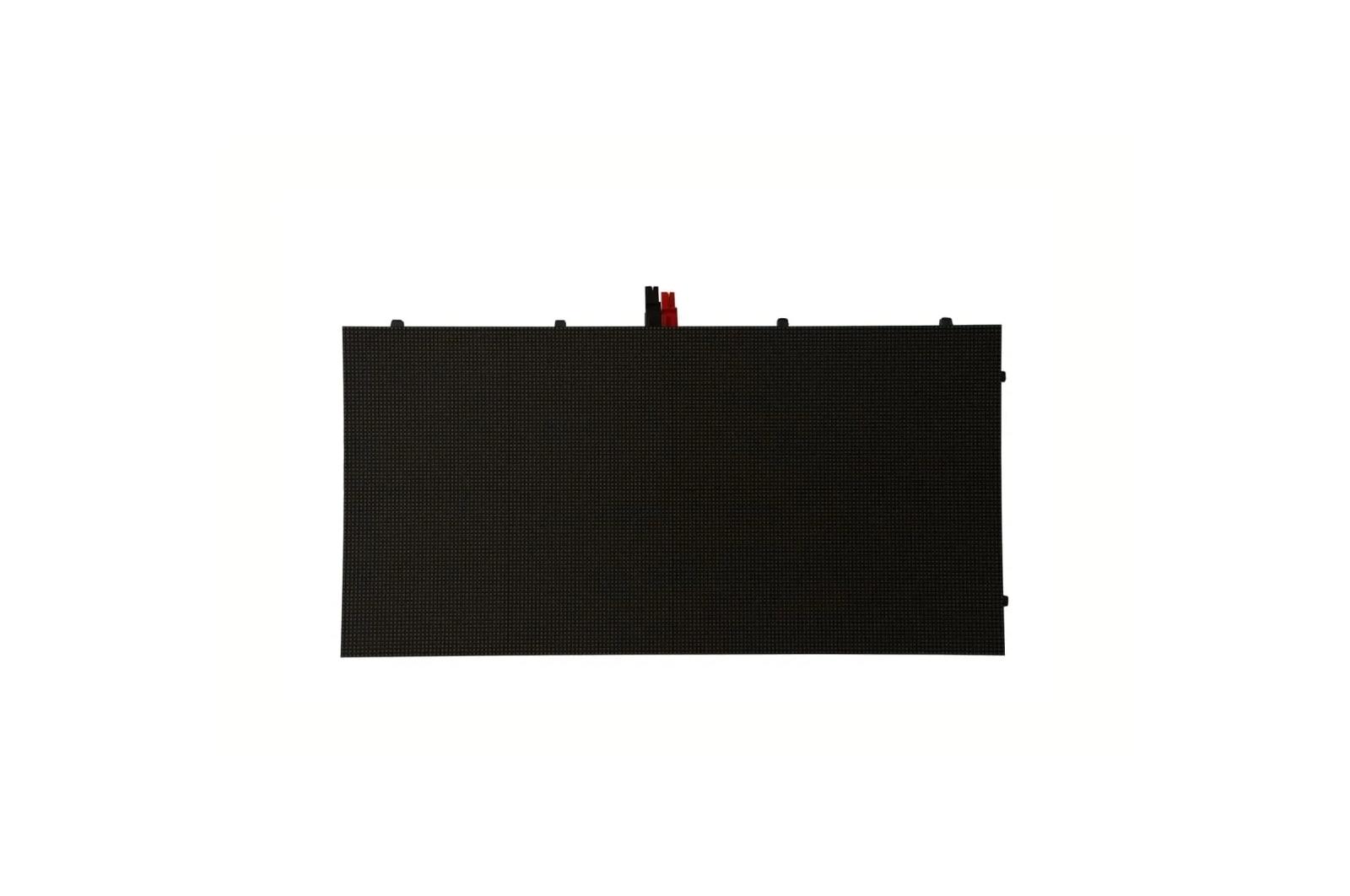

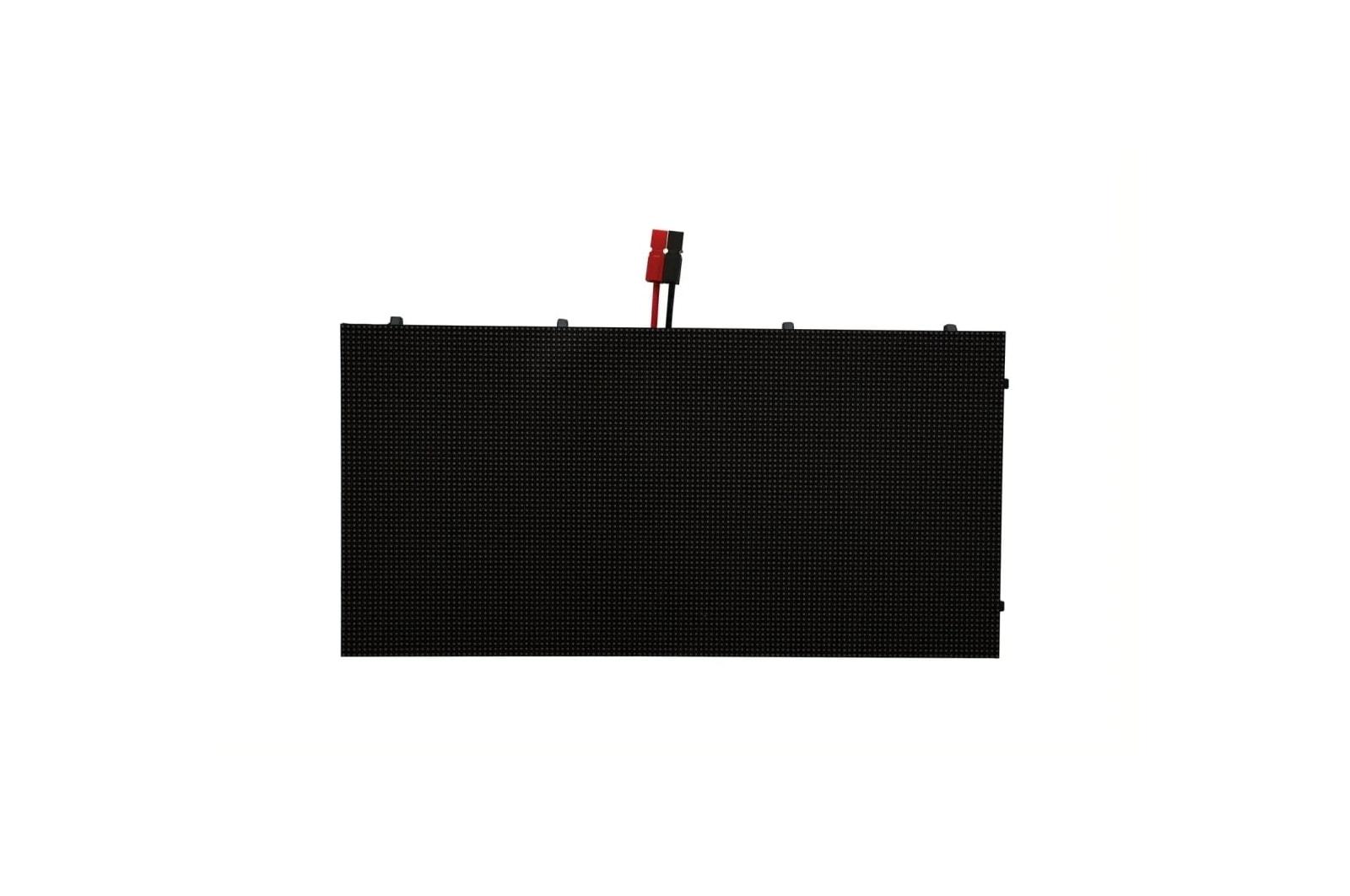

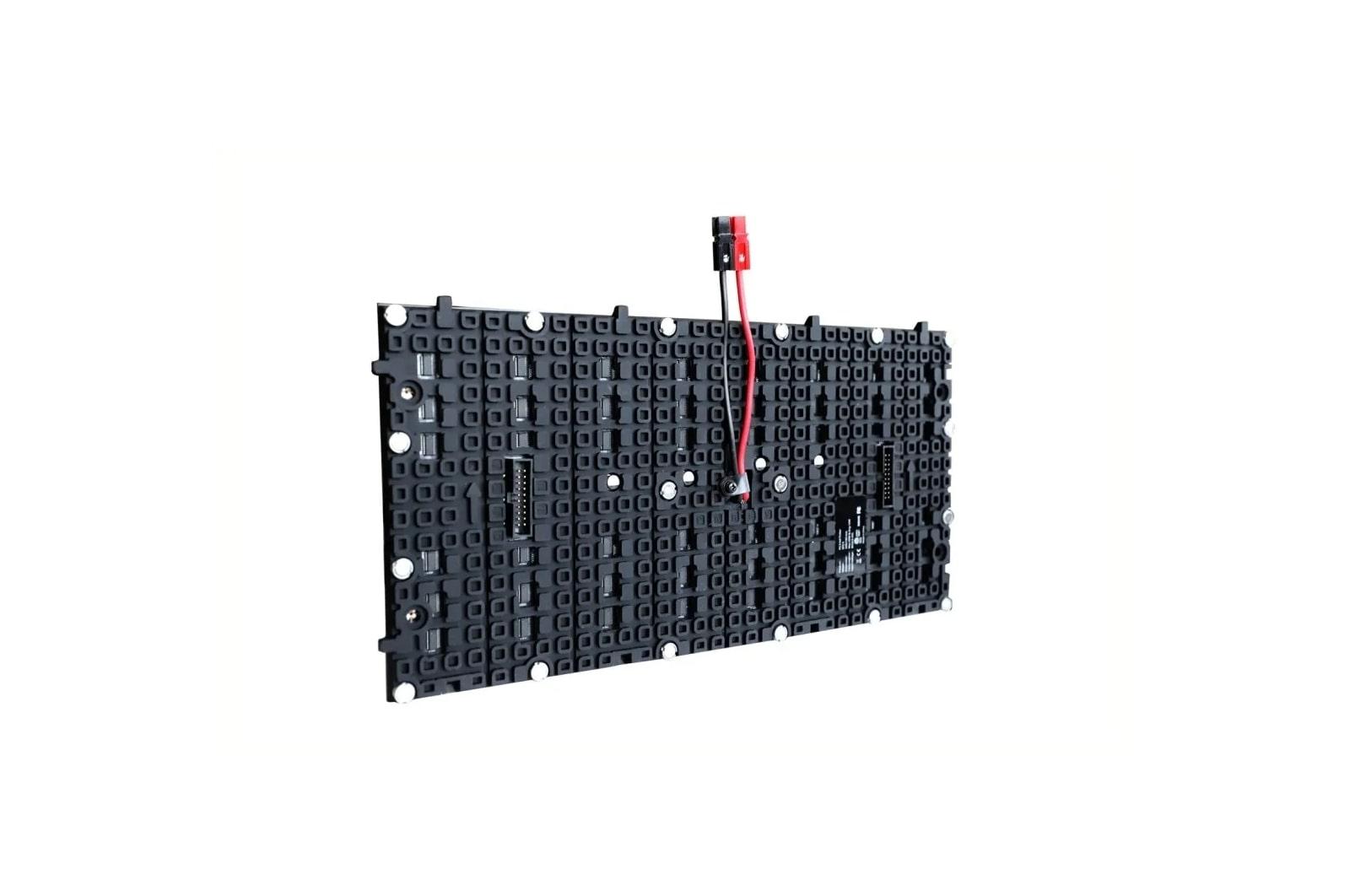

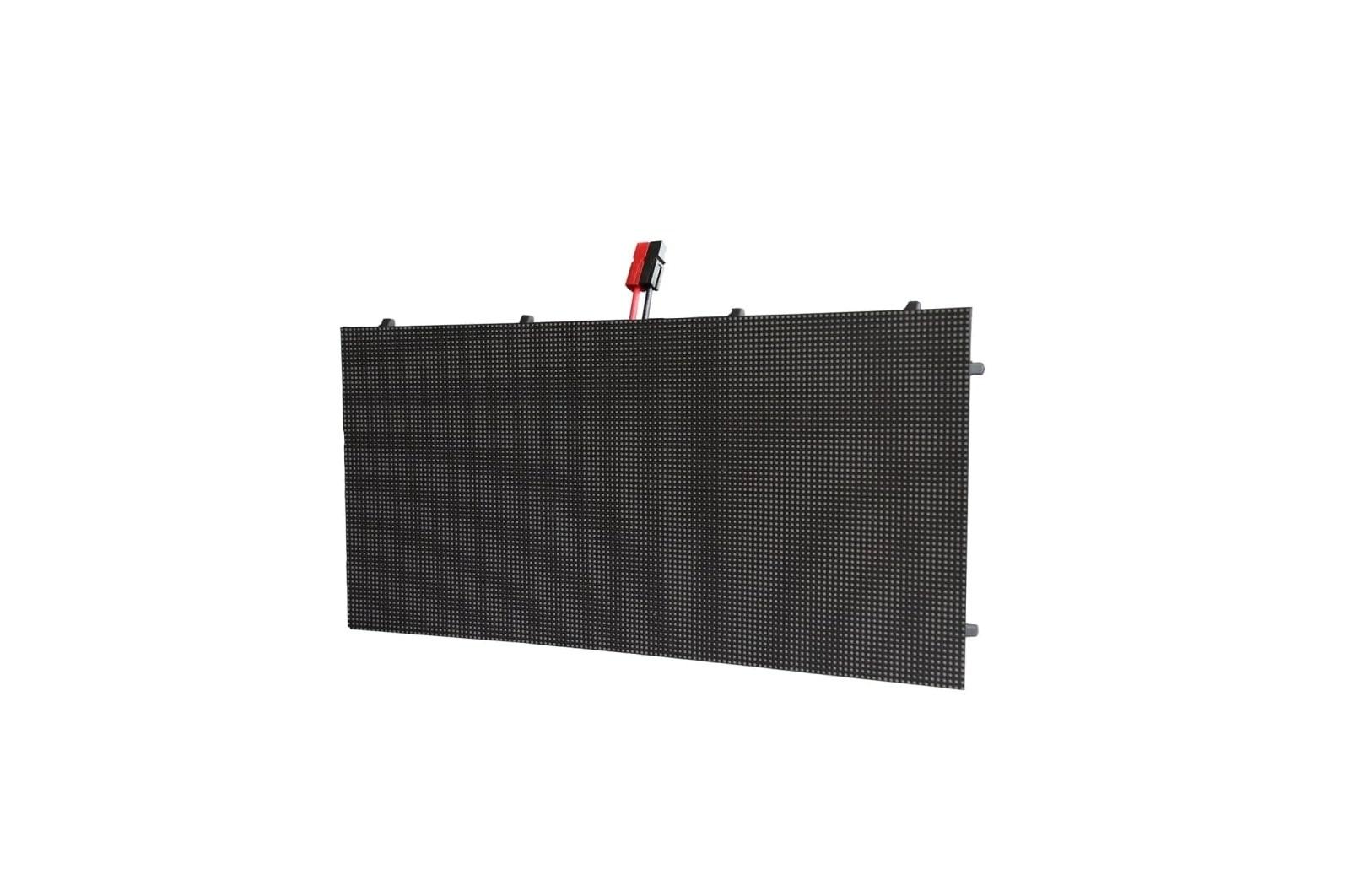

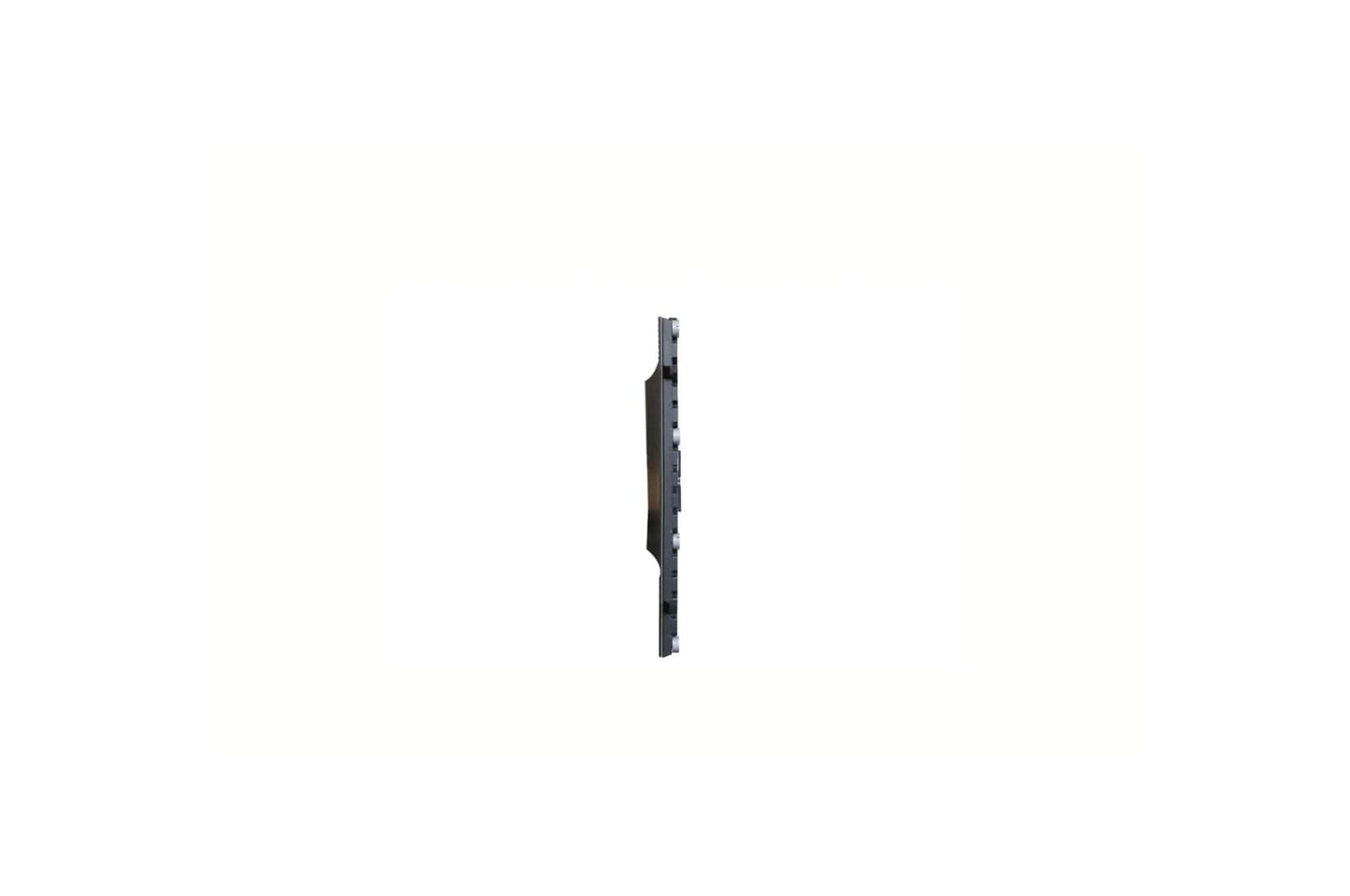

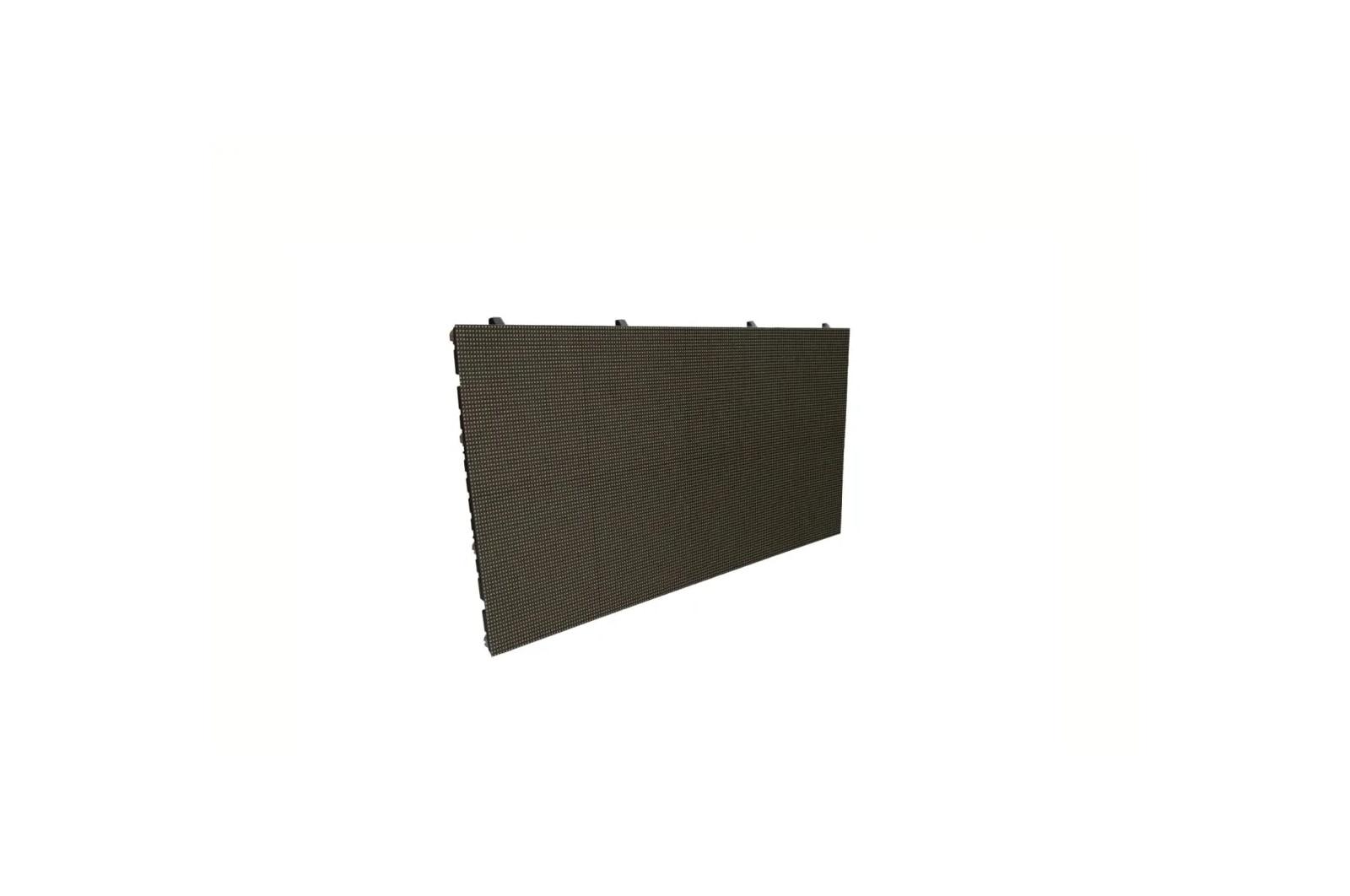

Lg LCCM025 2.50 mm LCCM Series Flexible Direct View LEDt
Lg LCCM025 2.50 mm LCCM Series Flexible Direct View LEDt
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 2.50 mm Pixel Pitch & 1,200 nits Brightnesst
- Supports True Concave and Convex Curvature from 611Rt

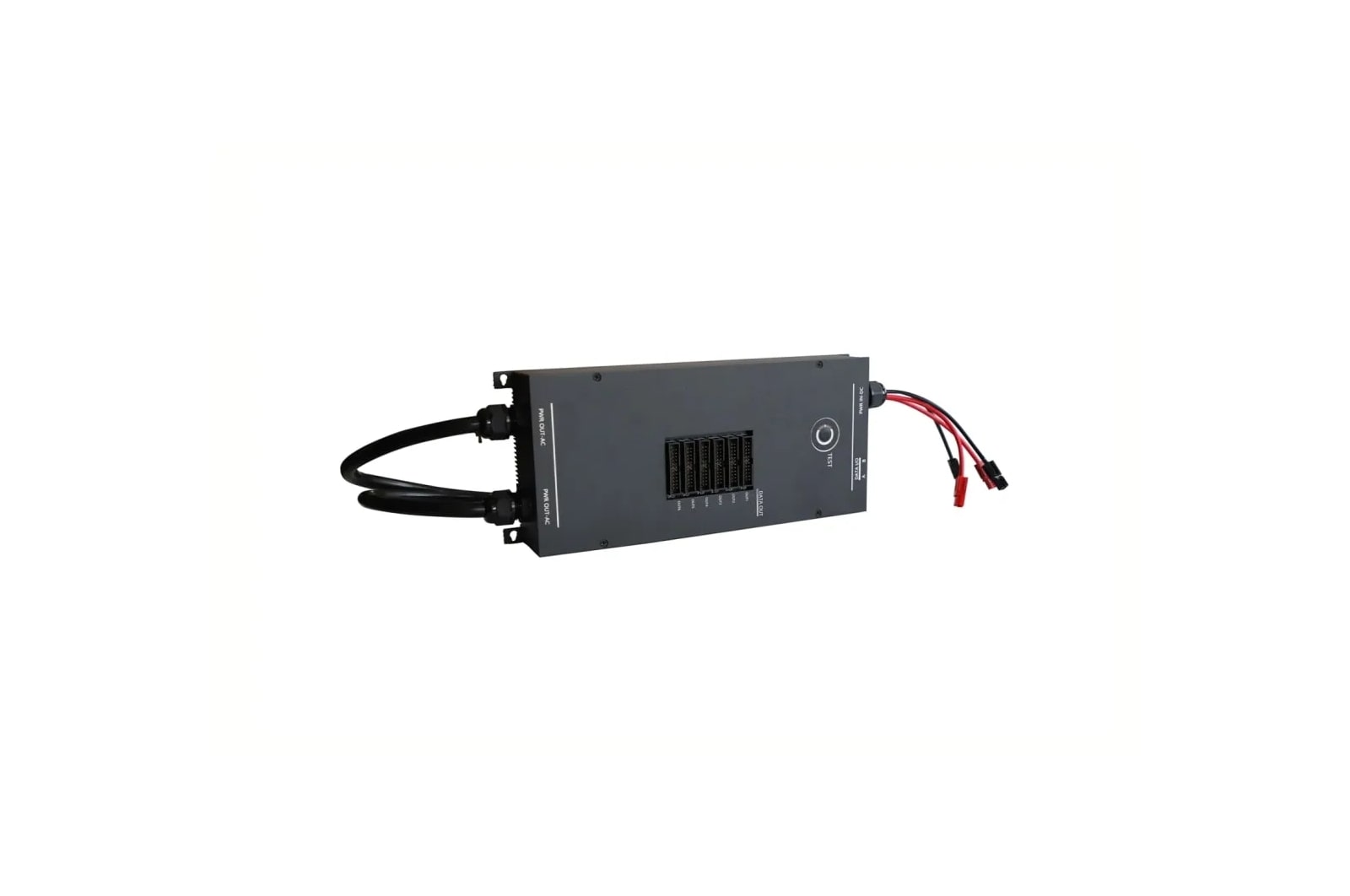

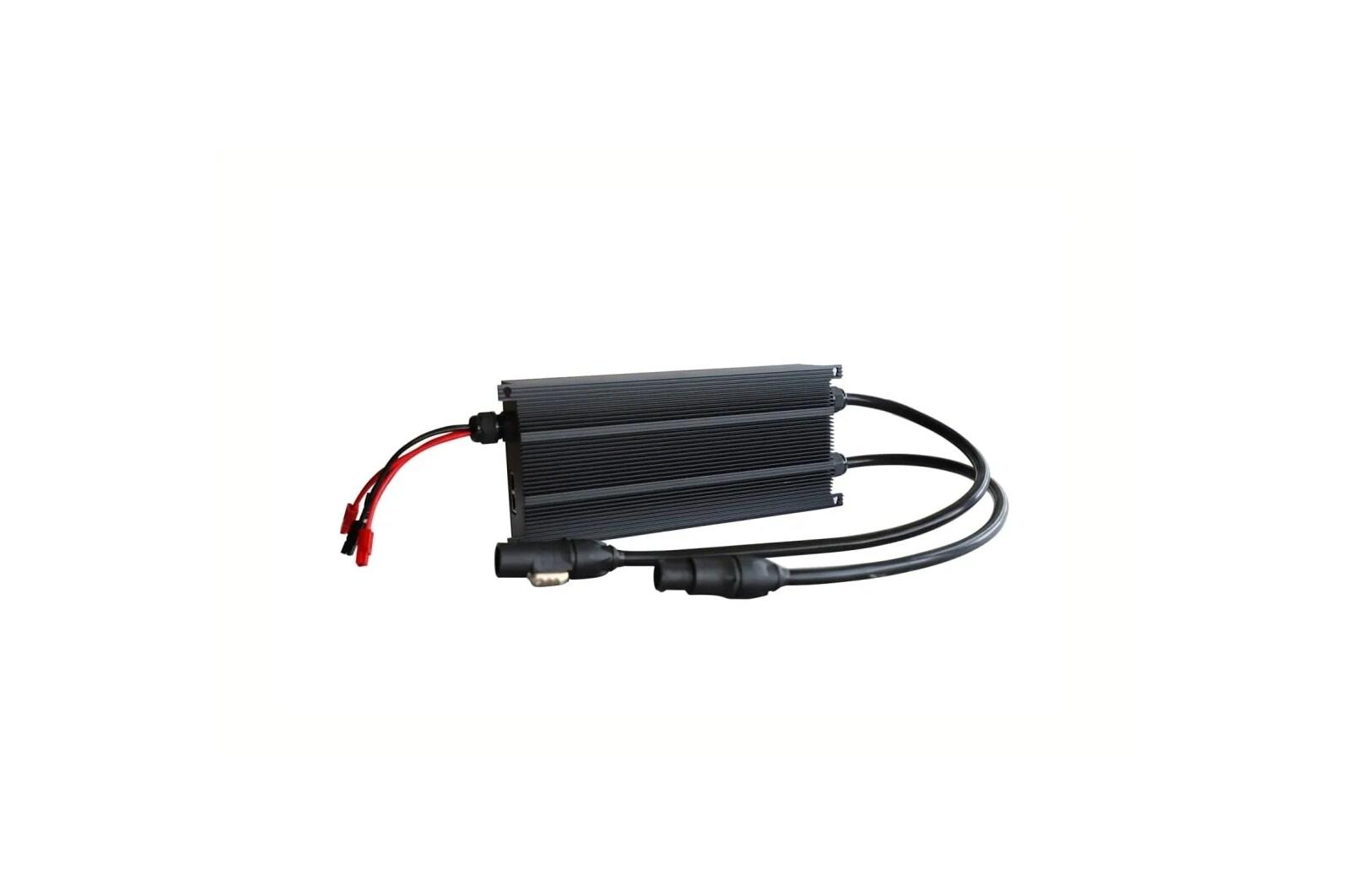

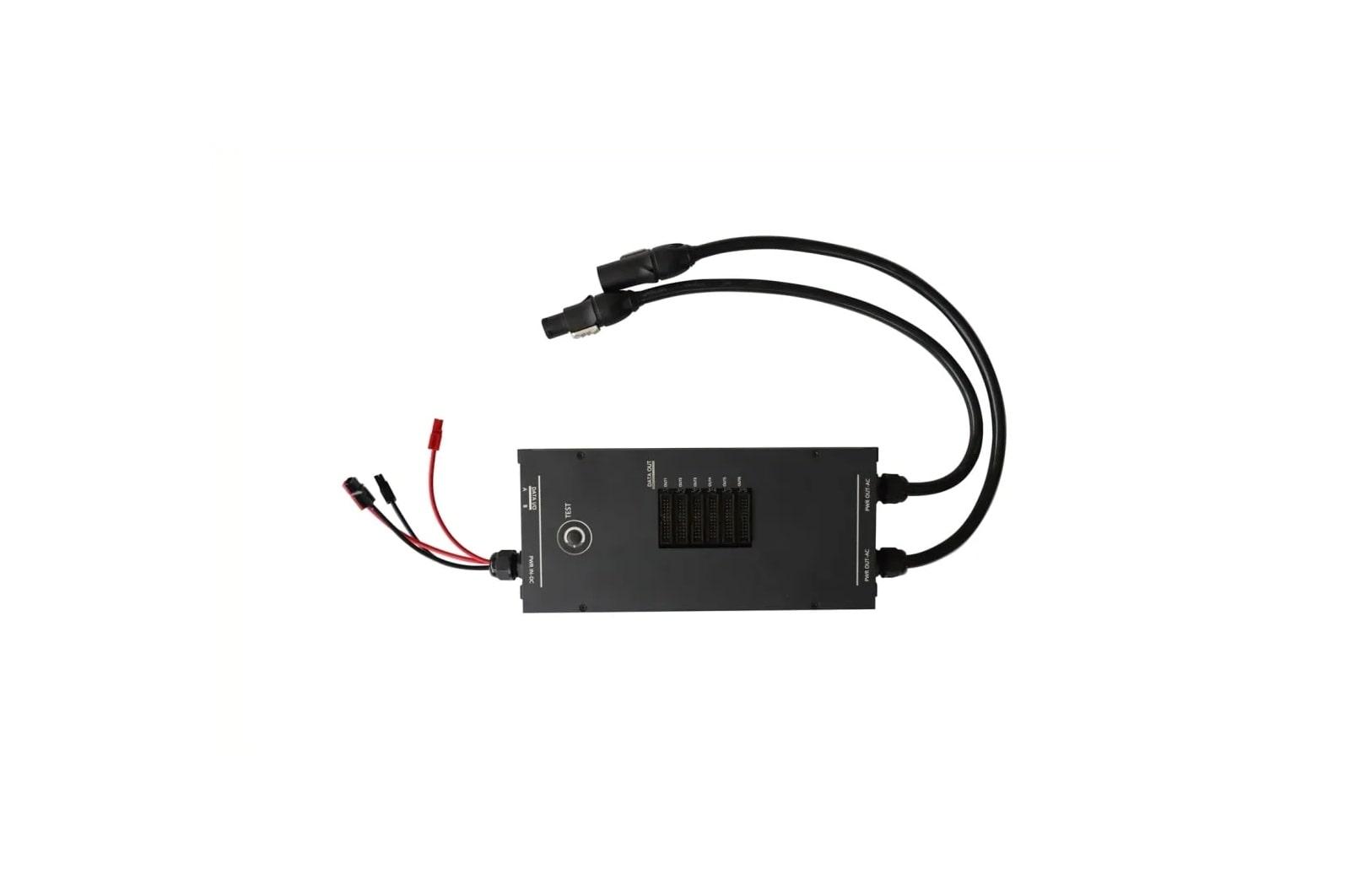

- Separate Power & Data Unitt
- Easy Installation & Maintenancet
2.50 mm LCCM Series Flexible Direct View LEDt
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 2.5 mm |
| Module Resolution (W x H) | 128 x 64 |
| Module Dimensions (W x H) | 12.6 x 6.3 in / 320 x 160 mm |
| Weight per Module | 1.1 lbs / 0.5 kg |
| Total Modules (per cabinet) | 1 |
| No. of Modules per Cabinet (W x H) | 1 x 1 |
| Cabinet Resolution (W x H) | 128 x 64 |
| Cabinet Dimensions (W x H x D) | 12.6 x 6.3 x .35 in / 320 x 160 x 9 mm |
| Cabinet Surface Area | Not Available |
| Weight per Cabinet | Not Available |
| Weight per Unit Area | Not Available |
| Physical Pixel Density | 160,000 pixels/m |
| Flatness of Cabinet | Not Available |
| Service Access | Front |
| 90 Degree Corner Cut | No |
| Curveable | Yes |
| Minimum Radius | 611 mm |
| Controller | CVCA |
| min viewing distance (5-7 mm per foot) | 13-18 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 1,920 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Max.) | 36W |
| Heat Dissipation per Cabinet (Avg.) | 41 BTU/hr |
| Power Consumption per Unit Area (Max.) | 720 W/m |
| Heat Dissipation per Unit Area (Max.) | 2,457 BTU/hr/m |
| Power Consumption per Cabinet (Avg.) | 12W |
| Heat Dissipation per Cabinet (Max.) | 123 BTU/hr |
| Optical | |
| Max. Brightness (After Calibration) | Up to 1,200 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 14 bit (HDR10, HDR10 Pro) |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| KC | No |
| CB | No |
| REACH (Environmental) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| CCC | No |
| RoHS (Environmental) | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP30 |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| cTUVus | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP30 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -22° F to 45° F / -30° C to 45° C |
