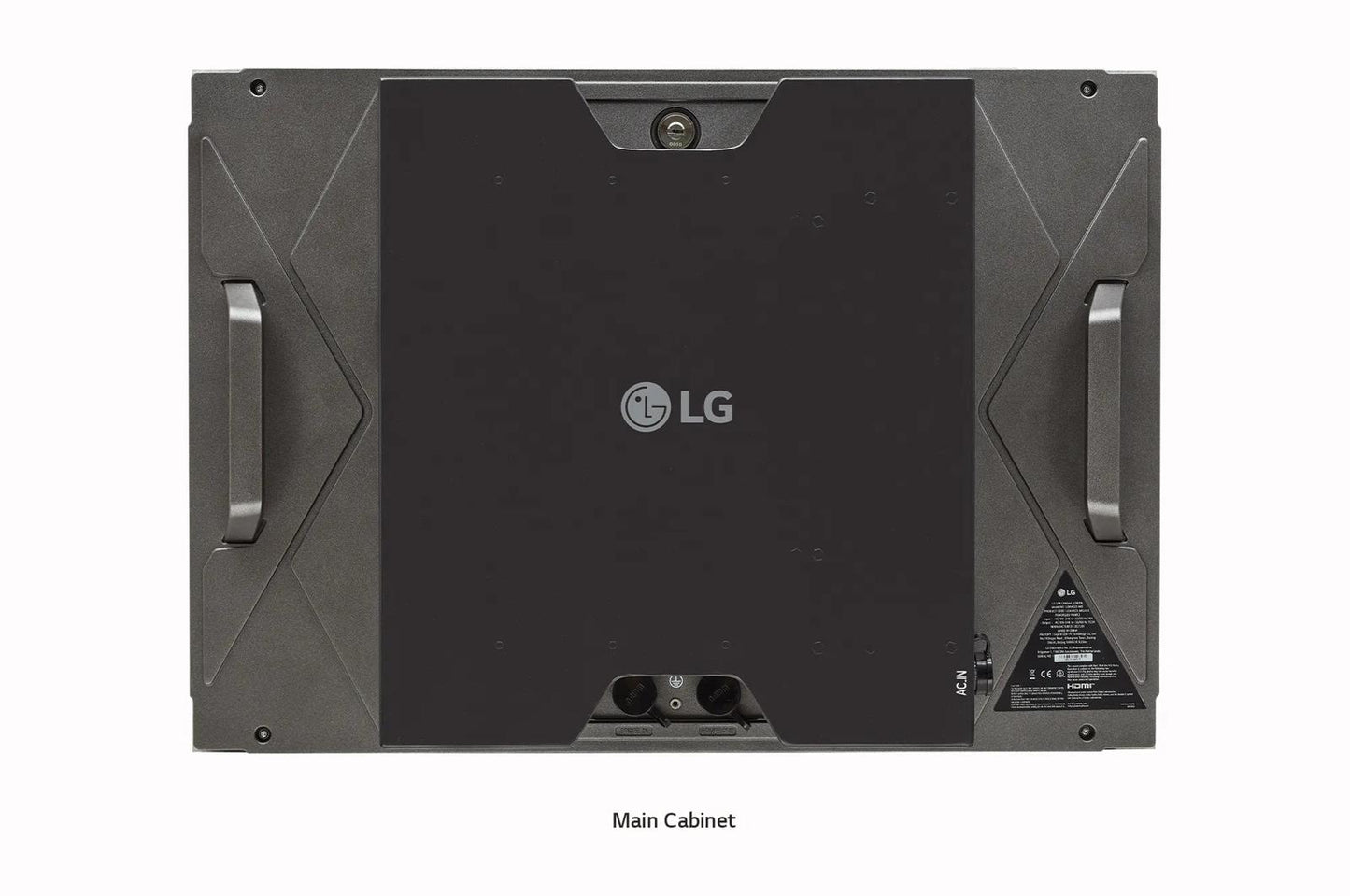

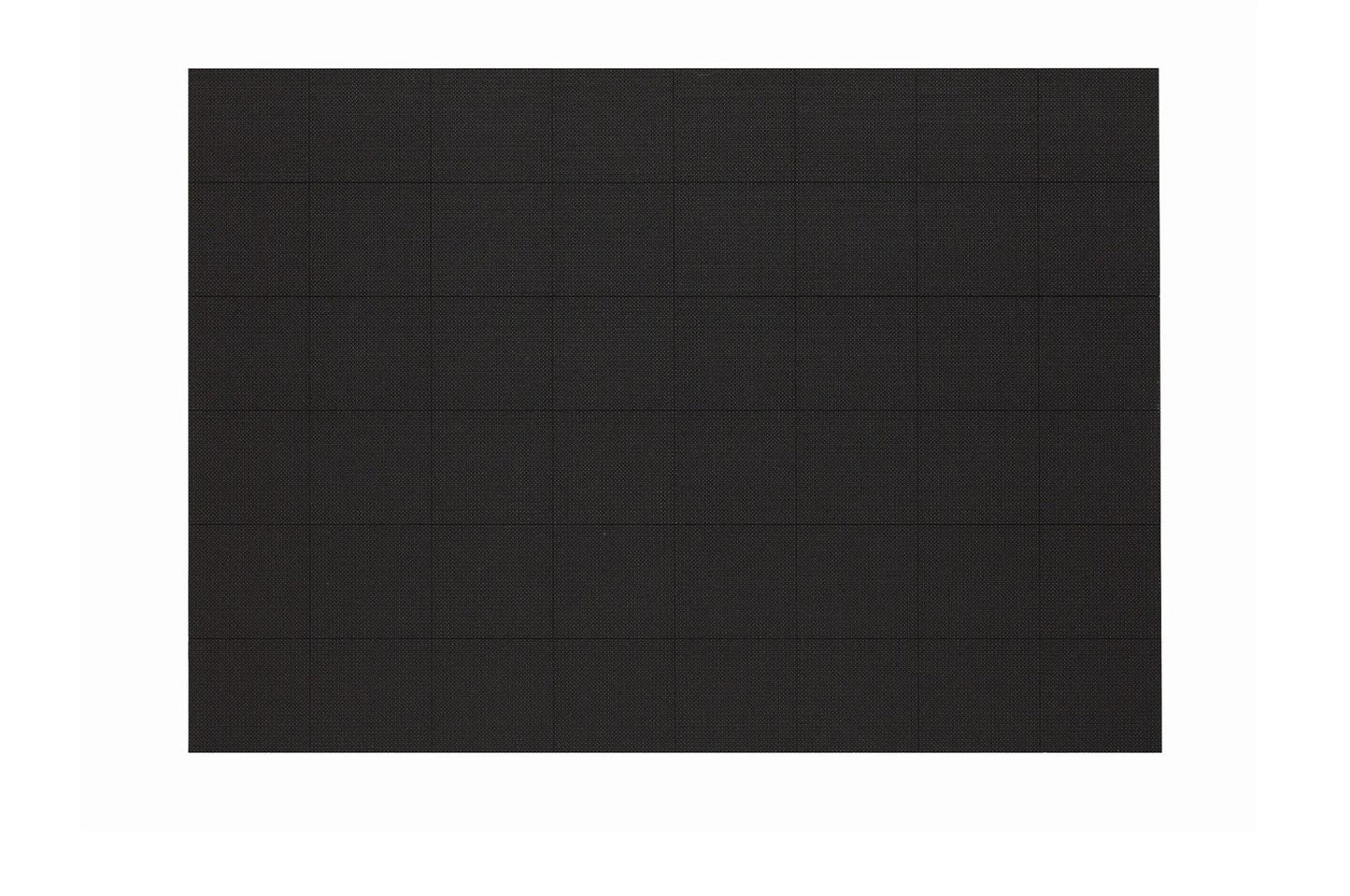

Lg LDAA025 4K LED Cinema Screen (4,096x2,160) with DCI-P3 Color, & Dolby Atmos Compatible
Lg LDAA025 4K LED Cinema Screen (4,096x2,160) with DCI-P3 Color, & Dolby Atmos Compatible
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 2.5mm Pixel Pitch
- 33.5'(H)x1.7'(V) Screen Size
- 4K Resolution (4,096x2160)
- 48 nit Brightness
- 192 Cabinet Configuration
4K LED Cinema Screen (4,096x2,160) with DCI-P3 Color, & Dolby Atmos Compatible
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 2.5 mm |
| Module Resolution (W x H) | 256 x 180 |
| Module Dimensions (W x H) | 25.2 x 17.7 in / 640 x 450 mm |
| Weight per Module | Not Available |
| Total Modules (per cabinet) | 1 |
| No. of Modules per Cabinet (W x H) | 1 x 1 |
| Cabinet Resolution (W x H) | 256 x 180 |
| Cabinet Dimensions (W x H x D) | 25.2 x 17.7 x 6.4 in / 640 x 450 x 163 mm |
| Cabinet Surface Area | Not Available |
| Weight per Cabinet | 30.4 lbs / 13.8 kg |
| Weight per Unit Area | Not Available |
| Physical Pixel Density | Not Available |
| Flatness of Cabinet | Not Available |
| Cabinet Material | Aluminum |
| Service Access | Rear |
| 90 Degree Corner Cut | No |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | Embedded |
| min viewing distance (5-7 mm per foot) | 13-18 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 3,072 Hz |
| Frame Rate | 24 / 25 / 30 / 48 / 50 / 60 / 144 Hz |
| Power Consumption per Cabinet (Avg.) | 200 |
| Power Consumption per Cabinet (Max.) | Not Available |
| Heat Dissipation per Cabinet (Avg.) | Not Available |
| Power Consumption per Unit Area (Max.) | Not Available |
| Heat Dissipation per Cabinet (Max.) | Not Available |
| Heat Dissipation per Unit Area (Max.) | Not Available |
| Optical | |
| Max. Brightness (After Calibration) | Up to 48 nits |
| Color Temperature | Not Available |
| Brightness Uniformity | Not Available |
| Color Uniformity | 0.05 Cx, Cy |
| Contrast Ratio | 4,000:1 |
| Processing Depth | 24 bit |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | No |
| RoHS (Environmental) | No |
| KC | No |
| CB | No |
| IP Rating (Solid / Liquid Ingress) (Front) | IP30 |
| REACH (Environmental) | No |
| FCC (Regulatory) | No |
| EN13501-1 | No |
| Fire Protection | No |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| Safety 60950-1 | No |
| cTUVus | No |
| CE (Regulatory) | No |
| CCC | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP20 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 32° F to 104° F / 0° C to 40° C |
