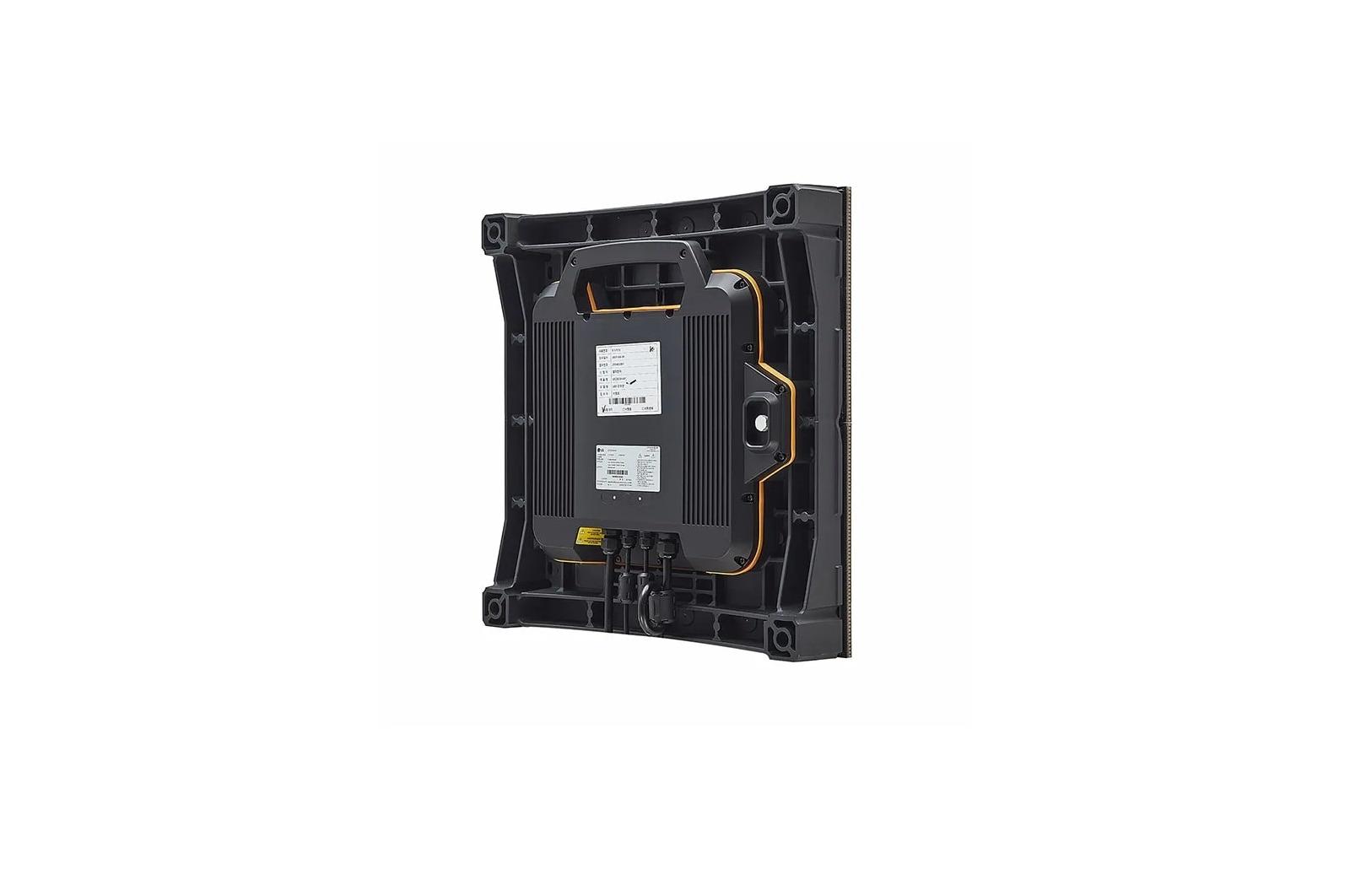

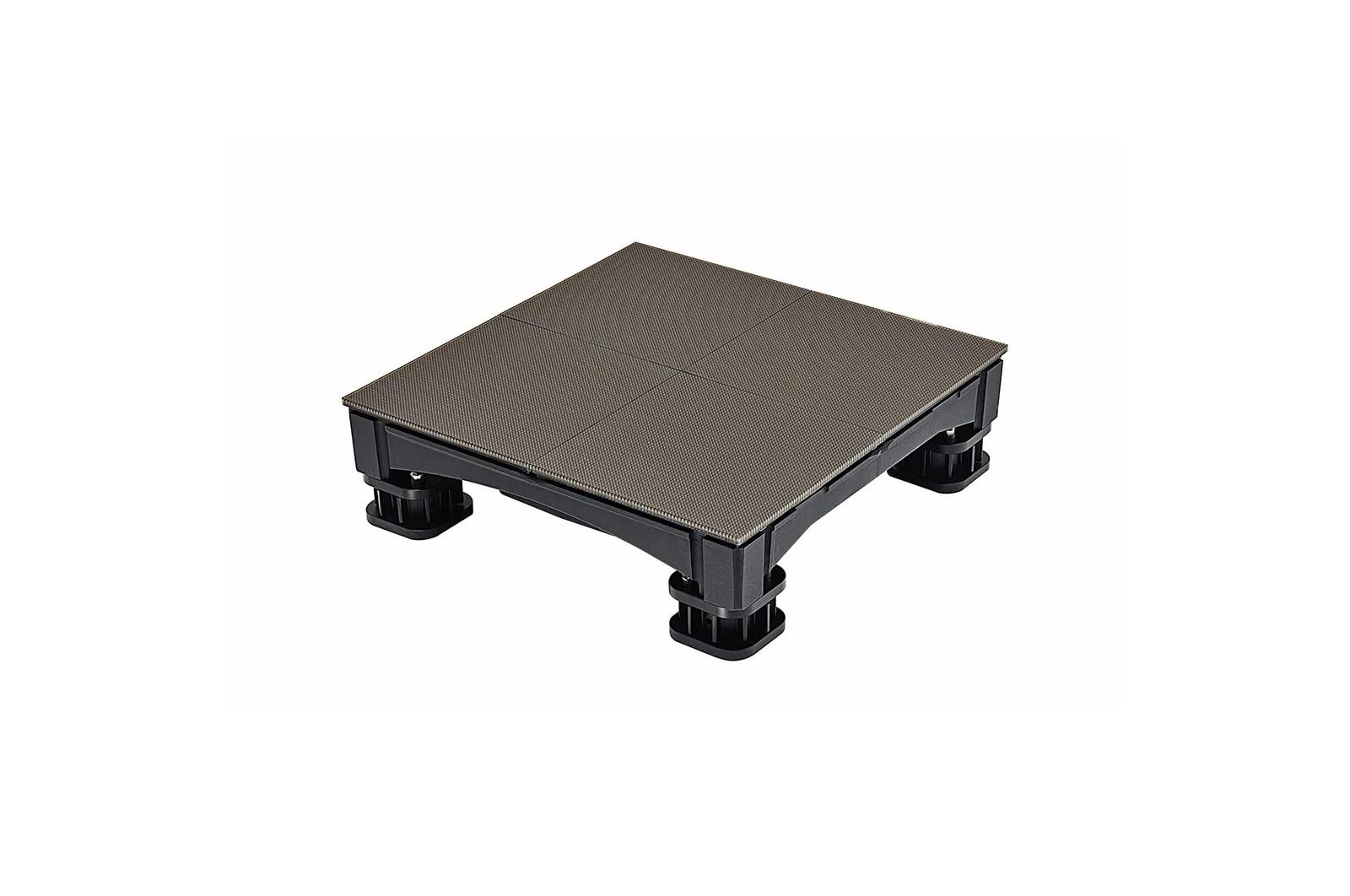

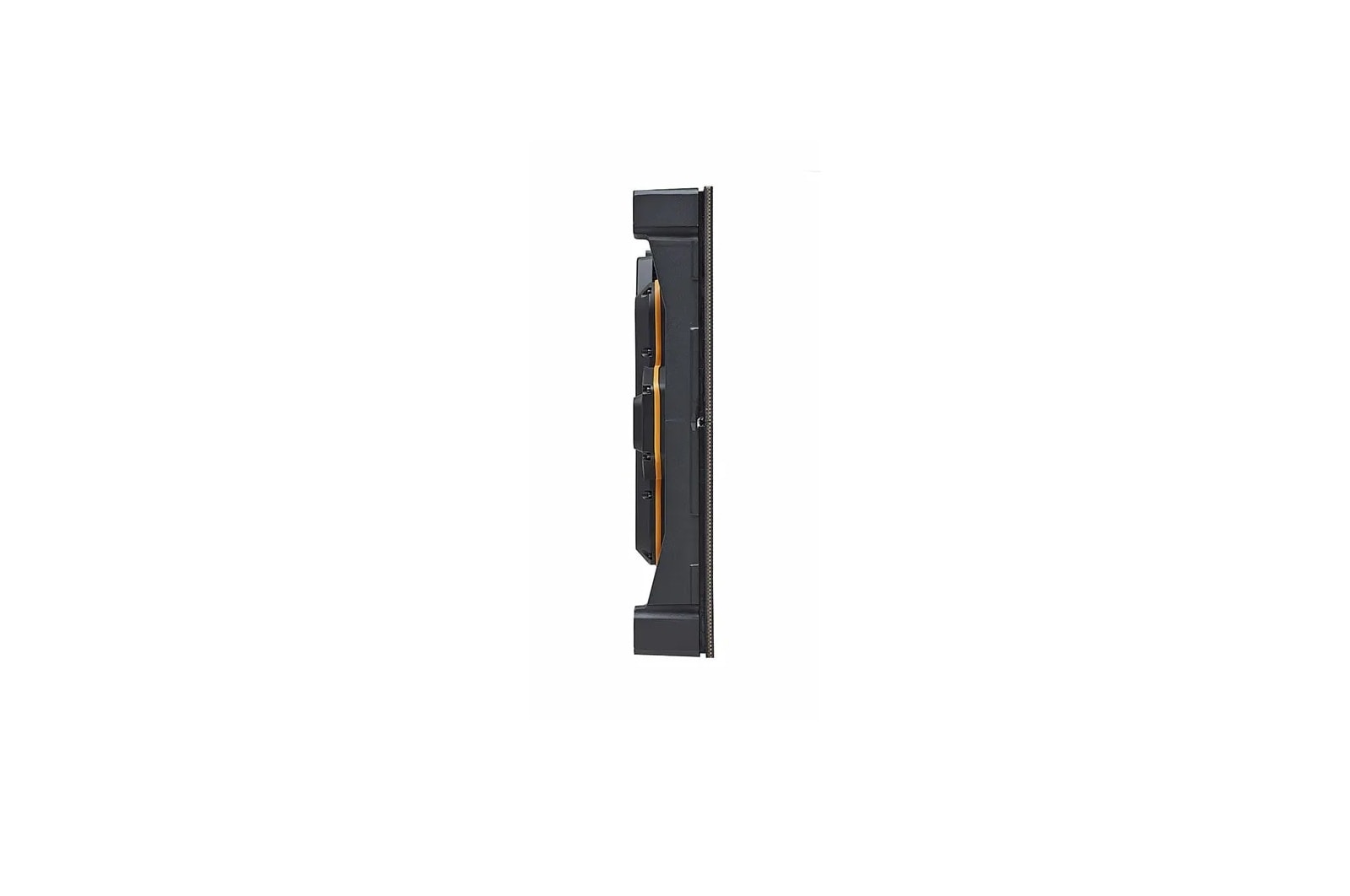

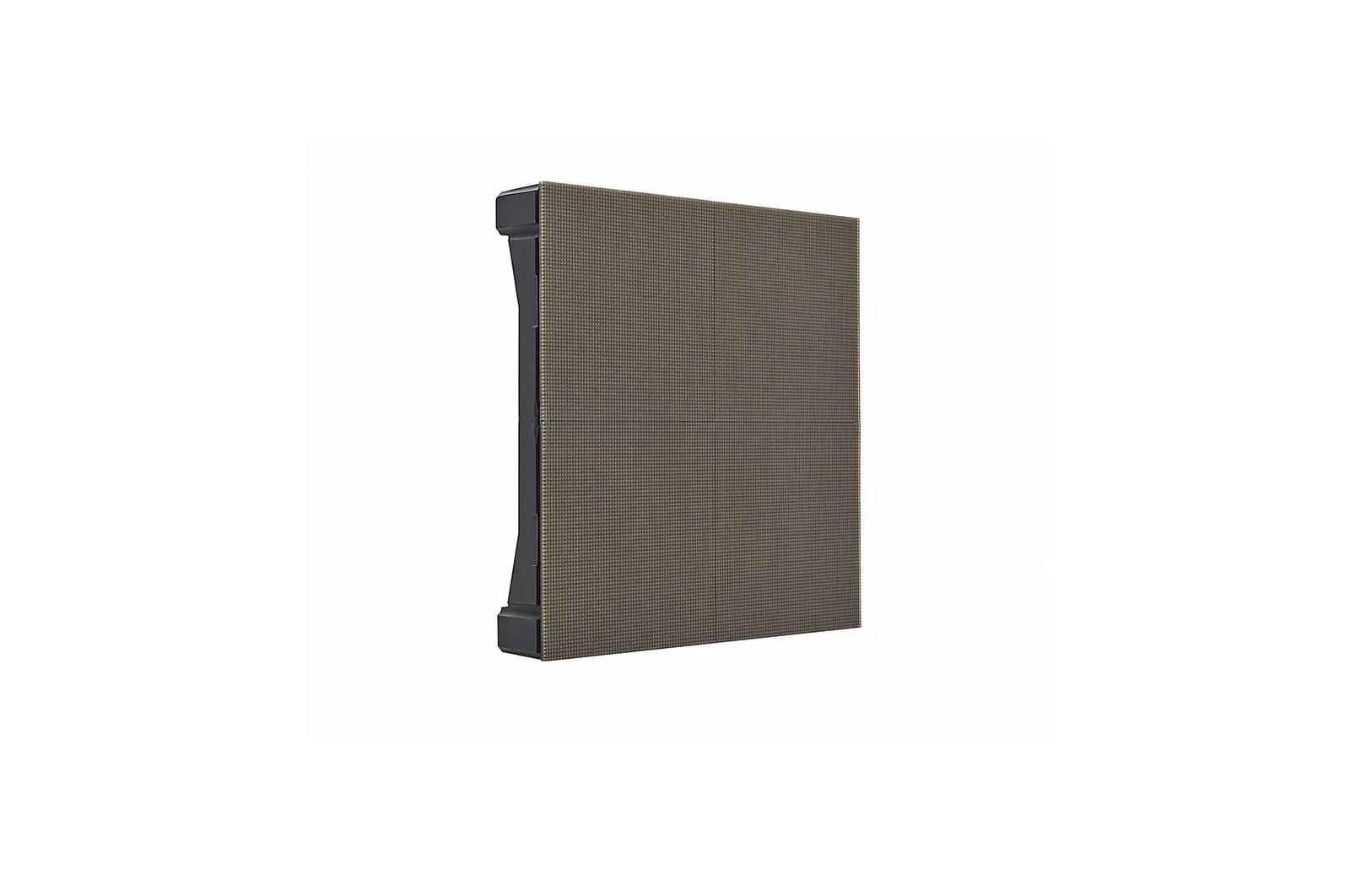

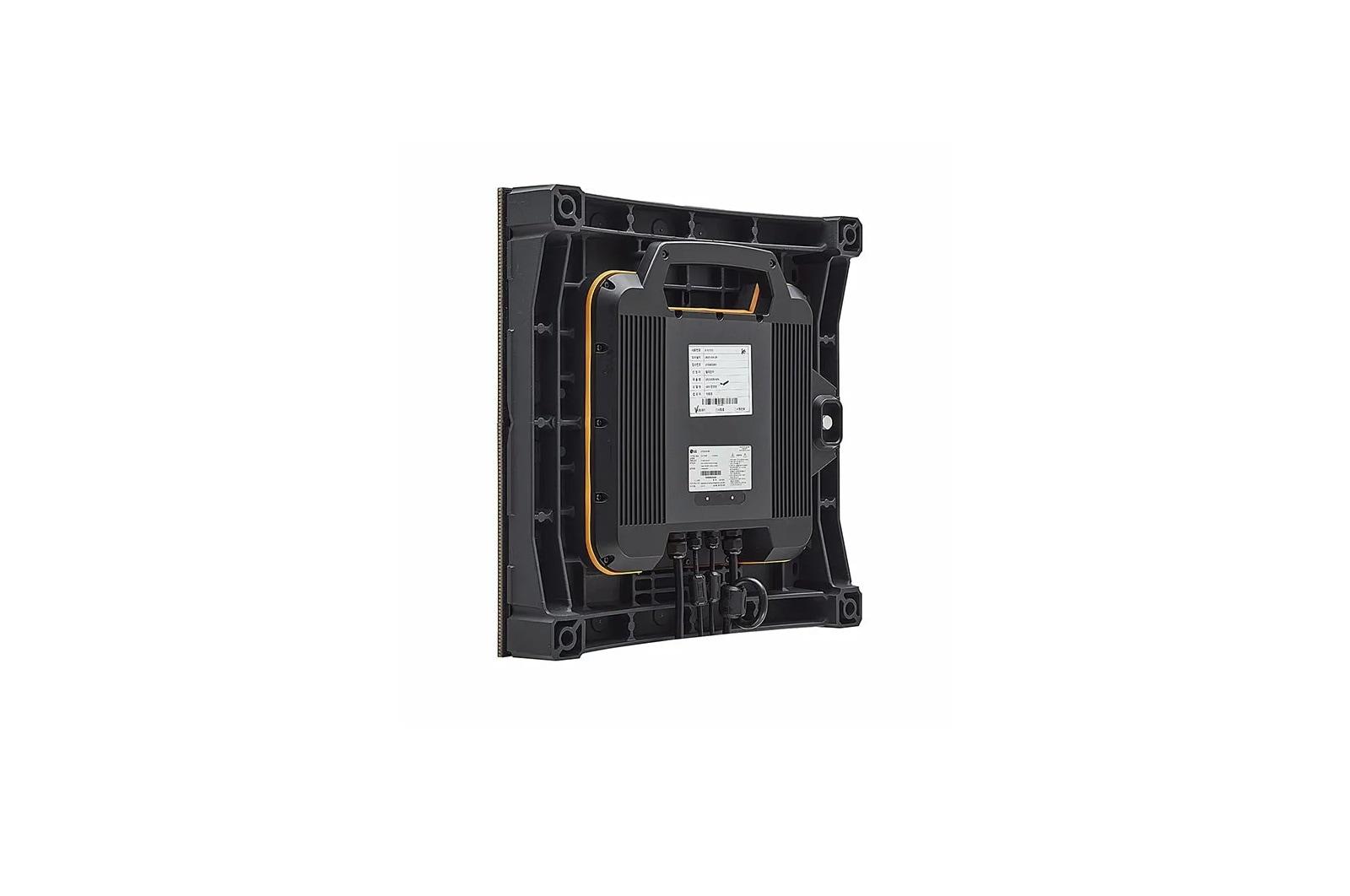

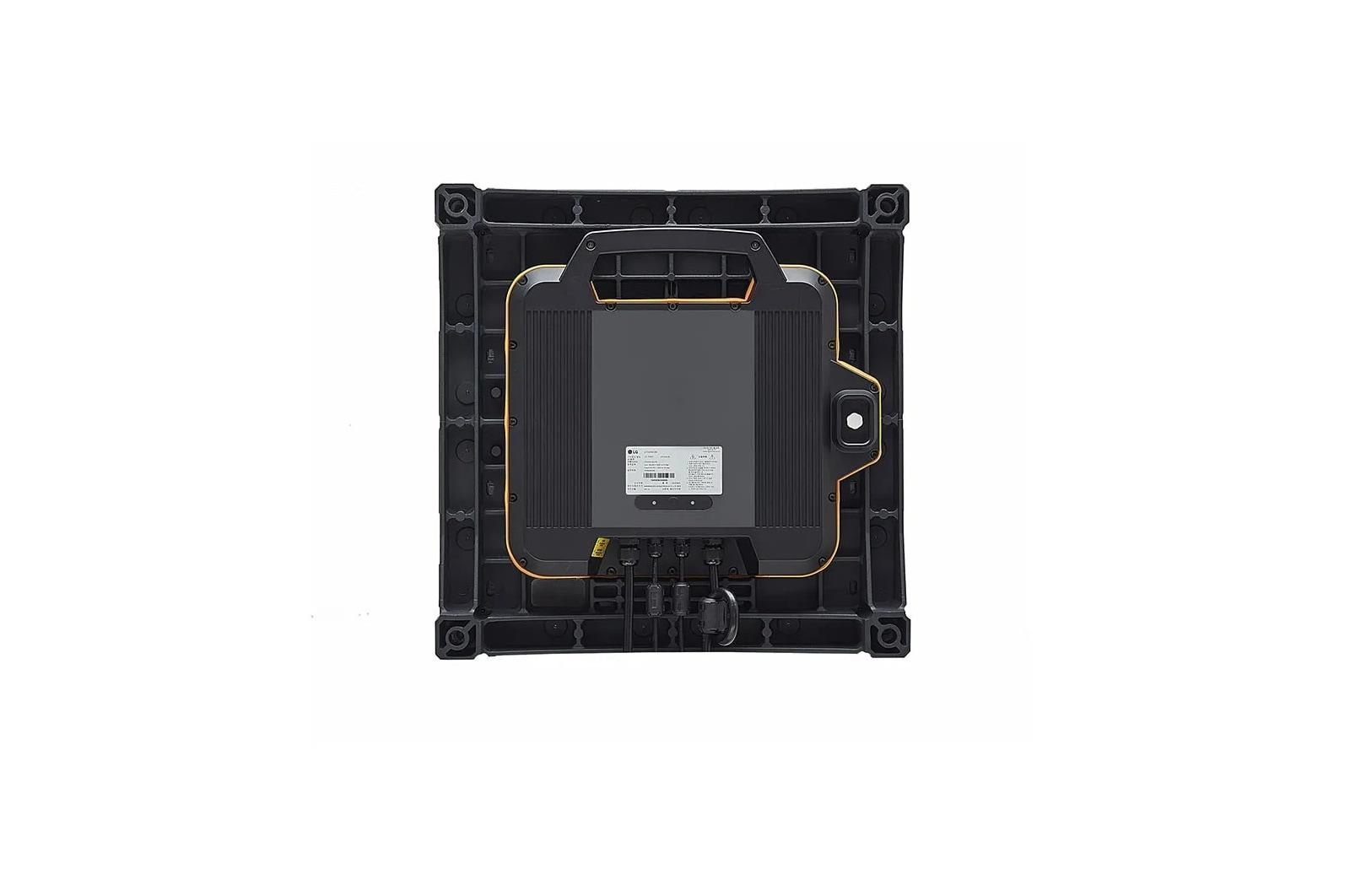

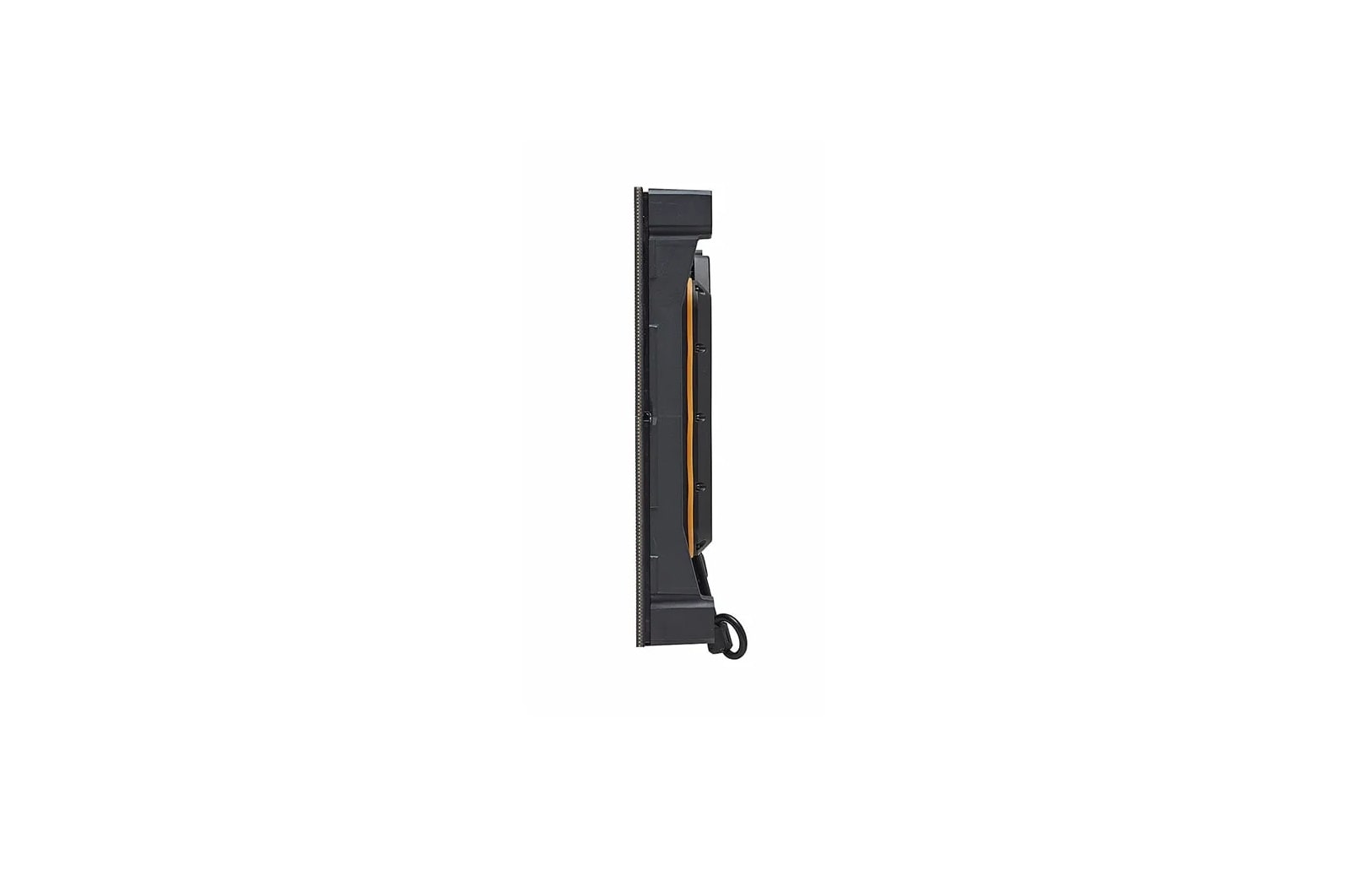

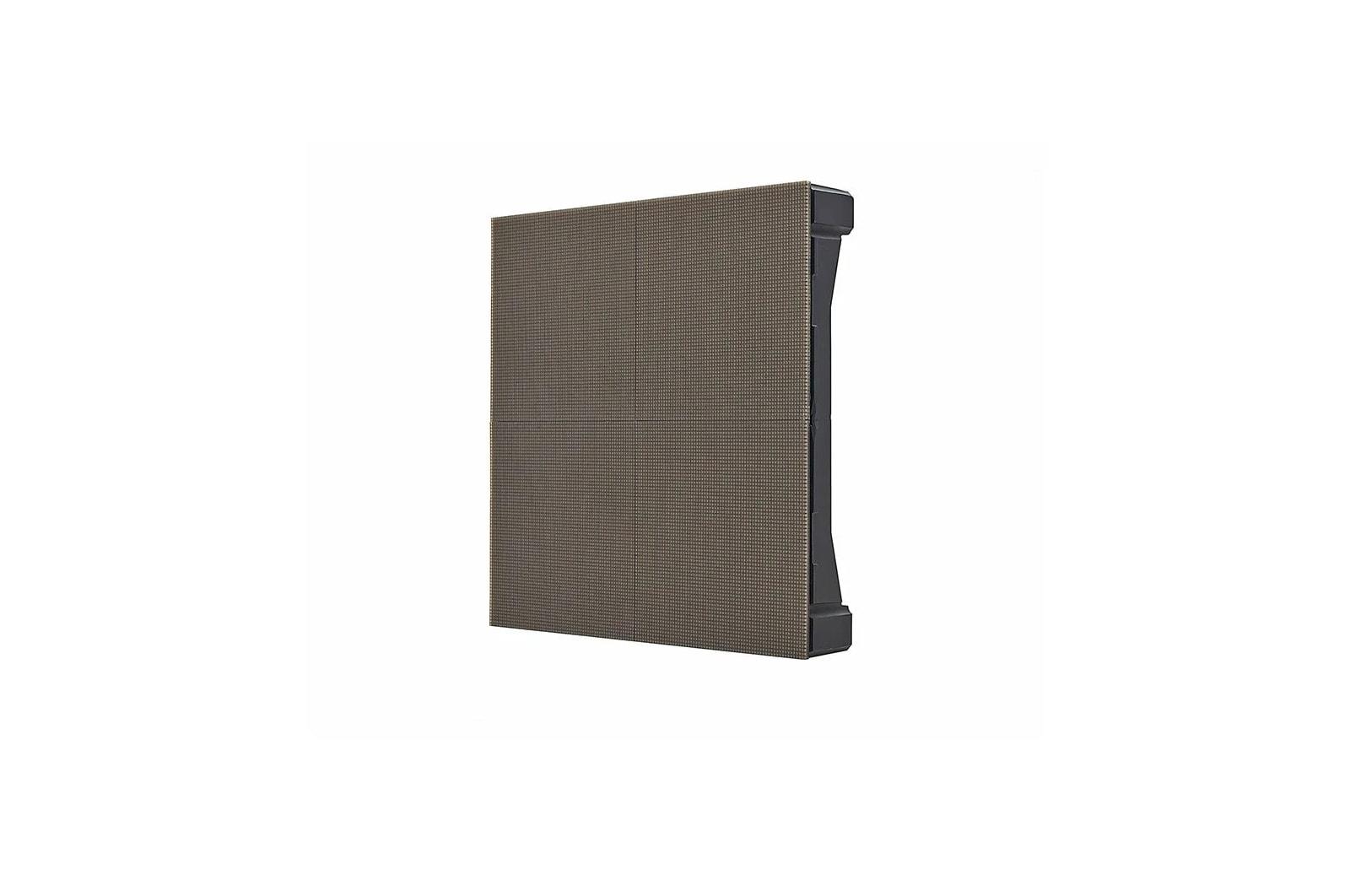

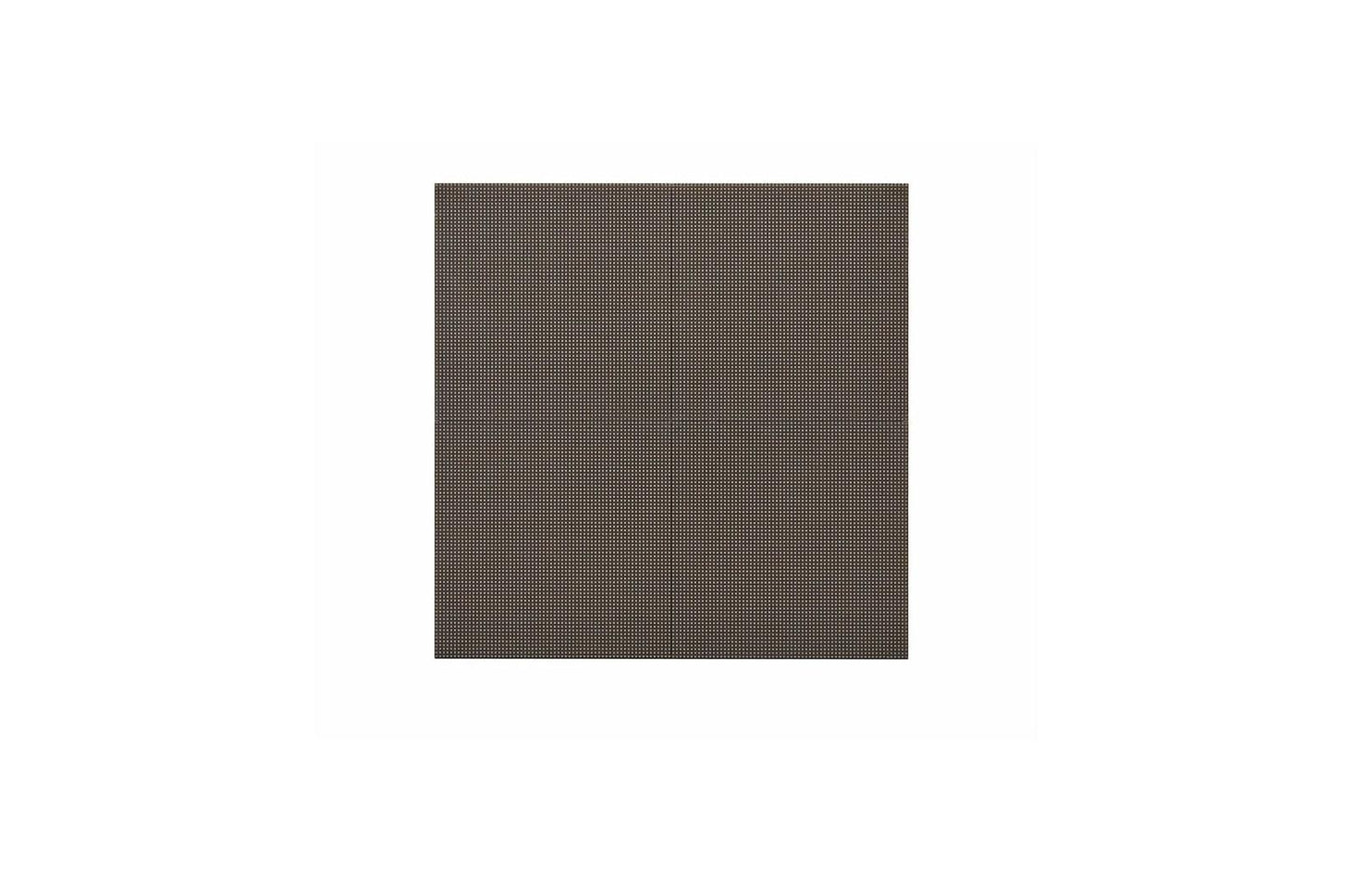

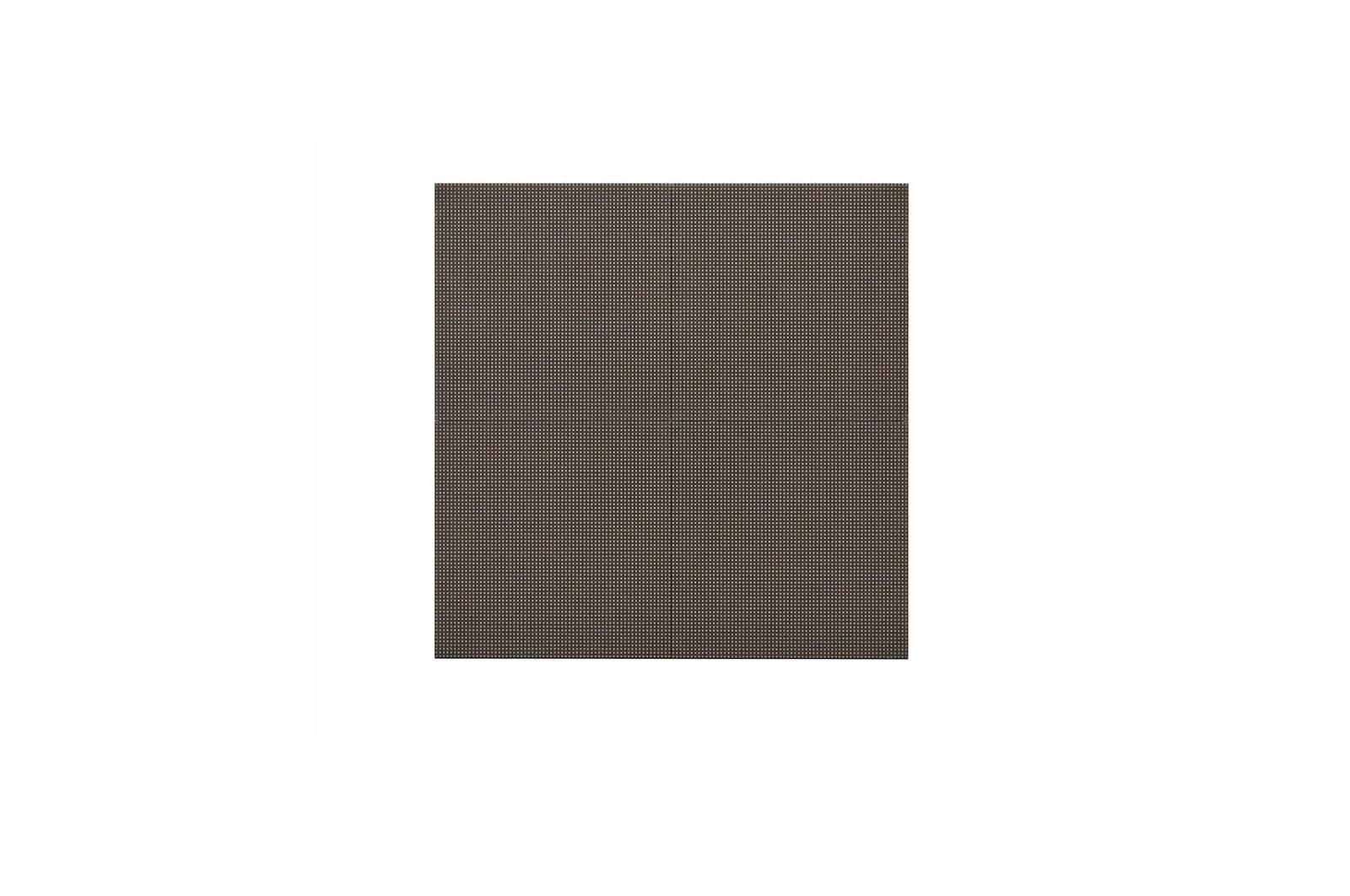

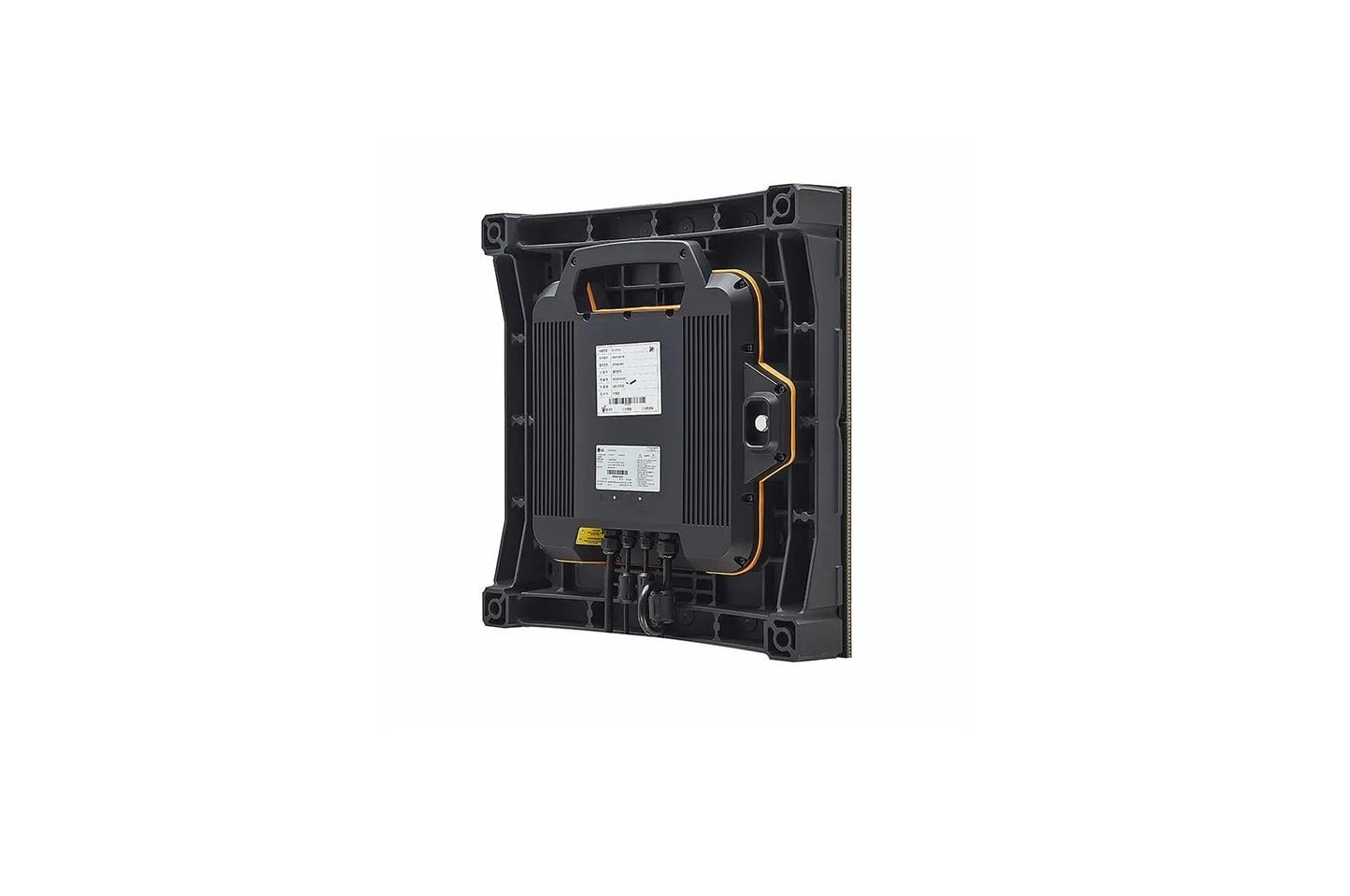

Lg LFCG039 LFCG Floor Direct View LED for Virtual Production with Interactive Touch Screen
Lg LFCG039 LFCG Floor Direct View LED for Virtual Production with Interactive Touch Screen
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 3.91 pixel pitch Interactive Touch Screen
- IP 65 Rating for High Durability
- 3,000 nit Brightness
- Easy Installation and Maintenance
- Excellent Usability
LFCG Floor Direct View LED for Virtual Production with Interactive Touch Screen
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 3.91 mm |
| Module Resolution (W x H) | 64 x 64 |
| Module Dimensions (W x H) | 9.8 x 9.8 in / 250 x 250 mm |
| Weight per Module | 2.0 lbs / 0.9 kg |
| Total Modules (per cabinet) | 4 |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 128 x 128 |
| Cabinet Dimensions (W x H x D) | 19.7 x 19.7 x 3.3 in / 500 x 500 x 84.5 mm |
| Cabinet Surface Area | 2.7 ft / 0.25 m |
| Weight per Cabinet | 33.3 lbs / 15.1 kg |
| Weight per Unit Area | 64 kg/m |
| Physical Pixel Density | 65,536 pixels/m |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Die-casting Aluminum |
| Service Access | Front |
| 90 Degree Corner Cut | No |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | LCIN010 |
| min viewing distance (5-7 mm per foot) | 20-27 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Max.) | 240W |
| Heat Dissipation per Cabinet (Avg.) | 273 BTU/hr |
| Power Consumption per Unit Area (Max.) | 960 W/m |
| Heat Dissipation per Unit Area (Max.) | 3,275.5 BTU/hr/m |
| Power Consumption per Cabinet (Avg.) | 80W |
| Heat Dissipation per Cabinet (Max.) | 818.9 BTU/hr |
| Optical | |
| Max. Brightness (After Calibration) | Up to 3,000 nits |
| Color Temperature | 3,200-9,300K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 14 bit |
| Visual Viewing Angle (H x V) | 120° x 120° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| KC | No |
| CB | No |
| REACH (Environmental) | No |
| EN13501-1 | No |
| Fire Protection | No |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| CCC | No |
| RoHS (Environmental) | No |
| IP Rating (Solid / Liquid Ingress) (Front) | IP65 |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| cTUVus | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP65 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 14° F to 114° F / -10° C to 45° C |
