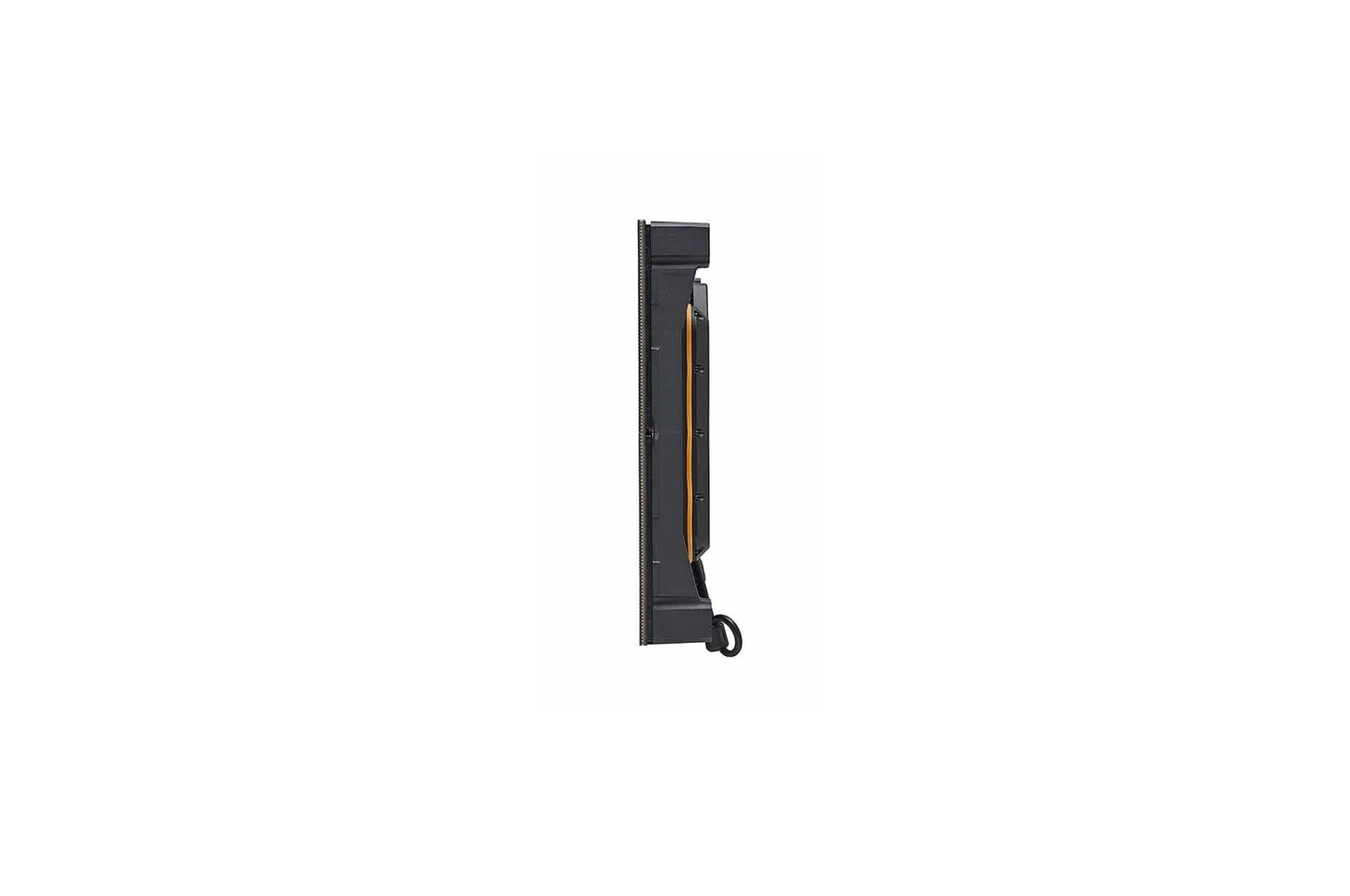

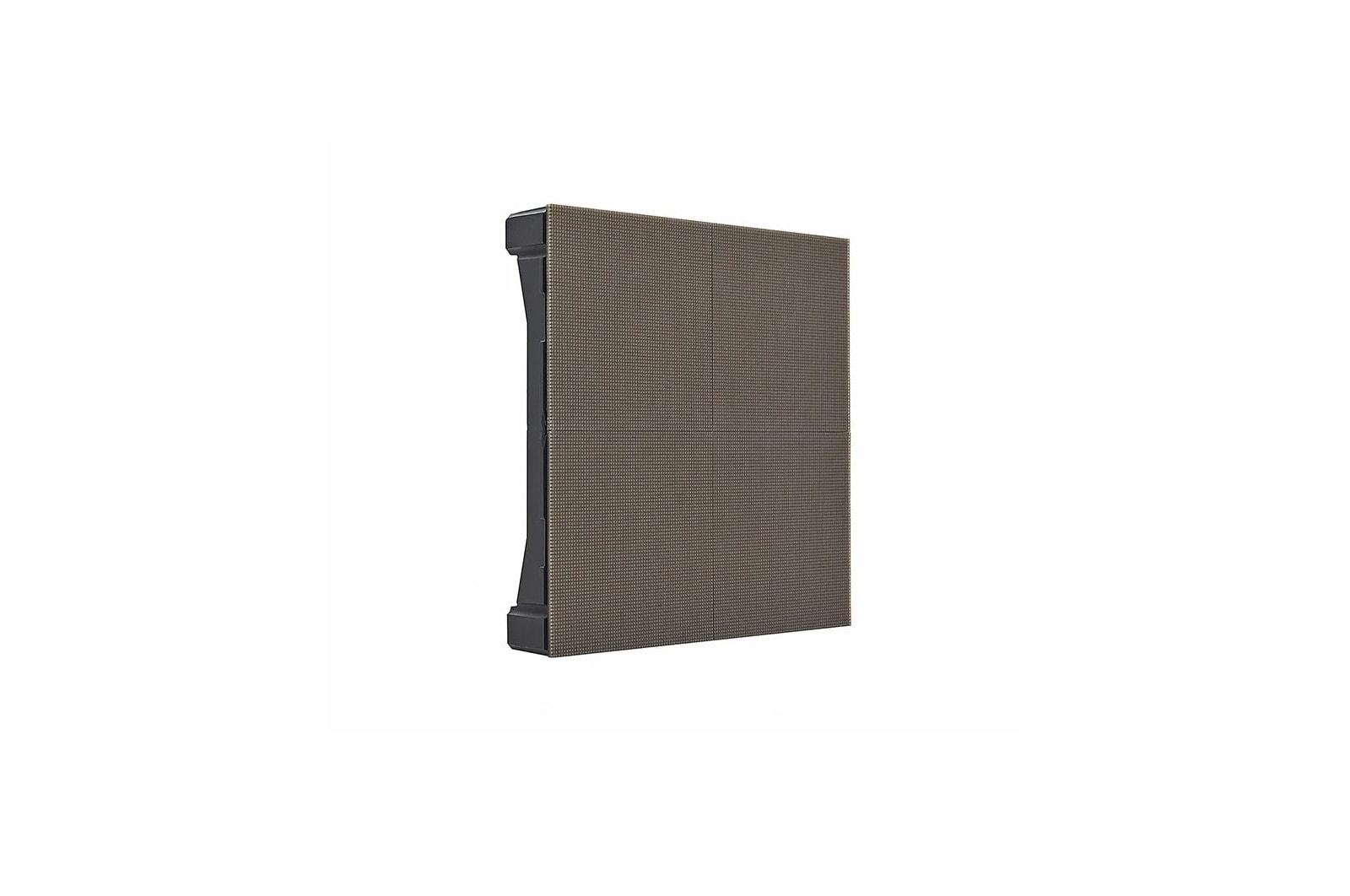

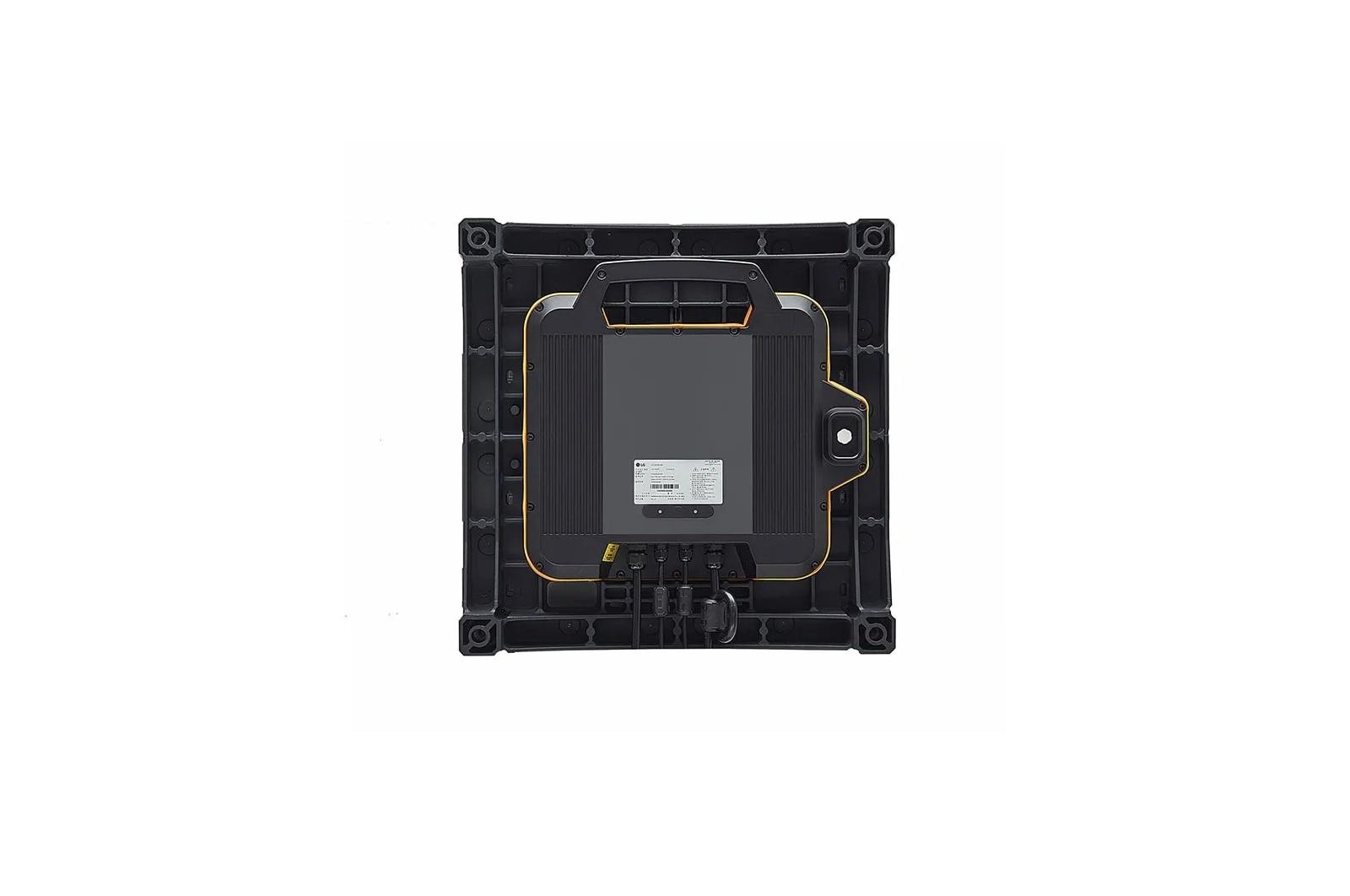

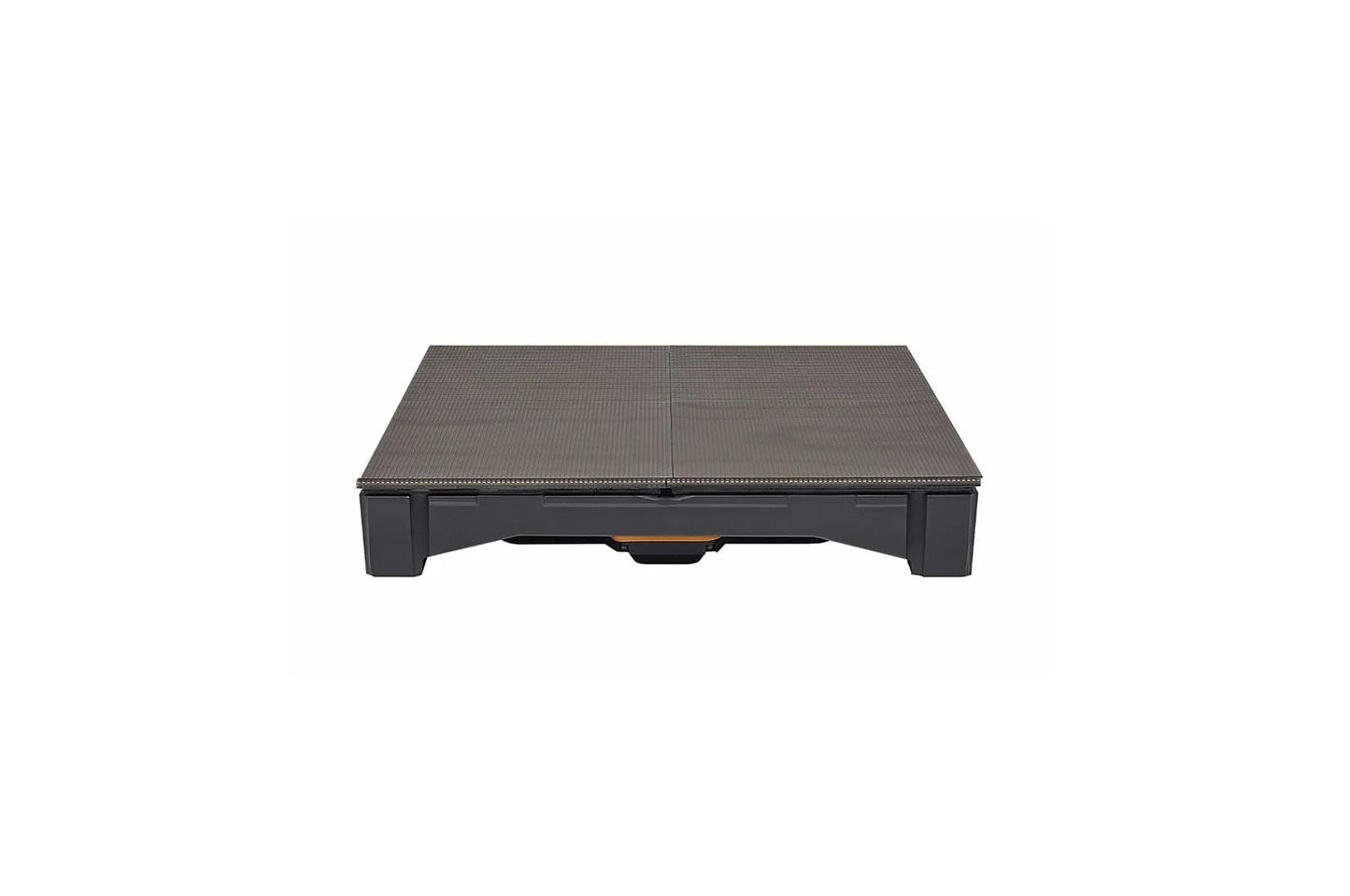

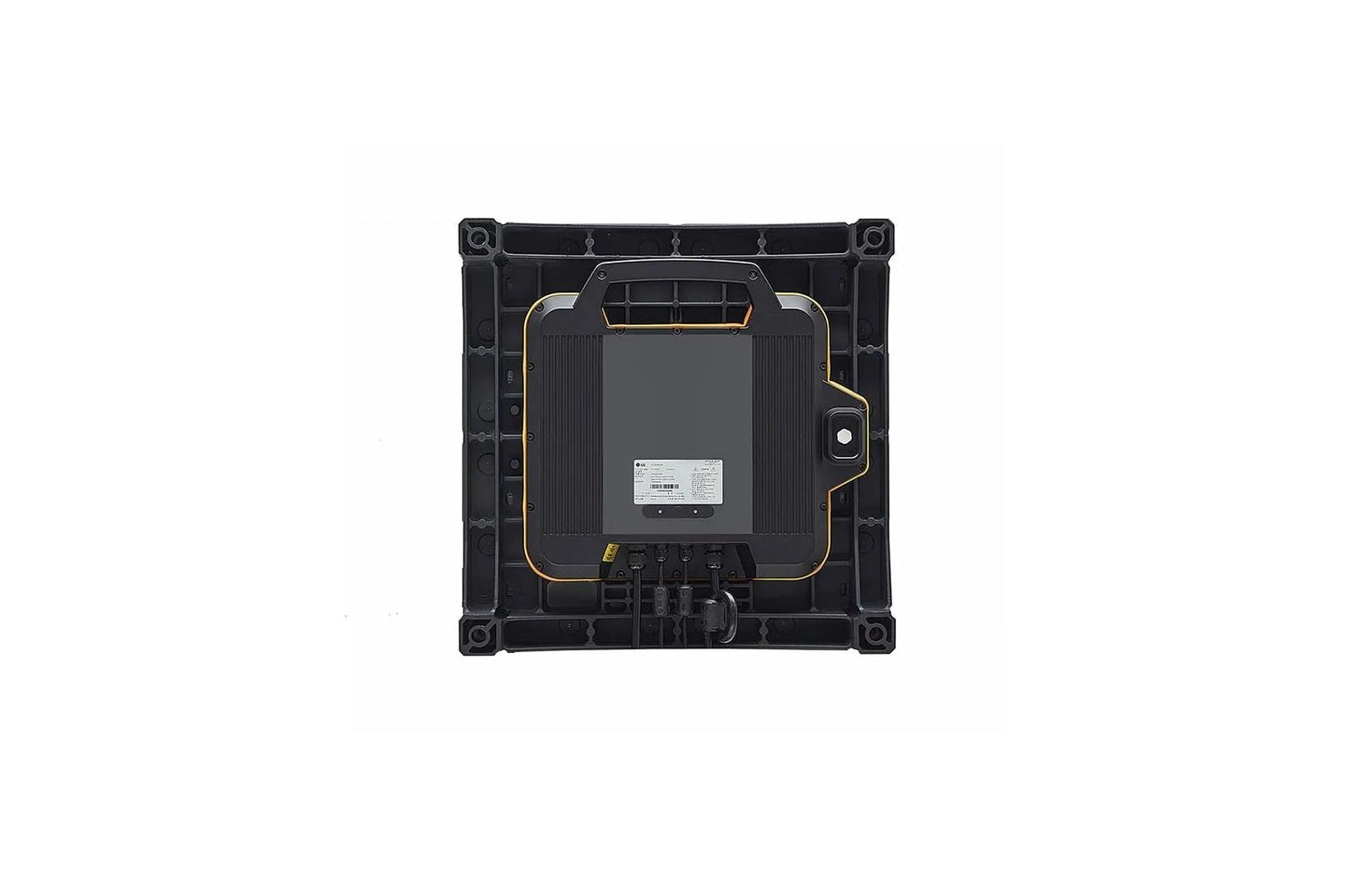

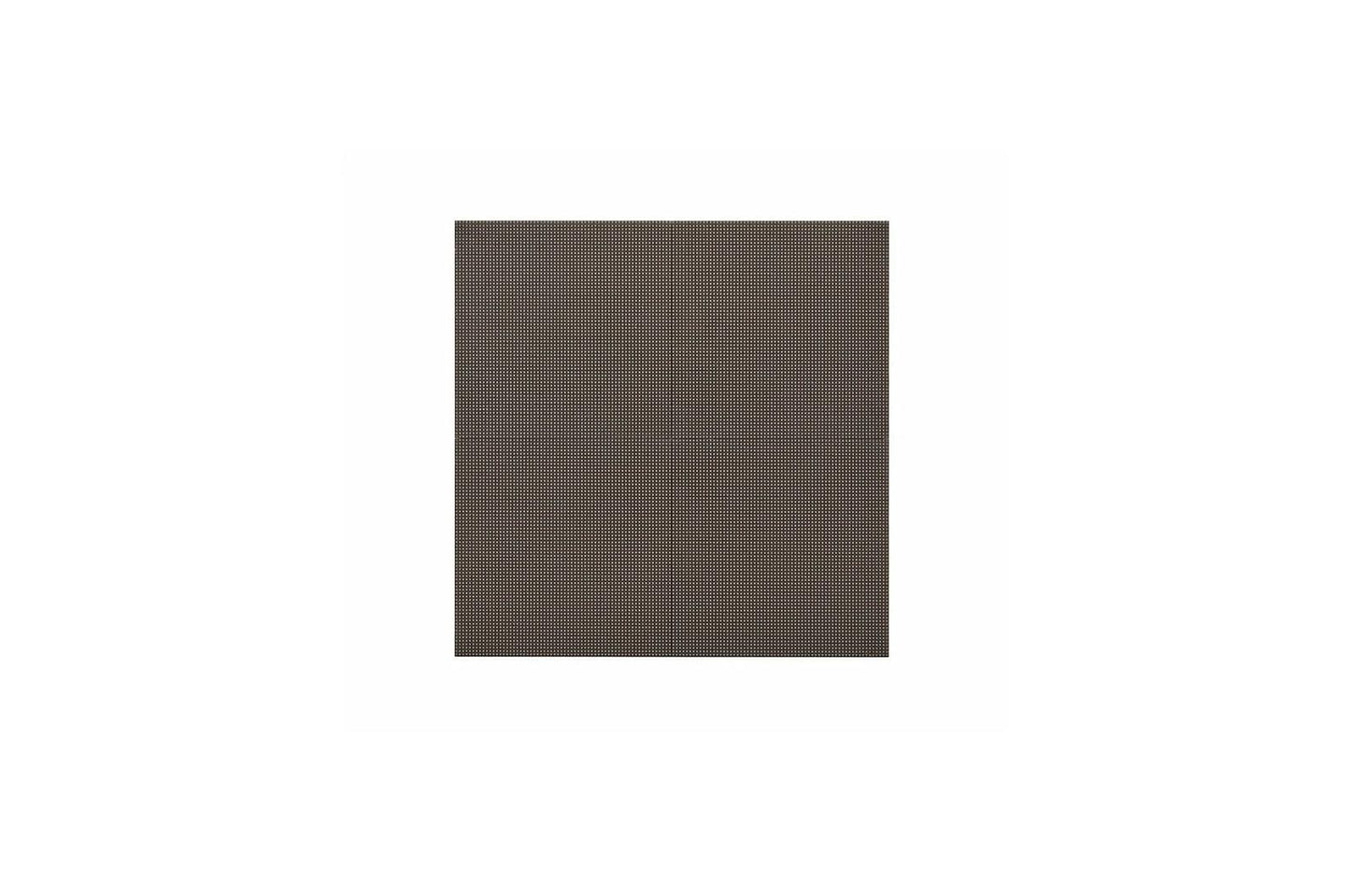

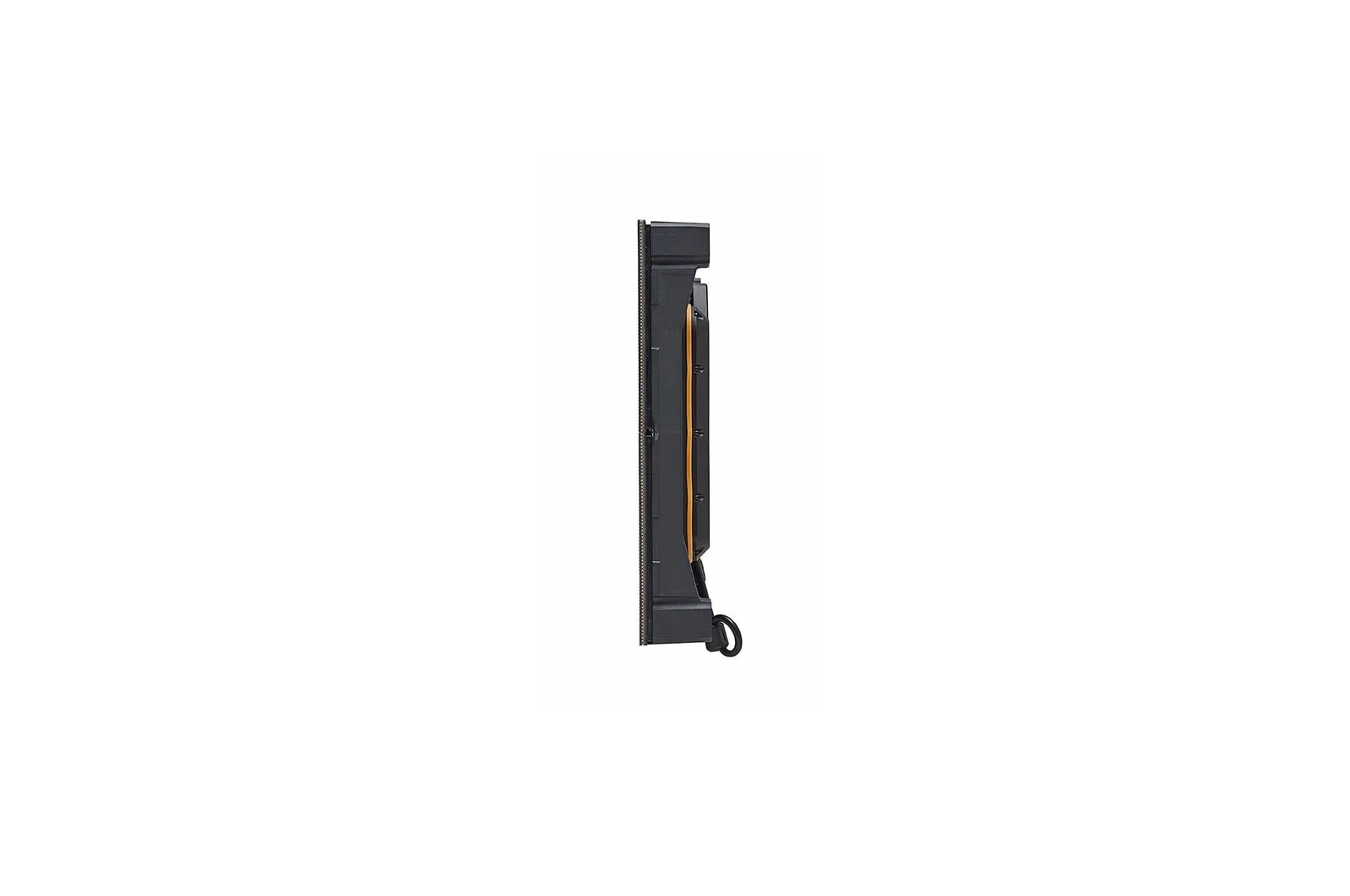

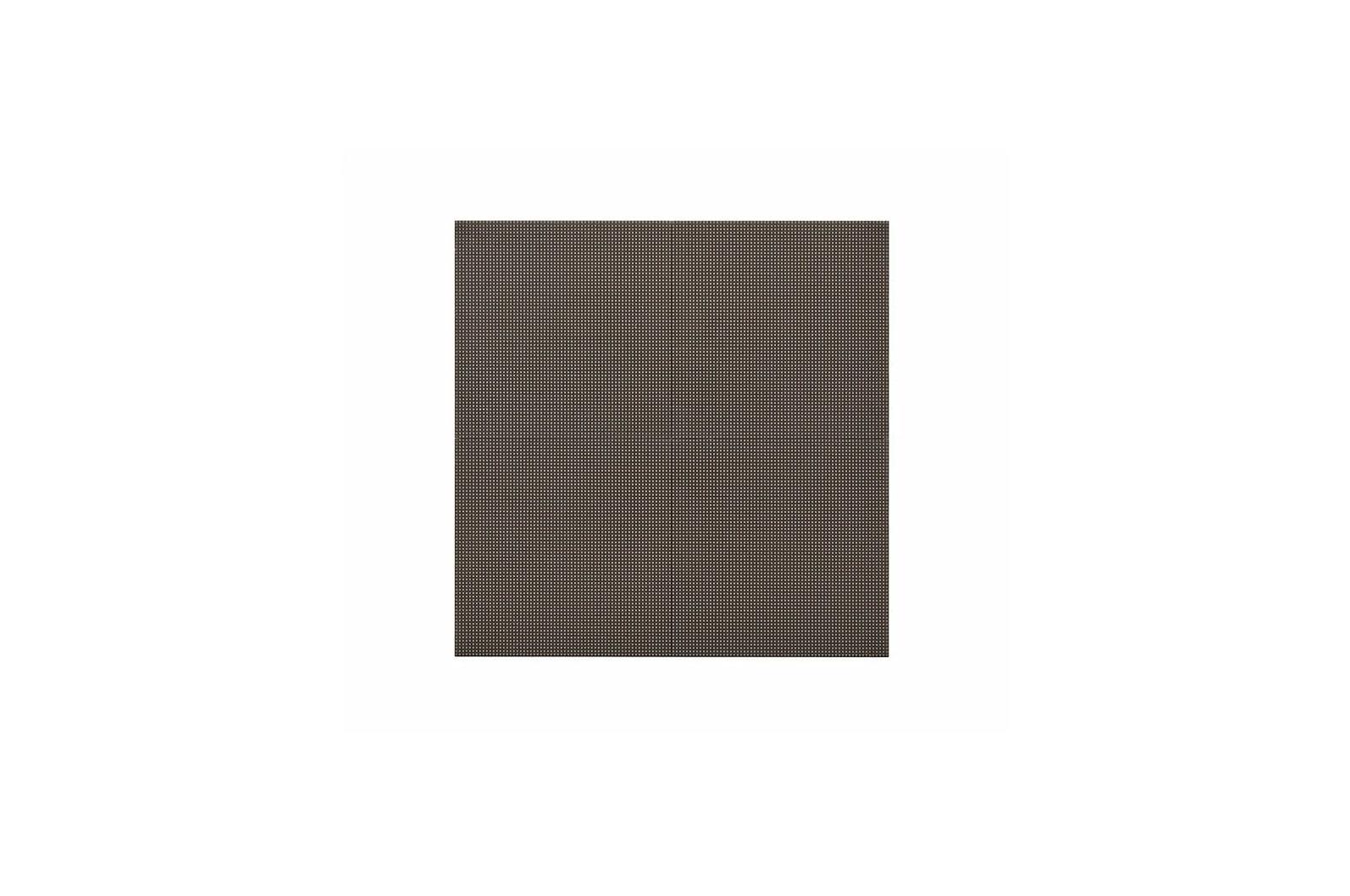

Lg LFCM039 LFCM Floor Direct View LED compatible with Megapixel VR Helios Controller
Lg LFCM039 LFCM Floor Direct View LED compatible with Megapixel VR Helios Controller
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 3.91 mm Pixel Pitch Single SMD
- IP65 Rated front & back and can handle a load up to 3,307 lbs.
- Up to 1,500 nits brightness with 160(degree) x 160(degree) viewing angle
- Megapixel VR Helios Controller (Sold seperately)
- Easy to install & maintain
- Lifetime up to 100,000 hours
LFCM Floor Direct View LED compatible with Megapixel VR Helios Controller
| Physical Parameters | |
| LED Type | Single SMD |
| Pixel Pitch | 3.91 mm |
| Module Resolution (W x H) | 64 x 64 |
| Module Dimensions (W x H) | 9.8 x 9.8 in / 250 x 250 mm |
| Weight per Module | 2.0 lbs / 0.9 kg |
| Total Modules (per cabinet) | 4 |
| No. of Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 128 x 128 |
| Cabinet Dimensions (W x H x D) | 19.7 x 19.7 x 3.3 in / 500 x 500 x 84.5 mm |
| Cabinet Surface Area | 2.7 ft / 0.25 m |
| Weight per Cabinet | 23.1 lbs / 10.5 kg |
| Weight per Unit Area | 48 kg/m |
| Physical Pixel Density | 65,536 pixels/m |
| Flatness of Cabinet | 0.5 mm |
| Cabinet Material | Die-casting Aluminum |
| Service Access | Front |
| 90 Degree Corner Cut | No |
| Curveable | No |
| Minimum Radius | N/A |
| Controller | Megapixel VR Helios TKPLE-M101 |
| min viewing distance (5-7 mm per foot) | 20-27 feet |
| Electrical | |
| Power Supply | 100 to 240V |
| Refresh Rate | 3,840 Hz |
| Frame Rate | 50 / 60 Hz |
| Power Consumption per Cabinet (Max.) | 180W |
| Heat Dissipation per Cabinet (Avg.) | 273 BTU/hr |
| Power Consumption per Unit Area (Max.) | 720 |
| Heat Dissipation per Unit Area (Max.) | 3,275.5 BTU/hr/m |
| Power Consumption per Cabinet (Avg.) | 60W |
| Heat Dissipation per Cabinet (Max.) | 818.9 W/m |
| Optical | |
| Max. Brightness (After Calibration) | Up to 1,500 nits |
| Color Temperature | 3,500-9,000K |
| Brightness Uniformity | 97% |
| Color Uniformity | 0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 16 bit |
| Visual Viewing Angle (H x V) | 160° x 160° |
| Lifetime (Half brightness) | Up to 100,000 hrs |
| Regulatory & Certifications | |
| ETL (Regulatory) | Yes |
| KC | No |
| CB | No |
| REACH (Environmental) | Yes |
| EN13501-1 | No |
| Fire Protection | No |
| Safety 60950-1 | No |
| CE (Regulatory) | Yes |
| CCC | No |
| RoHS (Environmental) | Yes |
| IP Rating (Solid / Liquid Ingress) (Front) | IP65 |
| FCC (Regulatory) | Yes |
| BS476 Part7 (UK Fire Rating) | No |
| Eye Comfort | No |
| cTUVus | No |
| IP Rating (Solid / Liquid Ingress) (Rear) | IP65 |
| TAA Compliance | No |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Environmental Conditions | |
| Operating Humidity | 0% to 80% RH |
| Operating Temperature | 14° F to 114° F / -10° C to 45° C |
