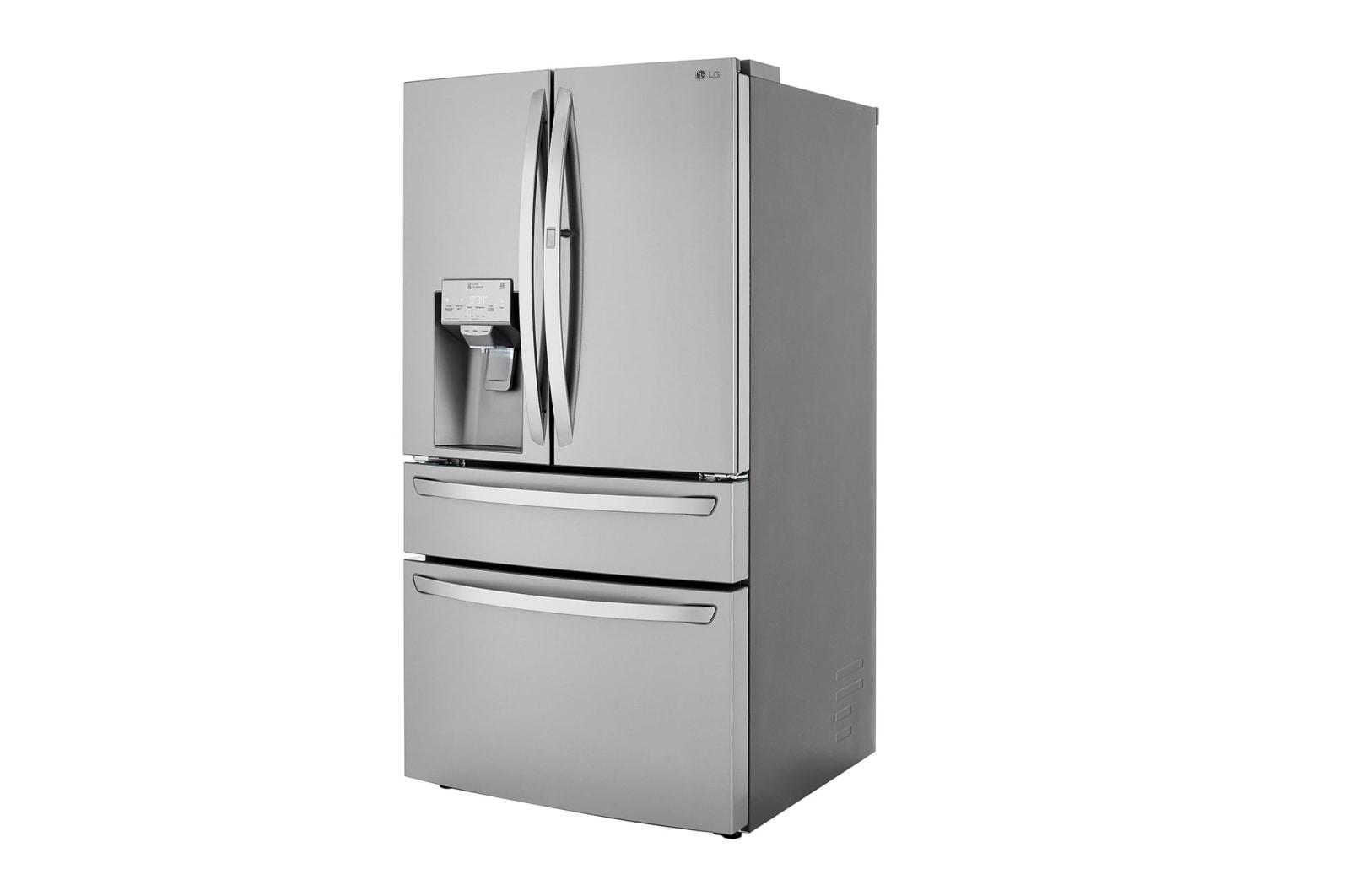

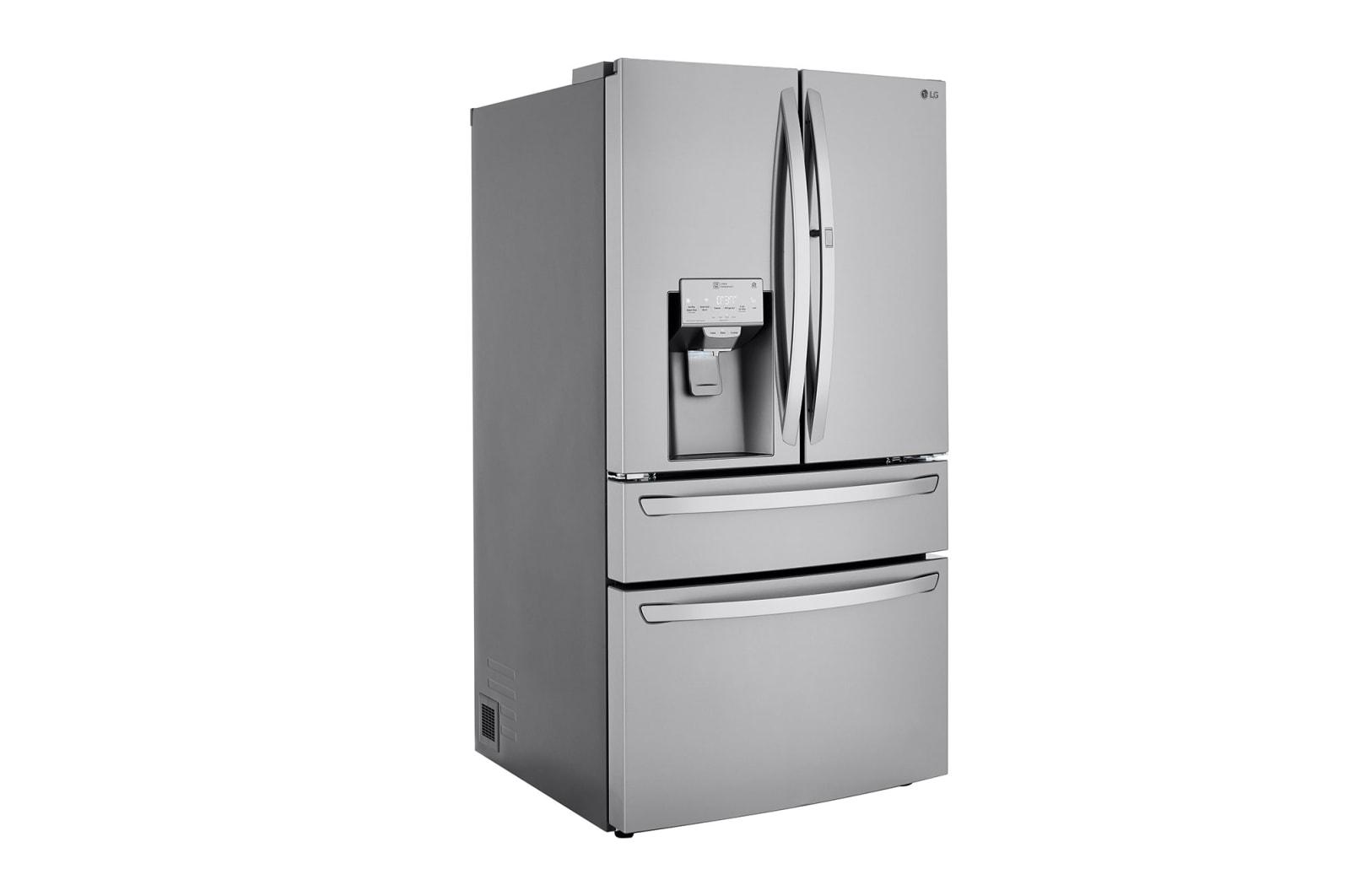

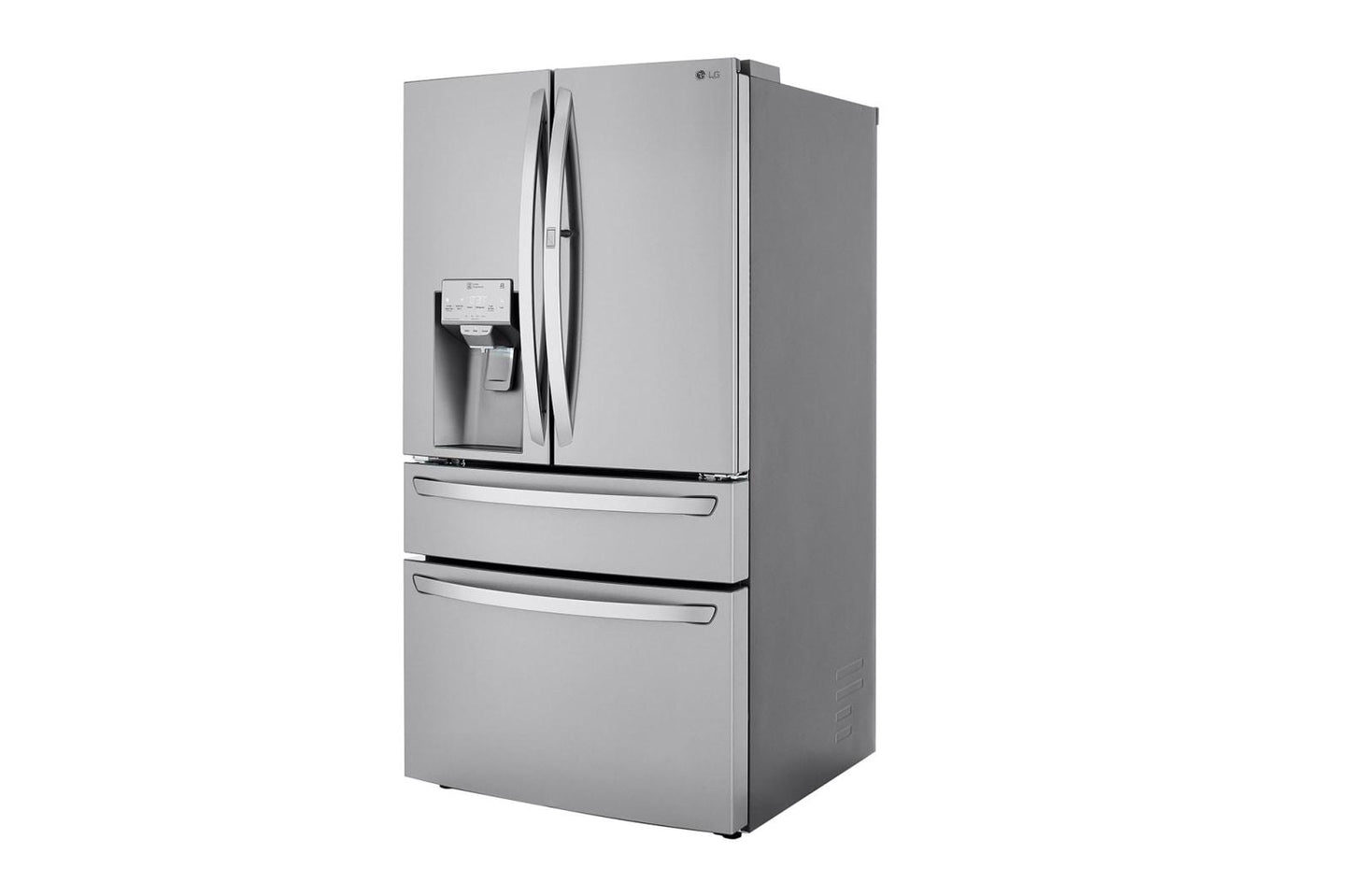

23 cu. ft. Smart Counter-Depth Refrigerator with Craft Ice™
Free US shipping on all orders $1000 or more.
Estimated delivery in NY/NJ area is 3-5 business days.
7-14 days for all other locations in the 48 states.
- 23 cu. ft. Capacity
- Counter-Depth
- Door-in-Door®
- Full-Convert™ drawer with 5 temperature settings
- Dual Ice Maker with Craft Ice™
- ThinQ® Technology with ThinQ Care
Complete this guide to help ensure a successful delivery and installation.
Peace of mind built-in
Now select LG appliances come with Proactive Customer Care, activated when you download the ThinQ® app and connect your smart appliance. Get recommended maintenance tips and usage reports to help keep your appliances running at their best. Plus receive alerts for potential problem before they arise.

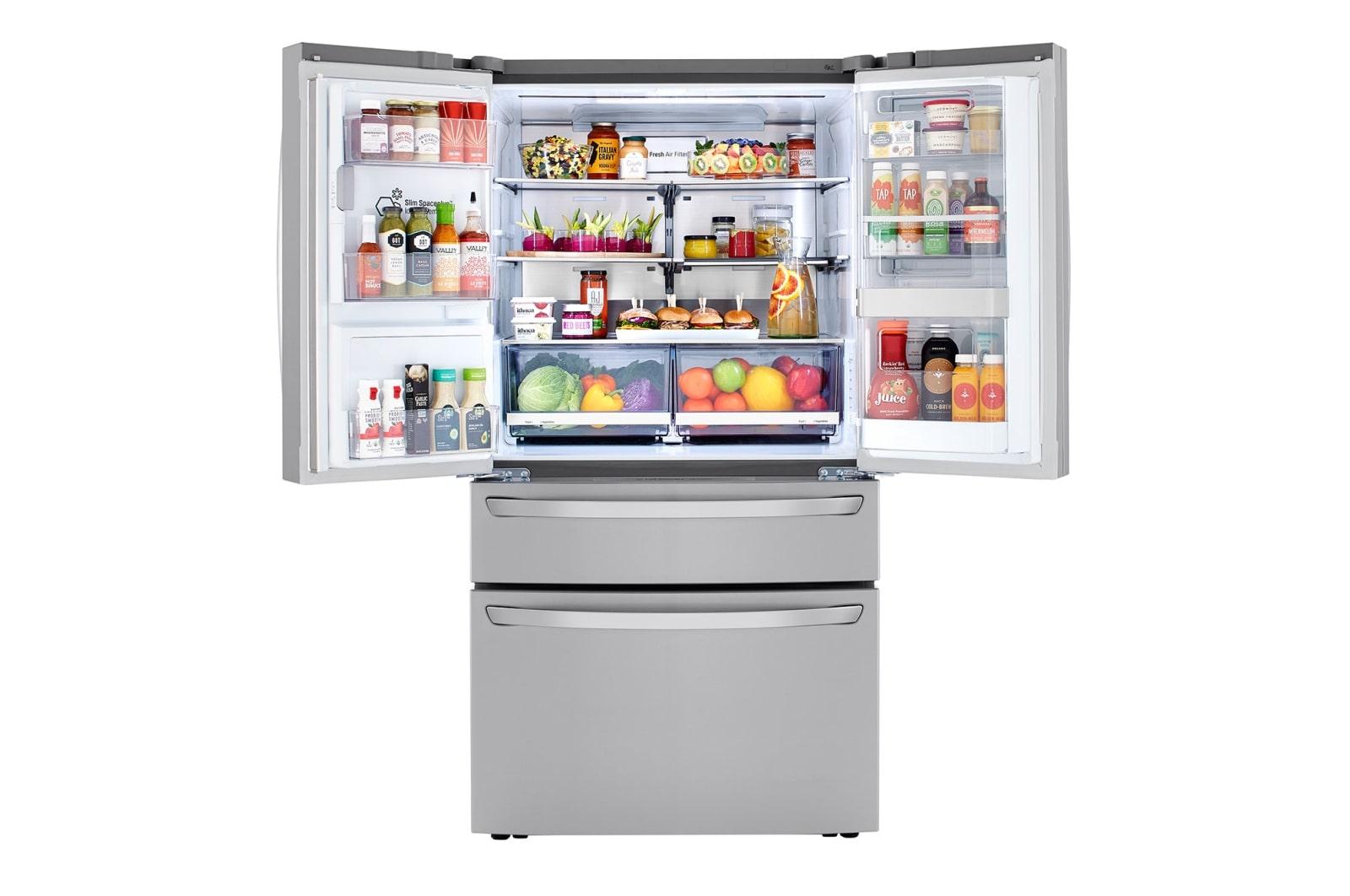

Space When You Need It
Get more space for groceries in a great feature-packed refrigerator. Nothing beats the convenience of having more food when you need it, and with a generous 23 cu. ft. of space, you'll have room and room to grow.

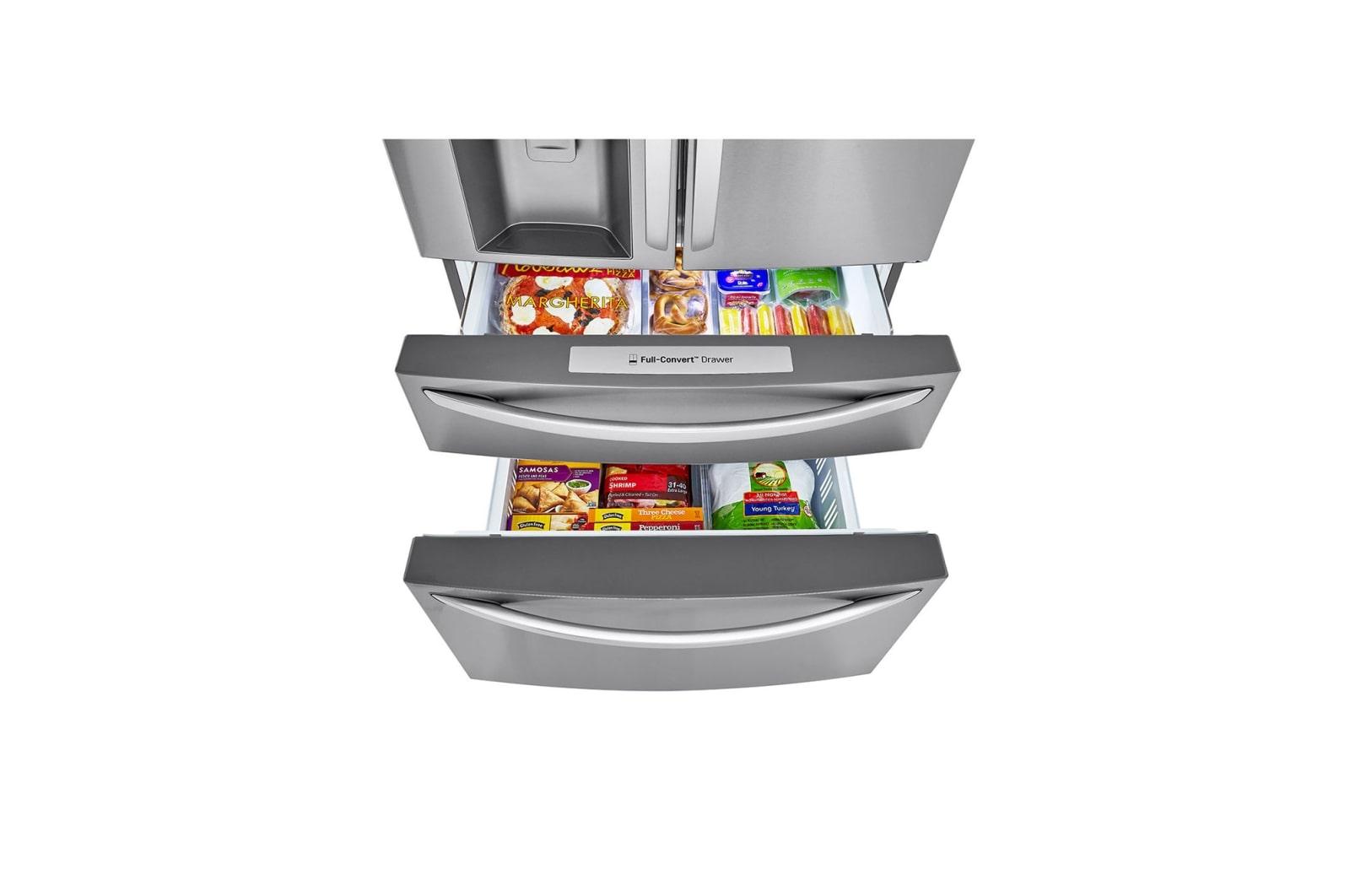

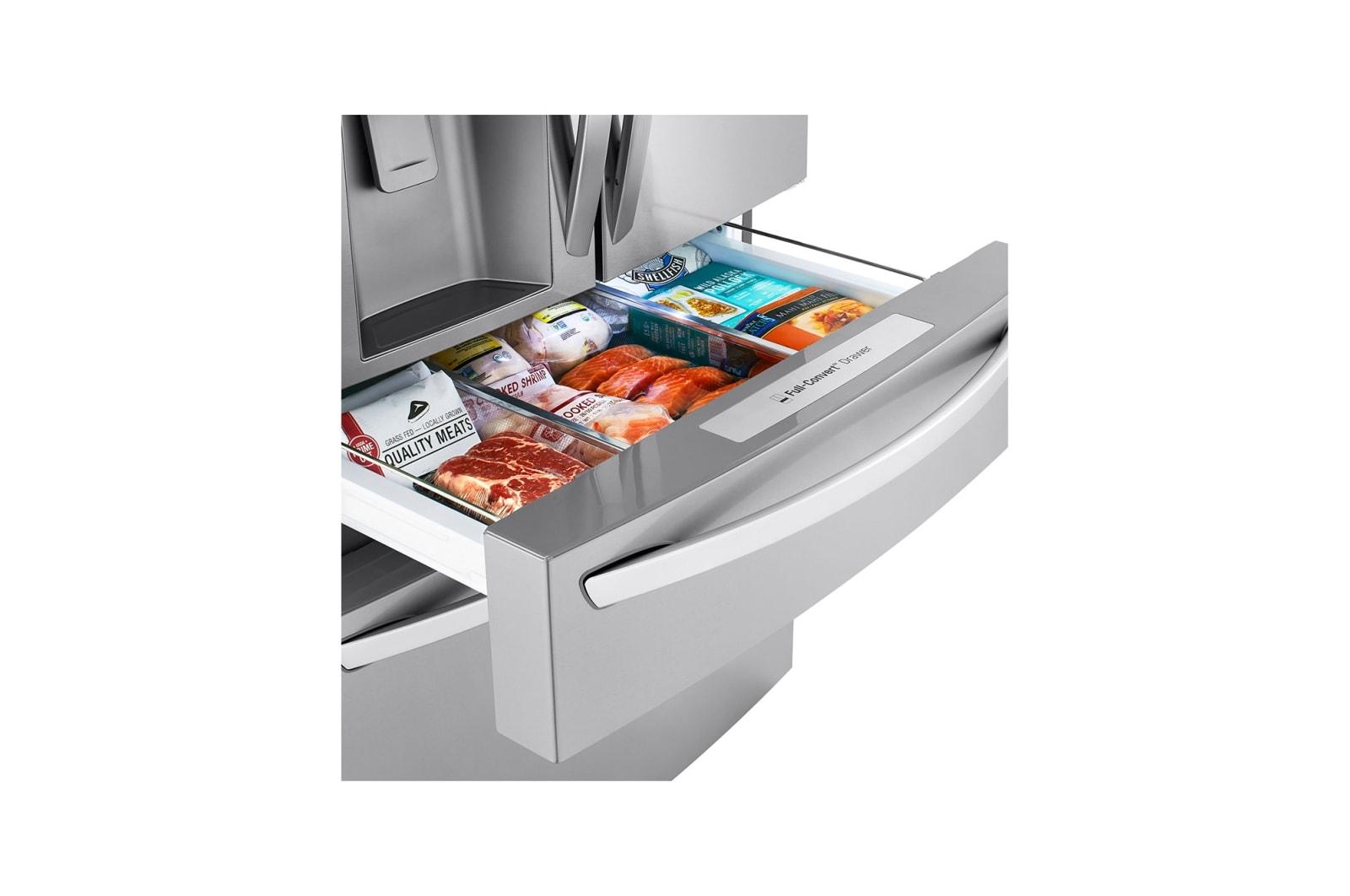

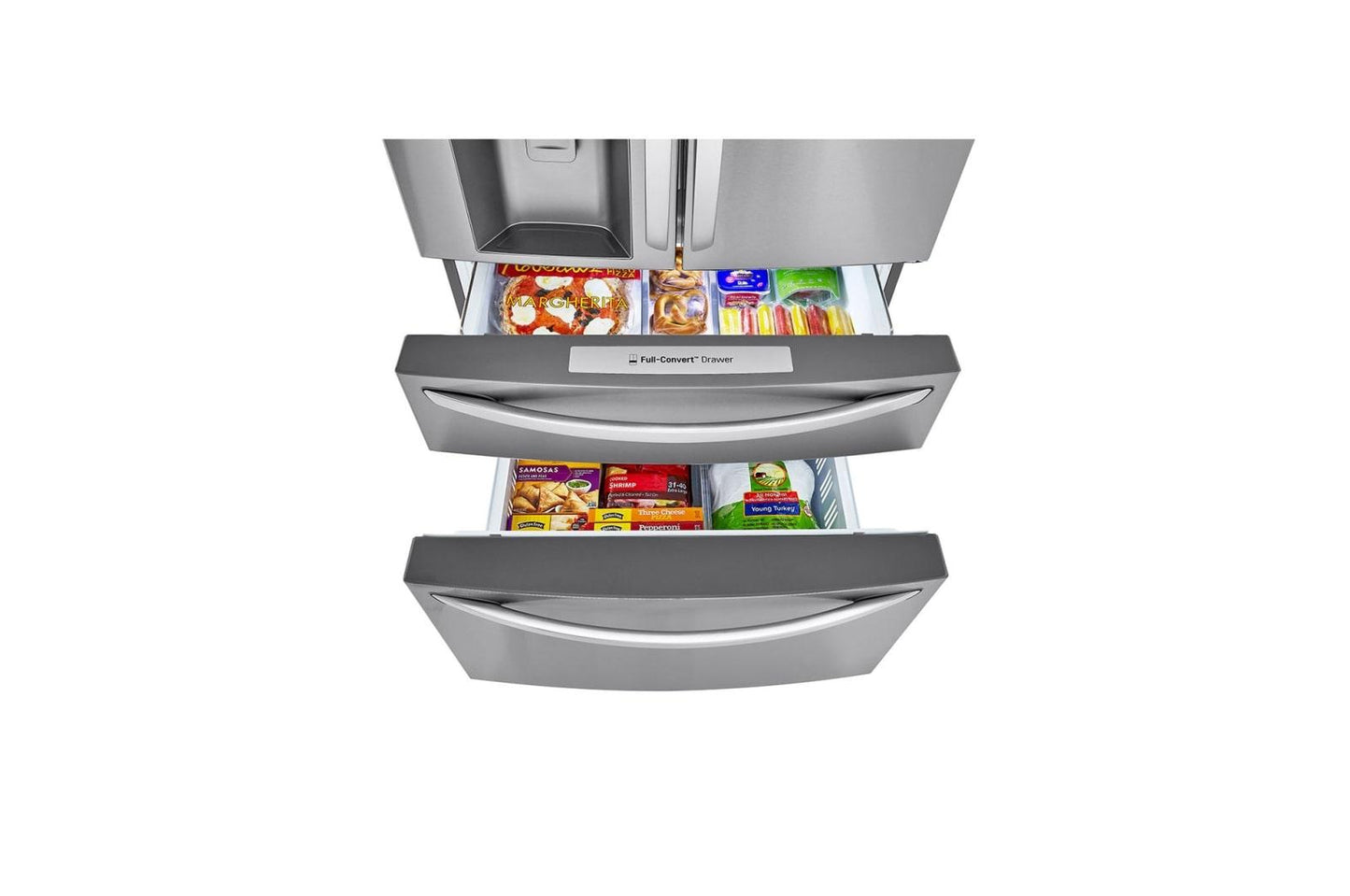

From Chill to Freeze and In Between
Get more usable space but keep it flexible with the Full-Convert™ Drawer - now with five temperature settings to fit your family's needs. Choose from Chilled Wine, Deli/Snacks, Cold Drinks, Meat/Seafood, and Freeze settings. Plus, adjustable dividers keep everything organized.

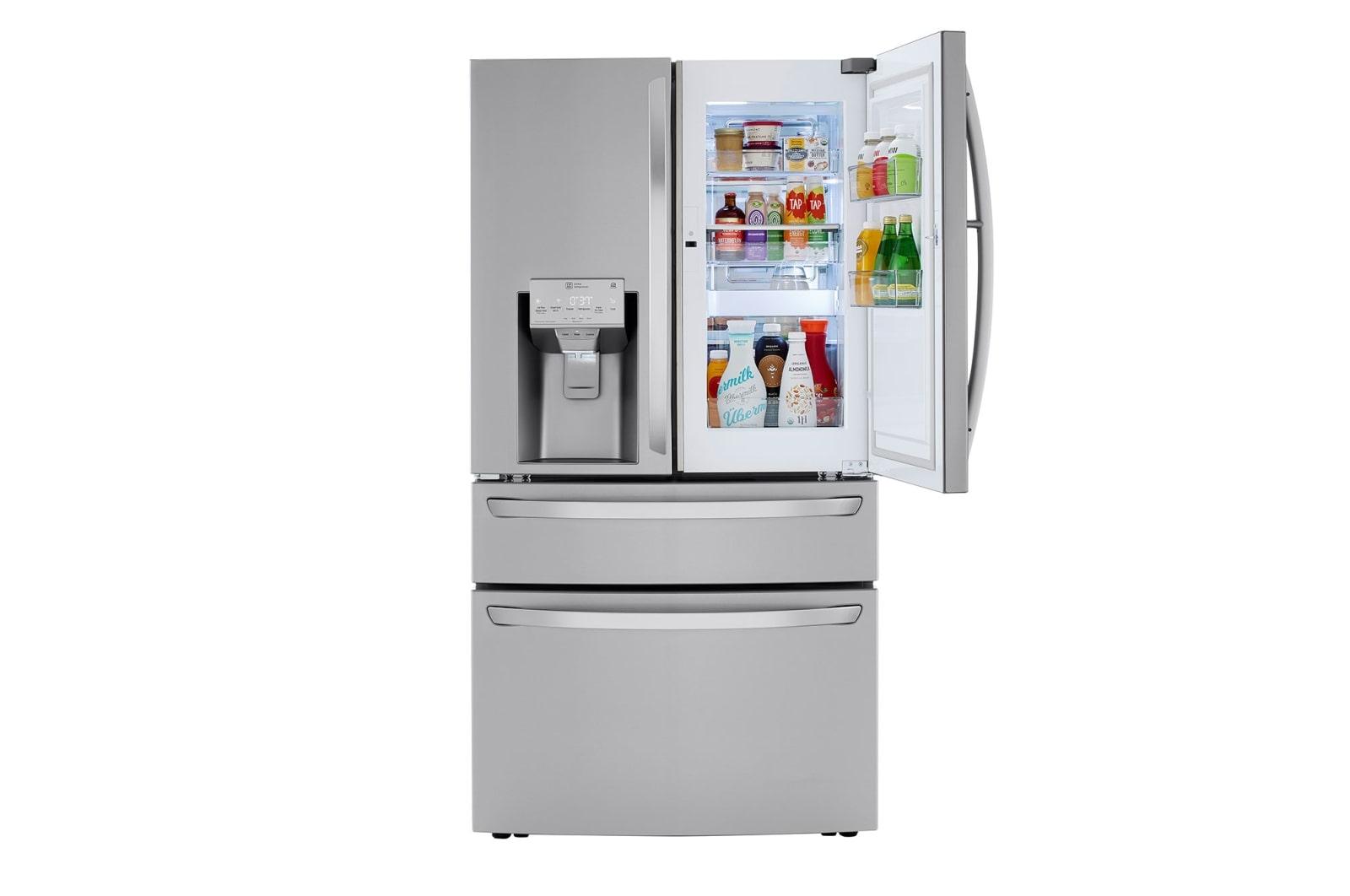

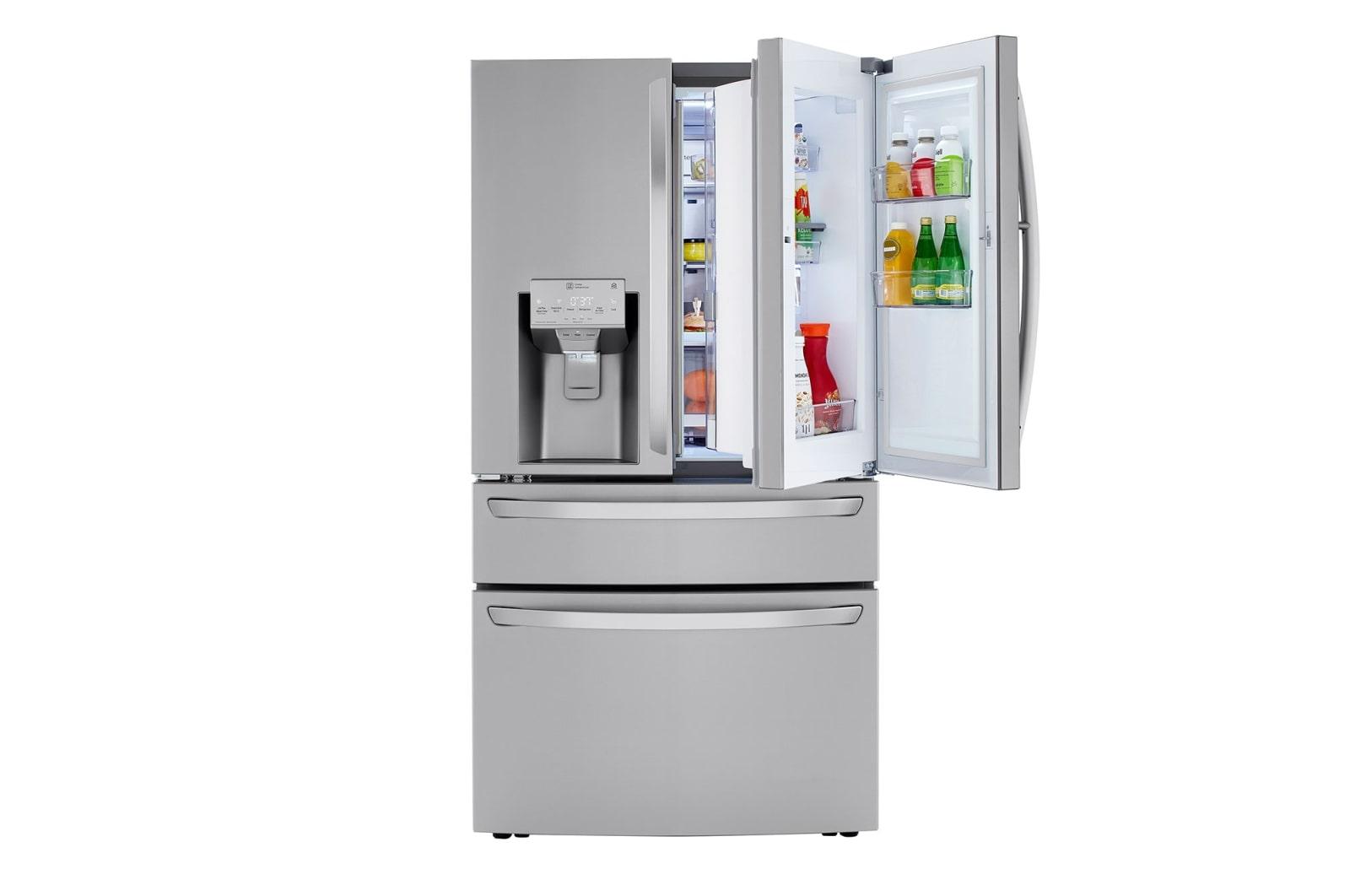

Reach Favorites Fast and Fit More
Offering quick and easy access to favorite foods, the popular Door-in-Door® design gets even better with adjustable bins that smoothly glide up and down to fit snacks and drinks of all sizes.

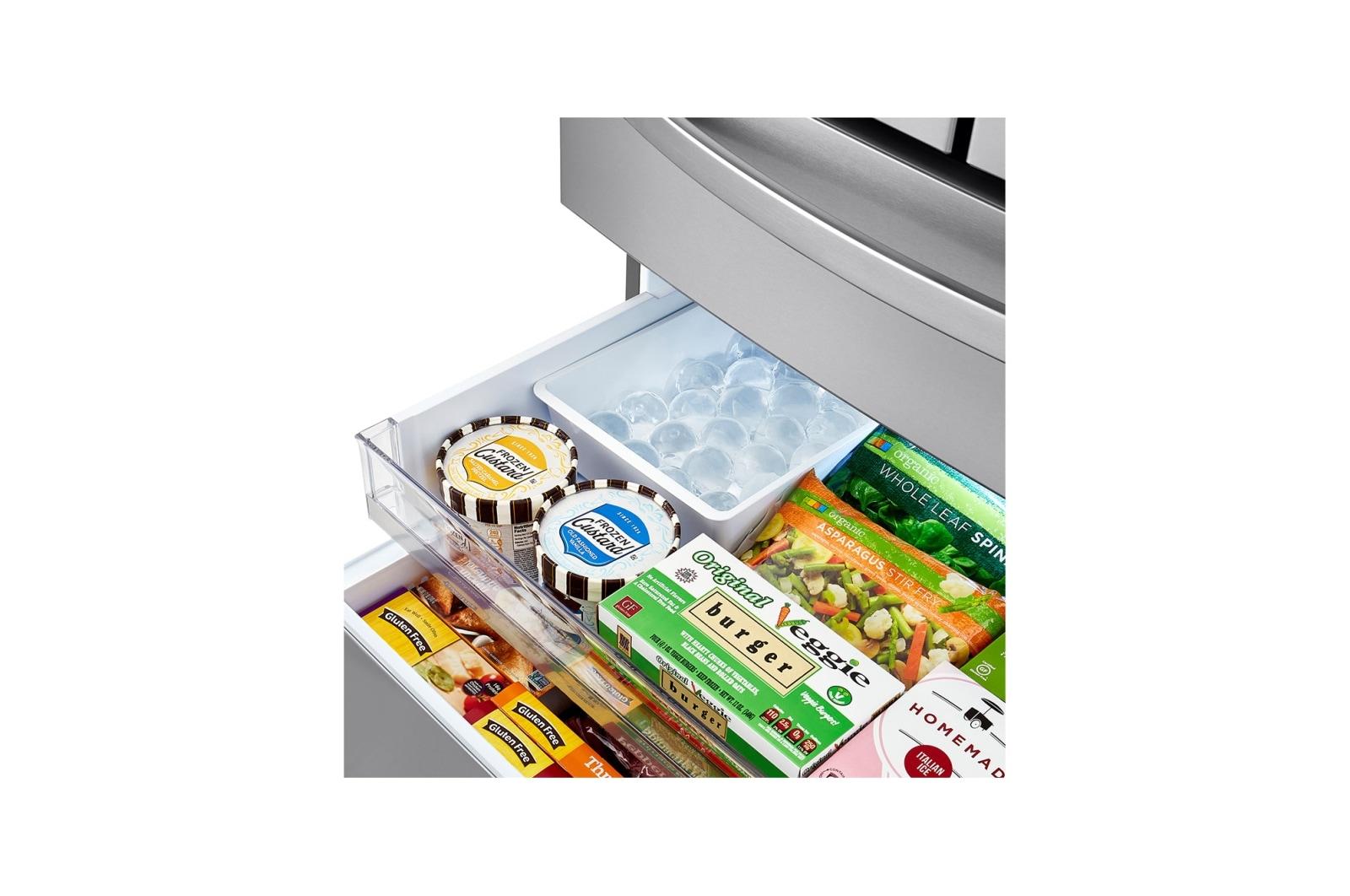

Dual Ice Maker with Craft Ice™
LG's exclusive Craft Ice™ slow melting round ice maker automatically makes batches of three ice spheres per day without the work of time consuming molds. Give your beverages the perfect ice for next level entertaining, from craft cocktails & whiskey to soft drinks, lemonade, even iced coffee. To get even more Craft Ice™, activate Craft Ice+ in the ThinQ® App to make slow-melting ice twice as fast.

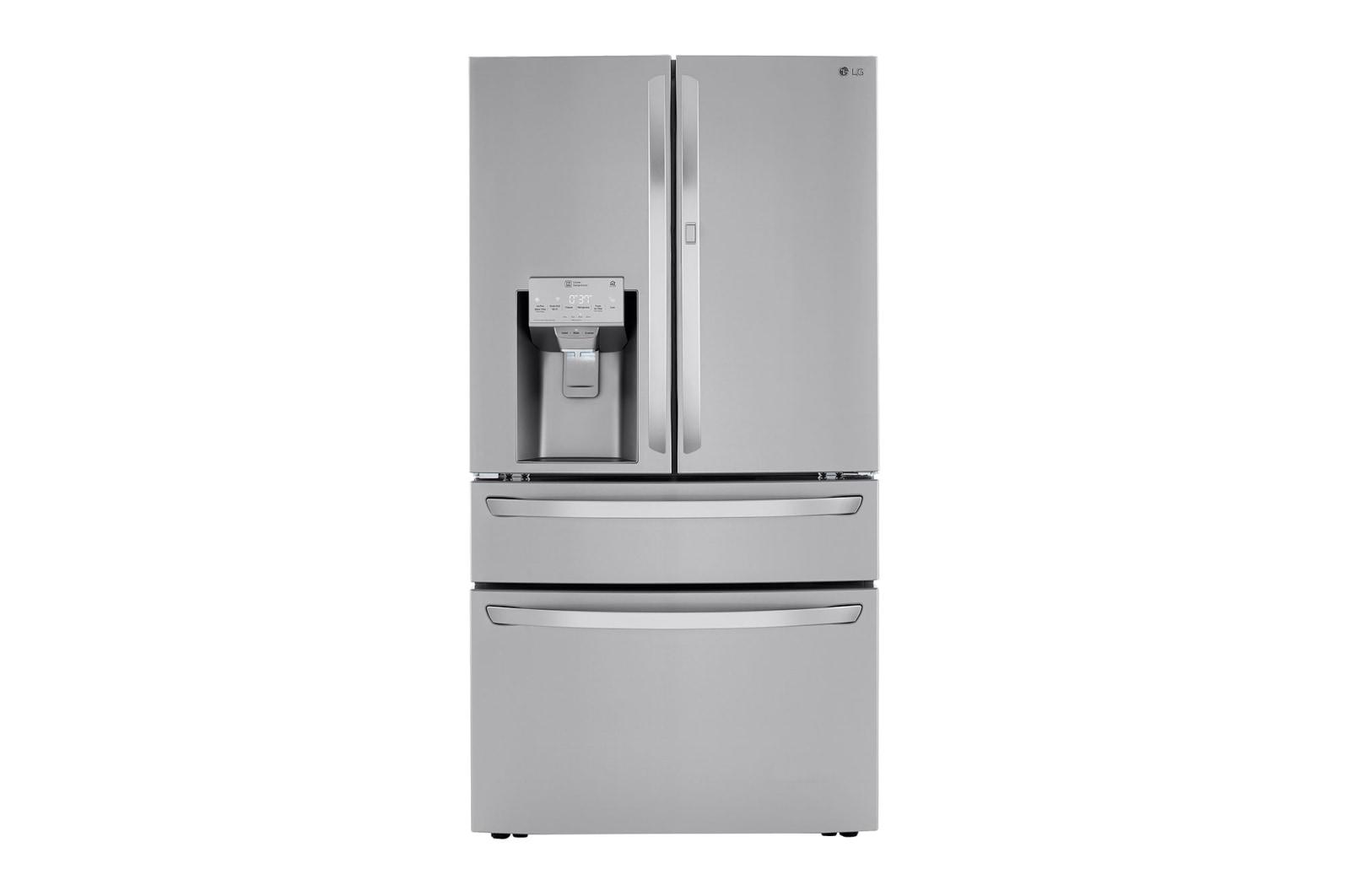

Sharp Design, Seamless Fit
Enjoy a built-in look with the counter depth feature on this LG refrigerator. Thanks to its slightly shallower depth, it can stand flush with your counter top for a sleek look.

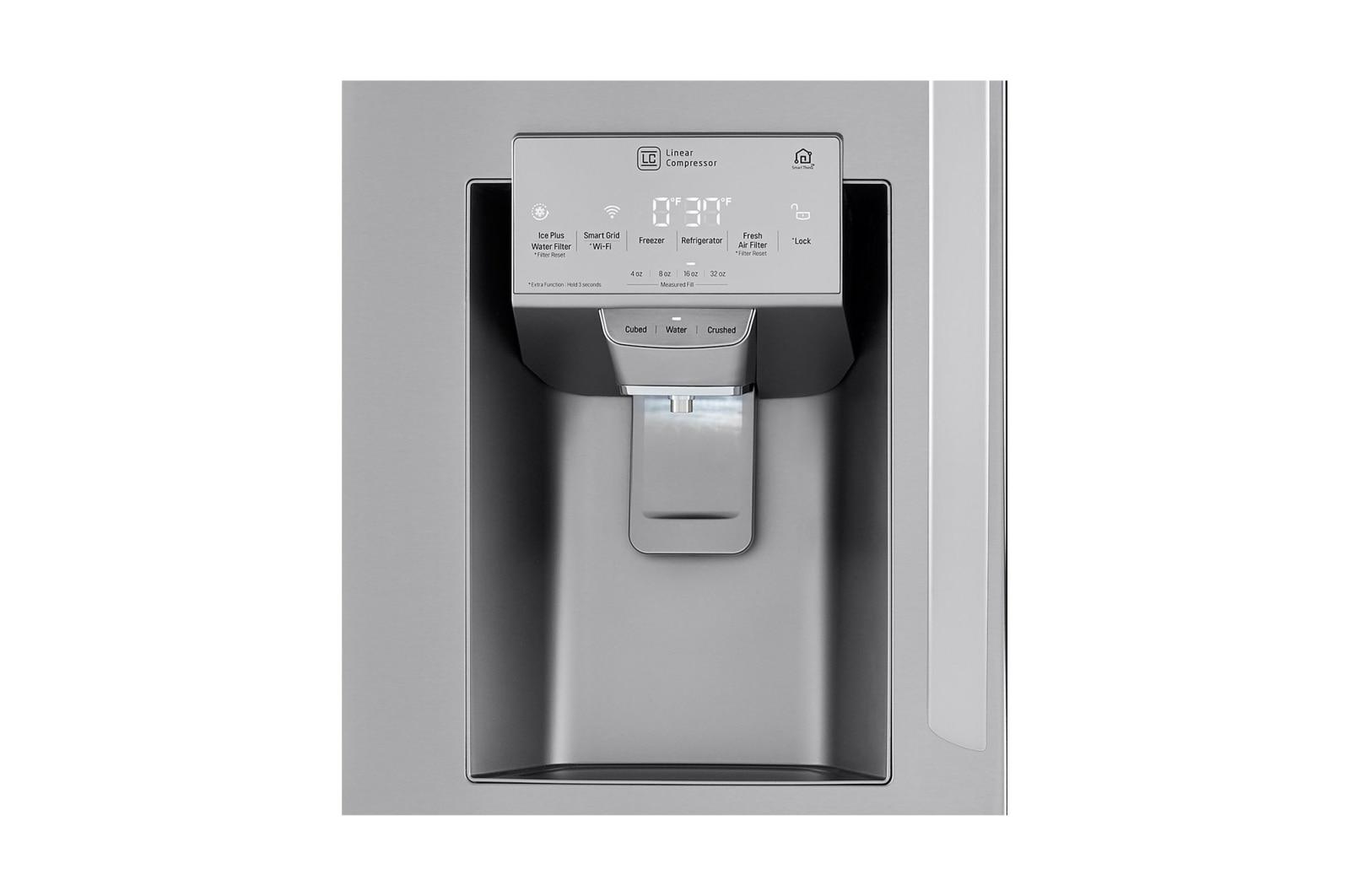

One Size Fills All
Finally, an ice & water dispenser that can accommodate just about any bottle size. With the convenient Measured Fill feature, you can also dispense exact amounts of filtered water in ounces (4,8,16, or 32).
Most shelf space*
Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.
CAPACITY | |
Freezer (cu.ft.) | 6.5 cu.ft. |
Full-Convert™ Drawer | 2.8 cu.ft. |
Refrigerator (cu.ft.) | 13.2 cu.ft. |
Total Capacity (cu.ft.) | 22.5 cu.ft. |
CONVENIENCE | |
Auto Closing Door Hinge | Yes |
Child Lock | Yes |
Display Type | Smooth Touch Control / White LED |
Door Alarm | Yes |
LoDecibel™ Quiet Operation | Yes |
Sabbath Mode | Yes |
Temperature Controls | Electronic/Digital |
COOLING | |
Door Cooling+ | Yes |
Evaporator | 2 |
Fresh Air Filter | Yes |
Linear Compressor | Yes |
Multi-Air Flow™ System | Yes |
Smart Cooling Plus™ System | Yes |
Temperature Sensors | 9 |
DIMENSIONS/CLEARANCES/WEIGHTS | |
Carton Dimensions (WxHxD) | 38" x 73" x 33" |
Depth (Total with Door Open) | 43.25" |
Depth with Handles | 31.25" |
Depth without Door | 24.12" |
Depth without Handles | 28.88" |
Door Edge Clearance with Handle | 4.63" |
Door Edge Clearance without Handle | 2.25" |
Height to Top of Case | 69.13" |
Height to Top of Door Hinge | 70.25" |
Installation Clearance | Sides 1/8 |
Weight (Unit/Carton) | 322 lbs./344 lbs. |
Width | 35.75" |
Width (Door Open 90 with Handle) | 45.38" |
Width (Door Open 90 without Handle) | 40.75" |
ENERGY | |
Energy Consumption (kWh/Year) | 716 |
ENERGY STAR® Qualified | Yes |
FREEZER | |
Door Type | Pull Drawer |
Drawer Divider | Yes |
Drawers | 2-Tier Organization |
DuraBase™ Solid Drawer Base | Yes |
Freezer Handle | SmartPull™ Handle |
Freezer Light | Premium LED |
Ice Bin / In-Door Ice | Icemaker & Ice bin in the freezer |
LIMITED WARRANTY | |
Compressor (Parts & Labor) | 5 Years |
Linear Compressor (Parts Only) | 6-10 Years |
Parts & Labor | 1 Year |
Sealed System (Parts & Labor) | 5 Years |
UPC | 048231807289 |
MATERIALS AND FINISHES | |
All Available Colors | PrintProof™ Stainless Steel PrintProof™ Black Stainless Steel |
Contour Door | Yes |
Fingerprint & Smudge Resistant Exterior | Yes |
Handles | Matching Commercial Handles |
Hidden Hinges | Yes |
Surface | Smooth |
REFRIGERATOR | |
Adjustable Door-in-Door® Bins | Yes |
Cantilevered Shelves | Yes |
Cool Guard | Yes |
Crisper Bins | 2 Humidity Crisper |
Door Bin Construction | 1 Piece (Clear) |
Door-In-Door® with ColdSaver™ Panel | Yes |
Folding Shelf | 1 |
No. of Bins | 8 |
No. of Shelves | 4 Split (3 Fixed + 1 Folding) |
Refrigerator Light | Micro Surface LED |
Shelf Construction | Spill Protector™ Tempered Glass |
SUMMARY | |
Series | LG |
THINQ® SMART FEATURES | |
SmartDiagnosis™ | Yes |
ThinQ® | Yes |
wi-fi Enabled | Yes |
Works with | Amazon Alexa, Google Assistant |
Temperature Range (°F) | |
Freezer | -7, 29, 33, 37, 41 |
TYPE | |
Type | French Door |
WATER & ICE SYSTEM | |
Craft Ice™ Daily Ice Production | 0.4 lbs |
Daily Ice Production (lbs) | 3.5 lbs |
Dispenser Light | Yes |
Dispenser Type | Global Dispenser |
Dual Ice with Craft Ice™ | Yes |
Ice & Water Dispenser | Yes |
Ice Storage Capacity (lbs) | 3.0 + 3.6 lbs (Craft Ice 27 Sets) |
Ice System | Slim SpacePlus® |
IcePlus™ Production (lbs) | 3.8 lbs |
Measured Fill | Yes |
Water Filter | LT1000P |
