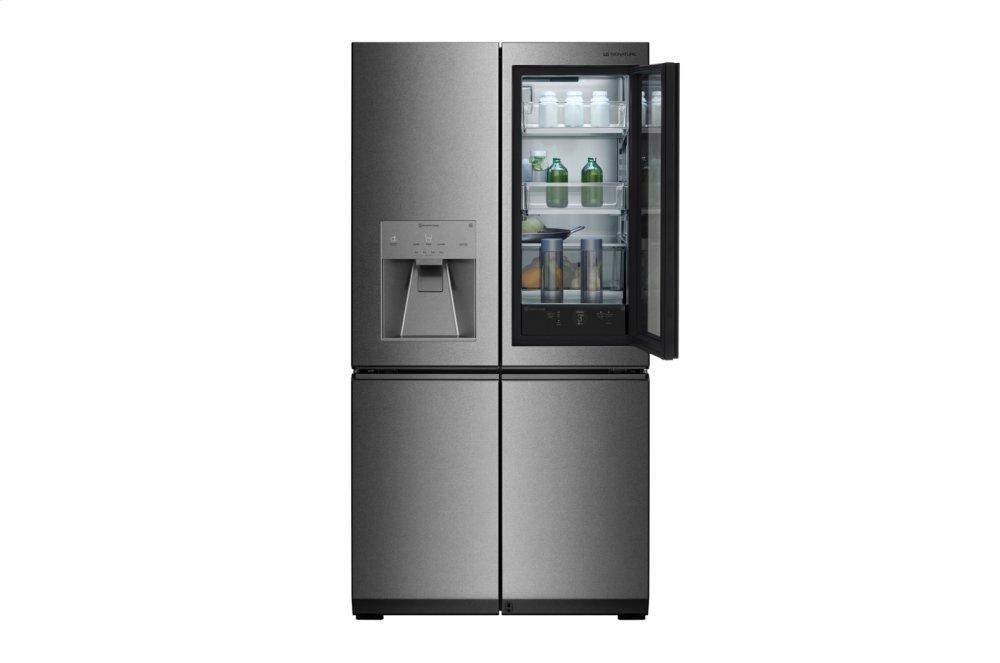

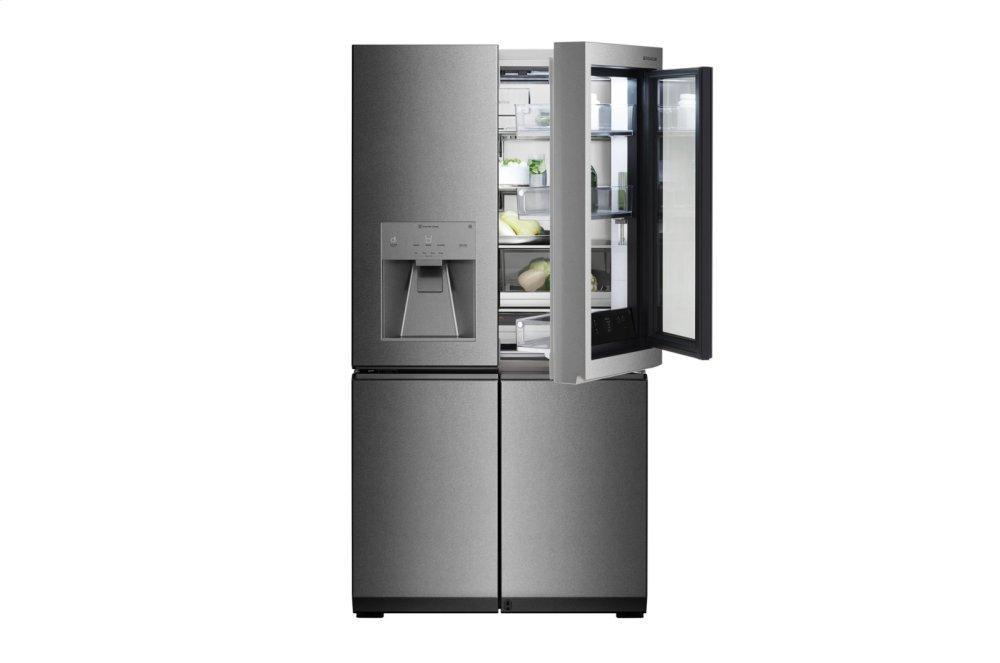

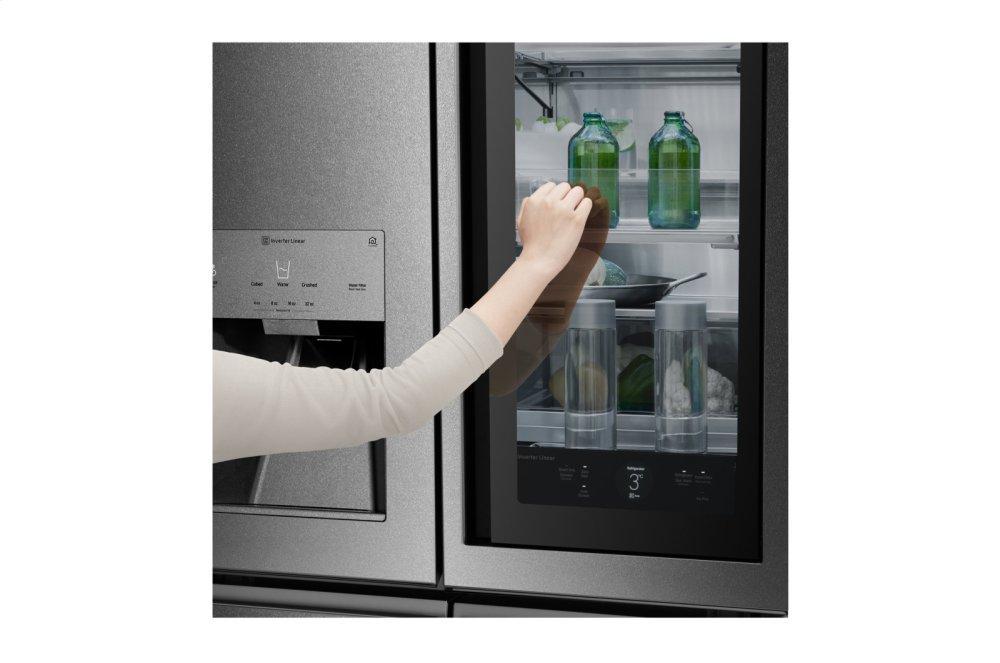

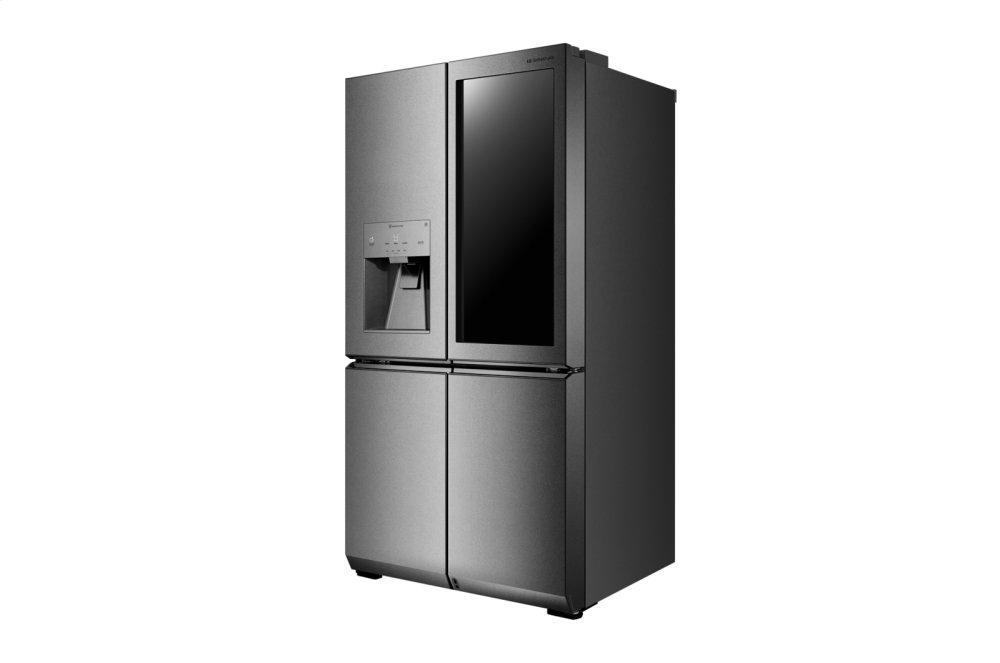

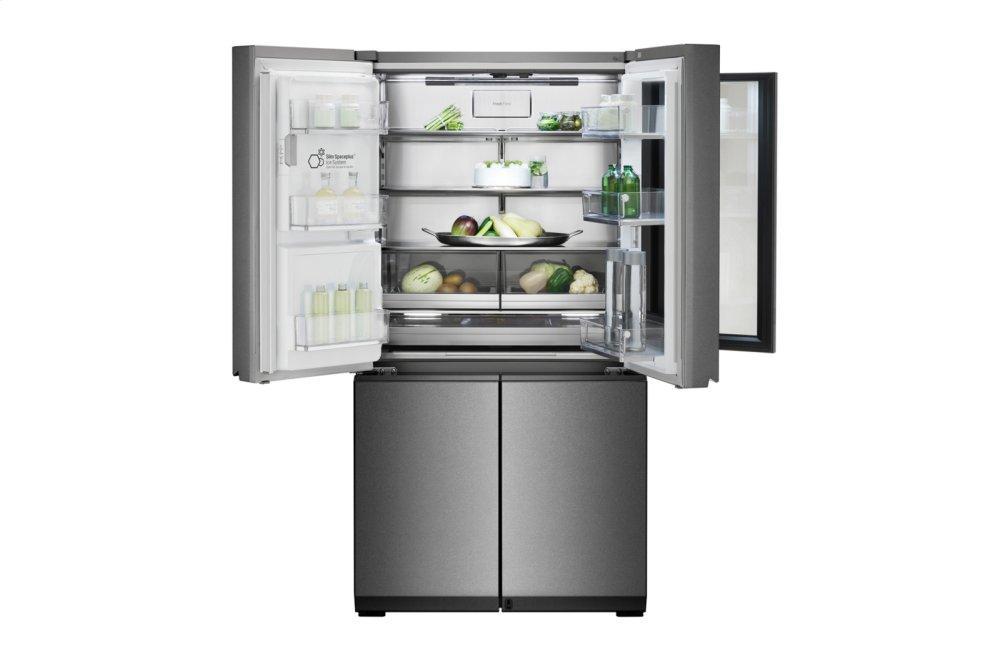

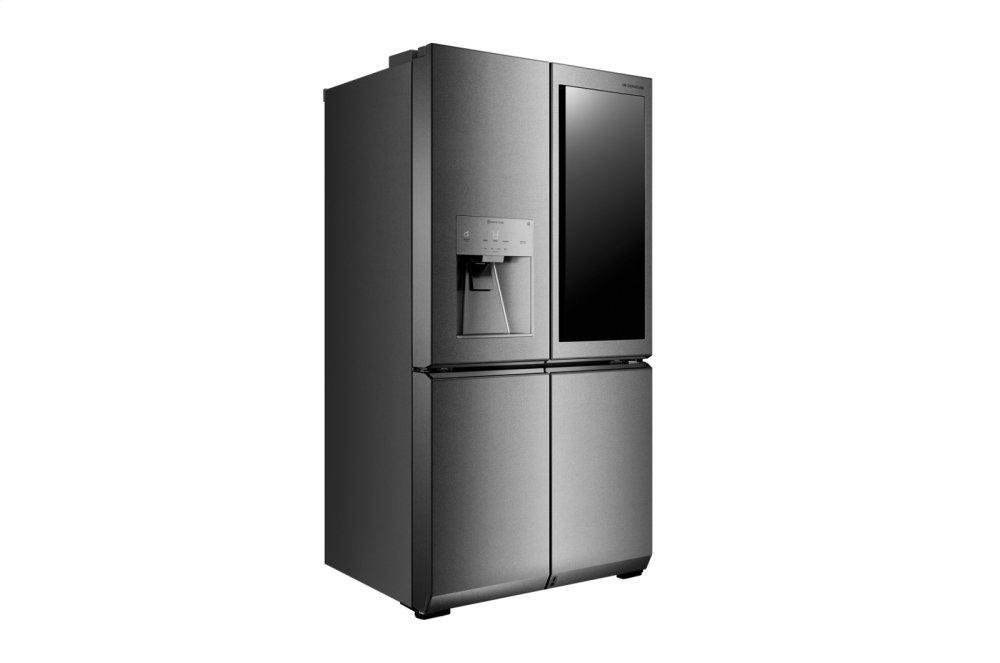

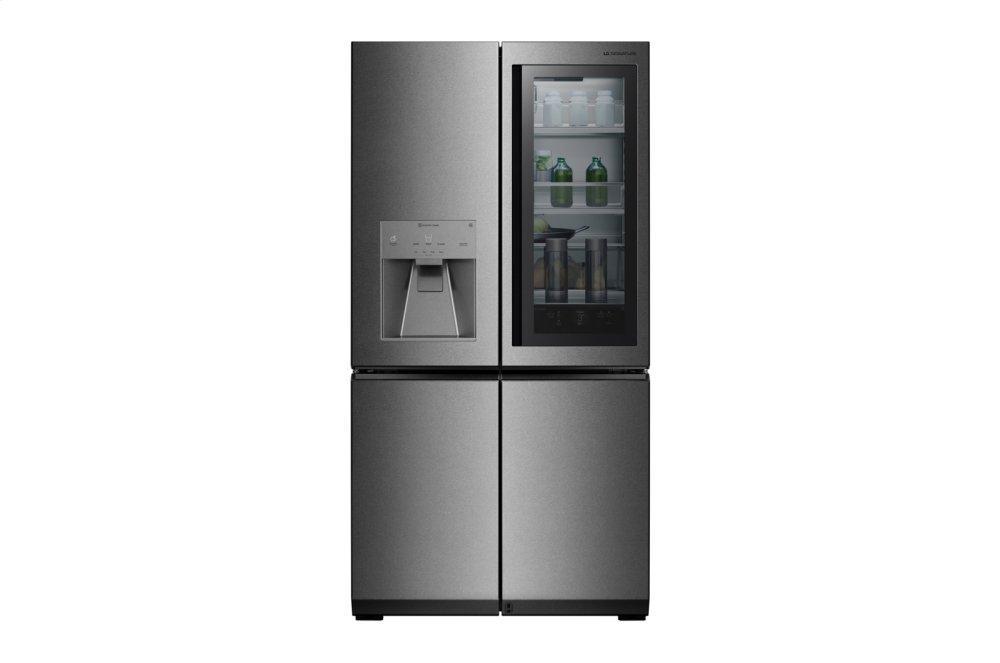

LG SIGNATURE 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator
Available Colors:

- LG SIGNATURE

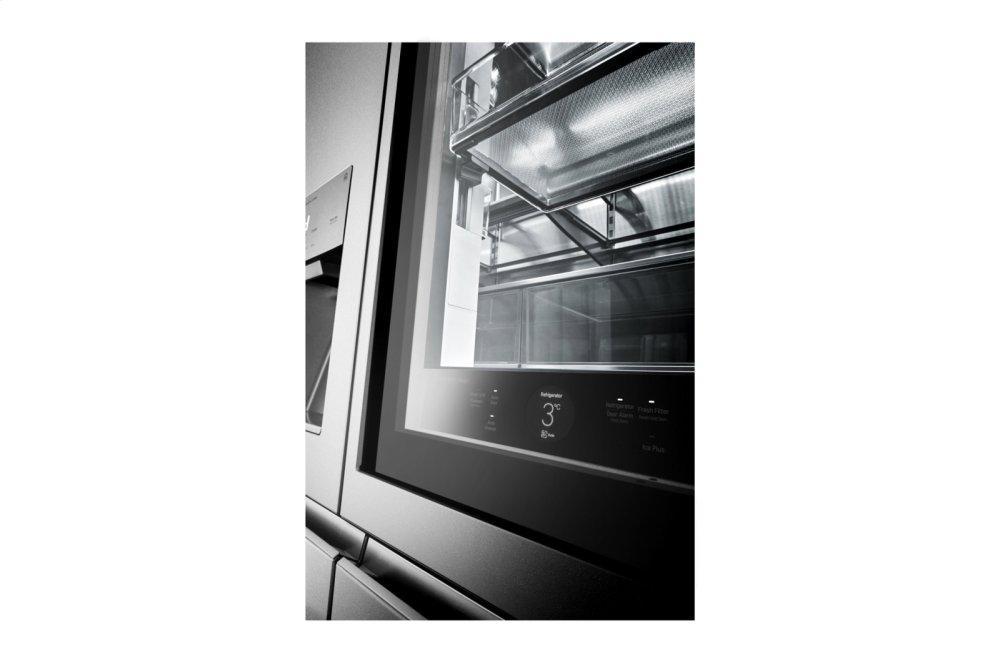

- InstaView™ Door-in-Door®
- Auto Open Door™
- Textured Steel™ Finish
- Fresh Filter
- Custom Chill™
LG SIGNATURE stays true to the essence, delivering a new sense of life for the most discerning individual.
Auto Open Door™
feature is a smart sensor detector at the foot of the refrigerator that opens the door automatically. Just step on the "Door Open" light projection on the floor in front of the refrigerator and the door gently opens.
Textured Steel™
Full stainless steel body with a scratch-resistant textured finish makes for an impeccable exterior design, enhancing its minimalist style to the fullest.

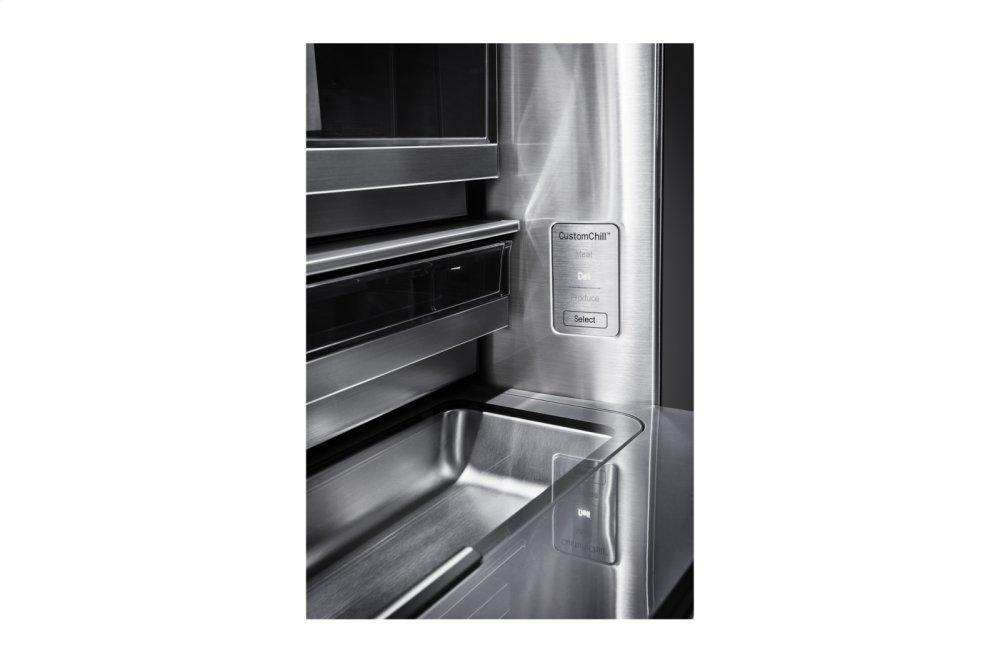

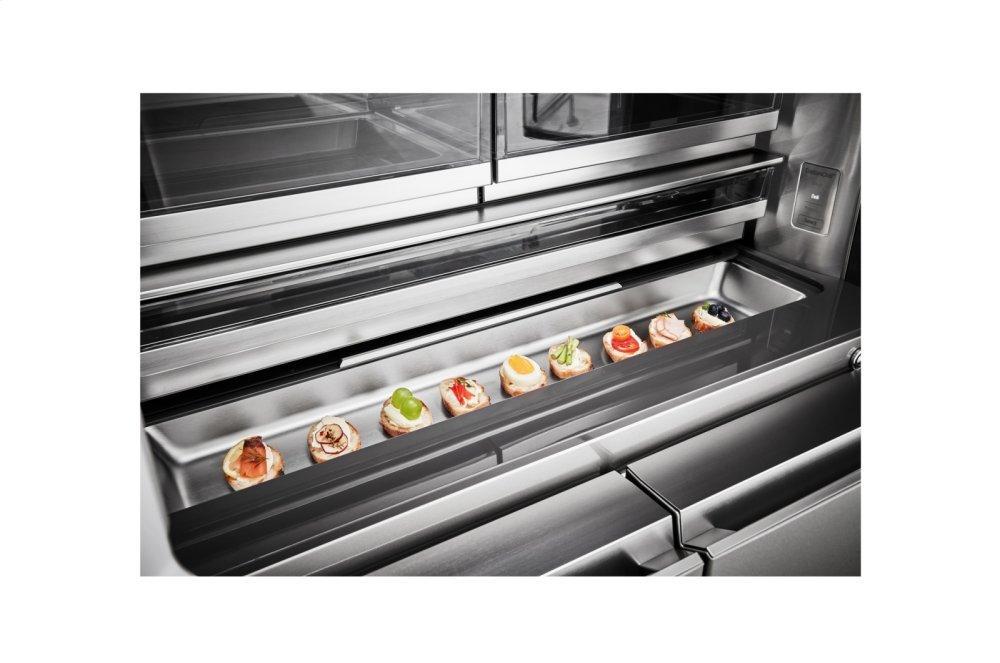

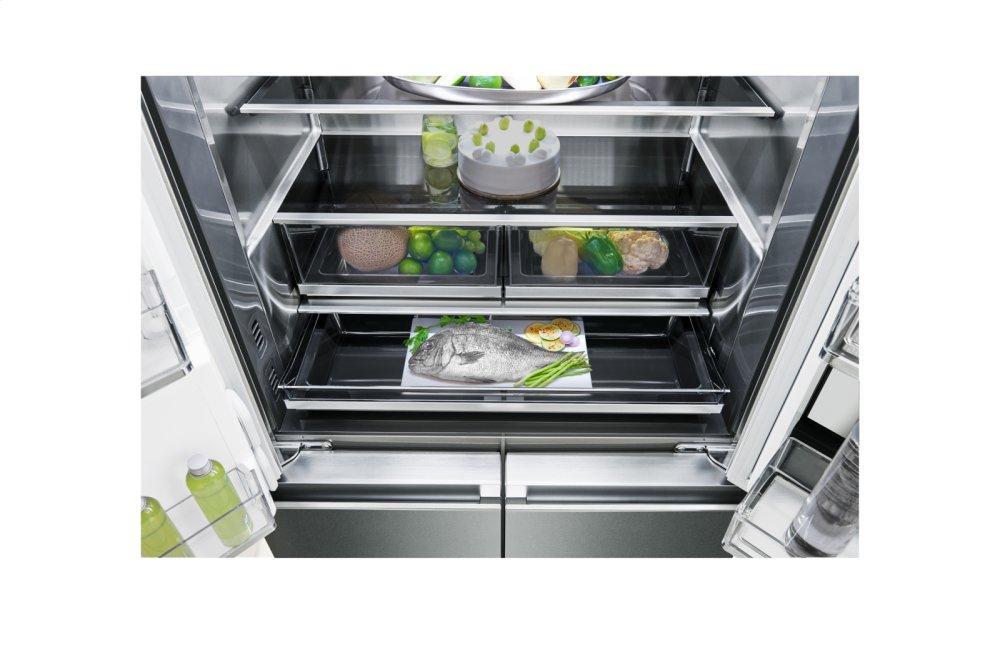

Custom Chill™ Pantry
The wide and deep versatile pantry is available with different temperature settings for storing a wide range of foods from meats to fresh produce.
Elegant Design Meets Enhanced Functionality
Experience true satisfaction with LG SmartThinQ® technology that allows remote management of key refrigerator features.
SUMMARY | |
Ice & Water Dispenser | Yes |

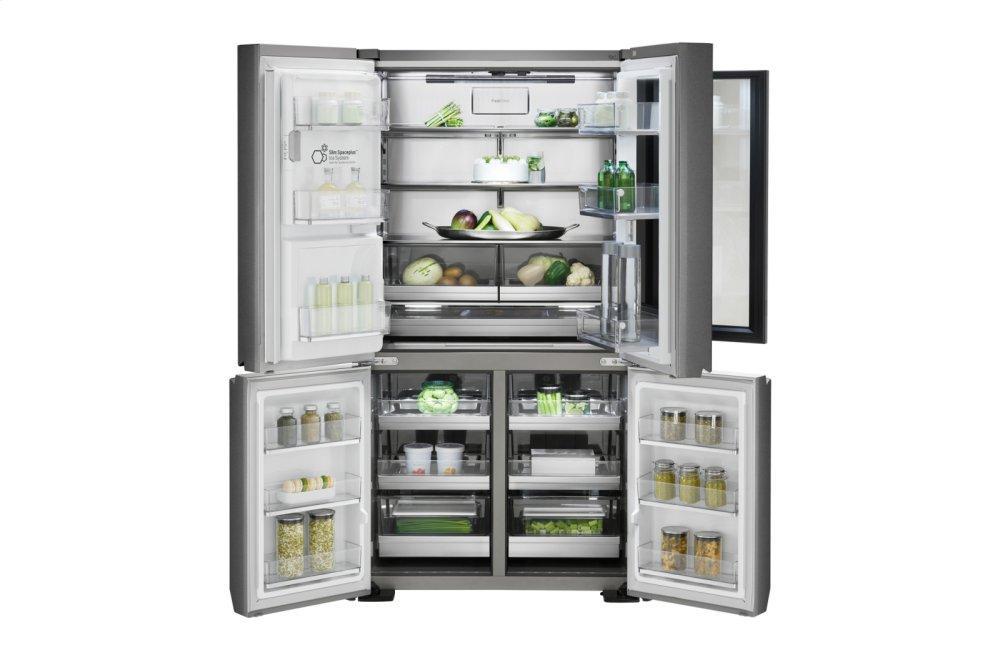

Door Type | French 4-Door |
Counter Depth (in.) | Yes |
Series | LG SIGNATURE |
Refrigerator Type | InstaView™ Door-in-Door® |
SmartThinQ® | Yes |
CAPACITY | |
Refrigerator | 14.20 cu. ft. |
Freezer | 8.60 cu. ft. |
Total | 22.8 cu. ft. |
FEATURES | |
Multi Air Flow Cooling | Yes |
Temperature Sensors | 7 |
Fresh Air Filter | Yes, Air Filter LT120F |
Dual Evaporator | Yes |
Water Filtration System | Compact Filter LT800P |
Ice & Water Dispenser | Yes |

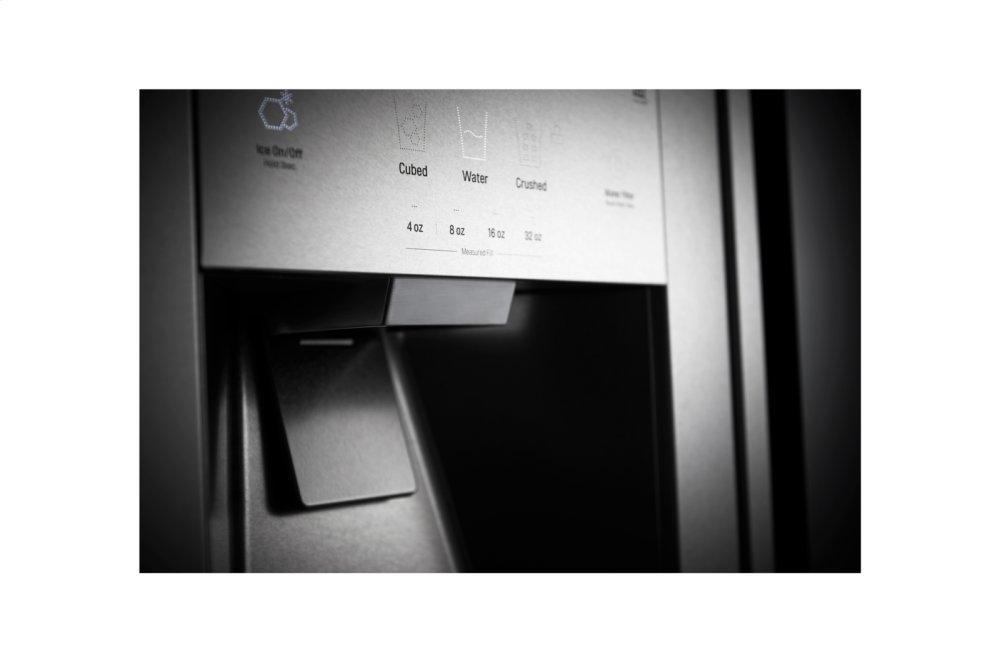

Dispenser Type | Integrated Tall Ice & Water Dispenser® with Measured Fill |
Ice System | Slim SpacePlus® |
Linear Compressor | Yes |
Display Type | White Pinhole / White LED |
Daily Ice Production | 4.5 lbs / 4.9 (IcePlus™) |
Ice Storage Capacity | 3.0 lbs |
Door-in-Door® | Yes |
ENERGY STAR® Qualified | Yes (680 kWh/Year) |
InstaView™Door-in-Door® | Yes |
ColdSaver™ Panel | Yes |
Cooling System | Top Cooling |
REFRIGERATOR | |
No. of Shelves | 4 Split (4 Fixed) |
No. of Door Bins | 3 Piece (Clear & Steel Bar) |

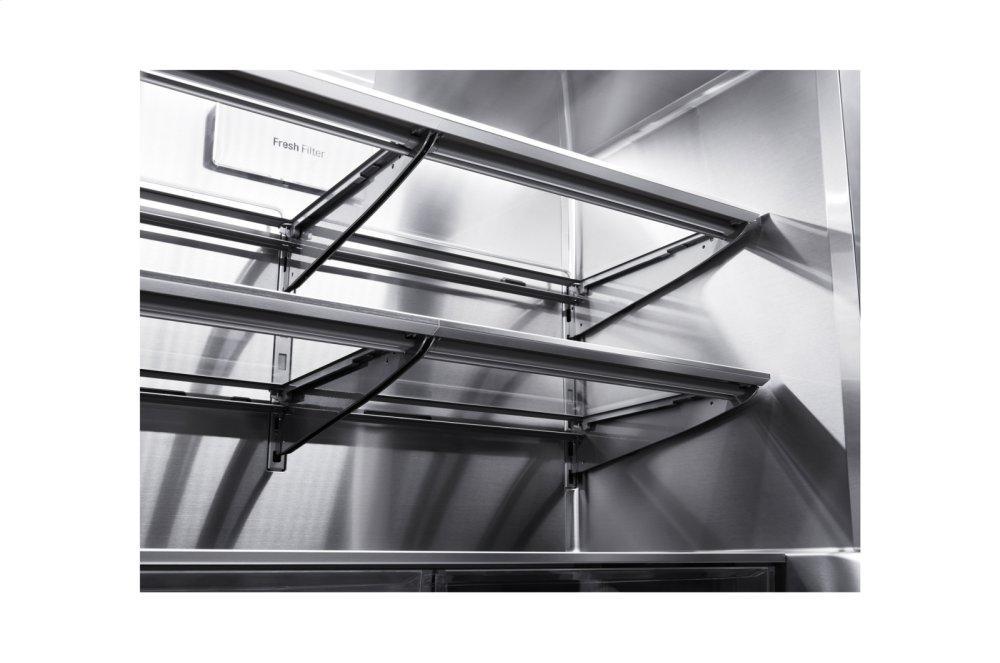

Cantilevered Shelves | Yes |
Shelf Construction | Tempered Glass with LED Light |
Crisper Bins | 2 |

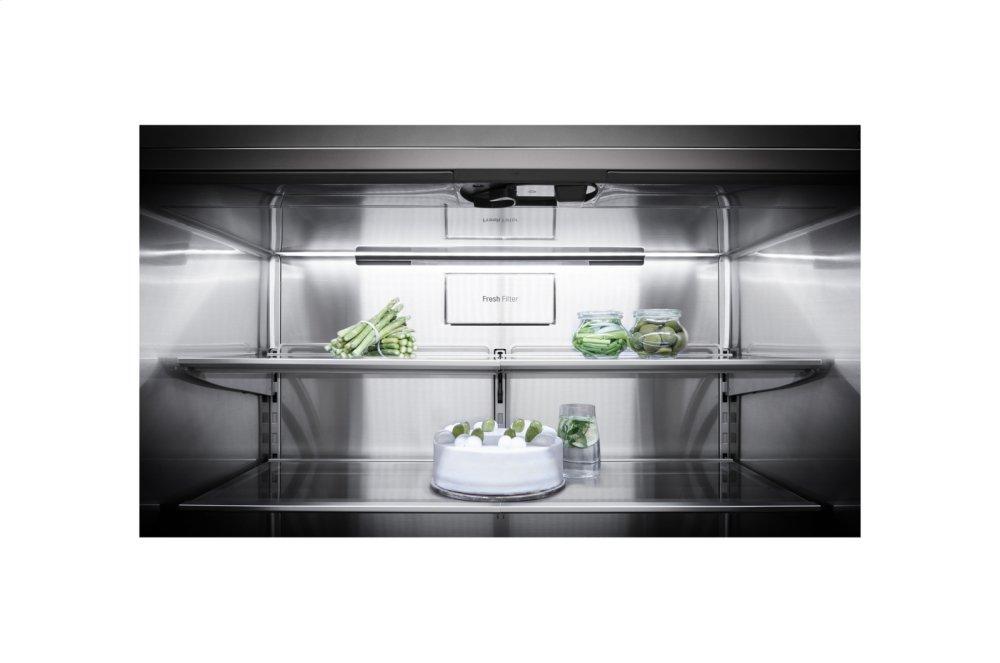

Refrigerator Light | Premium LED (Ceiling and Shelves) |
EasyReach™ Bins | Yes |
Handle | |
Undershelf Lighting | Yes |
REFRIGERATOR DOOR | |
No. of Shelves/Bin | 6 Total |
Door Bin Construction | 3 Piece (Clear & Steel Bar) |
Handle | |
FREEZER | |
Drawers | 6 Drawers |
Freezer Light | Premium LED |
Door Bins | 6 /2 Piece (Clear) |
Door Type | Side Swing |
Handle | |
DIMENSIONS/CLEARANCES/WEIGHT | |
Depth with Handles | 29 5/8" |
Depth without Handles | 29 5/8" |
Depth without Door | 23 7/8" |
Depth (Total with Door Open) | 42 1/2" |
Height to Top of Case | 69" |
Height to Top of Door Hinge | 70 1/4" |
Width | 35 3/4" |
Width (Door Open 90 with Handle) | 40 1/3" |
Width (Door Open 90 without Handle) | 40 1/3" |
Installation Clearance | Sides 1/8", Top 1", Back 2" |
Weight (Unit/Carton) | 414 lbs / 447 lbs |
Carton Dimensions (WxHxD) | 38'' x 73'' x 32'' |
MATERIALS & FINISHES | |
Available Colors | Textured Steel™ |
Hidden Hinges | Yes |
Surface | Smooth |
Back | Flush & Metal Cover Over Mechanical Parts |
CONVENIENCE | |
Temperature Controls | Electronic/Digital |
Door Alarm | Yes |
LoDecibel™ Quiet Operation | Yes |
SmartDiagnosis™ | Yes |
Auto Closing Door Hinge | Yes |
Child Lock | Yes |
Wifi Eclipse Display | Yes |
Auto Open Drawer™ (Freezer) | Yes |
Auto Open Door™ | Yes |
WARRANTY | |
Limited Warranty | 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 10 Years on Linear Compressor (Parts: 10 years / Labor 5 years) |
UPC | 048231787666 |
