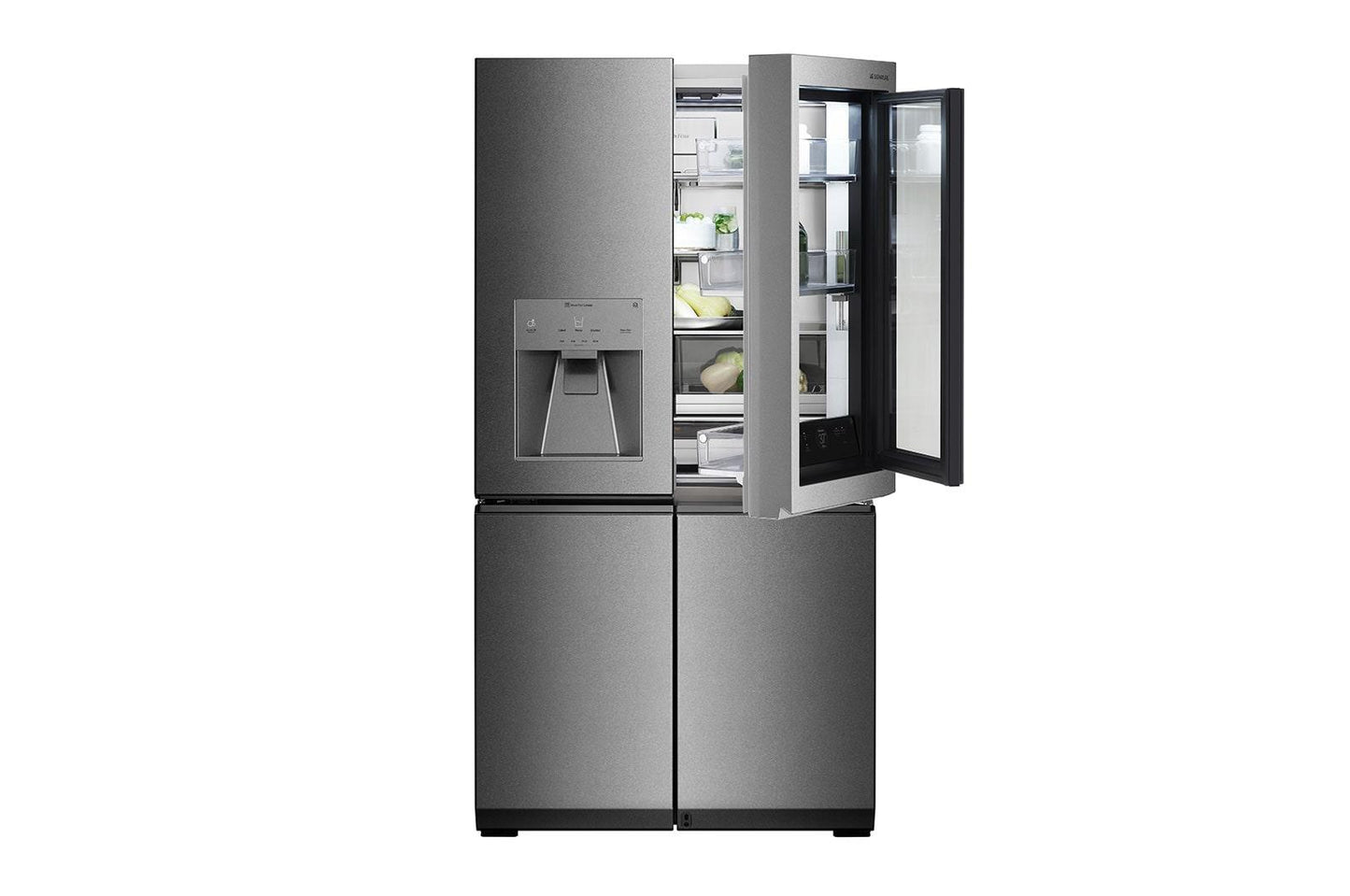

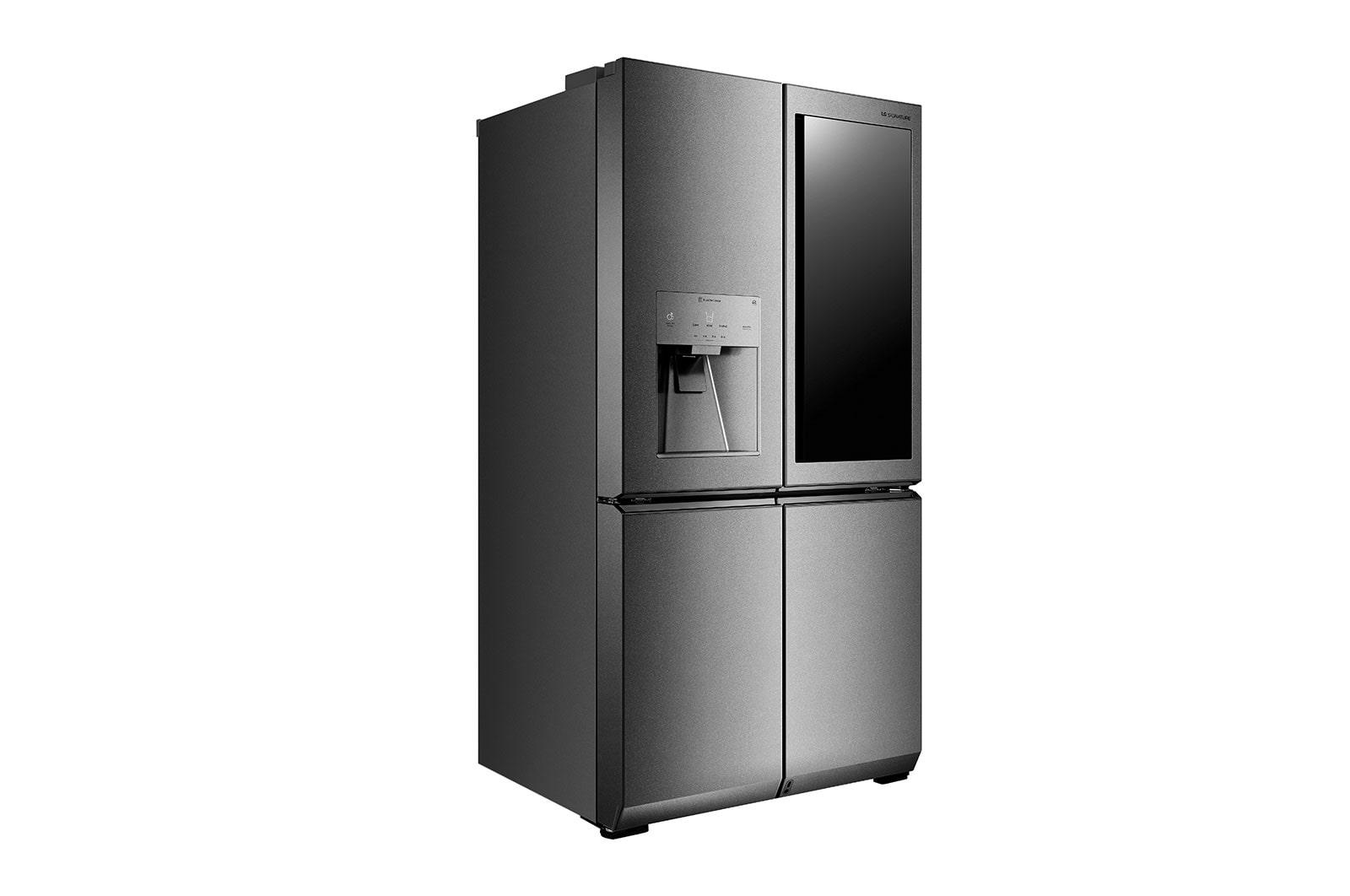

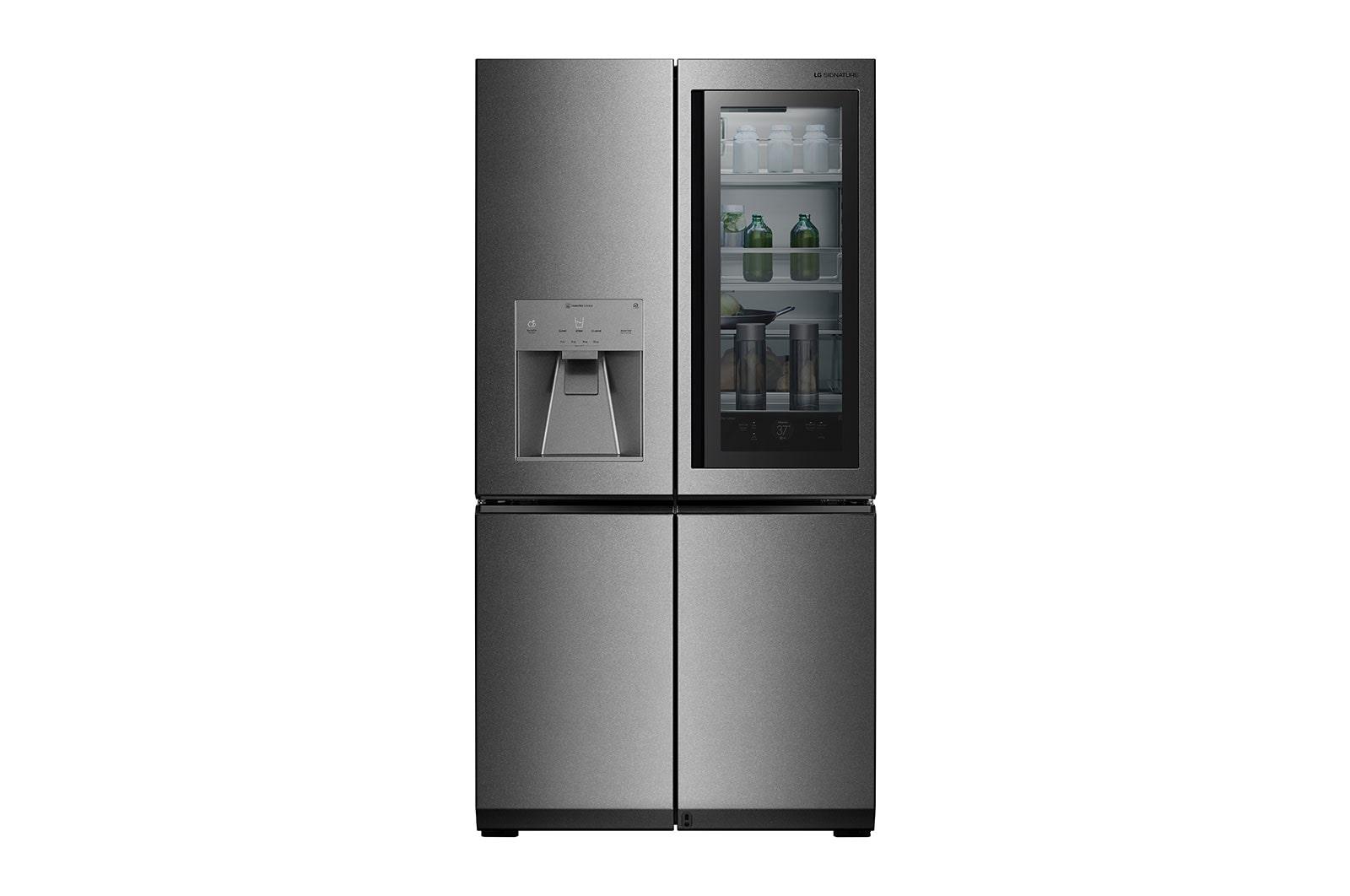

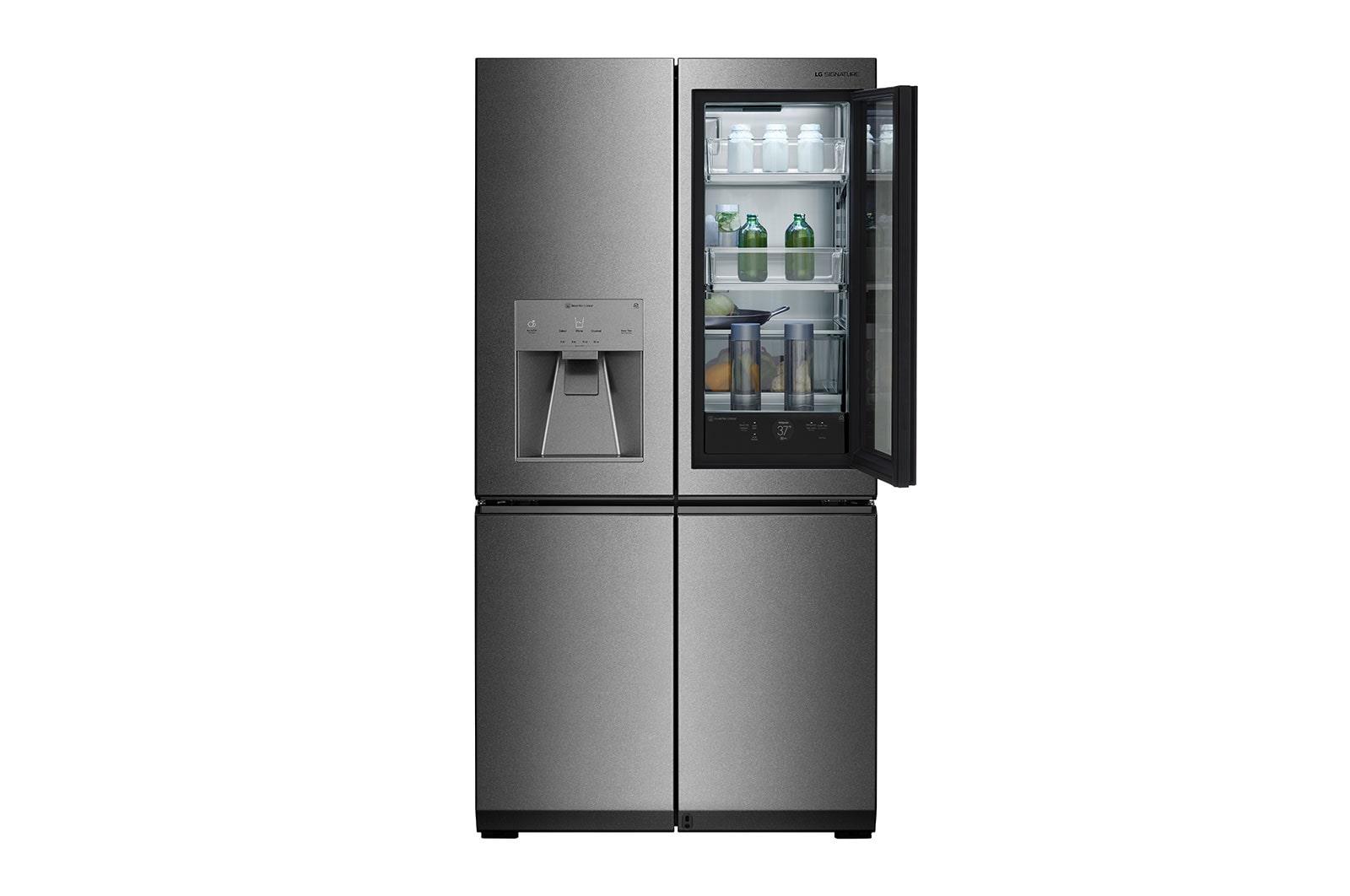

LG SIGNATURE 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator
When Will I Get My Order?
- LG SIGNATURE
- InstaView™ Door-in-Door®
- Auto Open Door™
- Voice Control
- Textured Steel™ Finish
- Custom Chill™ Pantry
feature is a smart sensor detector at the foot of the refrigerator that opens the door automatically. Just step on the "Door Open" light projection on the floor in front of the refrigerator and the door gently opens.
Auto Open Drawer™
Freezer drawers glide out automatically, and gently, in response to opening the freezer doors, providing easy reach. Drawers seamlessly glide back in response to closing the freezer doors.
Voice Control
By simply saying "Hi LG," ThinQ® responds to your voice to open the door and also to set the dispenser to desired mode for your convenience.

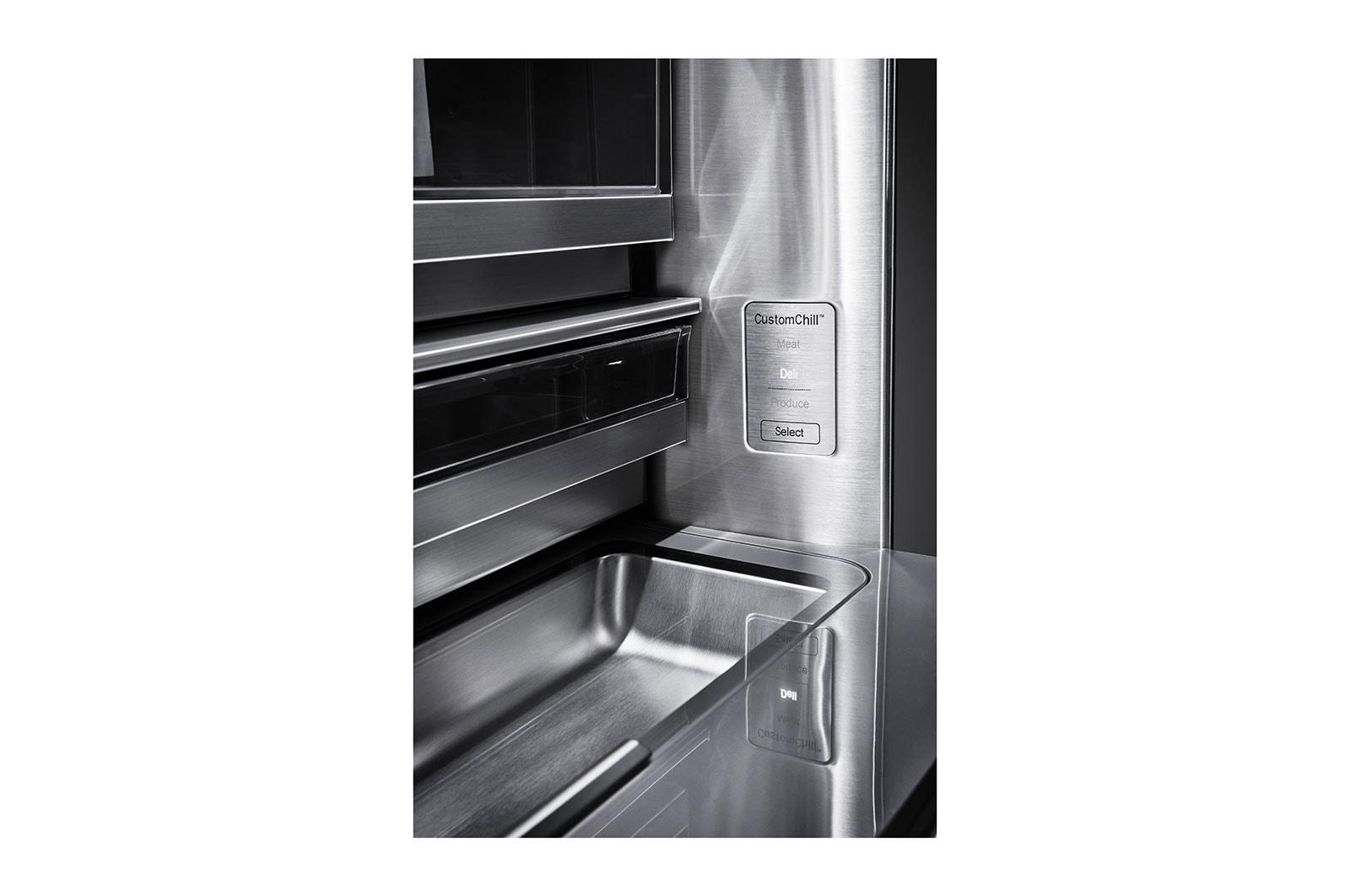

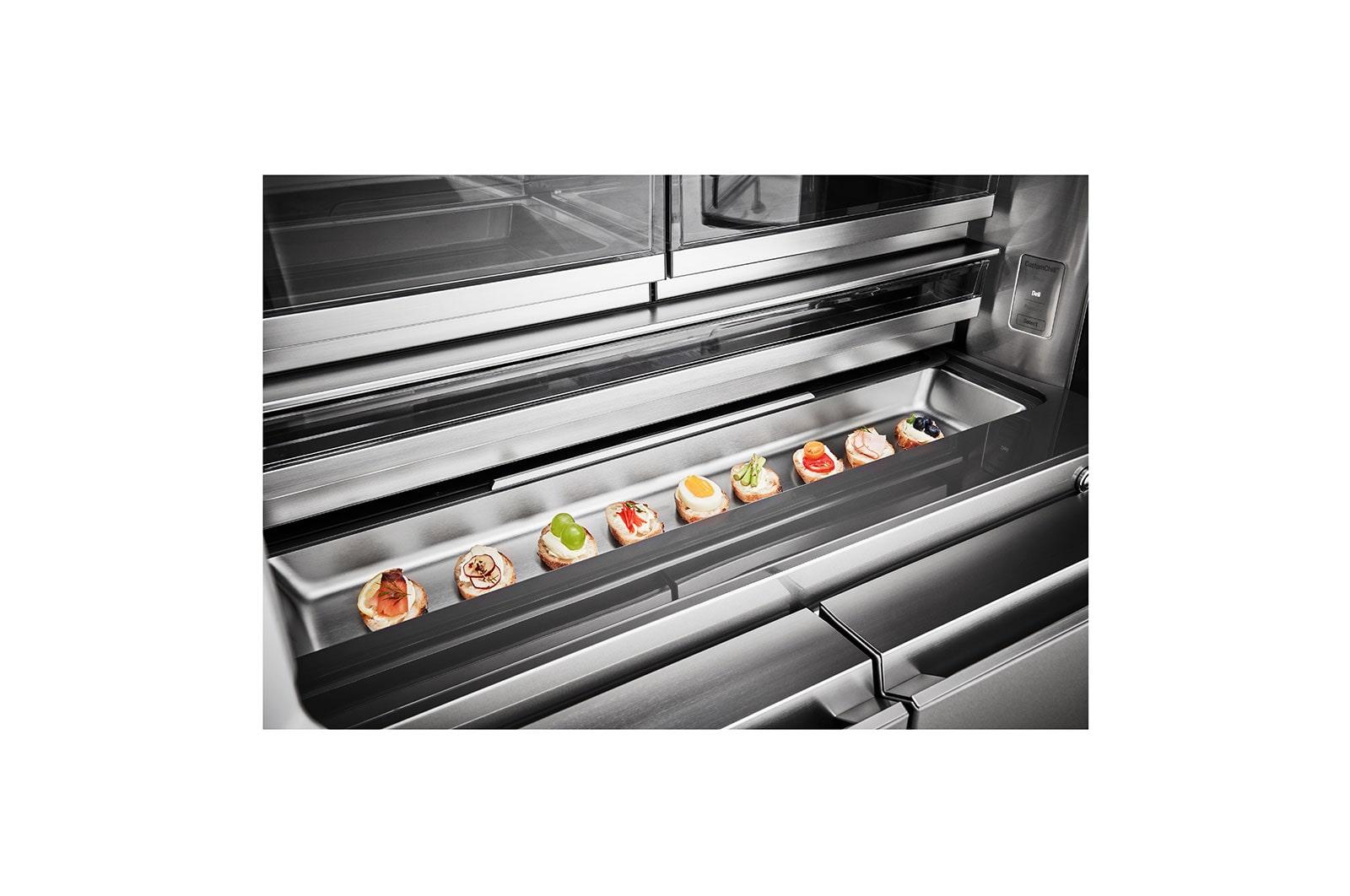

Custom Chill™ Pantry
The wide and deep versatile pantry is available with different temperature settings for storing a wide range of foods from meats to fresh produce.

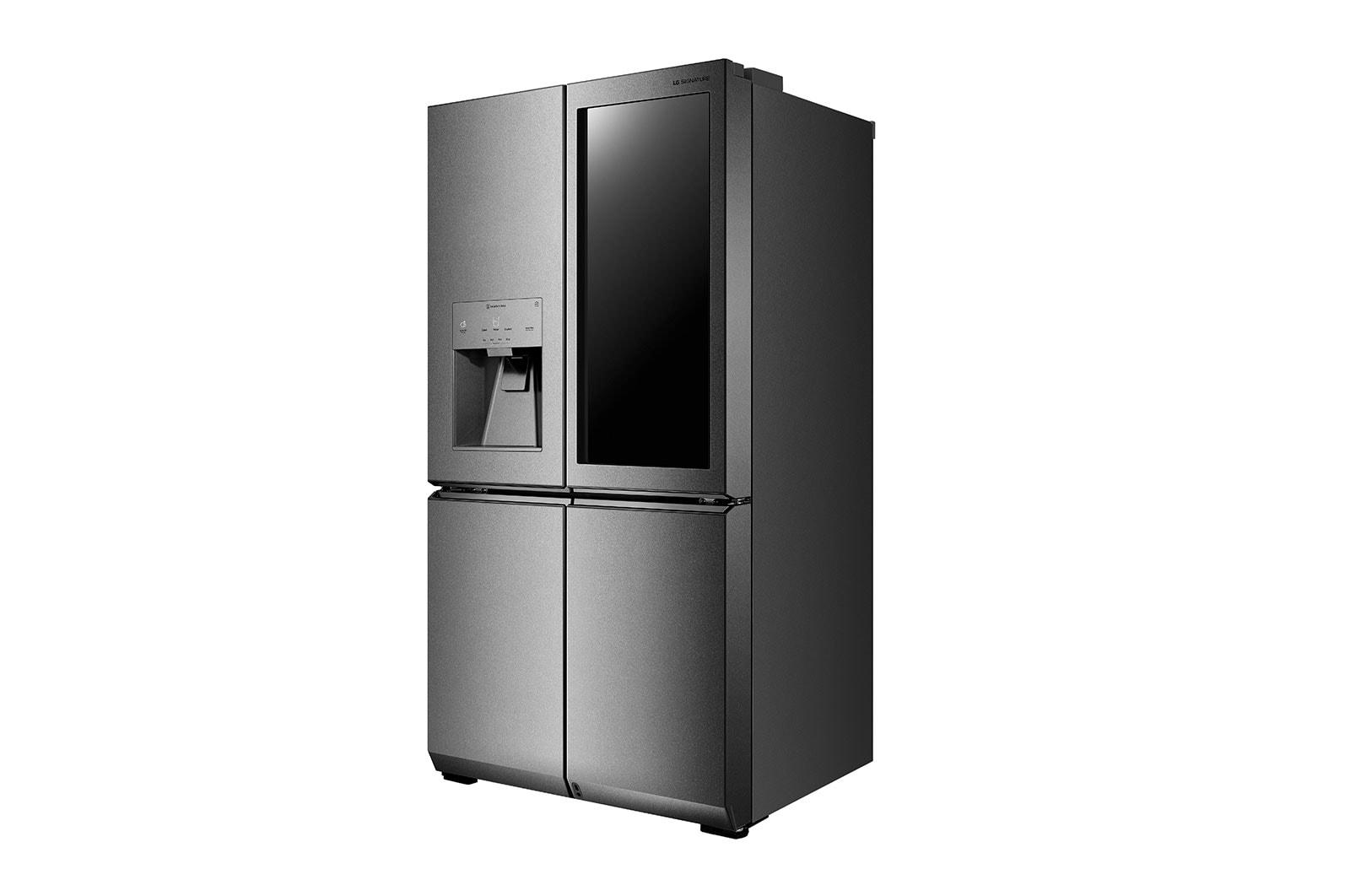

Textured Steel™ Finish
Full stainless steel body with a scratch-resistant textured finish makes for an impeccable exterior design, enhancing its minimalist style to the fullest.
FRESHShield™ Cooling
Cold air is automatically released from ducts located at the top of the refrigerator to form a cold air barrier.
CAPACITY | |
Freezer (cu.ft.) | 8.6 cu.ft. |
Refrigerator (cu.ft.) | 14.2 cu.ft. |
Total Capacity (cu.ft.) | 22.8 cu.ft. |
CONVENIENCE | |
LG Signature | Yes |
ADA Compliant | Yes |
Auto Closing Door Hinge | Yes |
Child Lock | Yes |
Display Type | White Pinhole/White LED |
Door Alarm | Yes |
LoDecibel™ Quiet Operation | Yes |
Sabbath Mode | Yes |
Temperature Controls | Electronic/Digital |
COOLING | |
Evaporator | 2 |
Fresh Air Filter | Yes |
Linear Compressor | Yes |
Multi-Air Flow™ System | Yes |
Smart Cooling Plus™ System | Yes |
Temperature Sensors | 8 |
DIMENSIONS/CLEARANCES/WEIGHTS | |
Carton Dimensions (WxHxD) | 38" x 73" x 32" |
Counter Depth | Yes |
Depth (Total with Door Open) | 42.88" |
Depth with Handles | 29.75" |
Depth without Door | 25" |
Depth without Handles | 29.75" |
Door Edge Clearance with Handle | 2.33" |
Door Edge Clearance without Handle | 2.33" |
Height to Top of Case | 69" |
Height to Top of Door Hinge | 70.25" |
Installation Clearance | Sides 2 |
Weight (Unit/Carton) | 430 lbs / 468 lbs |
Width | 35.88" |
Width (Door Open 90 with Handle) | 40.13" |
Width (Door Open 90 without Handle) | 40.13" |
ENERGY | |
Energy Consumption (kWh/Year) | 714 |
ENERGY STAR® Qualified | Yes |
FREEZER | |
Auto Open Door™ (Freezer) | Yes |
Door Type | Side Swing |
Drawers | 6 |
Freezer Handle | Pocket Handle |
Freezer Light | LED |
No. of Door Bins/Construction | 6-2 Piece (clear) |
LIMITED WARRANTY | |
UPC | 048231805919 |
Warranty | 1 Year Parts & Labor, 5 Years on Sealed System (Parts & Labor), 5 Years on Compressor (Parts & Labor), 6-10 Years Linear Compressor (Parts Only) |
MATERIALS AND FINISHES | |
All Available Colors | Textured Steel™ |
Fingerprint & Smudge Resistant Exterior | Yes |
Handles | Pocket Handles |
Hidden Hinges | Yes |
Surface | Brushed |
REFRIGERATOR | |
Auto Open Door™ | Yes |

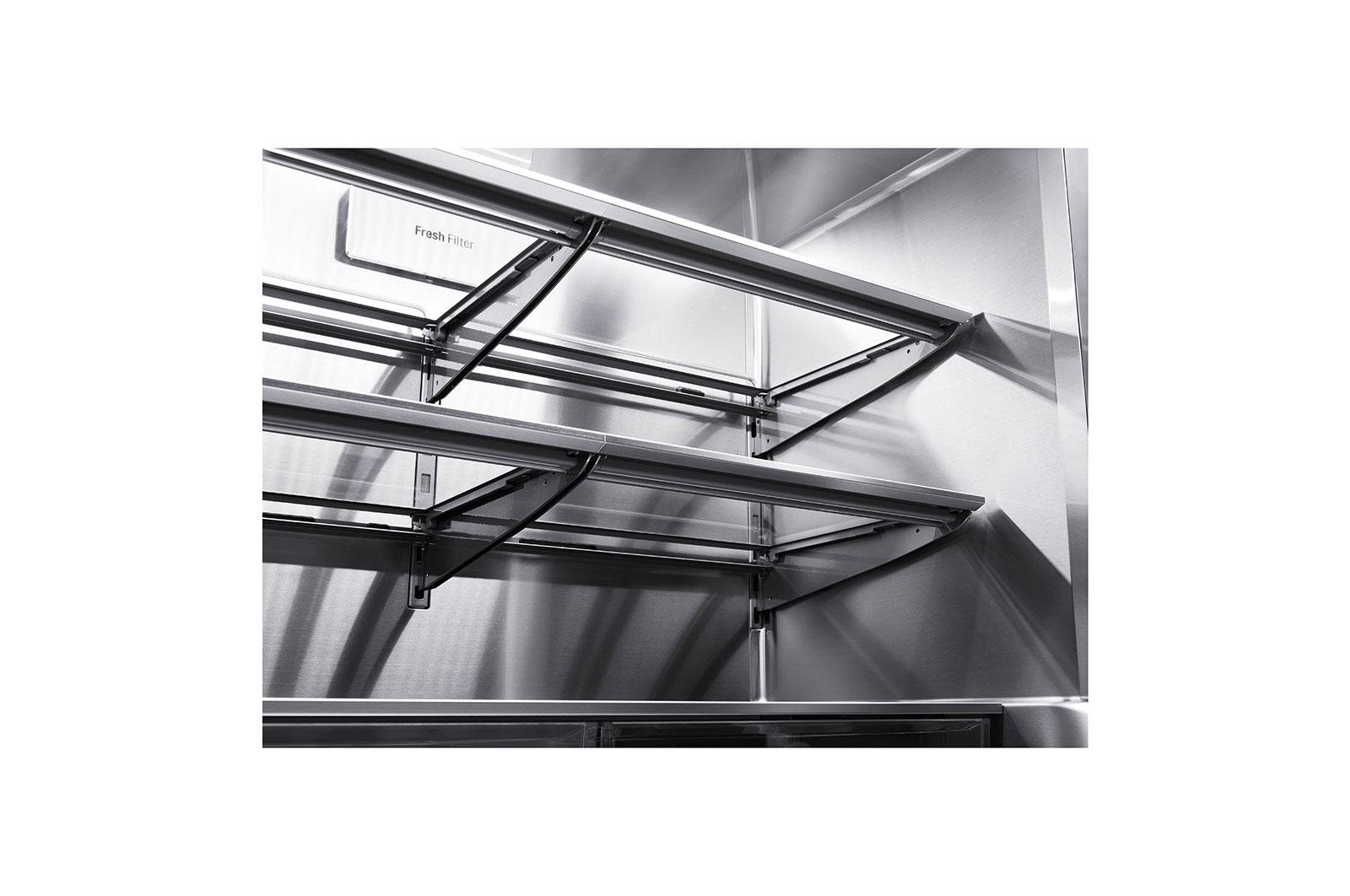

Cantilevered Shelves | Yes |
Crisper Bins | 2 (soft close) |
EasyReach™ Bins | Yes |
Glide N' Serve™ Drawer | Yes |
LUMIShelf™ | Yes |
No. of Shelves | 4 Split (2 slide out + 2 fixed) |
Refrigerator Light | LED (ceiling and shelves) |
Shelf Construction | Tempered Glass with LED Light |
Temperature Control Pantry | Yes |
SUMMARY | |
Series | LG SIGNATURE |
REFRIGERATOR THINQ® SMART FEATURES | |
SmartDiagnosis™ | Yes |
SmartThinQ® | Yes |
ThinQ® Smart Technology | Yes |
Voice Activation | Yes |
wi-fi Enabled | Yes |
Works with | Amazon Alexa, Google Assistant |
TYPE | |
Type | InstaView™ Door-In-Door |
WATER & ICE SYSTEM | |

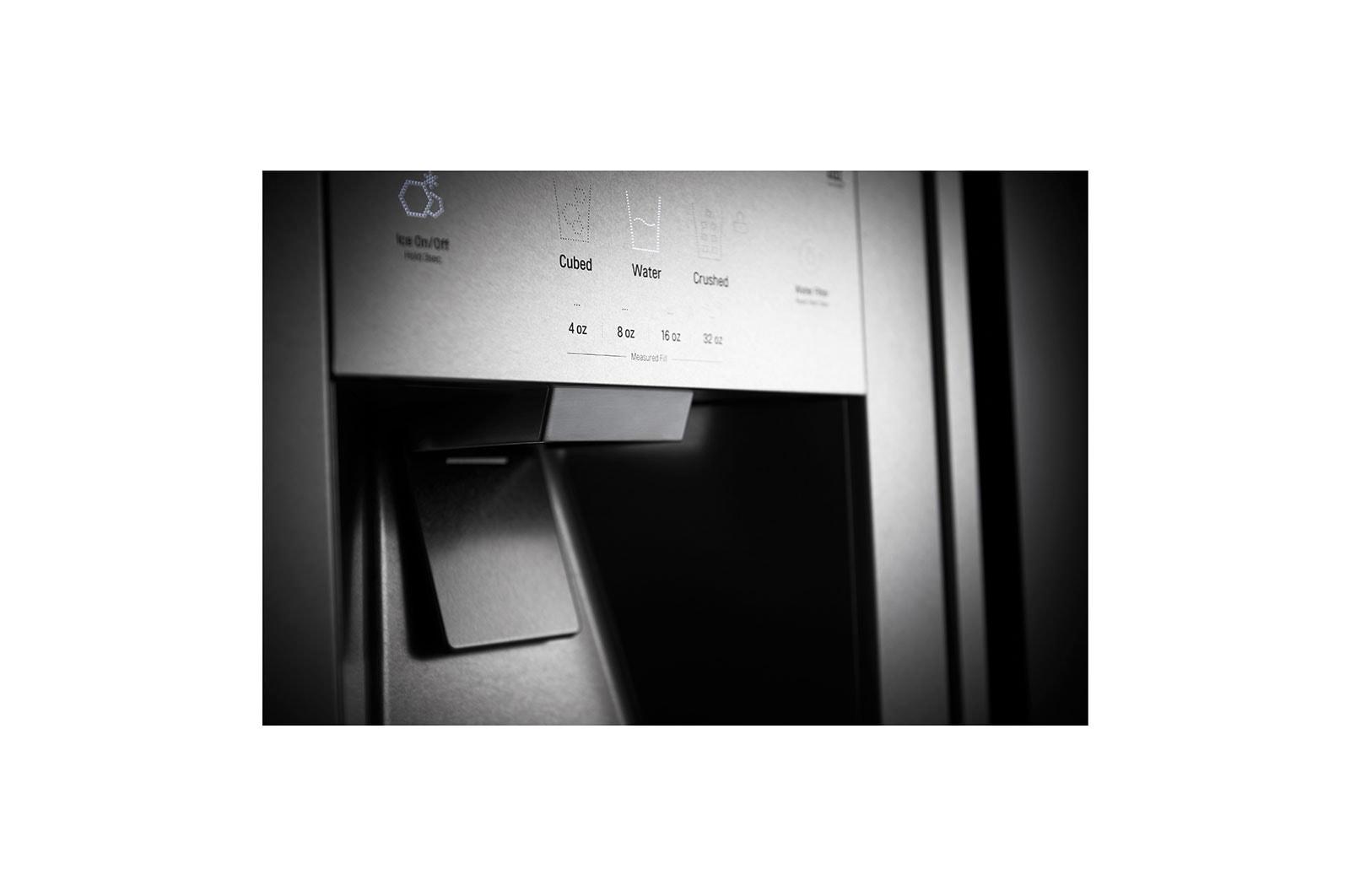

Ice & Water Dispenser | Yes |
