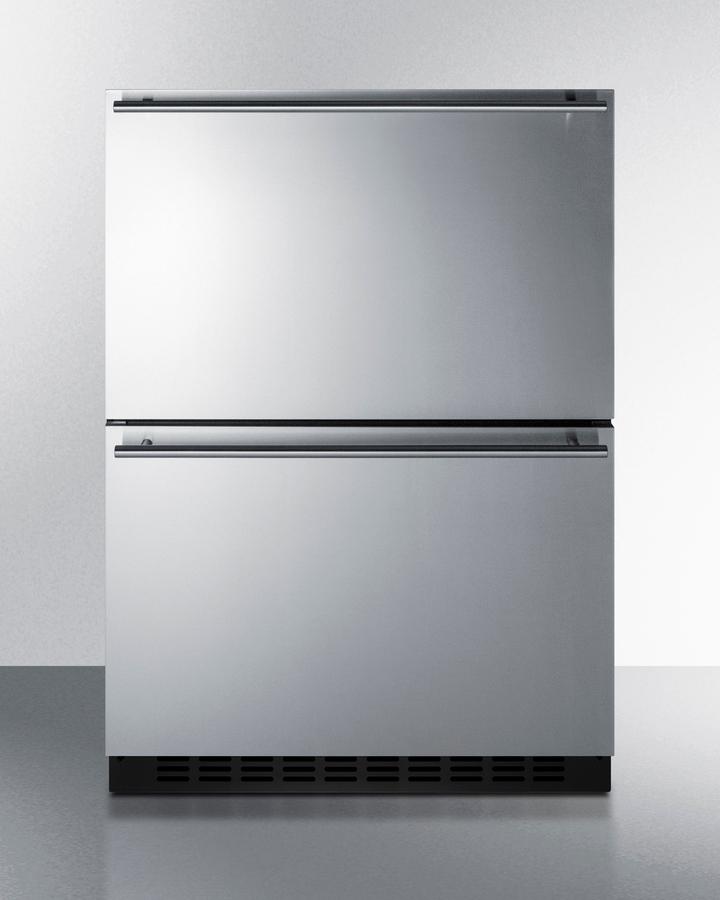

Summit ADFD243OS 24" Wide Outdoor 2-drawer All-freezer, ADA Compliant ADFD243OS

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. Sized at just under 24" wide and 32" high, model ADFD243OS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The weatherproof construction allows safe use in outdoor settings, with a sealed back to ensure all components are protected from the elements. This unit comes with a jet black cabinet and stainless steel drawers. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADFD243OS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243OS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching outdoor refrigerator drawer (model ADRD241OS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244OS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide outdoor refrigerator drawers.

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.88" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	23.88" (61 cm)
Depth with door at 90°	34.25" (87 cm)
Capacity	3.7 cu.ft. (105 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	395.0kWh/year
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	106.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101088174
Freezer
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.31 oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs	4
Interior Drawers	Yes
Drawers Qty	2
Interior Height - Drawer 1	8.0" (20 cm)
Interior Width - Drawer 1	17.0" (43 cm)
Interior Depth - Drawer 1	14.5" (37 cm)
Interior Height - Drawer 2	8.0" (20 cm)
Interior Width - Drawer 2	17.0" (43 cm)
Interior Depth - Drawer 2	14.5" (37 cm)
Compressor Step Height	4.0" (10 cm)
Compressor Step Width	17.0" (43 cm)
Compressor Step Depth	3.5" (9 cm)
Temperature Range	-11°F to 11°F
Sabbath Mode	Yes
Sound Level	33.8 dB
