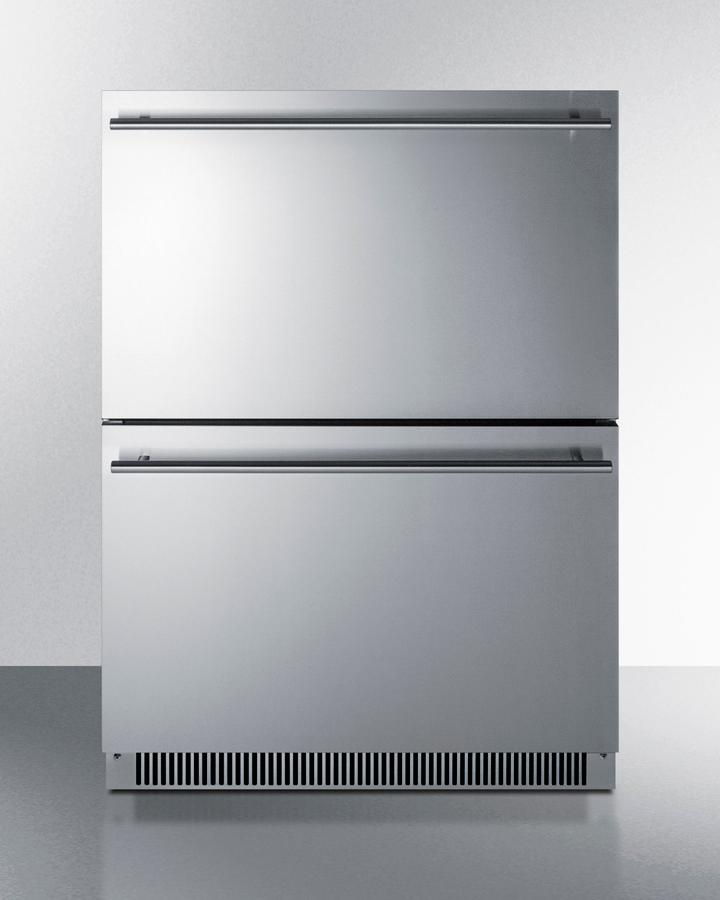

Summit ADFD2D24 24" Wide 2-drawer All-freezer, ADA Compliant ADFD2D24
Summit ADFD2D24 24" Wide 2-drawer All-freezer, ADA Compliant
- 24" wide 3.5 cu.ft. undercounter frost-free freezer with two gliding drawers
- Ensures unit runs efficiently with an environmentally friendly performance
- ETL-S listed to NSF-7 standards for commercial use
- 32 height allows for installation within ADA-compliant spaces
- Unit can be raised to 34.5", with a taller kickplate included for a seamless look
- Durable, weatherproof construction designed to hold up to the elements
- Complete 304 grade stainless steel construction provides durability while maintaining an elegant look
- Drawers can be customized with overlay panels to match or accent existing cabinetry (panel dimensions: 23.34" W x 13.93" D at 3/4" thick)
- Front-breathing design allows the unit to be built-in under counters
- Stainless steel handles add style to any setting
- No-frost operation for minimal user maintenance
- Soft LED lighting makes for easy viewing of each drawer s contents
- Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
- Large display allows for easy readability and unit control
- Removable basket included for additional storage convenience
- Two adjustable dividers provide flexibility when organizing the interior
- Allows for easy cleaning and organization within the interior of the unit
- Alarm alerts you if the unit s temperature goes beyond recommended high and low temperature ranges
- Audible alarm sounds if the drawers are left open for more than five minutes
- Optional feature disables alarms, interior light, and displays for up to 96 hours
- Flat plug allows unit to sit flush against the wall
- Space-saving design with no exposed coils for easier cleanability
- Provides for efficient, even cooling of the entire unit
- Unit will retain temperature settings after losing power
- Soft-close glides prevent drawers from slamming shut for additional durability and safety
- Bracket (included) helps prevent tipping for added safety
- Allows the unit to be used freestanding
- Pair with the ADRD24 to create the perfect drawer refrigeration set
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit offers unmatched versatility and elegance to meet your indoor and outdoor refrigeration needs. The ADFD2D24 is a two-drawer all-freezer sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/2 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look (recommended panel dimensions: 23.34" W x 13.93" D at 3/4" thick). Frost-free operation ensures minimum user maintenance inside the 3.5 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer. Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features for up to 96 hours during periods of religious observance. The ADFD2D24 is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching refrigerator, see model ADRD24.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 3.54 cu.ft. (100 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 355.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101085920 |
| Freezer | |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.79 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Level Legs | 4 |
| Interior Height - Drawer 1 | 8.0" (20 cm) |
| Interior Width - Drawer 1 | 15.75" (40 cm) |
| Interior Depth - Drawer 1 | 14.0" (36 cm) |
| Interior Height - Drawer 2 | 8.25" (21 cm) |
| Interior Width - Drawer 2 | 15.75" (40 cm) |
| Interior Depth - Drawer 2 | 14.0" (36 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 15.75" (40 cm) |
| Compressor Step Depth | 4.13" (10 cm) |
| Temperature Range | -11°F to +10°F(-24°C to -12°C) |
