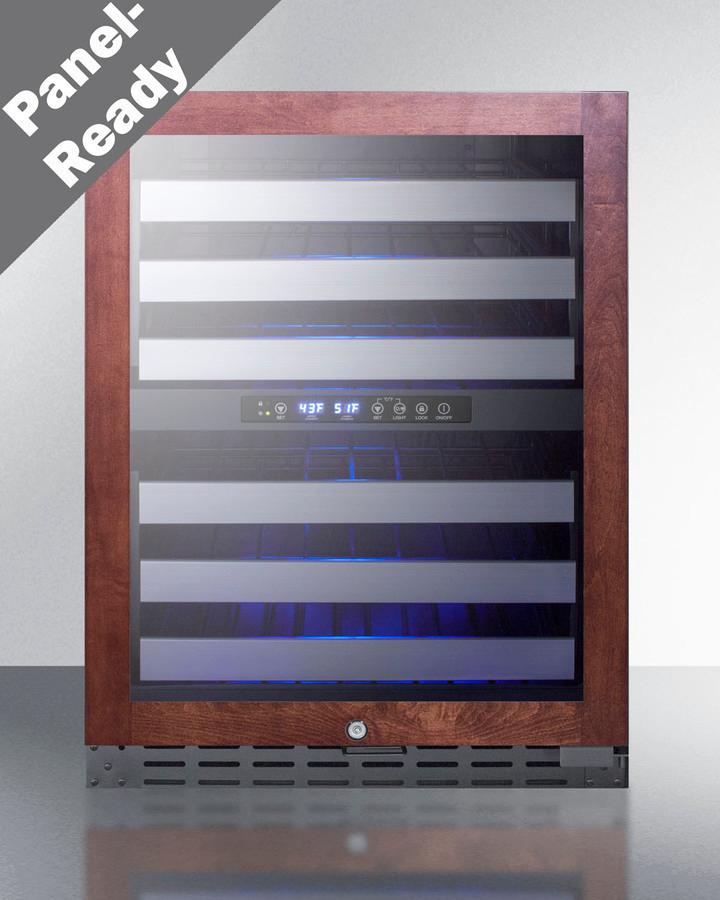

Summit ALWC532PNR 24" Wide Built-in Wine Cellar, ADA Compliant (panel Not Included) ALWC532PNR

Summit's extensive selection of built-in undercounter wine cellars includes commercially approved ADA compliant choices that let you achieve a custom look ideal for any space. The ALWC532PNR is a dual zone wine cellar sized for 24 inch spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look. Inside, the ALWC532PNR is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50 F for white wine, while the lower zone is designed to store red wine between 50 and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the ALWC532PNR makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	47.38" (120 cm)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	113.0 lbs. (51 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101065533
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	11.63" (30 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Depth	6.0" (15 cm)
Level Legs	2
Temperature Range	41 to 64 F
Interior Height 2	11.88" (30 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.0" (46 cm)
Sound Level	34 dB
