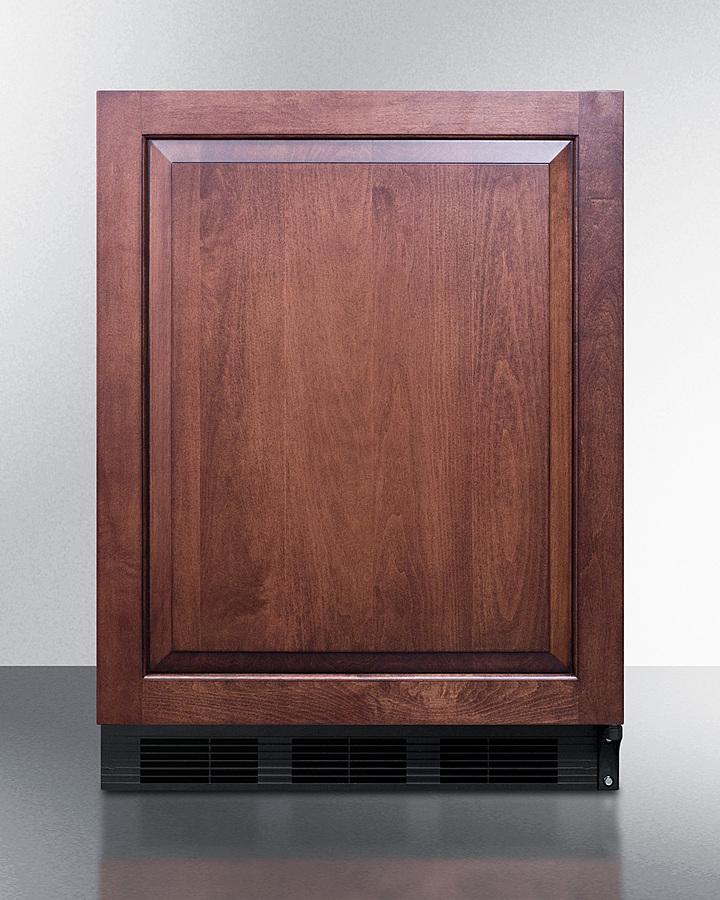

Summit 24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included) AR5BIF

SKU/Model #: AR5BIF
Summit 24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included)
FREE DELIVERY
Authorized Reseller

Summit 24" Wide Built-in All-refrigerator, ADA Compliant (panel Not Included) AR5BIF

SKU/Model #: AR5BIF
$1,282.00
D&S April Sale Price: $1,153.80
When Will I Get My Order?

Product Details

  • 32" height to fit under lower ADA compliant counters
  • Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
  • Reduced maintenance with auto defrost system
  • Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
  • Store tall bottles and condiments right on the door for convenient access
  • Removable scalloped wine shelf is included to store champagne and wine bottles
  • Automatically illuminates when you open the door
  • Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
  • Cold wall design with hidden evaporator creates a seamless, easy to clean interior
  • Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Allows the unit to be used freestanding
  • Environmentally friendly design without ozone-damaging chemicals
SUMMIT offers the industry s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24 footprint and 32 height, the AR5BIF is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish. The door includes an integrated stainless steel frame designed to accept full overlay panels, allowing you to create a custom look that blends into your own cabinetry. Customers provide their own handle. Panels should be sized at 23 5/16" W x 28 1/4" H and at least 3/4" thick. Inside, the AR5BIF utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BIF features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BIF brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. Additional ADA compliant choices are available in a variety of sizes and styles. Browse our website for more options.
Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 307.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 121.0 lbs. (55 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068787
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
