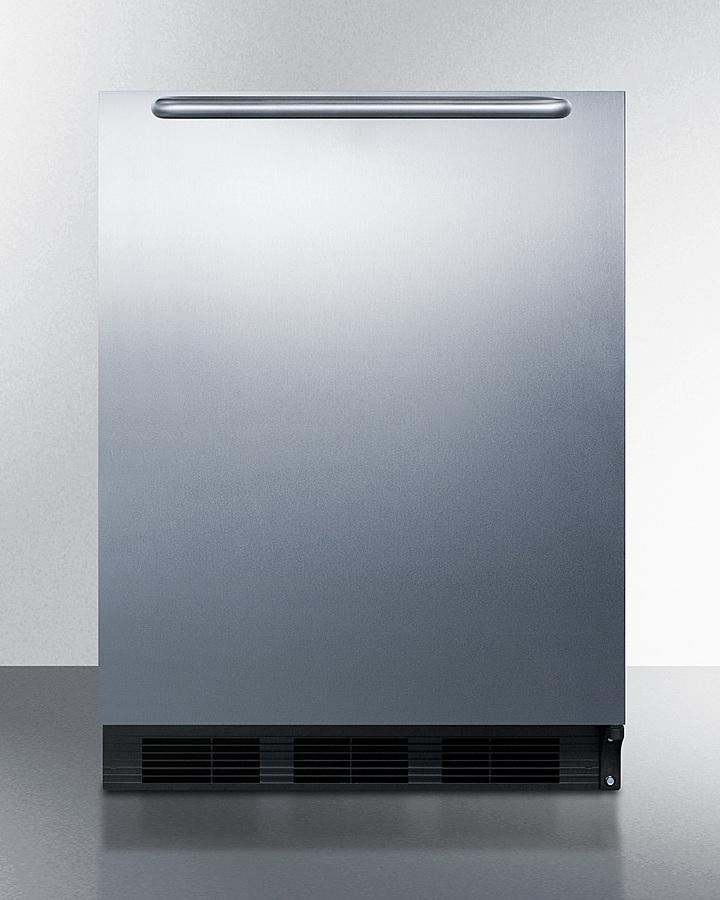

Summit AR5BS 24" Wide Built-in All-refrigerator, ADA Compliant AR5BS

SUMMIT offers the industry s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24 footprint and 32 height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a pre-installed stainless steel handle in a sleek 14mm diameter mounted horizontally across the top of the door. Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	23.0" (58 cm)
Depth with door at 90°	45.38" (115 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	307.0kWh/year
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101068268
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Wine Bottle Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	18.0" (46 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)
