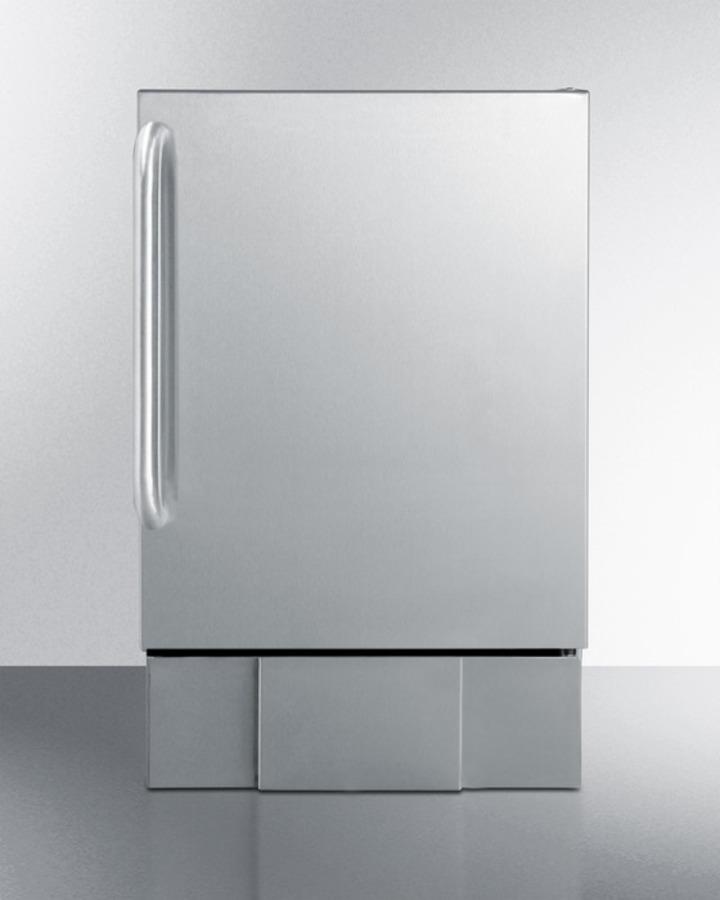

Summit BIM24OS 12 Lb. Drain-free Outdoor Icemaker BIM24OS
Summit BIM24OS 12 Lb. Drain-free Outdoor Icemaker
- Weatherproof design rated safe for outdoor operation
- Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
- Durable exterior with lasting elegance
- A curved stainless steel handle provides generous room for a comfortable grip
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Allows the icemaker to be used freestanding
- Ice maintains solid crescent shape longer in cold storage bin
- No exposed electrical components
- Bases available to raise unit height; Base 32 brings BIM24OS to ADA compliant counter height, Base 34 raises it to fit under standard counters
- Environmentally friendly design without ozone-damaging chemicals
SUMMIT brings a convenient freeze to the outdoors with the BIM24OS, a compact icemaker with U.L. approval for outdoor use. Fully wrapped in 304 grade stainless steel, the BIM24OS is designed to stand up to nature with elegant style. The weatherproof design includes a completely sealed back that protects all electrical components and SUMMIT's integrated Ground Fault Circuit Interrupter (GFCI) adds an extra level of protection and automatically resets the unit in the event of power failure. At just over 15" wide, the BIM24OS is easy to place and can be used built-in or freestanding above or below the counter. Storage bases are available in two sizes: Base 32 to raise the height to an ADA compliant 32", or Base 34 to make it adjustable from 33" to 34 3/4" high. The BIM24OS can produce up to 12 lbs. of crescent shaped cubes in a day cycle, storing it in a carefully insulated storage bin. Operation does not require a drain. Our signature 12" towel bar handle completes the package.
| Overview | |
| Height of Cabinet | 24.88" (63 cm) |
| Height to Hinge Cap | 25.25" (64 cm) |
| Width | 15.13" (38 cm) |
| Depth | 20.63" (52 cm) |
| Depth with Handle | 23.13" (59 cm) |
| Depth with door at 90° | 34.25" (87 cm) |
| Capacity | 1.0 cu.ft. (28 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Shipping Weight | 98.0 lbs. (44 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101001036 |
| Icemaker | |
| Door Swing | RHD |
| Reversible | No |
| Daily Ice Production | 12.0 lbs. (5 kg) |
| Ice Storage Capacity | 12.0 lbs. (5 kg) |
| Ice Shape | Crescent |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.63 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 110.0 |
| Interior Height | 11.75" (30 cm) |
| Interior Width | 10.0" (25 cm) |
| Interior Depth | 13.0" (33 cm) |
| Level Legs | 2 |
