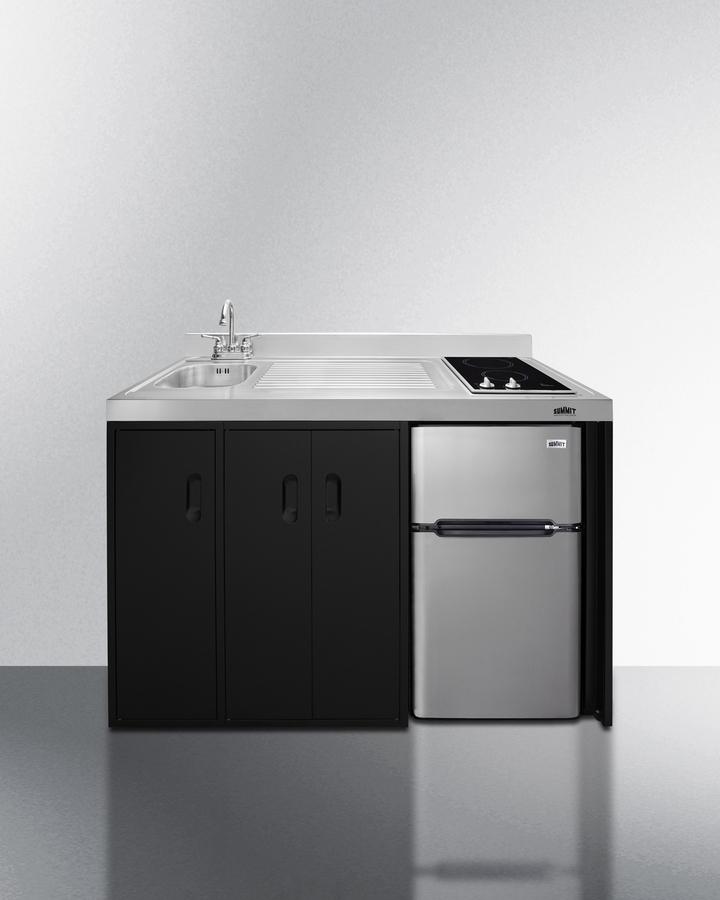

Summit CK54SINKL 54" Wide All-in-one Kitchenette CK54SINKL

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner smooth-top cooktop, sink, storage cabinets, and refrigerator with a freezer compartment. The CK54SINKL is 54" wide with an easy-fitting 24" depth. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. This unit includes a built-in 115V smooth-top cooktop with a rear 7" 900W and a front 5 1/2" 500W heating element. The power cord comes pre-installed for easy setup. The right side of the kitchenette features a compact sink with ready-to-use faucet. A single-door cabinet under the sink includes a removable wire shelf, perfect for storing cleaning supplies, while a French-door style cabinet under the work surface has a solid removable shelf, ideal for dry storage. Two grooved handles on each side allow for easy movement of the unit. Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK54SINKL includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper. The CK54SINKL is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of low maintenance, fully-featured compact kitchenette. For this unit with a sink located on the right of the kitchenette, see the CK54SINKR. Note: For users who prefer a gas connection, Summit model GC22SS can fit inside the existing 11" W x 19 1/4" D cooktop cutout. Additionally, users can remove the center storage cabinet and install an 18" wide ADA compliant dishwasher, such as Summit model DW18SS4ADA. See the instructions in the "DOWNLOADS" section of this page.

Overview
Nominal Height	40.0" (102 cm)
Height of Cabinet	39.5" (100 cm)
Nominal Width	54.0" (137 cm)
Width	54.0" (137 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.75" (60 cm)
Depth with Handle	23.75" (60 cm)
Depth with door at 90°	42.0" (107 cm)
Capacity	3.2 cu.ft. (91 L)
Defrost Type	Cycle
Door	Black/SS
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	322.0kWh/year
Other Energy Info	Cooktop is 20 Amps; Refrigerator-Freezer is 1.1 Amps
Amps	21.1
Voltage/Frequency	115 V AC/60 Hz
Weight	145.0 lbs. (66 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101066837
Kitchenette
Refrigerator Included	CP34BSS
Refrigerator Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Glass
Shelf Qty	1
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	2
Can Storage	Yes
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	1.16 oz.
High Side PSI	250.0
Low Side PSI	88.0
Cooking Type	Smooth-Top Cooktop
Number of Burners	2
Cooktop Controls	Dial
Interior Height 1	18.5" (47 cm)
Interior Width 1	15.75" (40 cm)
Interior Depth 1	15.0" (38 cm)
Interior Height 2	7.5" (19 cm)
Interior Width 2	14.0" (36 cm)
Interior Depth 2	14.0" (36 cm)
Sink Height	4.0" (10 cm)
Sink Width	11.0" (28 cm)
Sink Depth	13.0" (33 cm)
