Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant SCF505SSTBADA

SKU/Model #: SCF505SSTBADA
Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant
Authorized Reseller
SKU/Model #: SCF505SSTBADA
Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant
Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant
Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant
Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant
Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant
Summit 20" Wide Built-in Commercial All-freezer, ADA Compliant
Free Shipping
$1,344.00
List Price:
Instant Savings:
Additional 10% Savings In Cart

Product Details

  • ETL-S listed to ANSI-NSF Standard 7 for commercial use
  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter

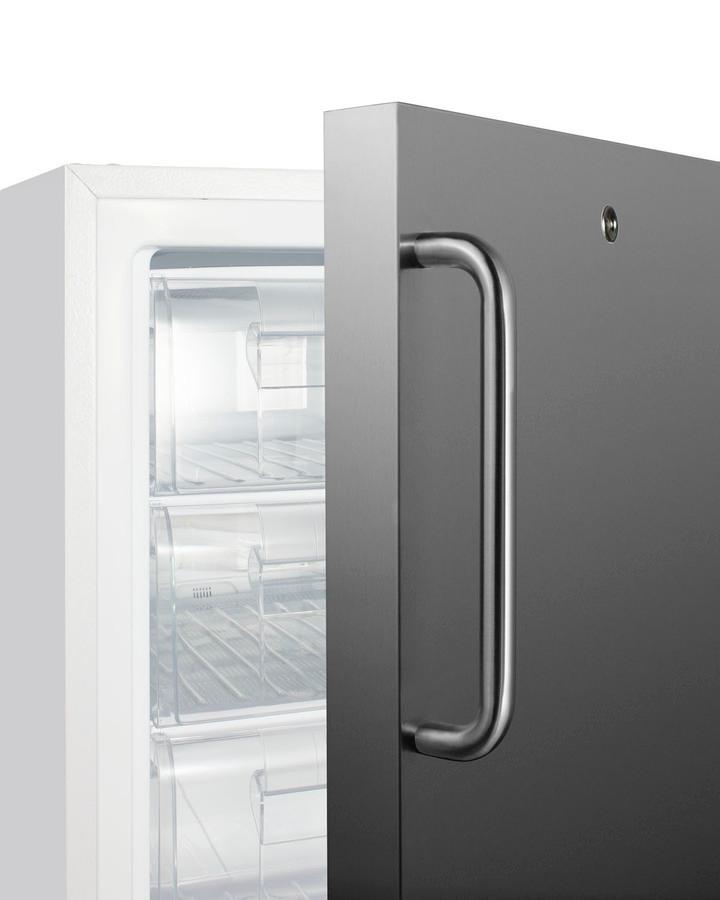

  • Curved handle in brushed stainless steel offer an easier grip and attractive style
  • Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

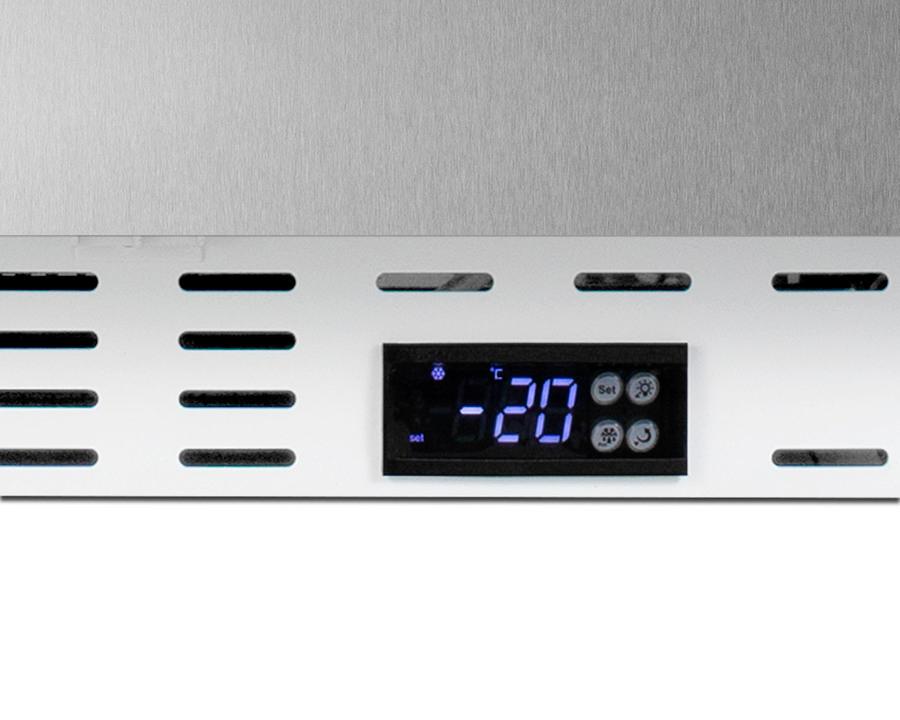

  • Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

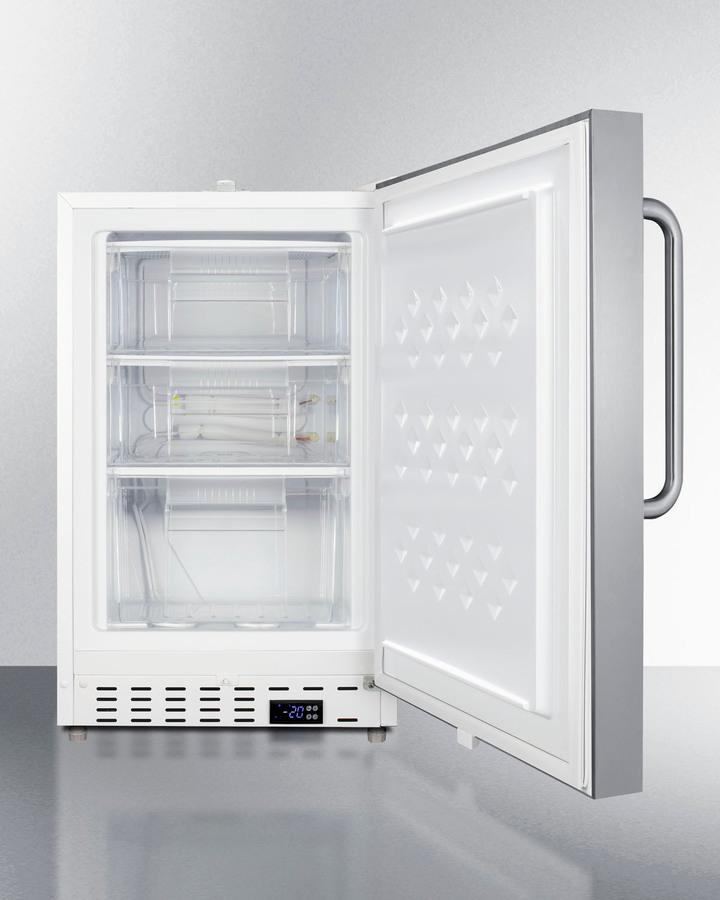

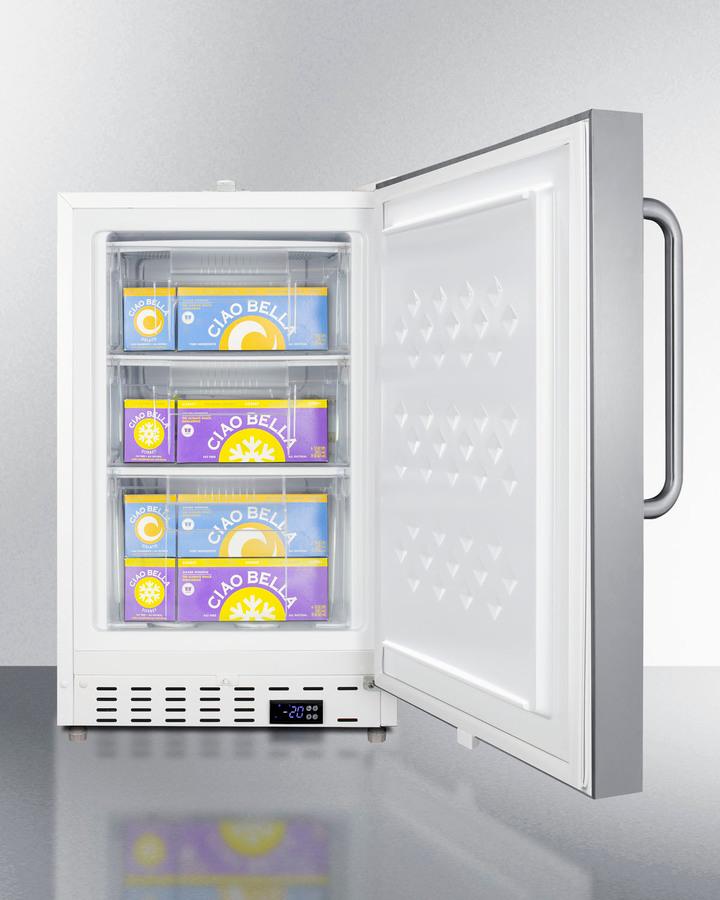

  • Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
  • Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Audible alarm will sound if the door is left ajar for over a minute
  • Secure three-pronged cord offers a tighter fit in wall sockets
  • More temperature stability with an energy efficient manual defrost system
  • Temperature remains more stable with a static cooling system
  • User-reversible stainless steel door for added flexibility to best accommodate your setting
  • Space-saving design that offers easier cleanability
  • Quality door gaskets ensure a tight seal for energy savings and improved performance
  • This unit can be paired with the SCR504SSTBADA all-refrigerator for a complete set
  • Allows the unit to be freestanding
  • Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

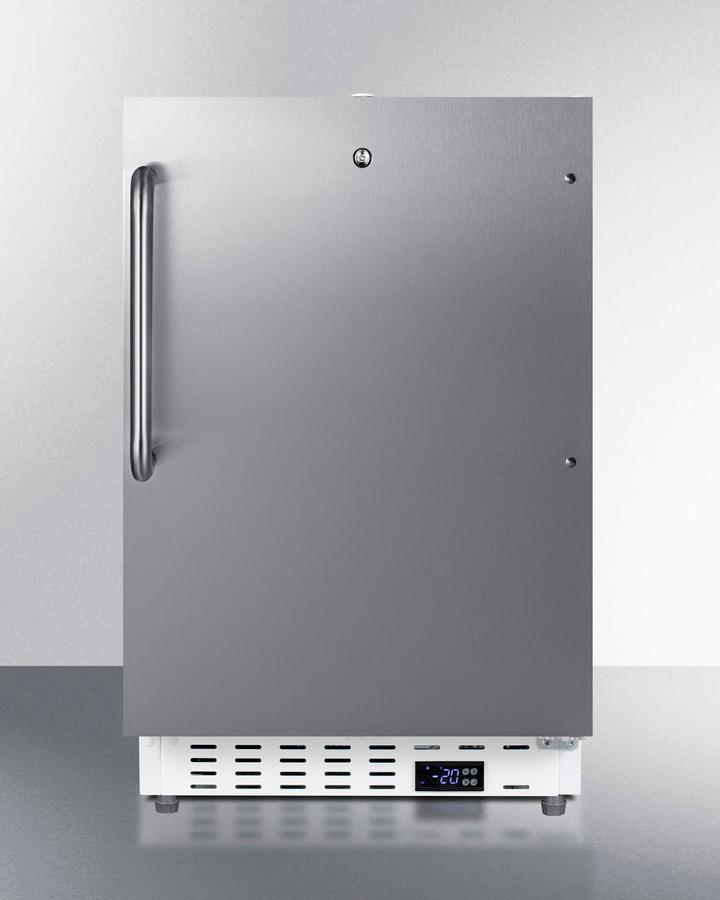

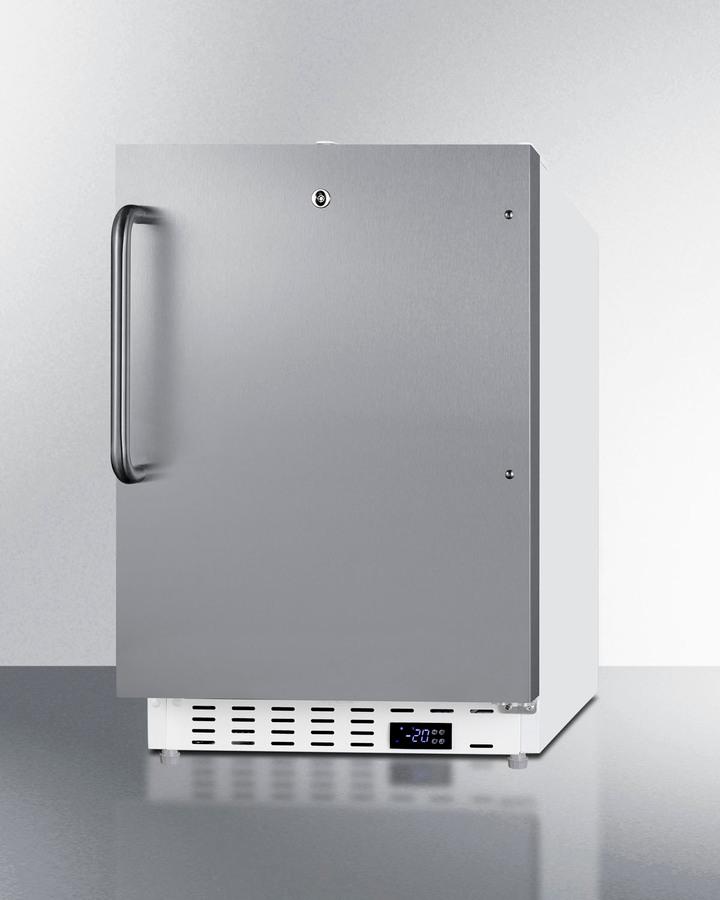

Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use. Model SCF505SSTBADA is a commercial all-freezer sized at just under 20" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar. Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius and is designed to operate between -25(degree) and -15(degree)C. Inside, this freezer includes removable pull-out drawers on fixed wire shelving, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. This unit utilizes static manual defrost cooling for improved temperature stability. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred. The SCF505SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCR504SSTBADA all-refrigerator. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, clear icemakers, reach-in refrigeration, and much more.

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.47 cu.ft. (70 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 75.0 lbs. (34 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086149
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.75" (60 cm)
Interior Width 14.5" (37 cm)
Interior Depth 17.0" (43 cm)
Shelf Type Drawers
Shelf Qty 3
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.34 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 14.5" (37 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -25° to -15°C
