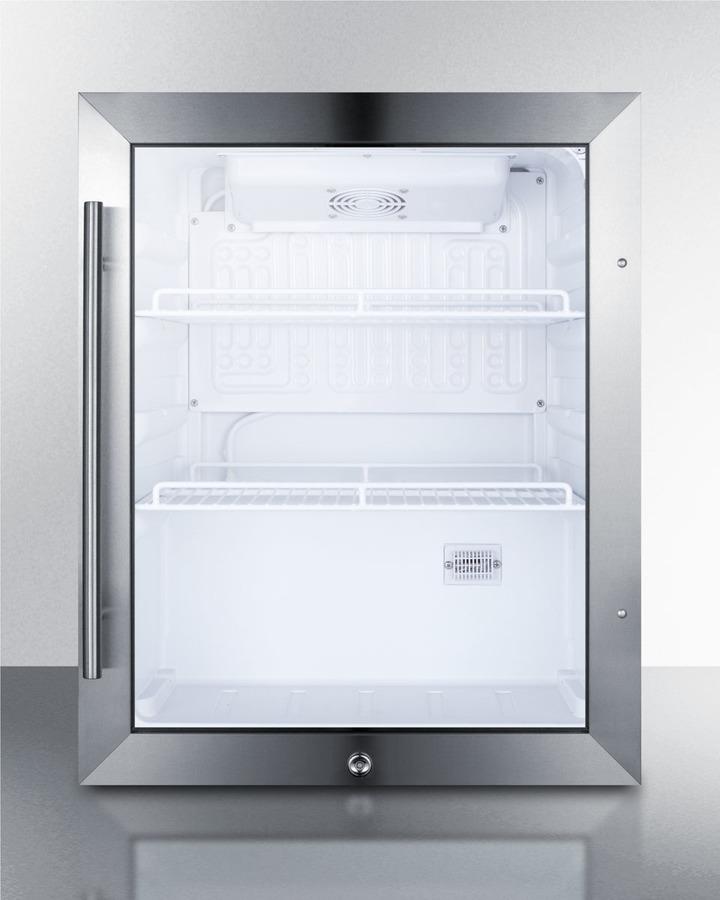

Summit SCR314L Compact Beverage Center SCR314L

SUMMIT COMMERCIAL offers a quality selection of beverage centers perfectly designed to maximize impulse sales. The SCR314L is a compact beverage merchandiser sized for use on top of counters. It is ETL-S listed to NSF-7 standards for commercial applications and meets UL-471. The stainless steel trimmed glass door includes a pro style handle and front lock for added security, while the jet black cabinet suits any setting. The door is user-reversible to accommodate any setup. Inside, the SCR314L features LED lighting to provide an attractive display when the door is opened. Two adjustable wire shelves offer plenty of storage options, and the white interior finish helps to provide better visibility for stored products. This unit utilizes automatic defrost to reduce user maintenance. The sealed back offers added space savings and easier cleanup. Perfectly sized and competitively priced, the SCR314L is a great choice for any commercial application in need of a quality beverage center.

Overview
Nominal Height	25.0" (64 cm)
Height of Cabinet	24.25" (62 cm)
Height to Hinge Cap	24.75" (63 cm)
Nominal Width	19.0" (48 cm)
Width	18.88" (48 cm)
Nominal Depth	17.0" (43 cm)
Depth	17.0" (43 cm)
Depth with Handle	18.38" (47 cm)
Depth with door at 90°	35.0" (89 cm)
Capacity	2.1 cu.ft. (59 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	53.0 lbs. (24 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101056647
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.71oz.
High Side PSI	320.0
Low Side PSI	120.0
Interior Light	Yes
Temperature Range	34°F to 46°F/1 to 8 C
Sound Level	33.5 dB
Dimensions
Interior Height	20.75" (53 cm)
Interior Width	15.75" (40 cm)
Interior Depth	12.75" (32 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	15.75" (40 cm)
Compressor Step Depth	6.0" (15 cm)
