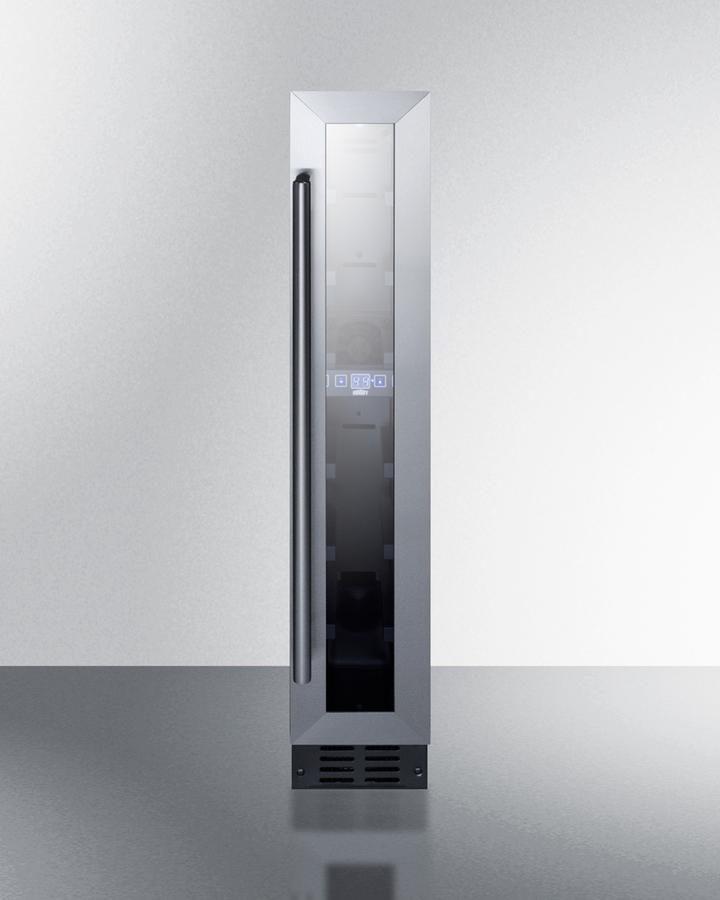

Summit SWC007 6" Wide Built-in Wine Cellar SWC007
Summit SWC007 6" Wide Built-in Wine Cellar
- Perfectly sized to complete any extra undercounter space
- Make the best use of space by installing your appliance under the counter
- Sized at 32 1/4" high to fit under most lower ADA compliant counters
- Meets UL-471 commercial standards
- Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
- Provides a full display of your stored collection with a heat-safe double tempered design
- Electronic controls for precise temperature management
- Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
- The floor slight is slightly angled, allowing you store bottles that have been uncorked at a gentle tilt
- Temperature readout can be shown in Celsius or Fahrenheit
- Provides an attractive and efficient bottle display
- Reduced maintenance and steady temperature performance
- Interior fan helps to ensure the temperature is evenly distributed
- Stainless steel look for added elegance
- User-reversible door swing allows you to easily adjust to better accommodate your setting
- Audible alarm will sound if the door is left ajar for over 60 seconds
- If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Unit will retain last temperature settings in the event of a power failure
- Flat design offers added space savings by requiring no extra depth to plug the unit in
- Space saving design with easier cleanability
- Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
- Runs at under 34 dB for a quiet performance in any setting
- Compressor-based operation to ensure reliable temperature performance
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Complete any undercounter space in style with Summit's SWC007, a 6 inch wide wine cellar fully featured for user convenience. Designed for built-in installation, the SWC007 features a front-breathing compressor-based cooling system. The stainless steel trimmed glass door includes a pro style handle and is user-reversible for added flexibility. This unit has a jet black exterior finish. The sealed back and right angle plug make it easy to install flush with cabinetry. At just 32 1/4 inches high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2 inches, ensuring an easy fit under standard countertops as well. Inside, the SWC007 features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. Seven slots let you store wine bottles with ease, including a slightly angled floor slot that makes it easier to store bottles that have already been opened. This unit is equipped with an open door and high temperature alarm to help ensure your bottles are stored properly. The Sabbath mode setting allows you to disable certain features during periods of observance. With its attractive design and innovative size, the SWC007 is the perfect way to finish any kitchen design.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.25" (82 cm) |
| Nominal Width | 6.0" (15 cm) |
| Width | 5.88" (15 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.75" (53 cm) |
| Depth with Handle | 22.38" (57 cm) |
| Depth with door at 90° | 25.5" (65 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 40.0 lbs. (18 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056319 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.75" (65 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 72 F |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
