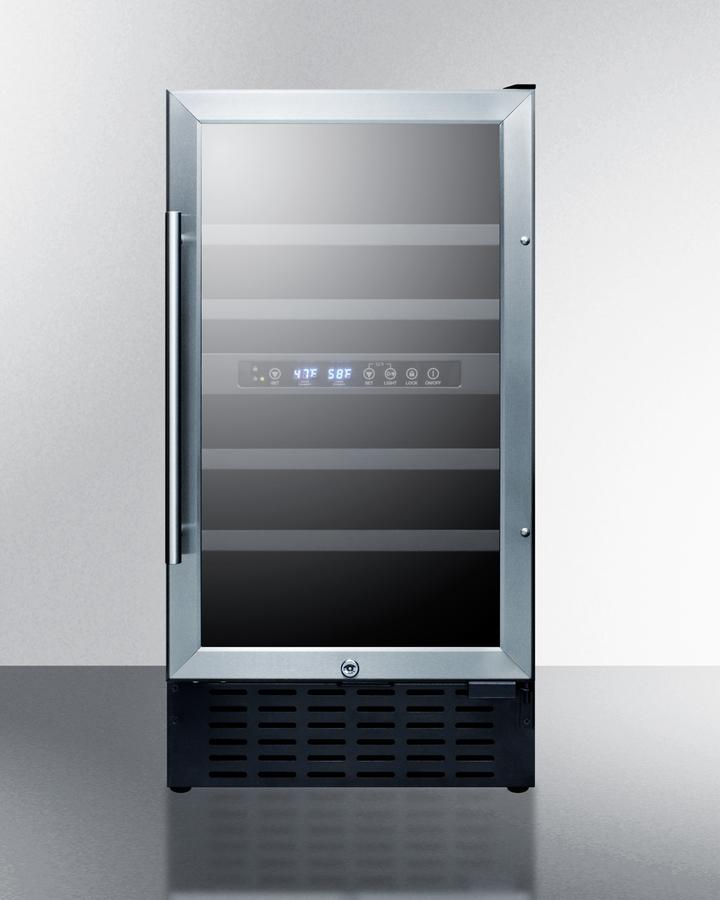

Summit SWC182ZCSSADA 18" Wide Built-in Wine Cellar, ADA Compliant SWC182ZCSSADA

SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space. Sized just under 18" wide and 32" high, the SWC182ZCSSADA is front-breathing for built-in installation under lower ADA compliant counters. The cabinet is wrapped in 304 grade stainless steel for a professional look built to last. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included. Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management. With its slim fit and convenient design, the SWC182ZCSSADA makes an attractive addition to any room.

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.63" (80 cm)
Nominal Width	18.0" (46 cm)
Width	17.94" (46 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.3 cu.ft. (93 L)
Bottles	28 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101058436
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	4
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	10.63" (27 cm)
Interior Width 1	14.25" (36 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Height	5.25" (13 cm)
Compressor Step Width	14.25" (36 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41 to 64 F
Interior Height 2	12.25" (31 cm)
Interior Width 2	14.25" (36 cm)
Interior Depth 2	18.0" (46 cm)
