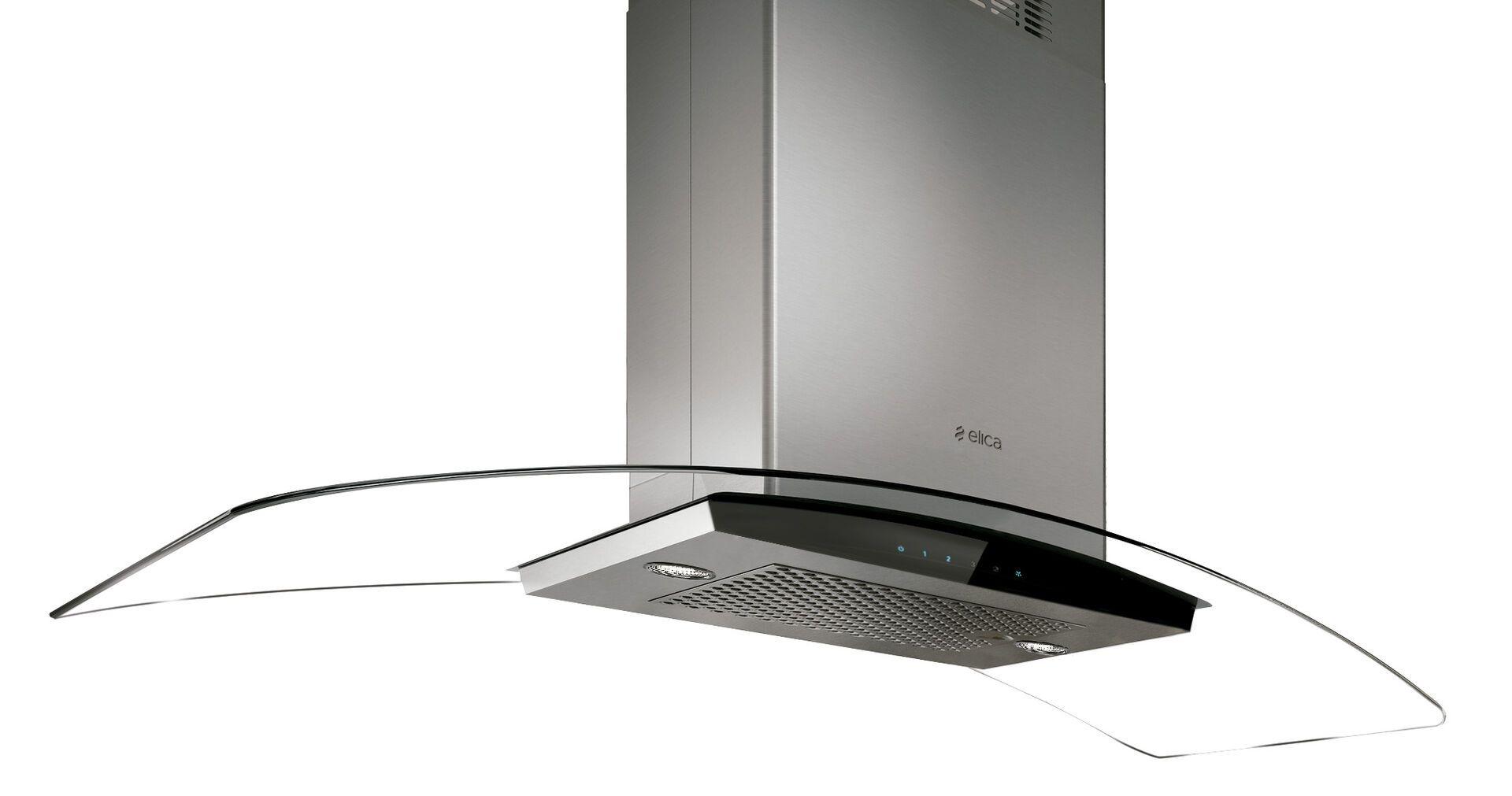

Elica ECN636S3 CINGOLI Island Range Hood 30" wide - 600CFM ECN636S3

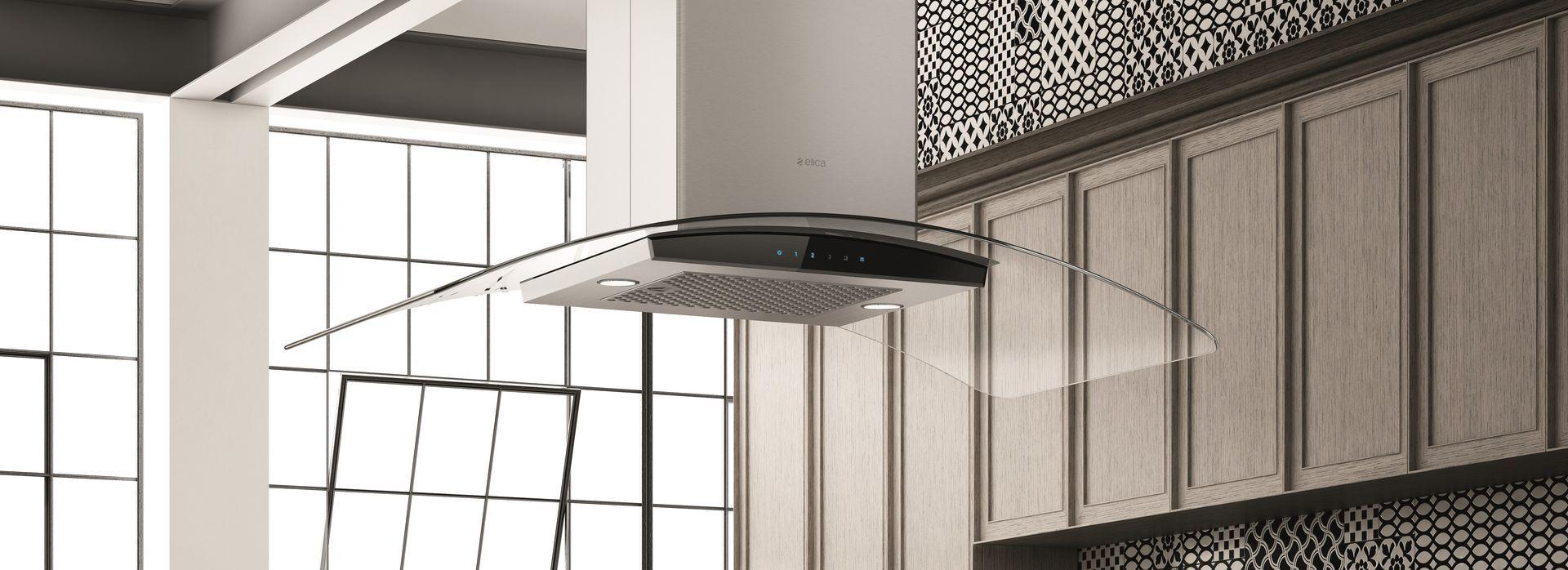

Designed to be suspended above a kitchen island, Cingoli features elegant 36" or 42" arched glass wings that allow natural light to illuminate the surface below. These expansive glass wings are complemented by reflective stainless steel. Cingoli combines beauty with functionality, offering a powerful 600 CFM blower, dishwasher-safe stainless steel micro hole filter, and glass touch controls for convenience and safety. Designed for standard ducted installation, Cingoli can also be installed as a recirculating system using the optional Recirculating Kit.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	41.30
NET WEIGHT (kg)	28.50
CARTON LENGHT (mm)	1040.00
CARTON HEIGHT (mm)	596.00
CARTON WIDTH (mm)	850.00
VOLUMEN (M3)	0.50
SHIPPING WEIGHT	91.05
NET WEIGHT	62.83
CARTON LENGHT	40.94
CARTON HEIGHT	23.46
CARTON WIDTH	33.46
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel + Black Glass
Color	inox + glass
Type of Ventilation	Convertible
HOODS FEATURES	Hush system, Dim light,Top performance,CFM reduction system,Touch controls , Led light
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	36.00
db (max)	55.00
SONES	1.7 - 6.8
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	3.8 A
HERTZ	60.00
WATTS	394.00
LIGHTING	Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00

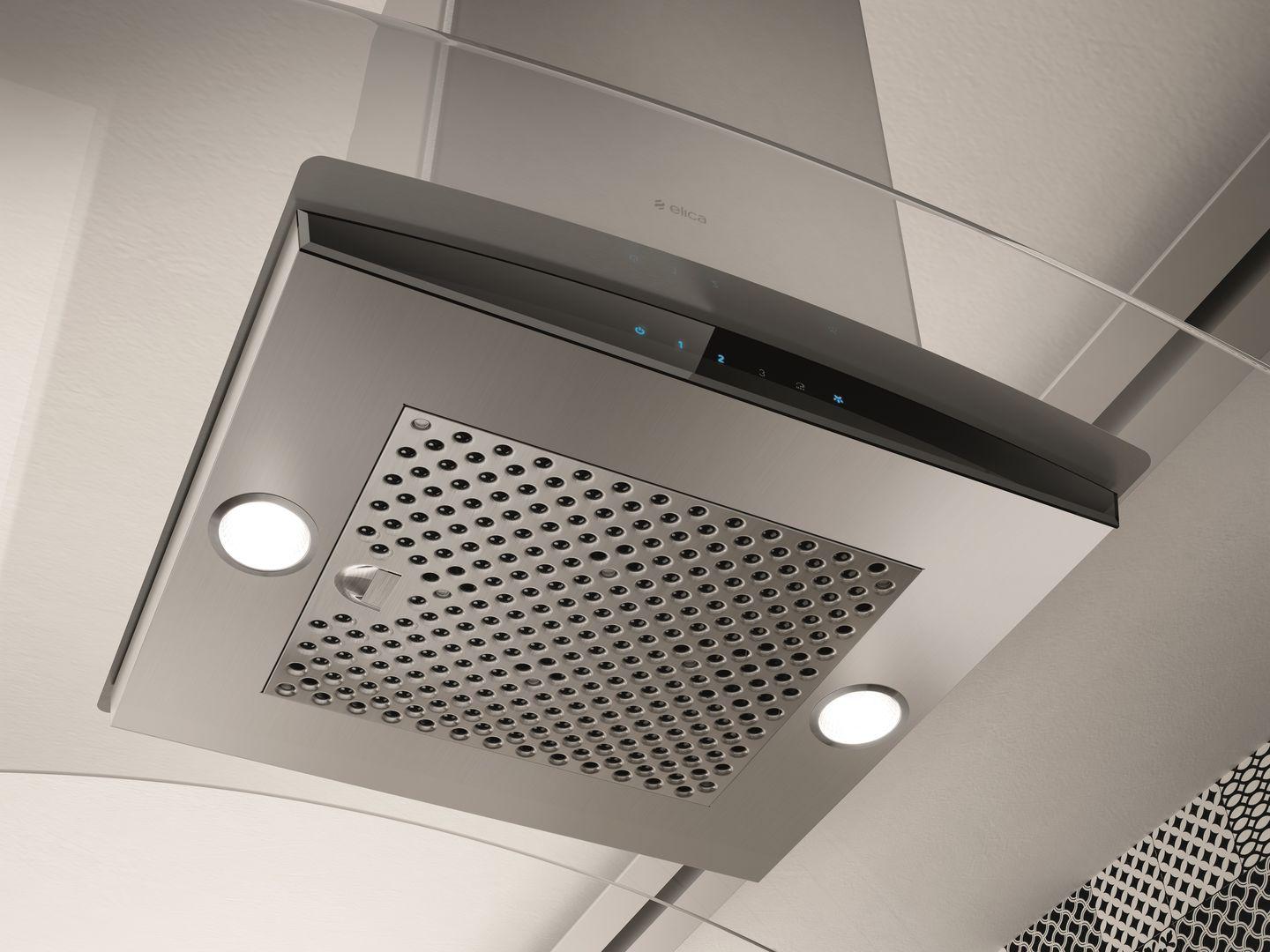

GREASE FILTER TYPE	Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit

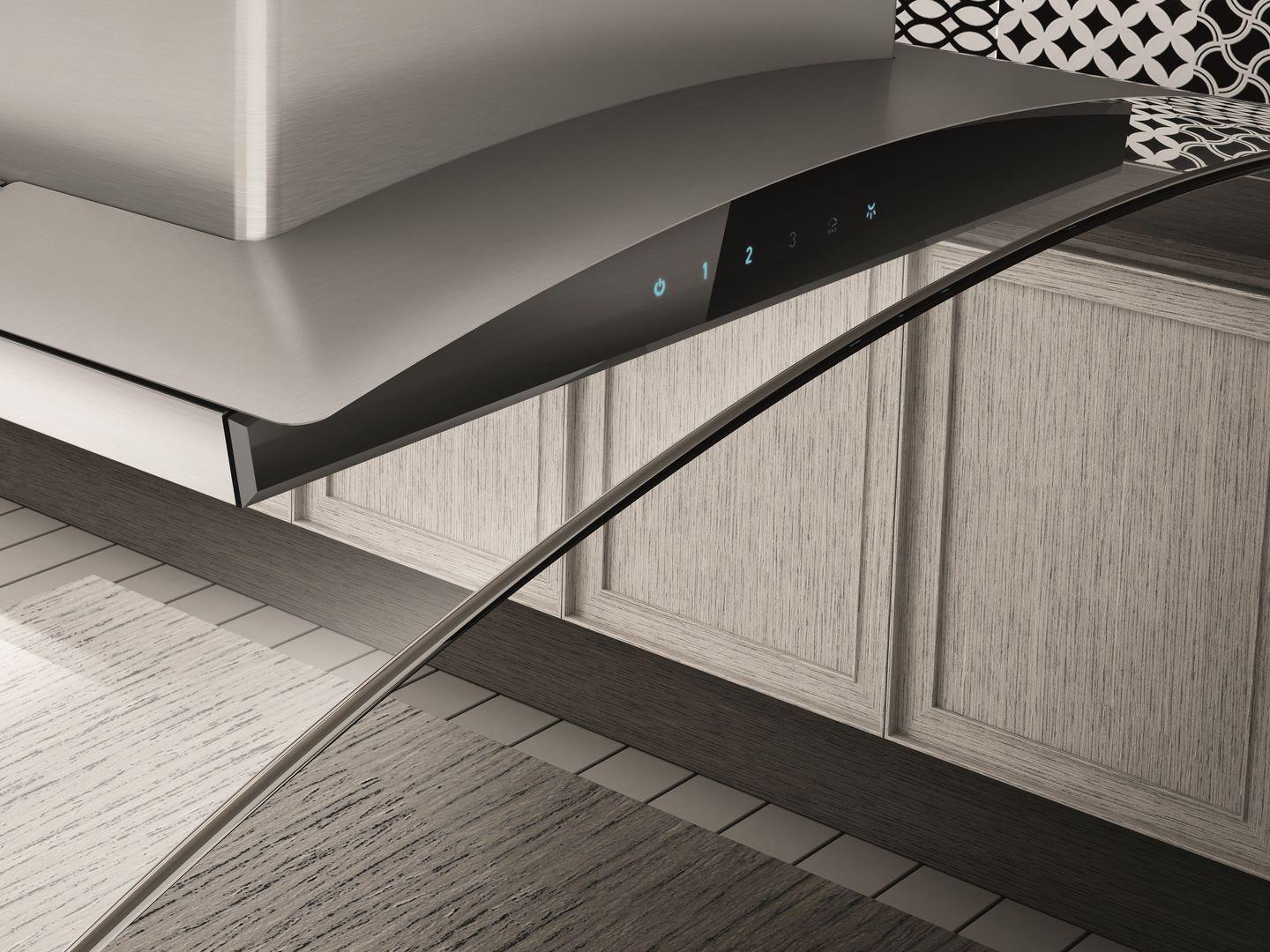

CONTROL TYPE	Multi-function Electronic with black glass touch display
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes
DIMENSIONS	91 x 64 x 74
DIMENSIONSinches	36" x 25 1/4" x 29 3/4"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	29 3/4"
Maximum Overall Height - Top to Bottom	49 1/2"
Overall Height - Top to Bottom	29 3/4"-49 1/2"
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	25 1/4"
Hood Height	1 15/16"
Minimum Compatible Ceiling Height	7'6"
Maximum Compatible Ceiling Height	10'1"
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	13"
Chimney Depth - Front to Back	12"
Chimney Height - Top to Bottom	29 13/32
RECIRCULATION KIT NUMBER	KIT02665
CHIMNEY EXTENSION NUMBER	KIT0100317
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	NA
