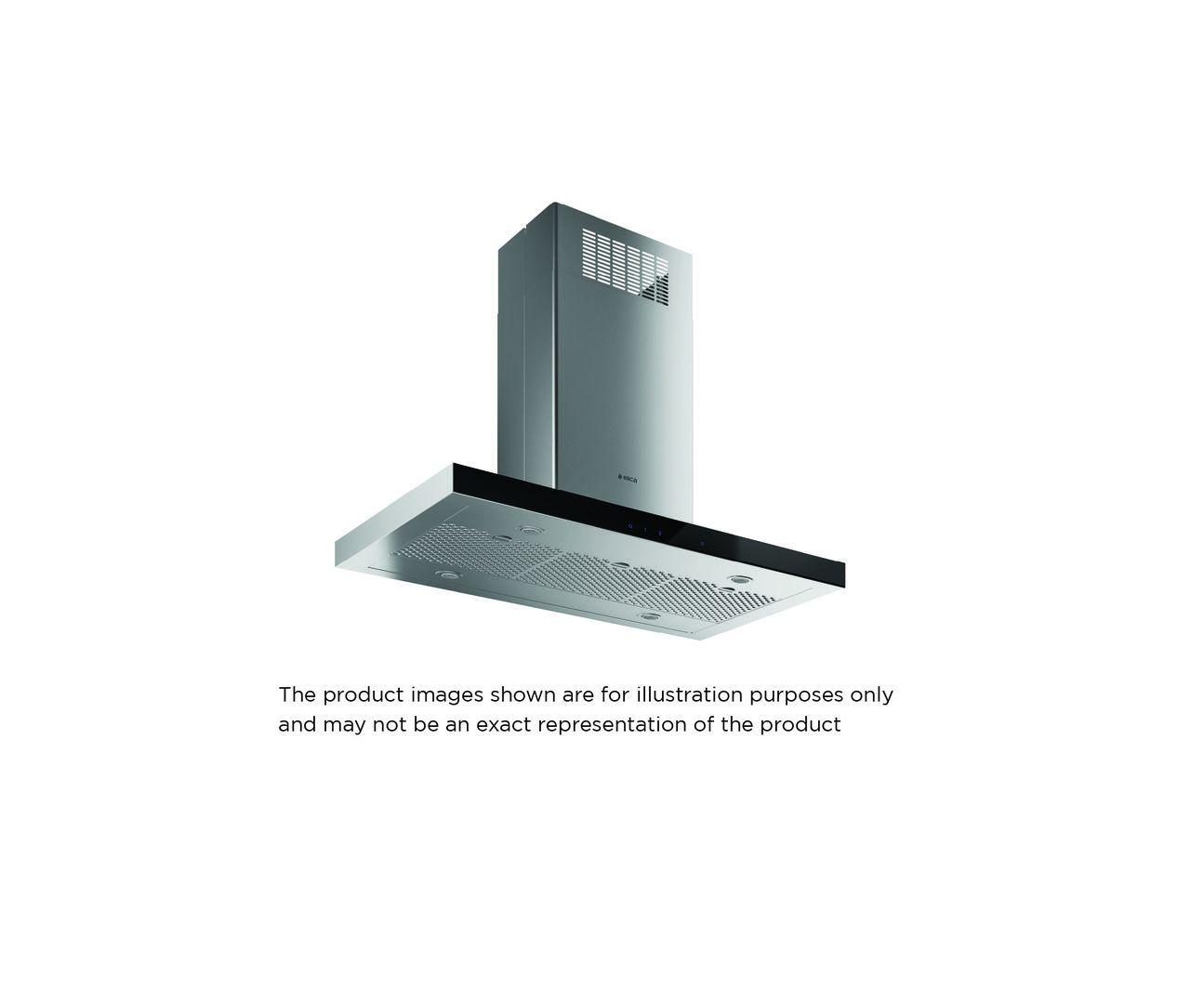

Elica EMG642S1 MAGGIORE Island Range Hood 42" wide - 600CFM
Elica EMG642S1 MAGGIORE Island Range Hood 42" wide - 600CFM
Regular price
$1,849.00
Regular price
Sale price
$1,849.00
Unit price
per
Couldn't load pickup availability
When Will I Get My Order?
- Led light
- Dim light
- Top performance
- CFM reduction system

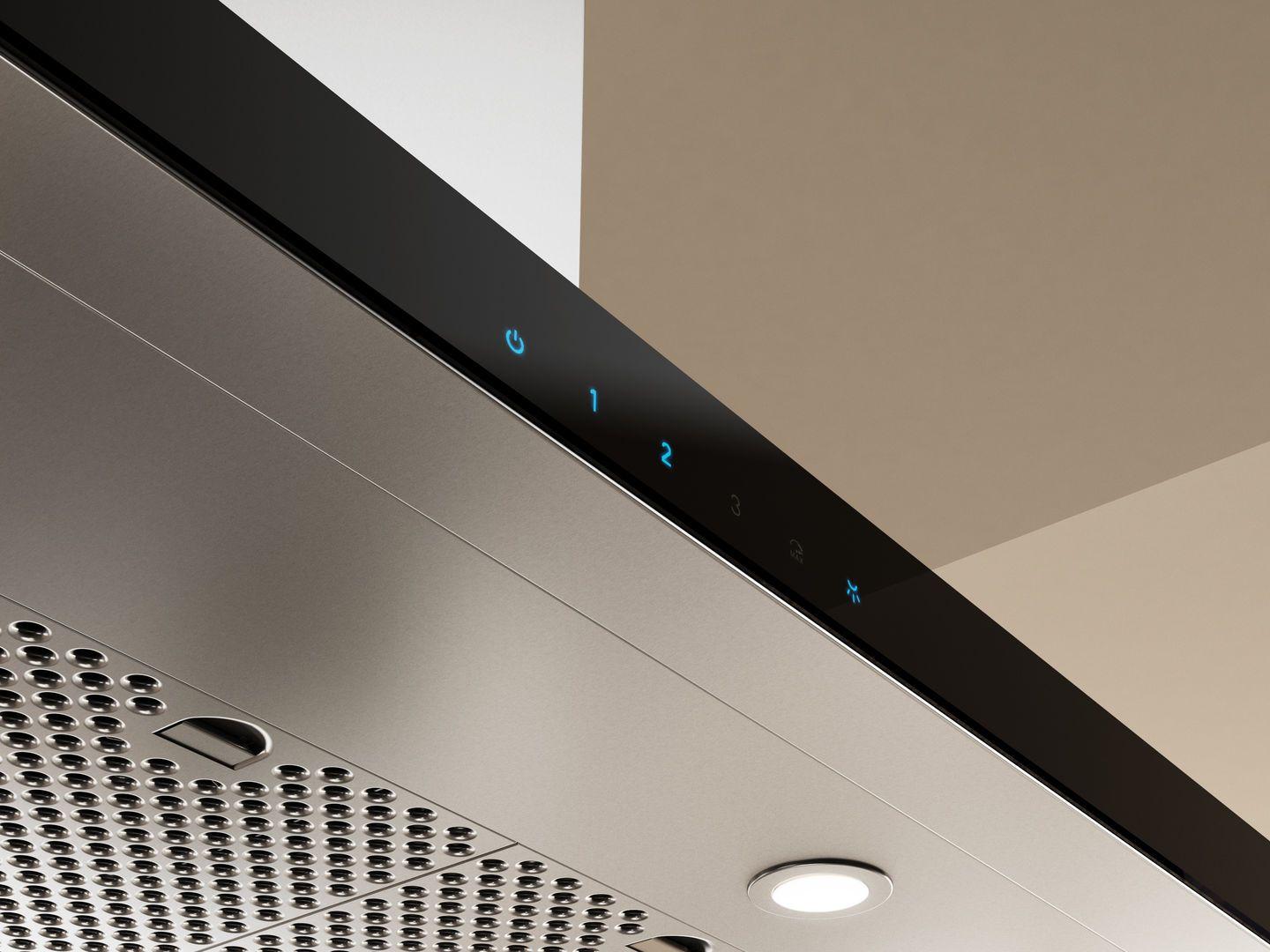

- Touch controls
- Hush system
With a minimalist design and strong stainless steel construction, Maggiore complements avant-garde appliances where clear and architectural lines take precedence. Maggiore features a powerful 600 CFM blower, dimmable LED lights, stainless steel microhole filters, and high-tech glass touch controls for convenience and safety. Designed for standard ducted installation, Maggiore can also be installed as a recirculating system using the optional Recirculating Kit.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 49.80 |
| NET WEIGHT (kg) | 39.40 |
| CARTON LENGHT (mm) | 1195.00 |
| CARTON HEIGHT (mm) | 850.00 |
| CARTON WIDTH (mm) | 596.00 |
| VOLUMEN (M3) | 0.60 |
| SHIPPING WEIGHT (lb) | 109.79 |
| NET WEIGHT (lb) | 86.86 |
| CARTON LENGHT | 47.05 |
| CARTON HEIGHT | 33.46 |
| CARTON WIDTH | 23.46 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel + Black Glass |
| Material | Stainless Steel |
| Color | inox + glass |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light, Dim light, Top performance, CFM reduction system, Touch controls, Hush system |
| WIDTH (IN) | 42" |
| WIDTH (CM) | 107.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 31.70 |
| db (max) | 55.00 |
| SONES | 1.3 - 6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 3.55 A |
| HERTZ | 60.00 |
| WATTS | 426.00 |
| LIGHTING | Premium Dimmable LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 4.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Microhole Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Multi-function Electronic with black glass touch display |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS (CM) | 107 x 69 x 76 |
| DIMENSIONS (INCH) | 42" x 27 1/8 x 29 13/16 |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 29 13/16 |
| Maximum Overall Height - Top to Bottom | 50 1/8" |
| Overall Height - Top to Bottom | 29 13/16 -50 1/8 |
| Overall Width - Side to Side2 | 42" |
| Overall Depth - Front to Back | 27 1/8 |
| Hood Height | 2 3/8" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | 7'6" |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | 10'2" |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13" |
| Chimney Depth - Front to Back | 12" |
| Chimney Height - Top to Bottom | 47 3/8" |
| RECIRCULATION KIT NUMBER | KIT02665 |
| CHIMNEY EXTENTION NUMBER | KIT0100317 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
