Elica EHI670SS HAIKU IS Island Range Hood 70" wide - 600CFM EHI670SS
Elica EHI670SS HAIKU IS Island Range Hood 70" wide - 600CFM





- Long life filter
- Special Materials
- Led Light
- Maintenance alarm
- Total Integration
- Comfort silence

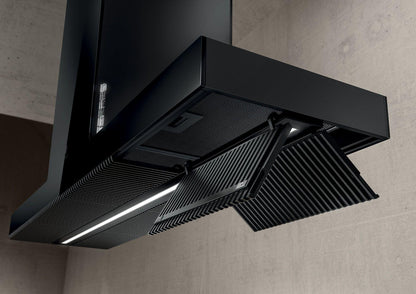

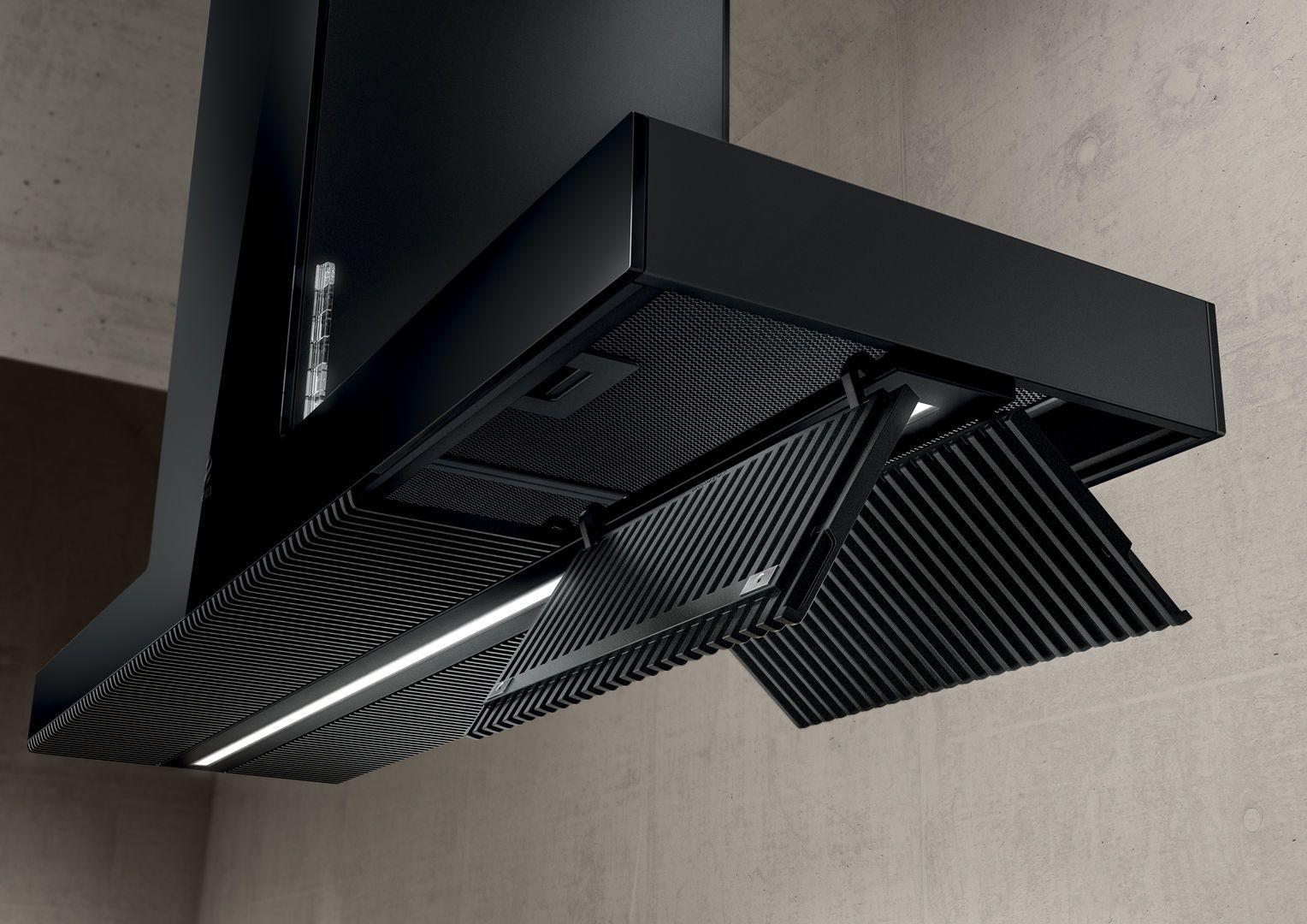

Shapes, materials and solutions. At Elica, our strong belief in research means that even the choice of materials becomes an essential element in the innovation process. With 3D Aluminum grids with cast iron e ffect, the grids are kept attached to the casting by means of magnets mounted on the hood. Therefore, the locking system prevents any accidental fall. Available in different sizes and di fferent materials: full stainless steel, extra clear tempered glass with black screen printed and White Intense Krion.
Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
SHIPPING WEIGHT (kg) | 57.00 |
NET WEIGHT (kg) | 49.20 |
CARTON LENGHT (mm) | 781.00 |
CARTON HEIGHT (mm) | 413.00 |
CARTON WIDTH (mm) | 1284.00 |
VOLUMEN (M3) | 0.40 |
SHIPPING WEIGHT | 125.66 |
NET WEIGHT | 108.47 |
CARTON LENGHT | 30.75 |
CARTON HEIGHT | 16.26 |
CARTON WIDTH | 50.55 |
COUNTRY OF MANUFACTURE | PL |
QTY PACKAGE | 1.00 |
INTENDED APPROVED USE | Residential use |
Finish | Stainless Steel |
Color | inox |
Type of Ventilation | Convertible |
HOODS FEATURES | Long life filter, Special Materials, Led Light, Maintenance alarm, Total Integration, Comfort silence |
WIDTH (IN) | 70" |
WIDTH (CM) | 180.00 |
AIRFLOW (M3/H) | 1020.00 |
CFM (MAX) | 600.00 |
db (min) | 36.00 |
db (max) | 55.00 |
SONES | 1.8 - 6.8 |
EXHAUST VERSION | Convertible with Kit |
EXHAUST SIZE | Round 6" |
DUCT SHAPE | Round |
EXHAUST LOCATION | Top Only |
RECTANGULAR DUCTH HEIGHT | NA |
RECTANGULAR DUCT WIDTH | NA |
Round duct diameter | 6" |
ELECTRIC (VOLTS) | 120 V/60 Hz |
AMPERAGE | 3.8 A |
HERTZ | 60.00 |
WATTS | 460.00 |
LIGHTING | Strip LED 1 x 7 ww 3500 KK |
BULB TYPE | Strip LED |
BULB INCLUDED | YES |
NUMBER OF LIGHTS | 1.00 |
BULB WATTS | 7.00 |
KELVINS | 3500.00 |
GREASE FILTER TYPE | Sophisticated Black Iron Grates + 6 Layer Mesh Filter |
DISHWASHERSAFE FILTER | YES |
FILTER MATERIAL | Iron |
BLOWER TYPE | Interior Unit |
CONTROL TYPE | Sensitive Touch Control with Backlight |
SPEED CONTROL | YES |
NUMBER OF SPEEDS | 3 + booster |
REMOTE CONTROL | NO |
POWER SOURCE | Power Cord |
OUTDOOR USE | NO |
SMUDGE RESISTANT | NO |
RECIRCULATION KIT NEEDED | YES |
CFM REDUCTION | No |
DIMENSIONS | 180 x 32 x 83 |
DIMENSIONSinches | 70" x 13" x 33 - 49 |
ADJUSTABLE HEIGHT | YES |
Minimum Overall Height - Top to Bottom | 33" |
Maximum Overall Height - Top to Bottom | 49" |
Overall Height - Top to Bottom | 33 - 49 |
Overall Width - Side to Side2 | 70" |
Overall Depth - Front to Back | 13" |
Hood Height | 33" |
Minimum Compatible Ceiling Height | 7'9" |
Maximum Compatible Ceiling Height | 10'1" |
Minimum Height Above Cooktop (ELECTRIC) | = 24 |
Minimum Height Above Cooktop (GAS) | = 30 |
Maximum Height Above Cooktop | 36" |
Chimney Width - Side to Side | 11 13/20" |
Chimney Depth - Front to Back | 12" |
Chimney Height - Top to Bottom | 49 |
RECIRCULATION KIT NUMBER | CFC0141725AUL |
CHIMNEY EXTENSION NUMBER | NA |
TELESCOPIC DUCT COVER | - |
DUCT TRANSITION | - |
TRANSITION REDUCER KIT | - |
BACKDRAFT DAMPER | - |
NON RETURN VALVE | - |
UPGRADE FILTER | - |
CFM REDUCTION KIT | - |
BACKSPLASH KIT | - |
INTERNAL BLOWER | - |
INLINE BLOWER | - |
EXTERNAL BLOWER | - |
INLINE BLOWER SHELL KIT | - |
EXTERNAL BLOWER SHELL KIT | - |
HEAT LAMPS | - |
SPACER/LINER | - |
WALL MOUNT BRACKET | - |
HIGH CEILING EXTENSION KIT | - |
REMOTE CONTROL KIT | - |
cUL listed | YES |
UL listed | YES |
AHAM verified | YES |
TITLE 24 | YES |
Prop65Disclosure | YES |
ENERGY STAR | NO |
WIFI CAPABLE | NO |
COMERCIAL USE APPROVED | NO |
ADA COMPLIANT | NO |
APP CAPABLE | NO |
VENTILATION DIRECTION | HORIZONTAL |
SMART COMPATIBLE | NO |
FITLER INDICATOR LIGHT | YES |
HEAT SENSOR | NO |
CHAROCAL FILTER | YES |
CERTIFICADO NOM | Activo |
