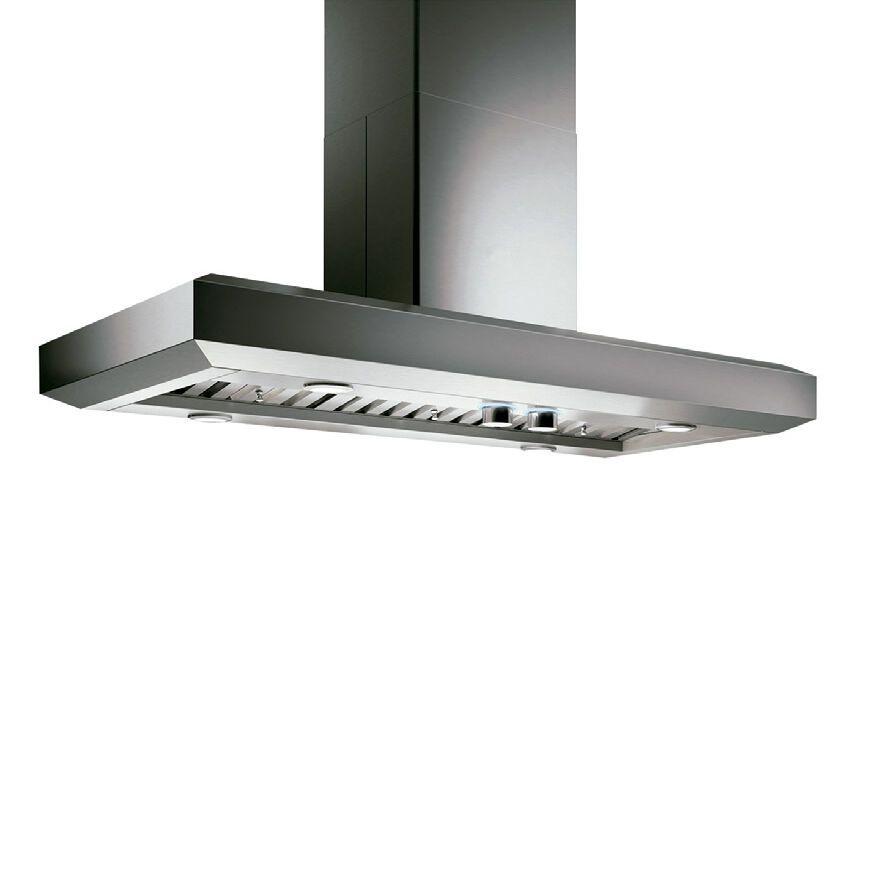

Elica EVI648S1 VAVANO IS Island Range Hood 48" wide - 600CFM

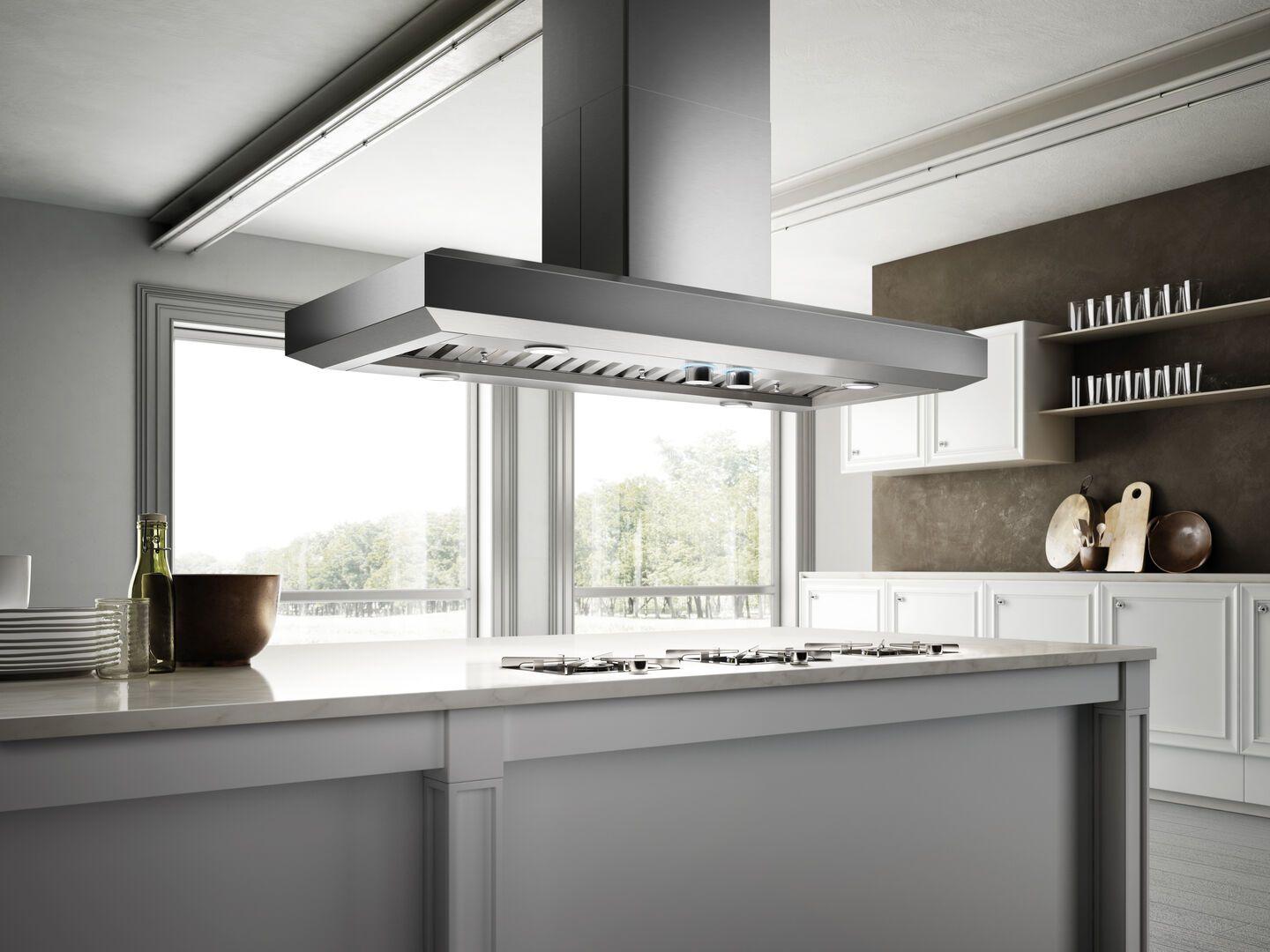

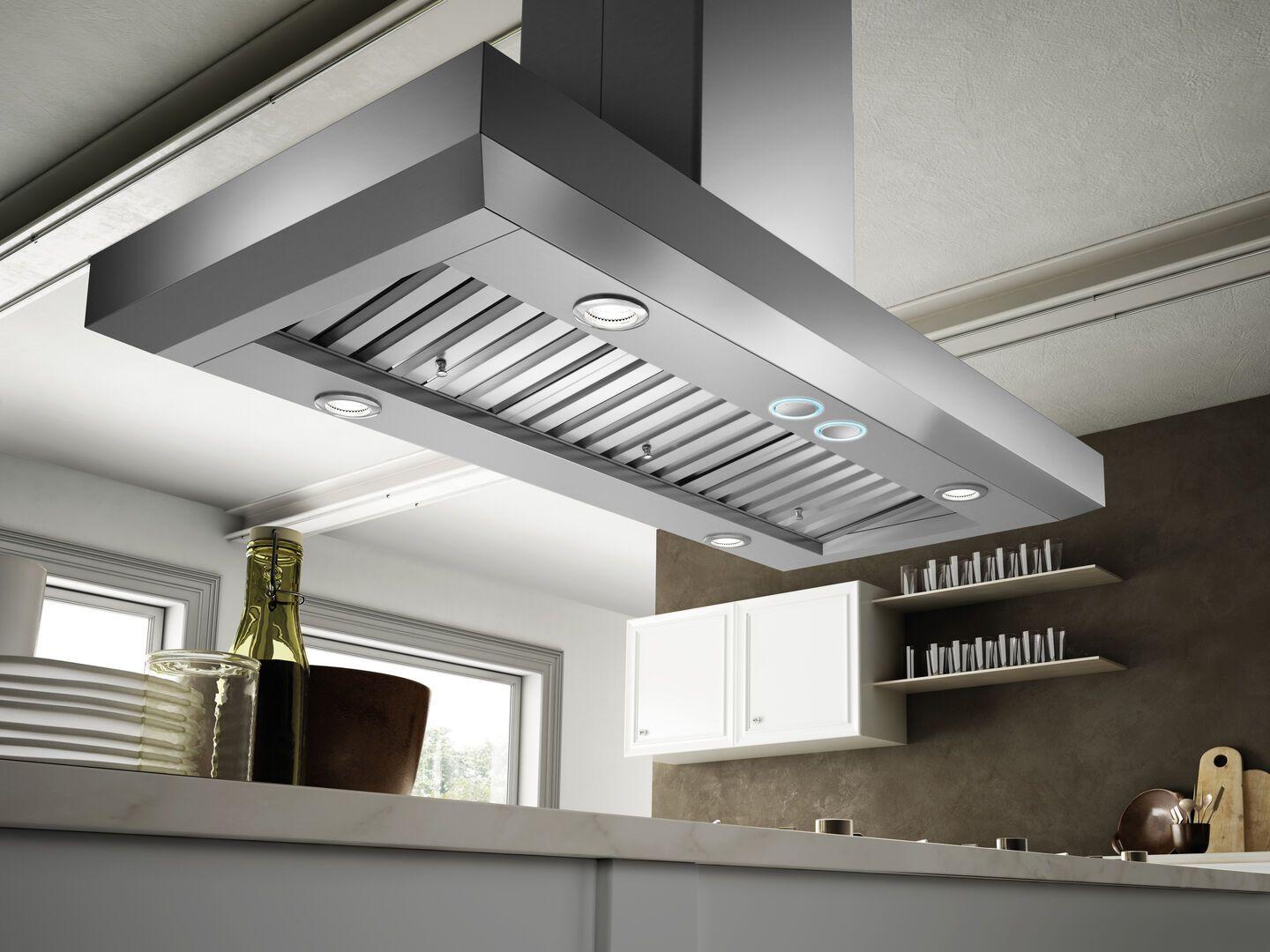

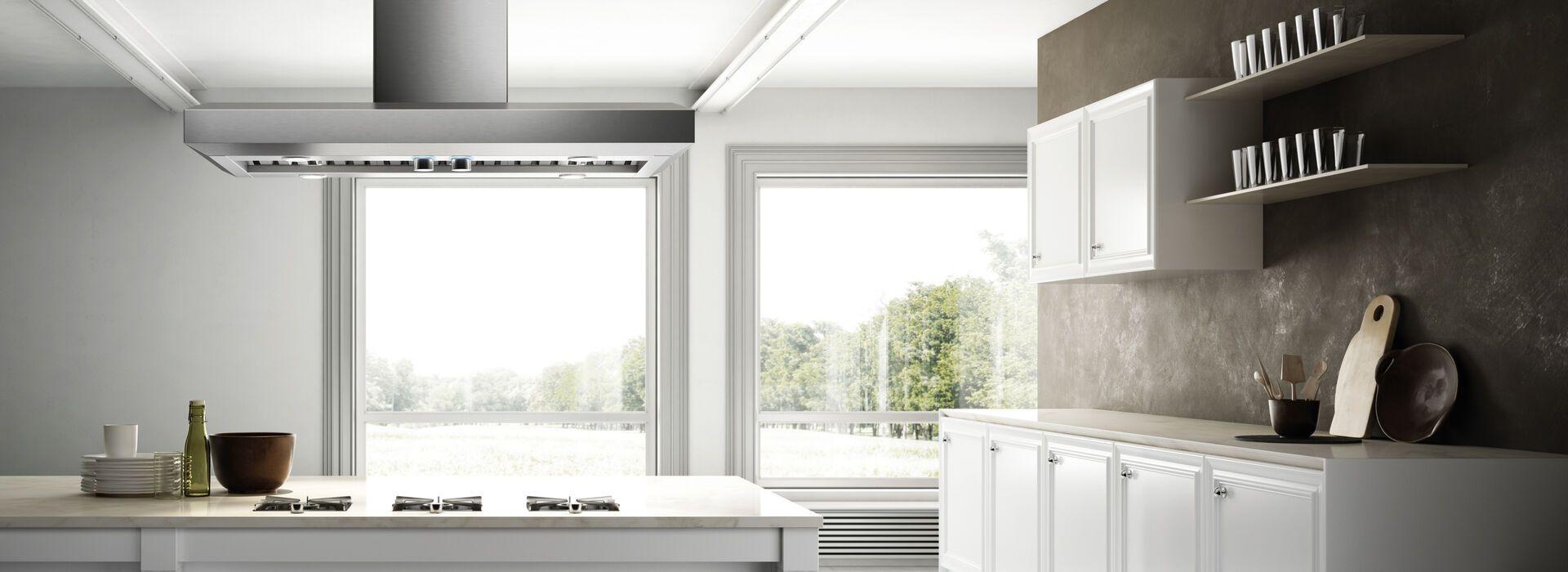

Designed to be suspended above a kitchen island, Vavano's crisp lines, beveled rim and gleaming stainless steel deliver professional cooking with a sense of style. Give your kitchen a splash of Italian design with a box style island hood that has the extra depth and power required to support professional ranges and cooktops. Available in 42" and 48" widths, Vavano Island comes equipped with a powerful 600 CFM internal blower and backlit hidden metallic in/out knobs, which operate the 4 speed blower and LED lighting.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	54.70
NET WEIGHT (kg)	45.80
CARTON LENGHT (mm)	1361.00
CARTON HEIGHT (mm)	645.00
CARTON WIDTH (mm)	840.00
VOLUMEN (M3)	0.74
SHIPPING WEIGHT	120.59
NET WEIGHT	100.97
CARTON LENGHT	53.58
CARTON HEIGHT	25.39
CARTON WIDTH	33.07
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Vented
HOODS FEATURES	Hush system, Heat guard, Grease collectors, Professional performance, Seamless look
WIDTH (IN)	48"
WIDTH (CM)	120.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	35.65
db (max)	56.00
SONES	1.7 - 7.0
EXHAUST VERSION	Ducted Only
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	4A
HERTZ	60.00
WATTS	480.00
LIGHTING	LED 4 x 6.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	4.00
BULB WATTS	6.50
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit

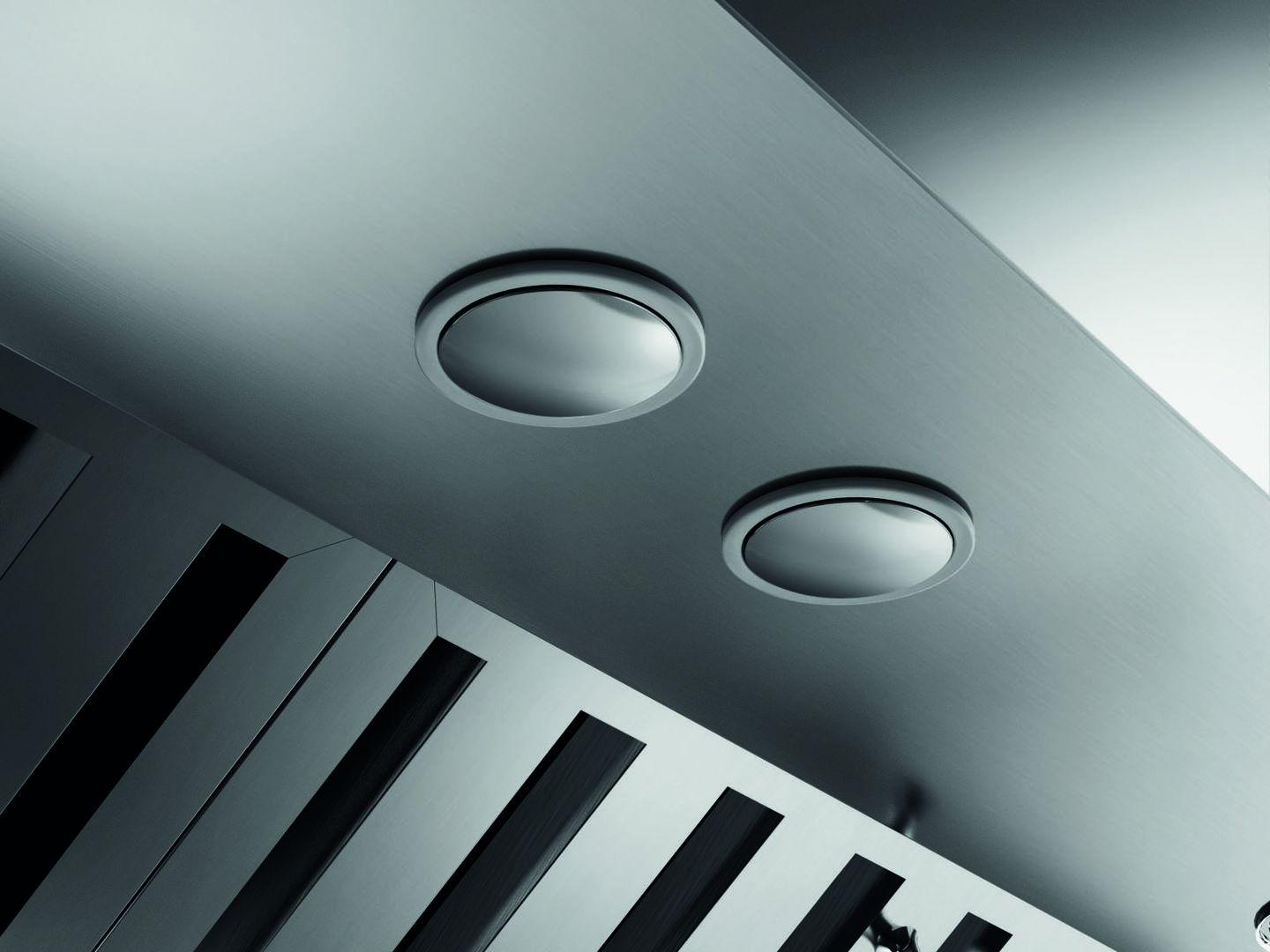

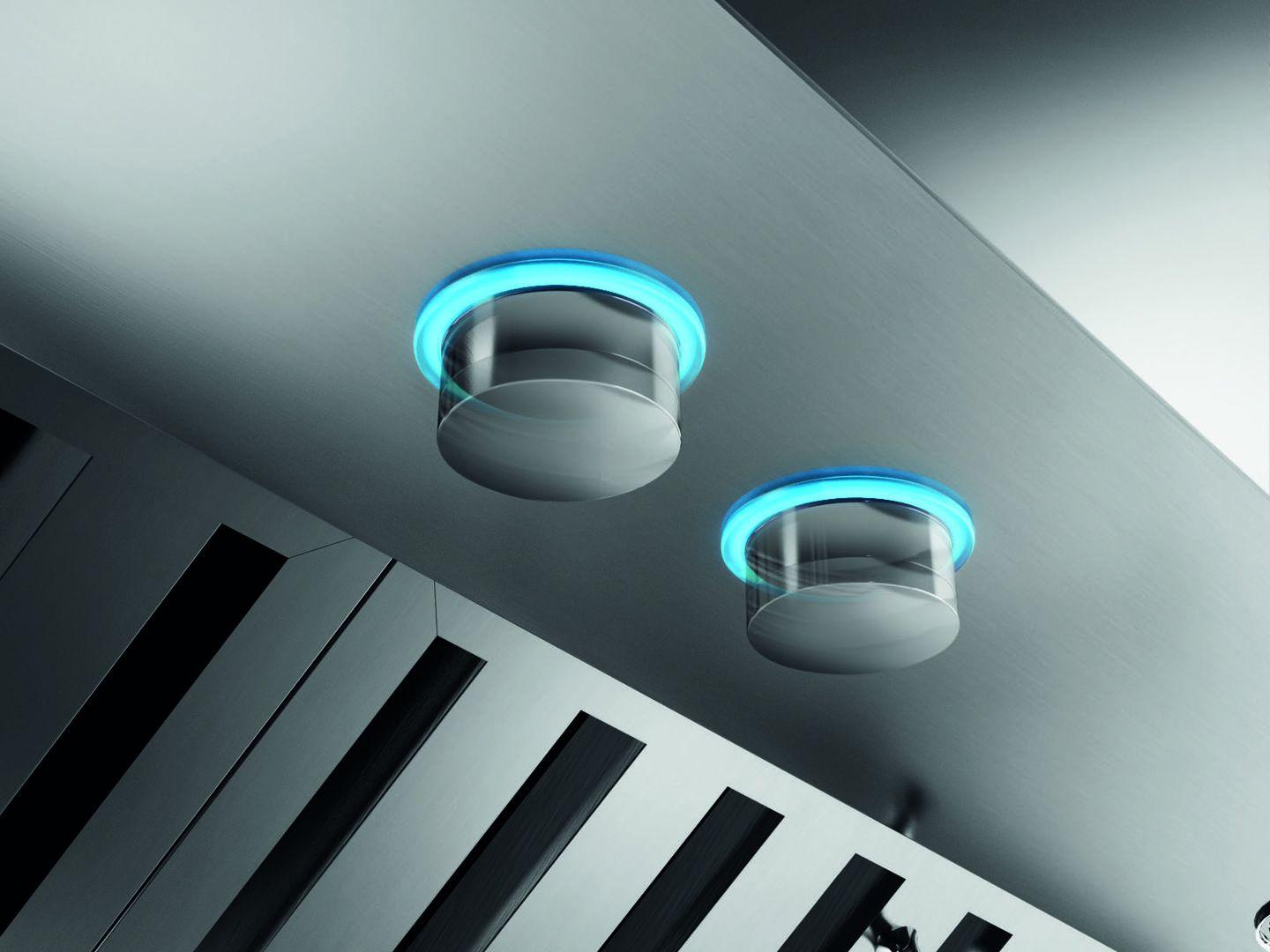

CONTROL TYPE	Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	NO
CFM REDUCTION	Yes w/kit
DIMENSIONS	120 x 62 x 76
DIMENSIONS inches	48" x 24 x 30 - 51
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	30"
Maximum Overall Height - Top to Bottom	51"
Overall Height - Top to Bottom	30 - 51
Overall Width - Side to Side2	48"
Overall Depth - Front to Back	24
Hood Height	5 1/32"
Minimum Compatible Ceiling Height	7'6"
Maximum Compatible Ceiling Height	10'1"
Minimum Height Above Cooktop (ELECTRIC)	24
Minimum Height Above Cooktop (GAS)	30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	13 5/64"
Chimney Depth - Front to Back	10 5/8"
Chimney Height - Top to Bottom	46"
RECIRCULATION KIT NUMBER	NA
CHIMNEY EXTENSION NUMBER	KIT0145610
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0185752
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	KIT0154387
EXTERNAL BLOWER	KIT0153054
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	YES
CHAROCAL FILTER	NO
