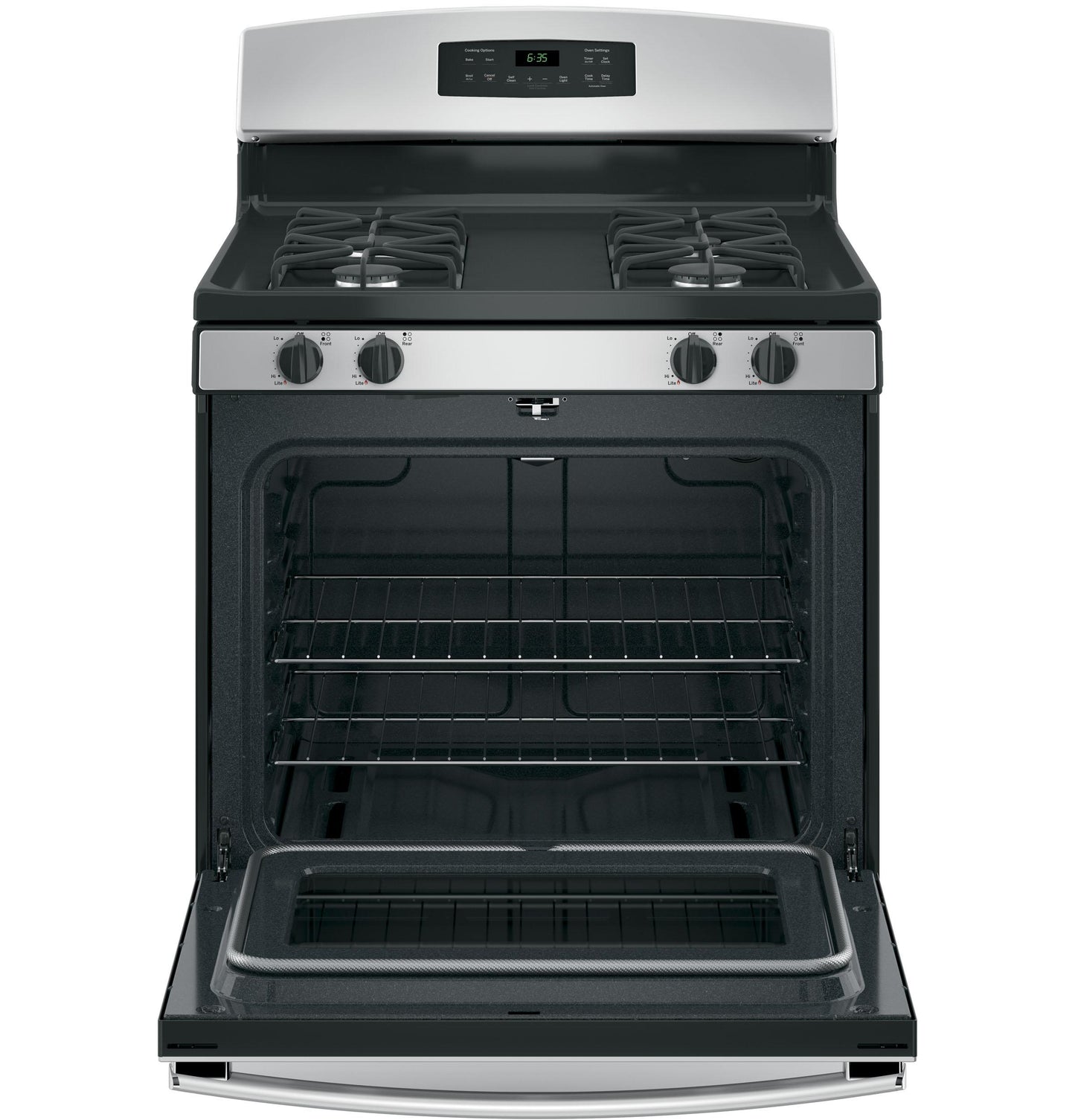

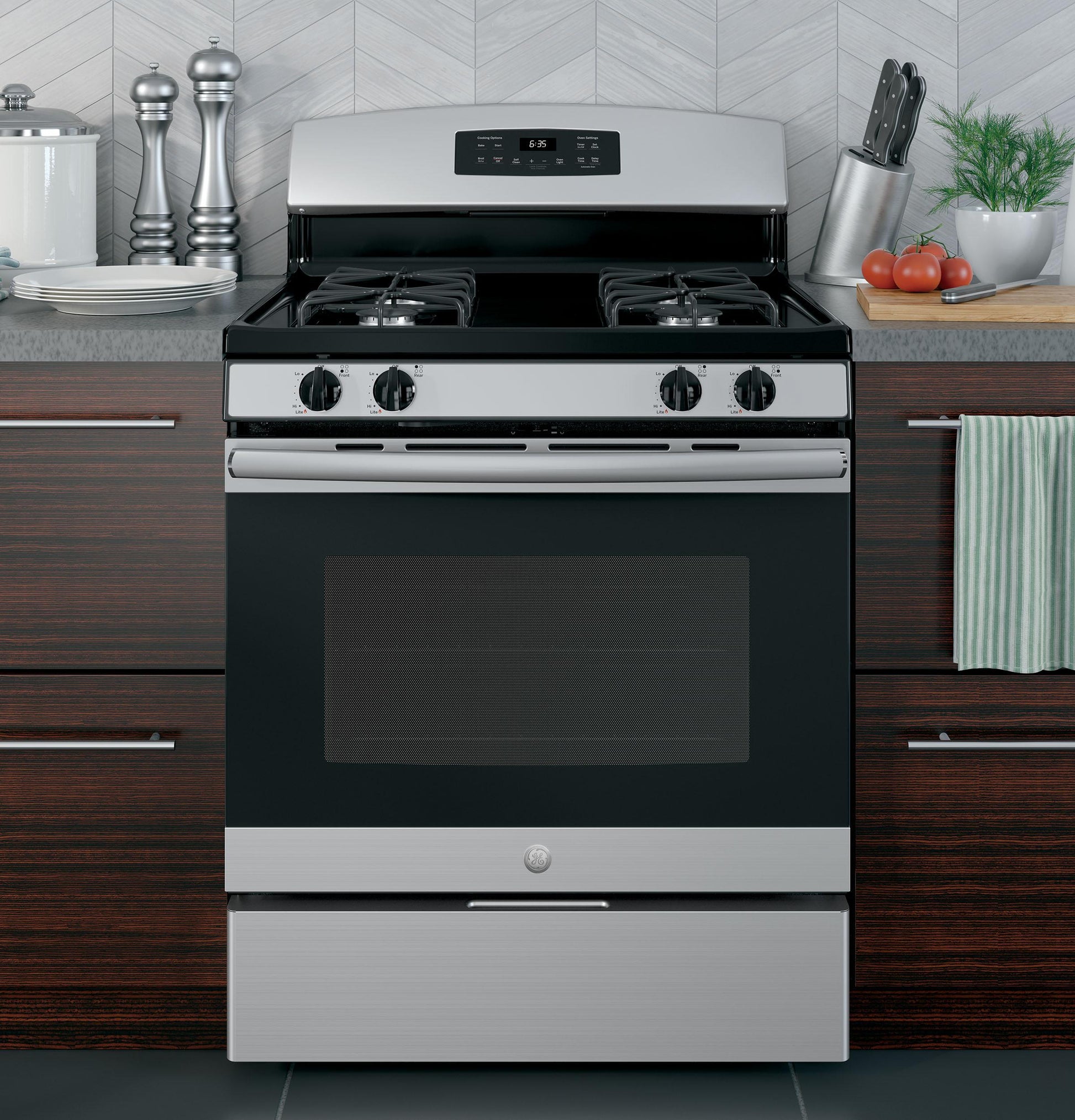

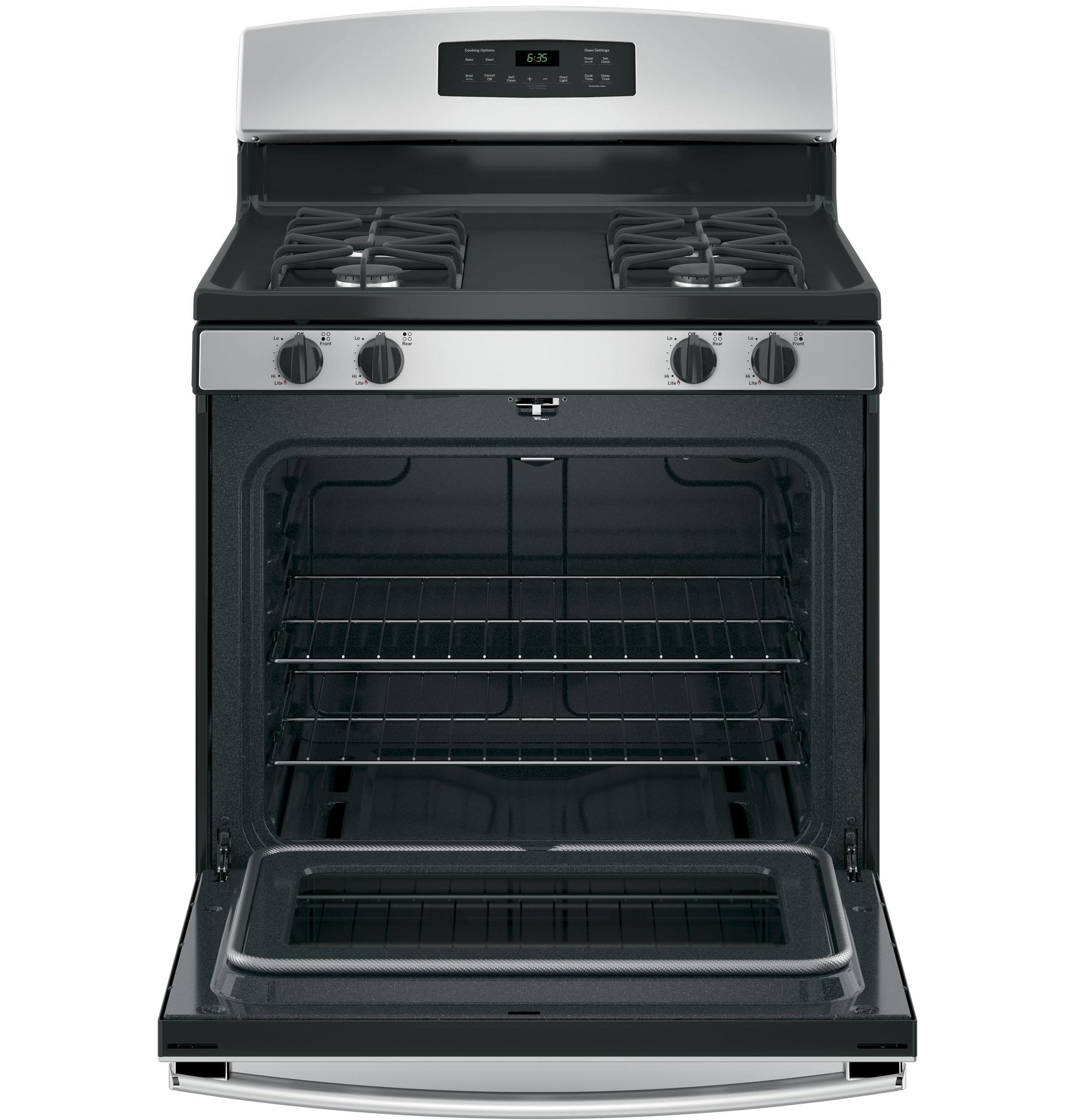

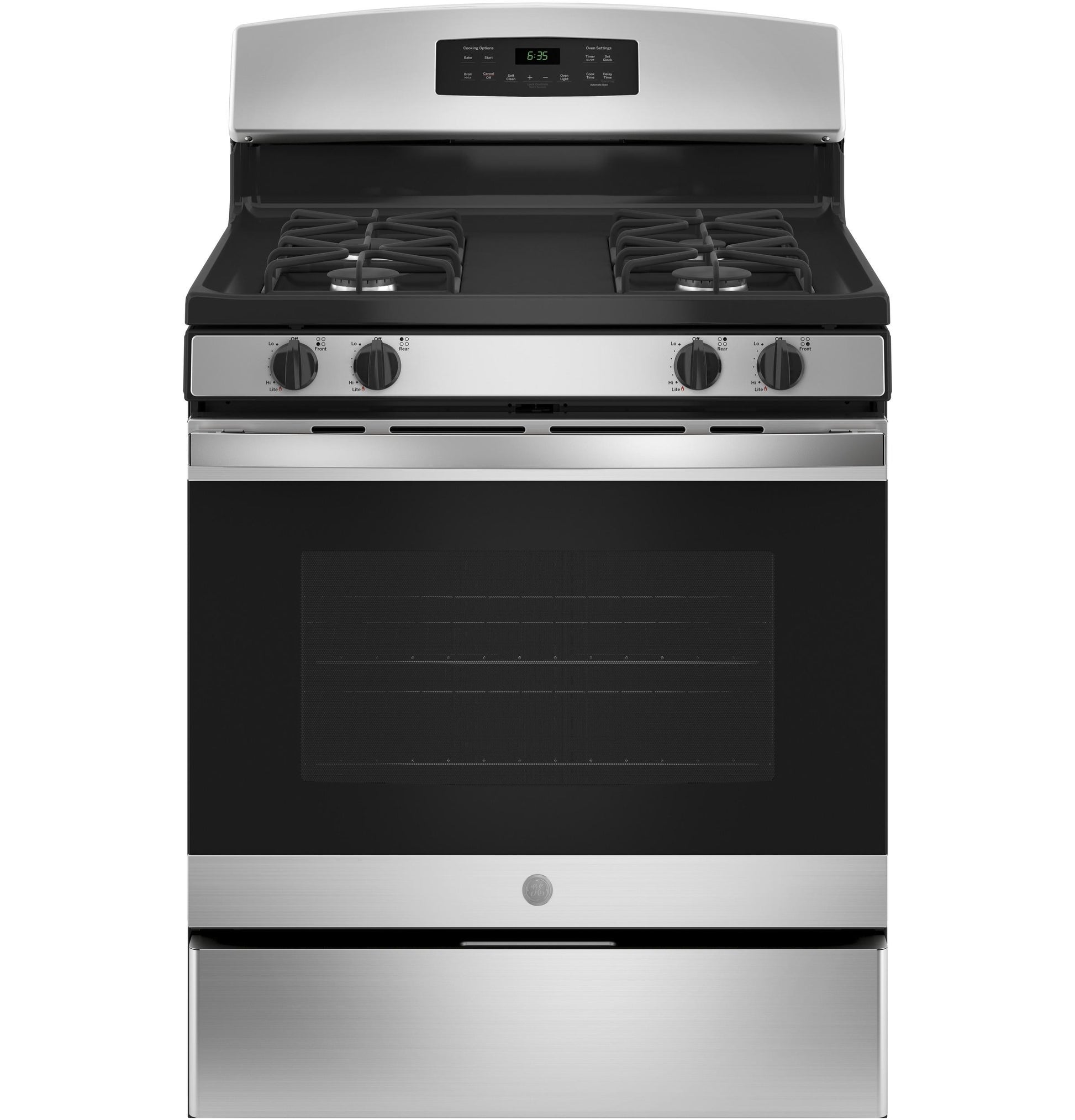

JGB635REKSS GE® 30" Free-Standing Gas Range JGB635REKSS

13,000 BTU burner
Delivers a wide range of heat output ideal for most cooking requirements

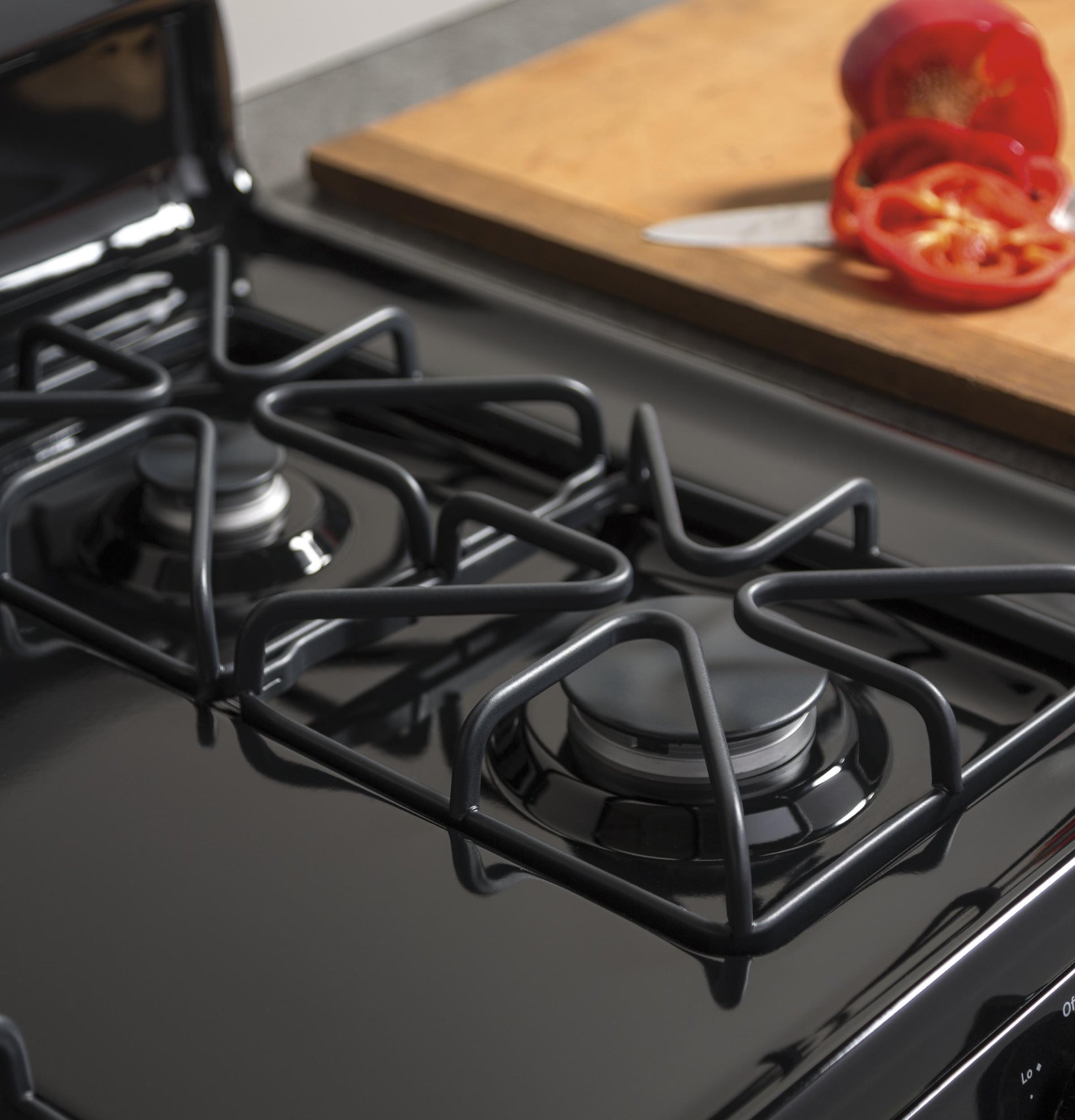

Black matte steel grates
Enjoy a high-end look with a durable, matte coating

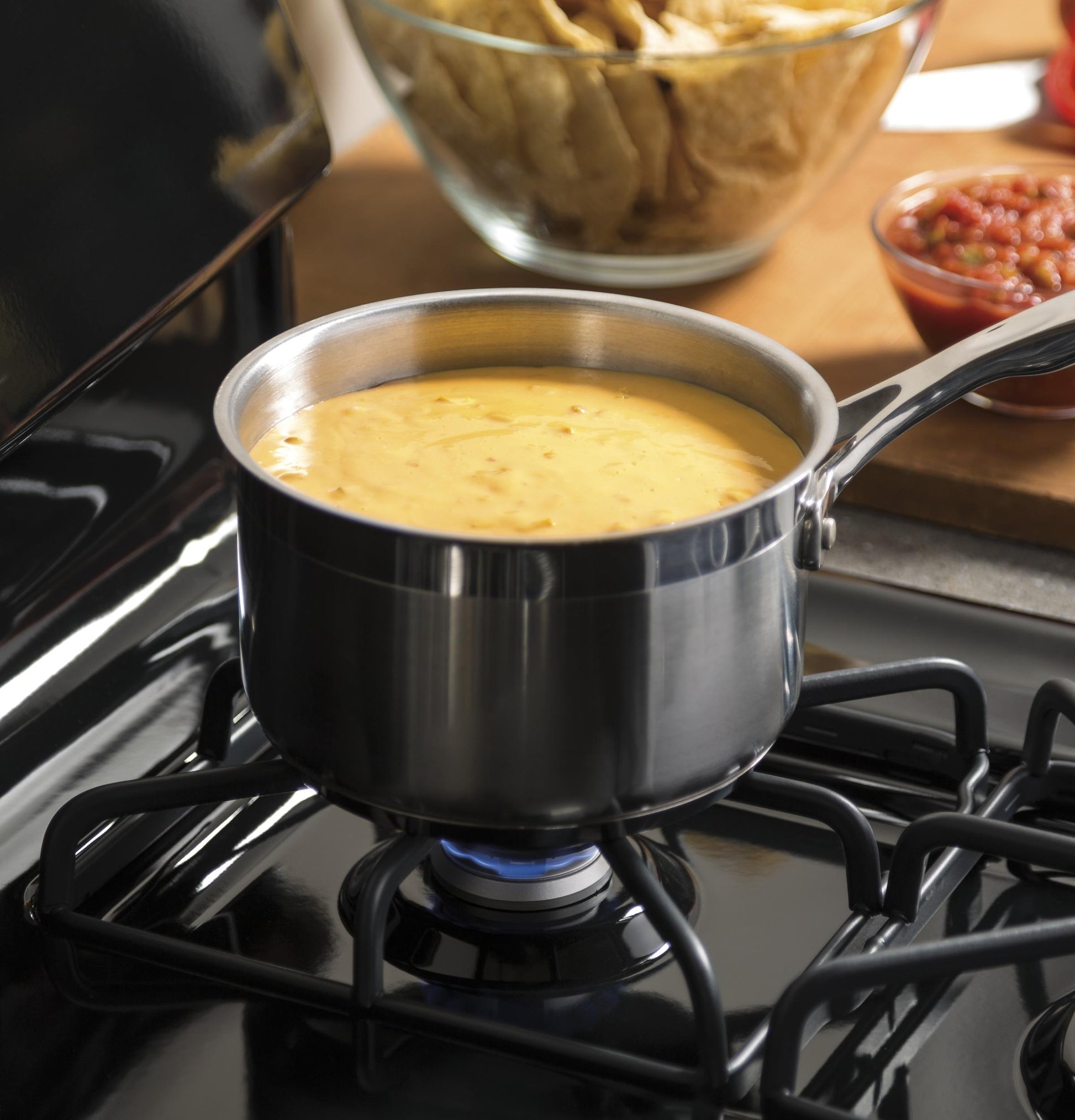

Precise Simmer burner
Delicate foods don't burn with low, even heat

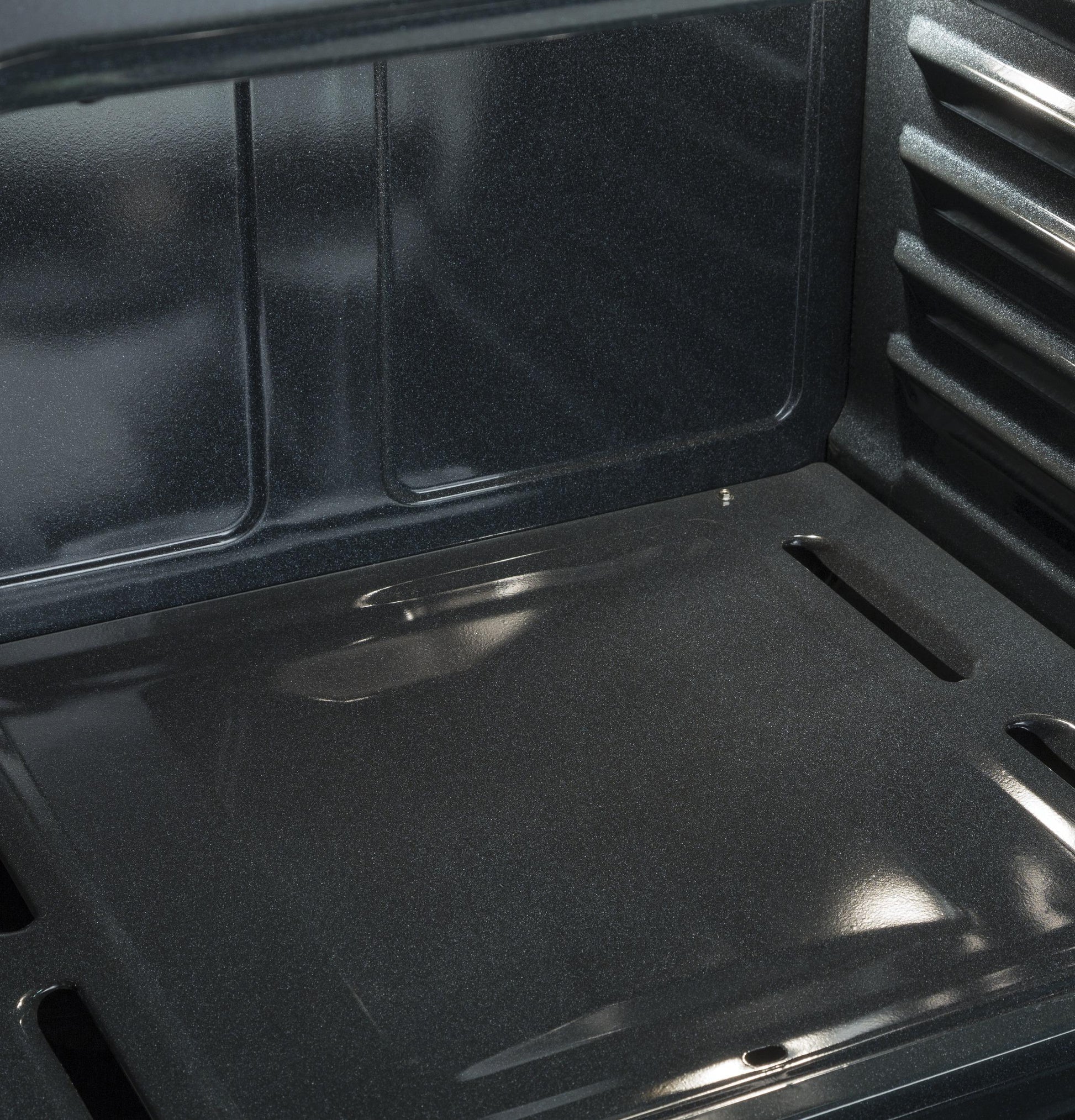

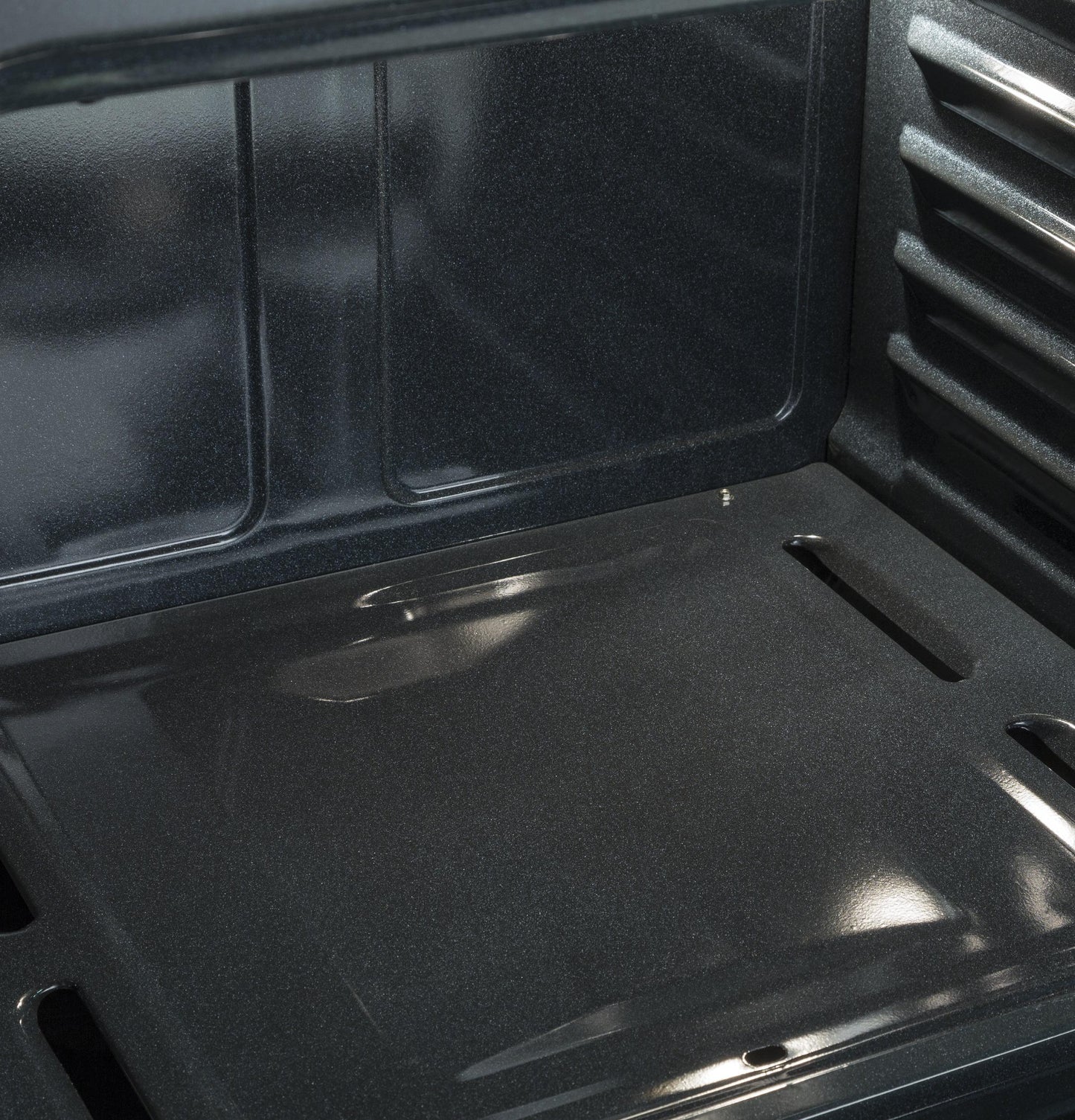

Self-clean oven
Cleans the oven cavity without the need for scrubbing

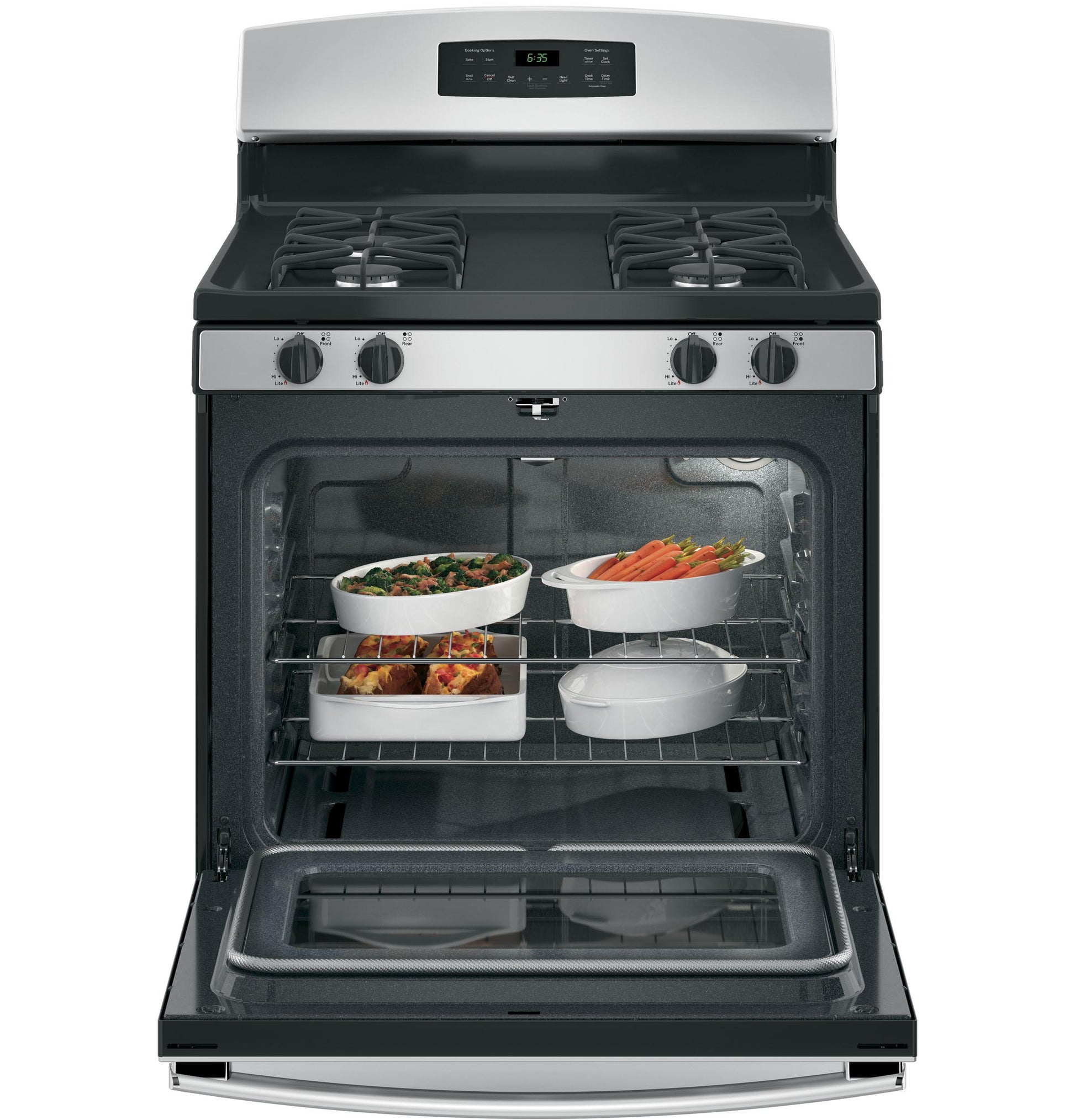

5.0 cu. ft. oven capacity
Cook more dishes at once

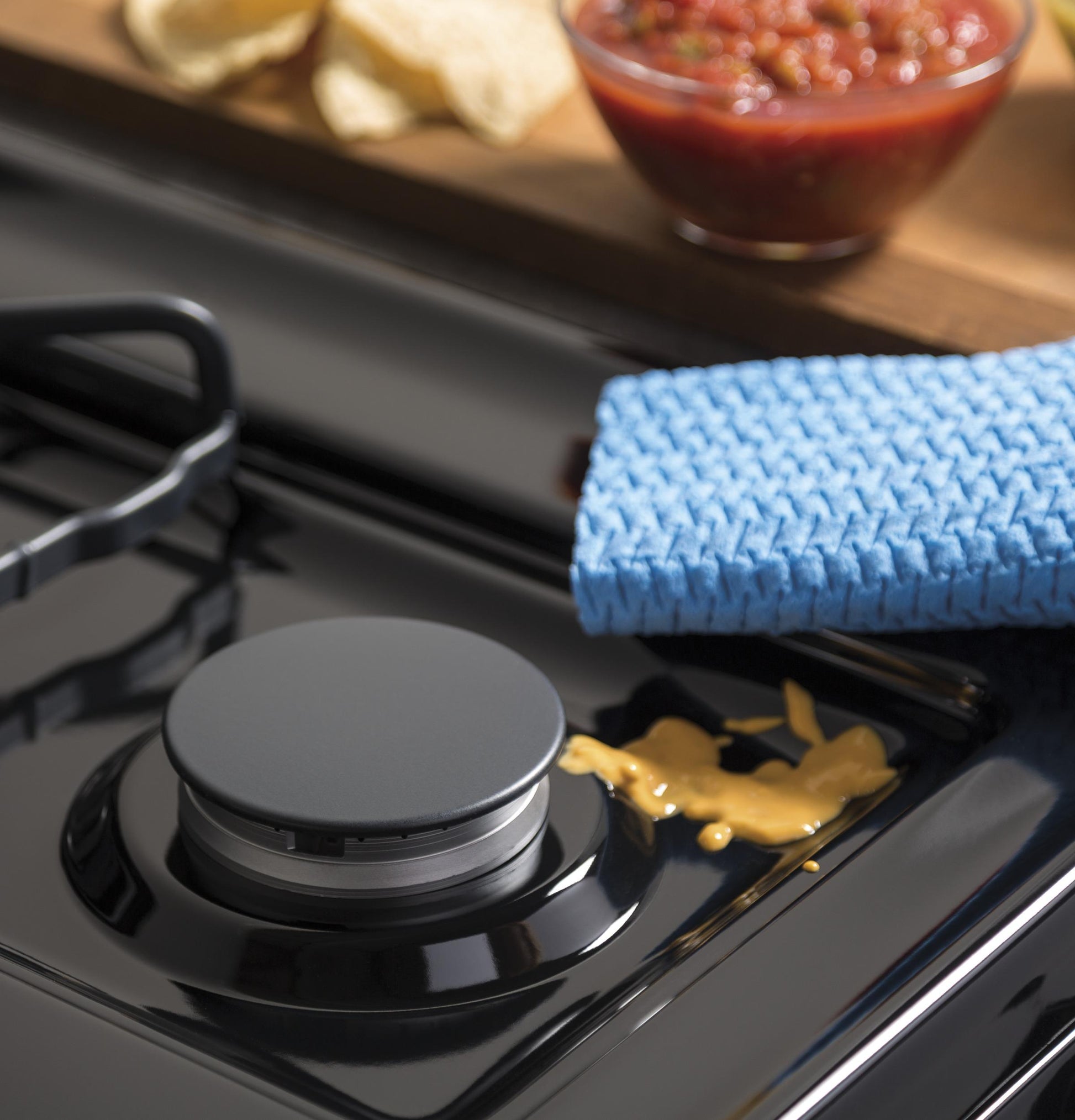

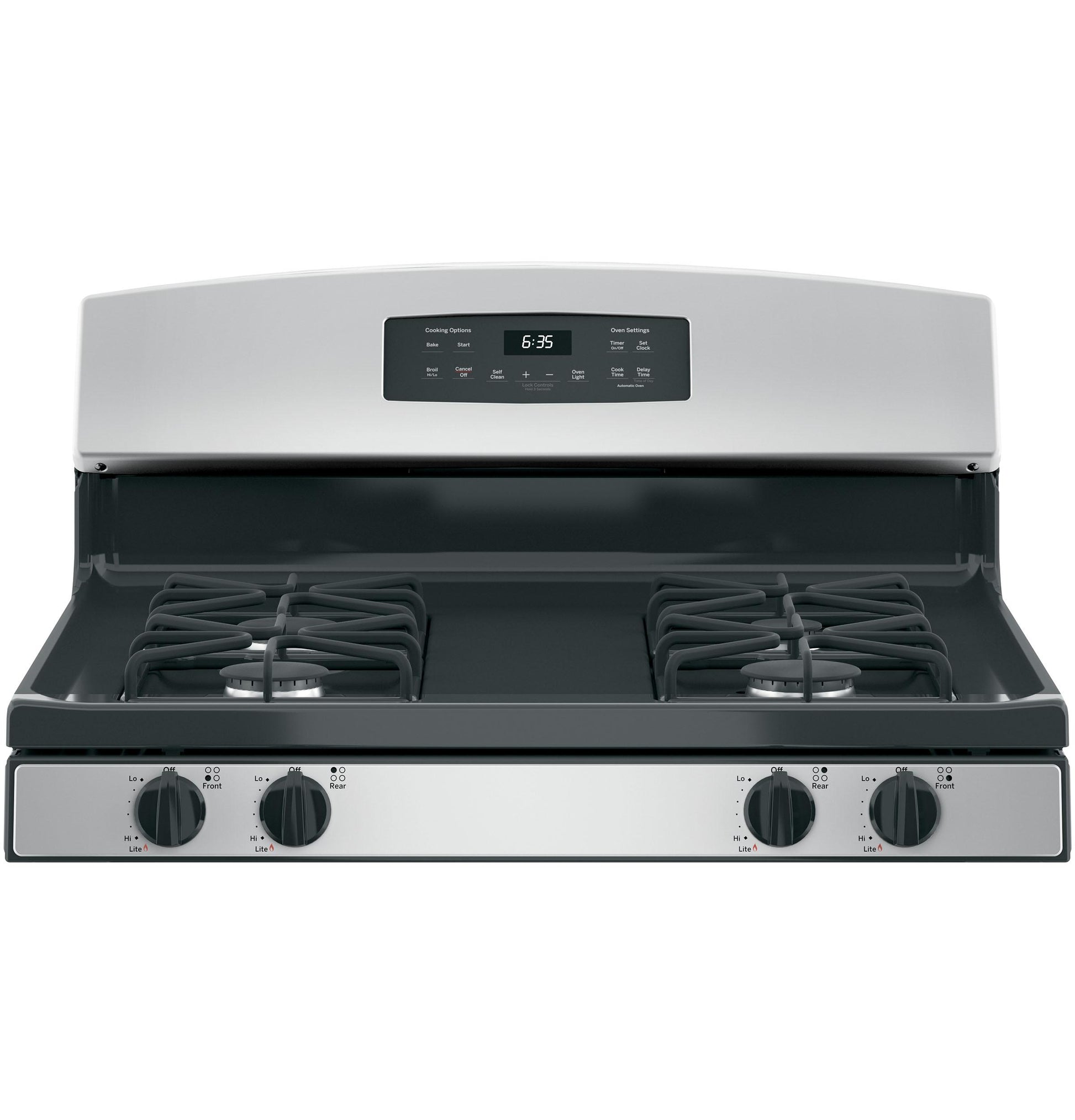

Sealed cooktop burners
Contains spills and make cleaning quick and easy

In-oven broil
Healthy meals are hassle-free with in-oven broiling

CAPACITY
Total Capacity (cubic feet)	5 cu ft
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Gas
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Drawer Type	Storage
App Filter - Cleaning Type	Self-Clean
App Filter - Voltage	120V
App Filter - Cooktop Type	Standard Grates
APPEARANCE
Cooktop Burner Grate Color	Matte Black
Handle	Designer Style
Oven Door Features	Big View Oven Window
Handle Color	Black
Color Appearance	Stainless Steel/Black
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 13.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps	120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)	(2) 9.5; (1) 11.0; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 12.0 Broiler
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Optional Accessories	WB48X21543 Roller Rack
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	190 lb
Depth Without Handle	26.25 in
Height to Cooking Surface (in.)	36 - 36 1/4
Cabinet Width	30 in
Approximate Shipping Weight	210 lb
Overall Width	30 in
Overall Height	46.25 in
Overall Depth	28.75 in
Depth with Door Open	46.25 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 19 x 19
FEATURES
Ignition System	Electronic
Burner - Right Rear	5,000 BTU Precise Simmer
Oven Control Features	Audible Preheat Signal Auto Self Clean Control Lock Capability Delay Bake Option
Oven Rack Features	2 Flat Nickel Racks
Burner - Left Rear	9,500 BTU
Oven Cleaning Type	Self-Clean
Product Type	Free-Standing Single Oven
Cooktop Type	Standard Grates
Cooktop Burner Grate Material	Heavy Steel
Fuel Type	Natural Gas (factory set)
Interior Oven Light	1 Incandescent
Control Location	Front
Control Type	Electronic Touch
Burner - Left Front	9,500 BTU
Drawer Type	Storage
Sabbath Mode	Yes
Cooking Technology	Traditional
Configuration	Range with Storage Drawer
OU Certified	No

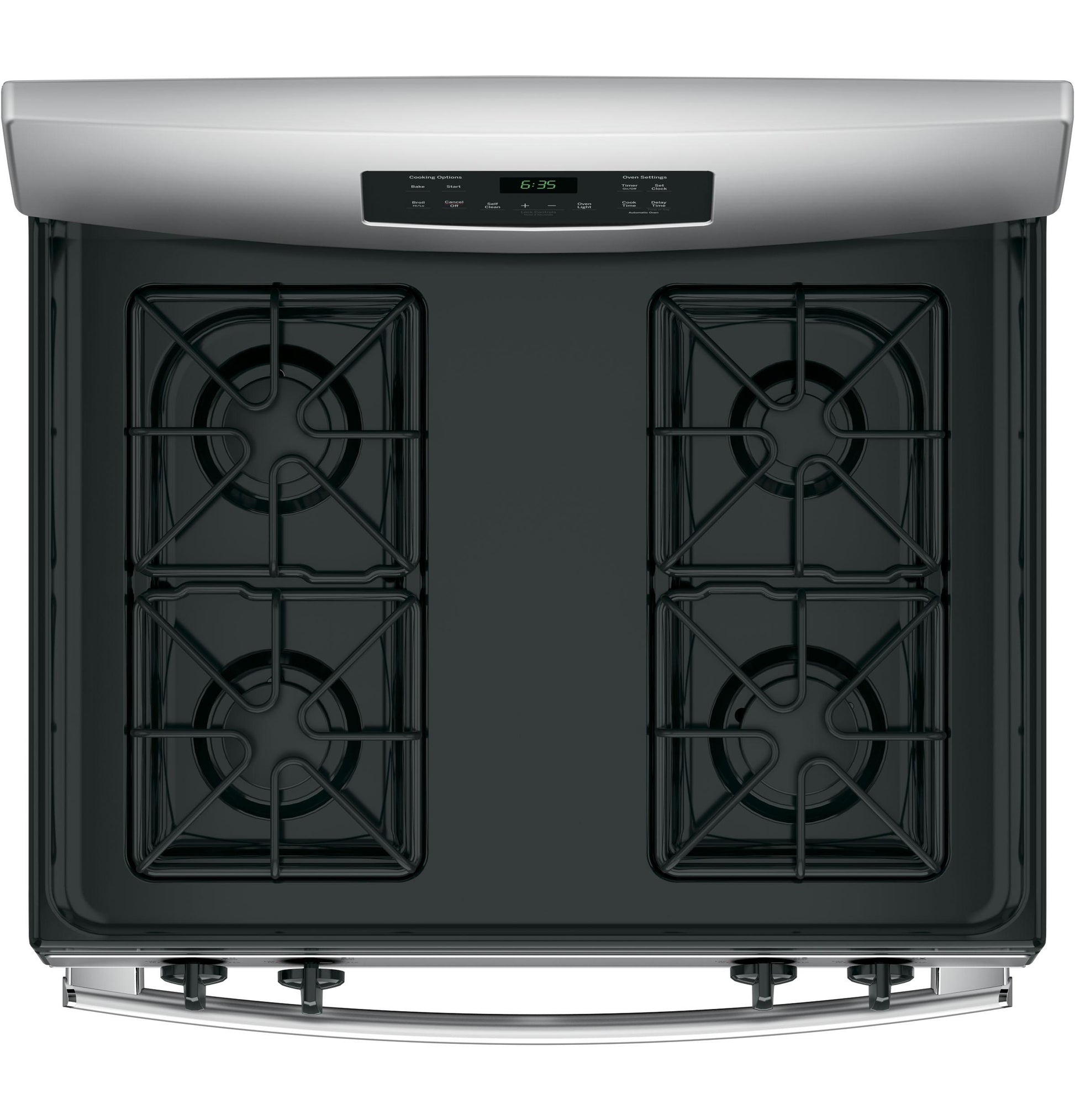

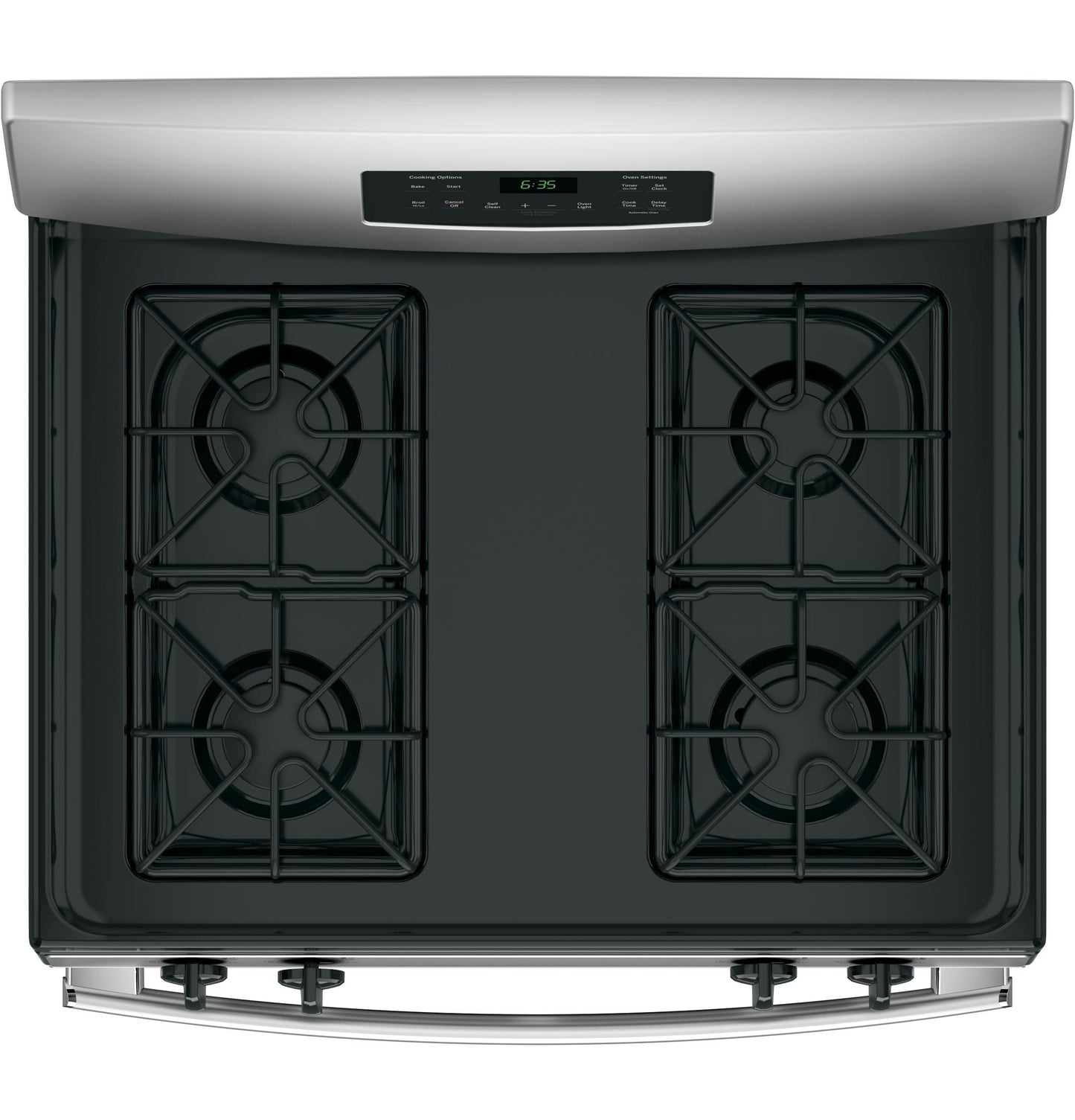

Cooktop Burner Type	Sealed
Burner - Right Front	13,000 BTU
Cooktop Surface	Black One-Piece Upswept Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)	6
