- 13.5" rise enhances capture above cooktop for effective venting

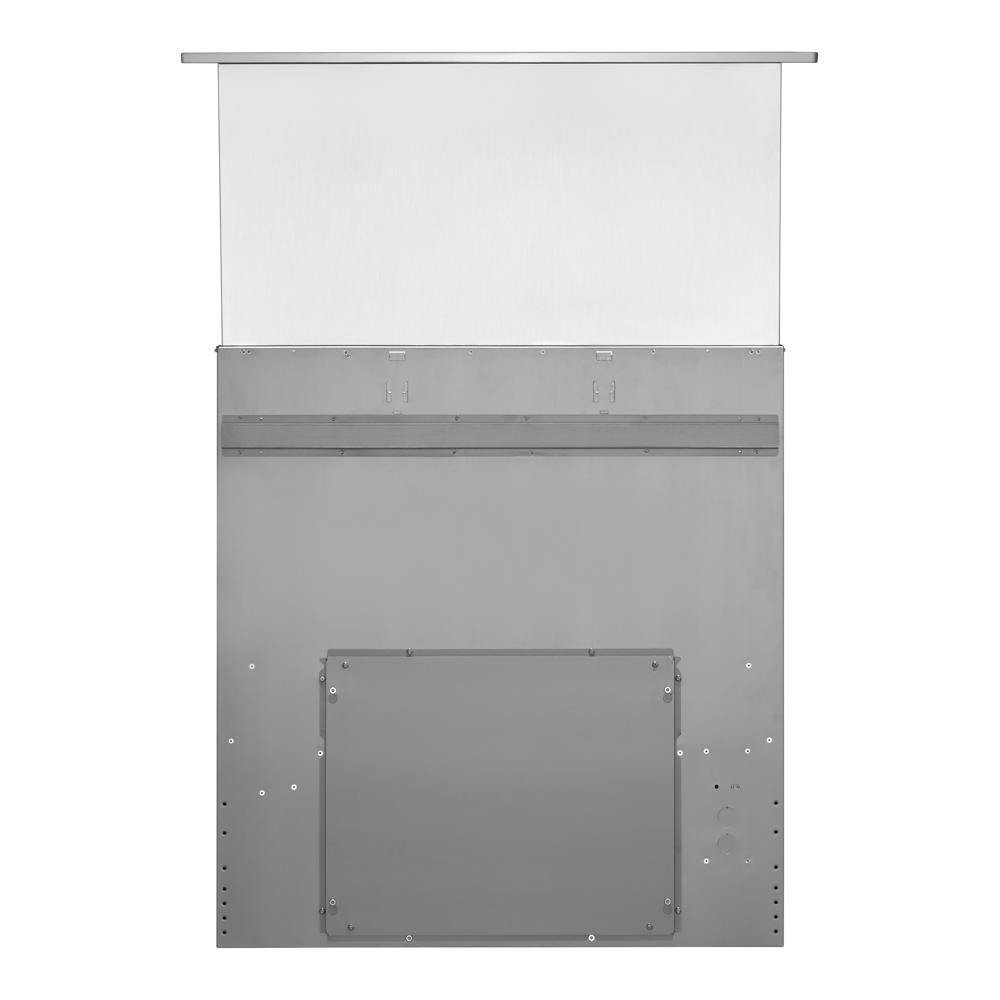

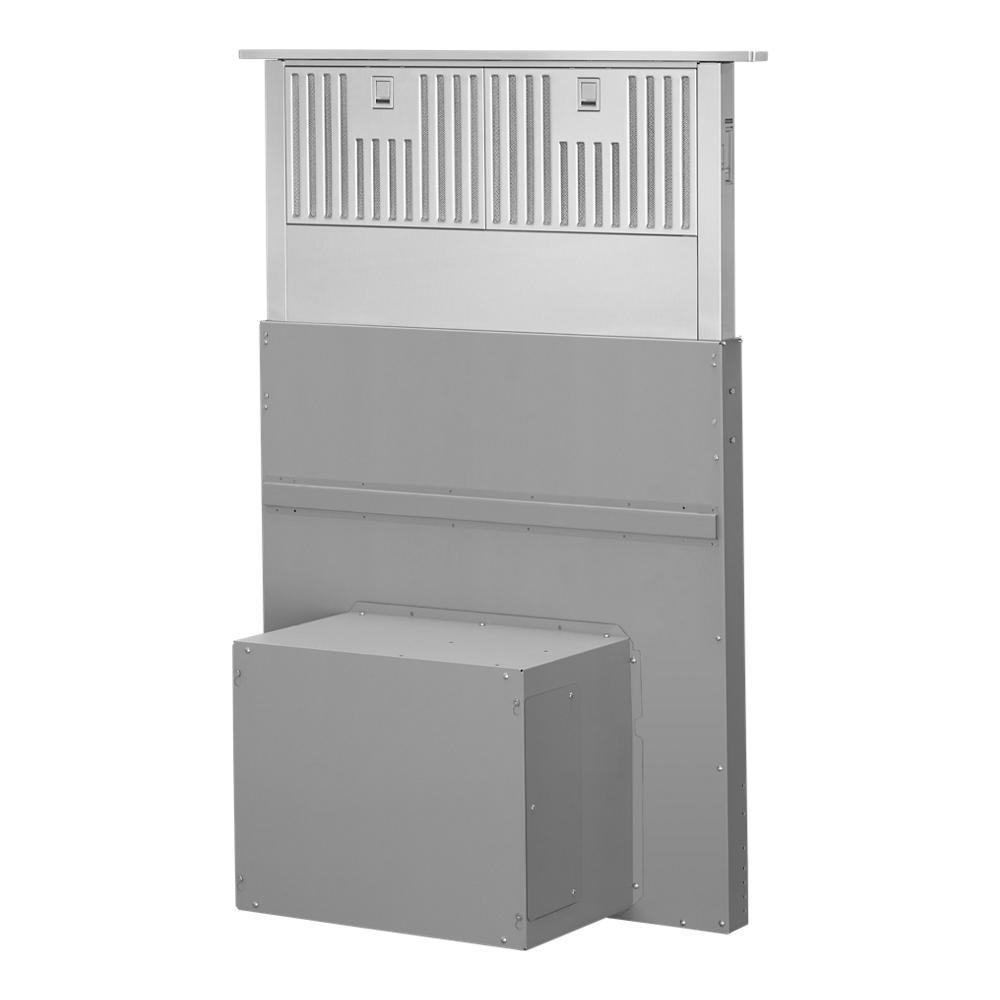

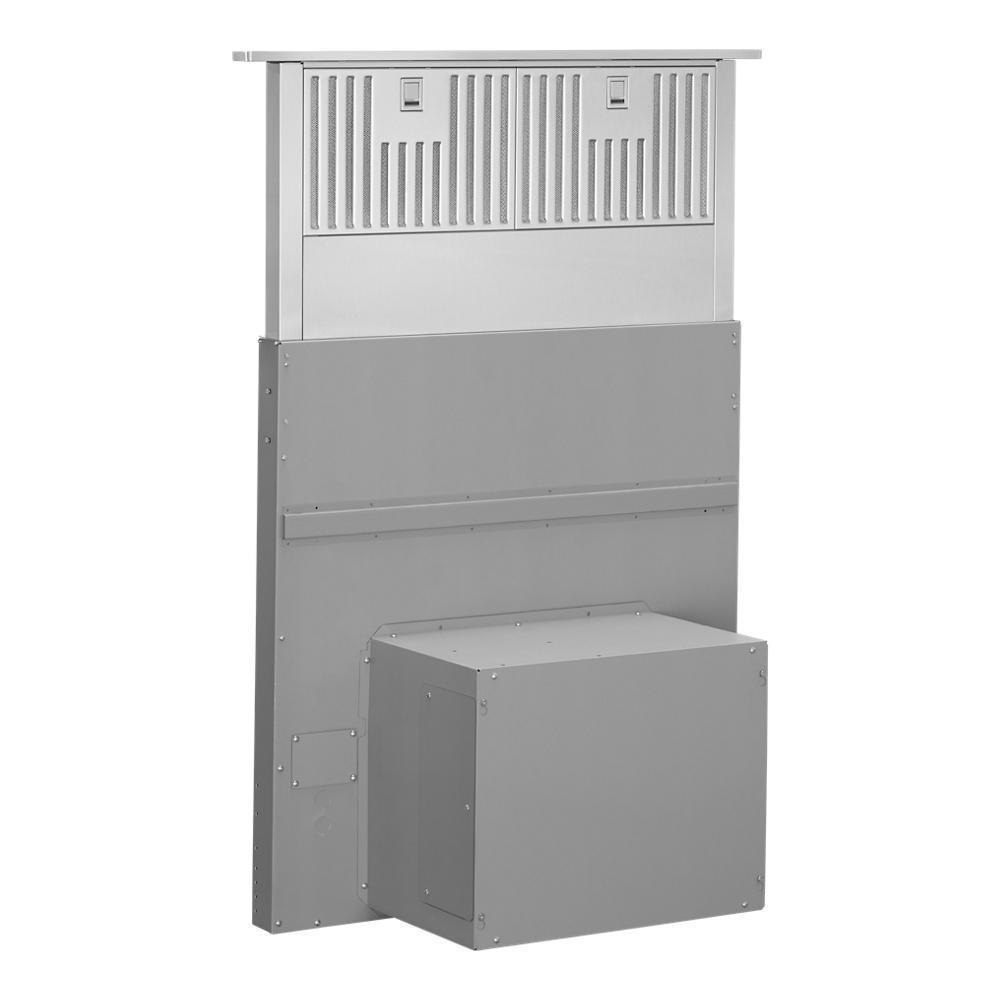

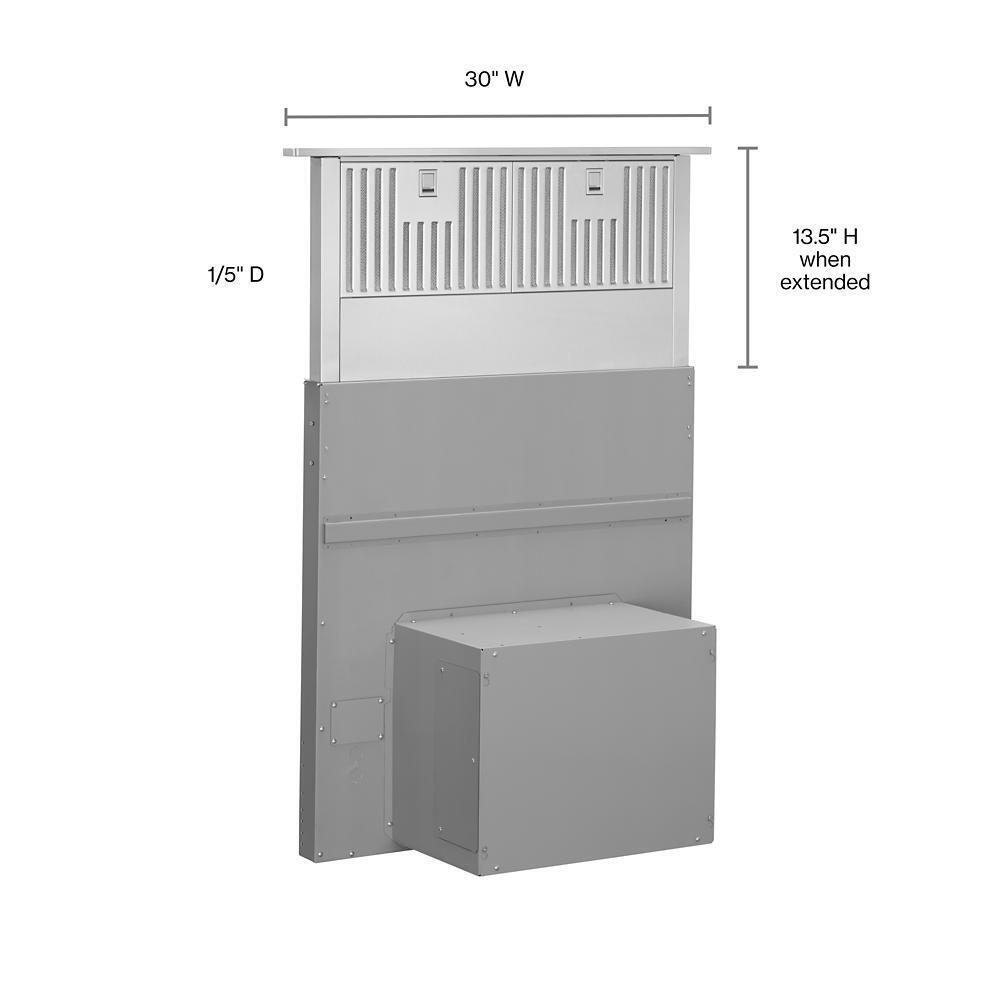

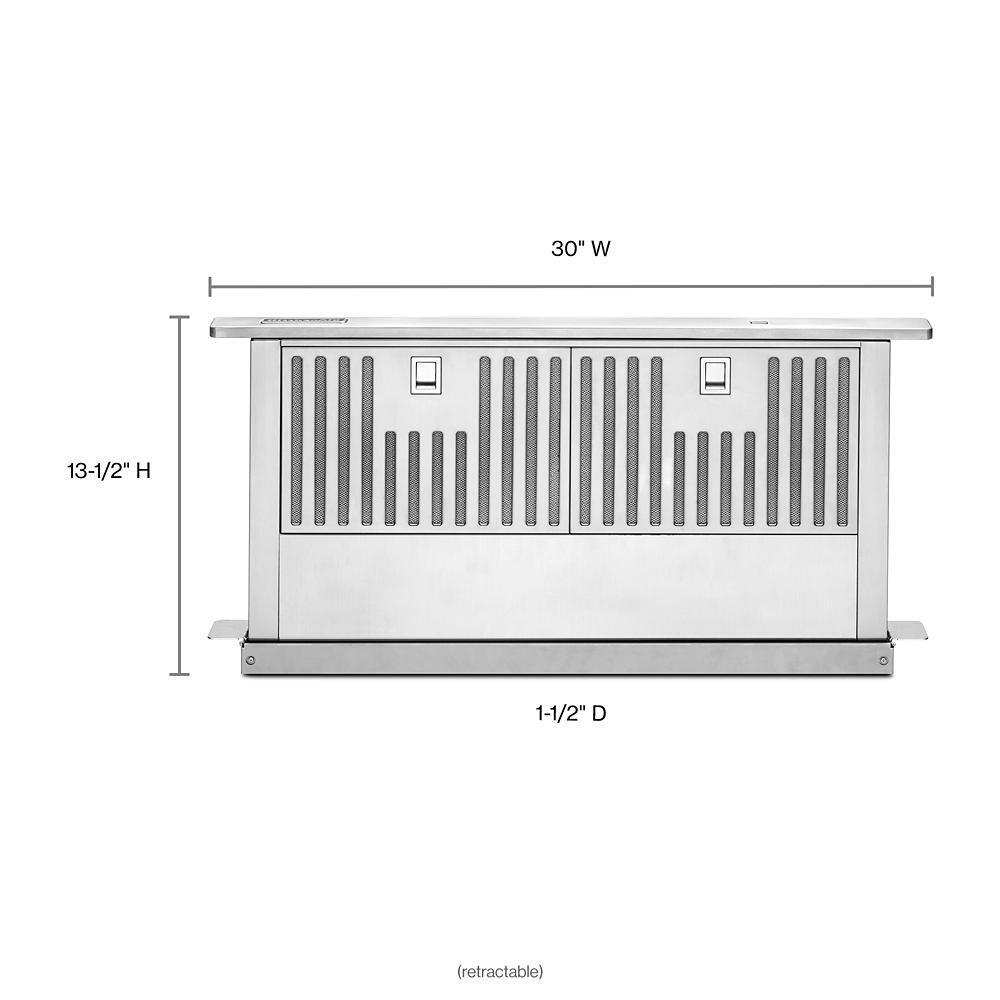

- This retractable downdraft vent rises 13.5 inches to help filter steam and remains flush with the cooking surface when not in use.
- 65,000 BTU Rating compatible with most 36 or 30-inch cooktops

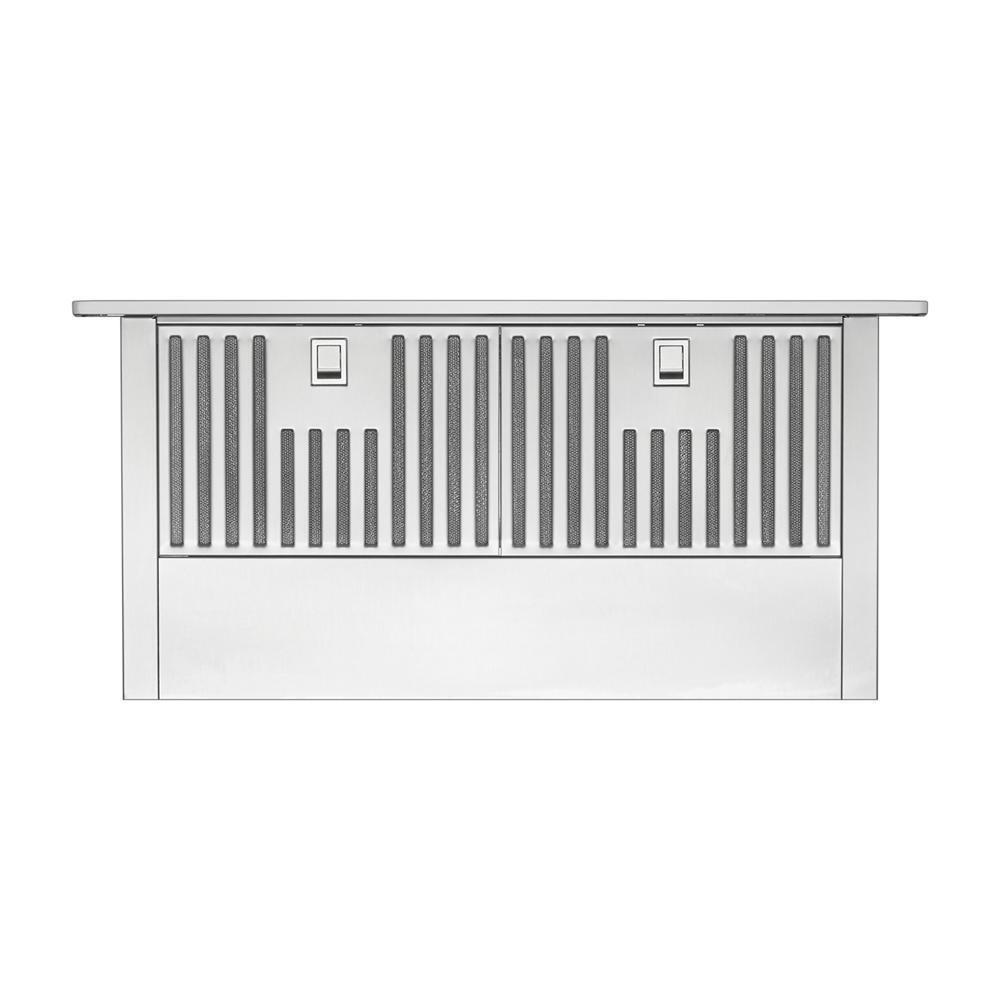

- Mesh filters help keep the the kitchen environment fresh
- Retractable design stays flush with cooking surface until needed

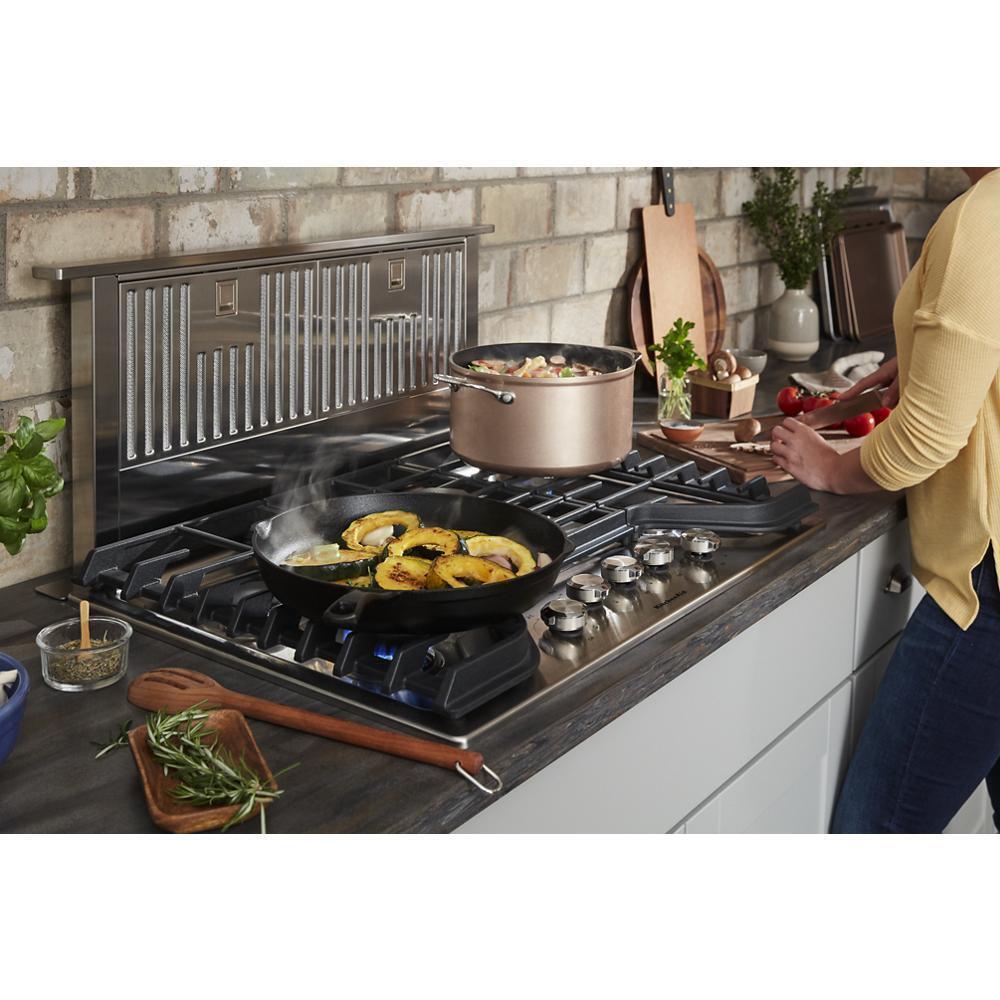

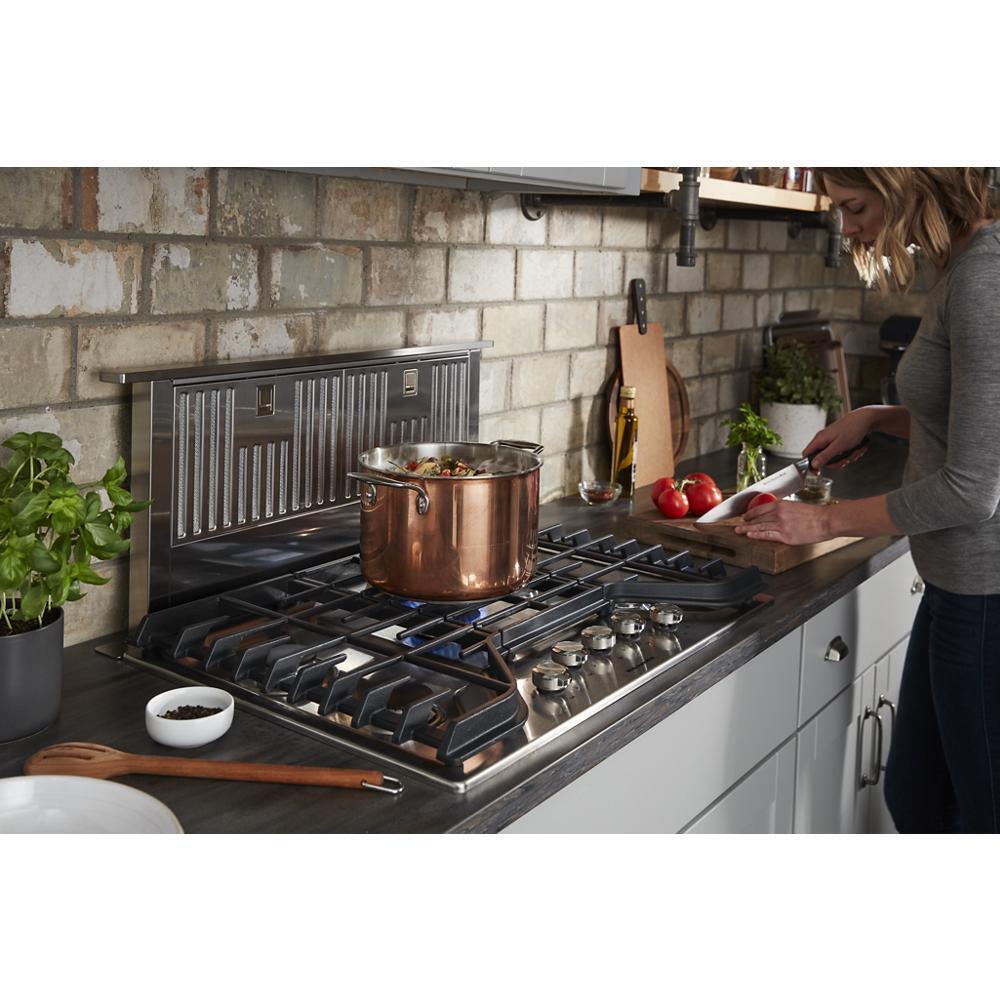

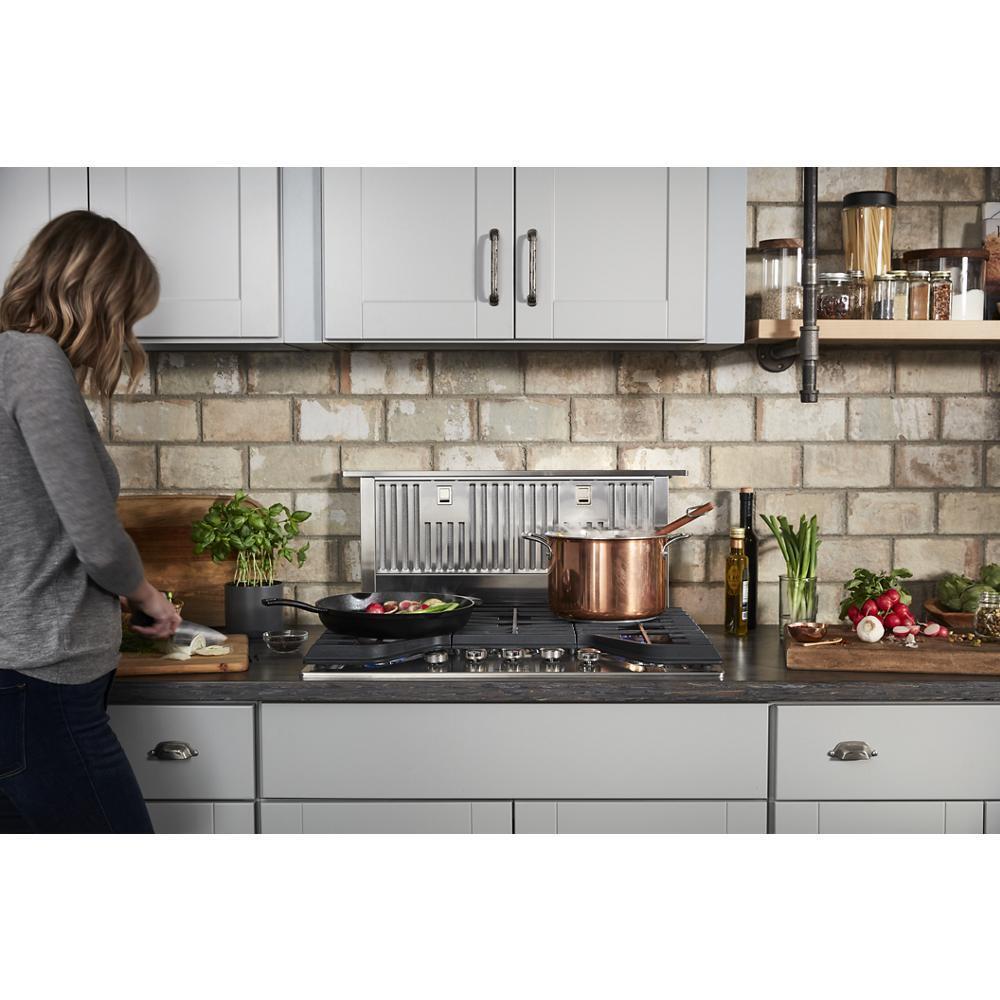

This 30-inch retractable downdraft vent rises 13.5 inches to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 585 CFM Motor Class* ventilation system has the power to provide effective venting for most cooktops or ranges. The system is reversible to help fit in the cabinet space under the vent. Performance varies based on installation. Resources available at AHAM.org
Certifications | |
Prop65 | Standard |
Controls | |
Control Location | Hidden |
Control Type | Push Button |
Details | |
Hood Type | Retractable Downdraft |
Material | Stainless Steel |
Number of Vent Speeds | 11 |
Dimensions | |
Product Height | 28.5 |
Carton Height | 16 |
Gross Weight | 93 |
Carton Depth | 35 |
Carton Width | 34 |
Product Depth | 12.125 |
Net Weight | 66.14 |
Product Width | 27.0 |
General | |
Hood & Vent Features | Auto Turn On; Perimeter Ventilation |
Ventilation Details | |
Blower Type | Centrifugal |
Cfm Motor Class | 585 |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Filters | Grease Filters |
Venting | Exterior |
