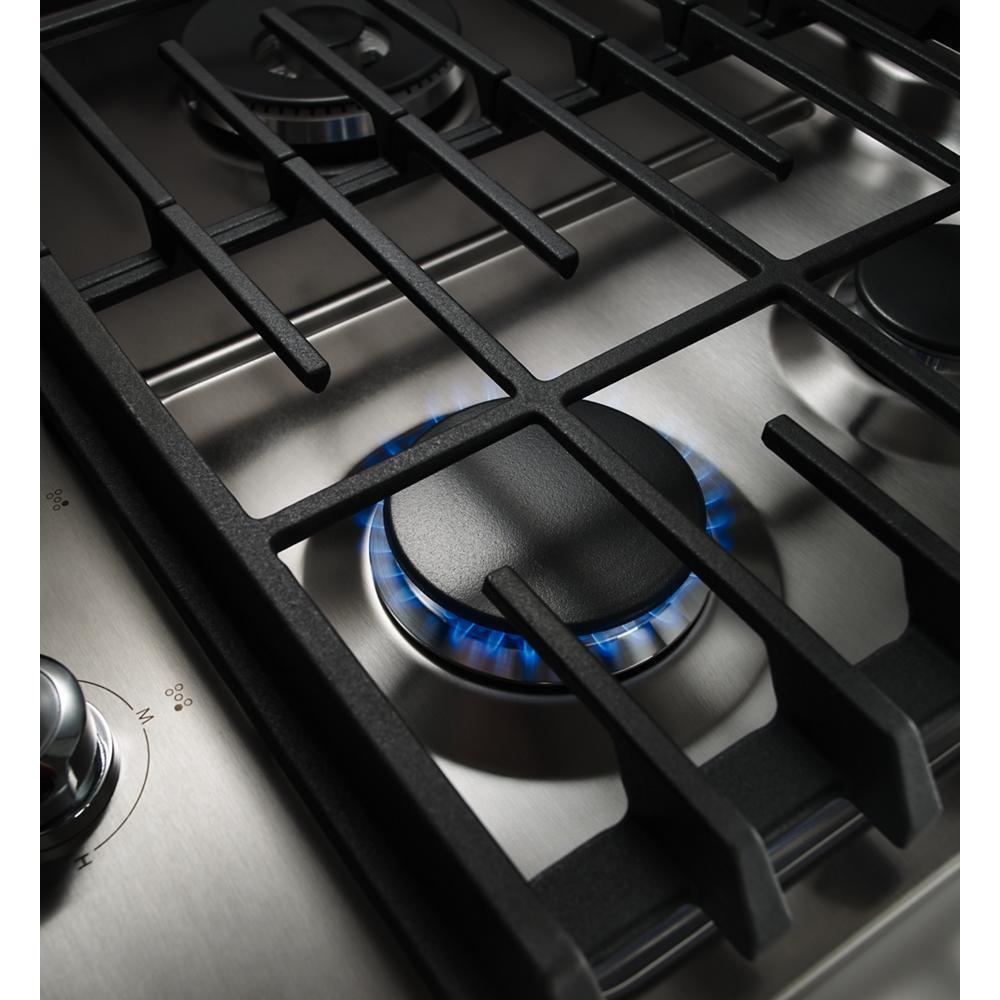

- 17,000 BTU Professional Dual Ring Burner for simmering or boiling
- 6,000 BTU EVEN-HEAT Simmer Burner for simmering and melting
- CookShield Finish protects the cooktop from stains
- Electronic Ignition automatically lights burners
- Full-Width Cast-Iron Grates allow easy movement of cookware
- LP Conversion Kit (not included) allows use cooktop with LP gas

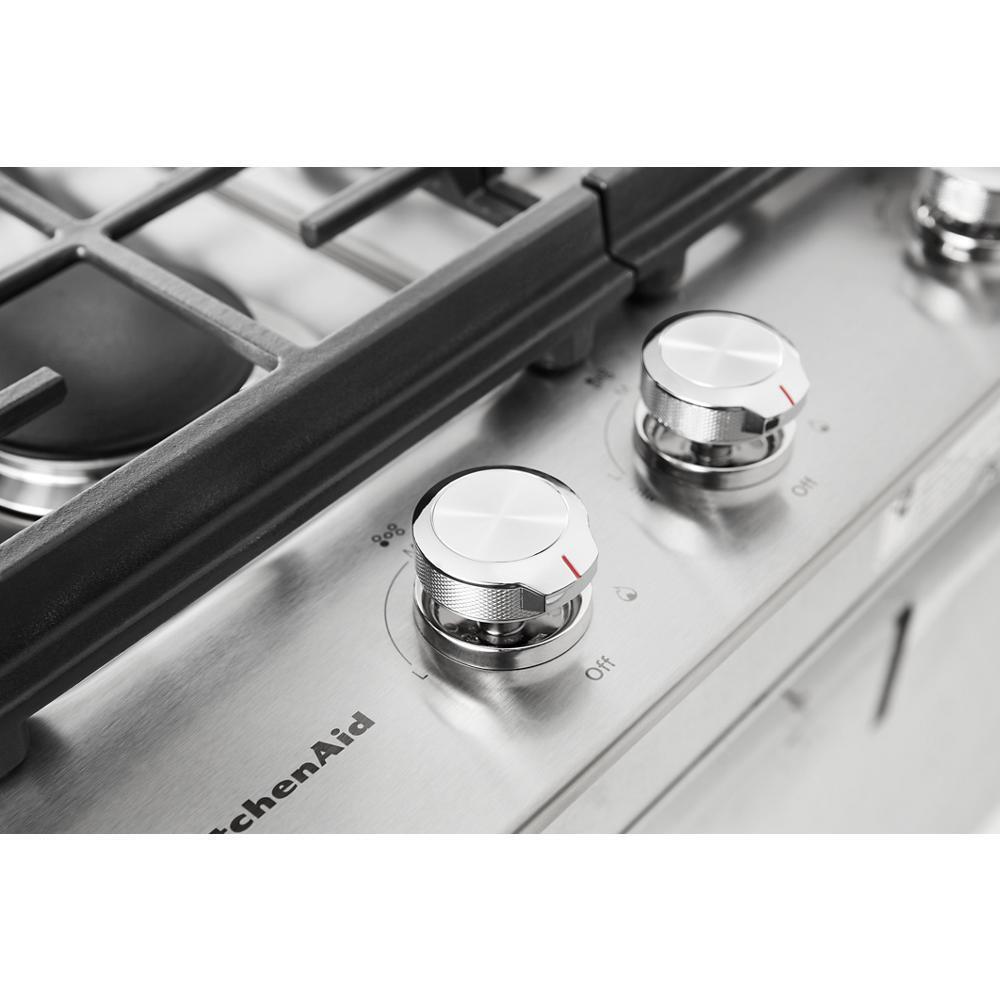

- Multi-Finish Knobs enhance the look of this cooktop

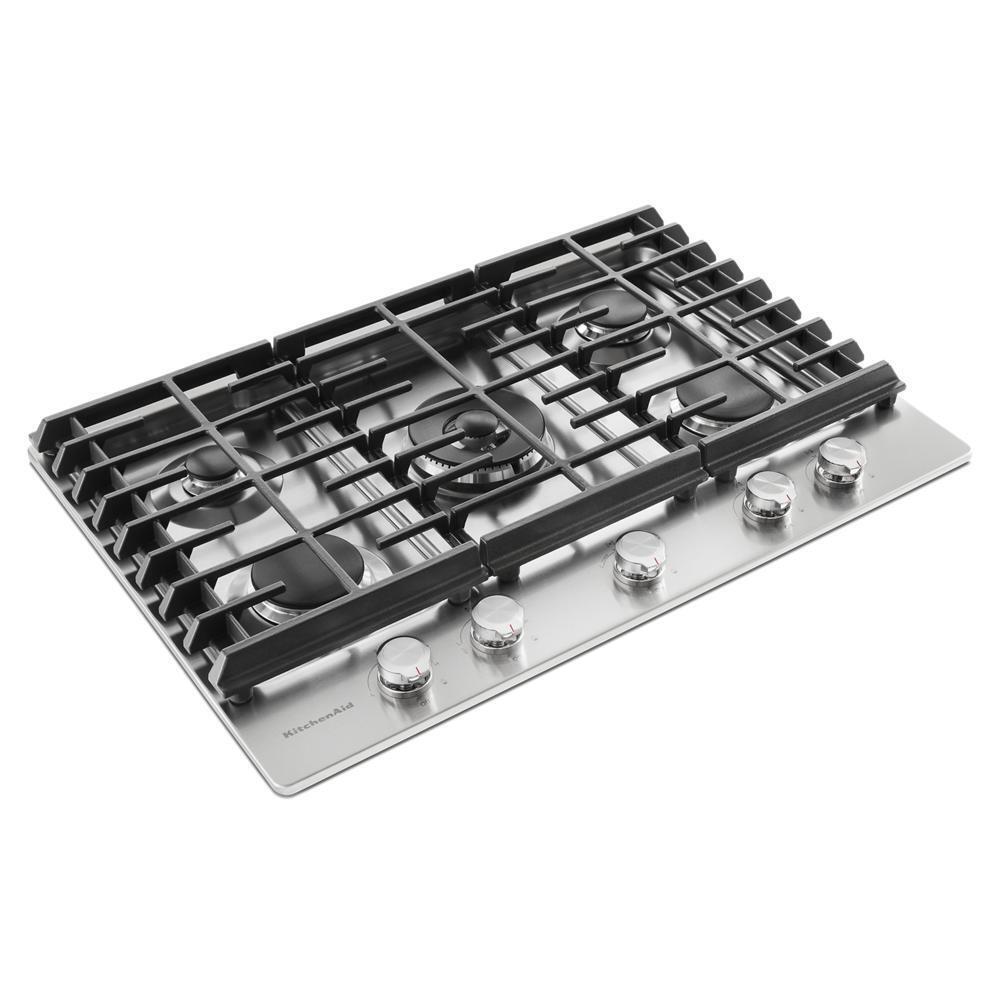

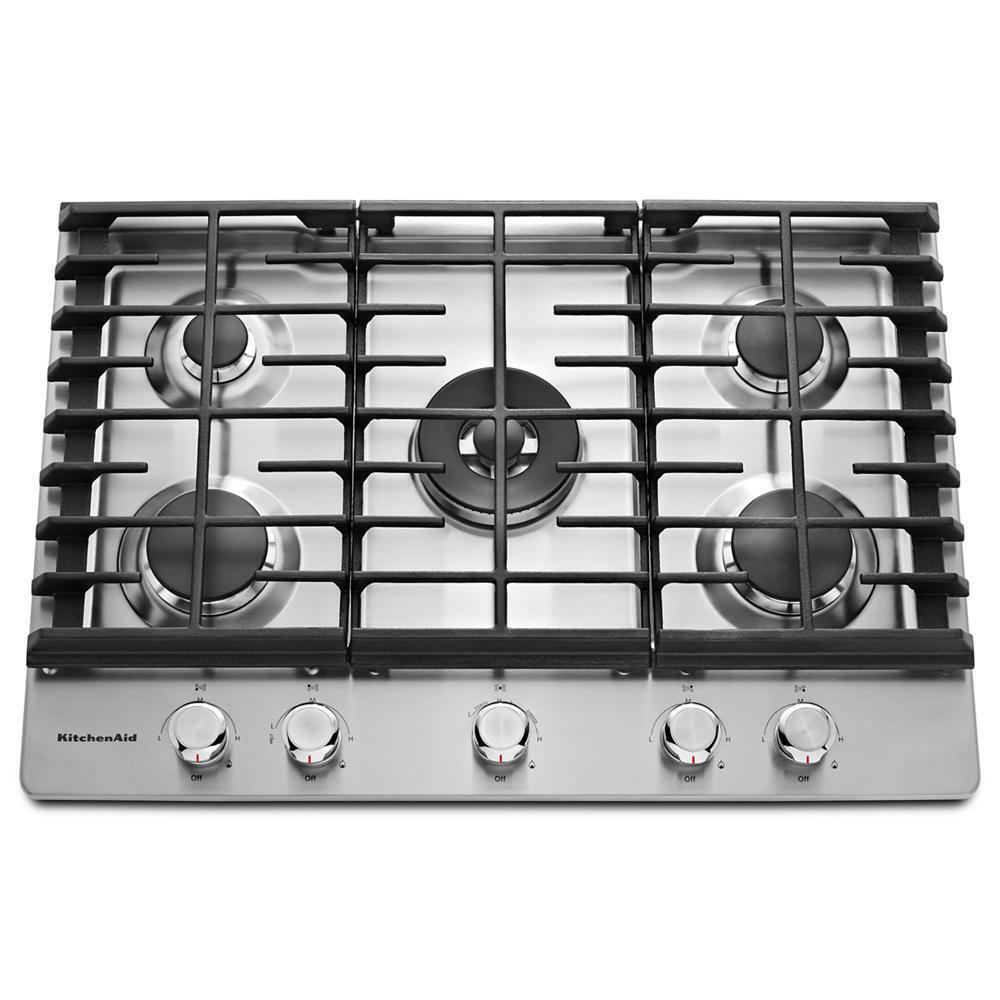

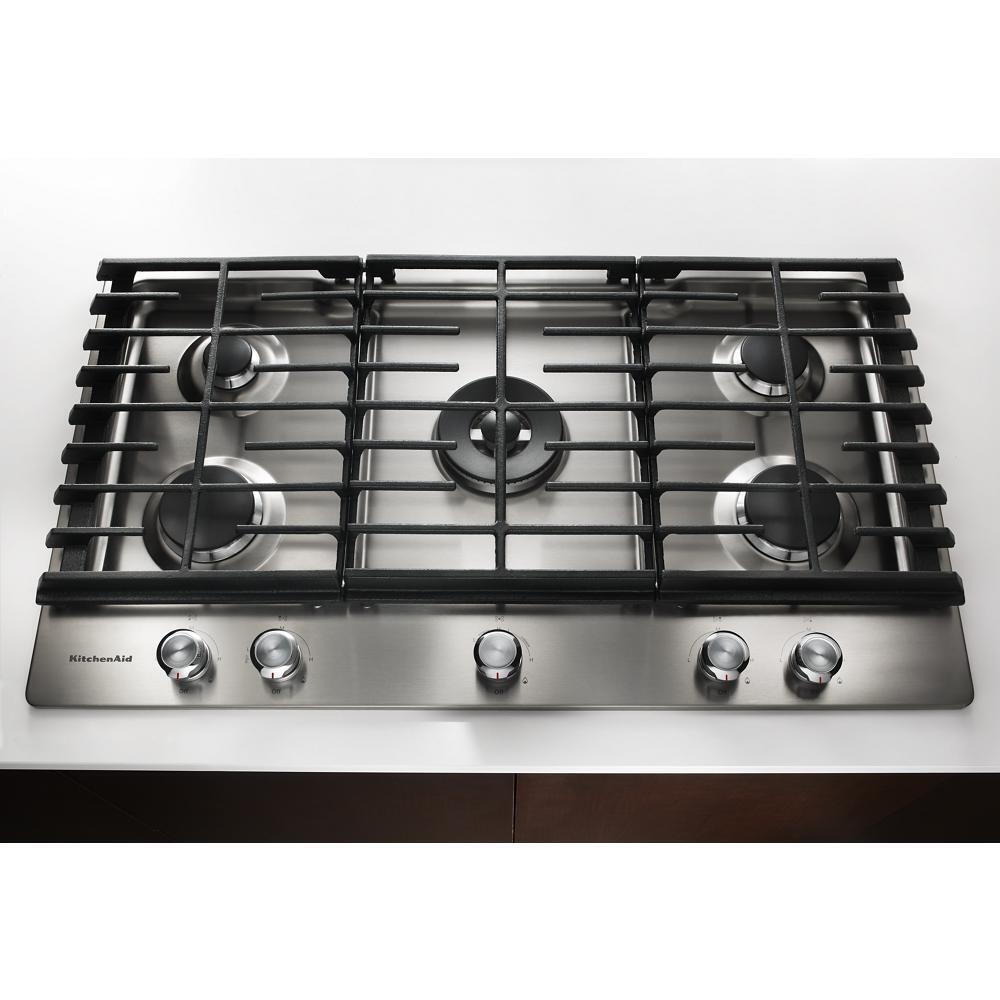

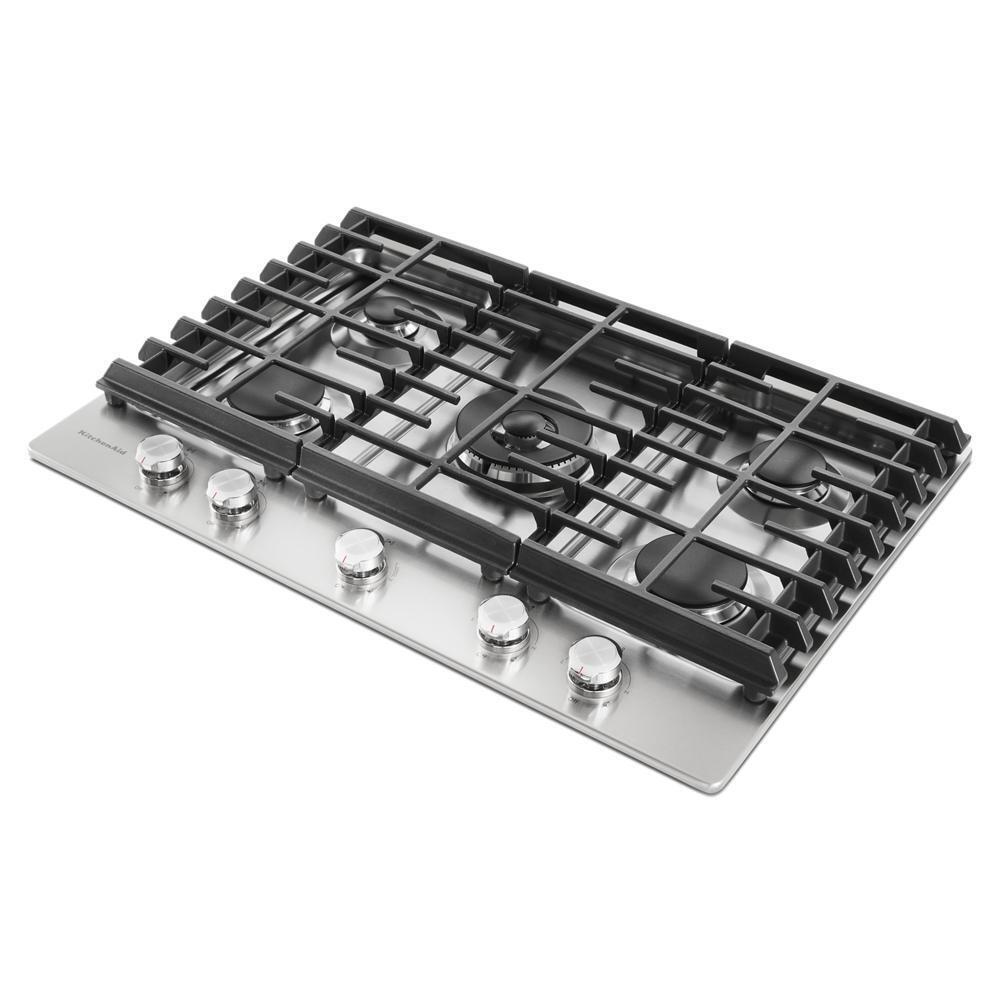

This 30-inch gas cooktop provides exceptional power with five individual burners, including a powerful 17,000 BTU Dual Ring Burner. For added versatility, the 6,000 BTU Even-Heat™ Simmer Burner creates ideal conditions to melt without scorching. The CookShield Finish protects the cooktop against stains that may occur due to high-temperature cooking and makes it easy to wipe clean without harsh chemicals.
| Certifications | |
| Ada Compliant | ADA Height and Side Reach Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Digital Display | No |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |

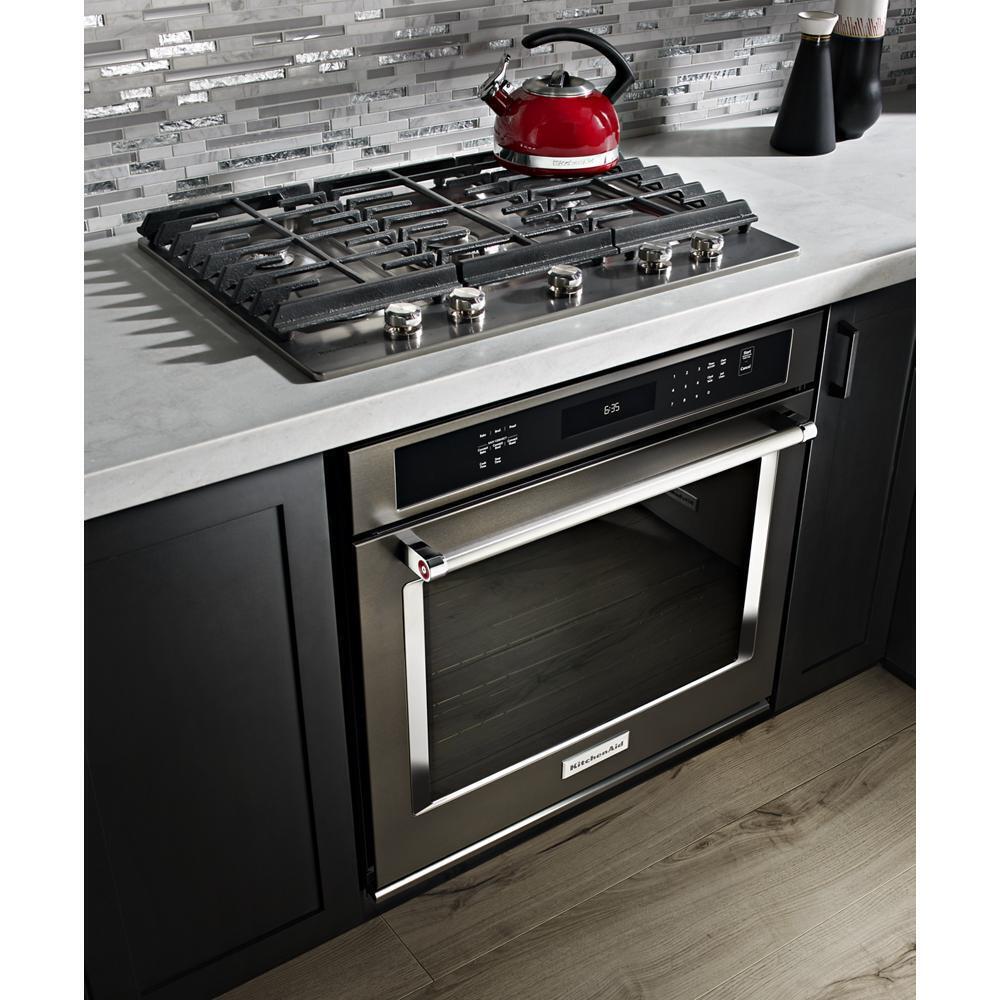

| Installs Over Built-in Oven | Yes |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |

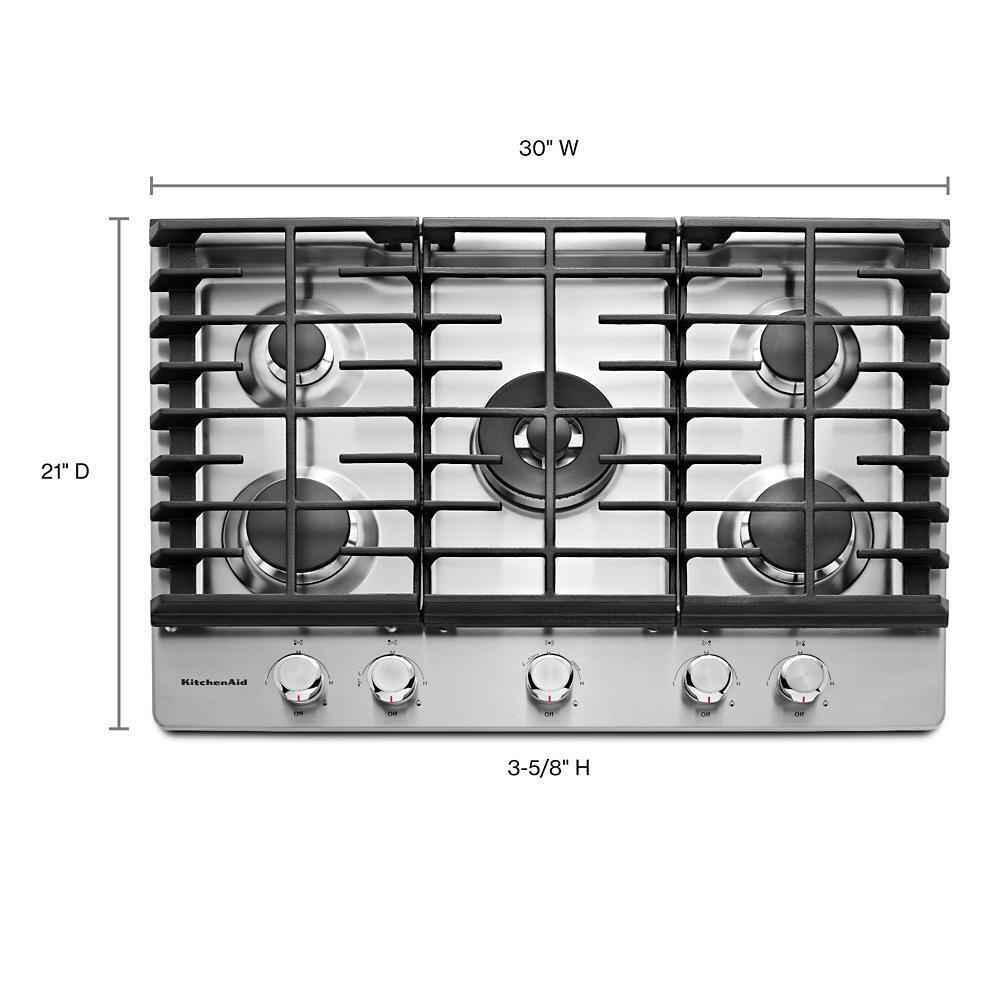

| Dimensions | |
| Product Height | 3.0625 |
| Carton Height | 12.04 |
| Gross Weight | 59.6 |
| Carton Width | 34.76 |
| Product Depth | 21.0 |
| Cutout Depth Max | 20 |
| Cutout Depth | 19.813 |
| Cutout Height | 5.25 |
| Carton Depth | 25 |
| Cutout Width | 28.875 |
| Cutout Width Max | 29.313 |
| Net Weight | 53.6 |
| Product Width | 30.0 |
| Electrical | |

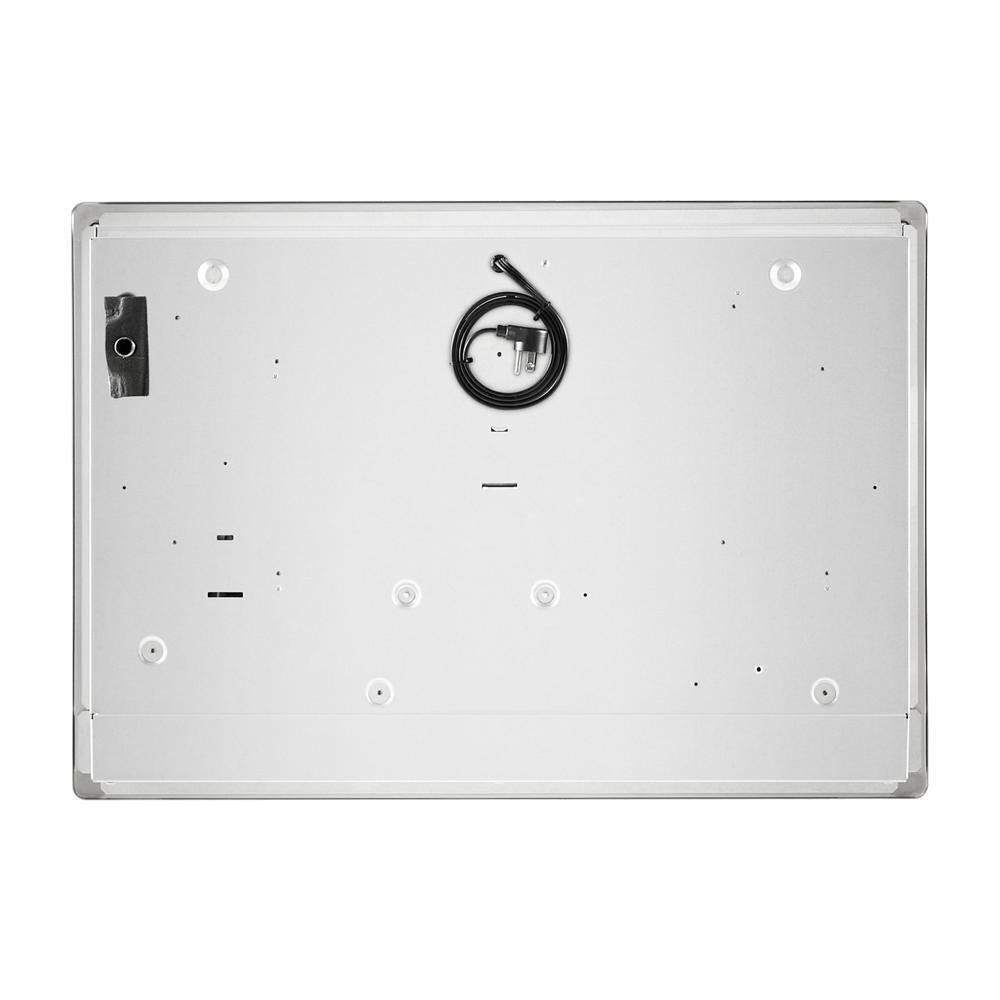

| Power Cord Included | Yes |
| Element/burner Details | |
| Center Element Burner Power | 17,000 BTU |
| Center Element Burner Type | Even Heat Dual |
| Center Rear Element-burner Power | 17,000 BTU |
| Center Rear Element-burner Type | Professional Dual Tier |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 10000 BTU |
| Left Rear Element-burner Power | 6,000 BTU |
| Left Rear Element-burner Type | Simmer |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Front Element-burner Power | 10,000 BTU |
| Right Rear Element-burner Power | 7,000 BTU |
| Exterior Details | |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| General | |
| Combination Match With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
| Cooktop Features | ADA Compliant; Even-Heat Melt Burner |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number of Grates | 3 |
| Ventilation Details | |
| Downdraft Vent | No |
