- 15 cu. ft. Capacity
- Door Cooling
- Reversible Door
- Ceiling LED Lighting

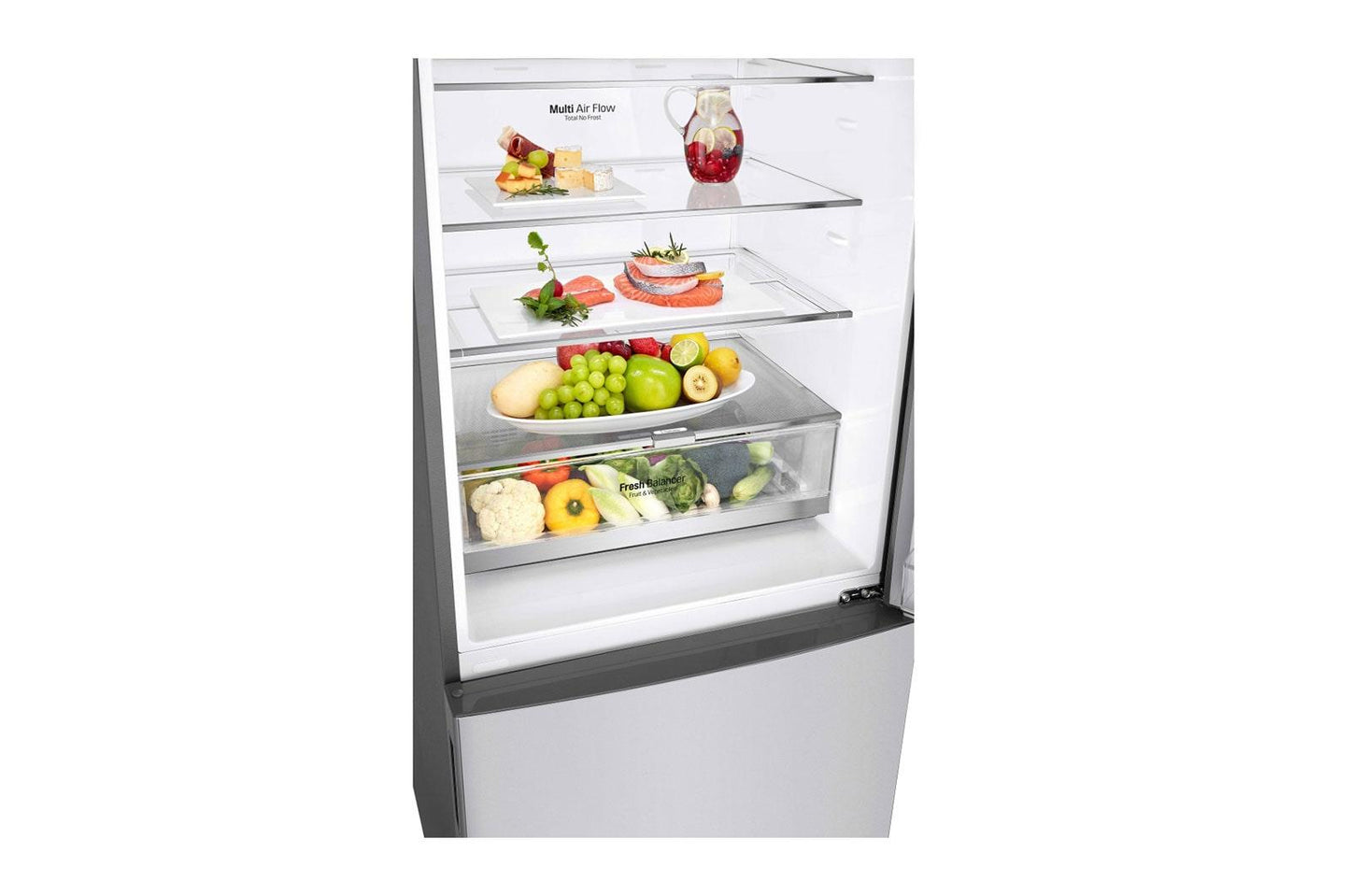

- Multi-Air Flow Freshness System designed to monitor and maintain conditions to help keep food fresh
- Get help with any issue over the phone with Smart Diagnosis™

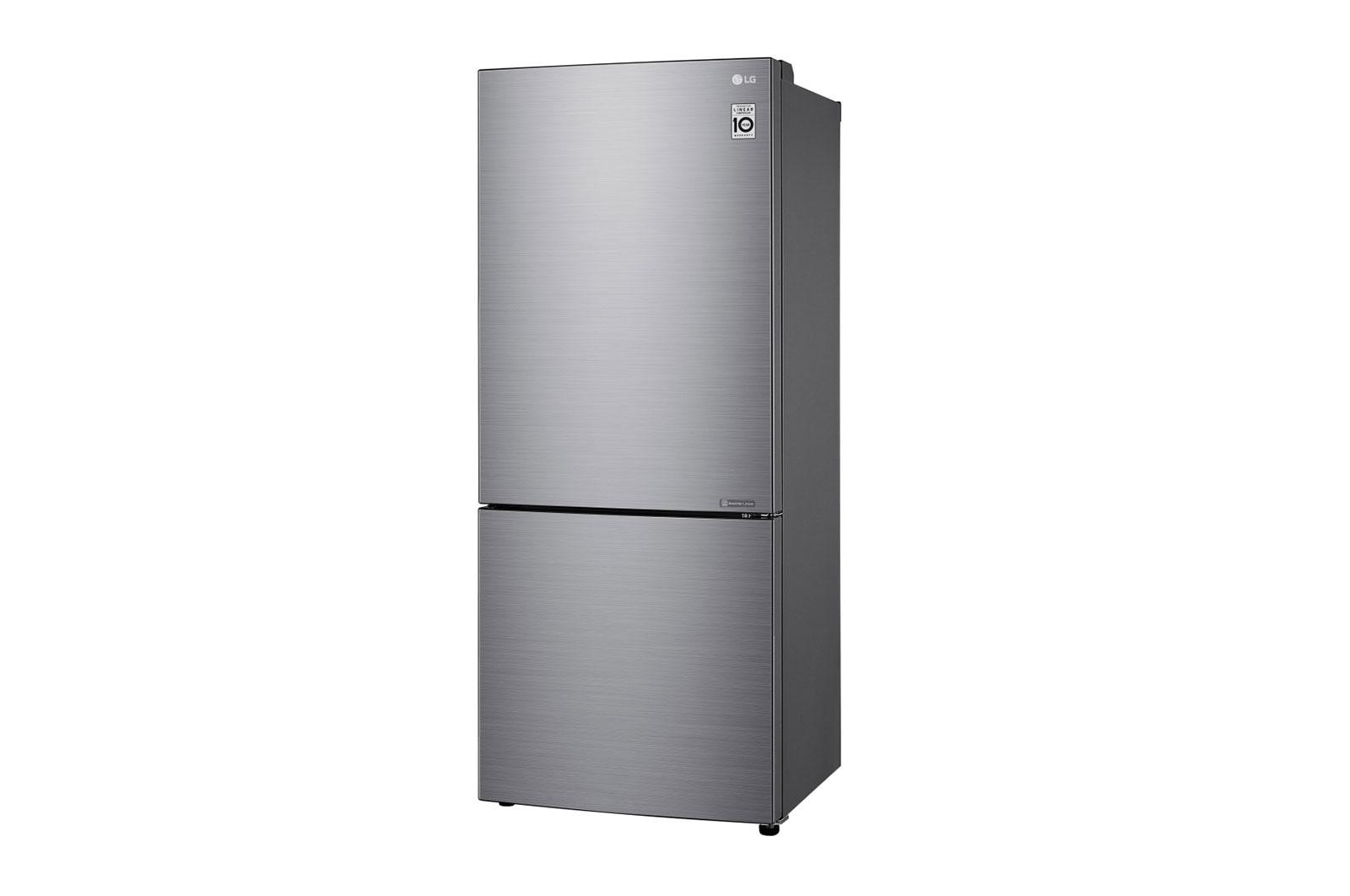

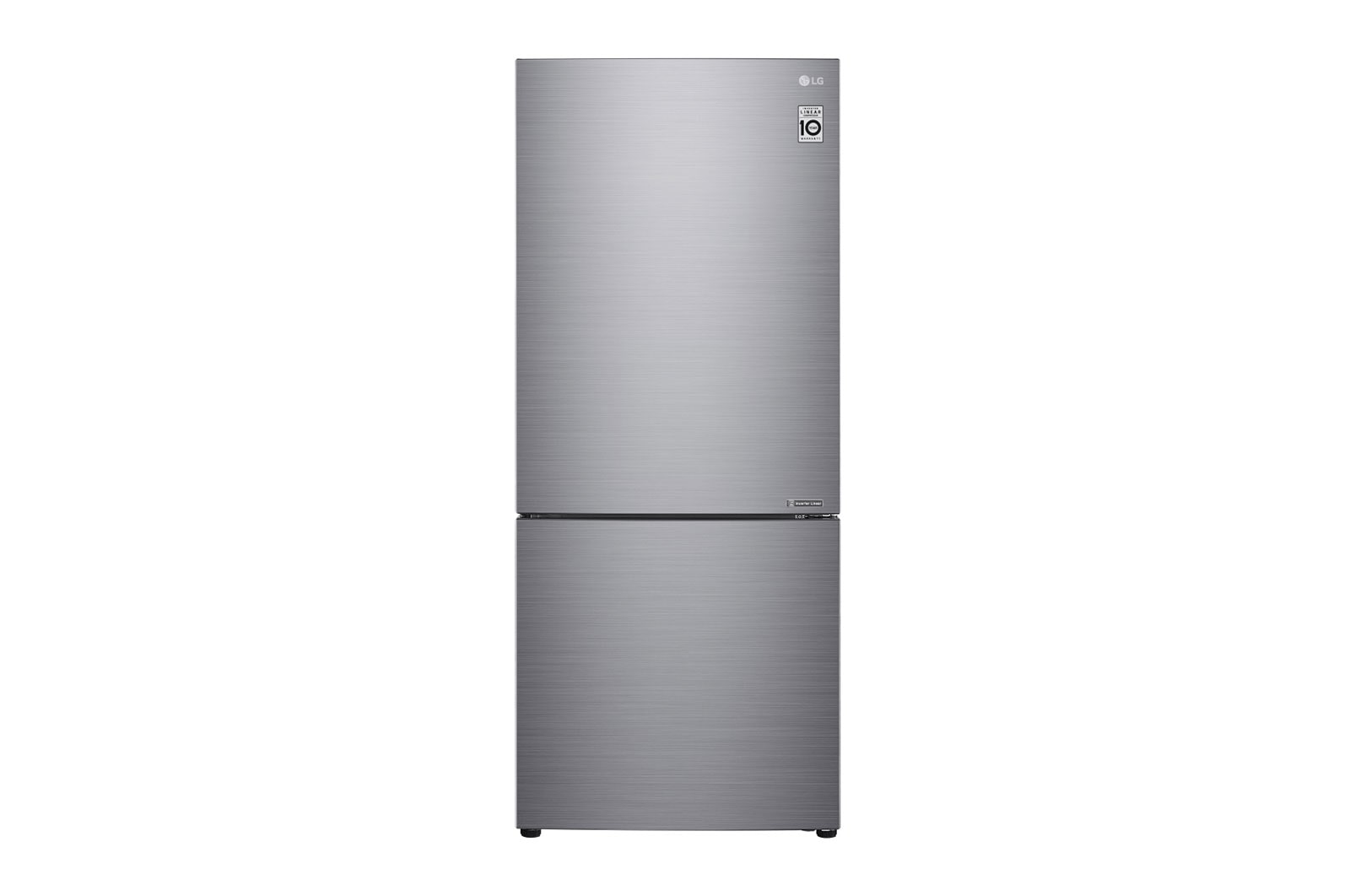

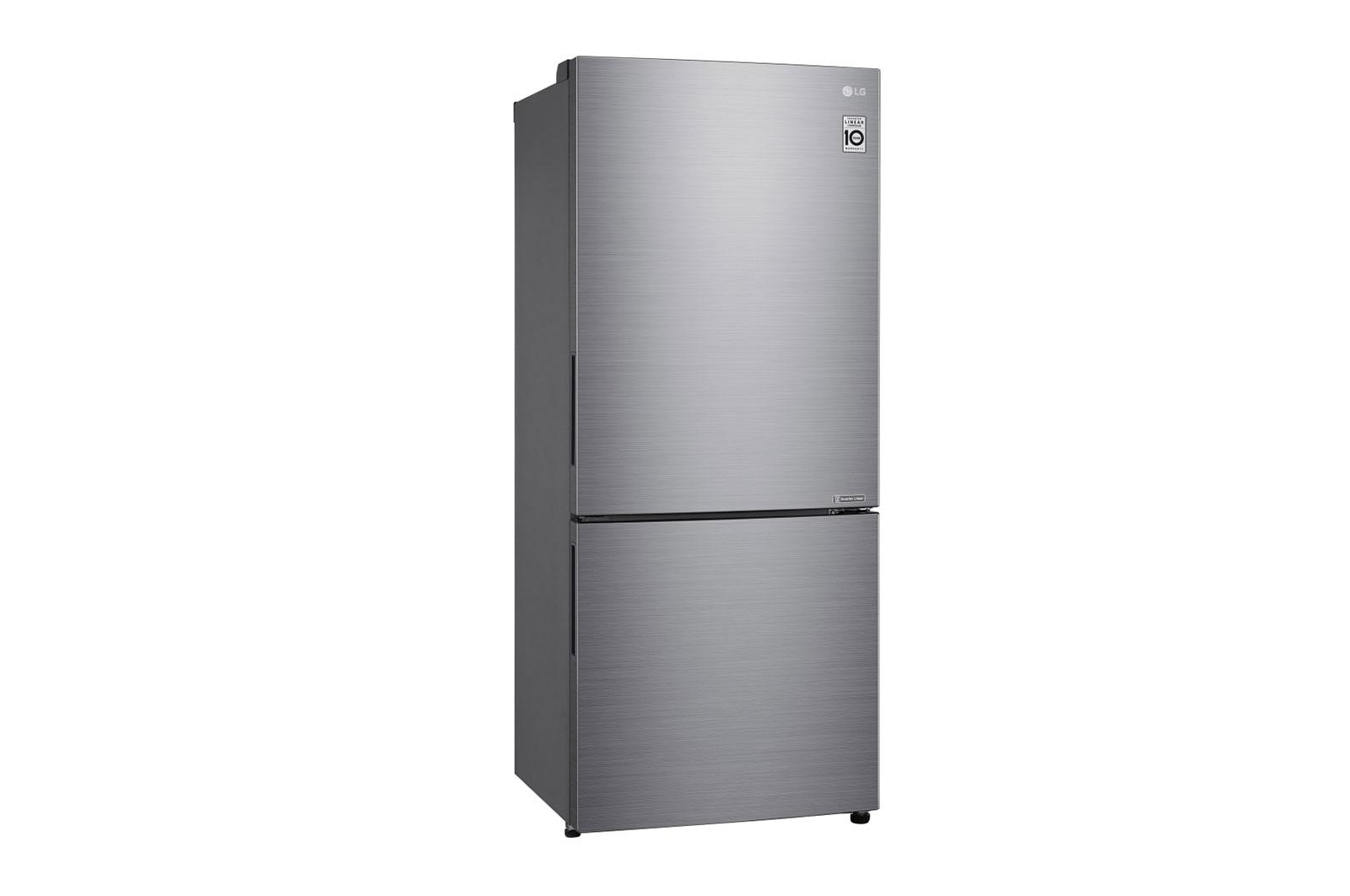

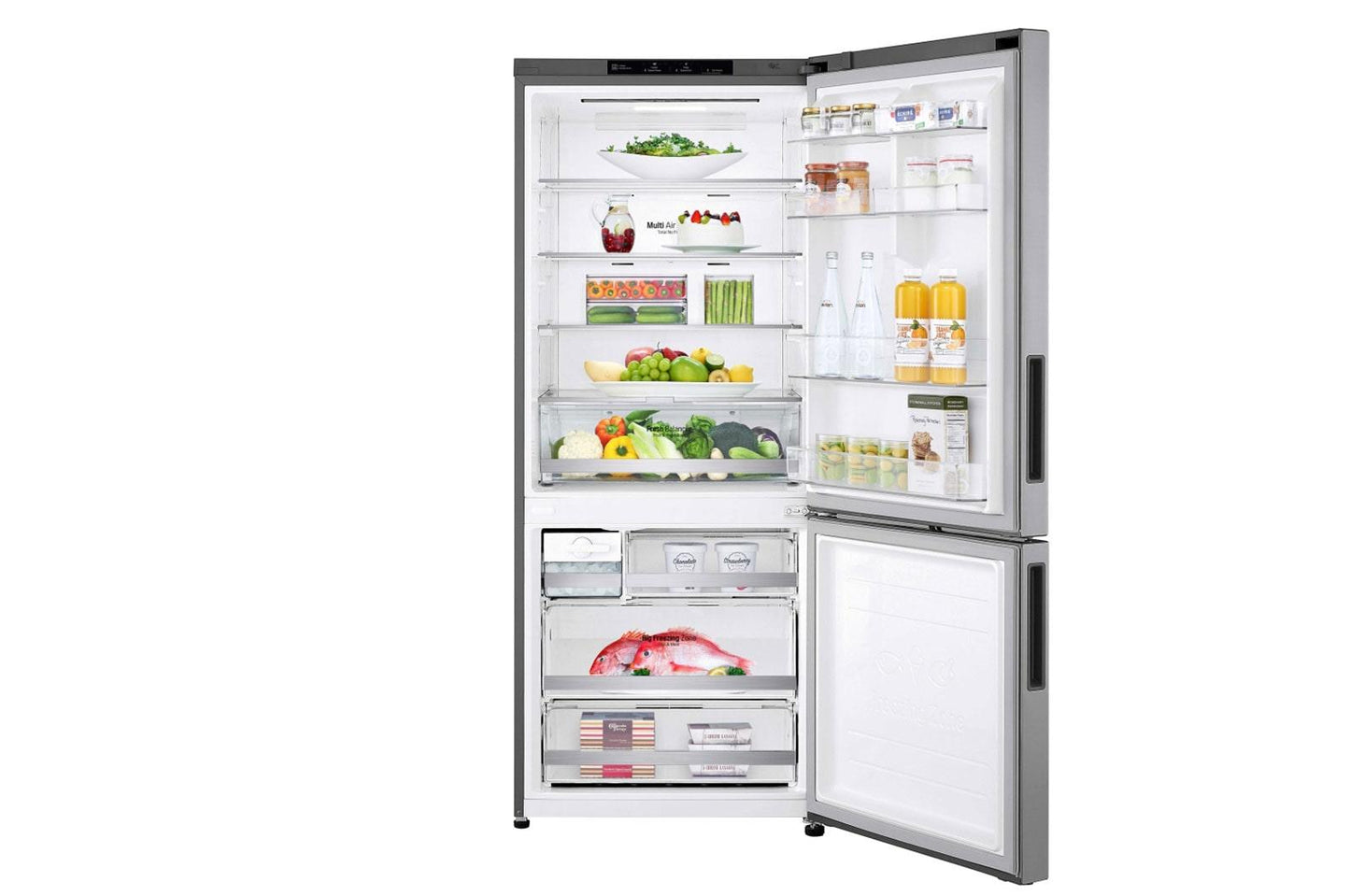

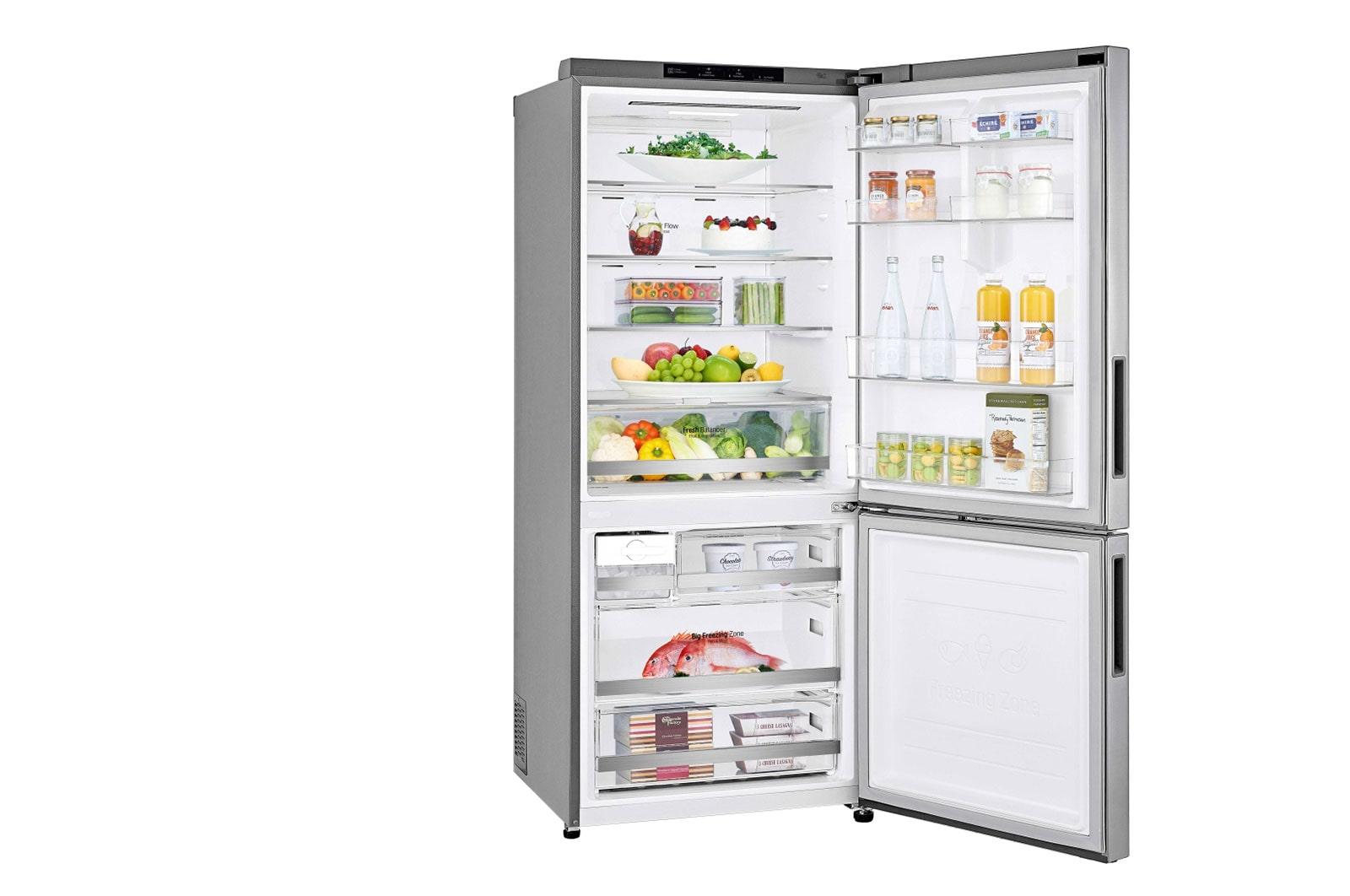

15 cu. ft. 28-inch Wide Bottom Freezer Refrigerator - Stainless Steel
| Capacity | |
| Freezer (cu.ft.) | 4.7 cu.ft. |
| Refrigerator (cu.ft.) | 10 cu.ft. |
| Total Capacity (cu.ft.) | 14.7 cu.ft. |
| Convenience | |
| Door Alarm | Yes |
| LoDecibel™ Quiet Operation | Yes |
| Temperature Controls | Electronic/Digital |
| Cooling | |
| Door Cooling+ | Yes |
| Linear Compressor | Yes |
| Multi-Air Flow™ System | Yes |
| Temperature Sensors | 4 |
| Dimensions/Clearances/Weights | |
| Carton Dimensions (WxHxD) | 29 5/16" x 69 13/16" x 30 13/16" |
| Counter Depth | Yes |
| Depth (Total with Door Open) | 46.63" |
| Depth with Handles | 27.38" |
| Depth without Door | 23.38" |
| Depth without Handles | 27.38" |
| Door Edge Clearance with Handle | 0.5" |
| Door Edge Clearance without Handle | 0.5" |
| Height to Top of Case | 67.75" |
| Height to Top of Door Hinge | 67.75" |
| Installation Clearance | Sides 2 |
| Standard Depth | No |
| Weight (Unit/Carton) | 167.6 lbs./185.2 lbs. |
| Width | 27.63" |
| Width (Door Open 90 with Handle) | 29.75" |
| Width (Door Open 90 without Handle) | 29.75" |
| Energy | |
| Energy Consumption (kWh/Year) | 430 |
| ENERGY STAR® Qualified | Yes |
| Freezer | |
| Door Type | Swing Door (Reversible) |

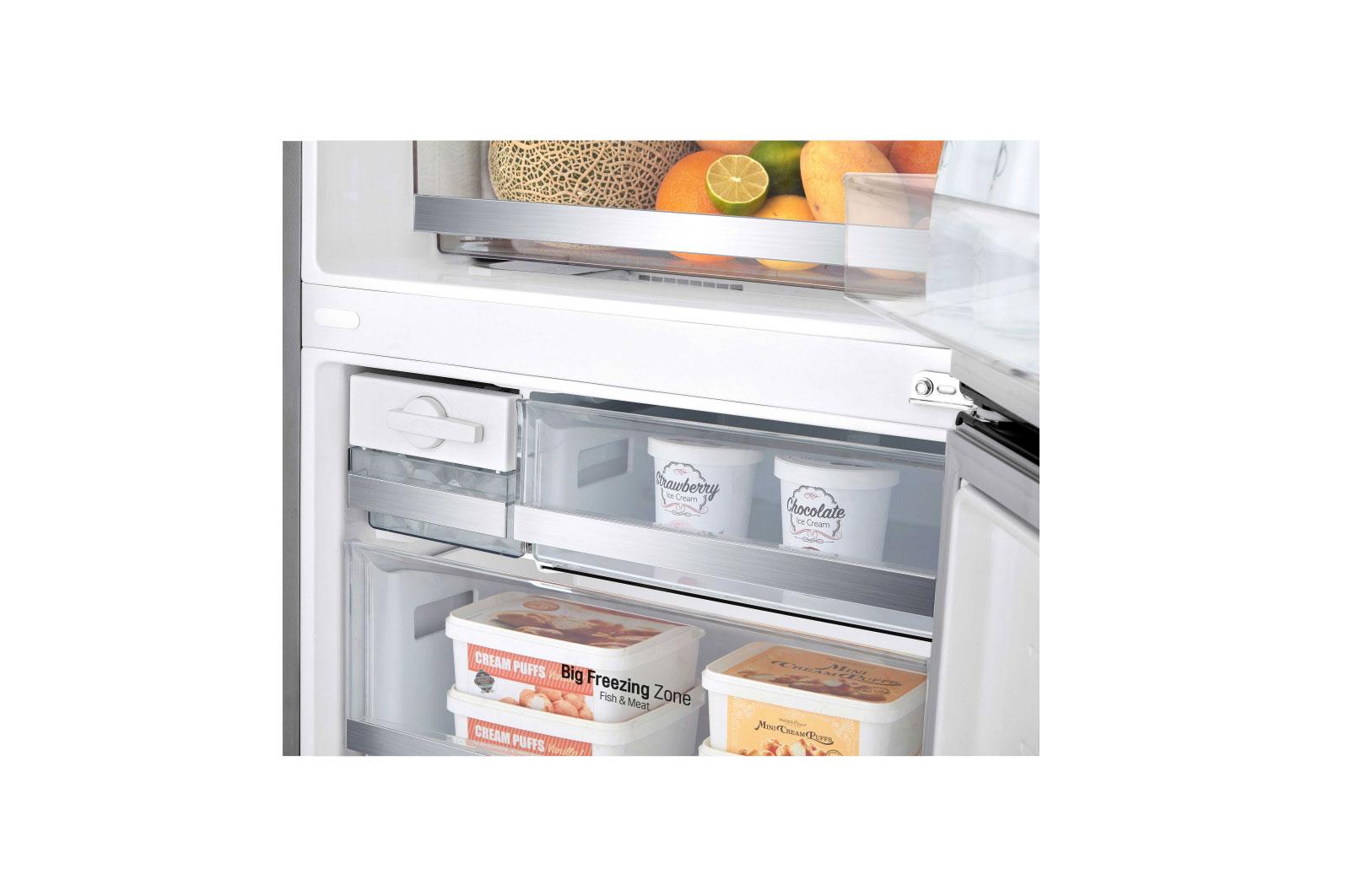

| Drawers | 3 |
| Freezer Handle | Vertical Pocket Type |
| Limited Warranty & UPC | |
| Compressor (Parts & Labor) | 5 Years |
| Inverter Compressor (Parts Only) | 6-10 Years |
| Parts & Labor | 1 Year |
| Sealed System (Parts & Labor) | 5 Years |
| UPC | 772454071300 |
| Materials and Finishes | |
| All Available Colors | Platinum Silver (PCM) |
| Back | Flush & Metal Cover Over Mechanical Parts |
| Contour Door | Yes |
| Handles | Vertical Pocket Type |
| Hidden Hinges | Yes |
| Surface | Smooth |
| Refrigerator | |

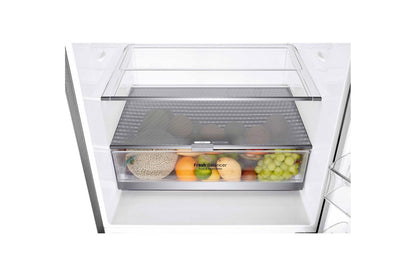

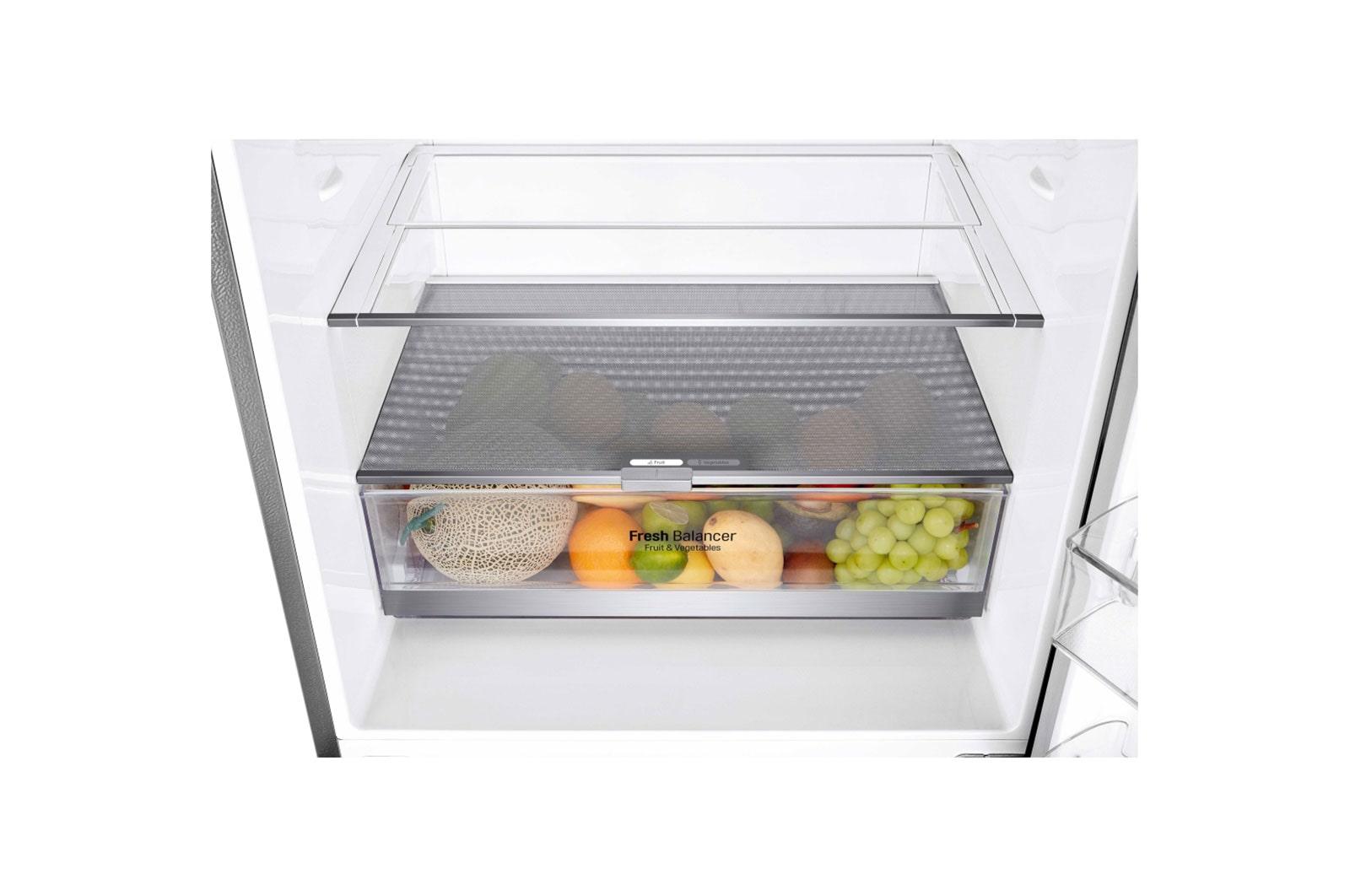

| Crisper Bins | 1 |
| Door Bin Construction | 1 Piece (Clear) |
| Folding Shelf | 1 |

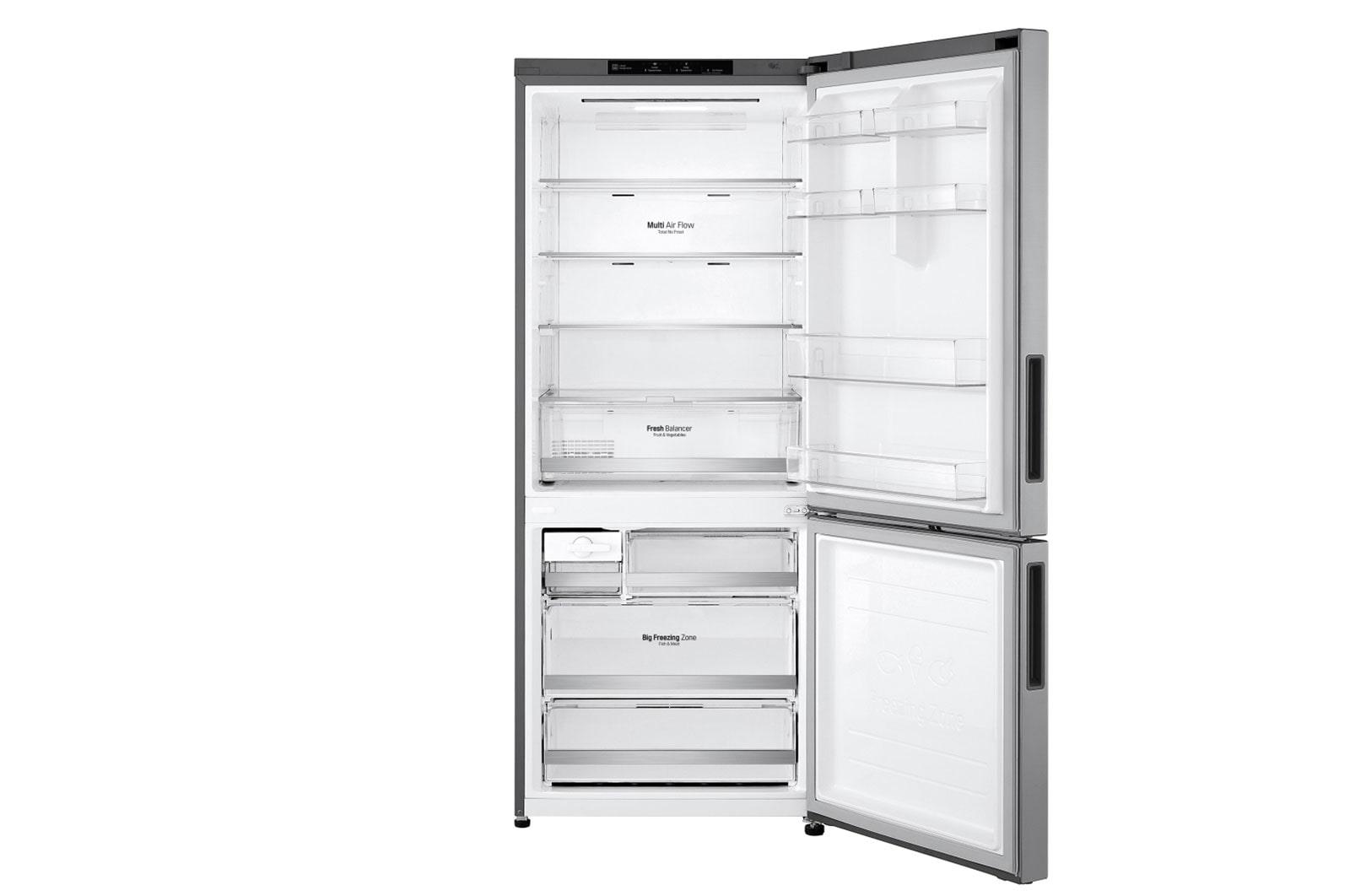

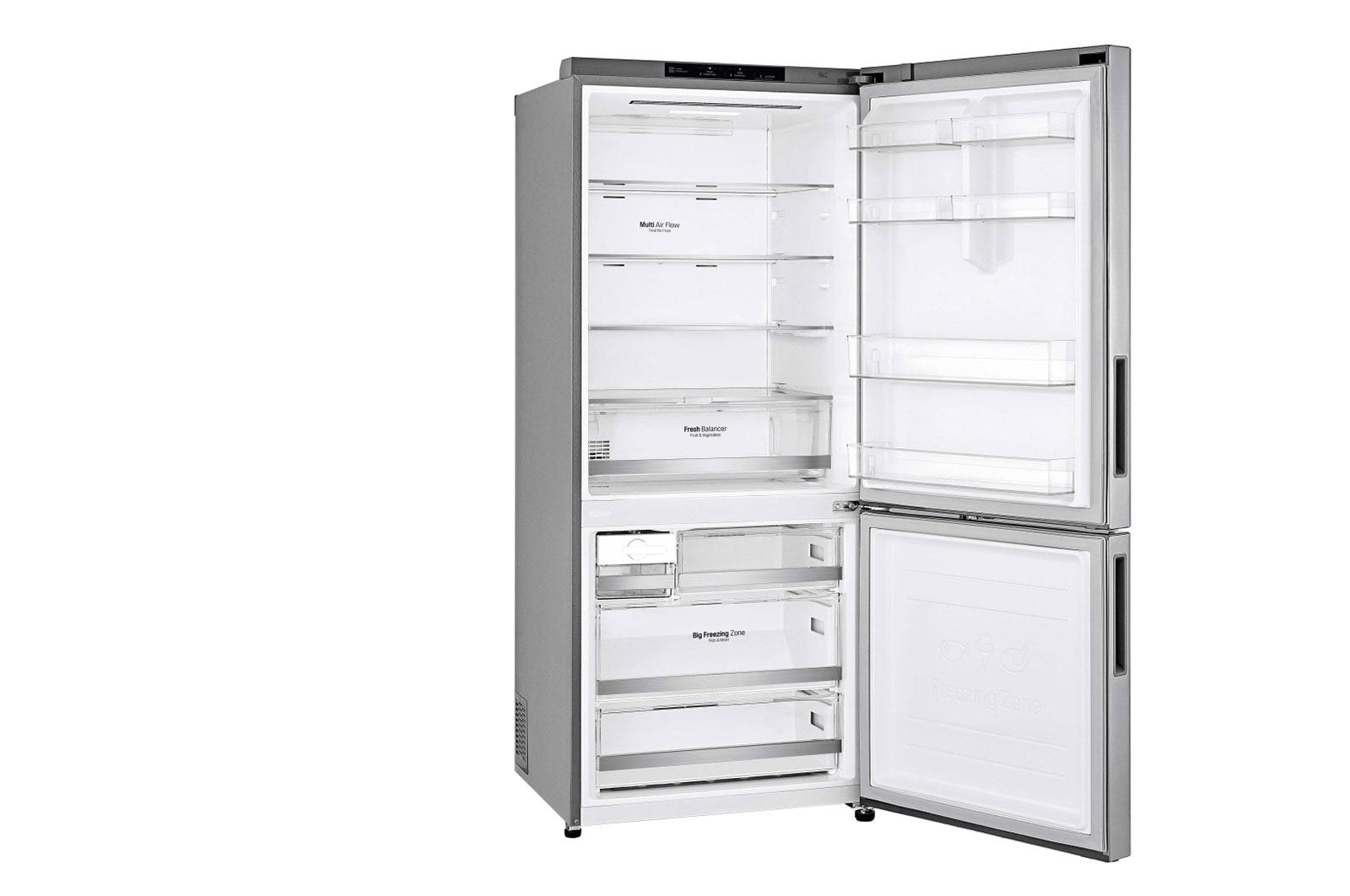

| No. of Bins | 6 total (2 full, 4 half) |

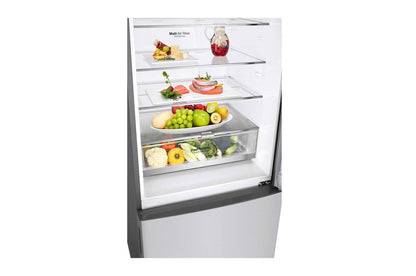

| No. of Shelves | 3 Full, 1 Folding |
| Refrigerator Light | Ceiling LED |
| Shelf Construction | Tempered Glass |
| Summary | |
| Display Type | Membrane / White LED |
| Refrigerator ThinQ® Smart Features | |
| SmartDiagnosis™ | Yes |
| Water & Ice System | |
| Ice & Water Dispenser | No |
