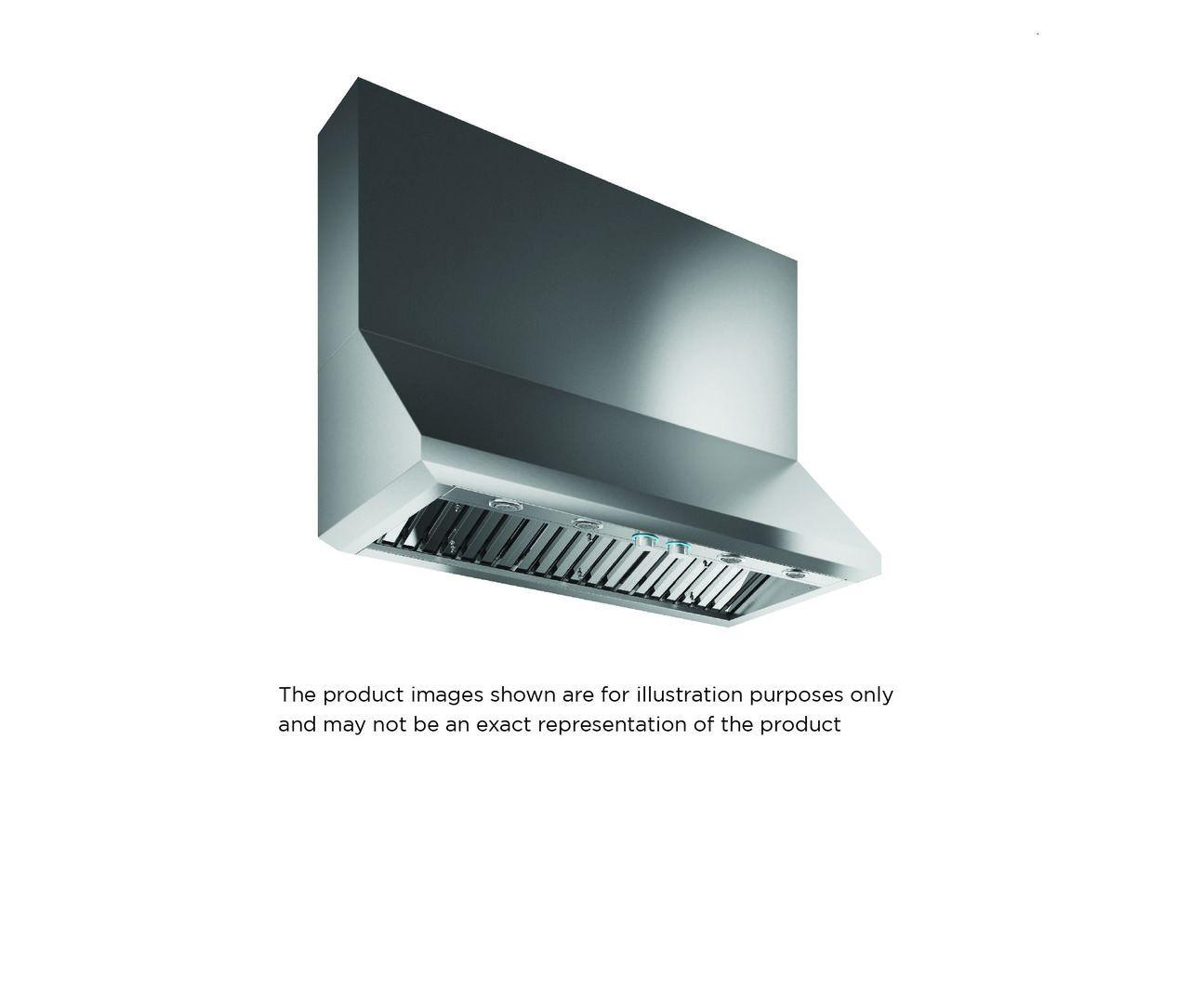

Elica ECP136SS CAPRI Outdoors Range Hood 36" wide - 1200CFM ECP136SS

Tame the outdoors, without sacrificing style and luxury. Capri features a heavy gauge, corrosion-resistant 302-grade stainless steel body, which will withstand the harshest environment. The extra deep 32 hood body is complimented with dual sets of angled stainless steel professional baffle filters, that provide a 1200 CFM blower that has the power to do the job. For exceptional air capture Capri is available in 36 and 48 widths, an optional 3 spacer will extend the depth to 35 for added capture efficiency, plus optional 12 and 6 duct covers are available to reach any ceiling height.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	50.40
NET WEIGHT (kg)	40.40
CARTON LENGHT (mm)	1044.00
CARTON HEIGHT (mm)	943.00
CARTON WIDTH (mm)	584.00
VOLUMEN (M3)	0.41
SHIPPING WEIGHT	111.11
NET WEIGHT	89.07
CARTON LENGHT	41.10
CARTON HEIGHT	37.13
CARTON WIDTH	22.99
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Corrosion Resistant Grade Stainless Steel
Color	inox
Type of Ventilation	Non-Vented
HOODS FEATURES	Heat guard, Professional performance, Grease collectors, Seamless look
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	2040.00
CFM (MAX)	1200.00
db (min)	35.65
db (max)	59.00
SONES	1.7 - 8.5
EXHAUST VERSION	Ducted Only
EXHAUST SIZE	Round 10"
DUCT SHAPE	Round
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	10"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	7,7 A
HERTZ	60.00
WATTS	NA
LIGHTING	LED 2 x 6.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	7.50
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Sold separately
CONTROL TYPE	Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	YES
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	NO
CFM REDUCTION	No
DIMENSIONS	91 x 80 x 45
DIMENSIONS inches	36" x 32" x 18"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	18"
Maximum Overall Height - Top to Bottom	18"
Overall Height - Top to Bottom	18"
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	32"
Hood Height	18"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop	30"
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	36"
Chimney Depth - Front to Back	11 15/16"
Chimney Height - Top to Bottom	6"/12"
STYLE	Modern
RECIRCULATION KIT NUMBER	NA
CHIMNEY EXTENSION NUMBER	KIT0156645/KIT0156637
TELESCOPIC DUCT COVER	KIT0205343
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	KIT0156655
INLINE BLOWER	KIT0154387
EXTERNAL BLOWER	KIT0153054
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	KIT0153304
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	YES
CHAROCAL FILTER	NO
VERSION ADVANCES	The rear outlet was implemented
CERTIFICADO NOM	No
